Yonico 33209q Top Bearing Ultra-Performance Compression Flush Trim Router Bit, 1/4-Inch Shank

Overview

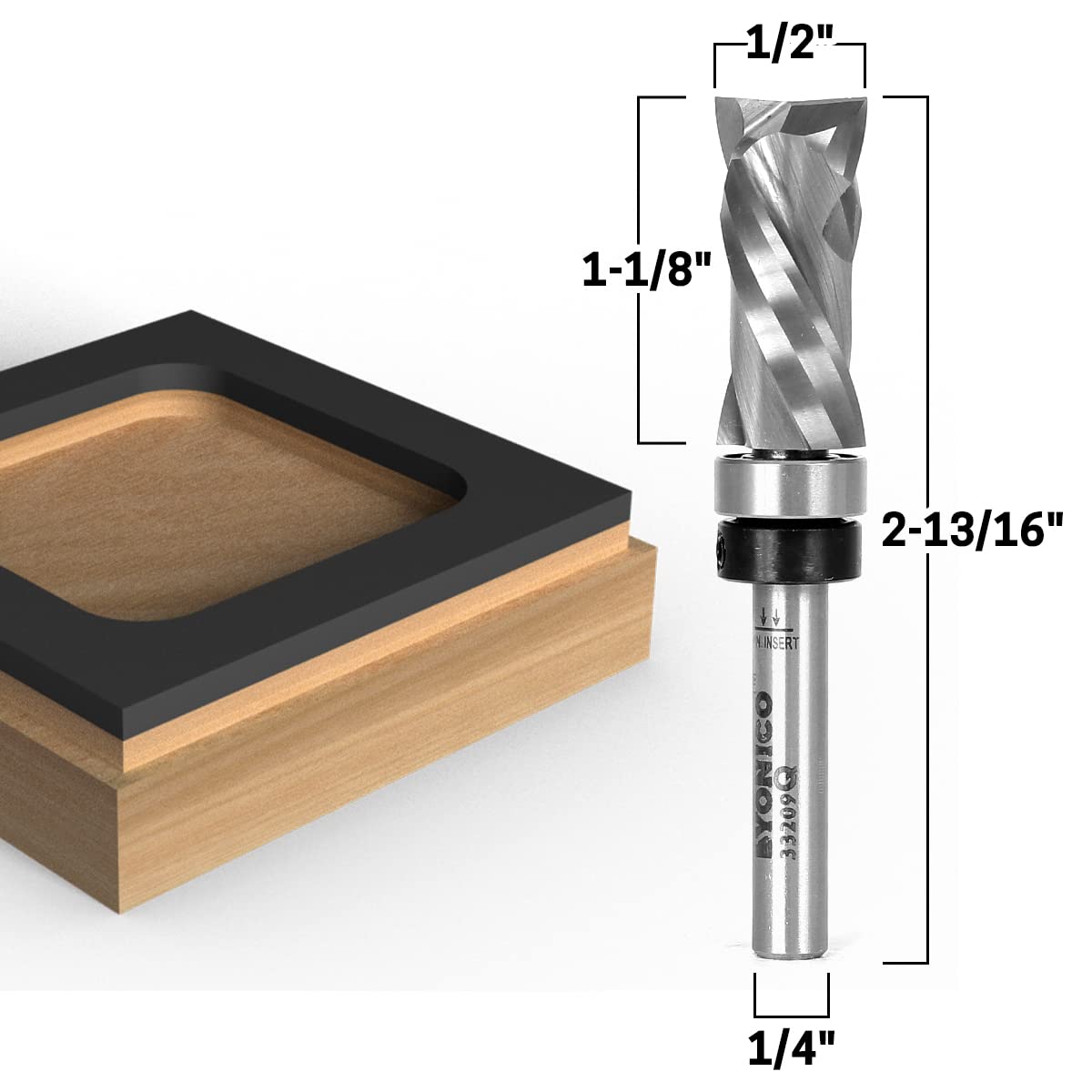

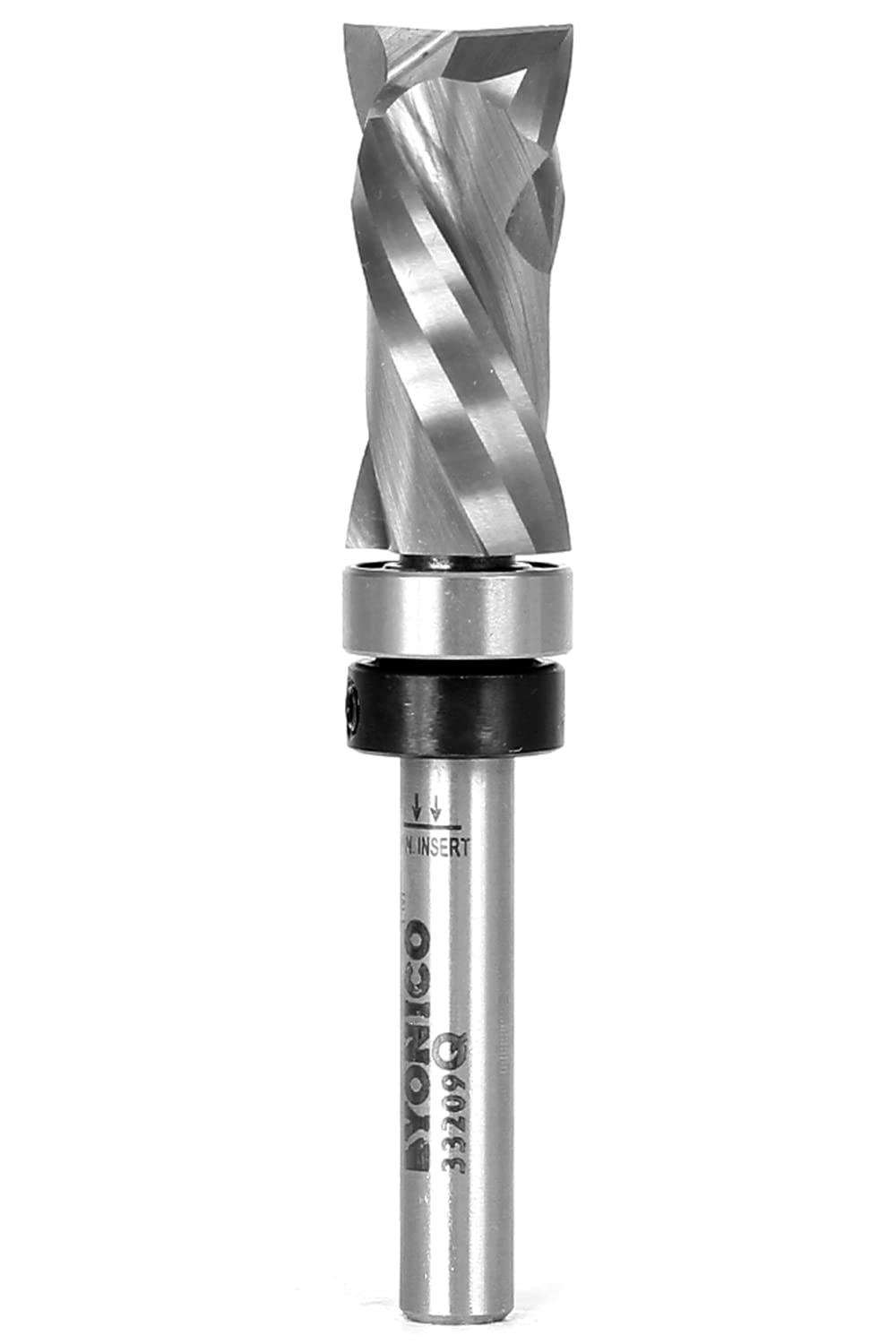

The Yonico 33209q Top Bearing Ultra-Performance Compression Flush Trim Router Bit is built around a solid carbide sleeve welded to a hardened steel core. It features a cutting length of 1-1/8 inches, a diameter of 1/2 inch, an overall length of 2-3/4 inches, and a 1/4 inch shank. This combination aims to deliver controlled trims on end grain while maintaining a smooth, consistent cut across your project surfaces.

Key specifications

• Cutting length: 1-1/8 inch
• Diameter: 1/2 inch
• Overall length: 2-3/4 inches
• Shank: 1/4 inch
• Construction: solid carbide sleeve welded to hardened steel core

Why this bit stands out

• Flush trims end grain from any direction for a clean, consistent edge
• High performance C3 micro-grain solid carbide sleeve with a mirror-polished finish
• Suitable for both table mount and handheld routers
• Complex up-down or compression geometry delivers a refined finish compared to standard flush trim bits

In practice, this bit can help you achieve precise edges on veneered surfaces, patterned routes, and edge work where consistency matters. The mirror-like interior surface reduces friction, allowing smoother passage through material and a steadier cut as you navigate templates or guides.

Real-world uses

• Edge trimming of veneer panels, plywood edges, and inlay work
• Pattern routing and template-guided trimming for repeatable results
• Flush trimming on cabinet doors and face frames where a tight edge is desired

As with any router bit, results depend on workpiece type and setup. This tool is designed to offer a durable, cost-effective option for both professional shops and hobbyists, providing a performance edge without overcomplicating your workflow.
