Zooz Z-Wave Long Range Relay ZEN17 800LR – 2 NO-C-NC Relays (20A/10A) | Hub Required

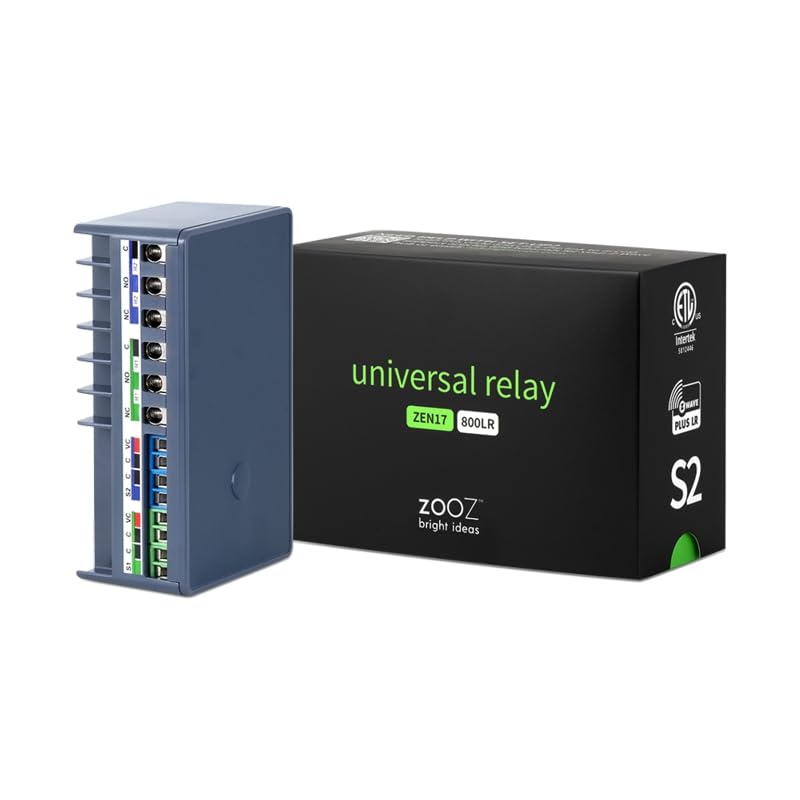

Introducing the Zooz ZEN17 800LR Z-Wave Long Range Relay

Bring reliable Z-Wave control to hard-wired devices with a single, compact relay module. The ZEN17 800LR provides two independent dry-contact outputs that can be configured as normally open (20 A max) or normally closed (10 A max). Attach a wall switch for local on/off control, or let your Z-Wave hub automate it wirelessly. This package is designed to enrich your smart space without changing your existing wiring, offering flexible compatibility with supported hubs and ecosystems.

Smart outputs and inputs for flexible automation

Operate two outputs independently to power different devices from one module. The two smart inputs monitor 12-24 V signals or dry contacts and report their status to your hub, enabling sensor-driven responses. These inputs can trigger the outputs automatically, creating responsive scenes for real-life scenarios.

• Two independent outputs with configurable NO (20 A) and NC (10 A) relays
• Two smart inputs for observing 12-24 V signals or dry contacts

Endless automation possibilities

Automate up or down DC motors for blinds, awnings, and gates. A single ZEN17 800LR can handle two garage doors and supports a wide range of devices from 1 to 240 V up to 20 A per output. Pair it with sprinklers, outdoor lighting, doorbells, or pool equipment to unlock smart control possibilities.

• Supports devices up to 20 A per output
• Suitable for motors, lights, and other 1-240 V loads

Install, secure, and stay powered

Power options include a 12-24 V AC/DC supply or a USB-C cable (power adapter sold separately). The unit is wall-mount ready and designed for straightforward wiring. Note: do not power from 110 V mains.

• Power via 12-24 V AC/DC or USB-C (adapter sold separately)
• Wall-mount ready; jumper wires not included; 110 V power is not supported

Smart features and hub compatibility

Equipped with the latest 800 Z-Wave technology for stronger mesh coverage, S2 authentication, and SmartStart for easy pairing. It remembers and restores on/off status after power outages and supports optional auto-on/off timers when your hub enables them. ETL listed for North American safety.

• New 800 series Z-Wave for better range and reliability
• S2 security and SmartStart for secure, quick pairing
• Power loss recovery and optional timer features

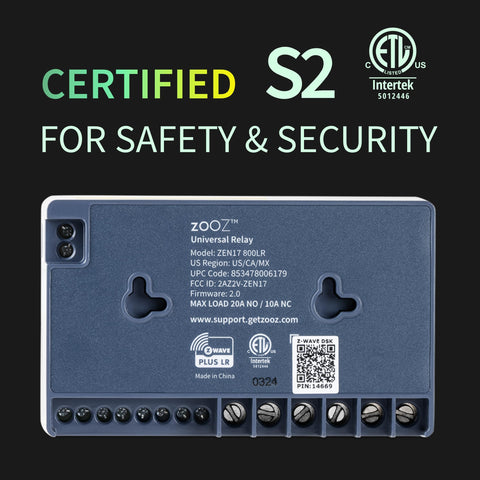

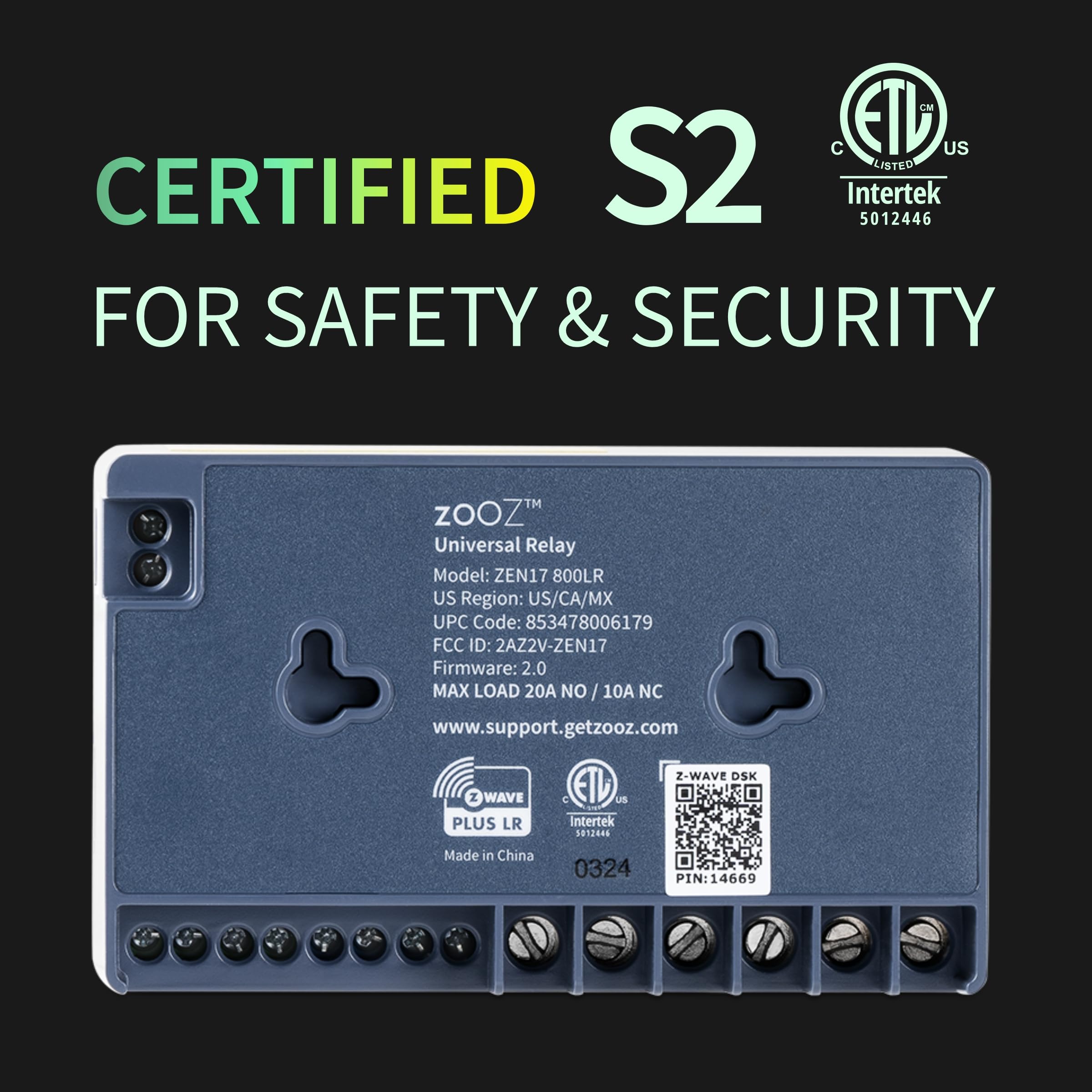

• ETL certified for North American safety standards

Hub compatibility and usage notes

Open Z-Wave hubs are required for proper display. This device has been tested to work well with Hubitat, Home Assistant, and HomeSeer (with compatible plug-ins), and is compatible with SmartThings via a custom device handler. Not supported by Wink, ADT Pulse, or some alarm panels.
