XD-3420 High Torque DC Motor 12V/24V CW/CCW - 30W Mini Motor with Mount
Overview The XD-3420 is a compact permanent magnet DC motor designed to run on 12V or 24V. At 12V it...
Vendor:
XD-3420
- $71.53
- $71.53
- Unit price
- per
Please hurry! Only 5 left in stock
Subtotal:
$71.53
10 customers are viewing this product
Free Shipping
We offer free standard shipping to every province and territory in Canada.
Free Returns
Learn More.
Seasonal Shipping Delays to Outer Regions
Learn More.
Description
xOverview

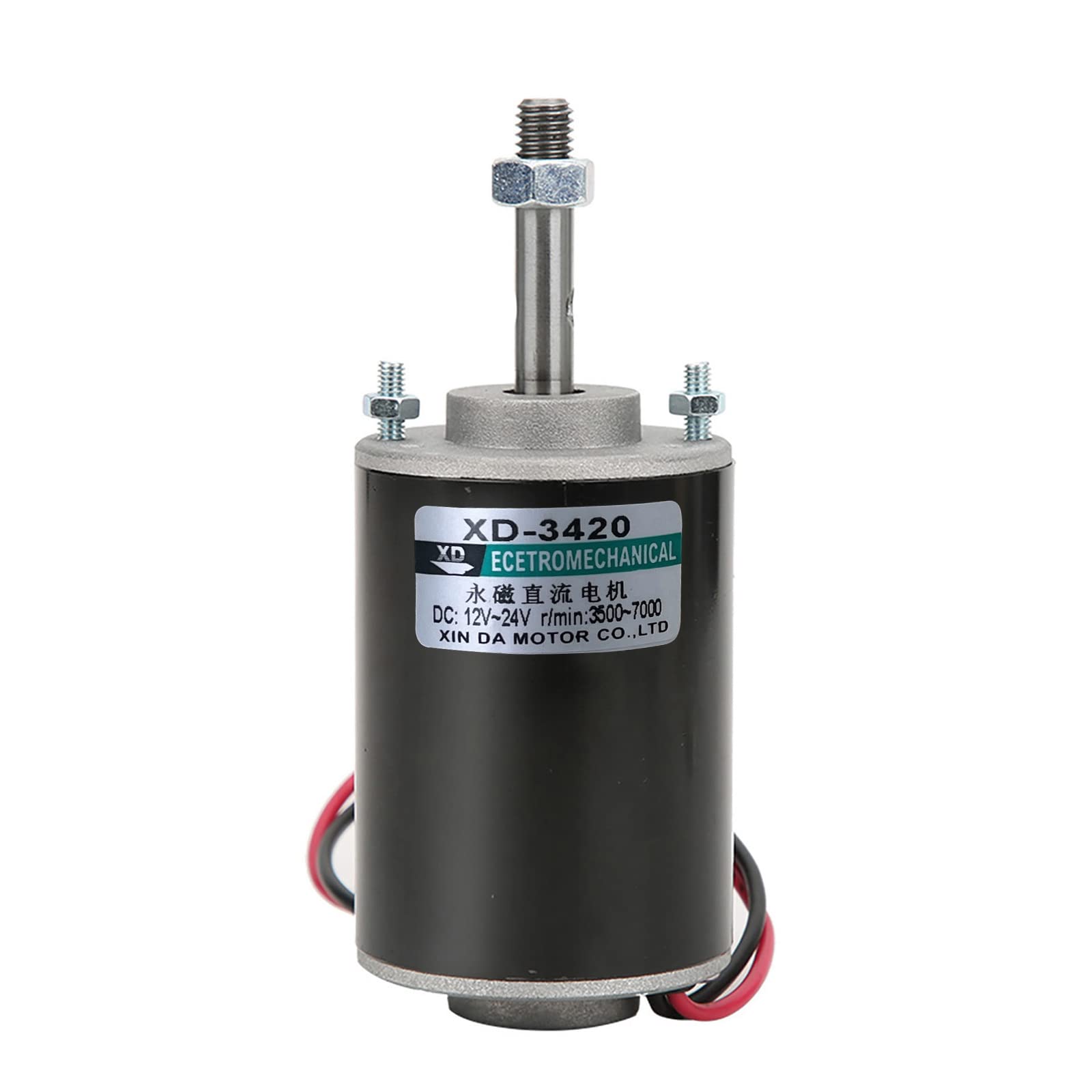

The XD-3420 is a compact permanent magnet DC motor designed to run on 12V or 24V. At 12V it delivers up to 3500 rpm, and at 24V up to 7000 rpm. It supports CW and CCW rotation, and you can pair it with an external controller to dial in speed. The built-in motor stand aids straightforward mounting in a range of setups.
With a focus on smooth operation, low noise, and efficient copper windings, this motor is a practical choice for hobbyists and small projects. Its 2-pole design and compact form factor make it easy to integrate into tight spaces, while the CW/CCW capability adds installation flexibility for varied layouts.
Key features and specs
- Rated power: 30 W; Rated voltage: 12 V or 24 V
- Idle speeds: 3500 rpm at 12 V; 7000 rpm at 24 V
- Torque: 1 kgf.cm (12 V); 2 kgf.cm (24 V)

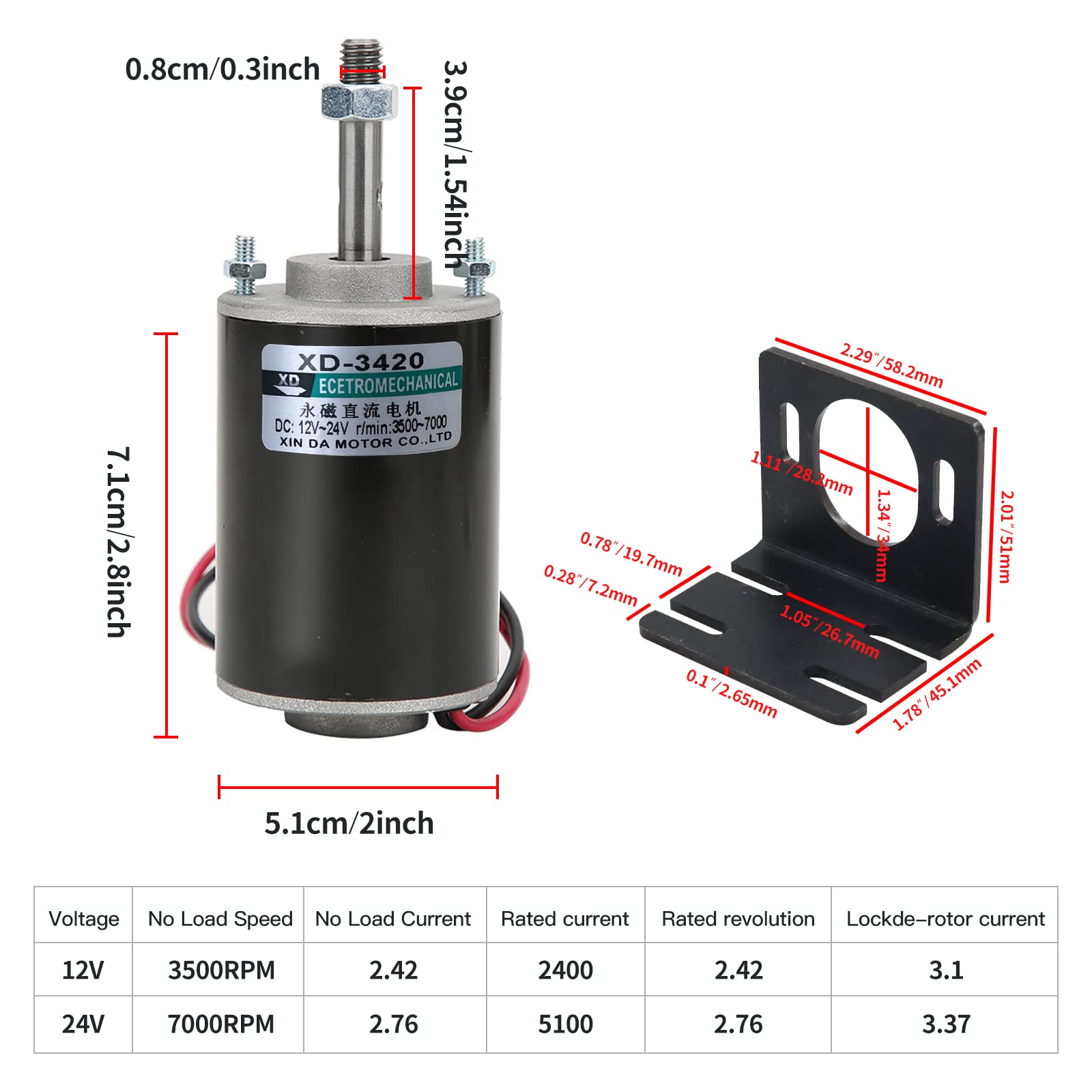

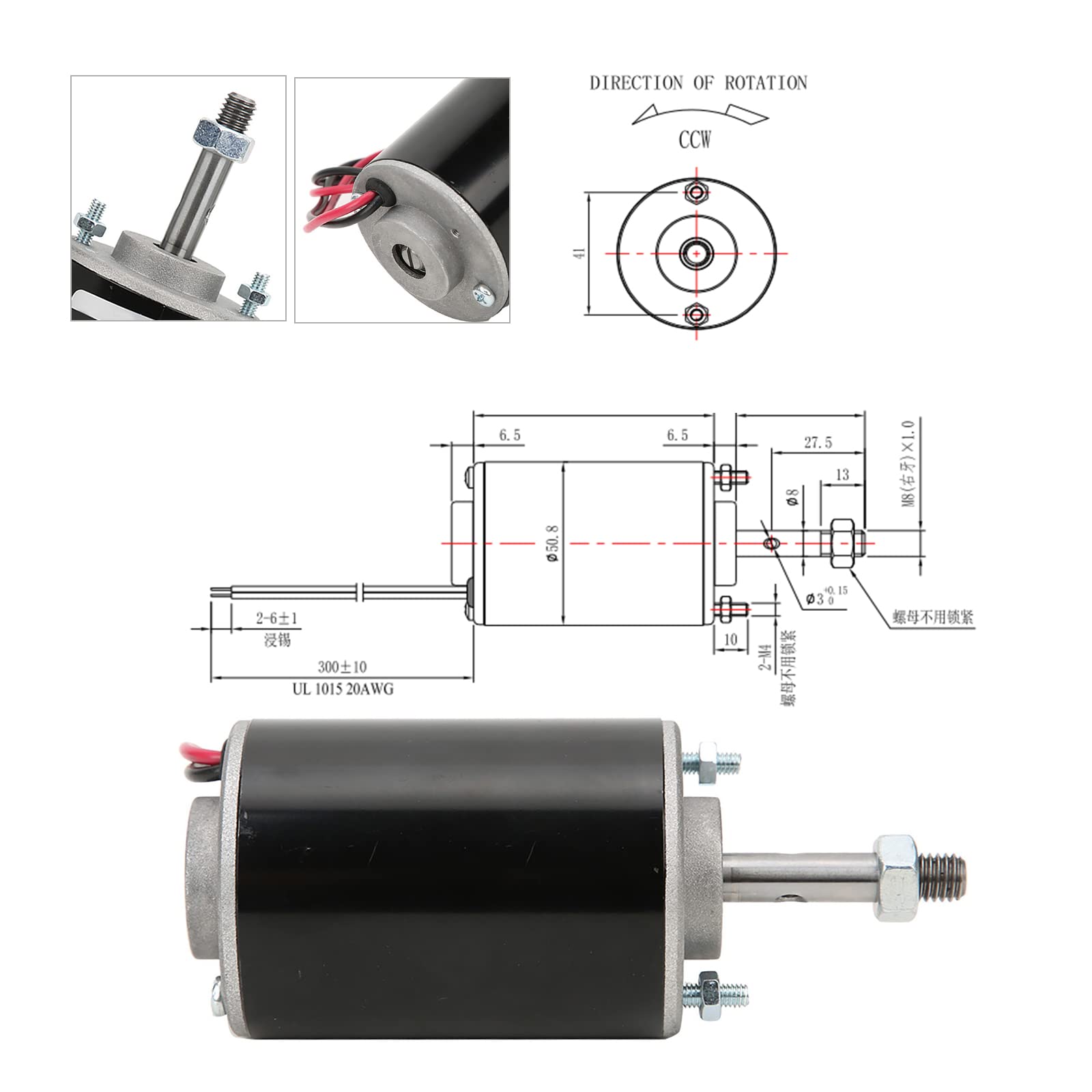

- Output shaft: 8 mm diameter; 38 mm length
- Poles: 2; Model 3420
- CW/CCW rotation; direction selectable by wiring or control
- External DC controller required for speed regulation

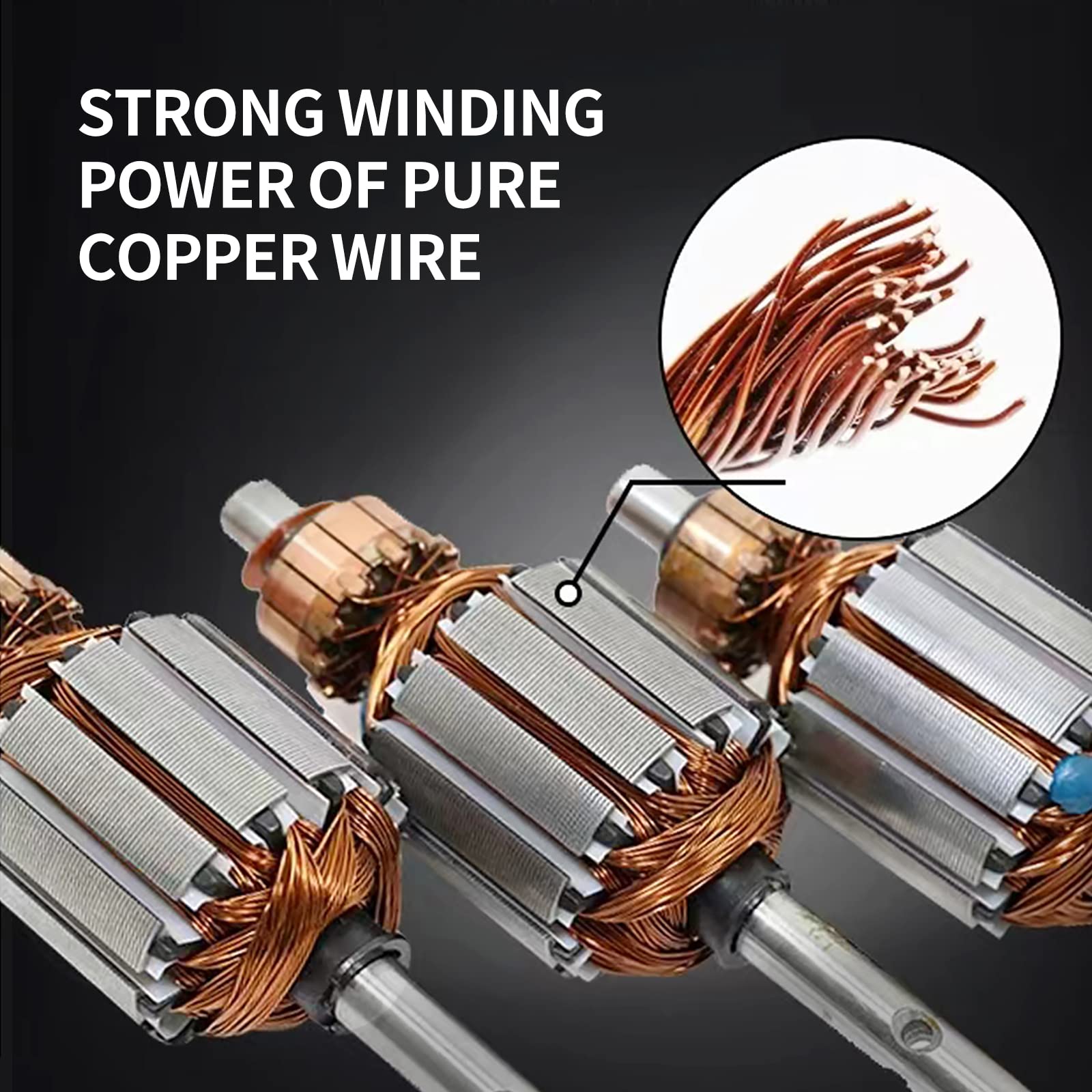

- Low noise, high-speed drive with pure copper windings
Ideal for DIY and compact equipment
The XD-3420 is designed for easy mounting in small machines, hobby projects, and DIY generators. Its compact motor stand and mounting hardware help you position the motor confidently in cotton candy machines, small cutting tables, grinders, medical equipment, and other 12V/24V setups.

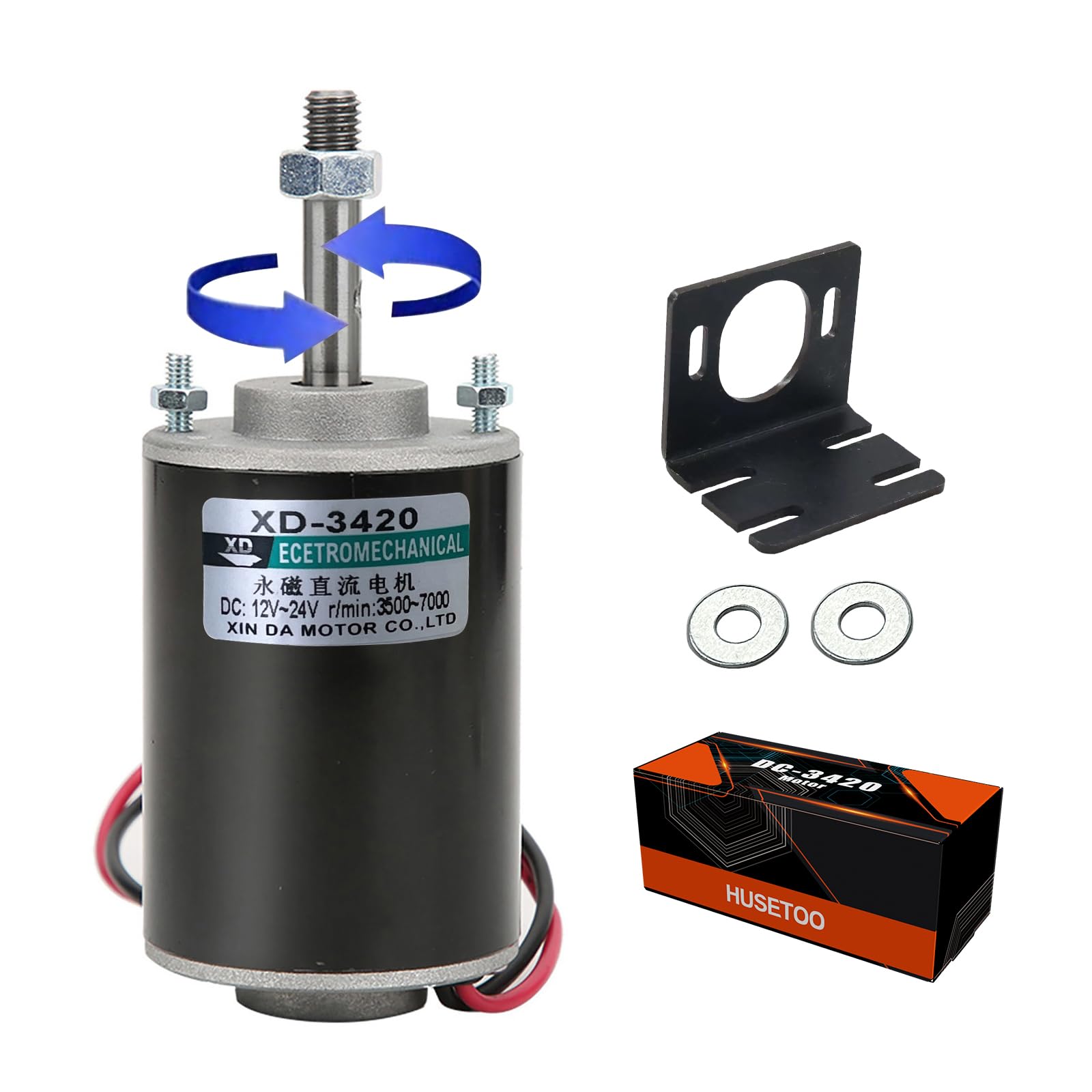

What’s in the box
- 1 x mini 12V/24V CW/CCW permanent magnet DC motor
- 1 x motor holder
- 2 x M4 spacers
Practical considerations

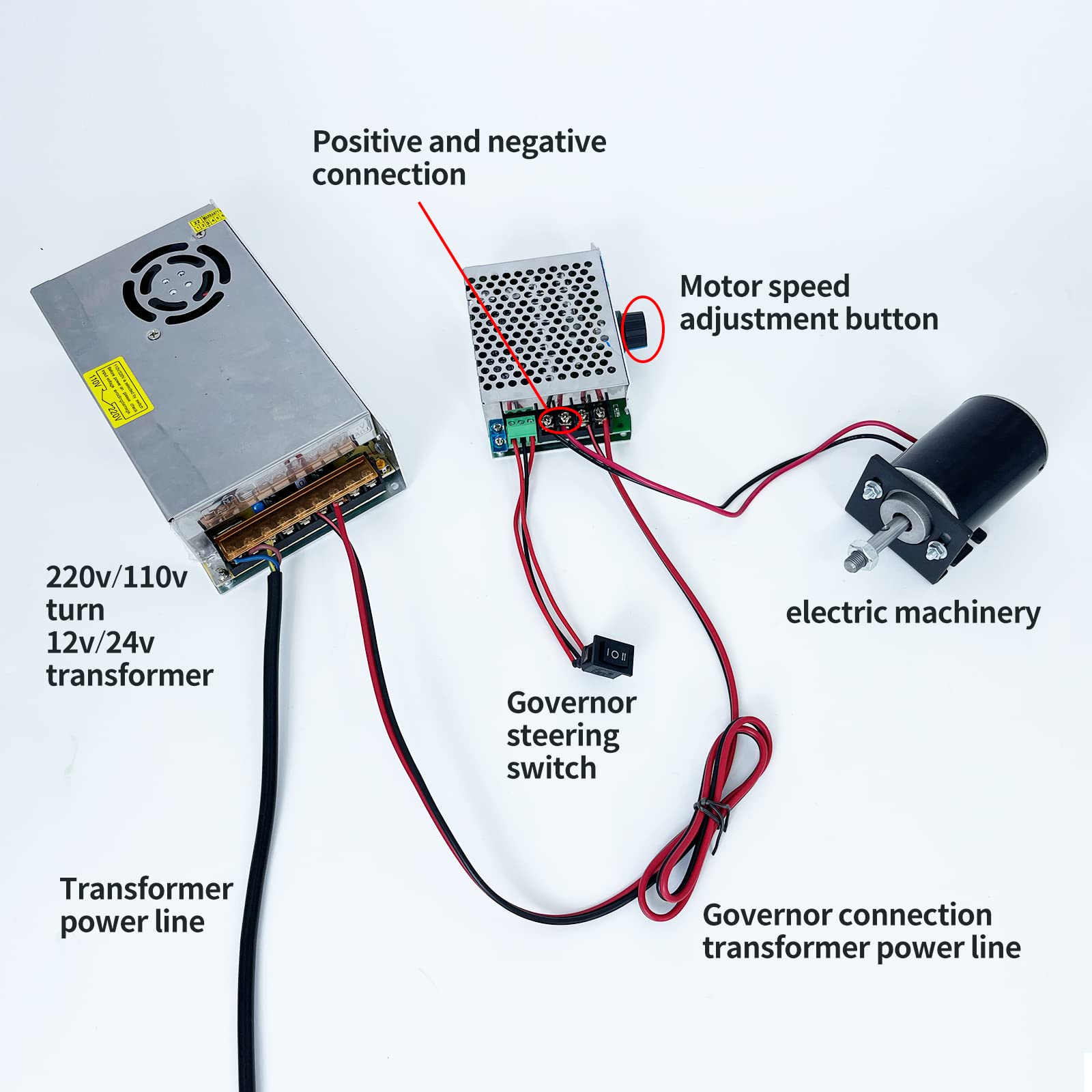

- An external DC controller is needed to adjust speed
- Designed for high-speed operation and reliable performance under load
FAQ
Q: What voltages does the XD-3420 motor support and how is direction controlled?
A: The XD-3420 supports 12V and 24V and can rotate CW or CCW. An external DC controller is required to adjust speed.
Q: What projects is this motor suitable for?
A: Ideal for DIY machines and generators, such as small tables, cutters, grinders, or lab setups with mounting options.
