WINWEITGO D132 161M08 3.3 inch Frame Shaded Pole Motor – 1/20 HP, 1550 RPM, 115V, 60Hz, Quiet & Durable

Overview

The WINWEITGO D132 161M08 3.3 inch frame shaded pole motor is designed to handle a range of tasks with quiet, steady performance. Operating at 115V, 60Hz, it delivers 1/20 HP and 1550 RPM, a combination well suited for HVAC fans, blowers, and general purpose equipment. The open air over enclosure promotes cooling, protecting components during longer runs, while a 5/16 inch shaft by 2 1/4 inches provides flexible mounting options. Featuring a CW shaft end and robust bearings, this motor is built for reliable operation in everyday environments of both home and light commercial settings.

Quiet, smooth operation for everyday needs

Sound levels matter in living and working spaces. The D132 161M08 is engineered to minimize noise during operation, helping spaces stay comfortable while equipment runs. Expect smooth rotation that reduces vibration and supports steady airflow and consistent performance. The shaded pole design, paired with dependable bearings, contributes to an overall sense of steadiness you can rely on for routine tasks.

• Low noise profile supports residential and light commercial use
• Smooth, consistent rotation reduces wear and promotes long-term reliability
• Open frame design enhances cooling and heat dissipation

Durable construction for longer service life

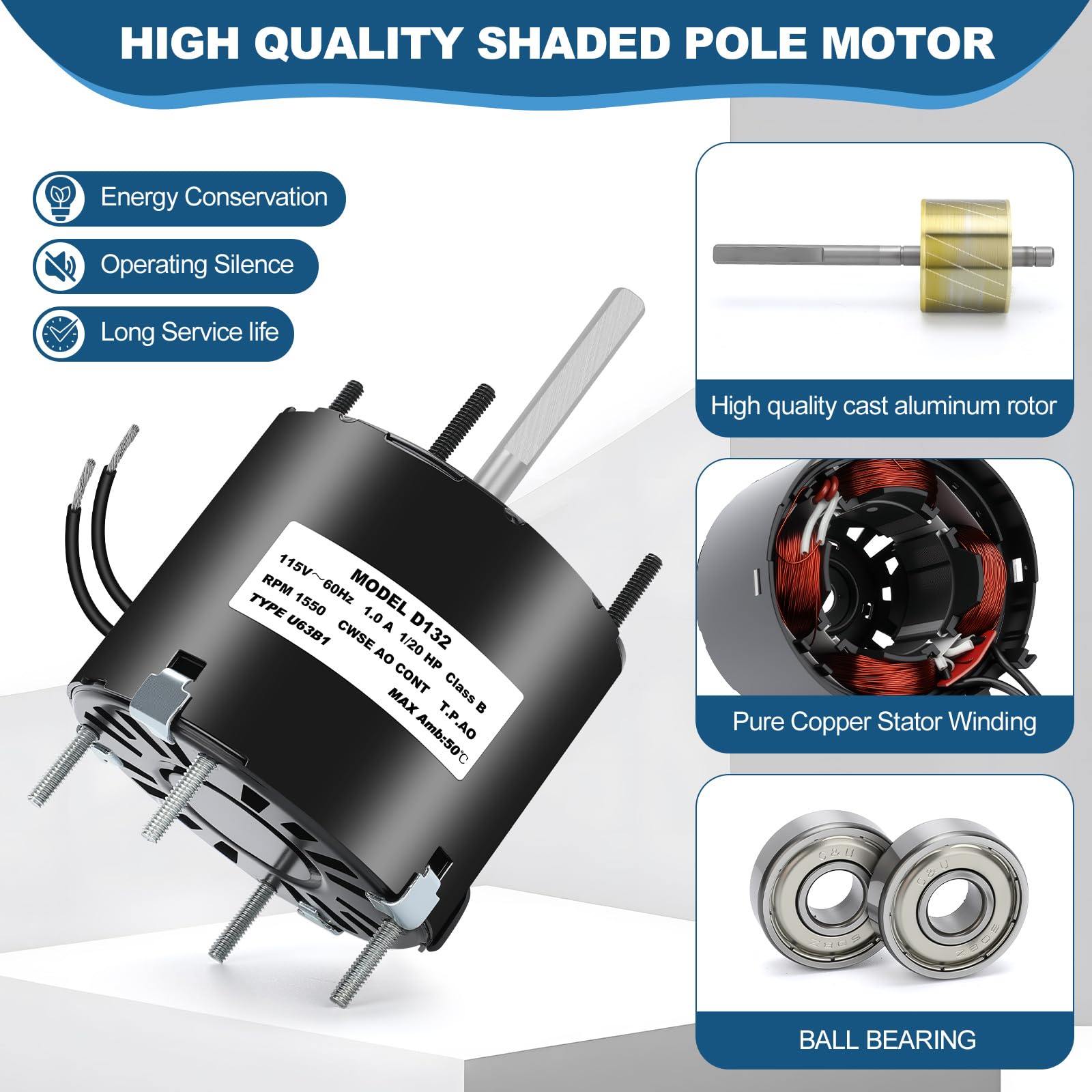

Built with high-quality copper windings and an open ventilated frame, the motor is prepared to manage heat and maintain performance over time. Thermal protection guards against overheating, a practical feature for installations where airflow may vary. The design also accommodates practical fitment, with the option to trim extra studs or shorten the shaft to suit specific assemblies.

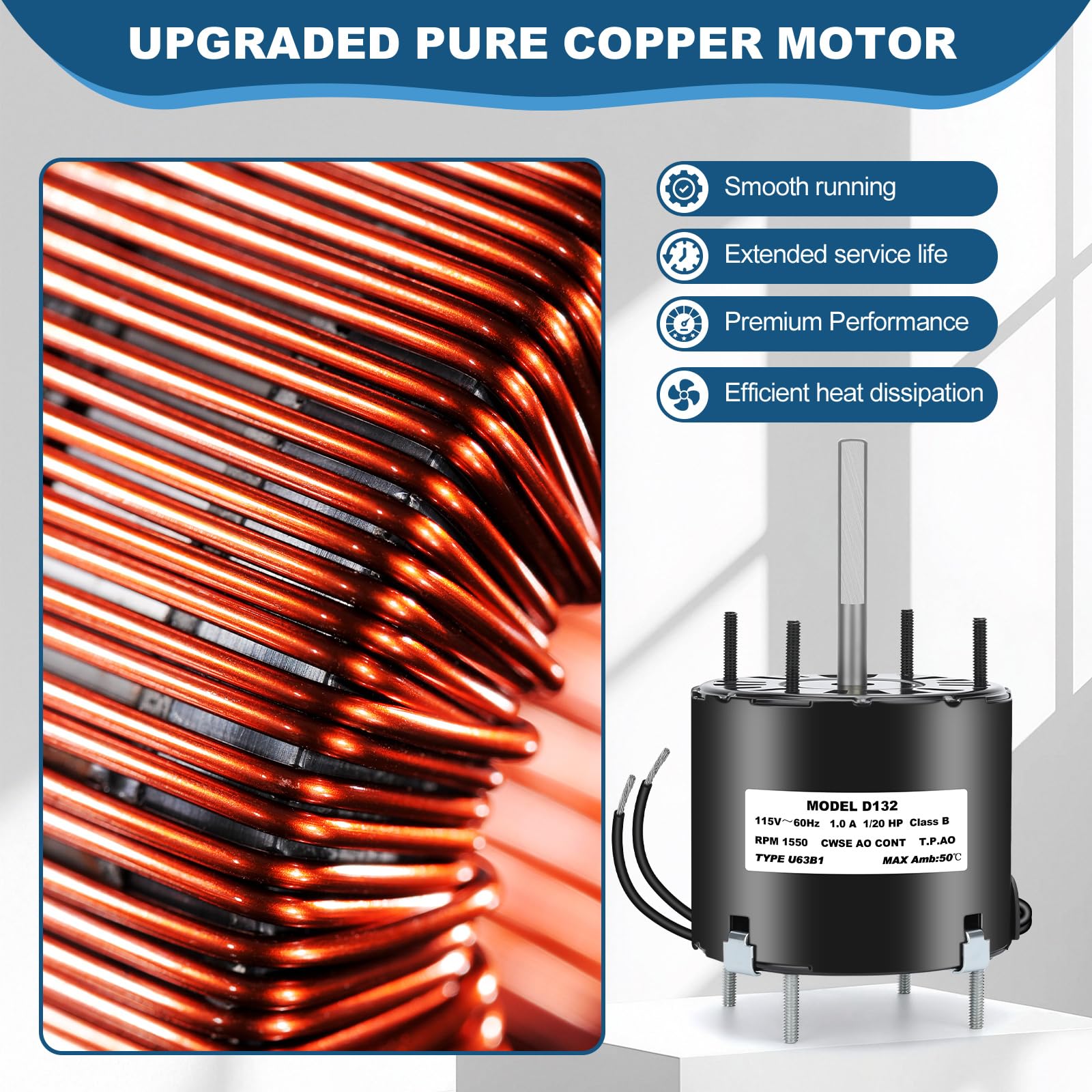

• Copper windings support durability and efficiency
• Thermal protection helps safeguard continuous operation
• Versatile mounting makes it suitable for fans, blowers, and appliances

Compatibility and practical uses

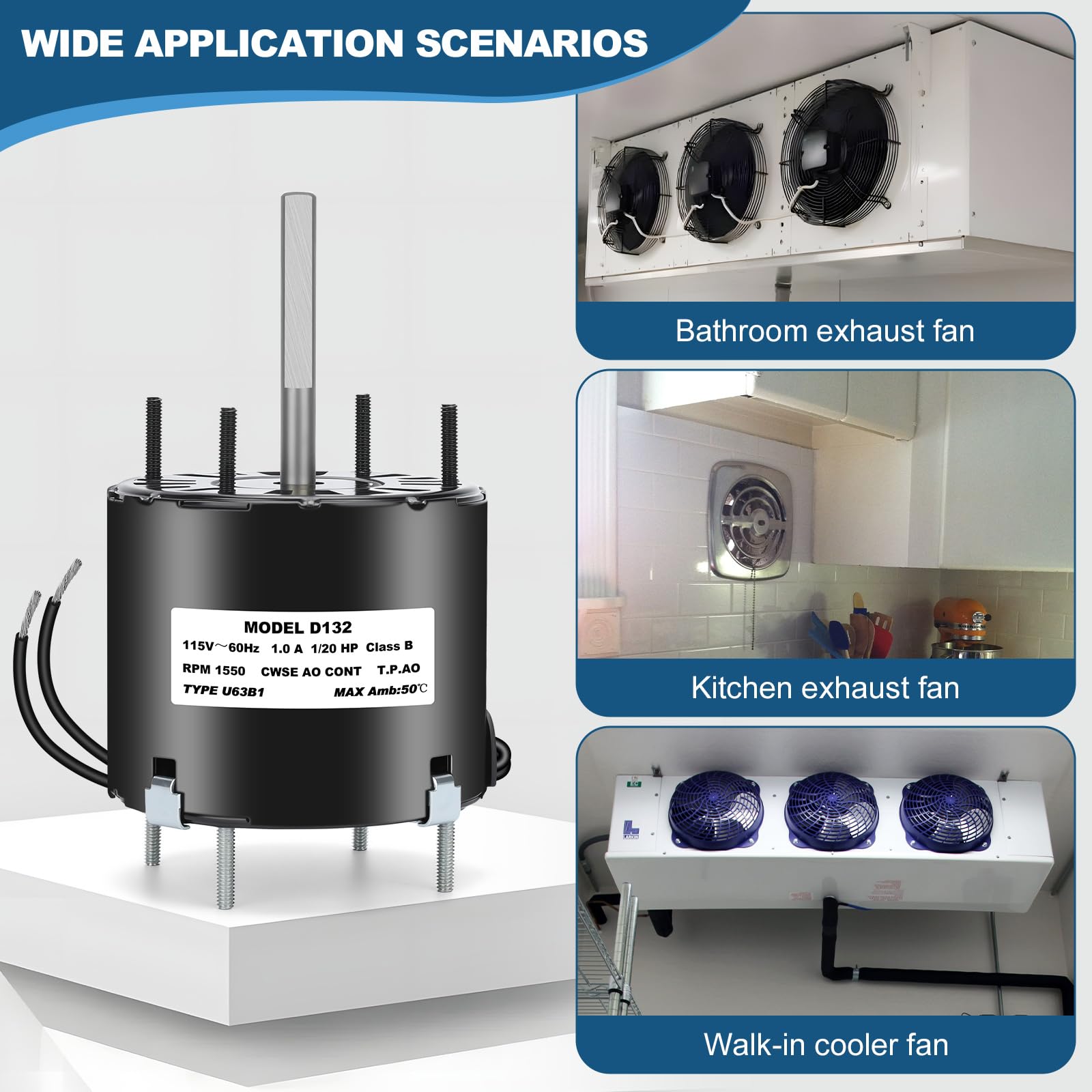

With CW rotation and a 3.3 inch frame diameter, this motor integrates with many general purpose applications. It is a solid choice for HVAC fans, household appliances, air movers, and other equipment requiring steady torque at a modest power level. The open air frame and straightforward wiring make it a practical upgrade or replacement part for legacy systems.

Specifications at a glance

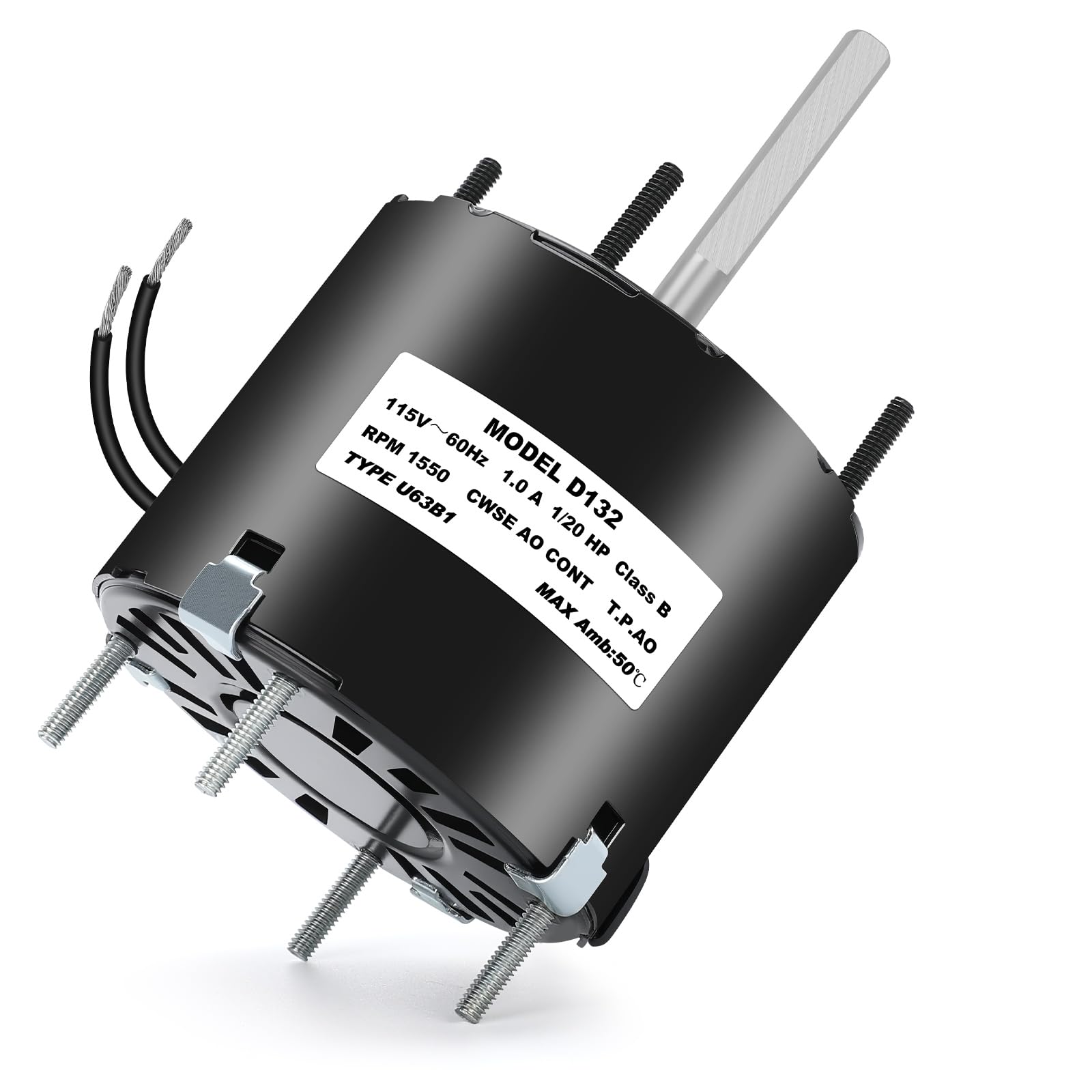

• Voltage: 115V
• Frequency: 60 Hz
• Power: 1/20 HP
• Speed: 1550 RPM

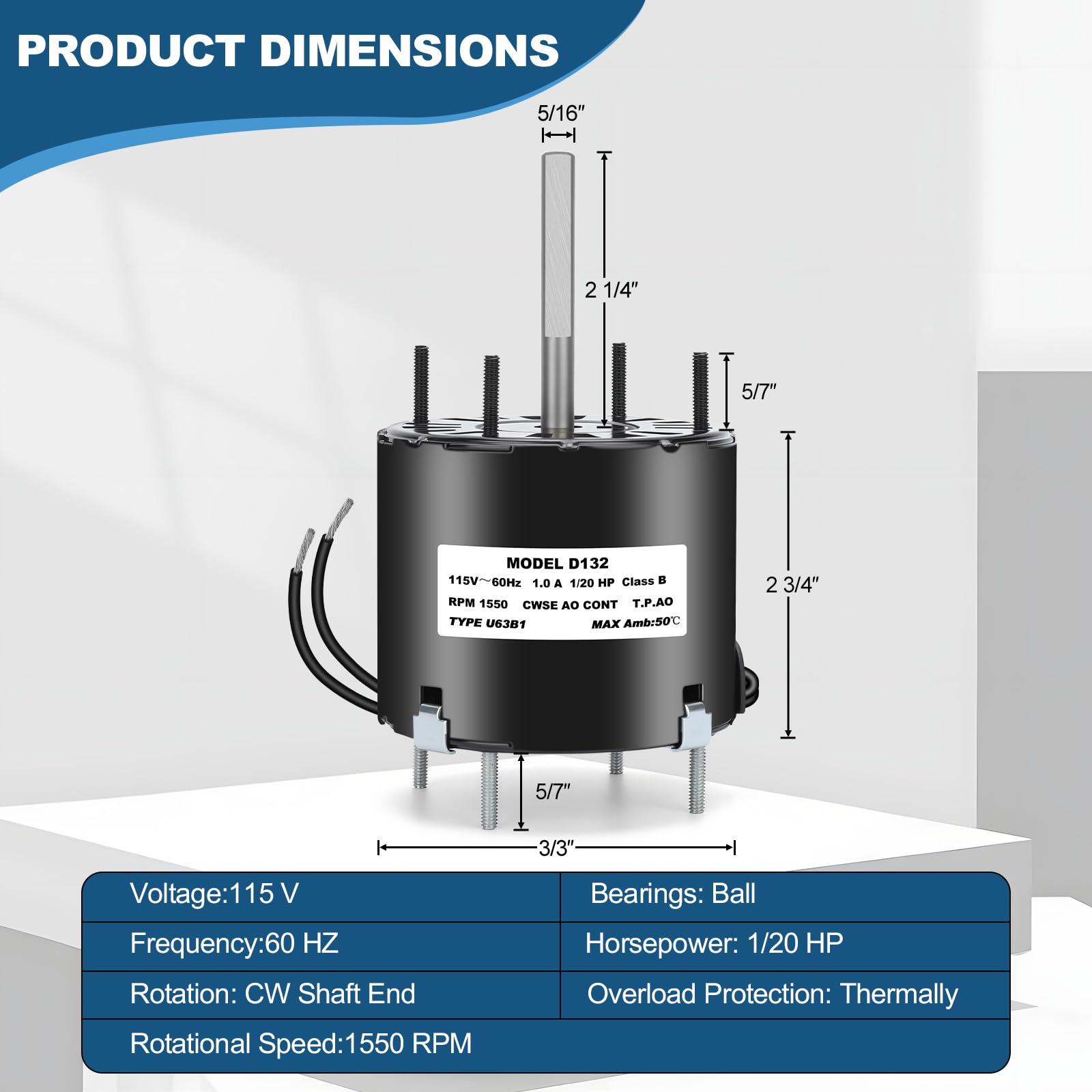

• Shaft: 5/16" diameter x 2 1/4" long
• Frame: 3.3" diameter x 2 3/4" high
• Rotation: CW
• Enclosure: Open Air Over
• Bearings: Ball
• Protection: Thermally

Notes for fit and installation

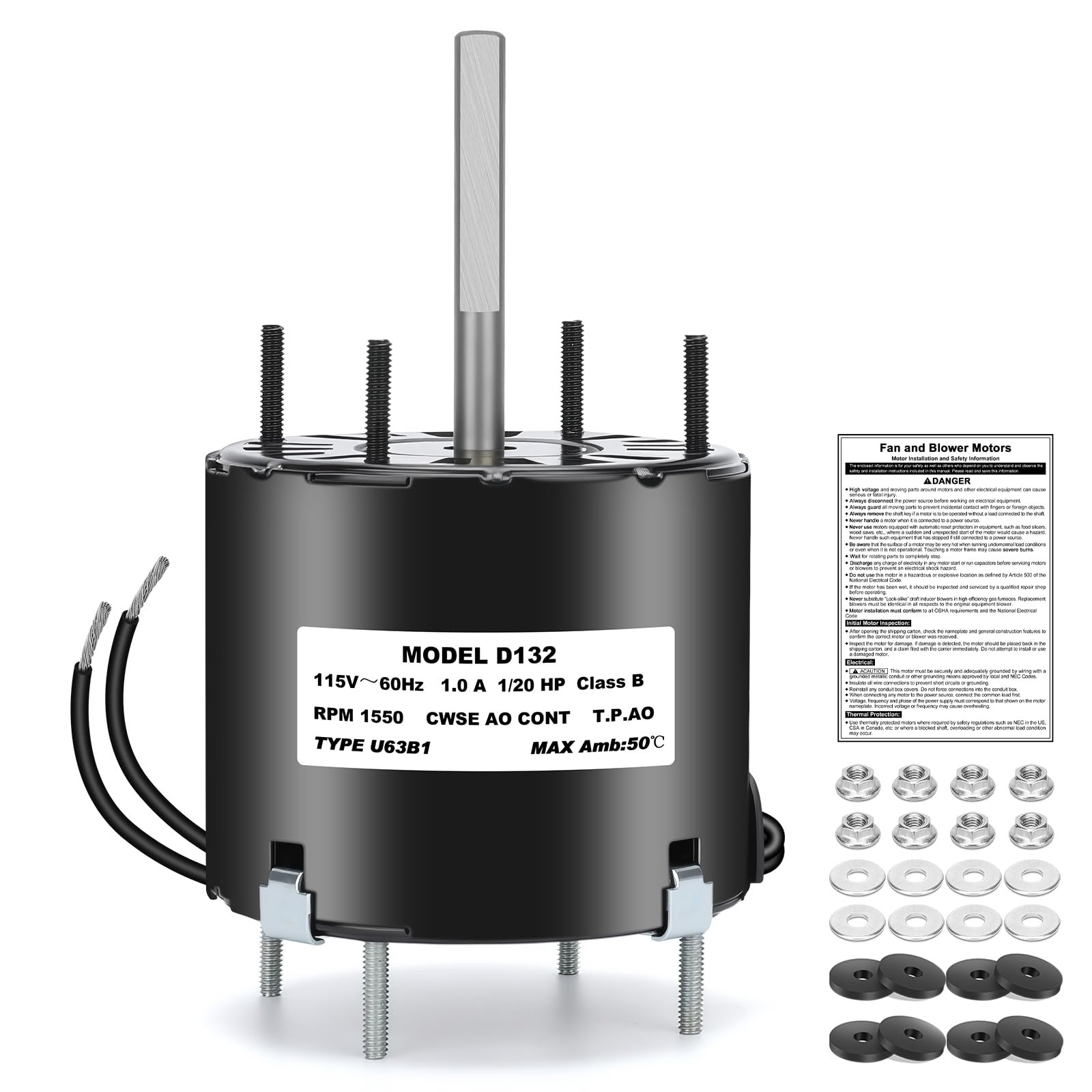

Some setups may require minor customization. Extra studs can be trimmed, and the shaft length can be shortened to fit existing brackets or housings. When planning an upgrade, check mounting patterns and nearby components to help ensure a secure installation.

In sum, the WINWEITGO D132 161M08 motor offers a balanced blend of quiet operation, dependable performance, and practical versatility for a range of general purpose uses.
