UNI-T UT261A 3-Phase Rotation Meter | AC Phase Sequence Indicator 40V-690V

Overview

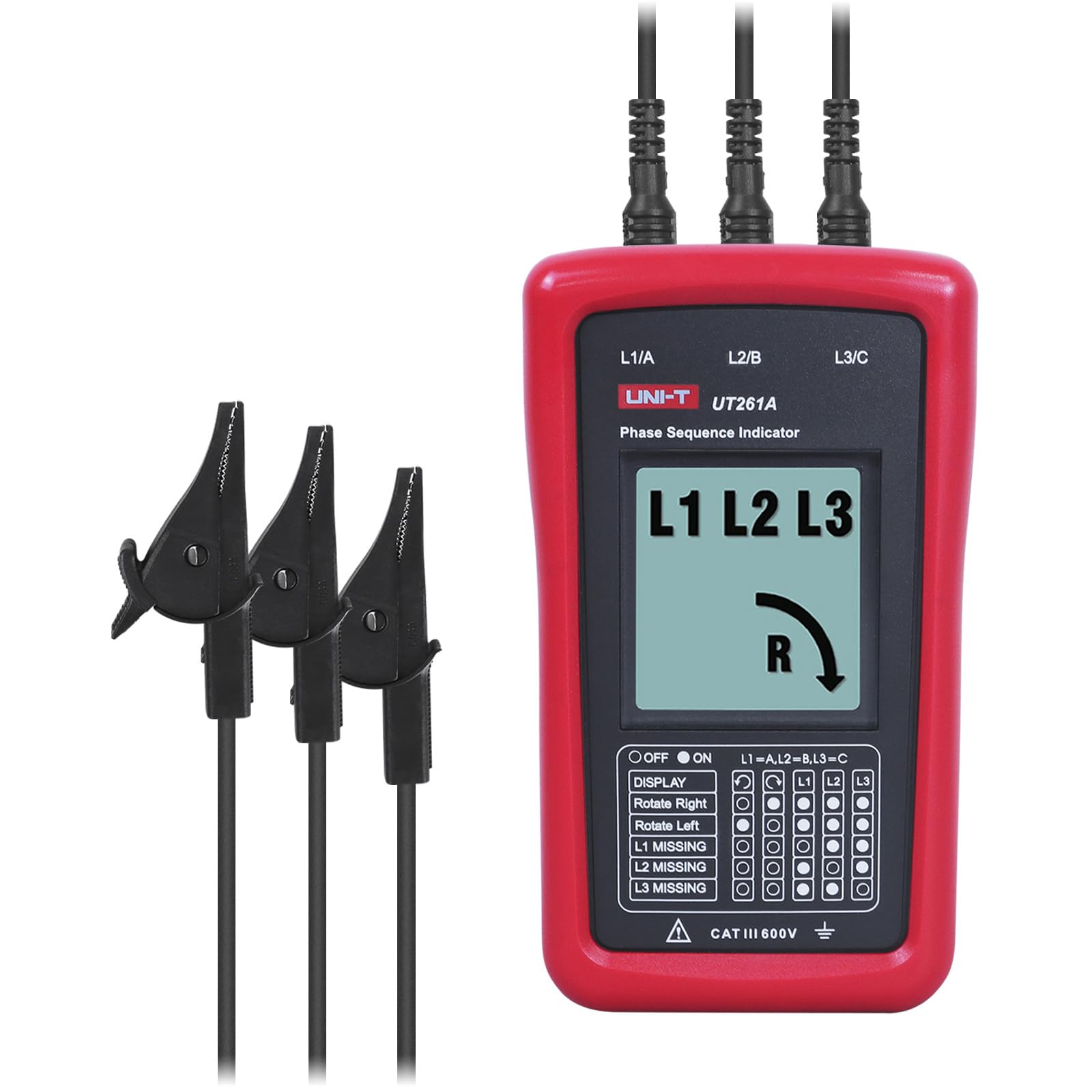

The UNI-T UT261A is a compact, rugged tester designed for quick verification of three‑phase systems. It helps you confirm phase rotation and spot a missing phase while offering essential electrical measurements. Its lightweight build makes it a practical companion on job sites, in panel rooms, or at service calls where speed and clarity matter.

Key Benefits

• High‑accuracy rotation measurement with a wide 45 mm jaw opening for easy clamping on conductors.
• Broad measurement capabilities: 1000 A AC current, up to 1000 V AC/DC voltage, and 600 A inrush current measurement.

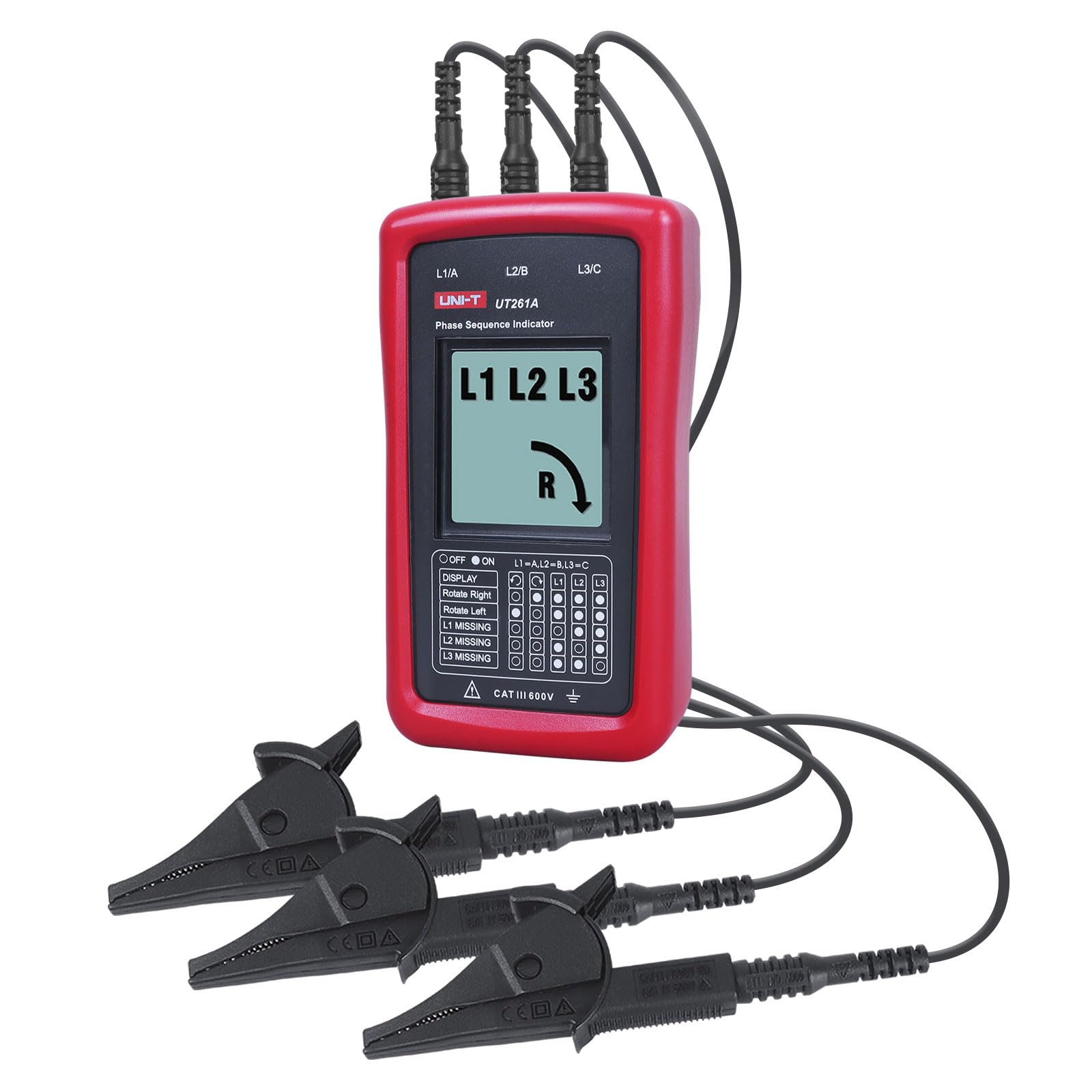

• Rugged yet portable: compact form factor, low weight, and straightforward operation for field use.
• Useful features: auto range, backlight, low battery indicator, data hold, relative mode, diode check, duty cycle, and flashlight for dim environments.
• Safety and compatibility: CAT II 1000 V and CAT III 600 V ratings, suitable for a range of electrical tasks.

Practical Use Scenarios

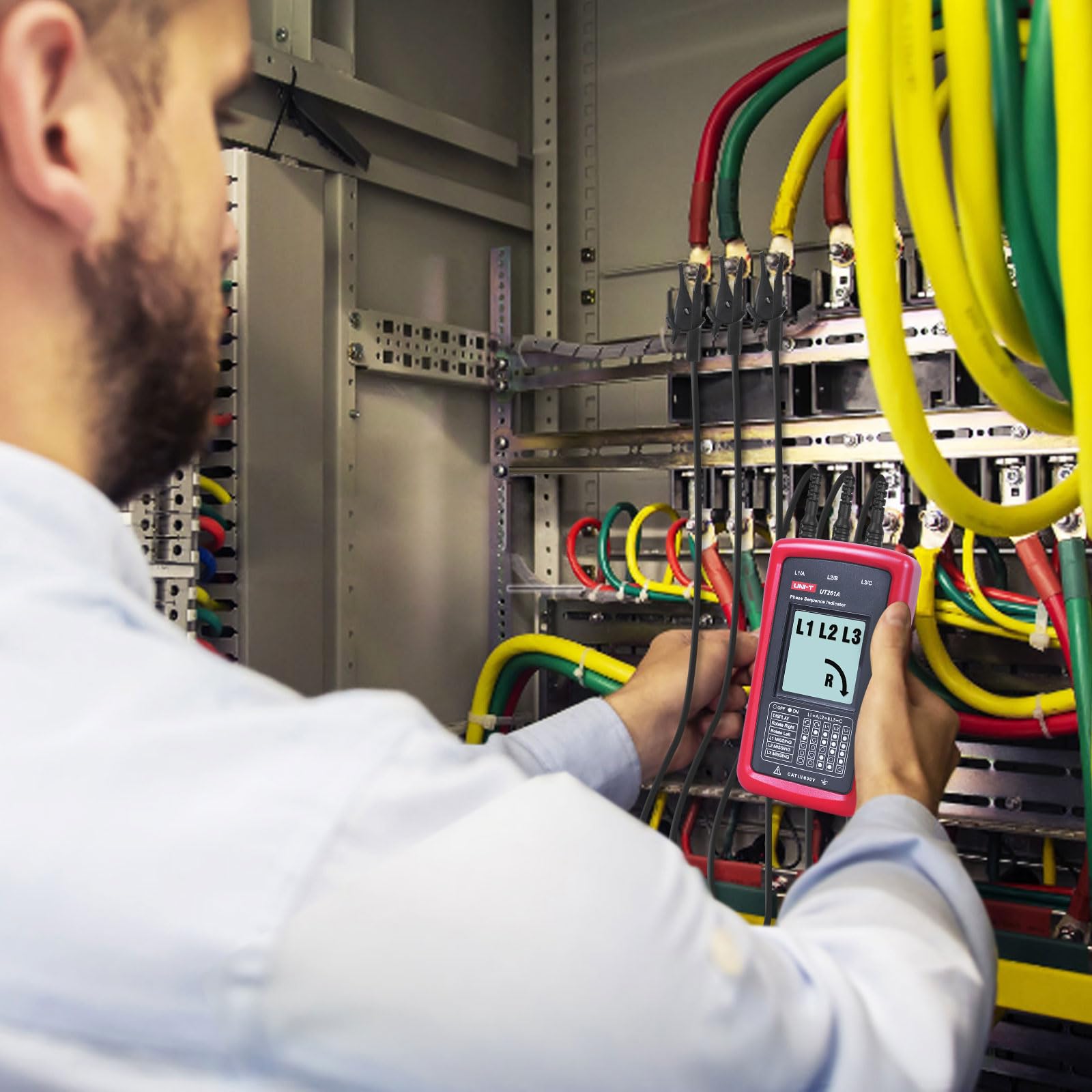

In real-world environments, technicians can rely on UT261A to quickly assess motor wiring at control panels, verify correct three‑phase connections before commissioning, and perform basic checks on circuit integrity. The device supports on-site decisions without lengthy setup, helping teams move from testing to troubleshooting with confidence.

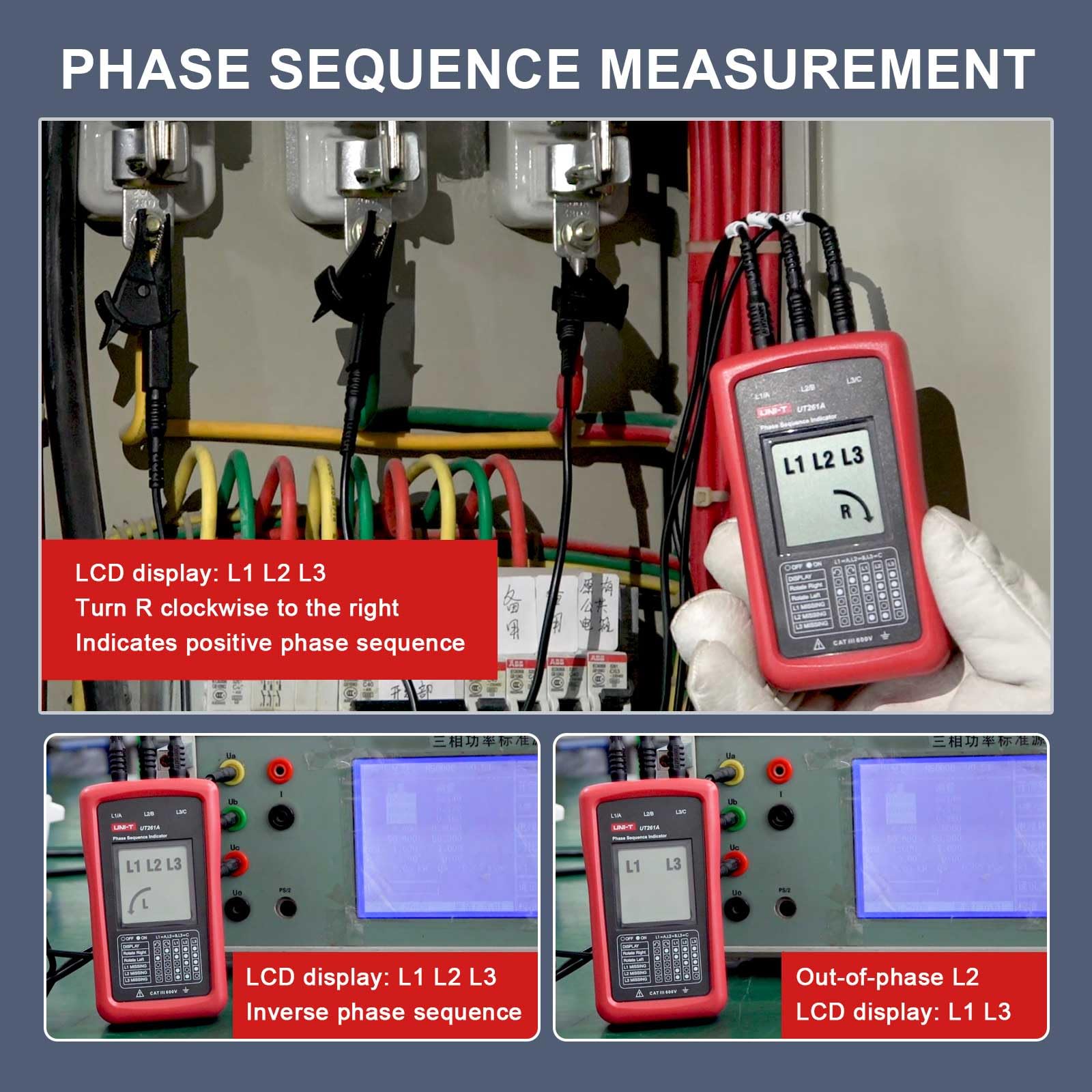

• Verify phase sequence and identify missing phases before starting a motor or mixer.
• Confirm phase order during panel commissioning or rewiring projects.
• Conduct basic measurements (resistance, capacitance, and frequency) to aid diagnosis.
• Assess high‑current and high‑voltage conditions safely with clearly displayed readings.

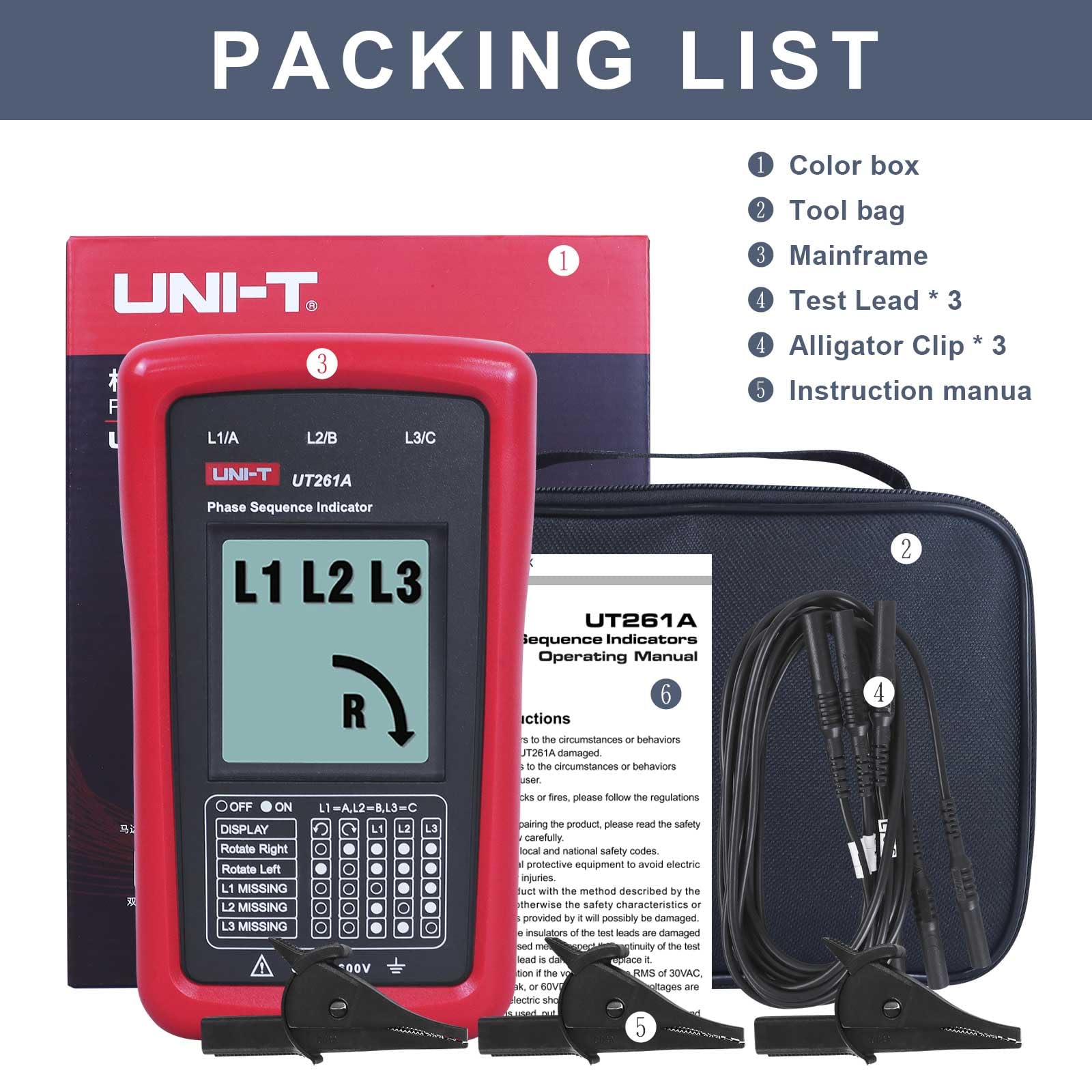

What’s in the Box

• 1 x UT261A rotation meter
• 3 x testing leads with alligator clips
• 1 x battery
• 1 x certificate of conformity
• 1 x user manual
• Friendly customer service

Specifications and Notes

• AC current measurement: up to 1000 A
• Voltage measurement: up to 1000 V AC/DC
• Inrush current measurement: up to 600 A
• Safety ratings: CAT II 1000 V / CAT III 600 V
• Includes auto power‑off for battery efficiency

While the UT261A provides practical indicators and measurements for many electrical tasks, results depend on proper use and electrical conditions. Consider it a helpful tool for quick checks and informed decision-making on the job.
