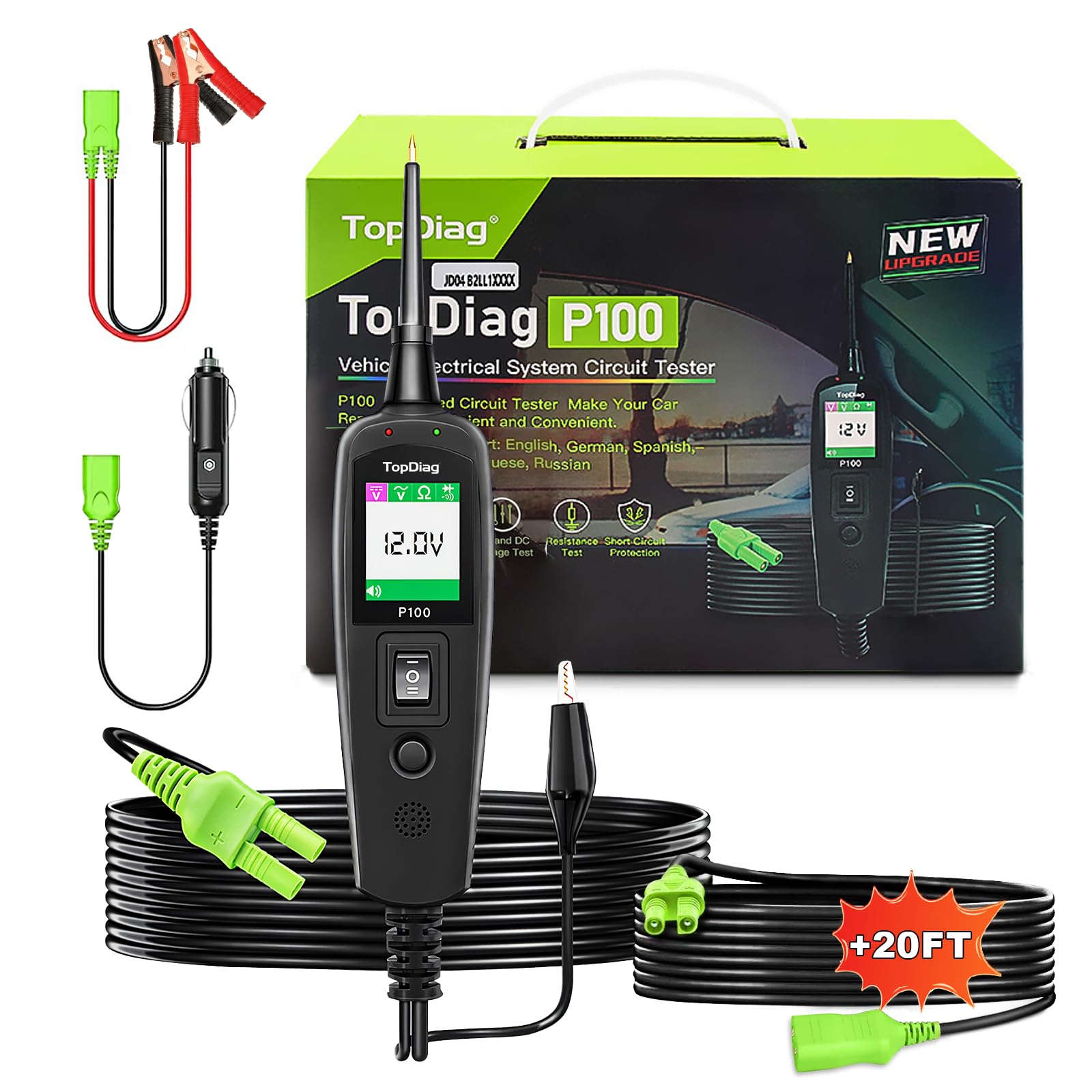

TopDiag P100 Circuit Tester Automotive – 40ft Cable Power Circuit Probe, 12V/24V Car Diagnostic Tool

Overview

The TopDiag P100 Circuit Tester is a compact, powerfully capable diagnostic tool designed for automotive electrical systems. It combines multiple testing functions in one handheld unit, built to work with 12V cars and 24V trucks. It handles DC and AC voltage checks, resistance measurements, and circuit tracing with an audible tone, helping you quickly assess electrical parts without needing multiple devices.

What makes it practical

• Value and versatility: Delivers the essential capabilities of higher‑priced testers at a practical price, supporting everyday electrical diagnostics.

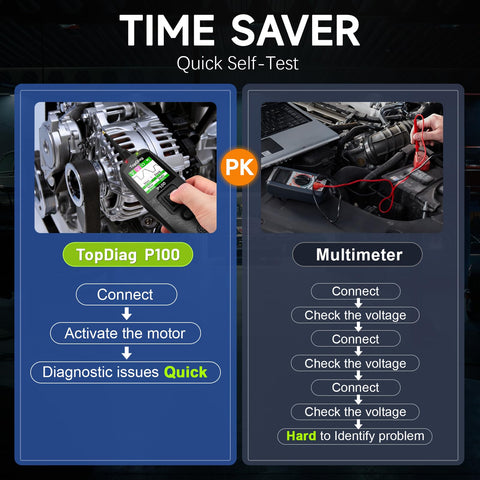

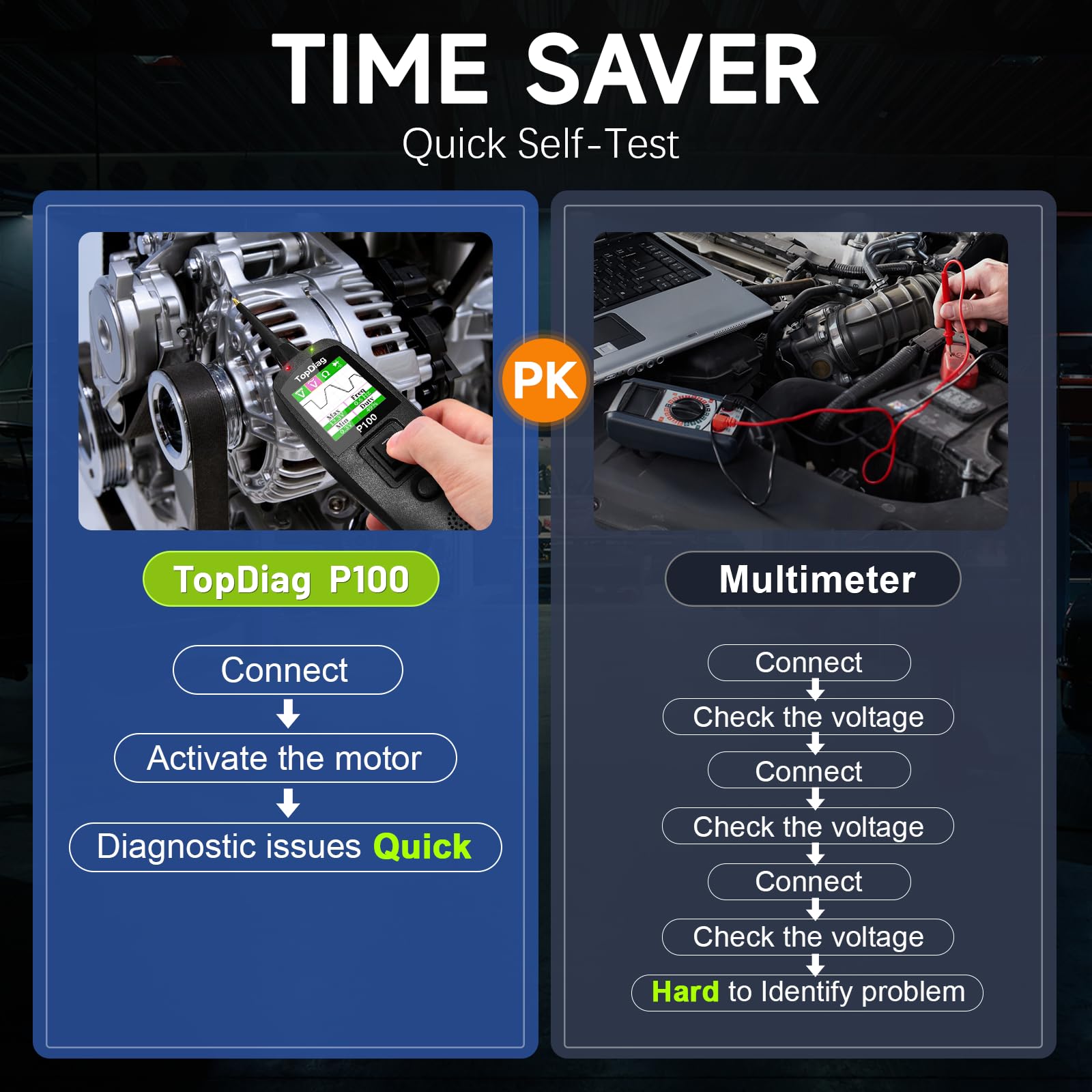

• Time-saving DIY testing: Trace wiring and identify failing components faster than a traditional multimeter by following signal and readings.
• 40 ft total reach: A 20 ft extension plus the built-in cable give you enough length to reach the rear of a vehicle or trailer wiring without hunting for ground points.
• Night and dim area usability: A built-in flashlight improves visibility in dark compartments or under vehicles.

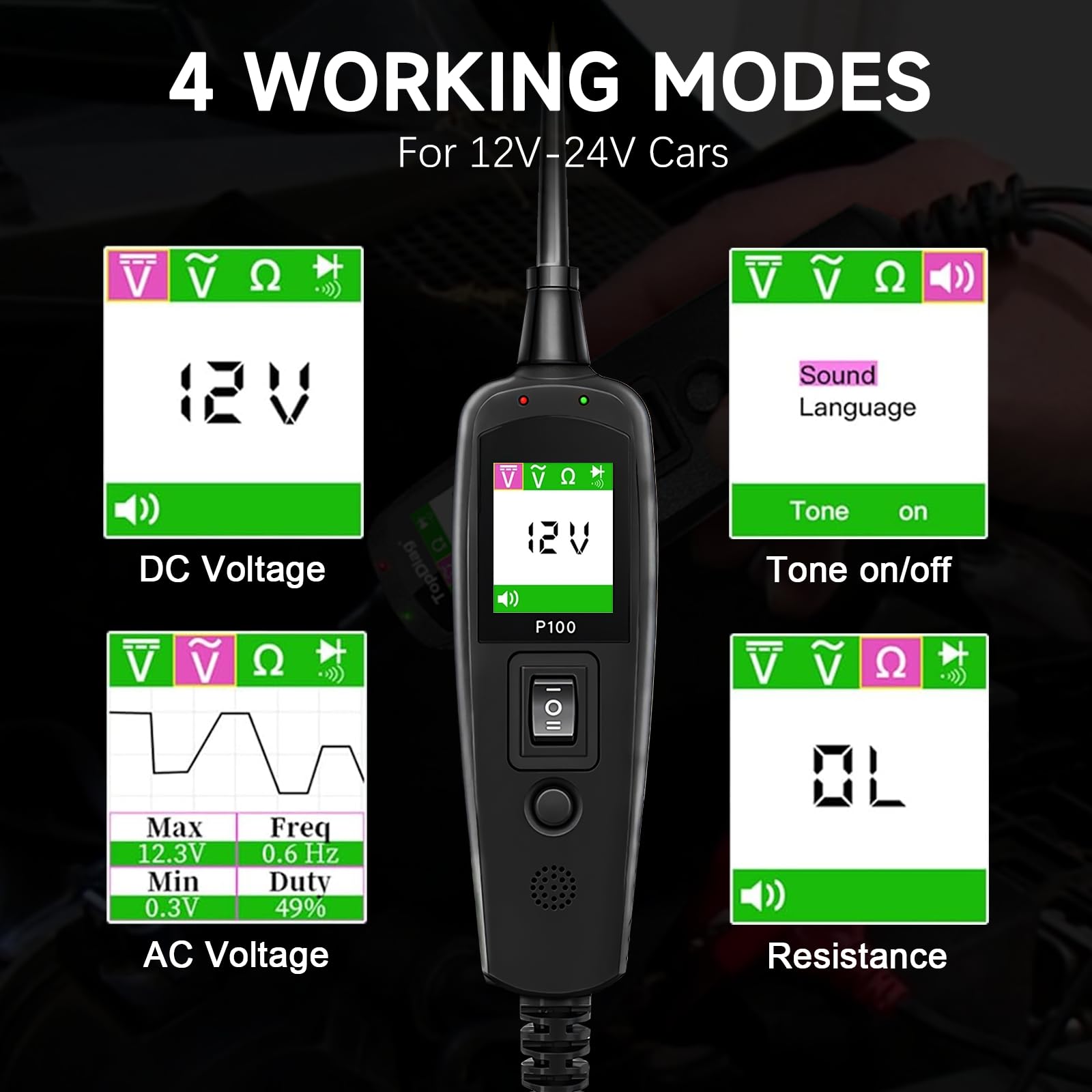

Four smart working modes

• DC Voltage: Readings with 0.1 V resolution to verify battery power and circuit voltage.
• AC Voltage: Capture min and max voltage, plus duty cycle and frequency for AC circuits.
• Resistance: Measure resistance between the probe tip and an auxiliary ground to check continuity.
• Tone On/Off: An audible signal helps you locate circuits in noisy or dark environments.

Real-world use cases

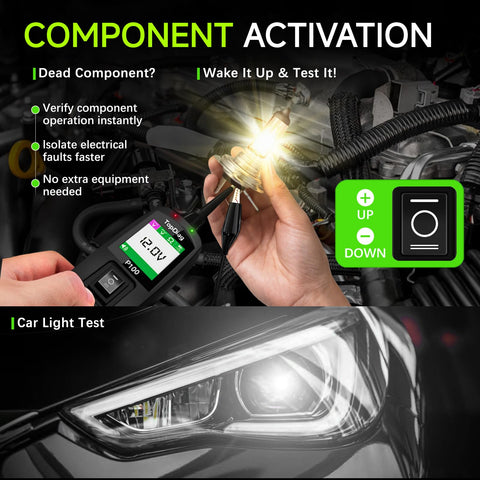

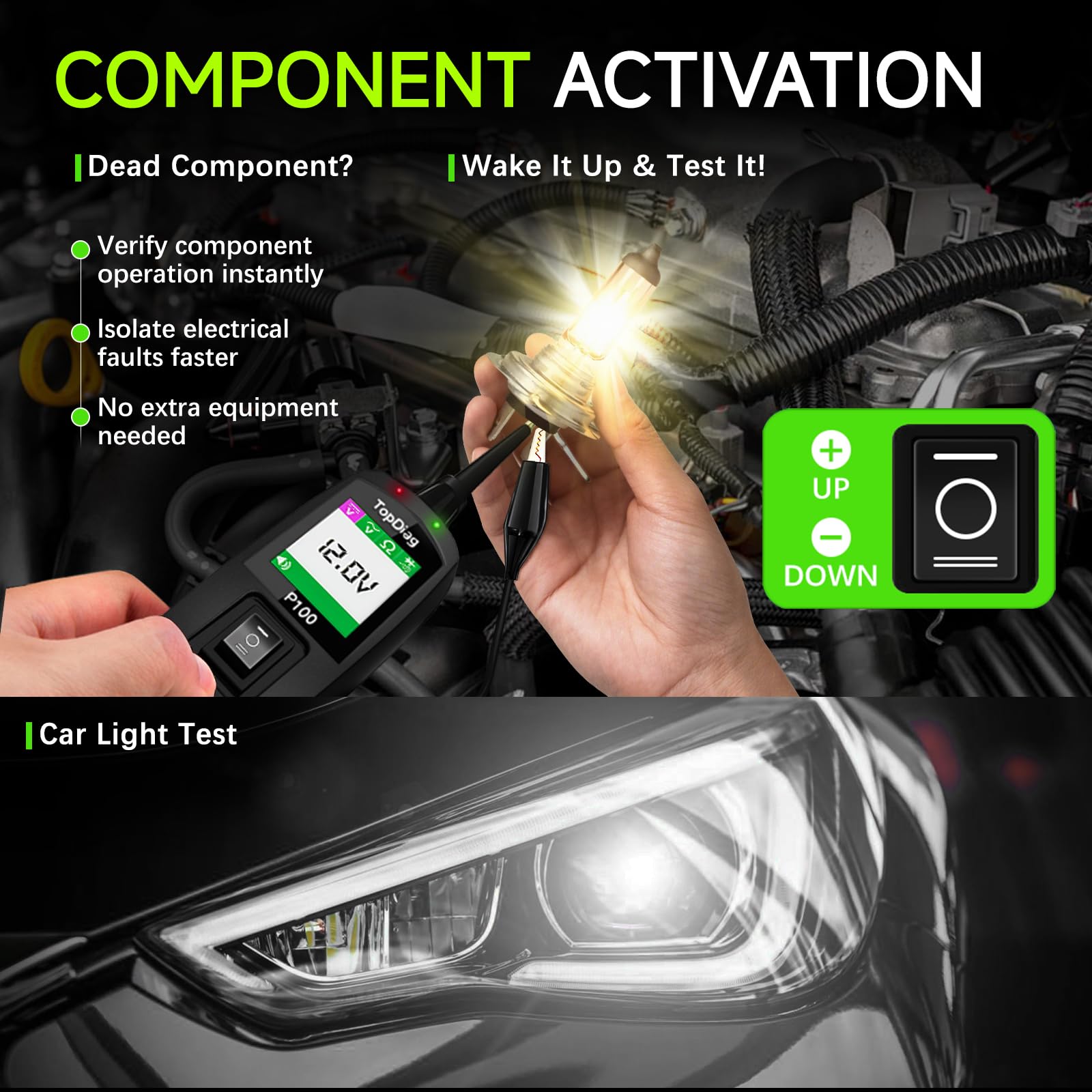

Use the P100 to probe common automotive components and circuits such as blower motors, power windows, wipers, rear defrosters, headlights, radiator fans, and fuel injectors. It can activate components to gauge if they respond as expected, whether the system is powered or grounded, or if a fault lies in wiring rather than the component itself.

Safety and reliability

The tester includes protective features to help reduce risk during testing. A built-in short‑circuit protection and an internal breaker help prevent overload, while a robust battery clip supports higher current loads. The device is designed to work within a wide input range (9V to 70V), making it compatible with both 12V and 24V automotive systems.

What you get and how to use it

Designed for technicians and enthusiasts alike, the P100 is a practical kit for diagnosing automotive electrical issues in the shop or on the go. To use, identify the circuit under test, choose the appropriate mode, connect the probe and ground, and read the voltage, resistance, or signal tones. For best results, combine voltage checks with the load state of components to determine if a part is functioning within expected ranges.
