ROBOA R40403-003 Furnace Blower Control Board – ST9120A/B/C Compatible

Overview

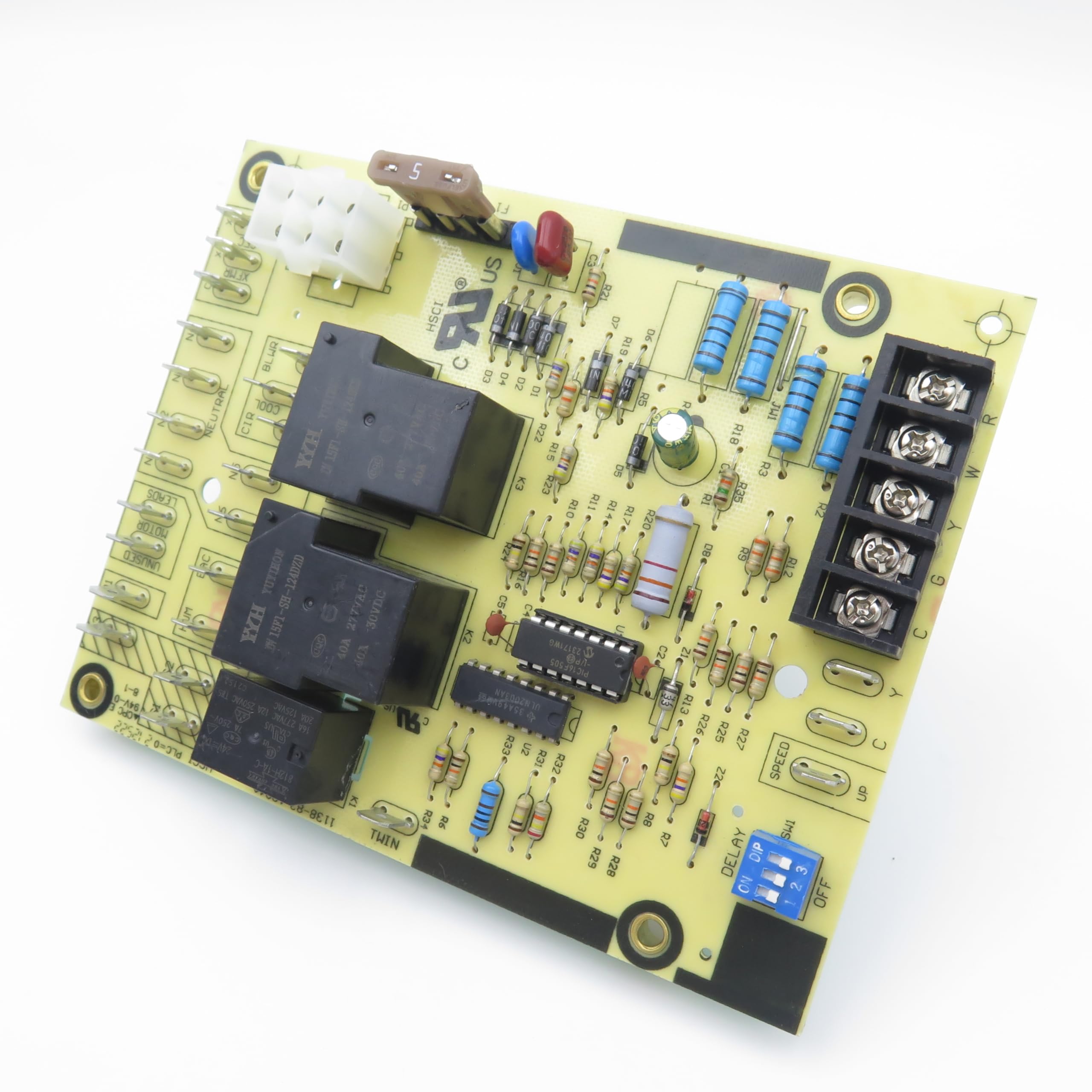

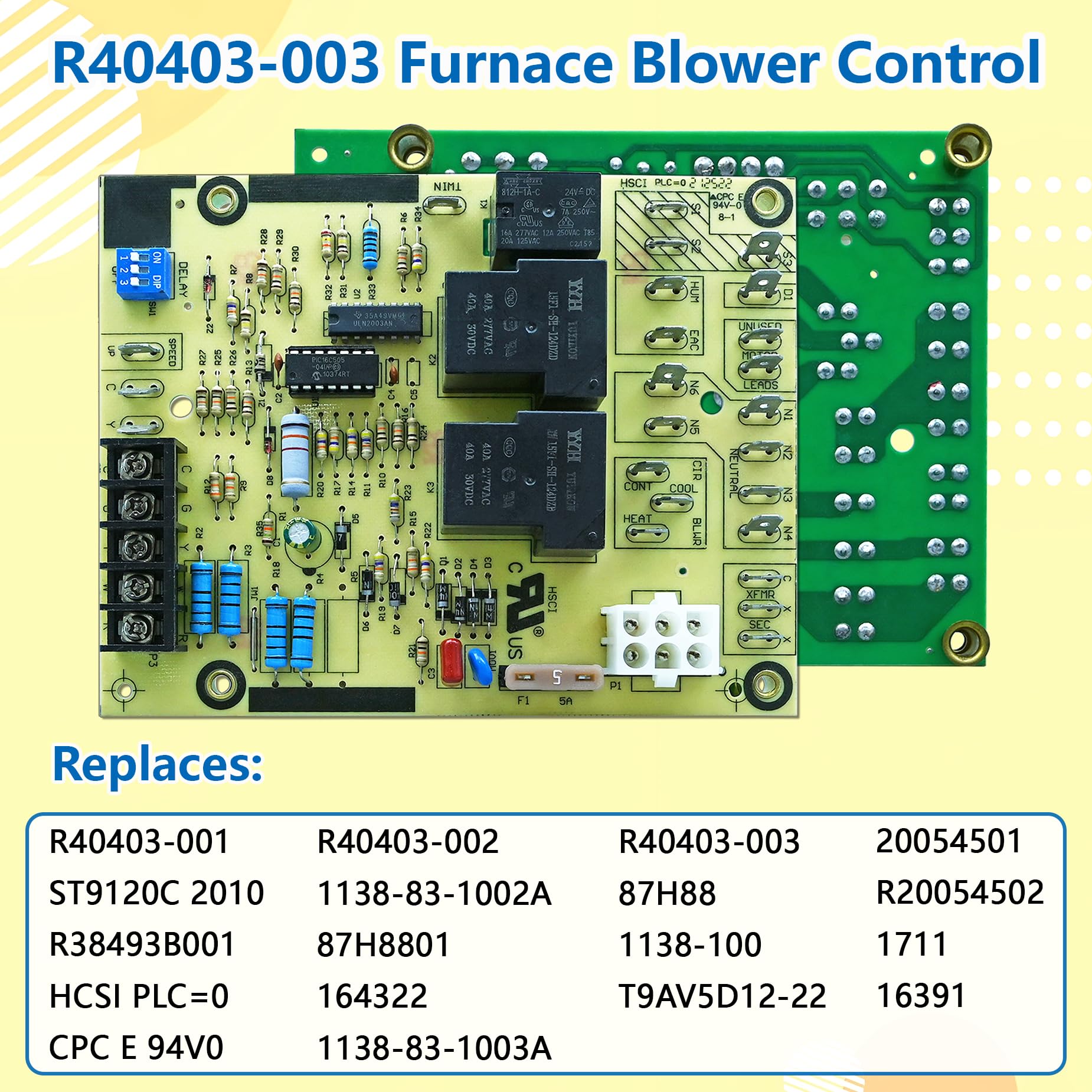

Meet the ROBOA Upgraded R40403-003 Furnace Blower Control Board, a direct replacement designed to work with ST9120A, ST9120B, and ST9120C controls and a broad range of major brands. This board is built to fit Armstrong, Allied, Ducane, Magic Chef systems, among others, offering a familiar form and dependable function for installers and homeowners alike.

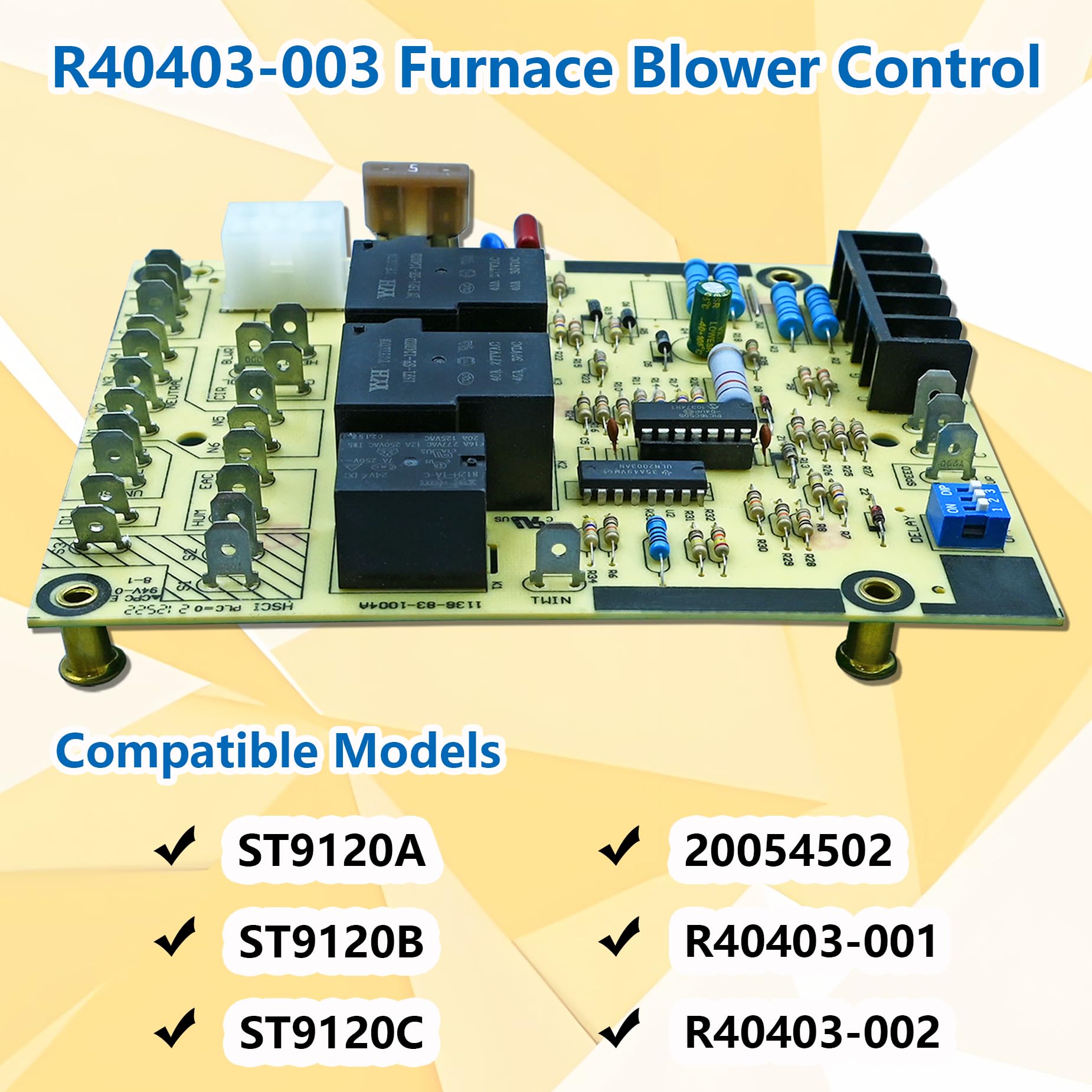

From the moment you handle it, you may notice the emphasis on durability and reliable design. The upgraded power components are chosen to help minimize overheating and extend the life of your furnace blower control. A 5-amp replaceable fuse protects the 24V circuit, while a dip switch provides adjustable blower delay settings to better align with your system’s timing.

Key Benefits and Real-World Use

• Direct replacement capability reduces on-site guesswork and supports wide compatibility with ST9120A/B/C controls.

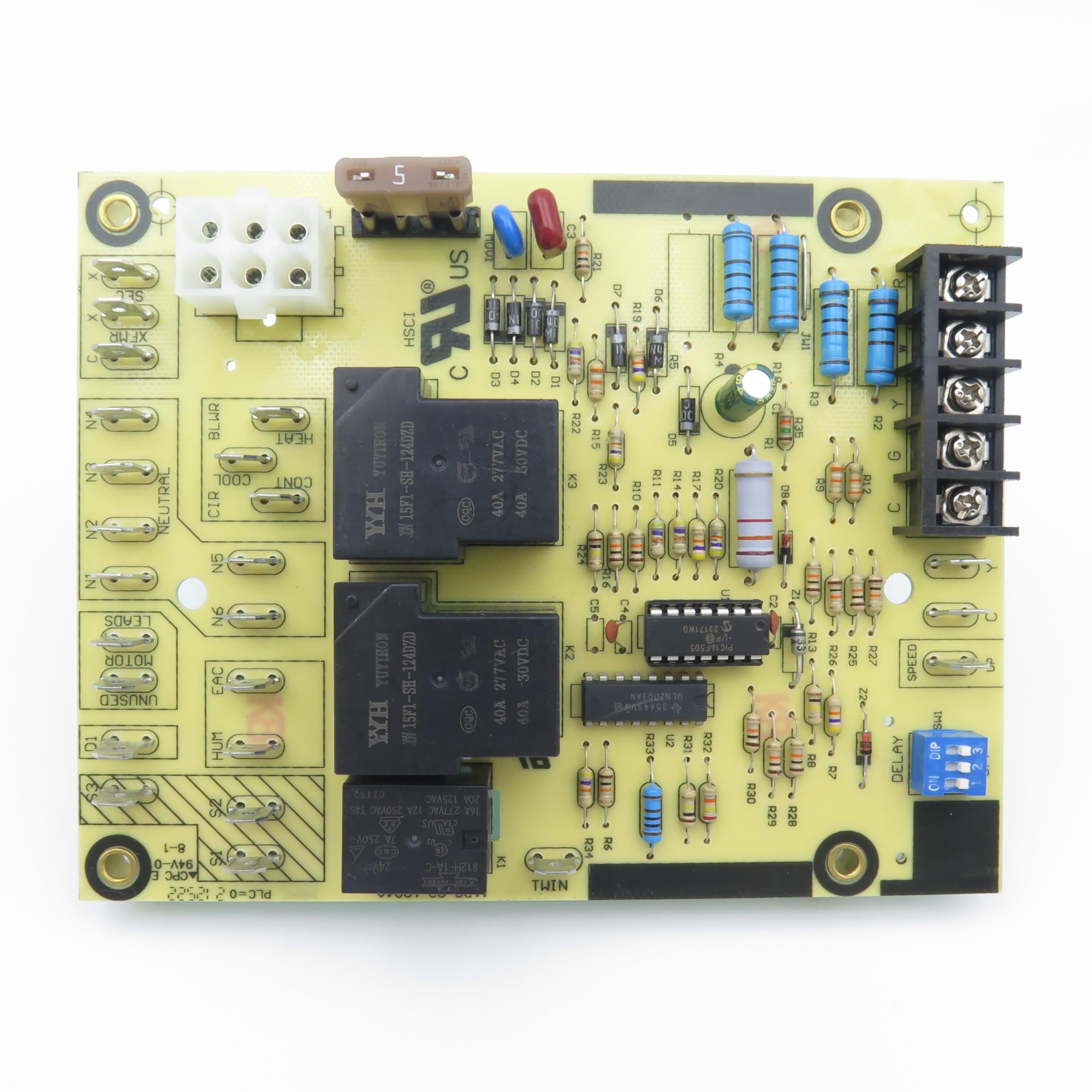

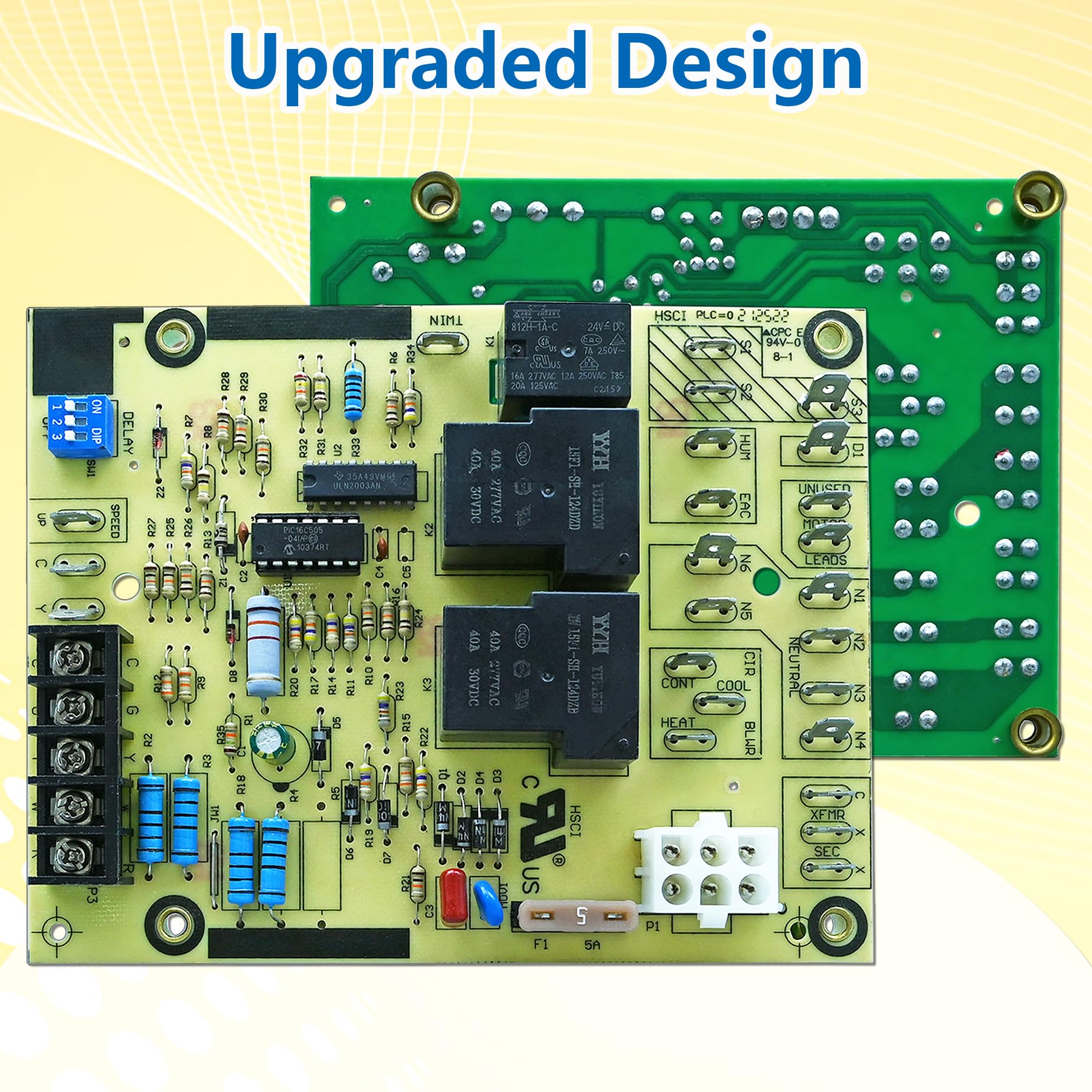

• Upgraded construction uses robust PCB materials and precision welding for stable operation in challenging conditions.

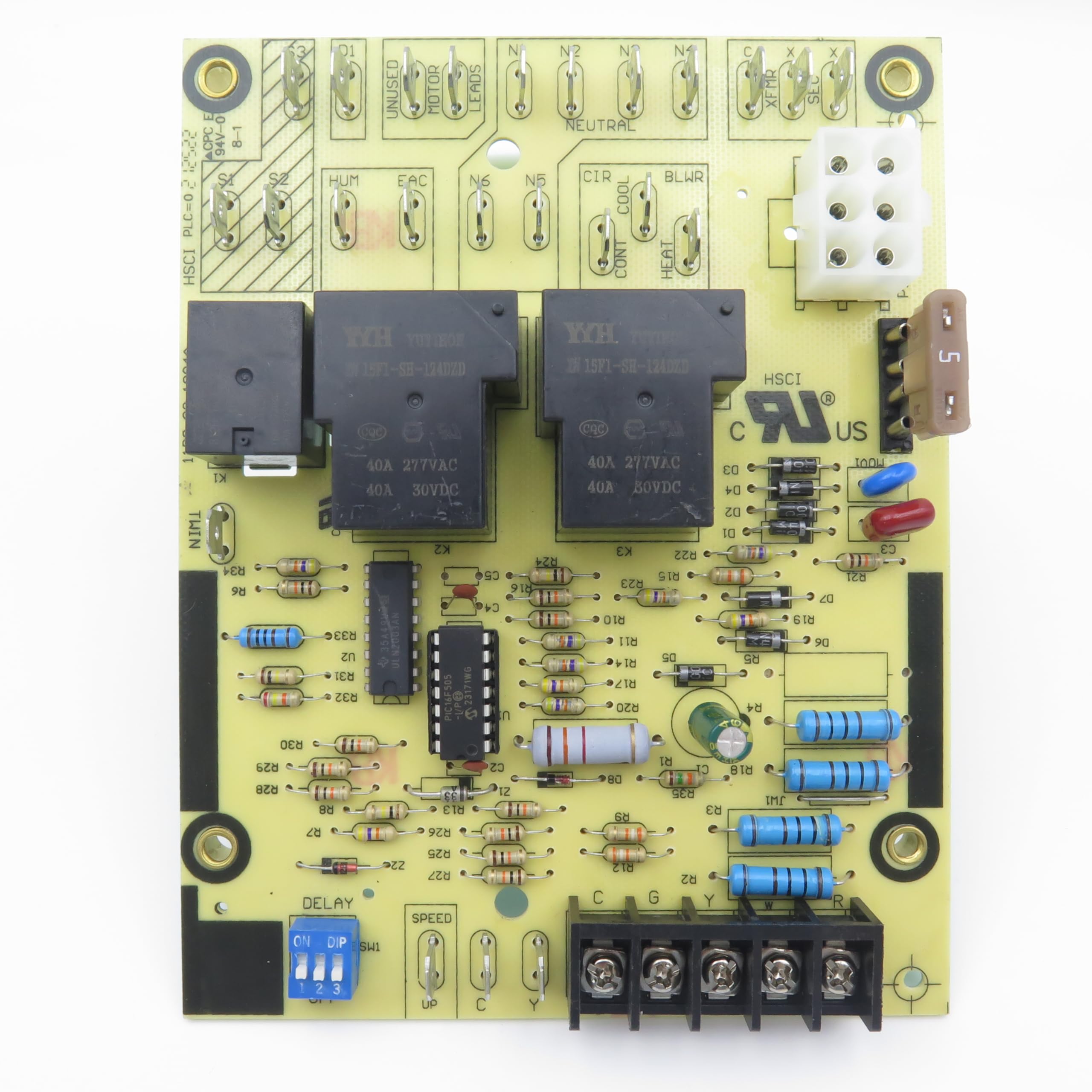

• Moisture resistance helps maintain performance in varying environments, contributing to long-term reliability.
• Incorporates a 5-amp fuse for circuit protection and a dip switch for adjustable blower delay settings.
• No wiring modifications are required, enabling a plug-and-play style installation when wiring is labeled and documented.

Estimated benefits include smoother blower control, reduced risk of overheating for the 24V circuit, and a simpler upgrade path for older or aging furnace control boards. While results can vary by system, this board is designed to fit a wide array of configurations while preserving original control behavior wherever possible.

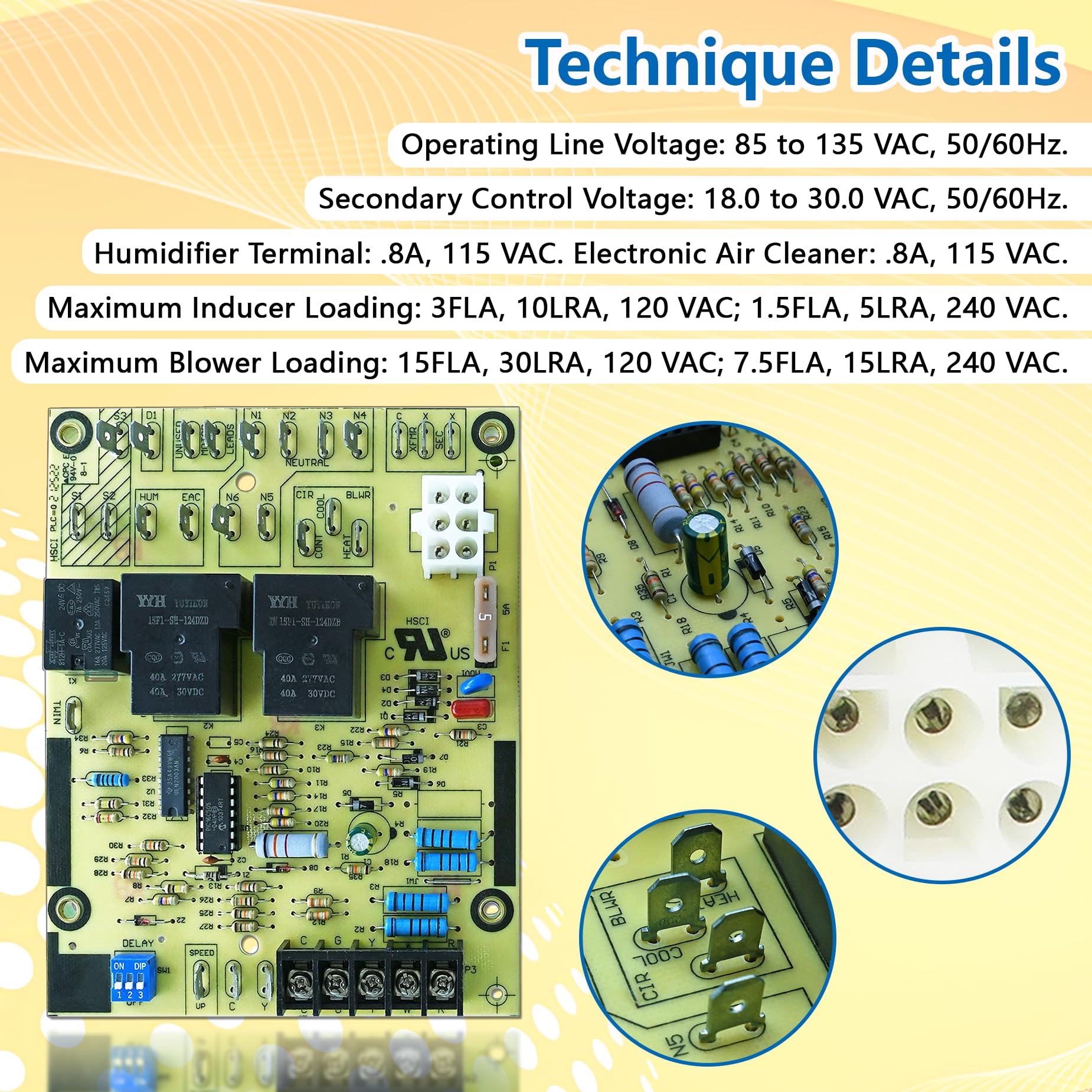

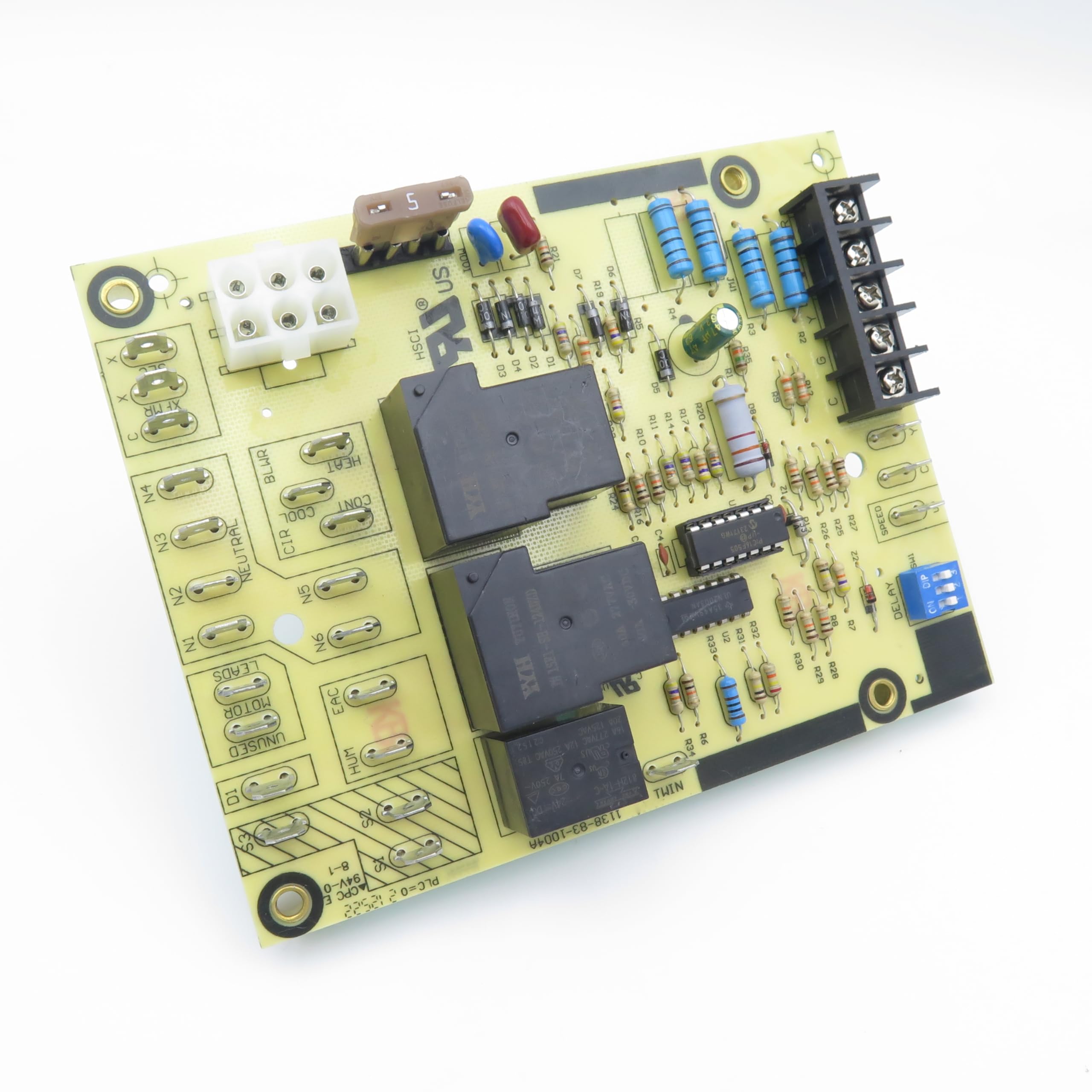

Technical Specifications at a Glance

• Operating Line Voltage: 85–135 VAC, 50/60 Hz
• Secondary Control Voltage: 18–30 VAC
• Max Blower Load: 15 FLA / 30 LRA @ 120 VAC
• Max Inducer Load: 3 FLA / 10 LRA @ 120 VAC

For best results, verify compatibility with your model and keep a quick reference photo of existing wiring before disconnecting components. The board is designed to work with both original and updated systems, and its compact, well-assembled layout supports straightforward installation in constrained spaces.
