OONO DC Power Fuse Strip Module (6-Channel, DIN Rail Mount) – 0–32V, 30A Total

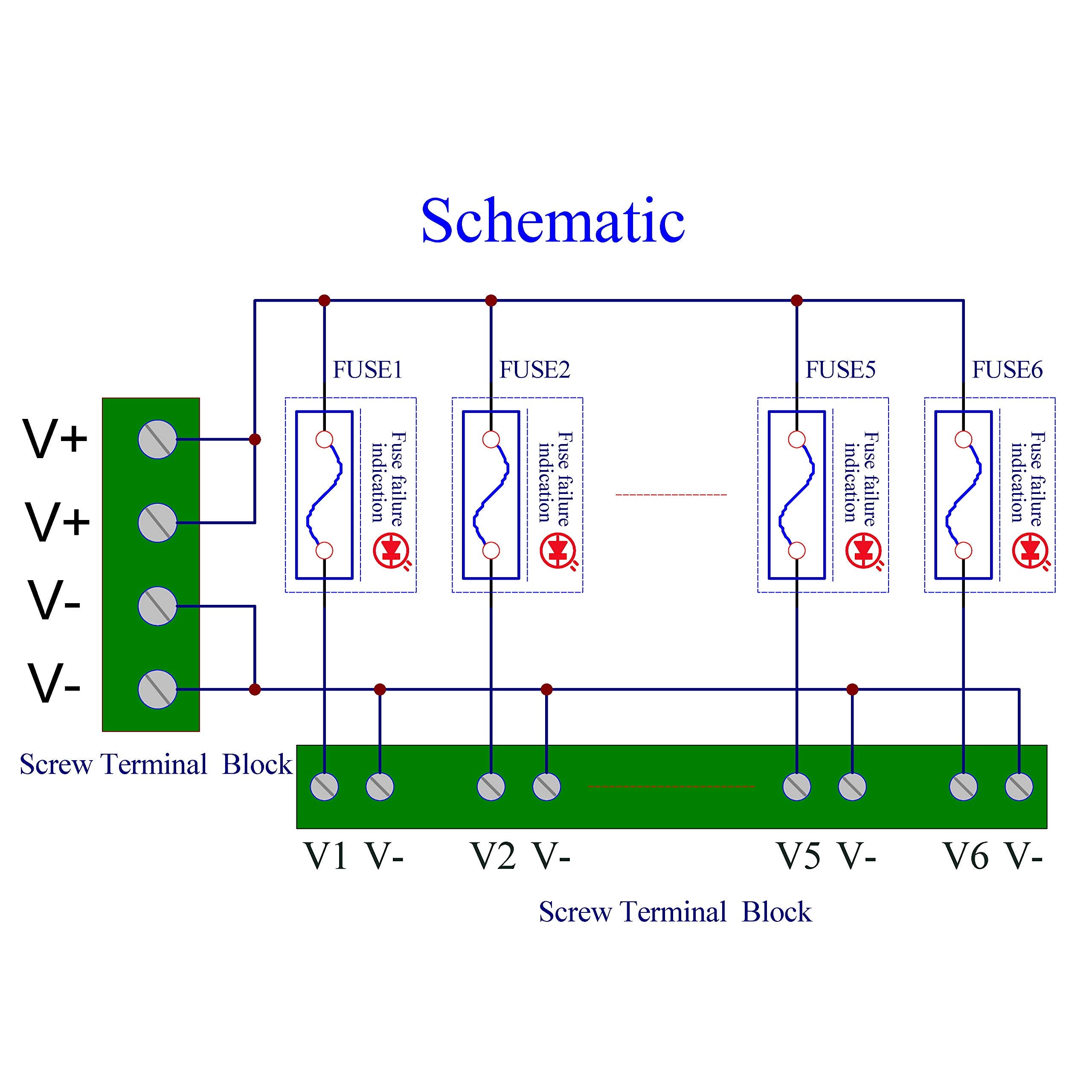

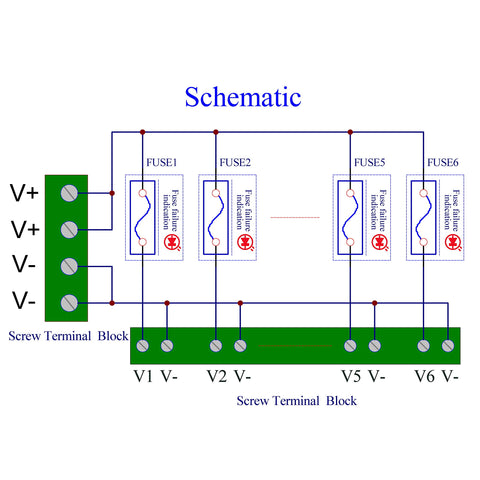

Meet the OONO DC Power Fuse Strip Module, a compact, modular power distribution solution designed for organized control in compact enclosures. With a DC operating range of 0 to 32V and a total input current capability up to 30A, this 6-channel strip helps you allocate power cleanly across multiple loads. Each channel is protected by a factory-installed fuse (3A by default) and can be upgraded to support higher demands, up to 10A per channel, giving you flexibility as projects evolve. A built-in fuse fail indicator LED provides an at-a-glance status, so you can respond quickly to changes in load or fuse condition without interrupting operations.

Design that blends reliability with practical UX

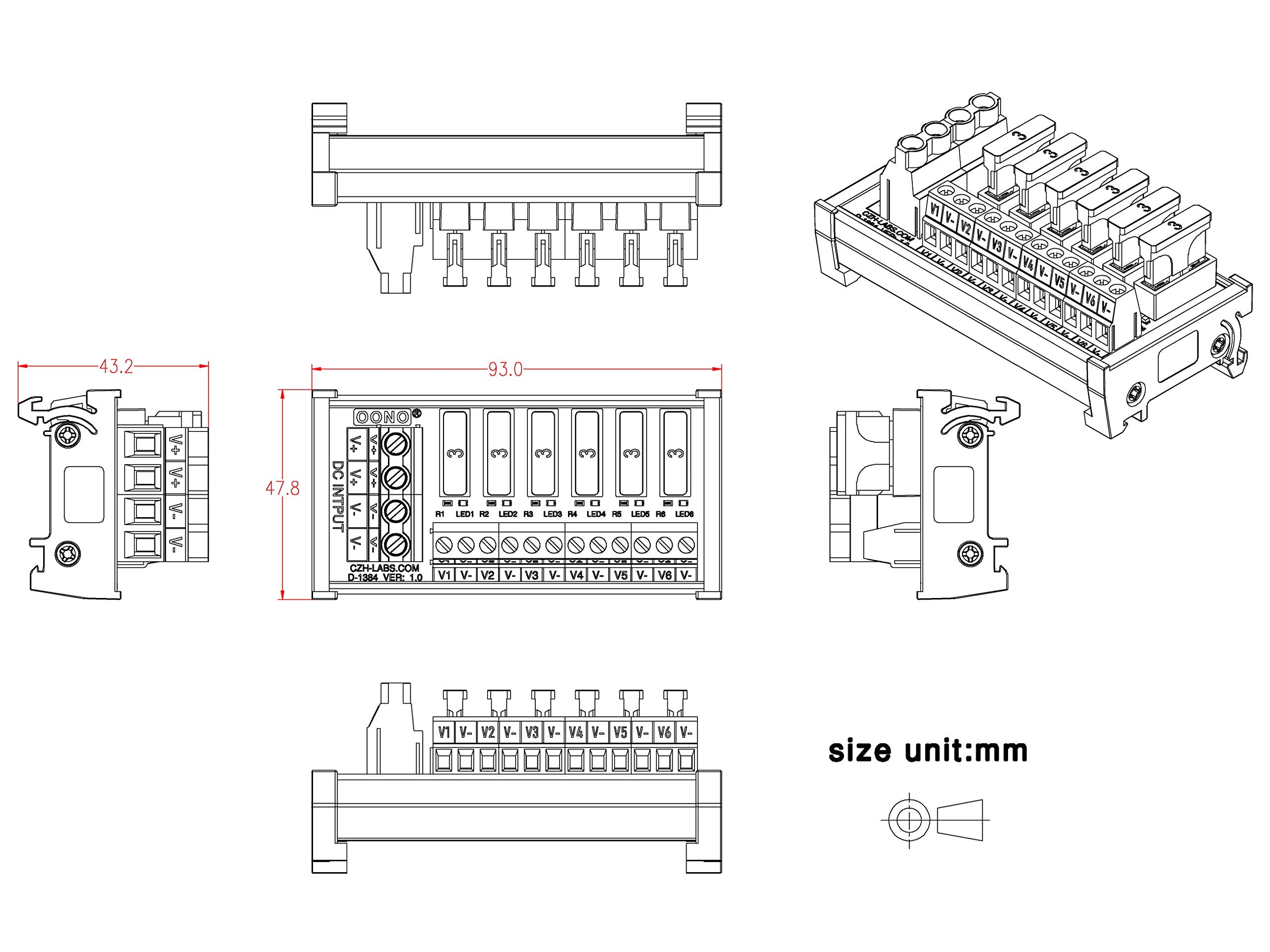

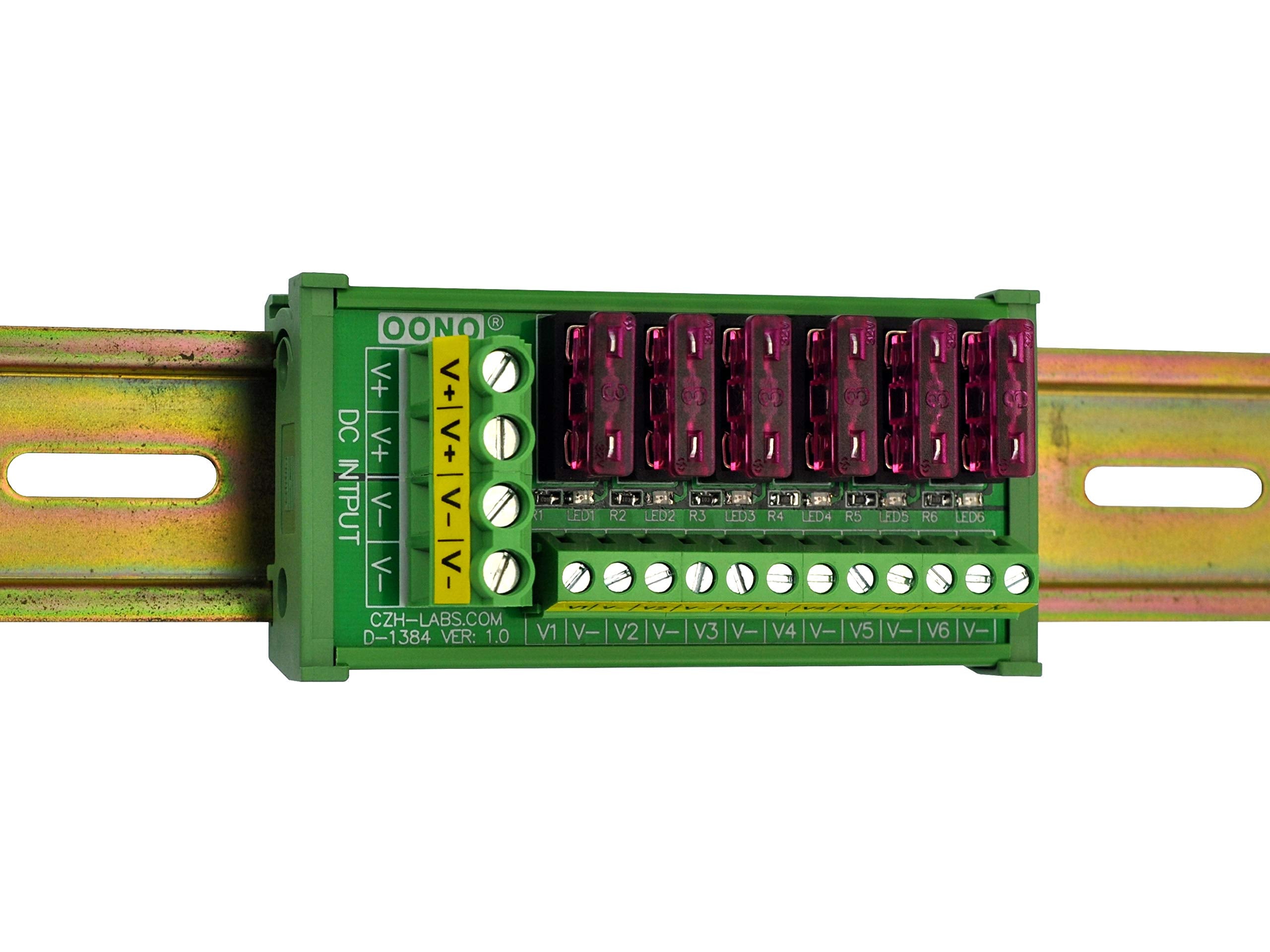

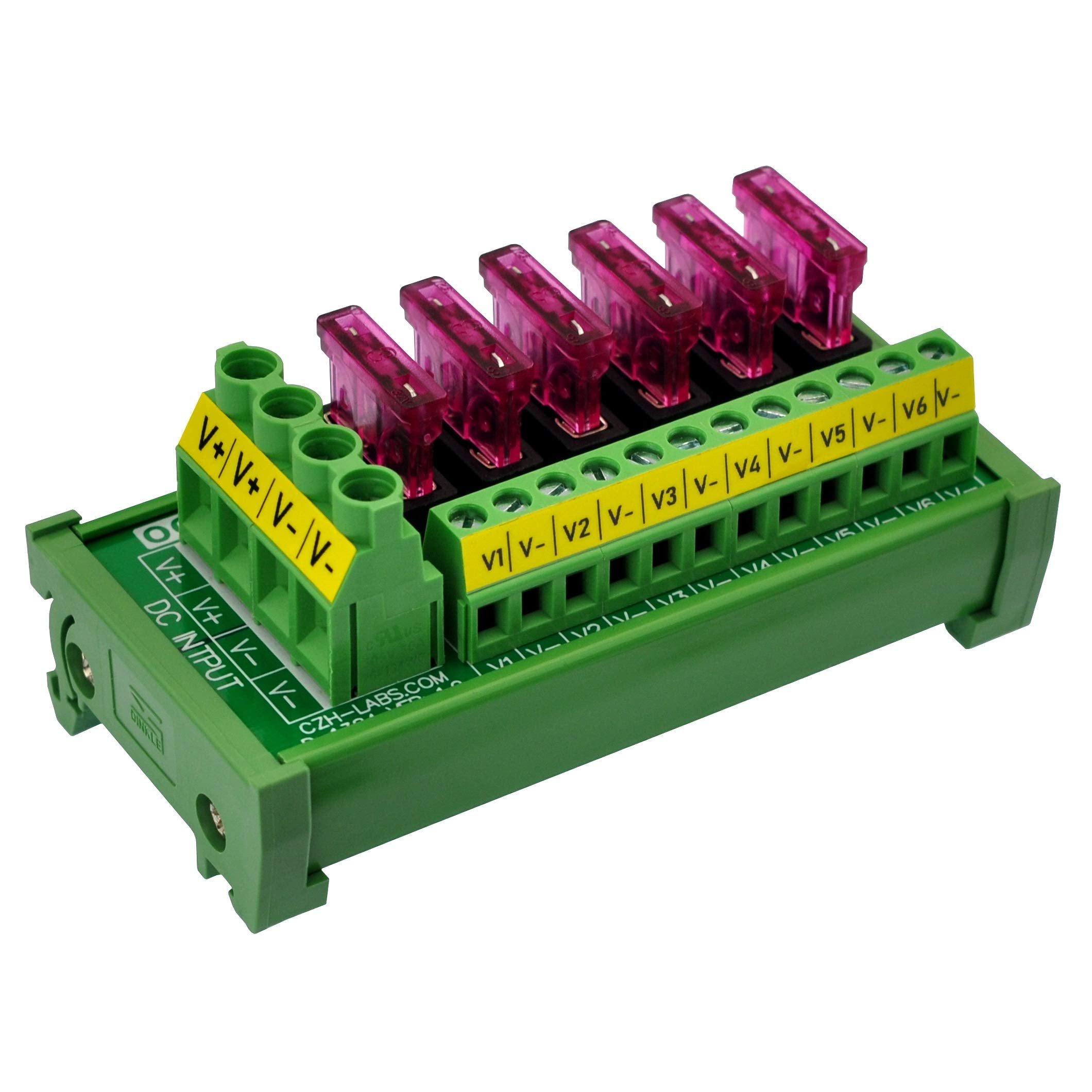

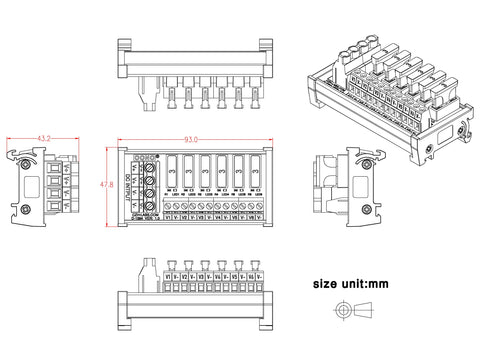

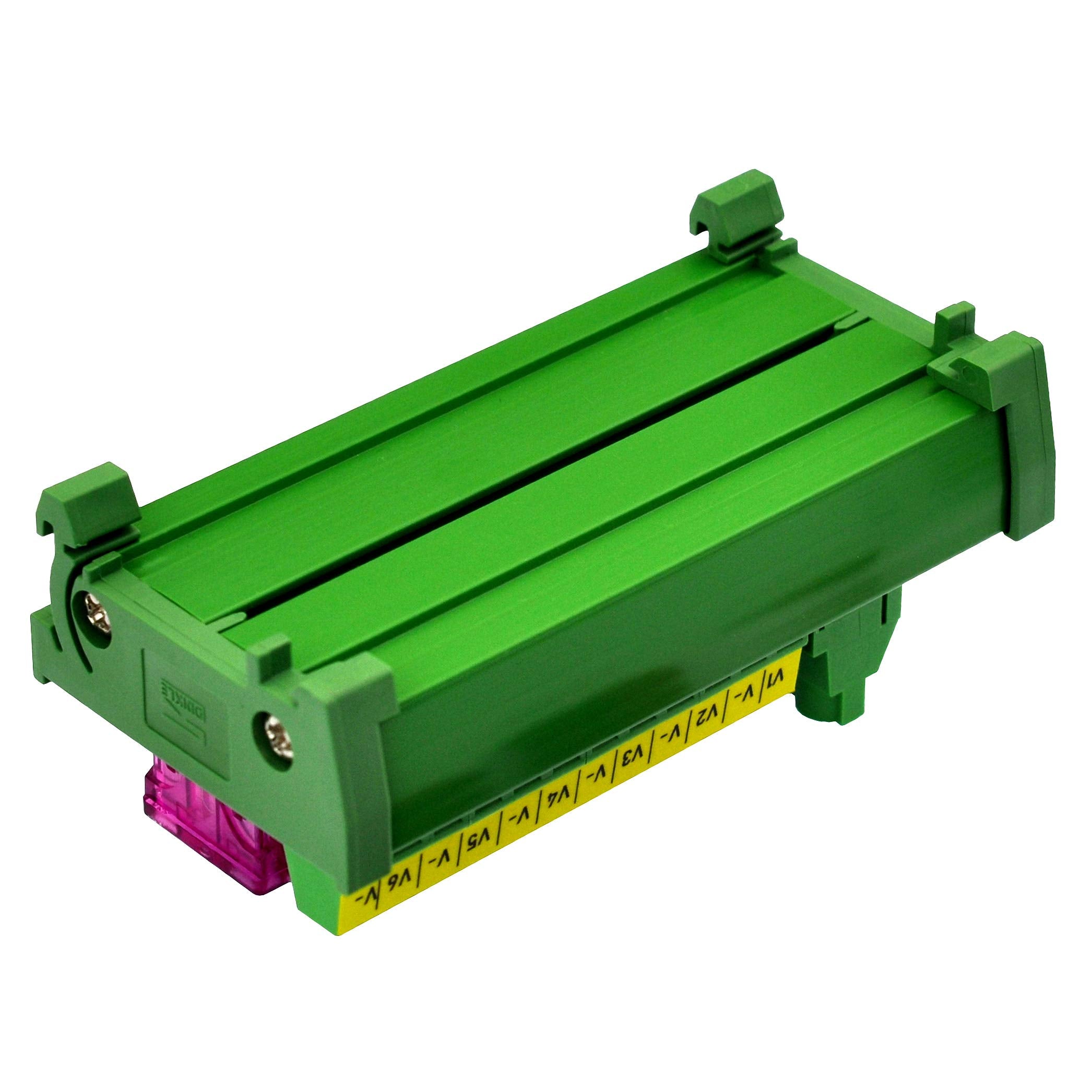

The module is built around a FR-4 fiberglass dual copper layer PCB, housed in a robust DIN rail mount carrier from a trusted supplier. The carrier is designed to fit a 35mm DIN rail, ensuring secure mounting in industrial or lab environments. The entire unit emphasizes quality and repeatability: high-grade materials, precise terminations, and thoughtful spacing to keep wires tidy and accessible.

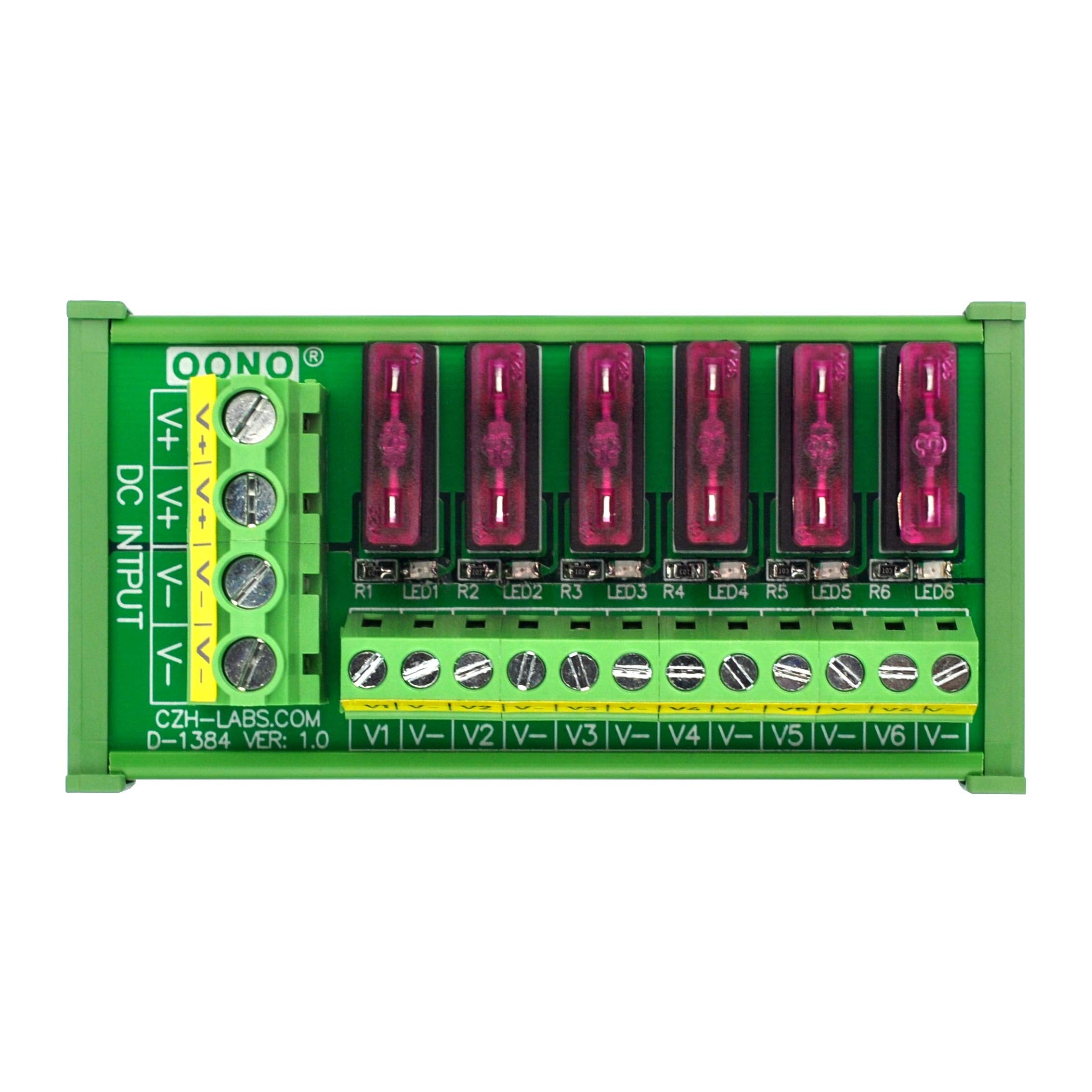

• 6 channels with up to 3A per channel (fuse value 3A factory, upgradeable to 10A per channel).

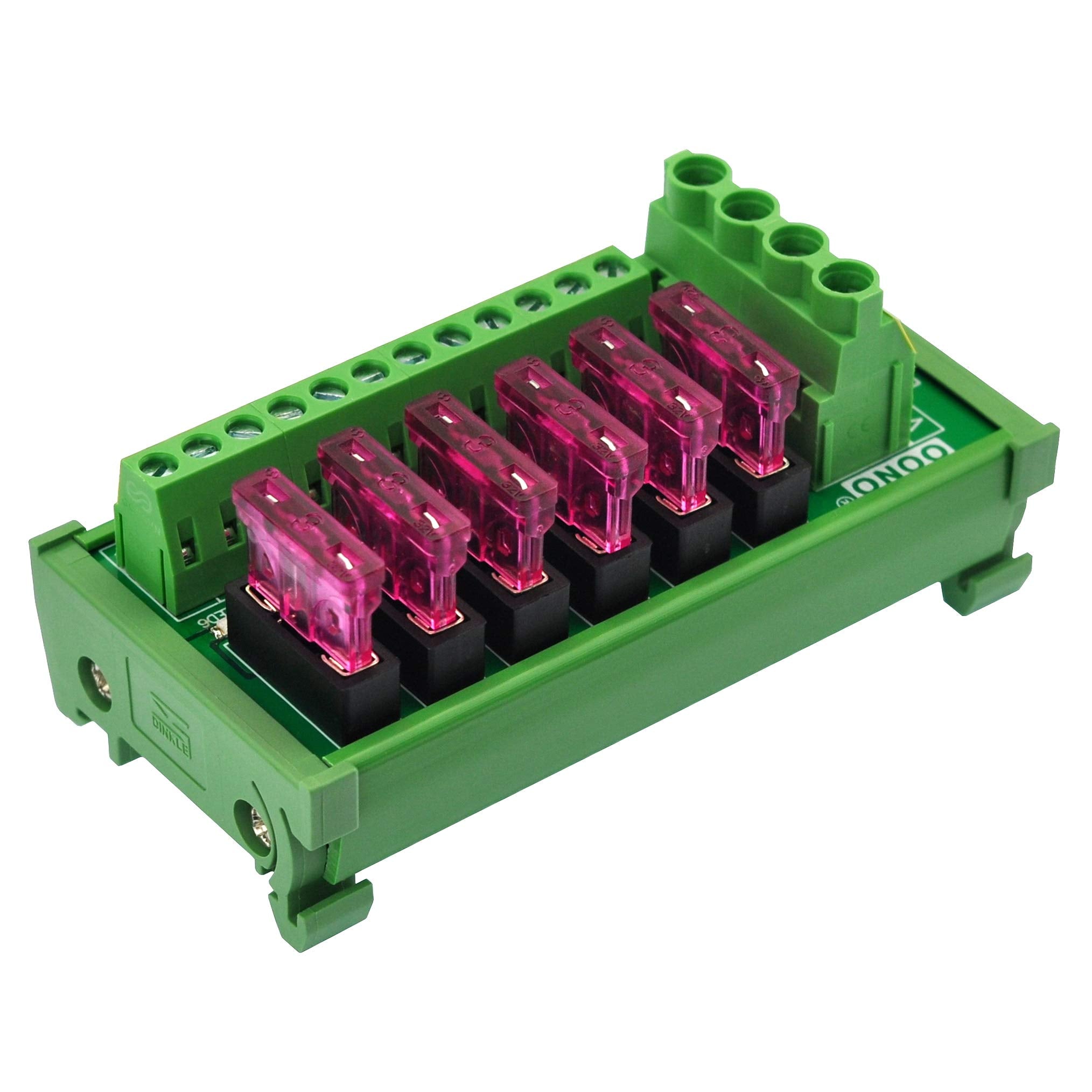

• Input terminals at 7.62 mm pitch, capable of 30A per position, with 26–10 AWG wiring and M3 screws.
• Output terminals at 5.0 mm pitch, suitable for 26–12 AWG wiring and M2.5 screws.

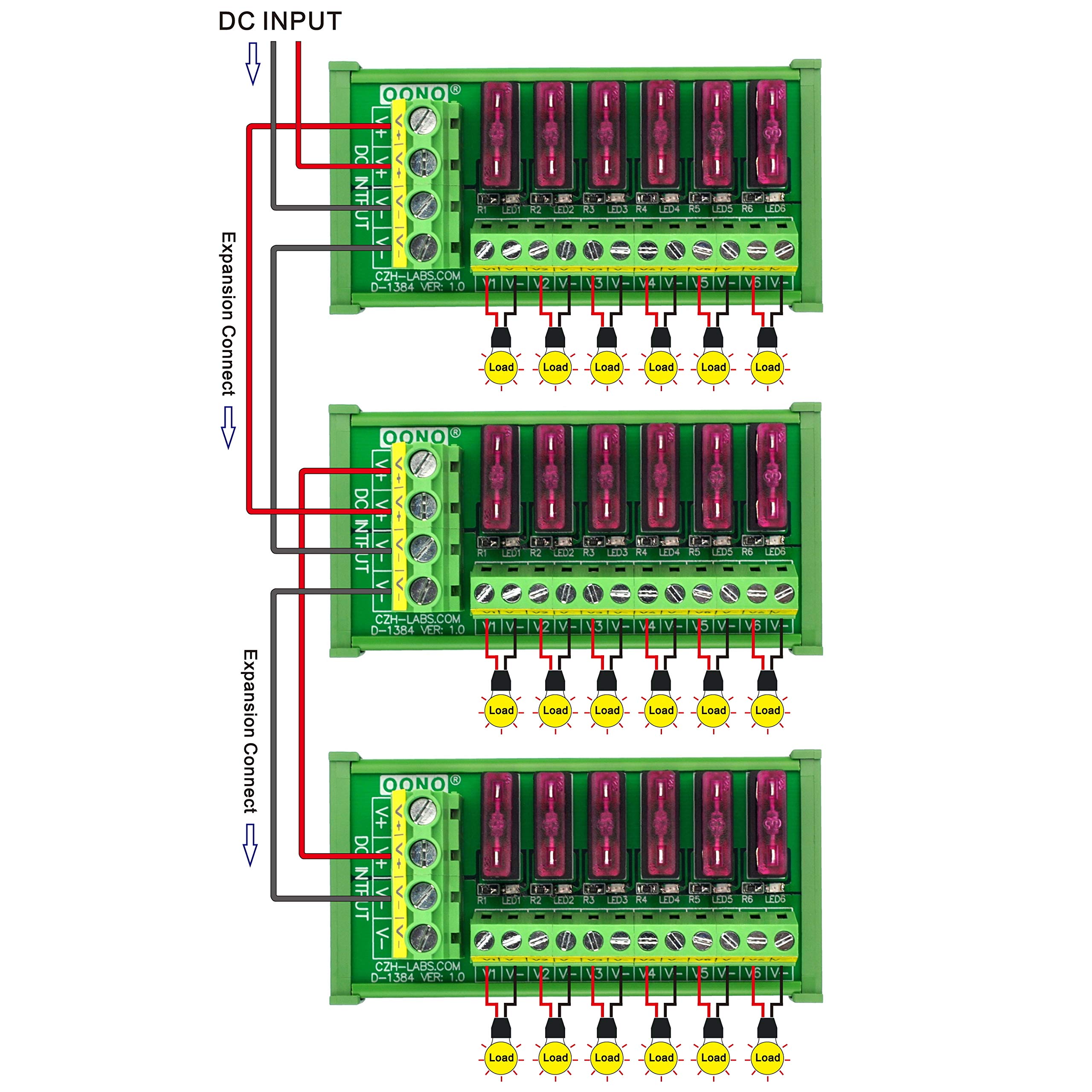

Whether you’re assembling a compact test bench, expanding a control system, or integrating new modules into an existing rack, the DC Power Fuse Strip provides a clean, scalable wiring approach. The kit supports expansion connections to other modules, enabling you to grow your power distribution without reworking existing layouts.

Real-world use cases and benefits

• Lab and prototyping stations can distribute power to multiple sensors, actuators, and controllers with one neat module.
• Automation panels and compact enclosures benefit from organized cabling and quick fuse changes without special tools.
• Resilient operation is supported by easily replaceable fuses and a visible fail indicator, reducing downtime.

Quality construction extends beyond the electricals: the FR-4 PCB, dual copper layers, and a fireproof nylon carrier from a reputable source underscore a design built for durability in demanding environments. The combination of precision wiring terminals, durable screws, and a modular approach helps streamline assembly and maintenance, making it a practical addition to projects that require dependable power distribution with room to grow.

In short, the OONO DC Power Fuse Strip Module aims to balance performance with ease of use. It offers clear upgrade paths, reliable protection, and a straightforward wiring scheme that supports a range of small to mid-size power distribution needs without overpromising outcomes.
