XMK Generator Interlock Kit for Eaton Cutler Hammer CH Panels (150/200 A) TAN Breaker, Horizontal Main 1-1/2 in Spacing
OverviewThe XMK Generator Interlock Kit is designed for Eaton Cutler Hammer CH Series panels using tan generator breakers. It enables...
Vendor:
XMK
- $61.18
- $61.18
- Unit price
- per
Please hurry! Only 5 left in stock
Subtotal:
$61.18
10 customers are viewing this product
Free Shipping
We offer free standard shipping to every province and territory in Canada.
Free Returns
Learn More.
Seasonal Shipping Delays to Outer Regions
Learn More.
Description
xOverview

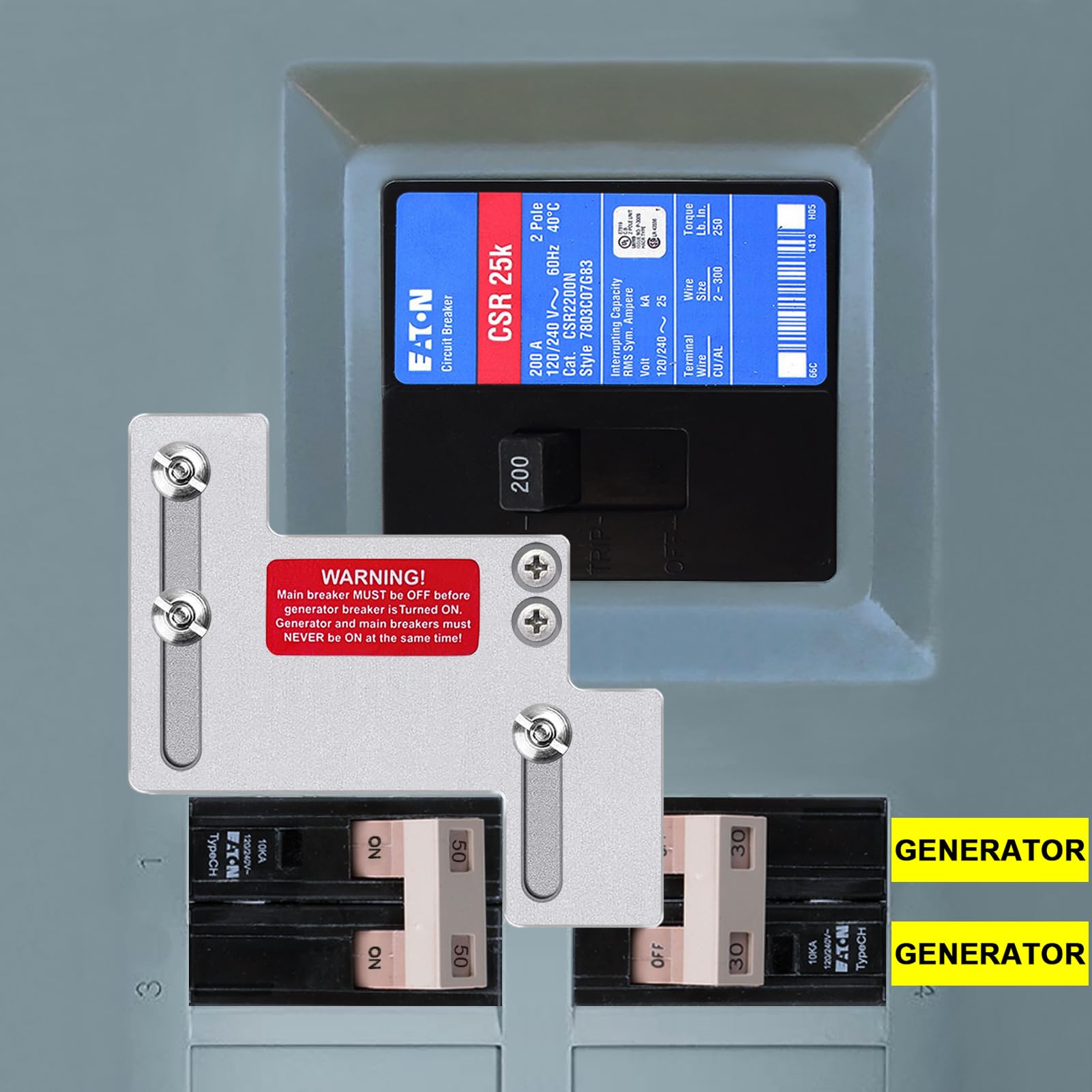

The XMK Generator Interlock Kit is designed for Eaton Cutler Hammer CH Series panels using tan generator breakers. It enables safe back feeding during power interruptions by ensuring the main breaker and generator breaker cannot be on at the same time. The kit specifies a left-right, single-handle main switch with 1-1/2 in spacing between breakers.
Compatibility and fit

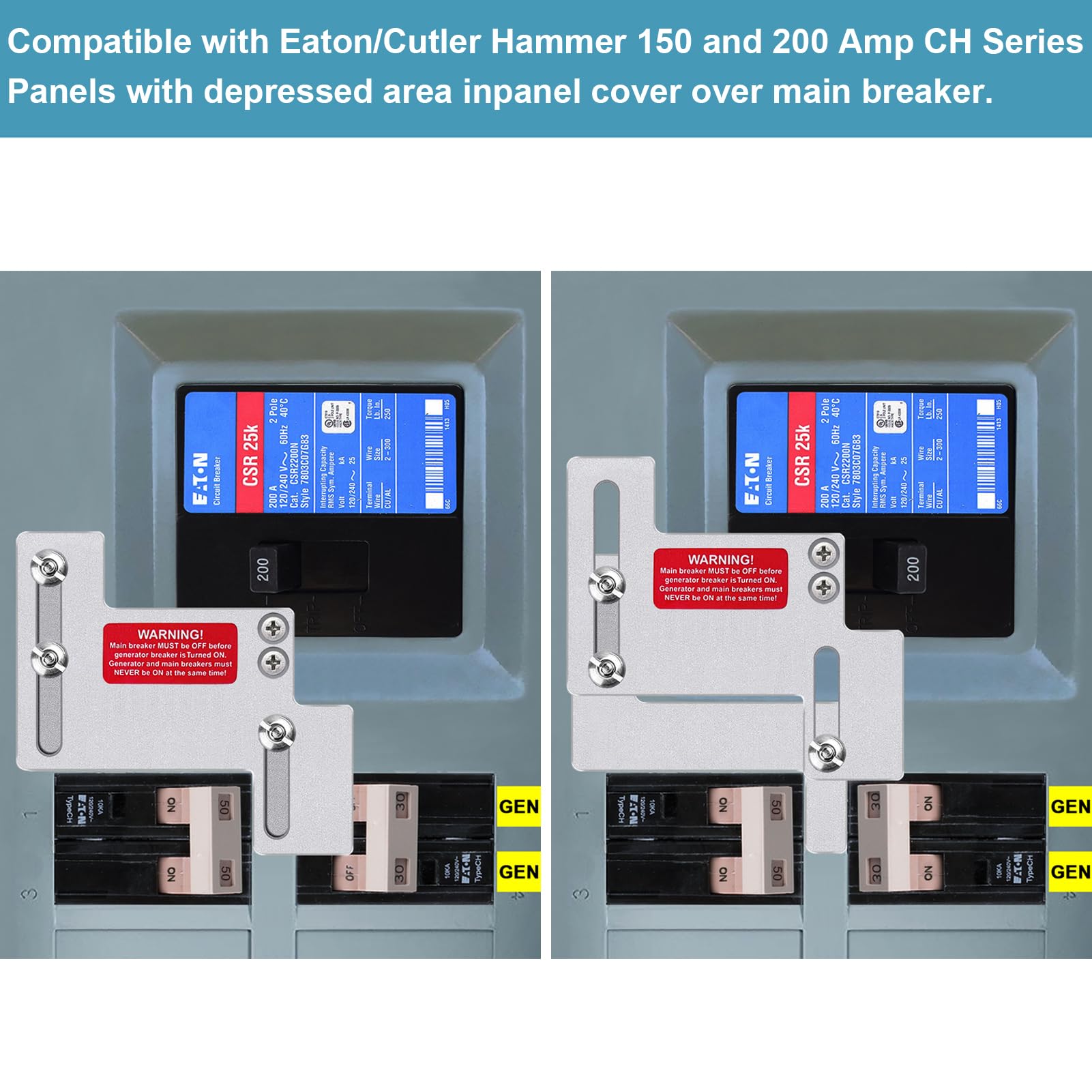

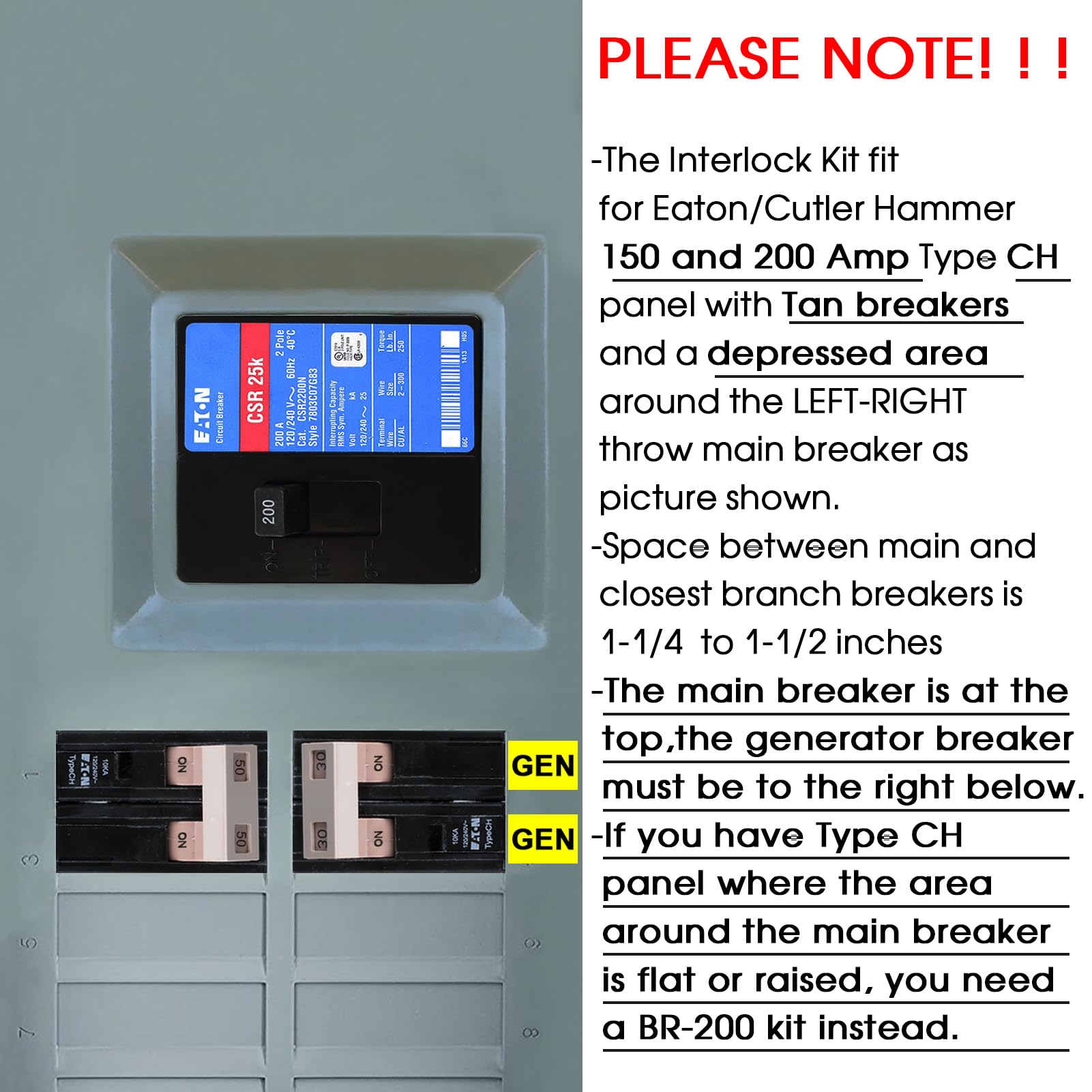

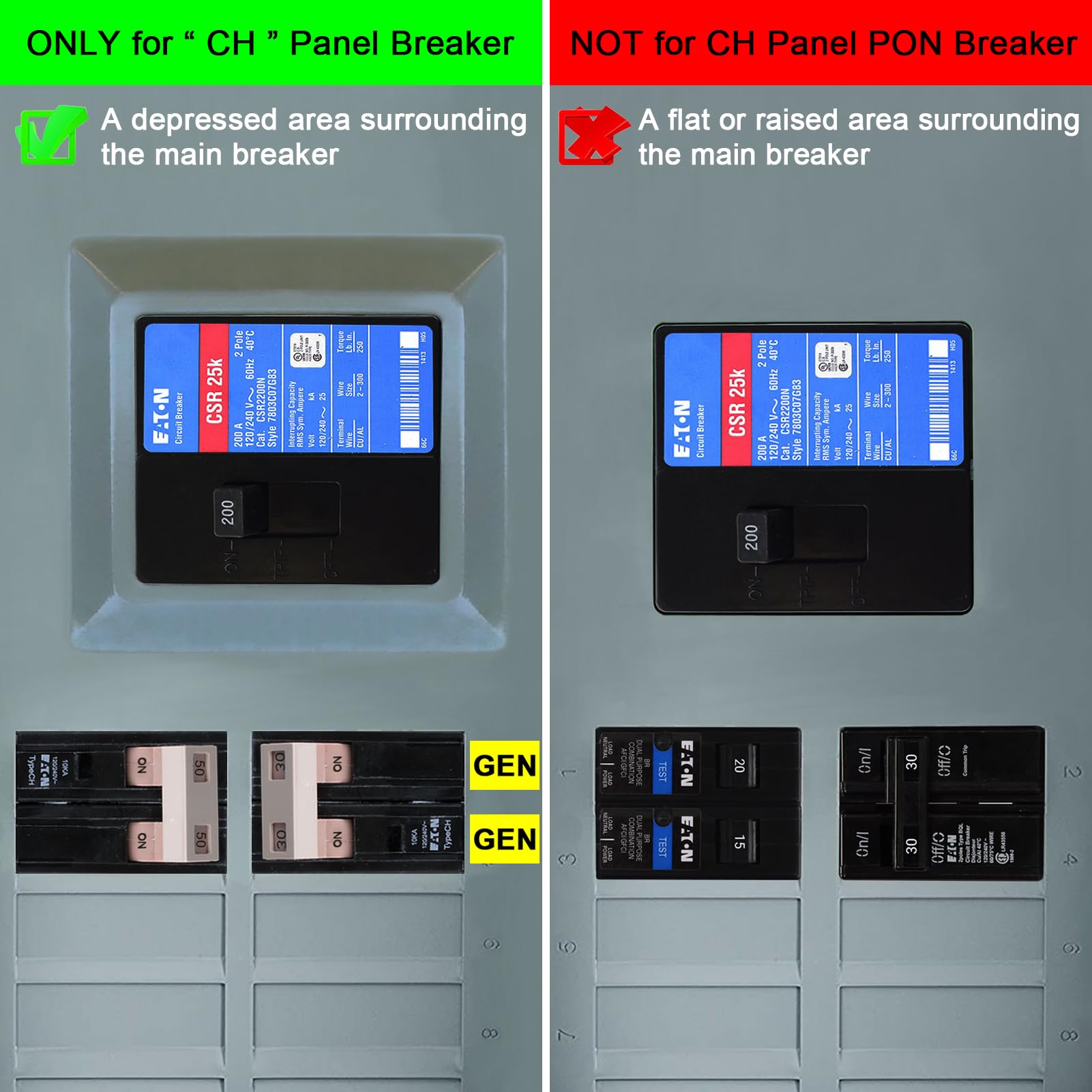

Compatibility is limited to CH 150 and 200 A panels with tan breakers and a depressed area around the main breaker. It is not suitable for CH panels with PON breakers or panels featuring a flat or raised main area. Always verify your panel’s space and model against the second image of the listing.
- Compat models: CH 150/200 A panels with tan generator breakers (not PON).
- Spacing: 1-1/2 inches between main and generator breakers.
- Installation orientation: horizontal main switch left-on, right-off configuration.

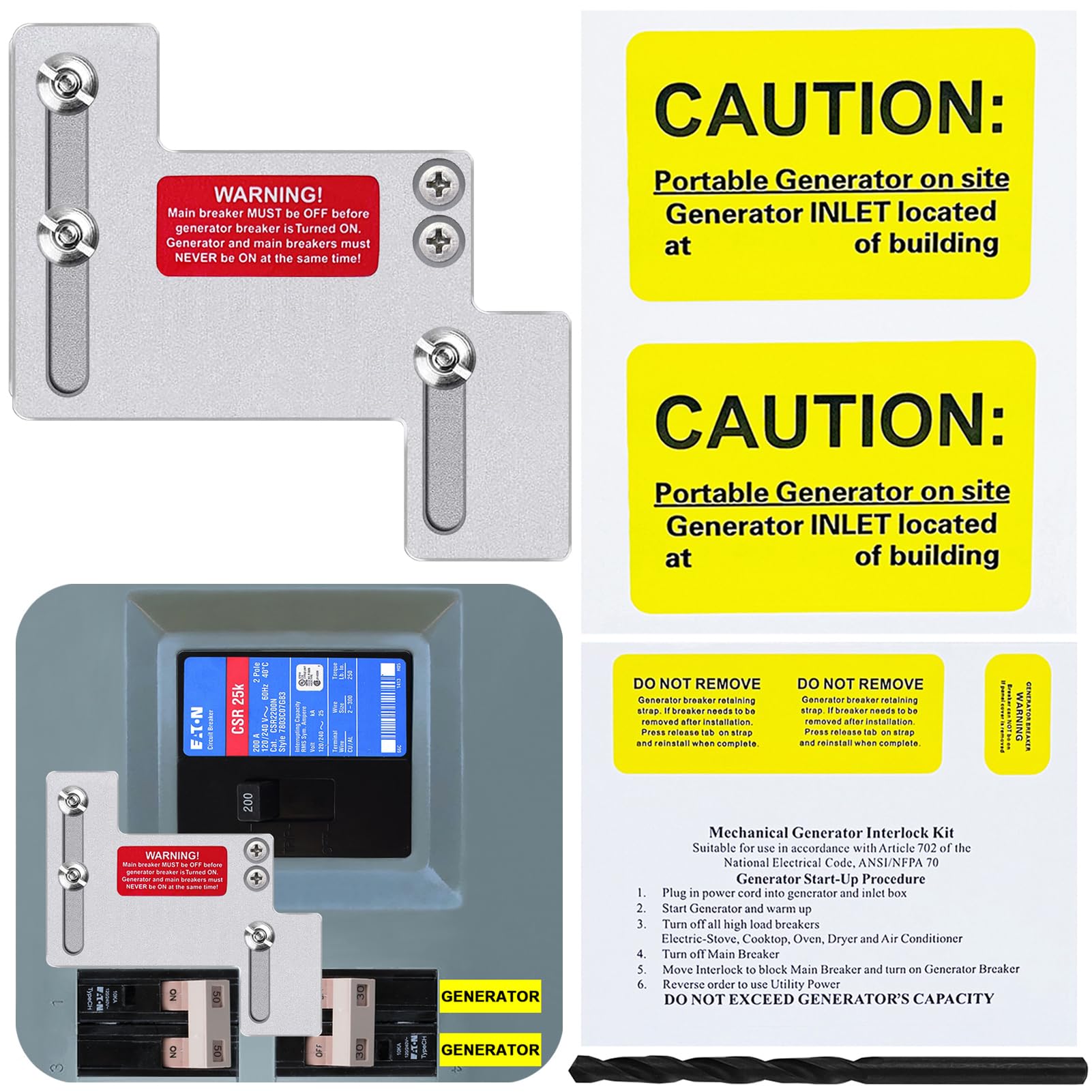

What’s included
- 1 Interlock Plate
- 3 Shoulder Screws
- 3 Hex Nuts
- 1 Drill Bit
- 1 Generator Start-Up Procedure Label
- 5 Remind Labels
- 2 Zip Ties
- 1 Instruction Sheet
Why choose an interlock kit
Using an interlock kit provides a method to backfeed safely with a portable generator, reducing the risk of backfeed to utility workers and the generator itself. The system is designed to turn off the main breaker when the generator breaker is on, and allows the main to stay on when the generator is inactive.
Installation tips and safety

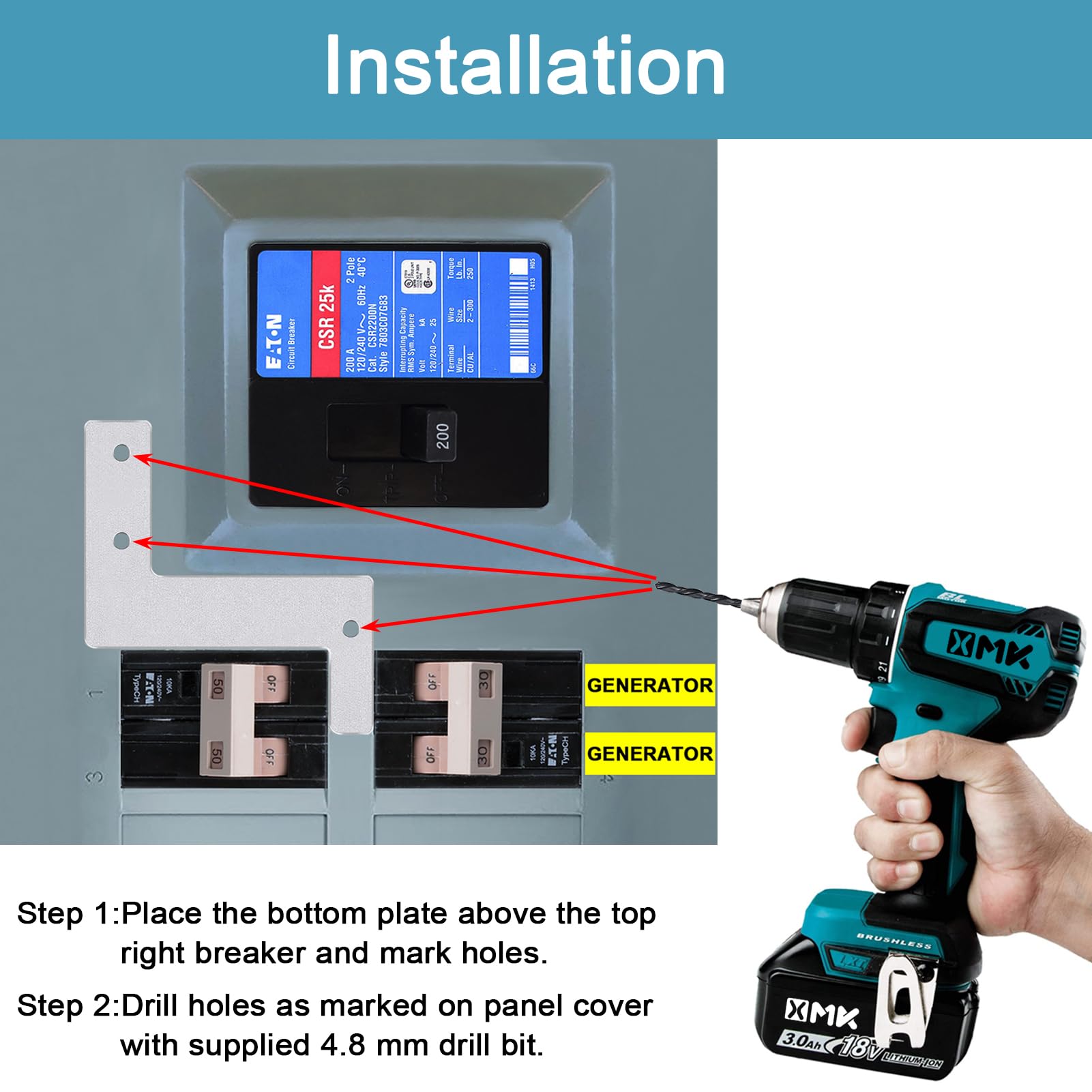

Simple steps: confirm the panel model and space, attach the interlock plate, fasten with screws and nuts, and follow the startup procedure. The kit ships with clear instructions and labels to guide routine operation and safety reminders.
FAQ
Q: Is this interlock kit compatible with CH panels using tan breakers only?
A: Yes, it fits CH 150/200 A panels with tan breakers and a depressed main area.
Q: What comes in the package?
A: Interlock plate, screws, nuts, drill bit, labels, zip ties, and an instruction sheet.
