HONTAITUO 11-Hole Shelf Pin Jig & Hinge Jig 2-in-1 | 1/4-inch & 5mm Drill Guide for Cabinets

Overview

The HONTAITUO 11-Hole Shelf Pin Jig and Hinge Jig 2-in-1 is a compact, self-contained drill guide designed to streamline cabinet installation. Built for reliability and clarity, it combines two essential jigs into one ergonomic tool, helping you plan, align, and execute with confidence on both shelves and hinges.

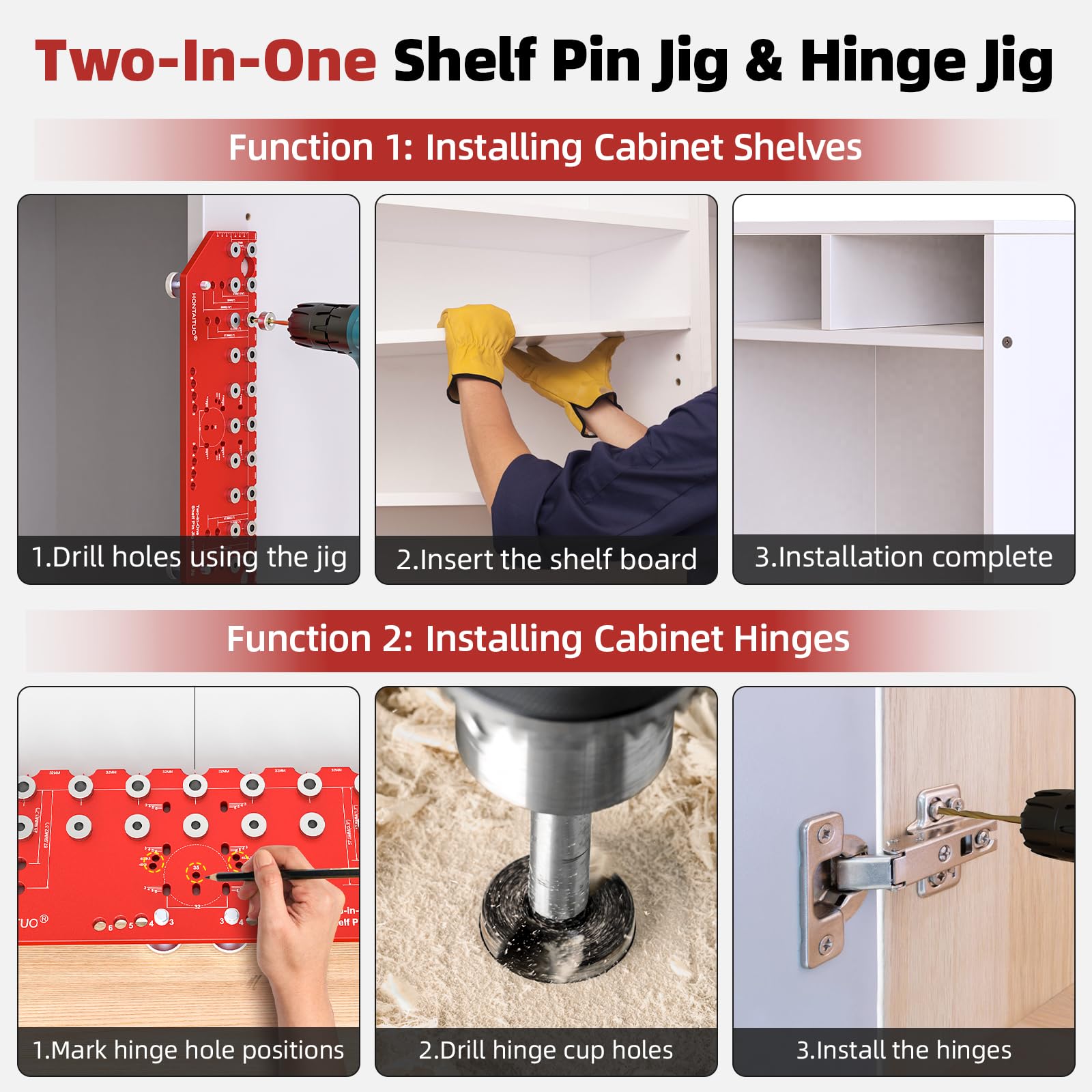

Two essential jigs in one

Switching between shelf pin drilling and hinge cup drilling is seamless, reducing tool swaps and setup time. The integrated design keeps measurements consistent from start to finish, which can help maintain a clean, professional look across projects.

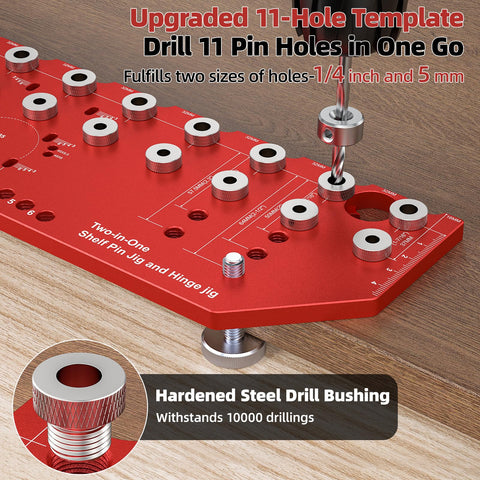

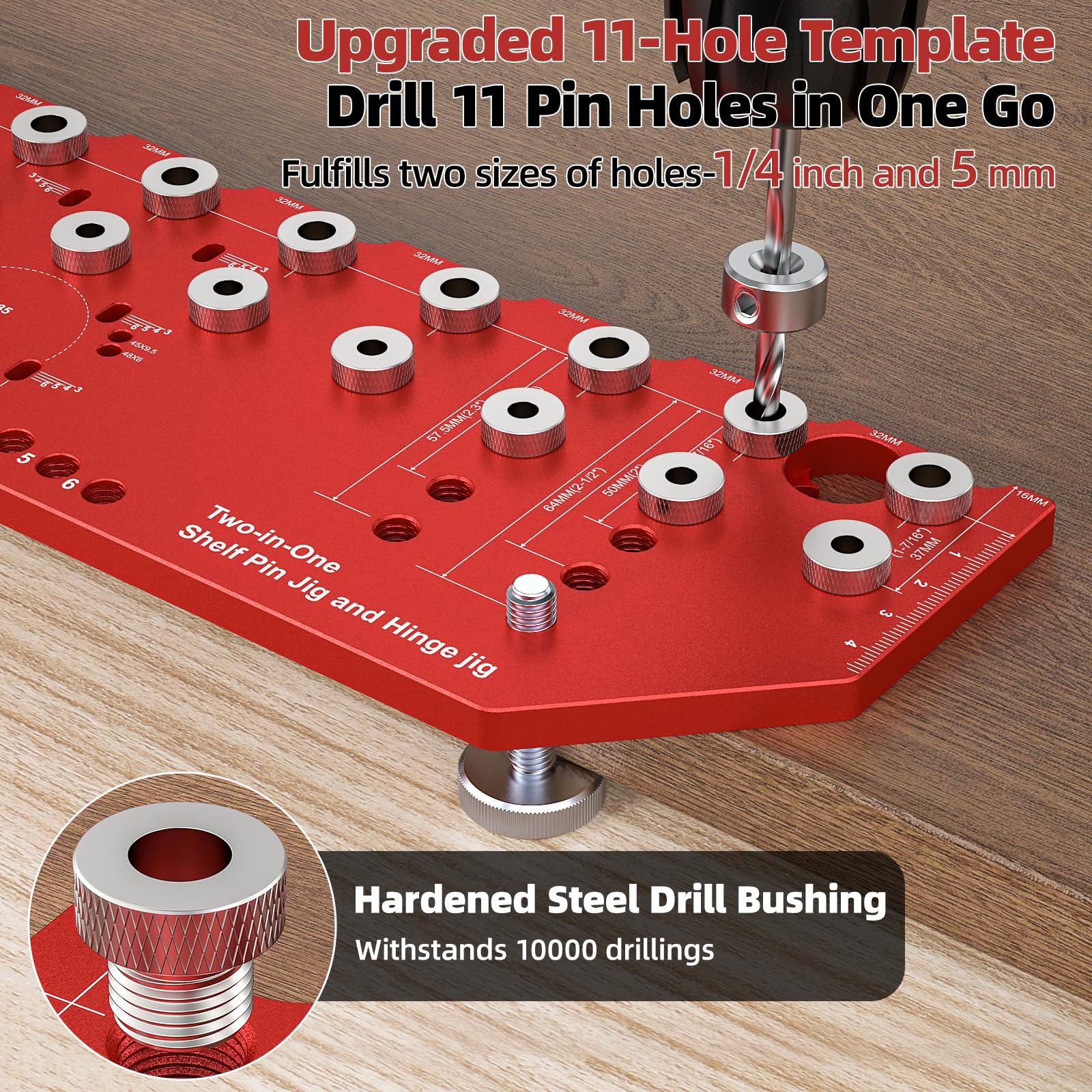

11-hole template for fast, tidy shelves

The upgraded 11-hole layout lets you drill an entire row of shelf pin holes in a single pass. This design minimizes drift and misalignment, promoting uniform spacing and neater results for all your shelves.

• Faster hole layout with one-pass drilling
• Consistent spacing across multiple shelves
• Reduces re-measuring and rework

Hinge jig for common concealed hinges

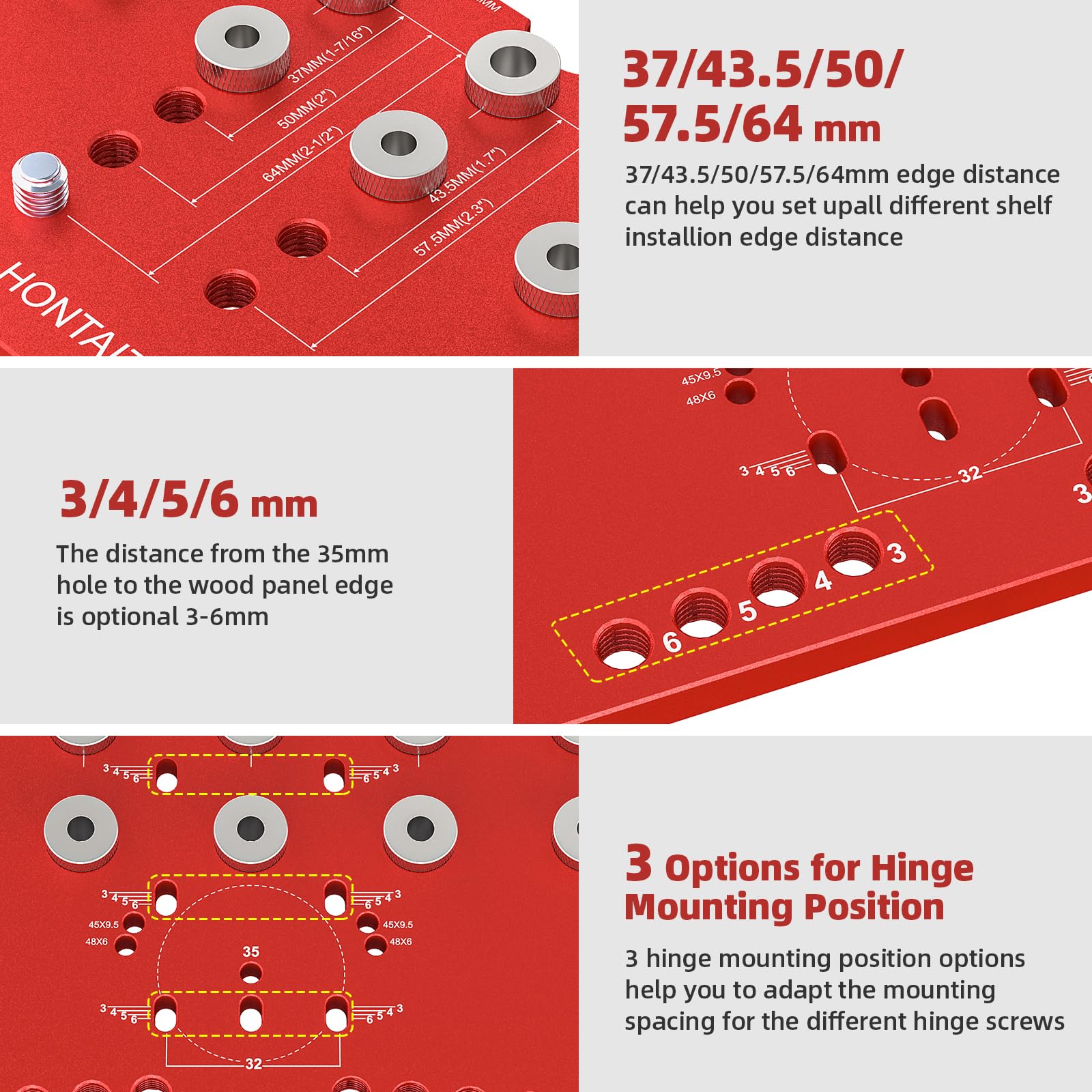

The professional hinge drilling template accommodates widely used concealed hinges in the US. The kit notes an optional 3–6 mm offset from the 35 mm hinge cup to the panel edge, supporting adaptable mounting. Included hinge screws are 48×6 and 45×9.5 mm to simplify assembly in one pass.

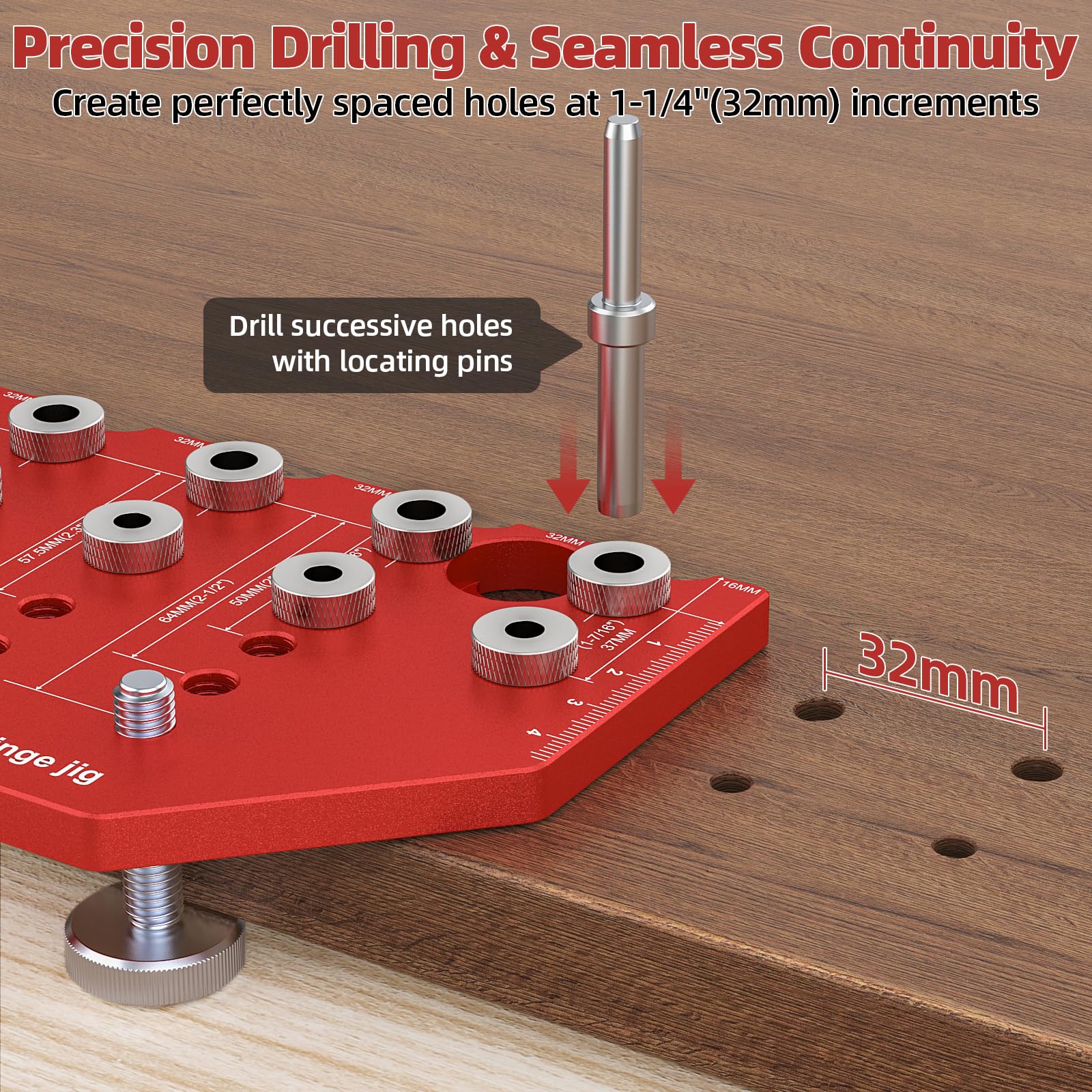

Two drilling sizes for versatility

This jig supports both 1/4-inch and 5 mm hole diameters, letting you tailor hole size to pin or hinge requirements. The dual-diameter capability broadens compatibility with common cabinet hardware.

Widely applicable and easy to use

Designed for builders, carpenters, home improvers, and beginners, the jig offers precise drilling guidance across diverse cabinet projects. If you have questions during use, HONTAITUO’s customer service aims to assist promptly.

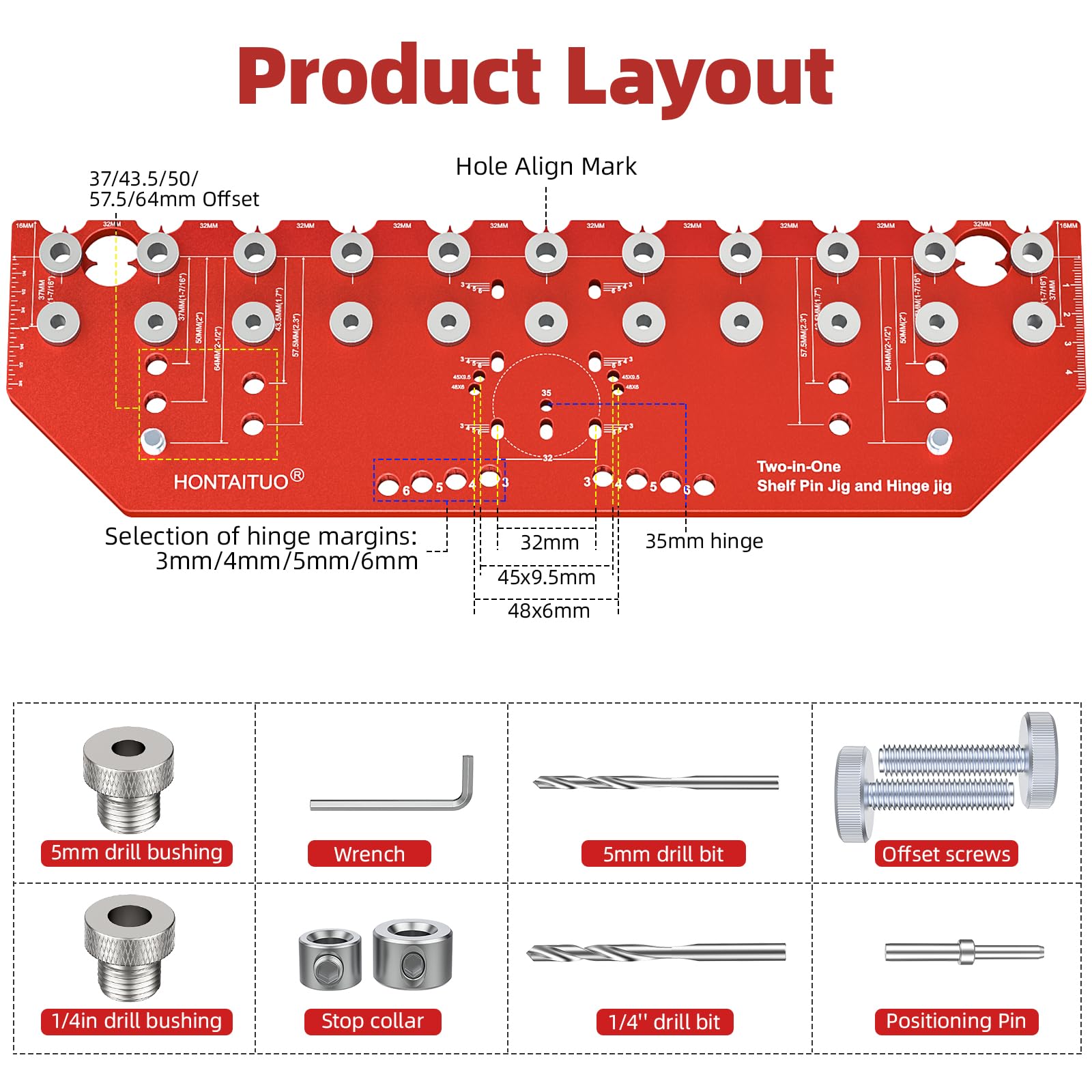

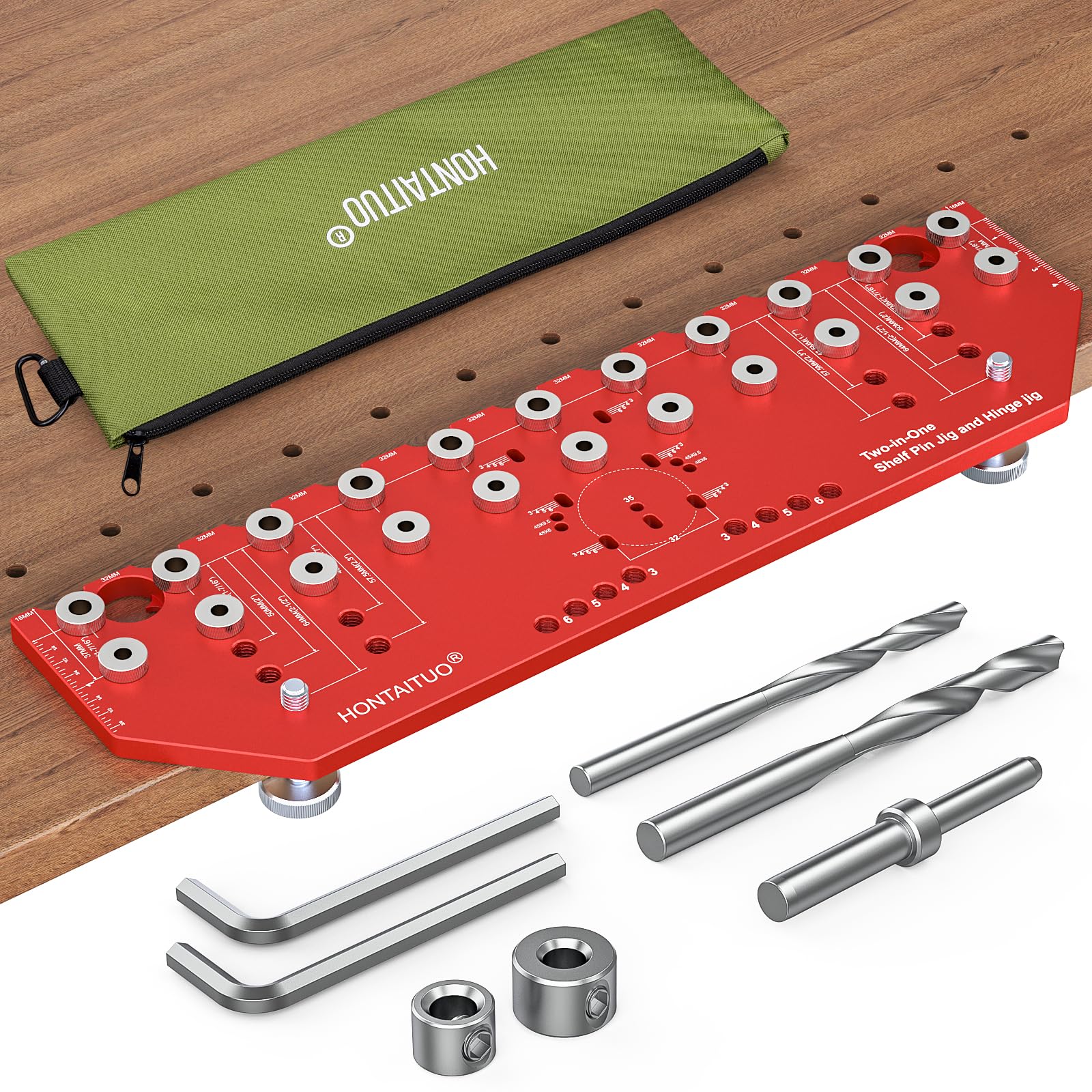

What you get and design notes

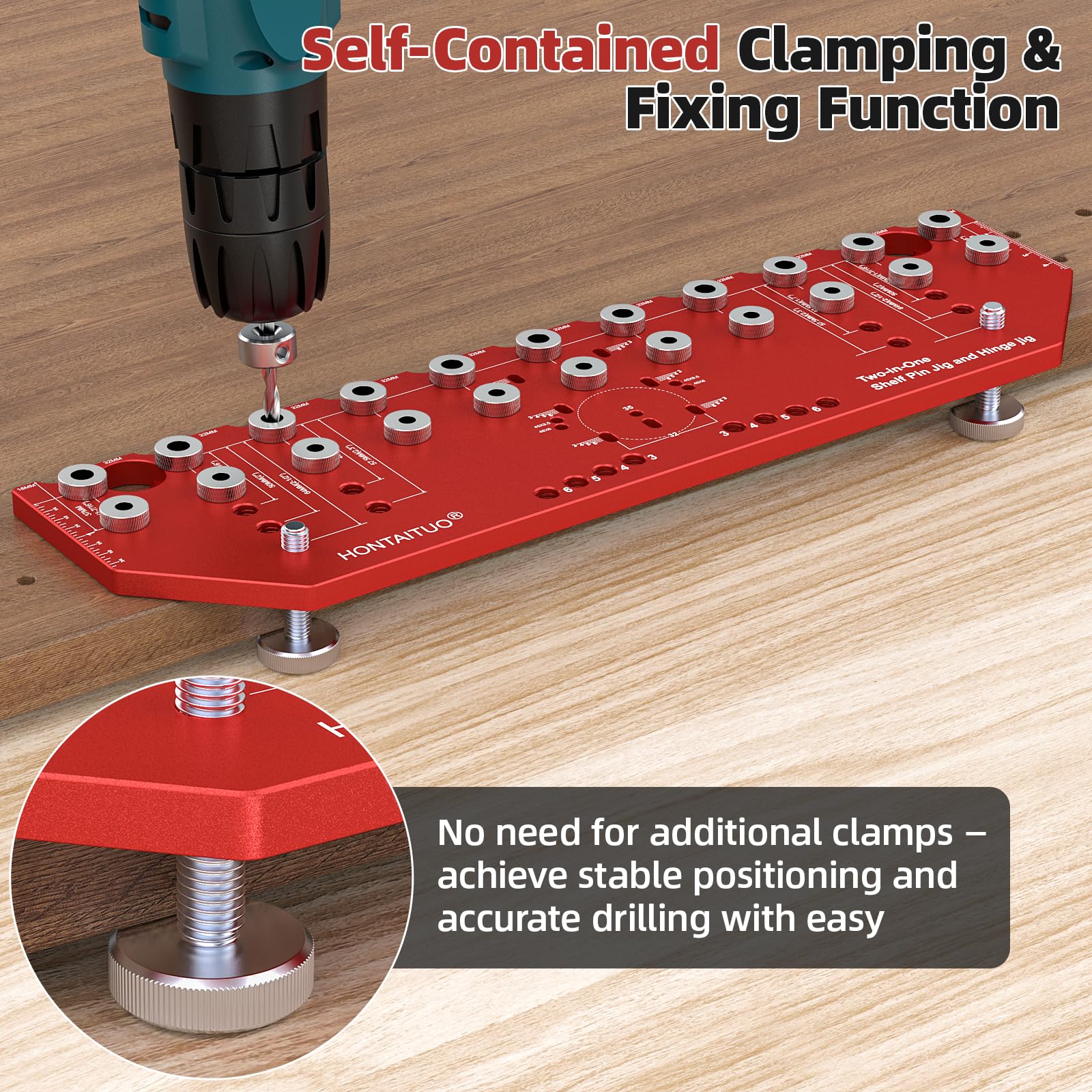

• Integrated self-contained clamping for stable guiding
• Two-in-one functionality with a single, compact tool
• Patent-pending innovation from HONTAITUO
• Included hinge screws (48×6 and 45×9.5 mm) for common hardware

In short, this jig aims to simplify cabinet installation tasks while supporting accurate, repeatable results. The combination of an 11-hole shelf pin layout and a hinge drill template offers a practical, field-tested approach for everyday projects without overpromising outcomes.
