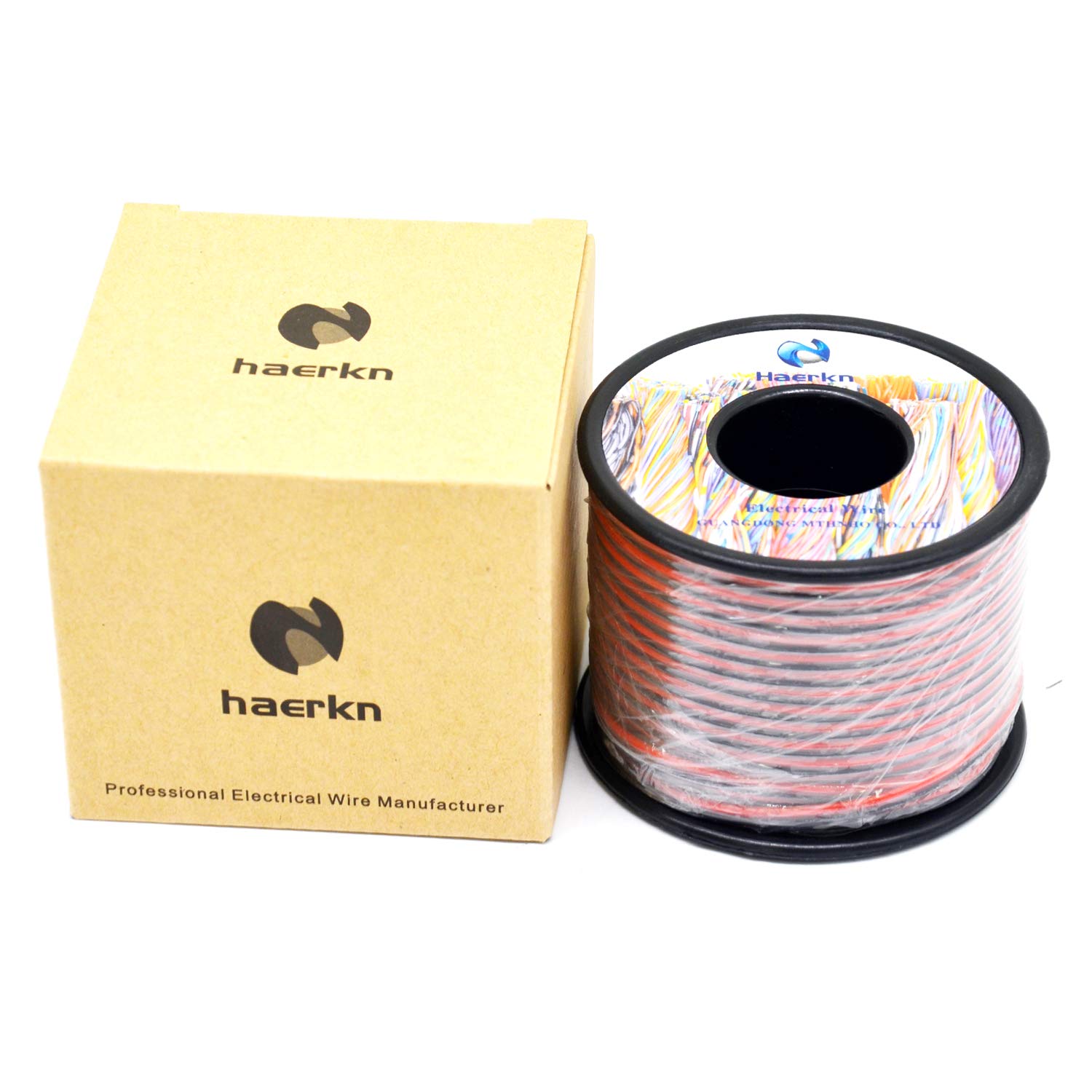

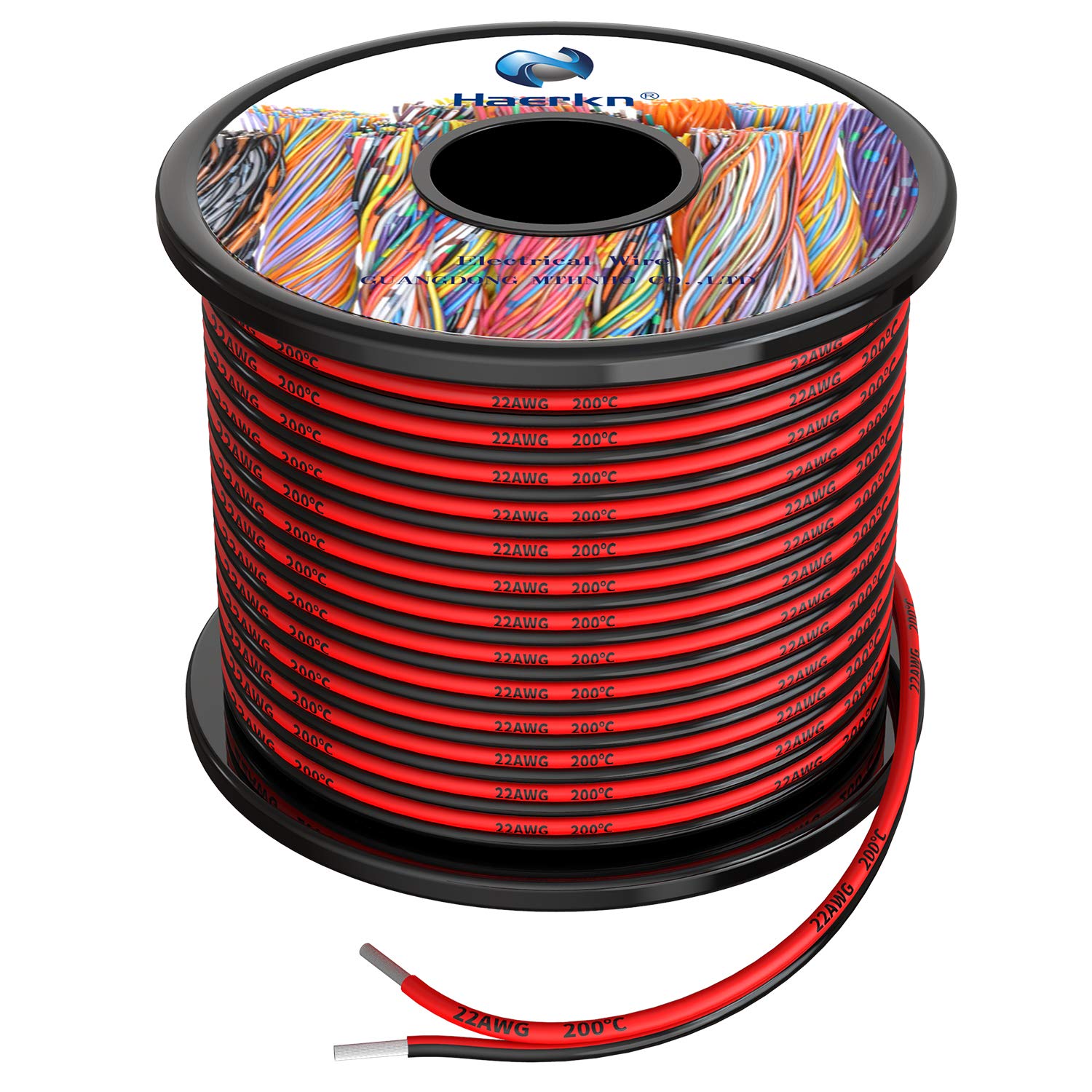

Haerkn 22 AWG Silicone Wire – 2-Conductor Parallel, 200ft (Black 100ft + Red 100ft) – Flexible Oxygen-Free Tin Copper, 600V

Overview

Haerkn 22 AWG Silicone Wire is a two-conductor parallel line designed for easy separation and color-coded wiring. With a total length of 200 feet, it arrives as black and red segments of 100 feet each, offering reliable organization for projects that require clear circuit separation. The silicone jacket delivers a mix of flexibility and resilience, making it a practical choice for hobby electronics, lab work, or prototyping setups where tidy routing matters.

Embrace a balance of performance and practicality. The wire uses high-purity oxygen-free tin copper conductors, which contribute to stable electrical behavior and lower impedance paths. The result is a dependable hookup option that can adapt to a variety of environments while maintaining a compact, easy-to-manage profile.

Key specifications

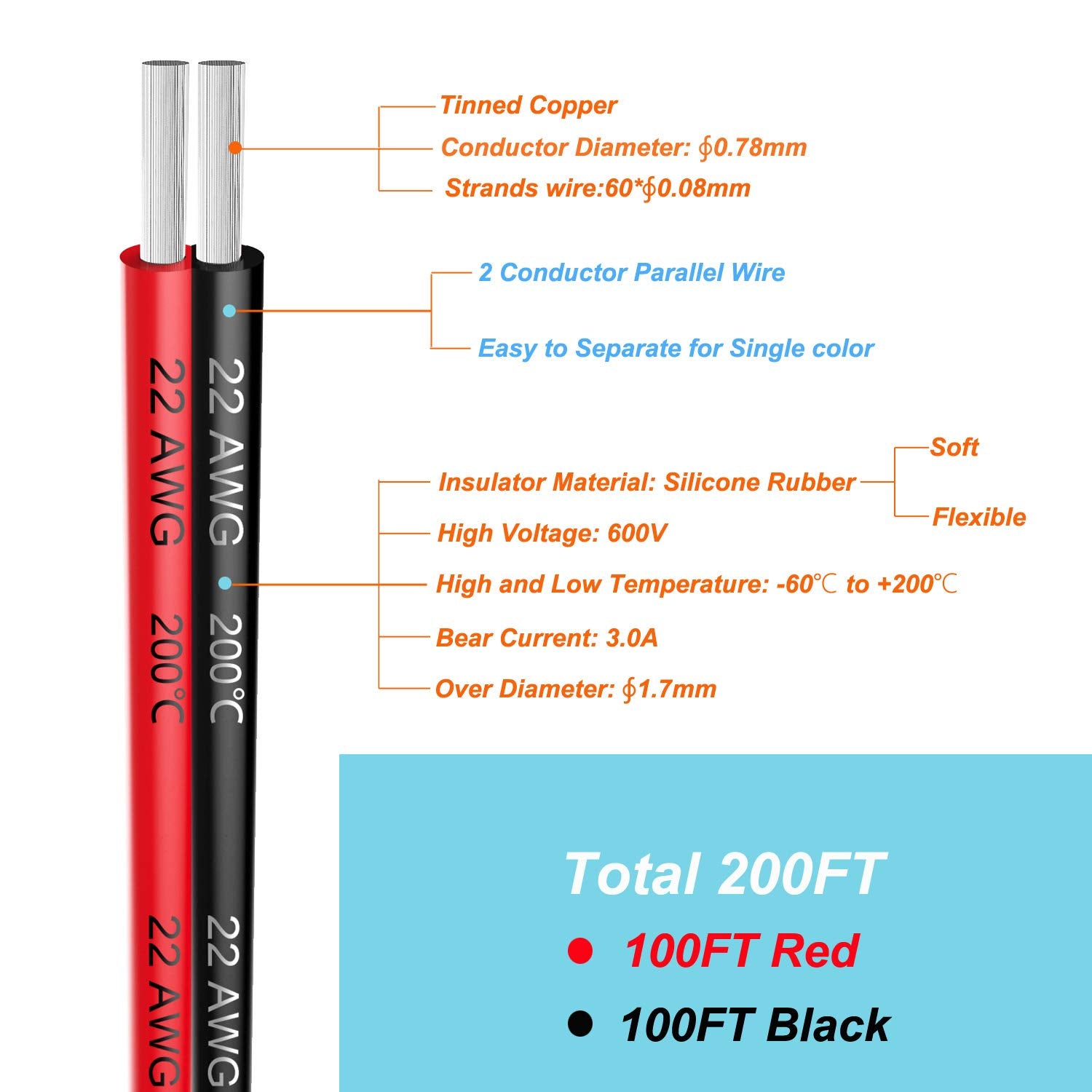

• Conductor: 22 AWG with 60 strands of 0.08 mm each; overall diameter ∮0.78 mm
• Insulation: Silicone jacket with 0.55 mm wall thickness; outer diameter around 1.7 mm
• Length: 200 ft total; black 100 ft + red 100 ft for simple color-coding
• Voltage and current: Nominal 600V; bear current 3A
• Conductor material: Oxygen-free tin copper for clean, stable connections
• Tolerance: Jacket diameter tolerance ±0.1 mm

Physical and environmental performance

• Temperature range: -60°C to 200°C, enabling use in diverse conditions

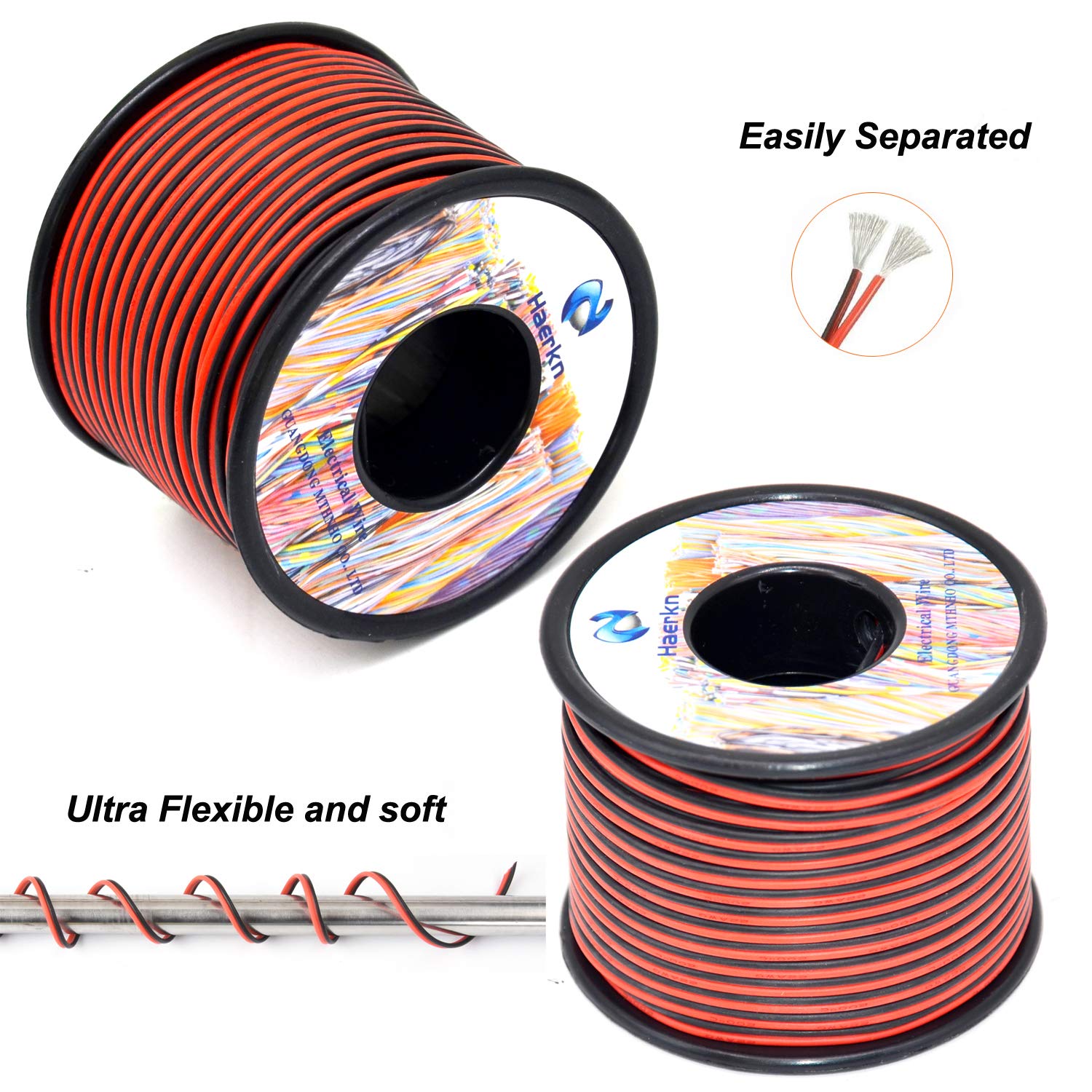

• Flexibility: 60 strands per conductor support easy routing through tight spaces
• Durability: Silicone insulation provides a protective barrier against wear and environmental stress
• Design: 2-conductor parallel design simplifies separation and organization on multiwire projects

Practical uses

• Hobby electronics, RC projects, and educational kits where color-coded wiring helps manage circuits
• Lab wiring and test setups that require clear identification and reliable performance
• Prototyping workbenches where flexible, low-impedance connections are beneficial

While not a guaranteed outcome, Haerkn 22 AWG silicone wire offers a versatile platform for careful, well-organized electrical hookups in a range of projects. Consider it for applications that value flexibility, color-coded clarity, and robust insulation in a compact form factor.
