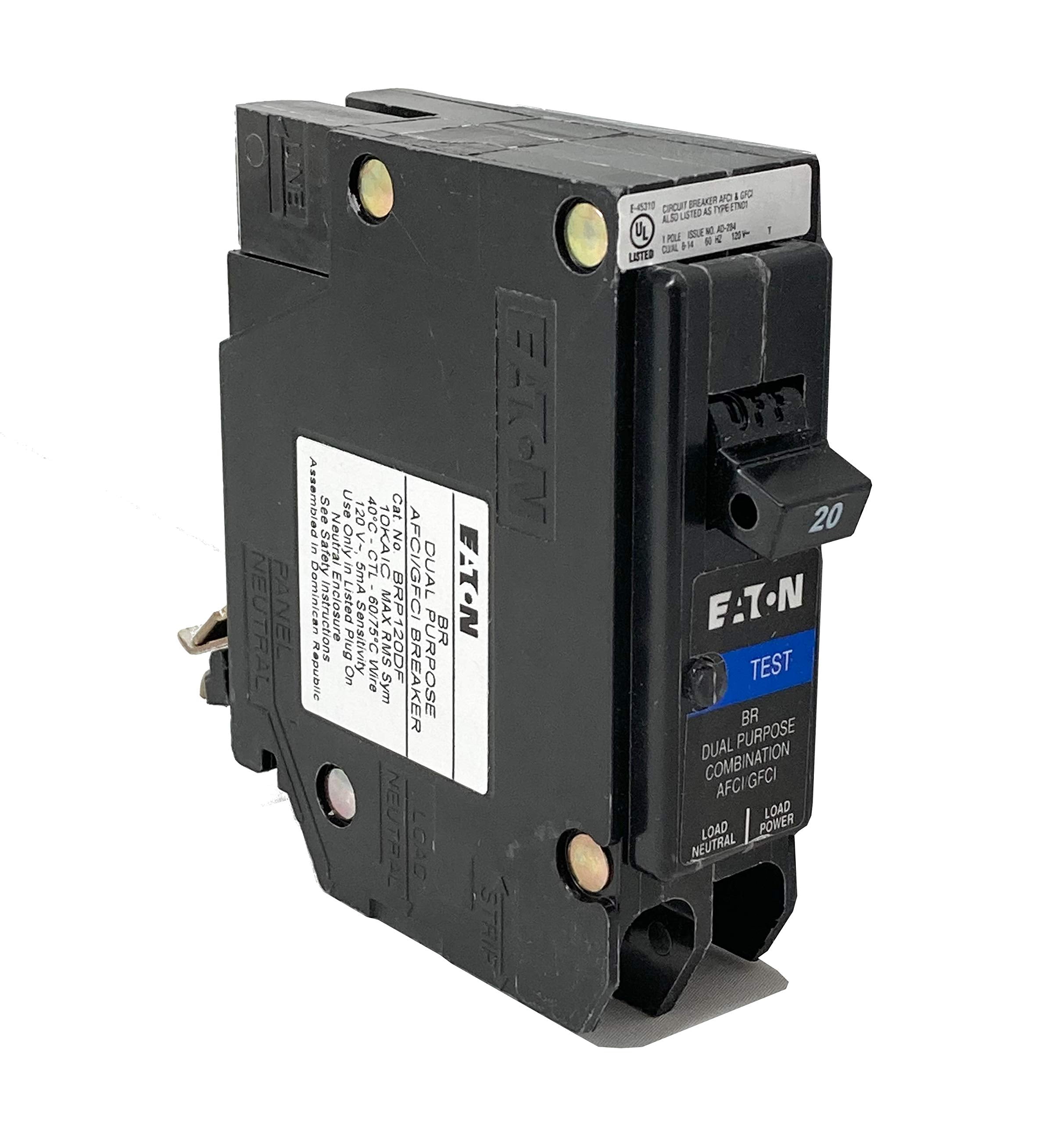

Eaton BRP120DF BR Dual-Function AF/GF, 1-Pole, 20A Breaker

Overview

The Eaton BRP120DF is designed for use in residential BR-series panels and enclosures. It combines arc fault (AF) and ground fault (GF) protection in a single 1-pole 20A breaker. This dual function offers two layers of safety in a compact, easy to install unit, helping you protect branch circuits without adding extra devices.

Within a typical home electrical setup, the BRP120DF can fit into existing panel spaces with minimal disruption. Its 1-pole, 20A rating makes it suitable for common branch circuits such as lighting runs, kitchen outlets, and garage circuits. The unit is intended to work alongside other Eaton BR components, providing a cohesive and organized protection solution.

Key benefits

• Dual-function AF/GF protection in one breaker, offering arc fault and ground fault sensing.
• Compact 1-pole design with a 20A rating for standard residential circuits.
• Designed for use in Eaton BR-series panels, supporting straightforward upgrades or replacements.
• Clear panel indentation and a crisp handle action to indicate status during operation.

Practical uses and considerations

• Ideal for lighting circuits, outlets, and small appliance runs in living areas, kitchens, and utility spaces.
• Provides a streamlined upgrade path for enhanced circuit protection without a full panel change.
• When installing, verify compatibility with the BR-series configuration and follow local electrical codes.
• Consider pairing with other compatible BR-series breakers to create a balanced protection plan.

In real world terms, you will hear a distinct, confident click when the breaker engages, and a firm confirmation when it is seated in the panel. The unit maintains a compact footprint that helps keep the interior of the panel organized while leaving room for future additions. Though the BRP120DF is designed for Eaton BR-series panels, always confirm compatibility with your specific panel model and consult a licensed electrician if you are unsure about installation or electrical safety.
