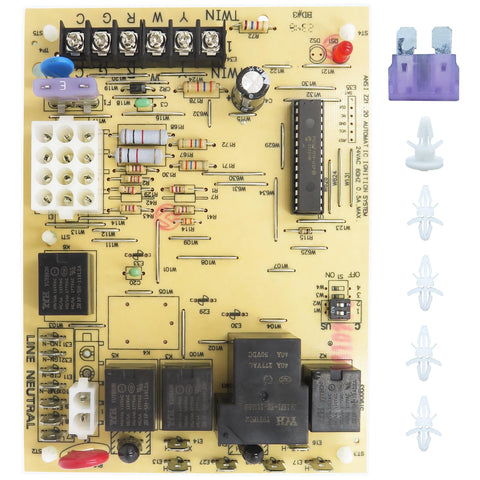

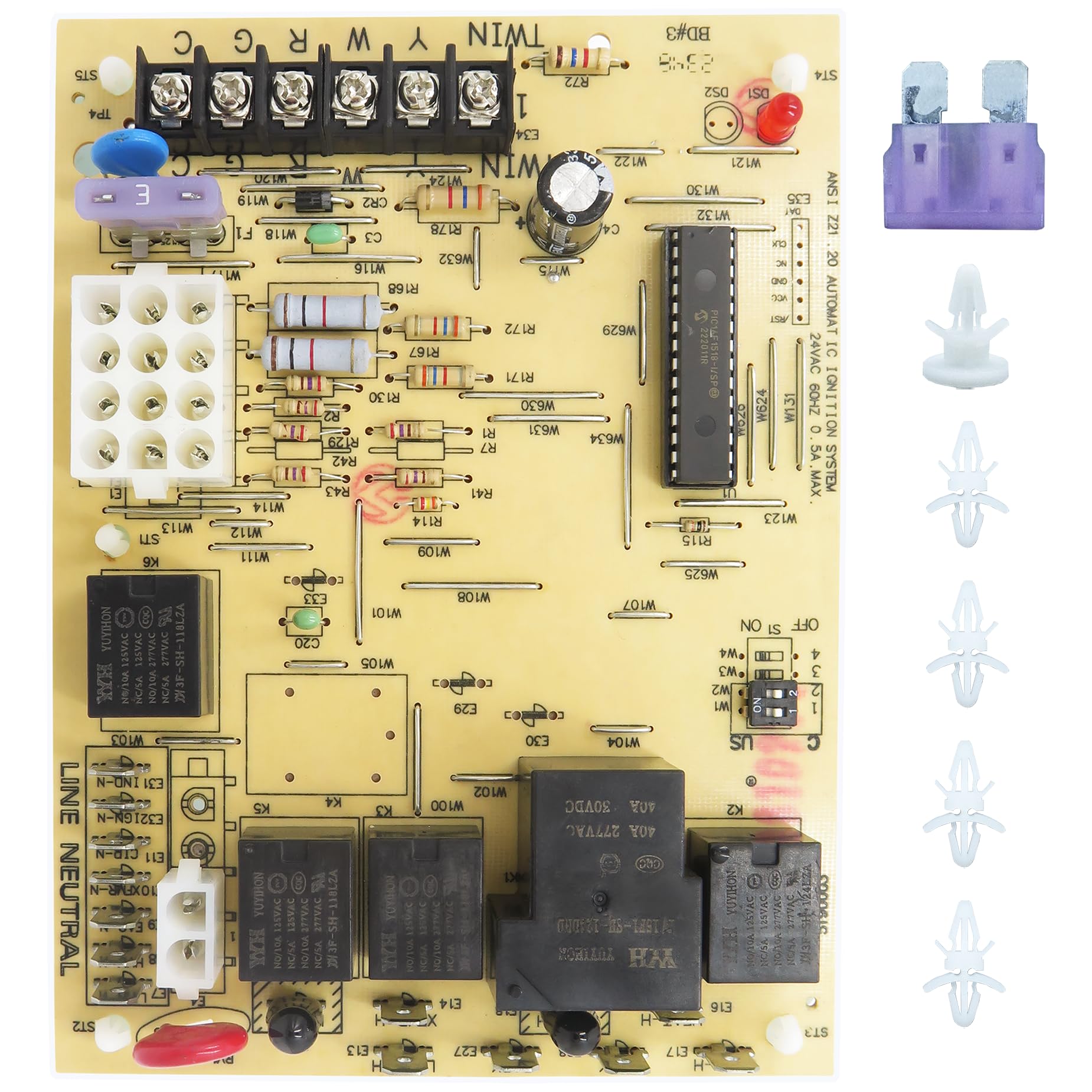

DDORUU PCBBF112S Upgraded Furnace Control Circuit Board — Replacement for PCBBF112/PCBBF123/PCBBF110S

Overview

Meet the DDORUU PCBBF112S upgraded furnace control circuit board, engineered to stand in for a range of PCBBF models and to support a broad set of furnace brands. This replacement board provides the central control that helps regulate burner cycles, fan operation, and system responses to thermostat signals. Designed with both reliability and versatility in mind, it aims to be a practical mid-life upgrade that keeps compatible systems running smoothly without a full control-system overhaul.

Built with dual-voltage capability, the board supports 24 VAC low-voltage control circuits and 120 VAC line power, giving installers flexible integration options for many residential furnaces. The integration of PSC and ECMx relays is sized to handle common circulator loads, offering a balance of performance and efficiency that can translate into more stable operation and responsive control in everyday use.

Key compatibility and use cases

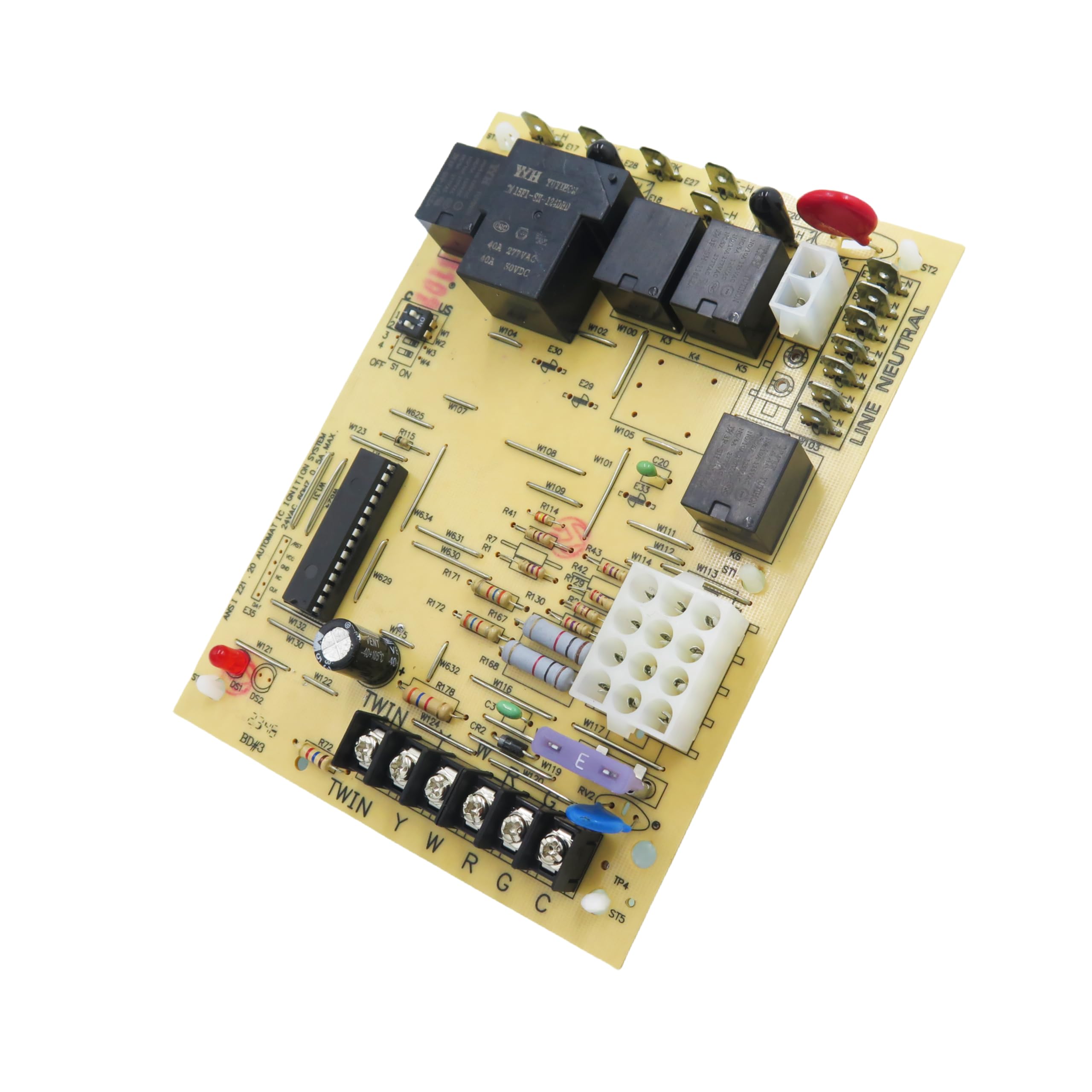

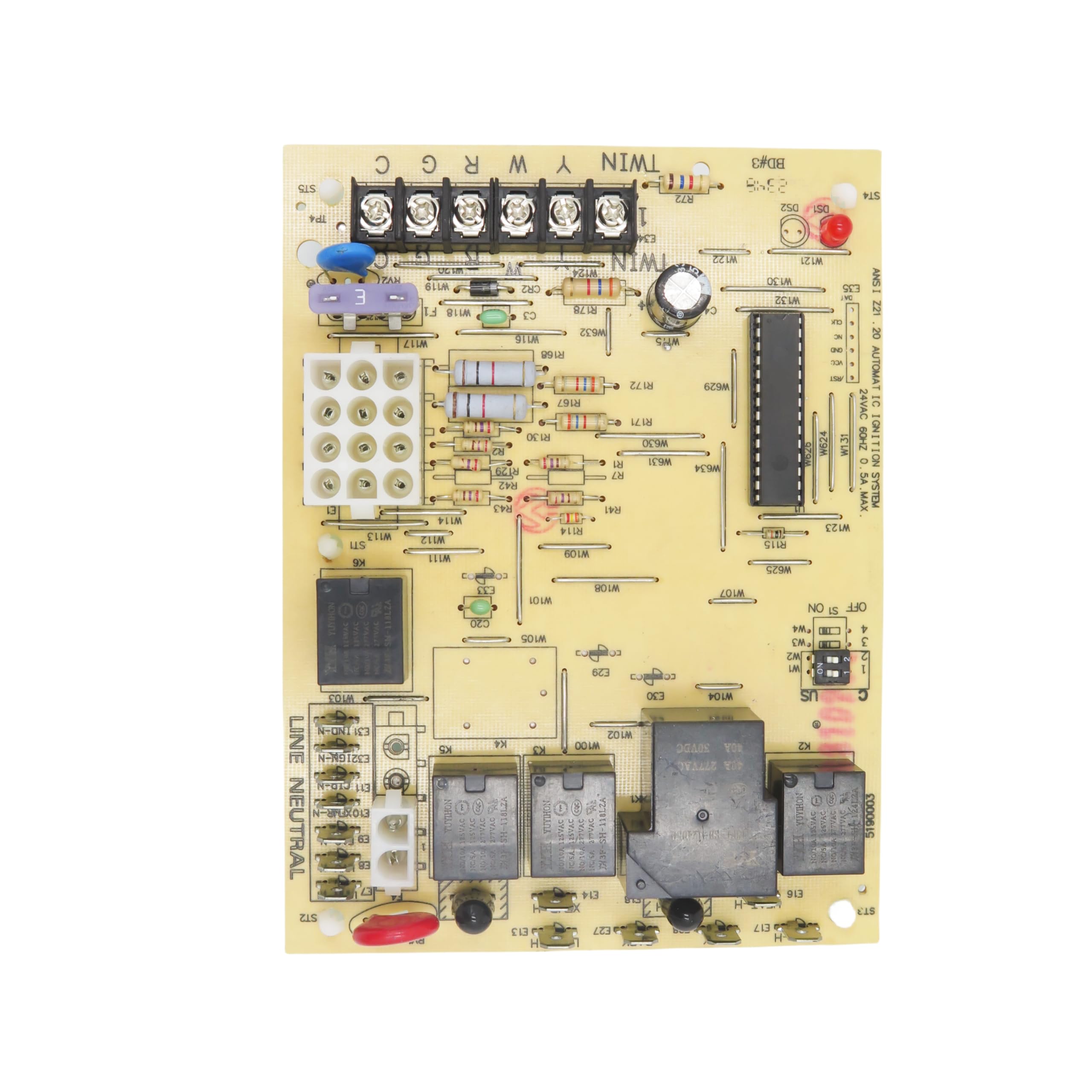

This board is designed as a replacement for a number of related parts, including PCBBF112, PCBBF123, PCBBF123S, PCBBF110S, and PCBBF110, among other identifiers. If you’re performing a repair and you encounter one of these model numbers, this DDORUU upgrade could provide a practical, ready-to-install solution that preserves the original furnace performance without requiring a complete control-system swap.

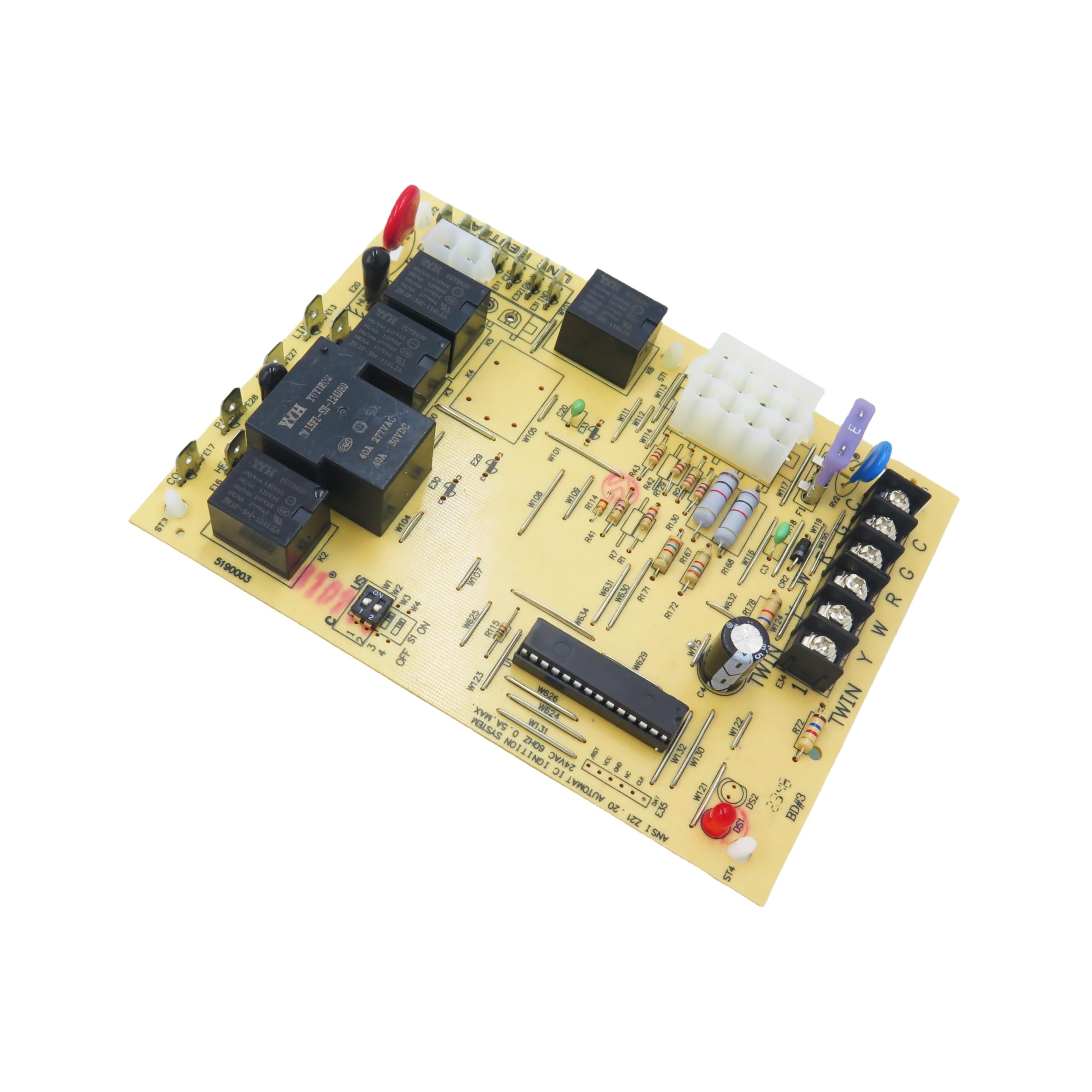

• Low Voltage Circuit: 24 VAC, 50/60 Hz

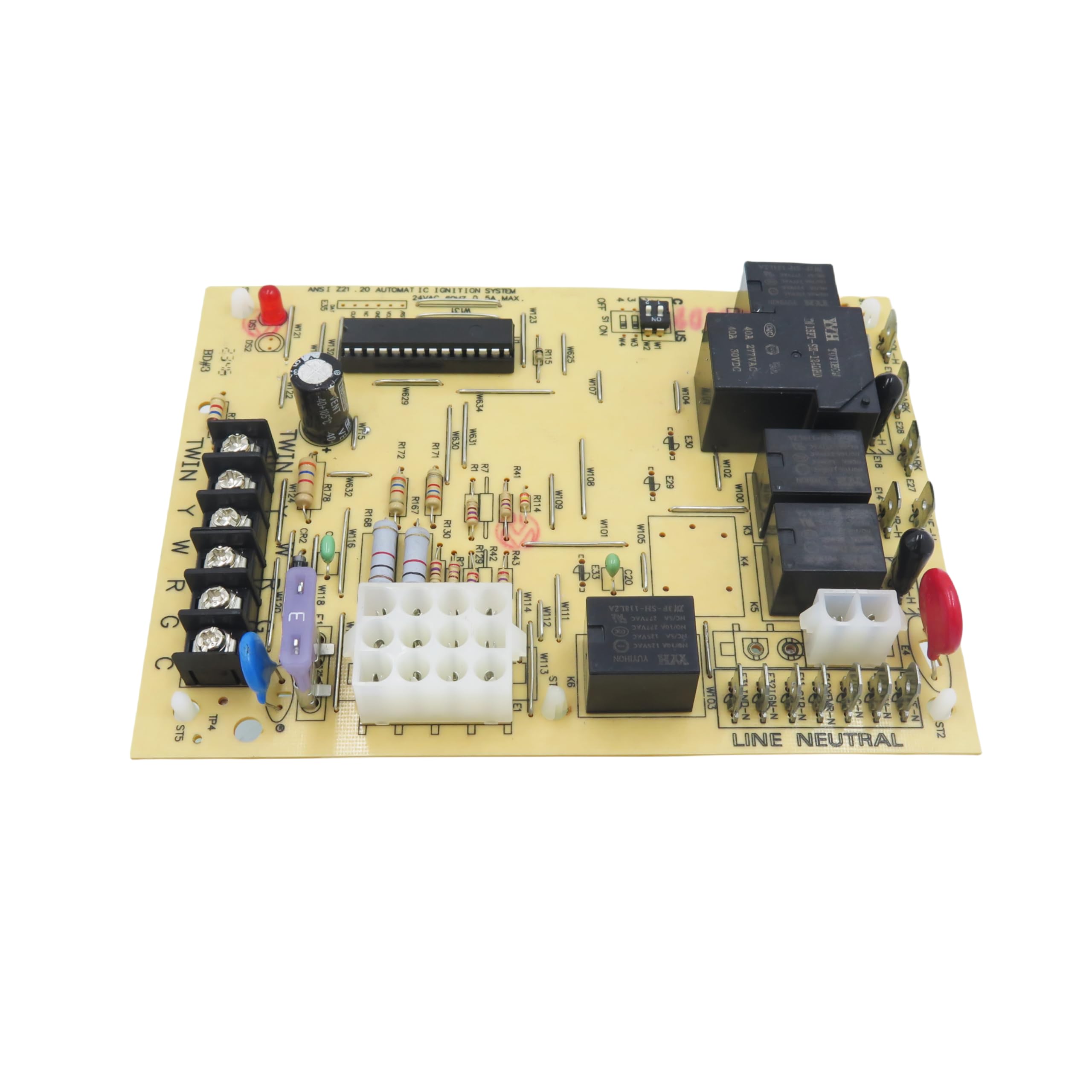

• Line Voltage Circuit: 120 VAC, 50/60 Hz

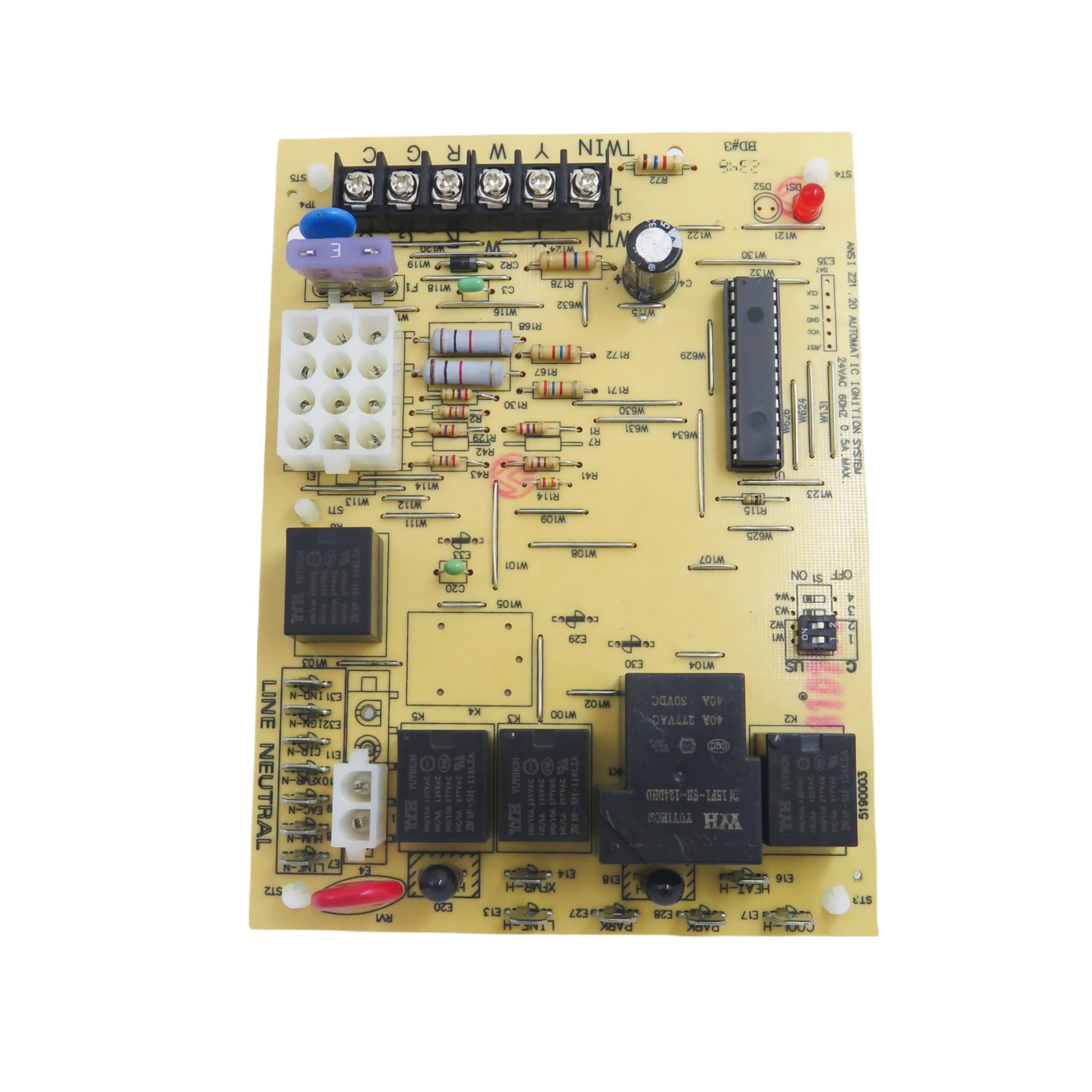

• Circulator Relay: PSC 14.5 FLA-25.0 LRA at 120 VAC; 25 A LRA at 120 VAC
• Circulator Relay: ECMx 4.0 mA RMS at 18 VAC; 12.0 mA RMS at 30 VAC

Real-world benefits and considerations

In practical terms, this upgrade aims to deliver dependable control signals, consistent relay operation, and compatibility across several popular furnace configurations. Homeowners or technicians may notice steadier burner cycling, predictable fan behavior, and a smoother response to thermostat commands. While results can vary by system, the board is positioned to support durable operation in everyday scenarios where a replacement is needed without extensive system changes.

As with any replacement component, verify exact model compatibility against your furnace’s service documentation and wiring schematic. The design emphasizes straightforward wiring and labeling to help reduce installation errors and downtime, contributing to a more streamlined maintenance experience for qualified technicians.

After-sales support and policy

DDORUU offers free returns and exchanges within six months of purchase, addressing problems such as damage or mismatches. If an issue arises, our support team is ready to assist with guidance and resolution, aiming to minimize downtime and keep your system running as expected.

• Easy compatibility checks with multiple PCBBF variants
• Plug-and-play style replacement for common furnace boards
• Responsive after-sales service and transparent return options

Note: This product description highlights the practical benefits and capabilities drawn from the data provided. It presents possibilities based on design intent and typical use cases, without asserting guaranteed outcomes for every installation.
