CDMALL AC Motor Speed Controller 120V 15A Max – LED Display & Overload Protection for Hydroponics Inline Duct Exhaust Ceiling Fans

Overview

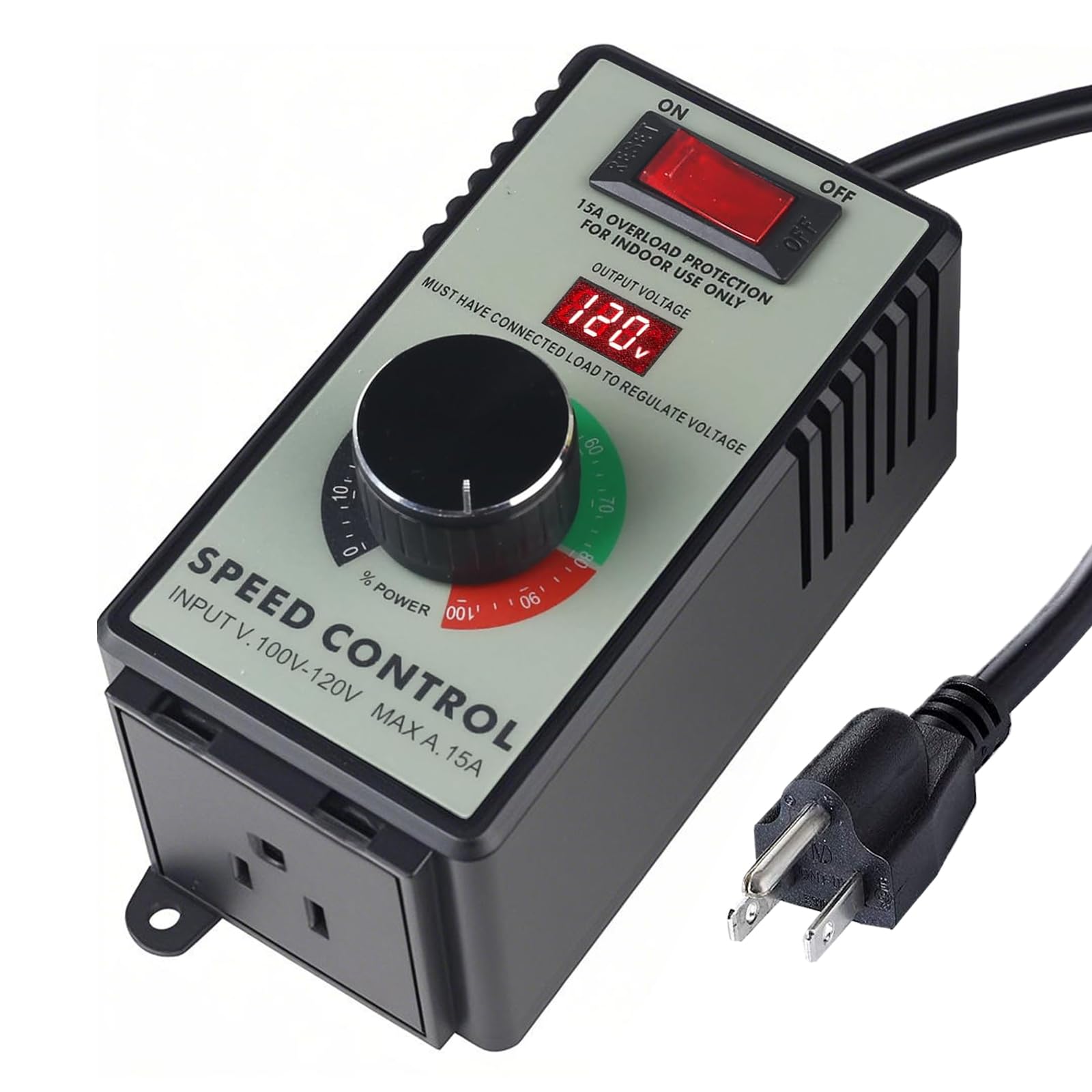

The CDMALL AC Motor Speed Controller is a compact, reliable device that puts you in control of speed, airflow, and lighting in spaces like hydroponics rooms or inline duct exhaust setups. Built for 110-120V at 60Hz, it manages a range of loads with a 15A maximum, offering a smooth, responsive feel to adjustments without flicker or abrupt changes. The result is more predictable performance from compatible motors and fans.

Key electrical specs

\n
• Input Voltage/Frequency: 110-120V / 60Hz
\n
• Current Capacity: 15A Max (Rated Current 10A)
\n
• Resistive Load: Up to 2000W
\n
• Inductive Load: Up to 1500W
\n

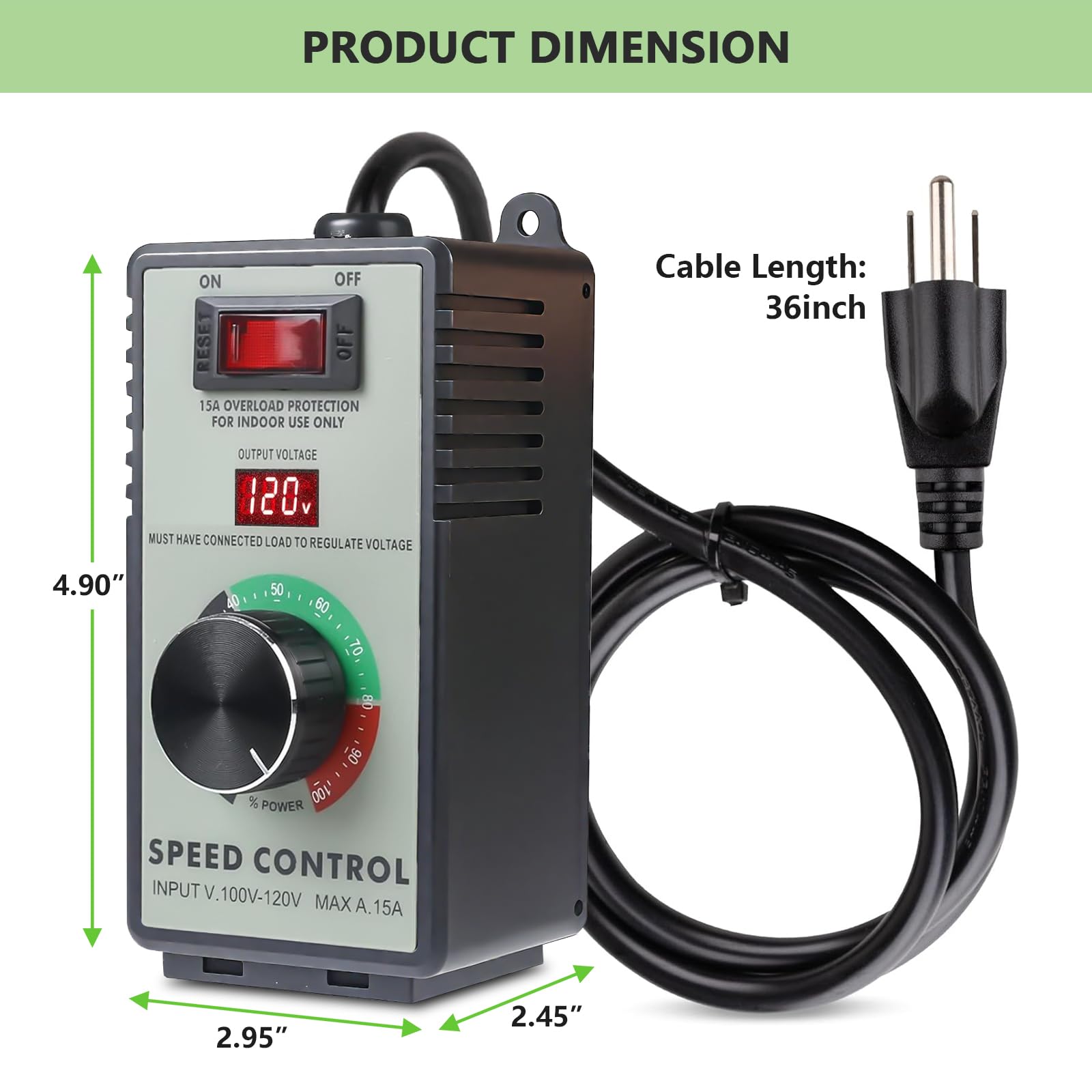

• Includes a 3 ft grounded power cord (US standard plug)
\n

Safety and build quality

\n

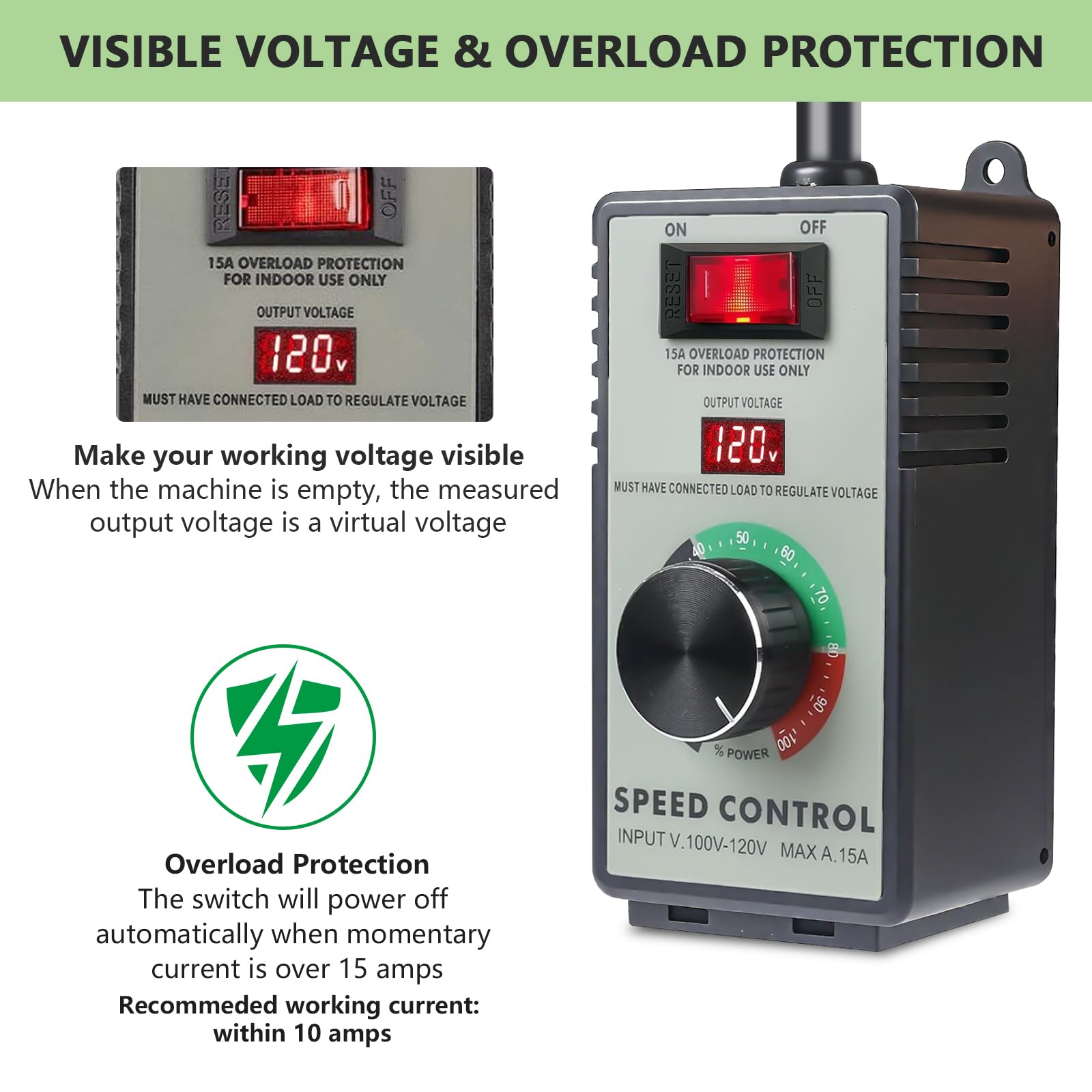

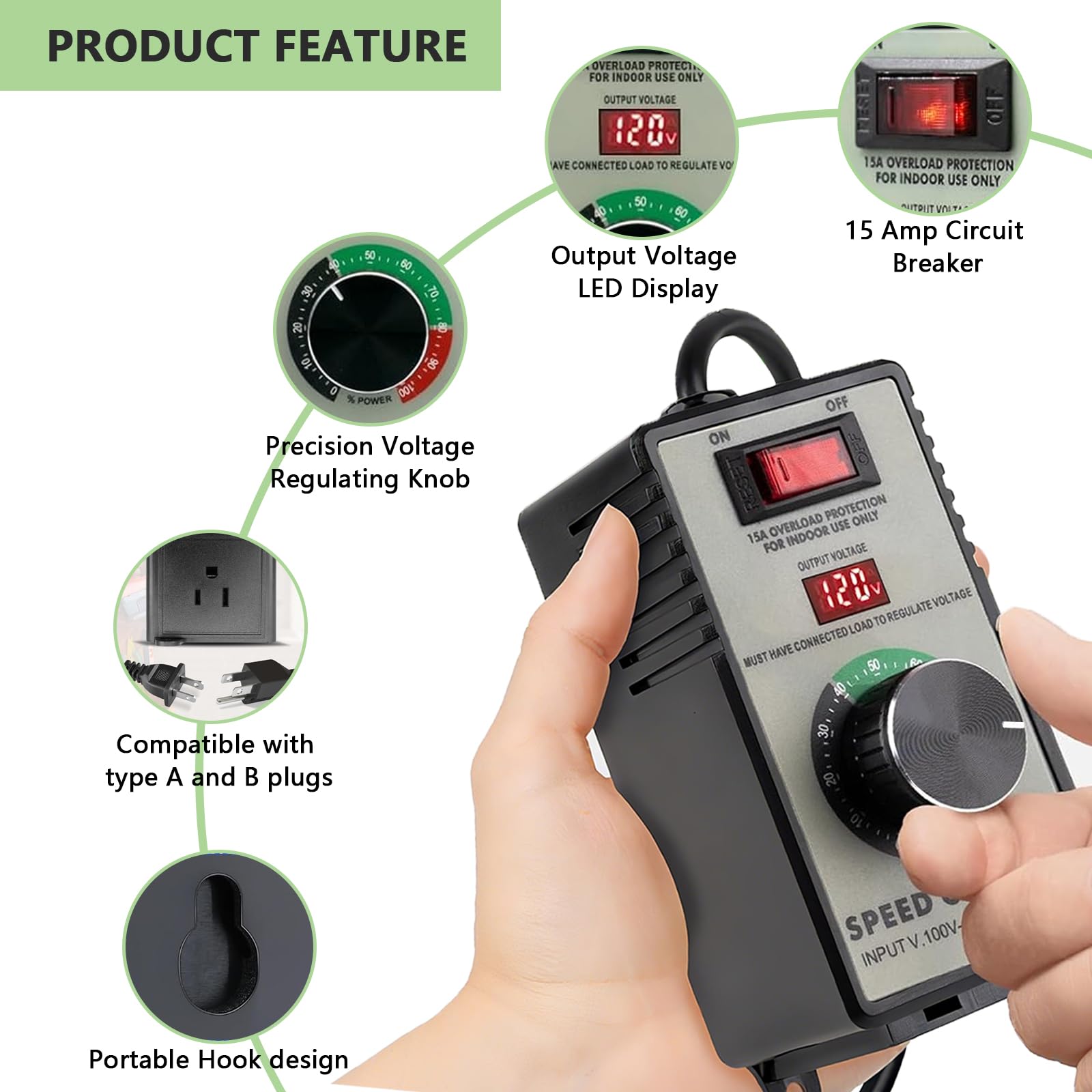

• Independent overload protection switch provides a clear safeguard against overcurrent
\n
• Auto cut-off triggers if current exceeds 15A, protecting connected devices
\n
• High-precision LED voltage meter keeps voltage status visible at a glance
\n
• ABS plastic shell is flame-retardant and resistant to discoloration and heat
\n
• Thickened phosphor bronze internals offer reliable conductivity and durability
\n

Practical uses

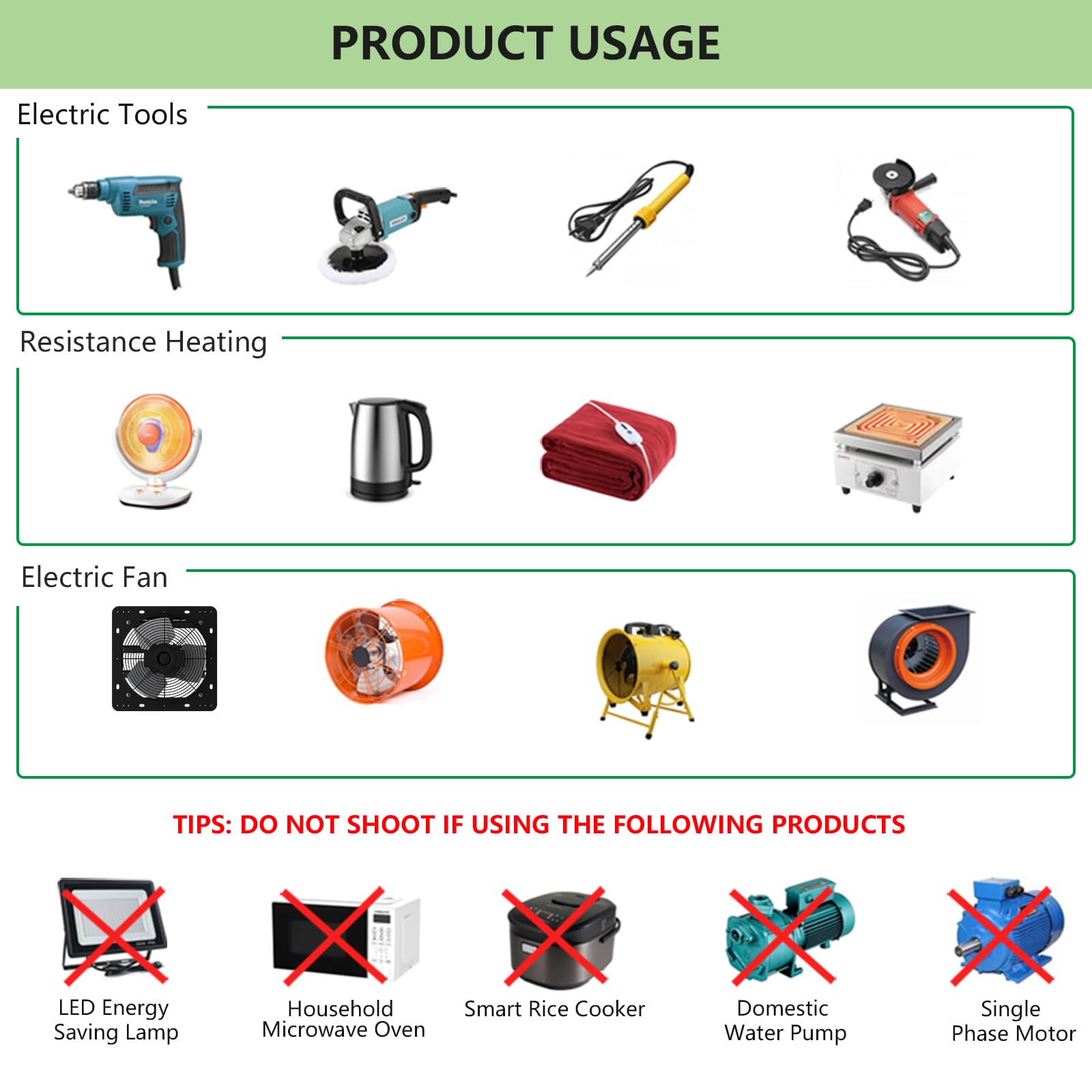

Use this controller to fine-tune speed, temperature, light, and voltage settings across a variety of devices. Common applications include:

\n
• Electric fans and inline duct exhausts for controlled airflow
\n
• Ceiling fans and small blowers in climate rooms
\n
• AC electric drills, angle grinders, and other simple power tools
\n
• Incandescent lighting for ambient mood or task lighting
\n
• General non-board electronics where adjustable speed is beneficial
\n

Important cautions and installation tips

This unit is designed for AC brushed motors. It is not suitable for appliances with circuit boards or capacitor-based electronics, such as microwaves, induction cookers, rice cookers, water pumps, or washing machines. Follow all safety guidelines during installation and ensure the load does not exceed the listed ratings.
