BINSTAK CNC Spoilboard Surfacing Router Bit - 1/4-inch Shank, 1-1/2-inch Cutting Diameter, Carbide Inserts

Overview

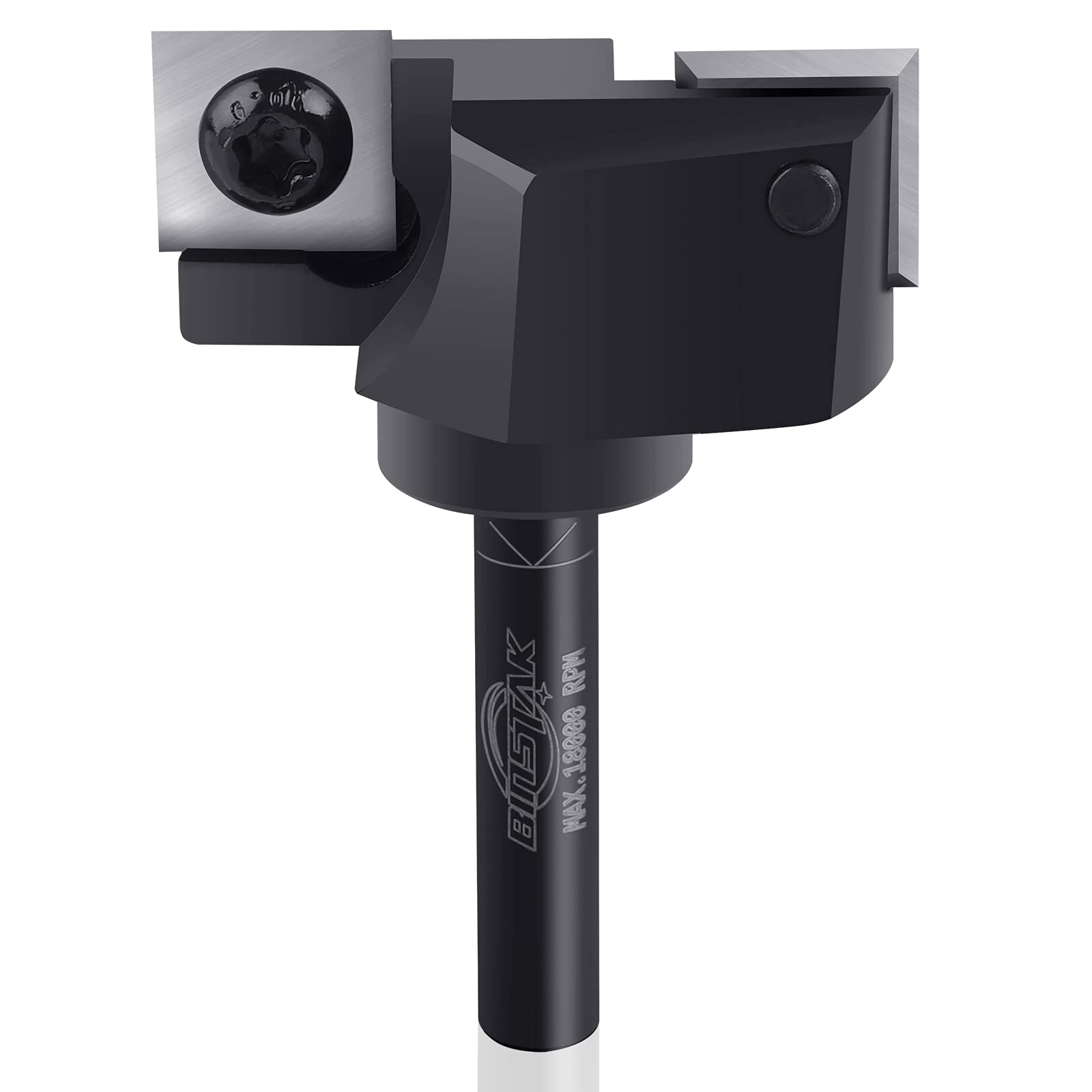

The BINSTAK CNC Spoilboard Surfacing Bit is designed to deliver consistent, flat top surfaces on spoilboards and wooden slabs. With a 1/4-inch shank and a 1-1/2-inch cutting diameter, this bit combines a sturdy industrial-grade steel body with a smart carbide insert system for balanced performance.

Solid design for steady cutting

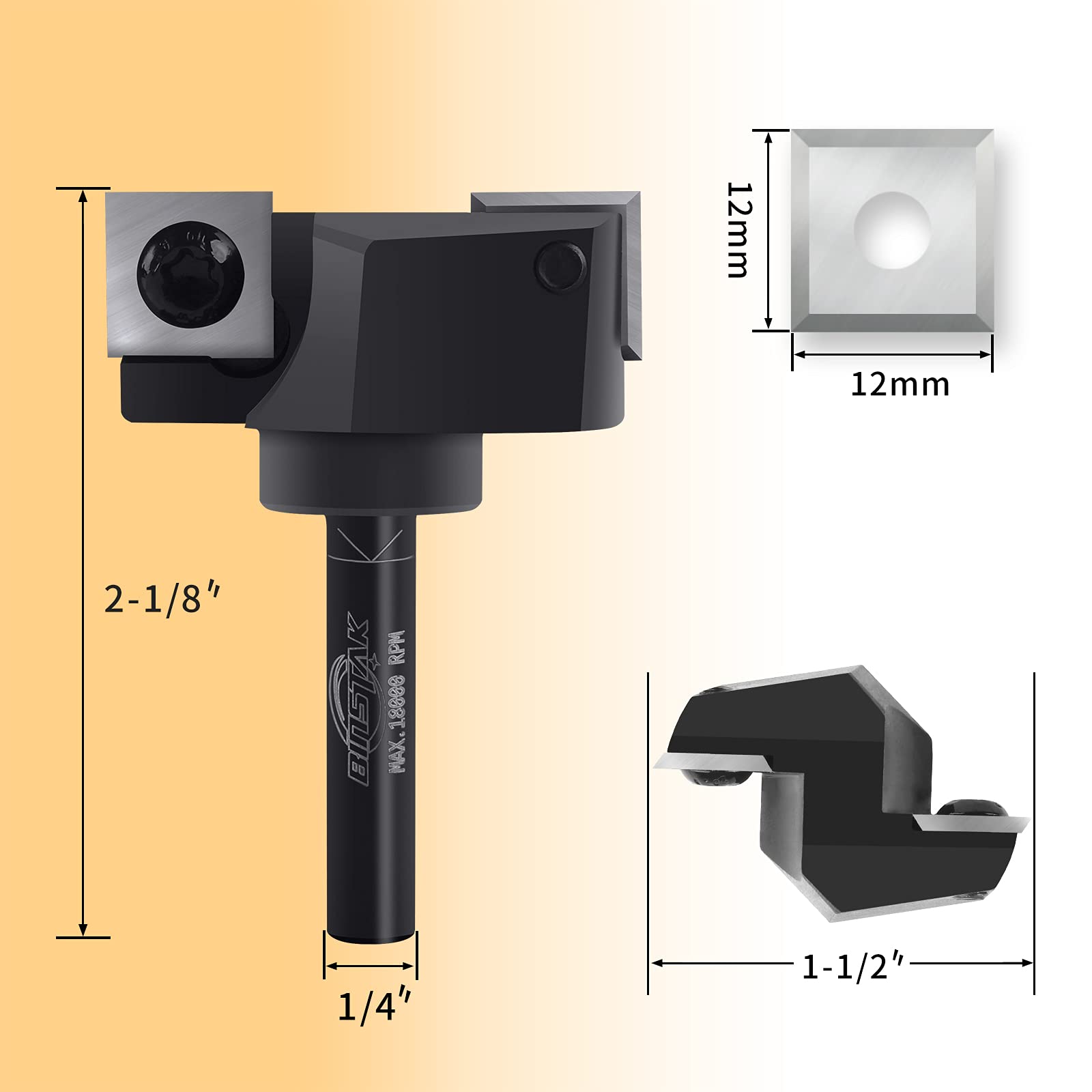

The tool uses a 2-wing insert arrangement that helps balance the cut, reducing chatter and delivering predictable results across materials. The carbide inserts measure 12 by 12 mm, providing a robust edge profile for resurfacing jobs.

• 2-wing design improves balance during operation.

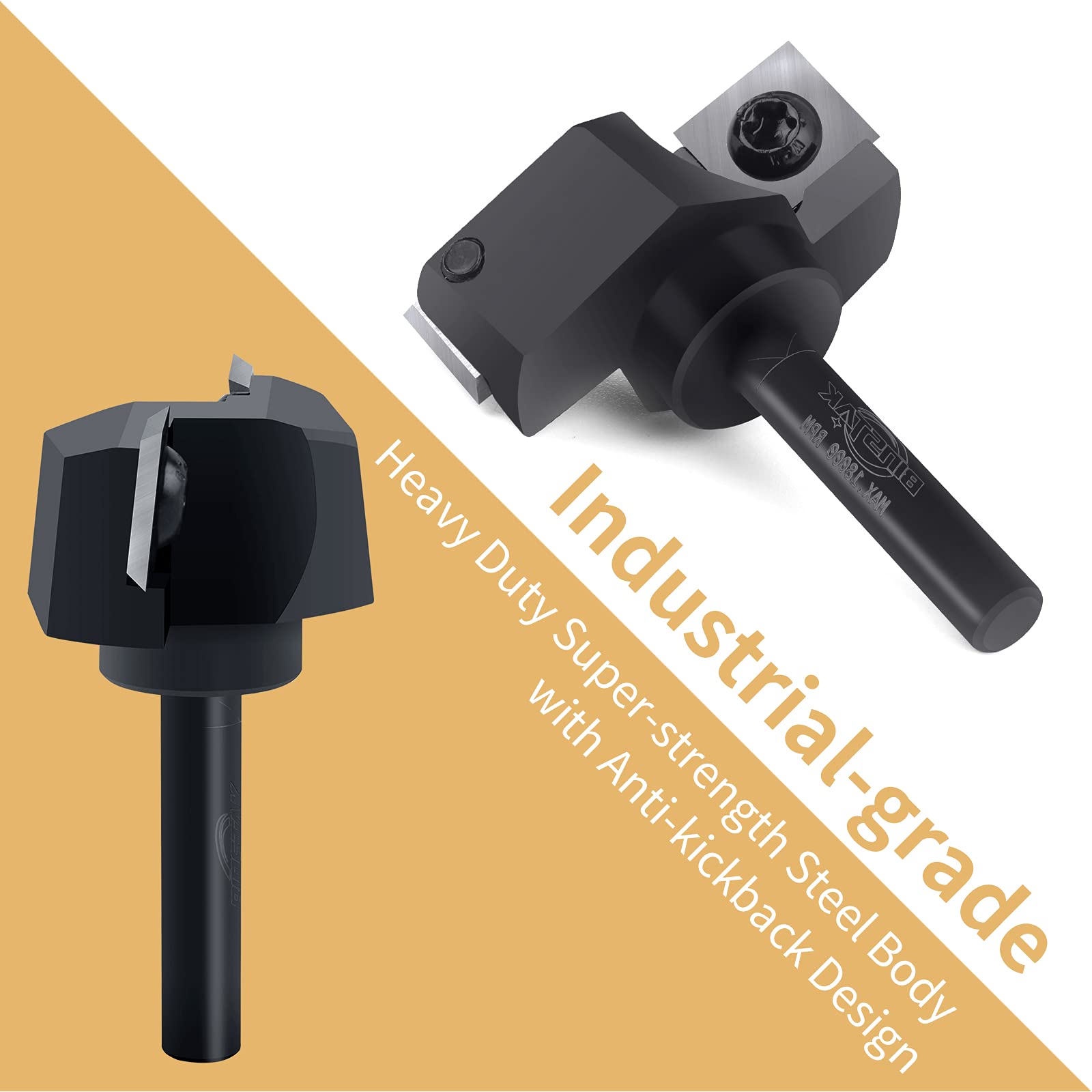

• Anti-kickback geometry supports controlled routing on spoilboards.

Economical, replaceable inserts

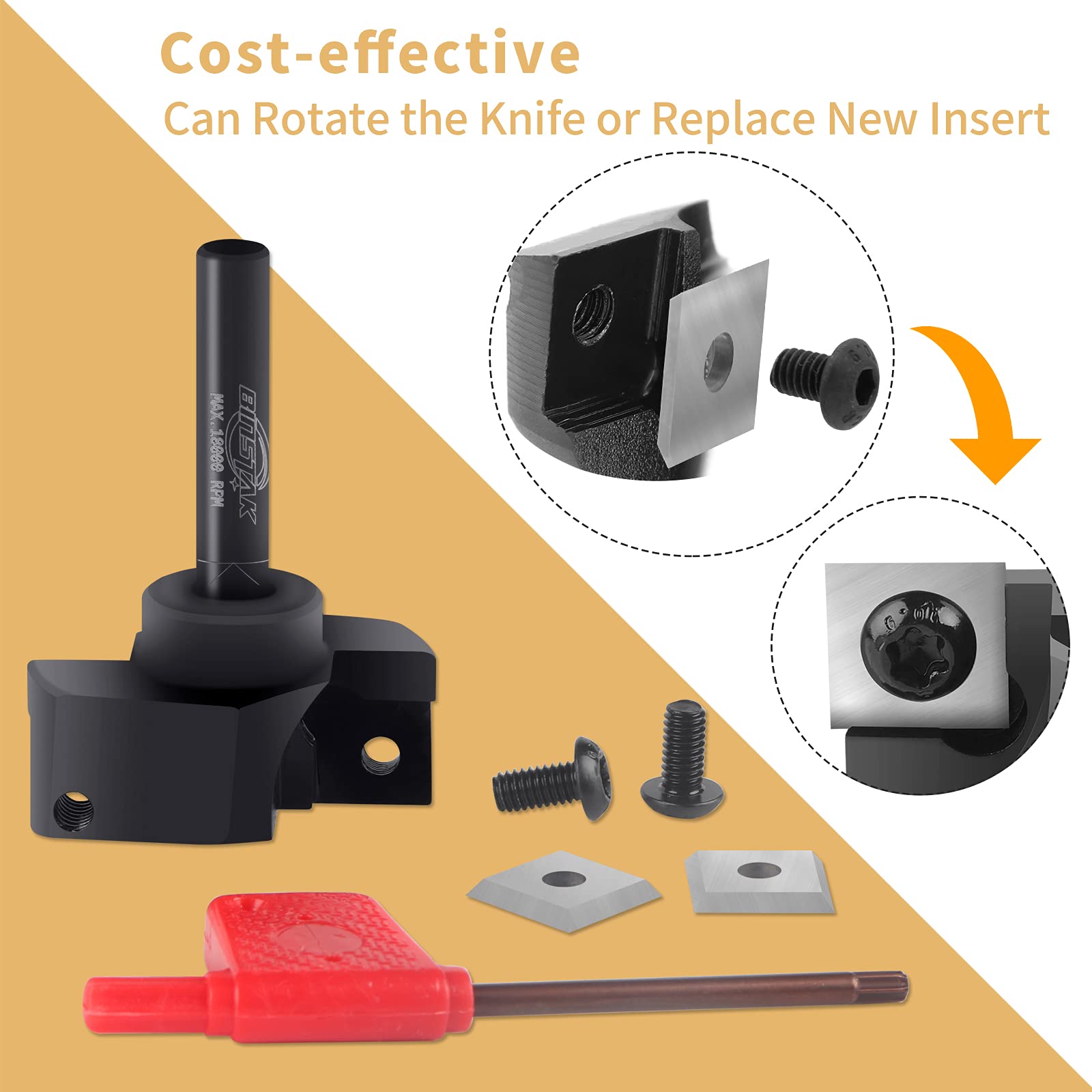

Instead of replacing the whole bit when a section wears, four-sided solid carbide inserts offer multiple sharp edges. Rotate edges with a screwdriver to maximize life, delivering a cost-effective approach compared with brazed or solid carbide spiral bits.

• Four-sided carbide inserts extend tool life.
• Edge rotation exposes fresh edges, reducing downtime.

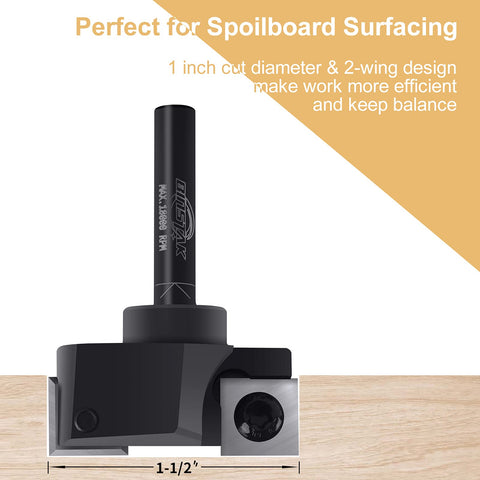

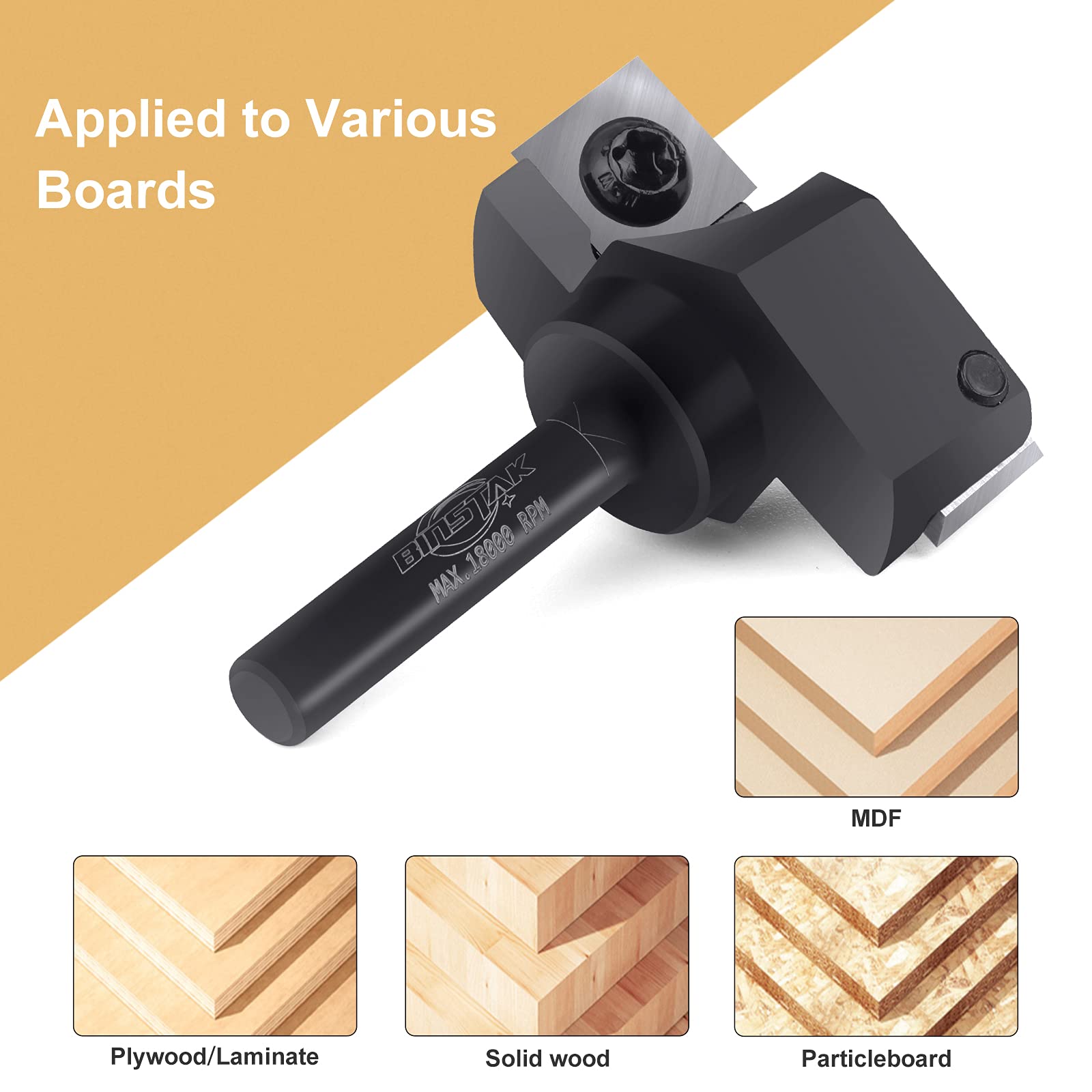

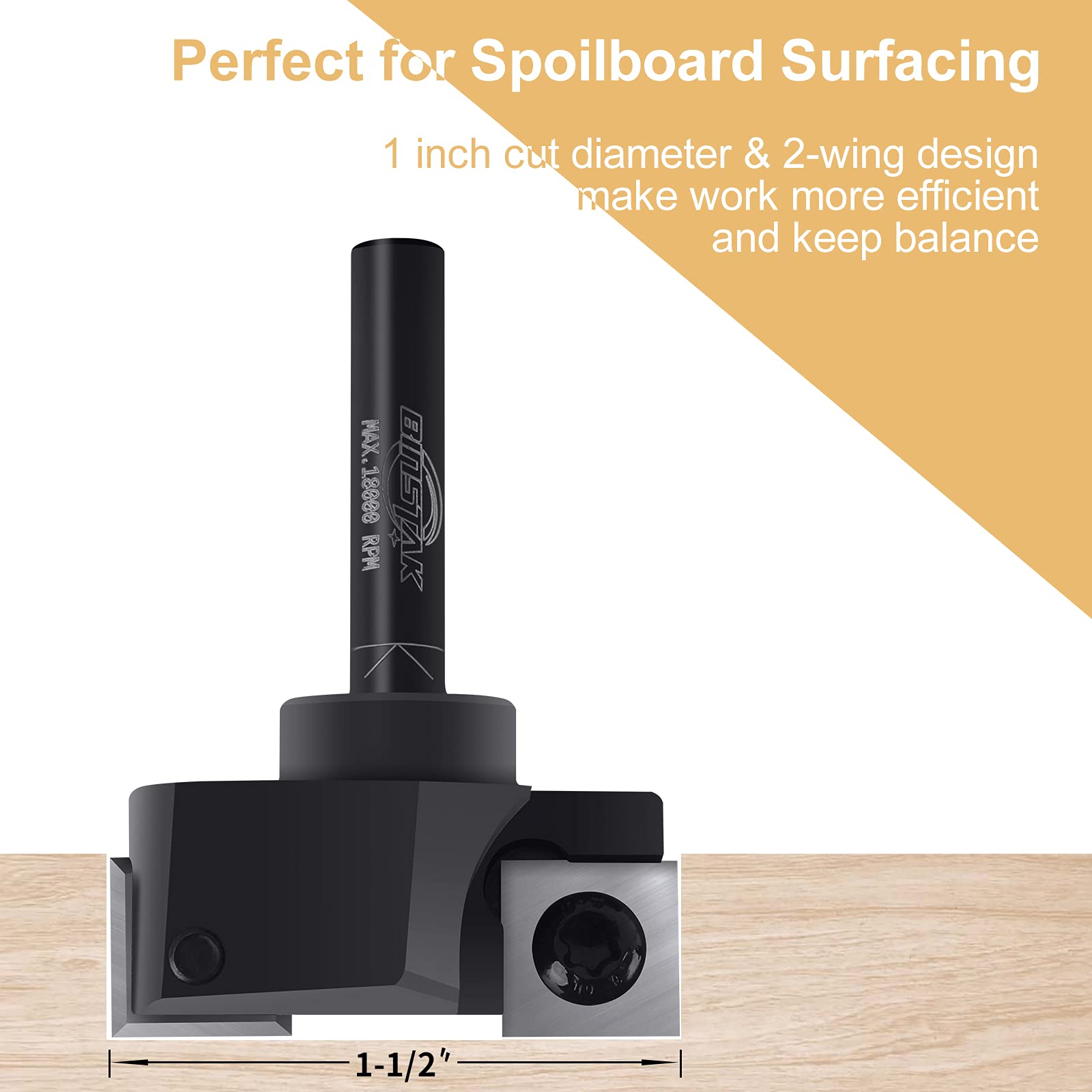

Suitable for a wide range of materials—including soft and hard woods, particle board, MDF, plywood, laminate, and acrylic—this bit is compatible with CNC routers, automatic routers, and handheld or table-mounted portable routers. It excels at flattening top surfaces, resurfacing spoilboards, and preparing material for finishing.

Real-world applications

Imagine prepping a CNC spoilboard to achieve repeatable zero points, resurfacing a rough plank to a clean, uniform plane, or smoothing a thick slab before edging. The tool supports soft wood cores, hardwood panels, and composite boards alike, making it a versatile choice for workshop workflows.

What you may experience

• Balanced cutting with a clean, flat emergence.
• Potentially smoother surfaces with careful feed and depth control.
• Lower maintenance cost through edge-rotatable inserts.
