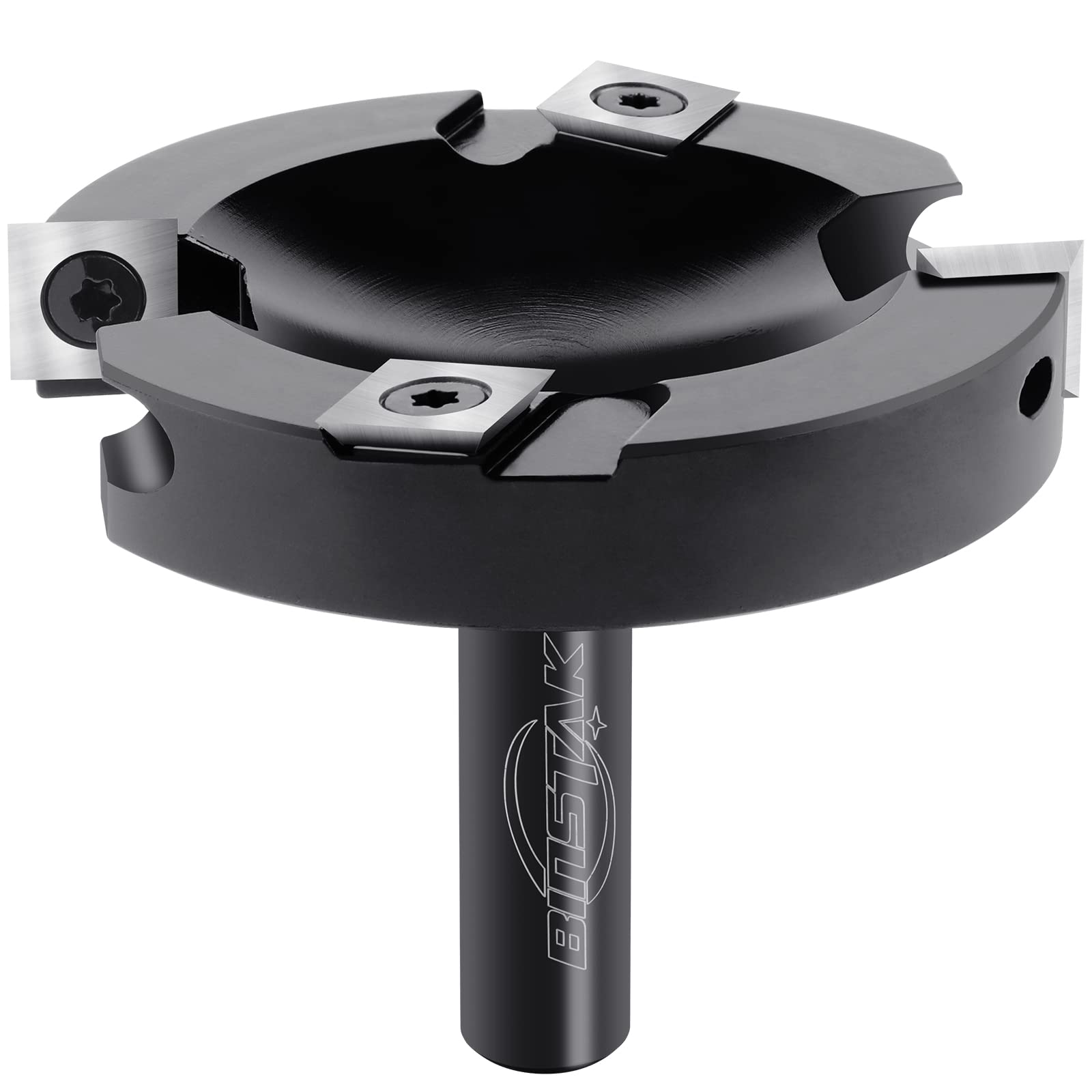

BINSTAK CNC Spoilboard Surfacing Router Bit – 1/2 in Shank, 3 in Diameter, 2+2 Carbide Inserts

Precision you can trust when resurfacing spoilboards

The BINSTAK CNC spoilboard surfacing bit blends rugged construction with thoughtful design to help you plane spoilboards and flatten top surfaces with a smooth, balanced cut. Featuring a 1/2 in shank and a 3 in cutting diameter, this bit is built to handle demanding shop tasks while delivering consistent surface quality across long passes. The result is a reliable tool that can contribute to more predictable setups and efficient workflow in wood shops of varying sizes.

Key to its performance is the 2+2 carbide inserts arrangement. With two pairs of inserts, the bit achieves a balanced balance during operation, which can reduce vibration and help you maintain control as you surface. The insert blades are replaceable, allowing you to extend tool life by rotating or swapping edges instead of replacing the whole bit, a practical option for shops looking to manage costs without sacrificing performance.

Key design features

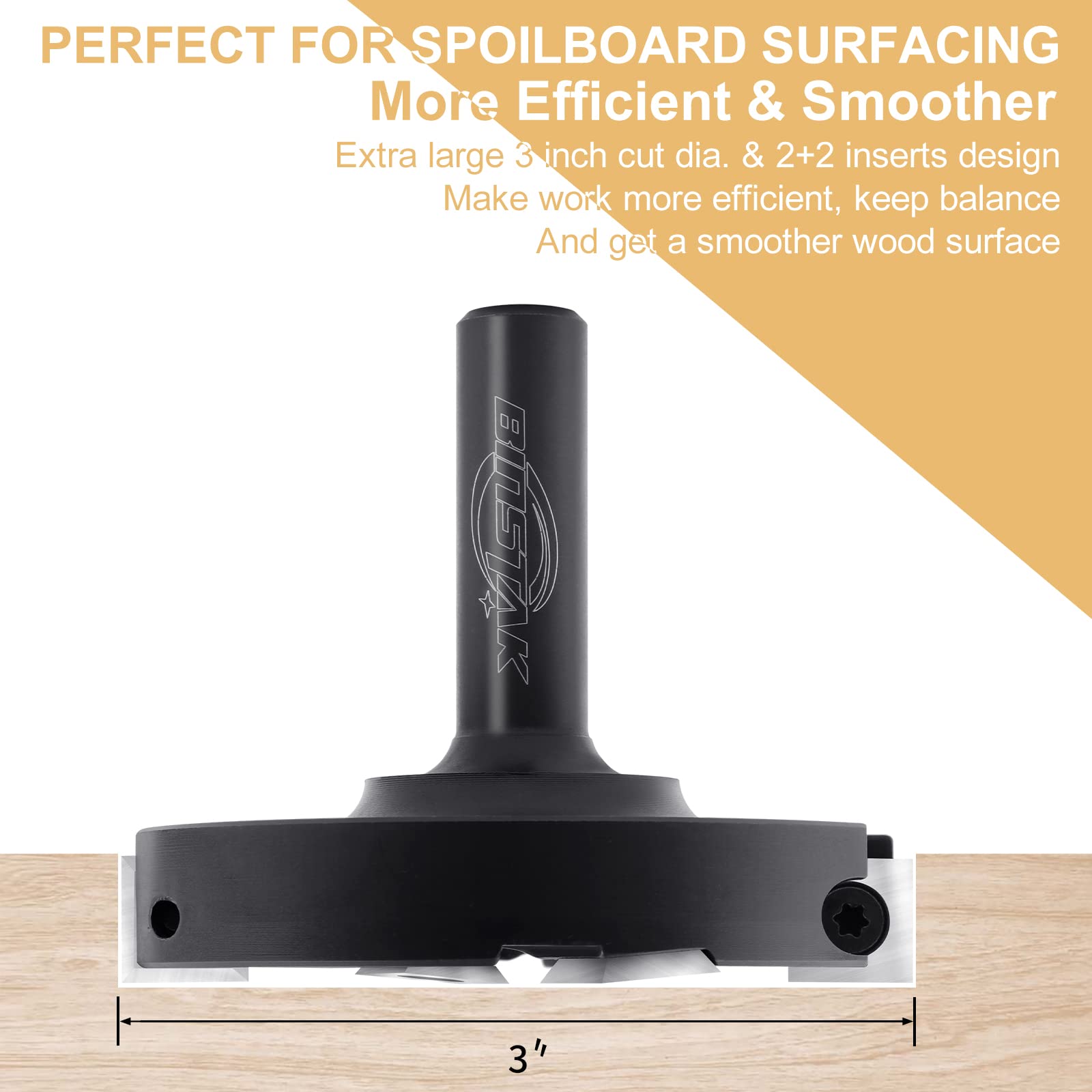

• 2+2 inserts cnc router bit: Shank 1/2 in; Cut diameter 3 in; Carbide inserts 12x12 mm. Two pairs of inserts improve balance and surface quality.

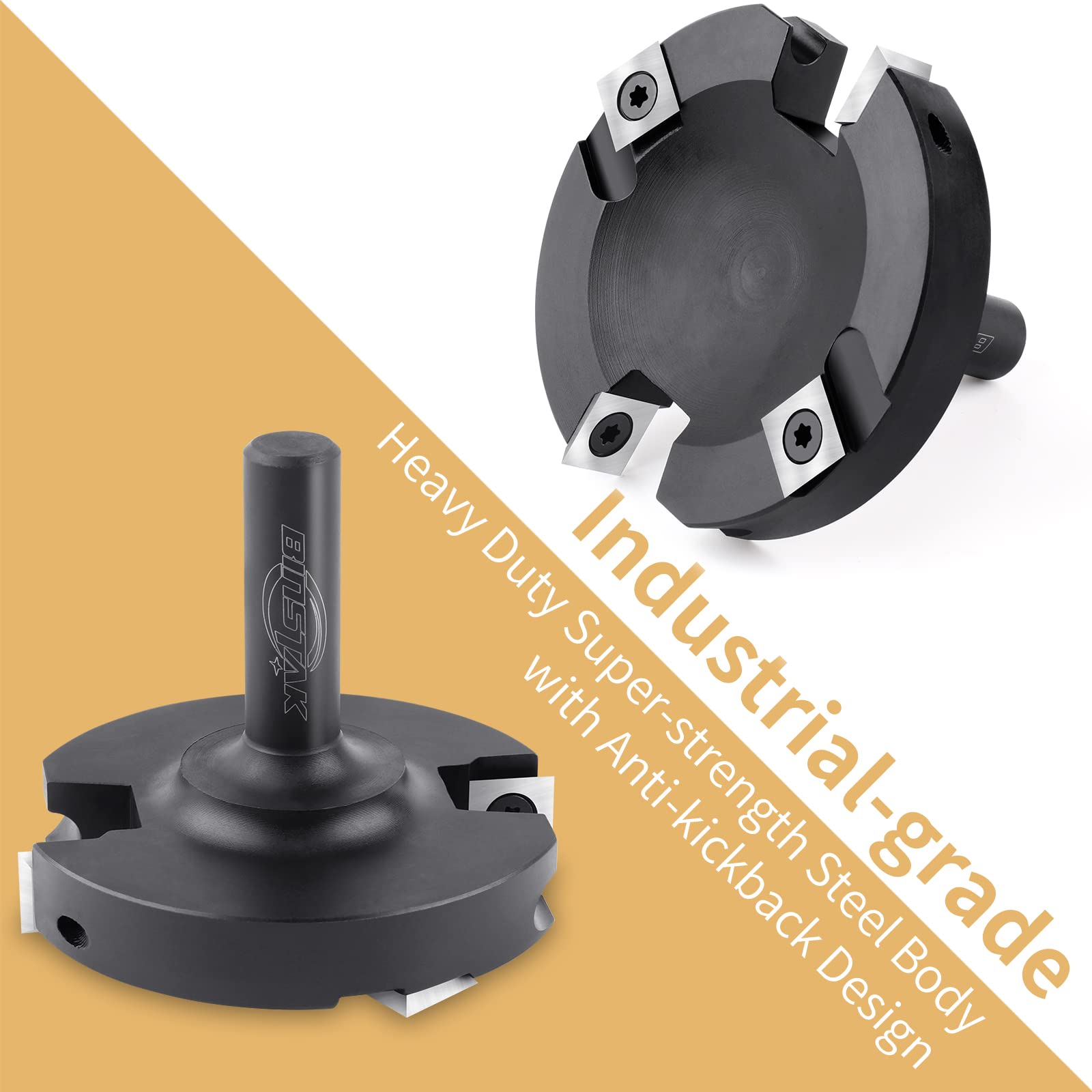

• Industrial-grade build: Steel body with anti-kickback design and four cutting edges for reliable cuts and smoother operation.

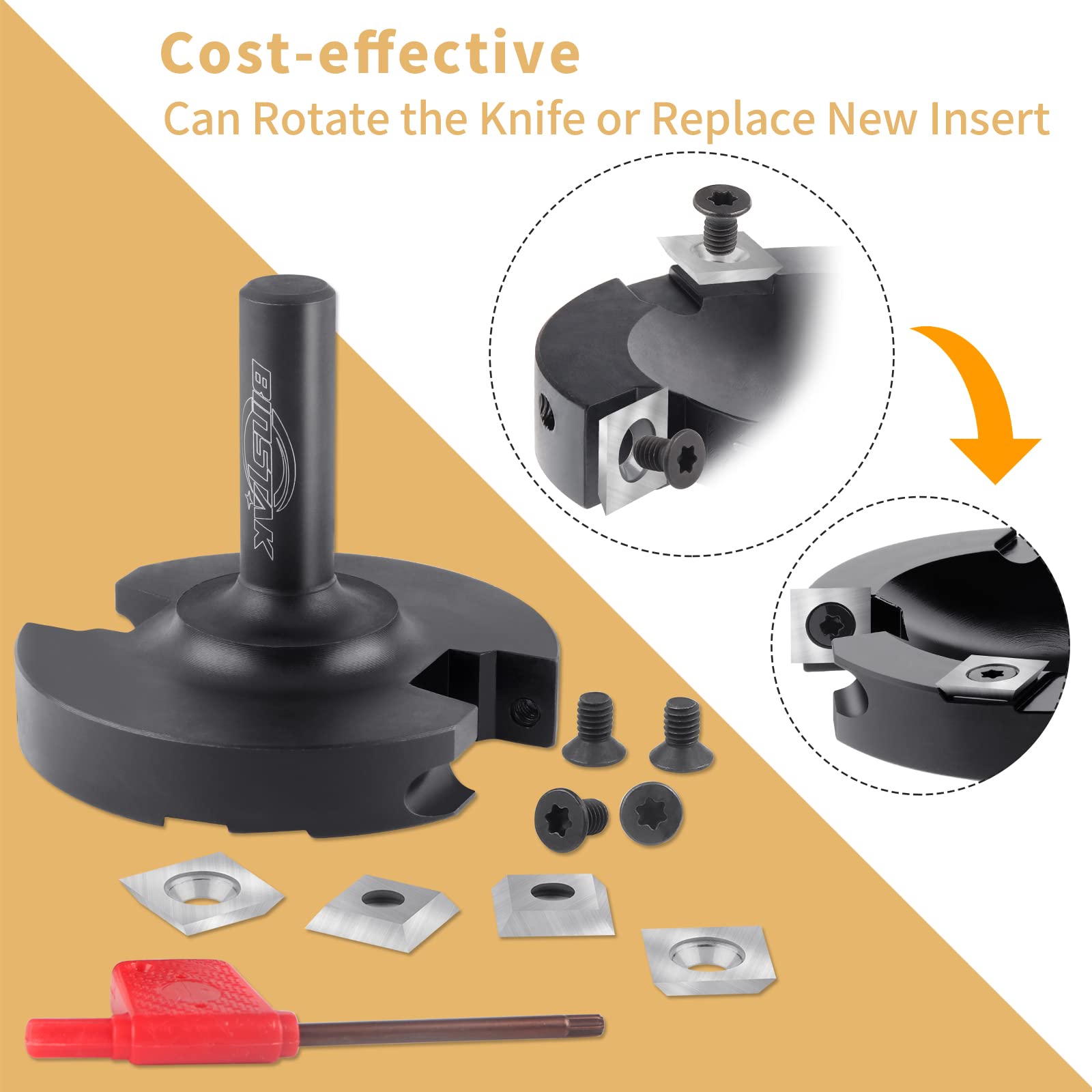

• Cost-effective maintenance: Four-sided carbide inserts can be rotated and replaced individually, reducing the need to replace the entire bit.

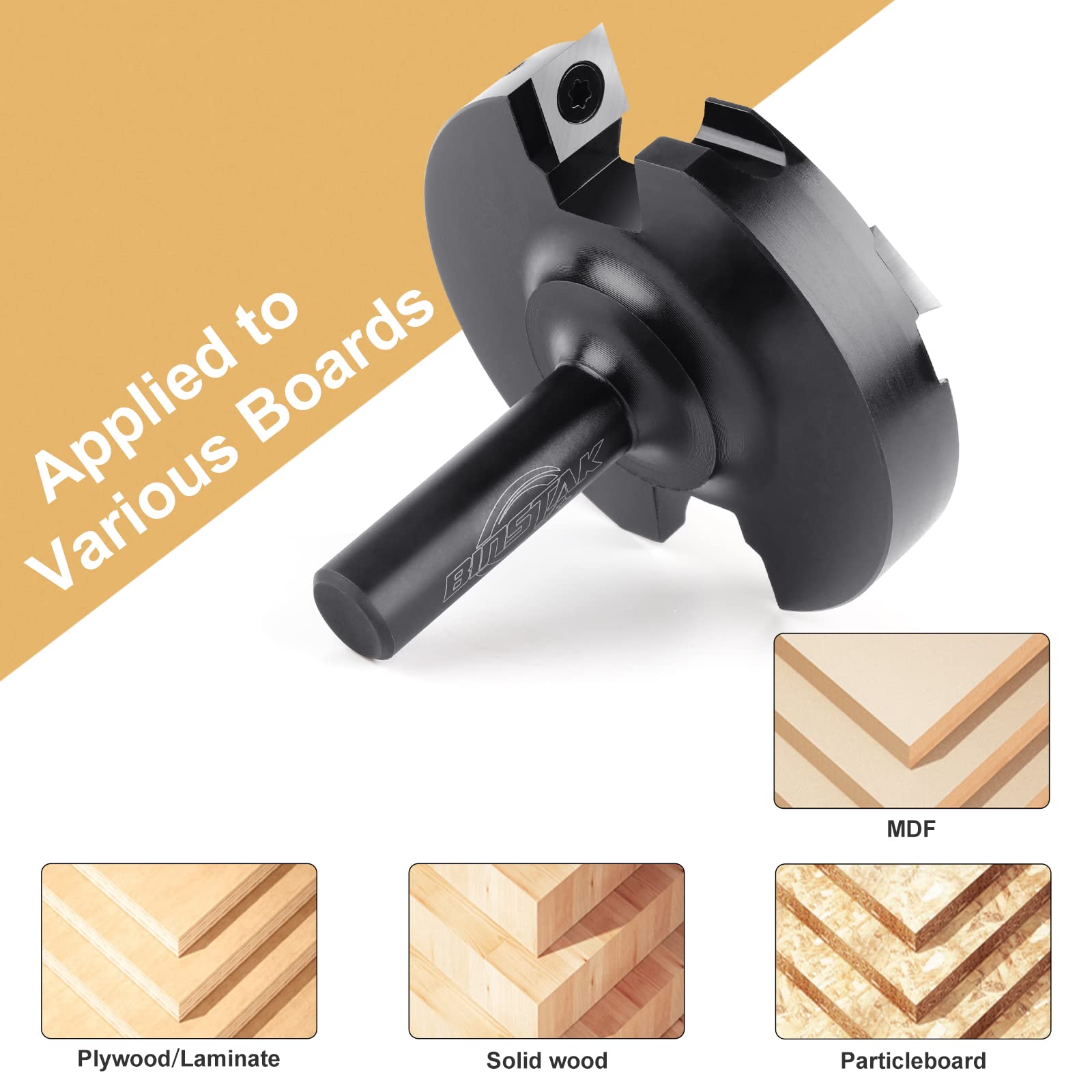

• Versatile material compatibility: Suitable for soft and hard woods, particleboard, MDF, plywood, laminate and even acrylic.

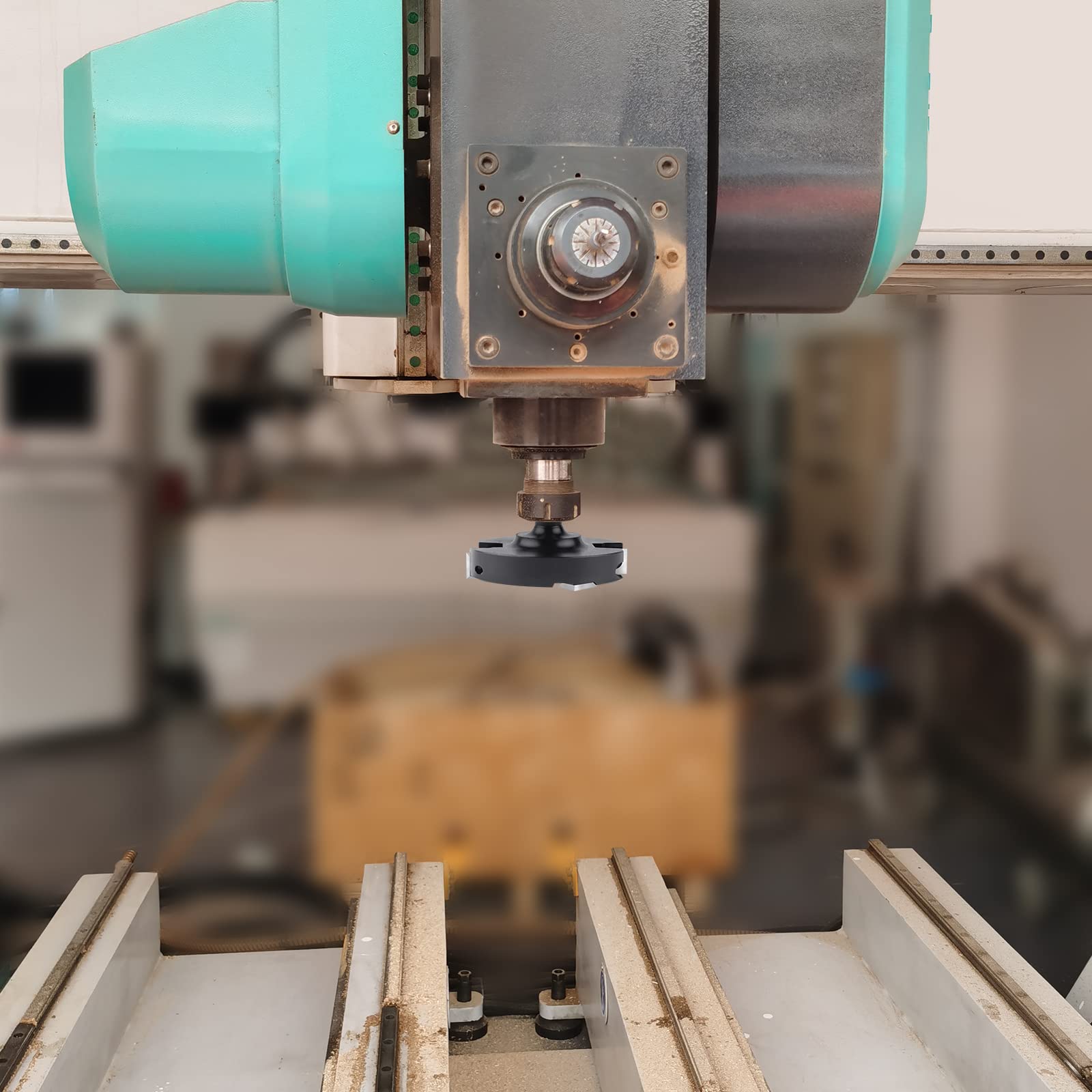

• Broad compatibility: Works with CNC routers, handheld routers, and table-mounted trimmers for flexible use in diverse setups.

Practical applications

Use this bit to plane the top surface of wood slabs, resurface spoilboards, and achieve a flat, level plane that supports precise machining. The inserts’ multi-edge design can help maintain a consistent surface as you move across the board, contributing to a smoother overall finish.

In real-world projects, you might pair the bit with a flat spoilboard, a CNC finishing pass, or a slab flattening workflow. The combination of a sturdy shank, replaceable inserts, and four-edge carbide tooling supports repeatable results across multiple jobs without frequent bit replacement.

Maintenance and care

• Inspect inserts for wear and rotate edges to maximize life.
• Replace worn inserts rather than the entire bit to preserve performance and lower costs.
• Keep the bit clean of resin and debris to maintain edge sharpness and cut quality.

Specifications at a glance

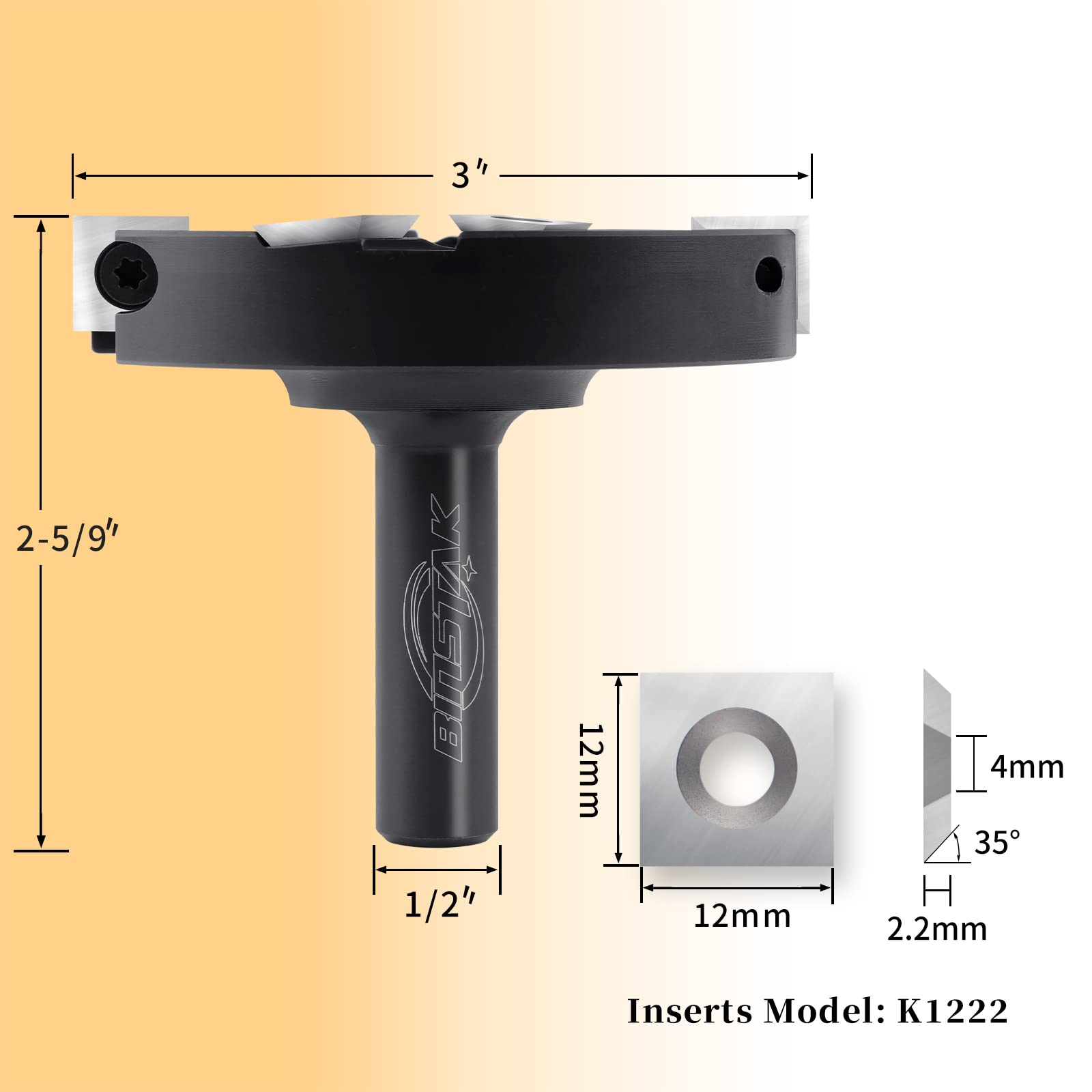

• Shank: 1/2 in
• Cut diameter: 3 in
• Carbide inserts: 12 by 12 mm

Note that actual results depend on machine settings, material, and feed rate. Follow proper safety guidelines and ensure dust collection to maximize performance.
