WEWEAL 35mm Concealed Door Hinge Jig – Quick Clamp, Dust Vacuum Adapter, Precision Cabinet Installation Tool

Overview

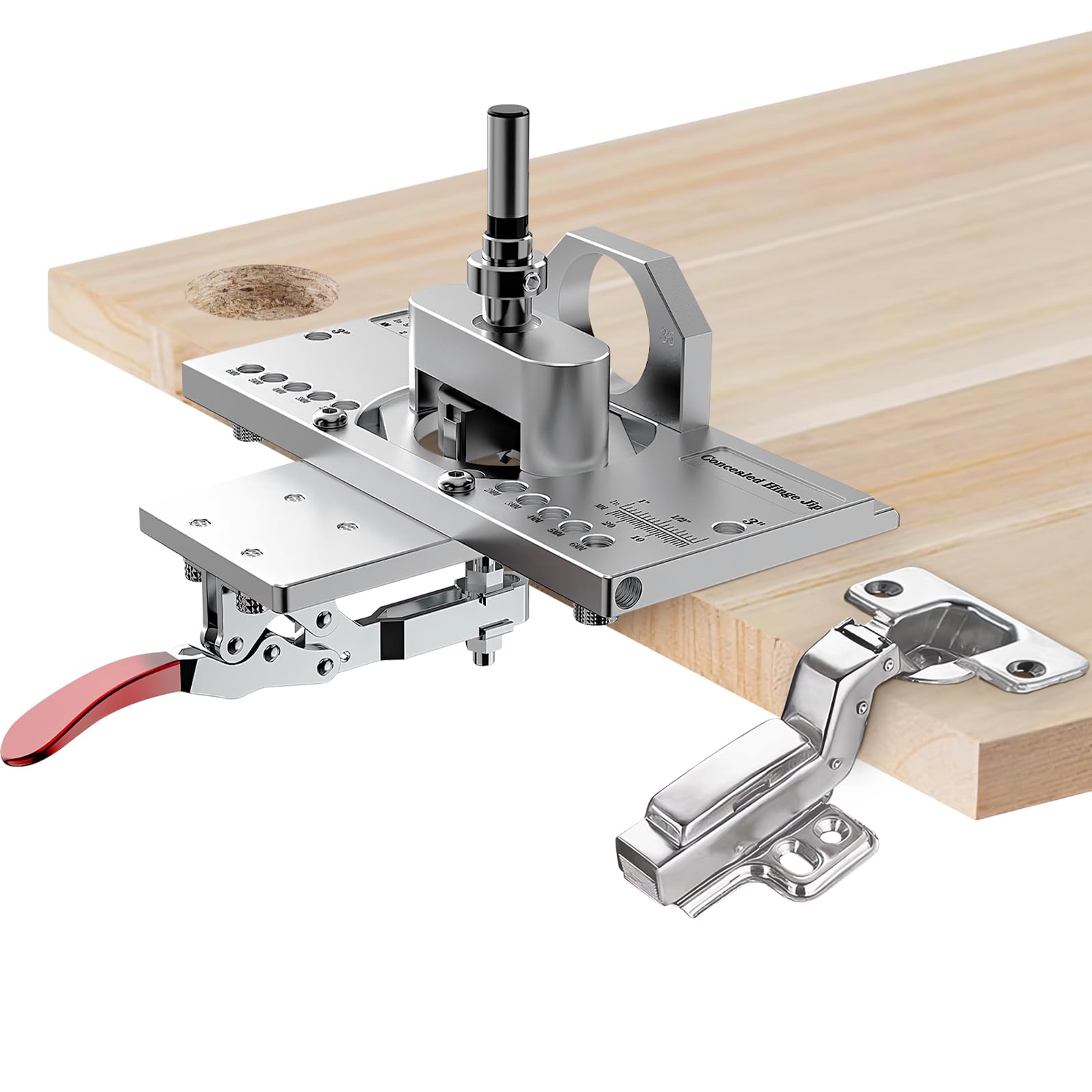

The WEWEAL 35mm Concealed Door Hinge Jig is designed to streamline hinge installation on cabinets, wardrobes, TV units, and fine furniture. Built from durable metal, it integrates a precise drilling system with a tidy dust control solution, helping you achieve clean and repeatable results in everyday workshop tasks.

Key benefits at a glance

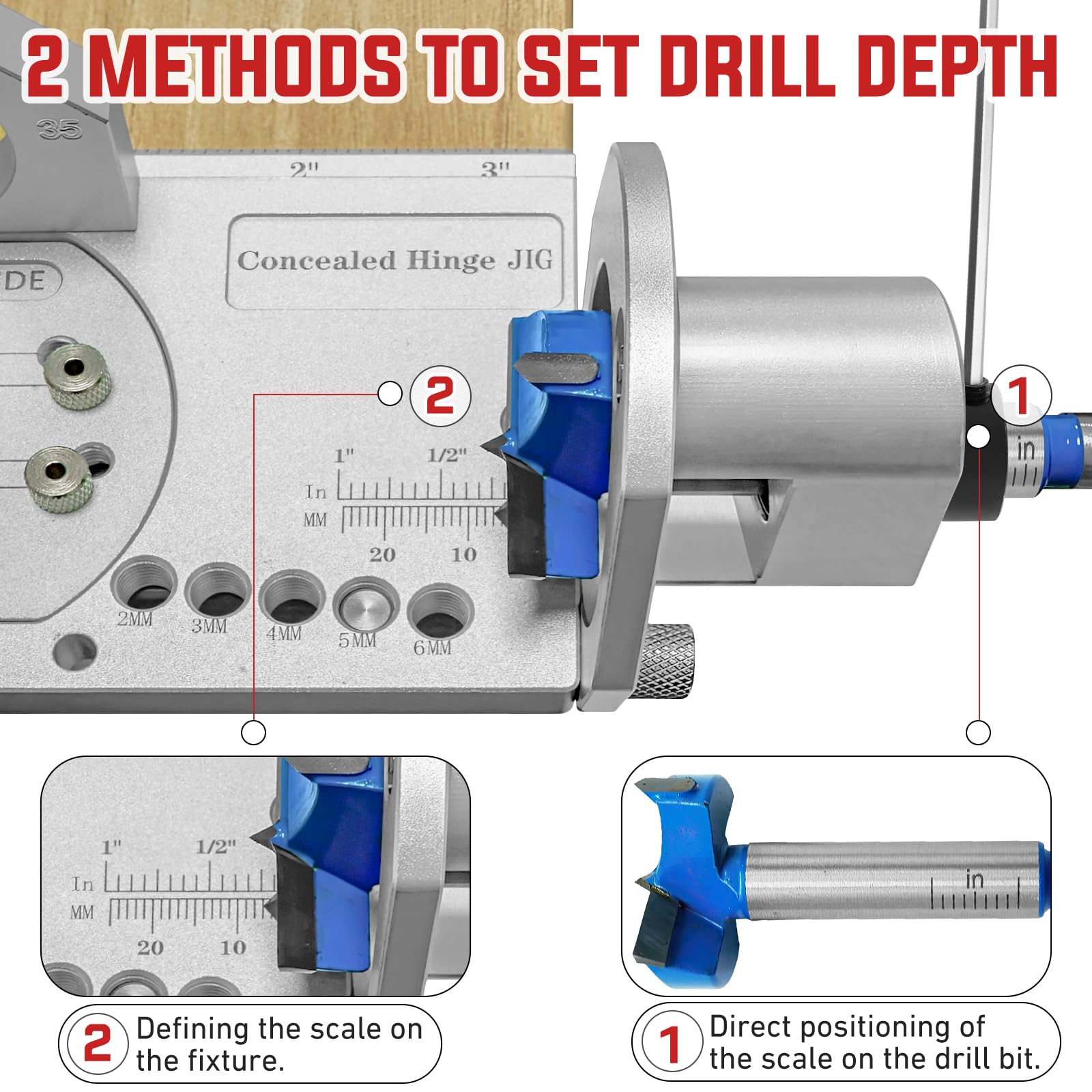

• All metal construction with a sharp 5/64 inch drill bit enables solid hinge mounting and clean hole quality, with drilling depths up to 0.6 inches for consistent results.

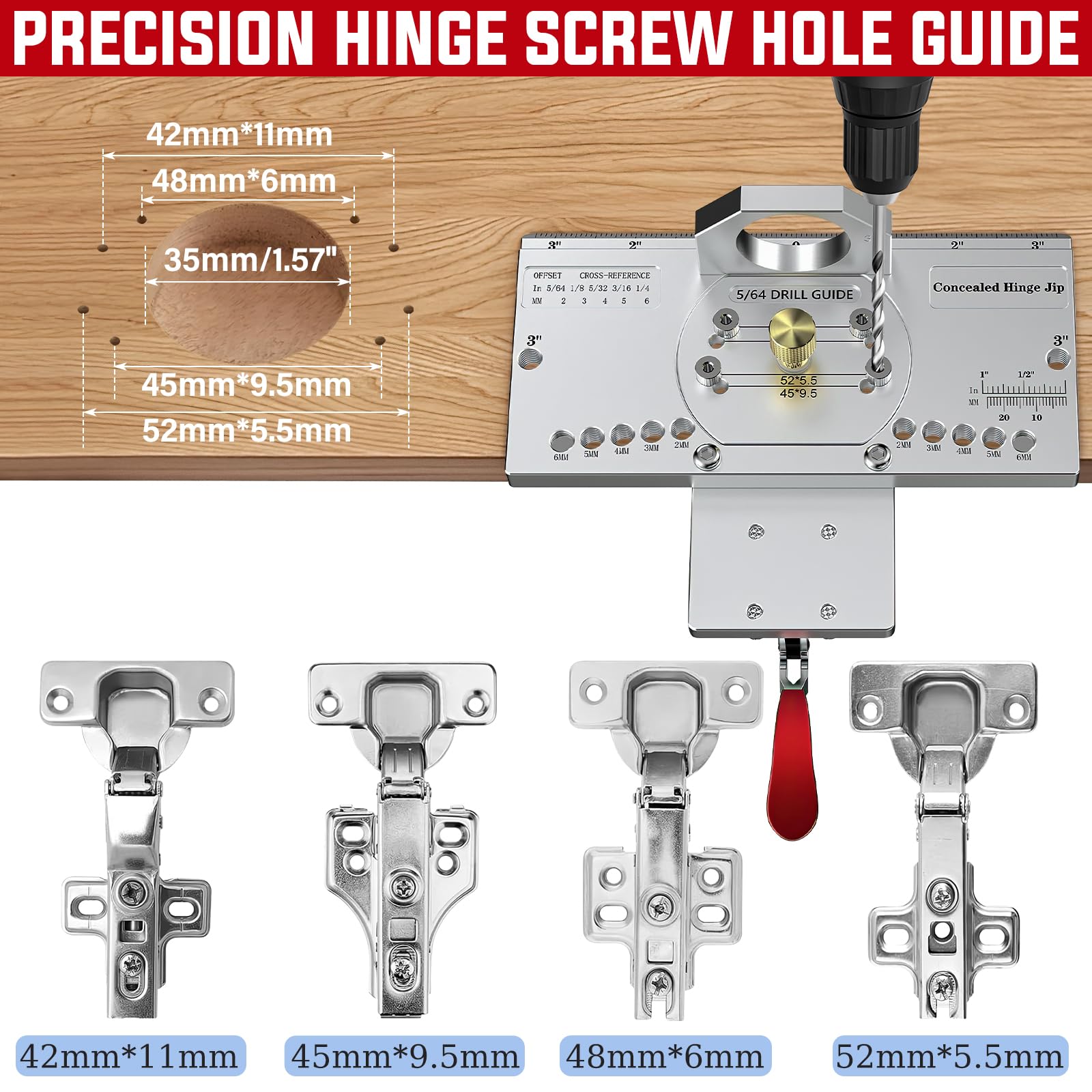

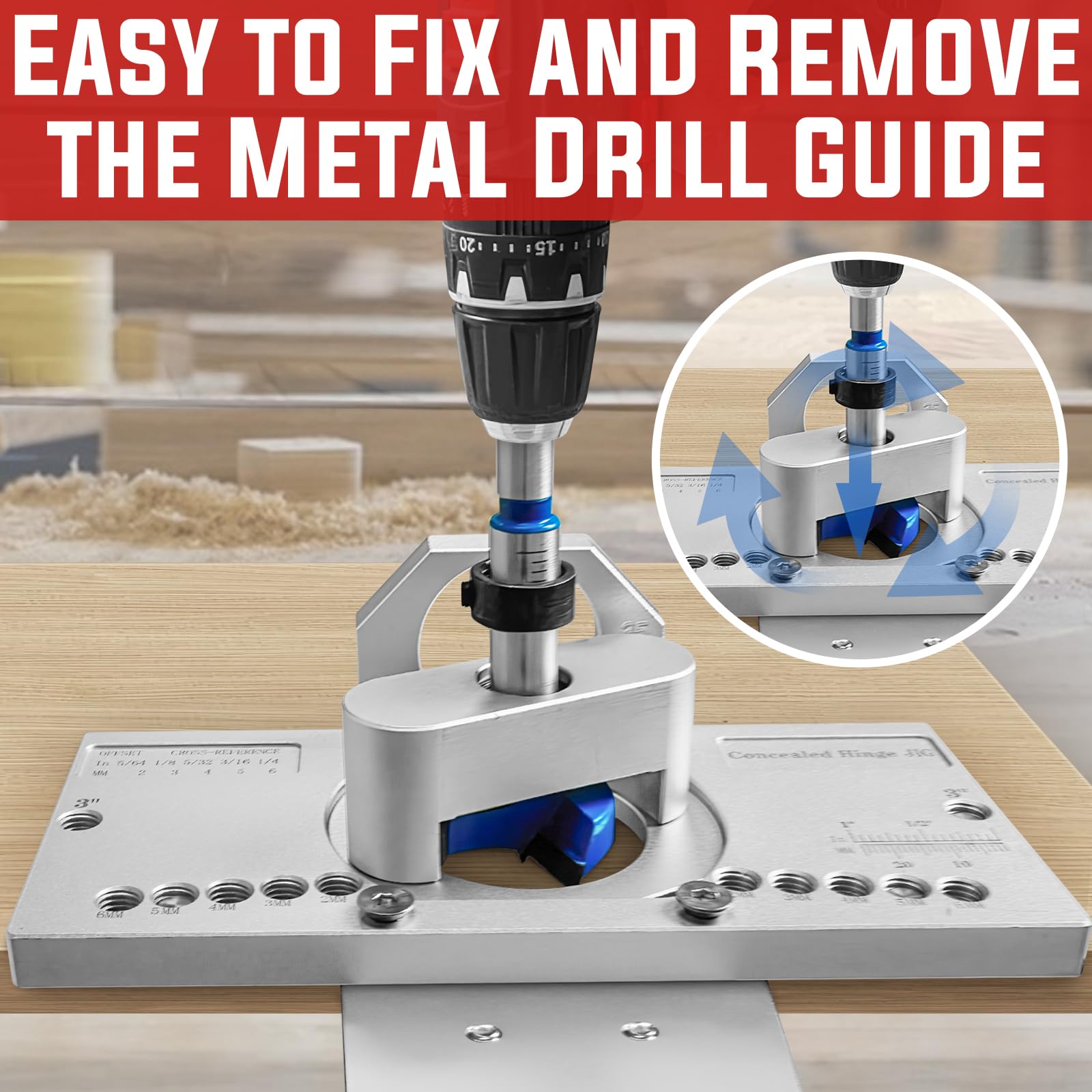

• Five offset adjustments (2 mm, 3 mm, 4 mm, 5 mm, 6 mm) and four screw hole spacing options (42×11 mm, 48×6 mm, 52×5.5 mm, 45×9.5 mm) support precise concealed hinge alignment across diverse panel thicknesses.

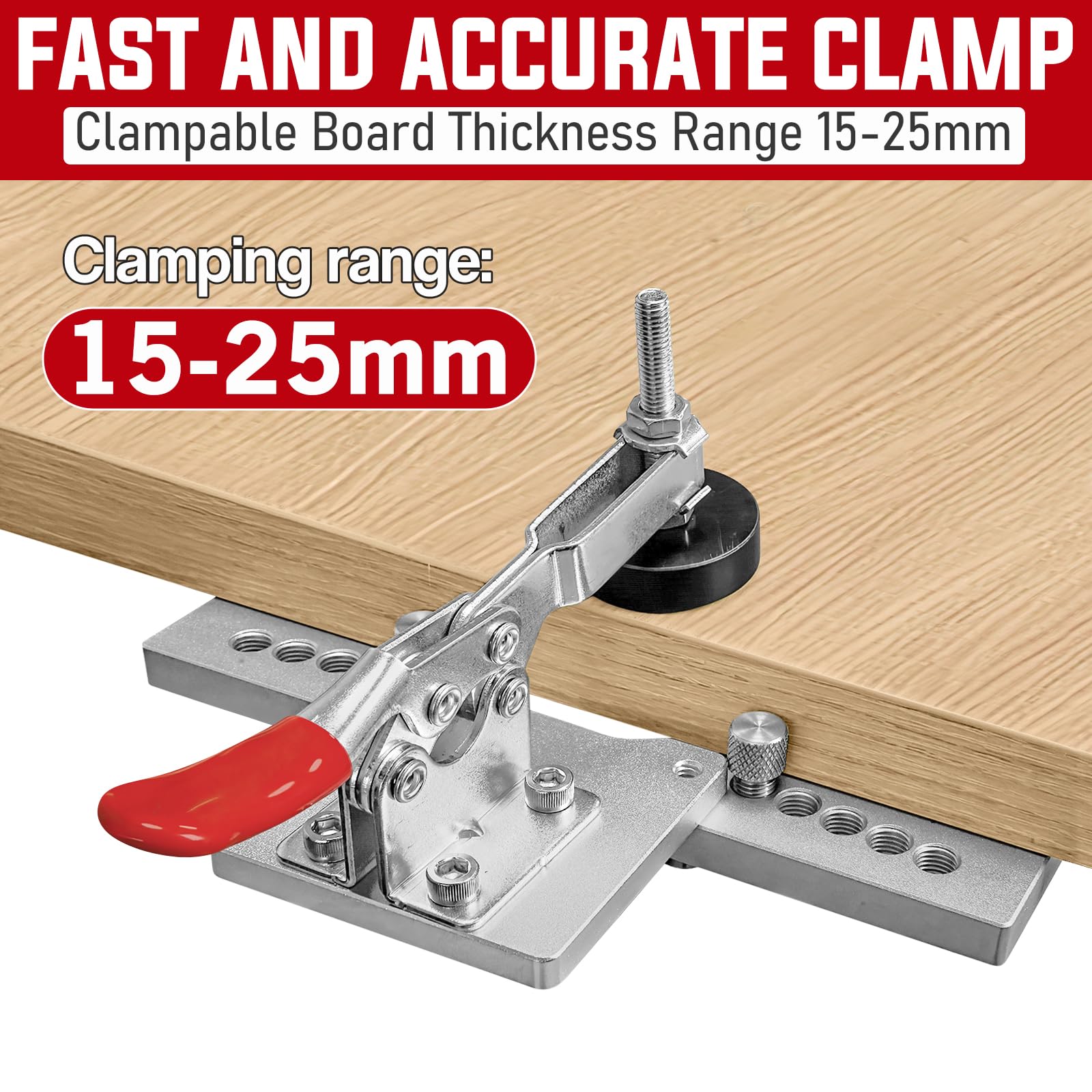

• Quick-set thumbscrew fence provides an easy and repeatable setup, reducing guesswork and helping you lock in your measurements before drilling.

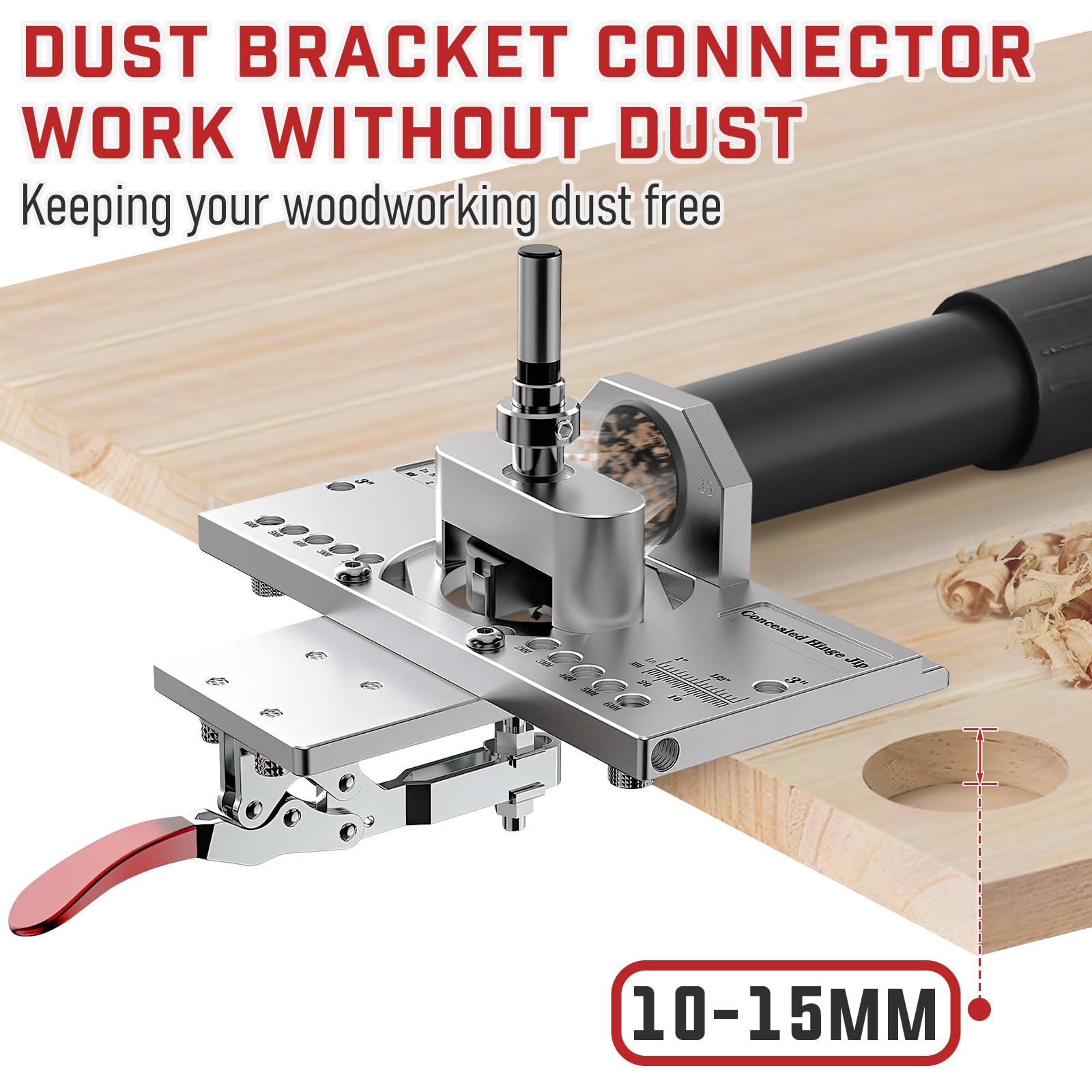

• Dust-free drilling is supported by a 1 3/8 inch vacuum adapter that connects to most shop vacuums, keeping the work area cleaner during installation.

Durability and precision you can rely on

• All metal, heavy duty aluminum alloy construction delivers lasting rigidity and smoother operation compared with plastic jigs.
• Dual bearing system ensures smooth movement when aligning hinges and drilling holes, contributing to consistent hole quality.
• 35 mm carbide drill bit creates precise, press quality holes that support secure hinge mounting on cabinet doors.

Real world use cases

Whether installing kitchen cabinet doors, furniture panels, or a custom wardrobe, this jig helps achieve consistent hinge placement with minimal setup. The combination of secure clamping, precise offsets, and a clean drilling process is designed to support quick turnarounds without sacrificing accuracy.

In busy workshops, the ability to align hinges quickly and drill cleanly can reduce rework and save time. The compact, all metal construction withstands repeated use on plywood, MDF, or hardwood panels, making it suitable for a range of woodworking projects.

Tips for best results

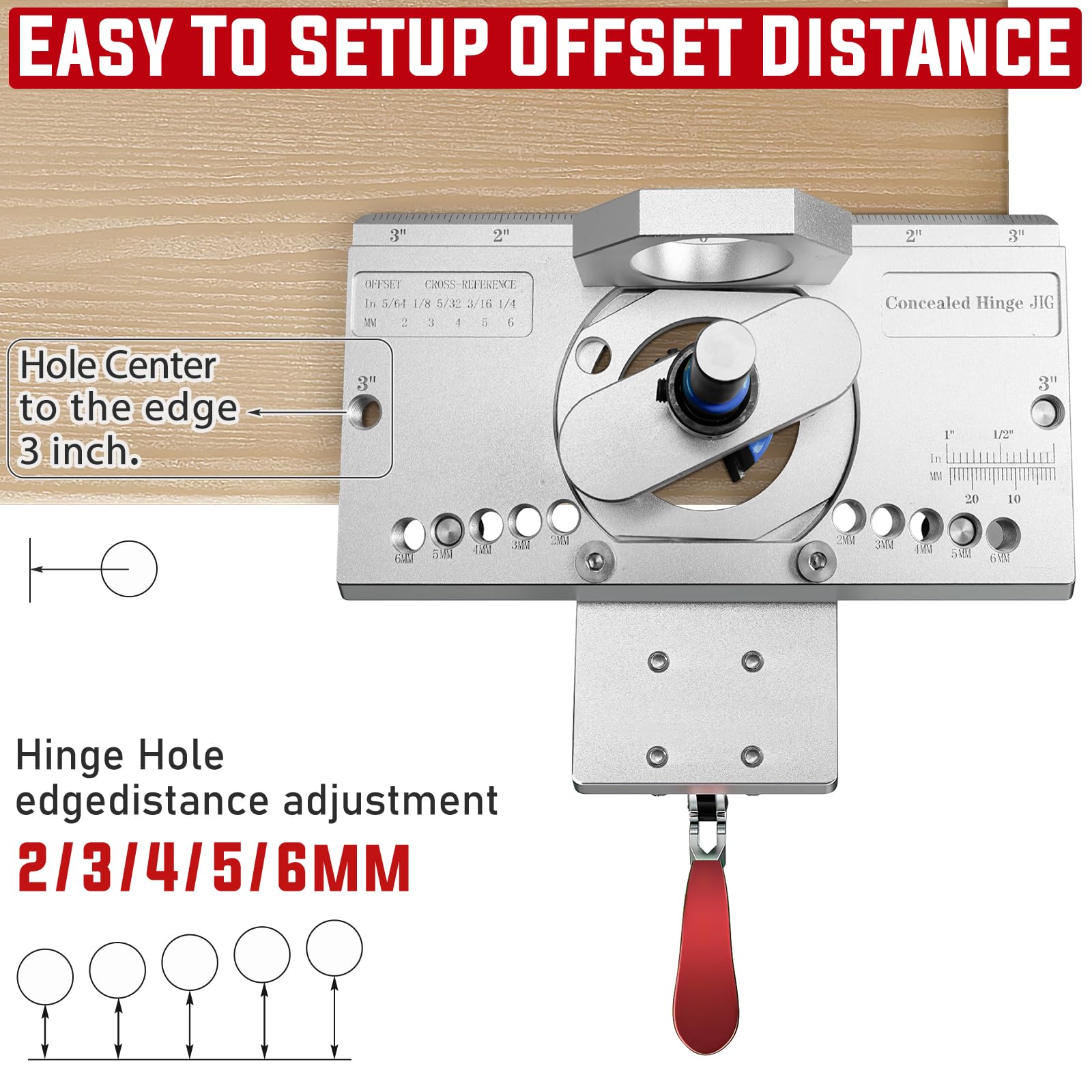

• Start with the offset option that matches your panel thickness, then lock the fence with the thumbscrew for a stable baseline.
• Keep the vacuum connected during drilling to minimize dust and maintain visibility around the hinge line.
• Double-check screw hole spacing before drilling to ensure hinge alignment matches your cabinet design.

Note that while the jig supports a variety of configurations, results depend on correct setup and material quality. Consider testing on a scrap piece to verify alignment before proceeding to the final piece.
