Supco Tradefox Jumper King Bypass – Low Voltage Thermostat Tool for Safe Circuit Activation

Take control of HVAC startup with precision

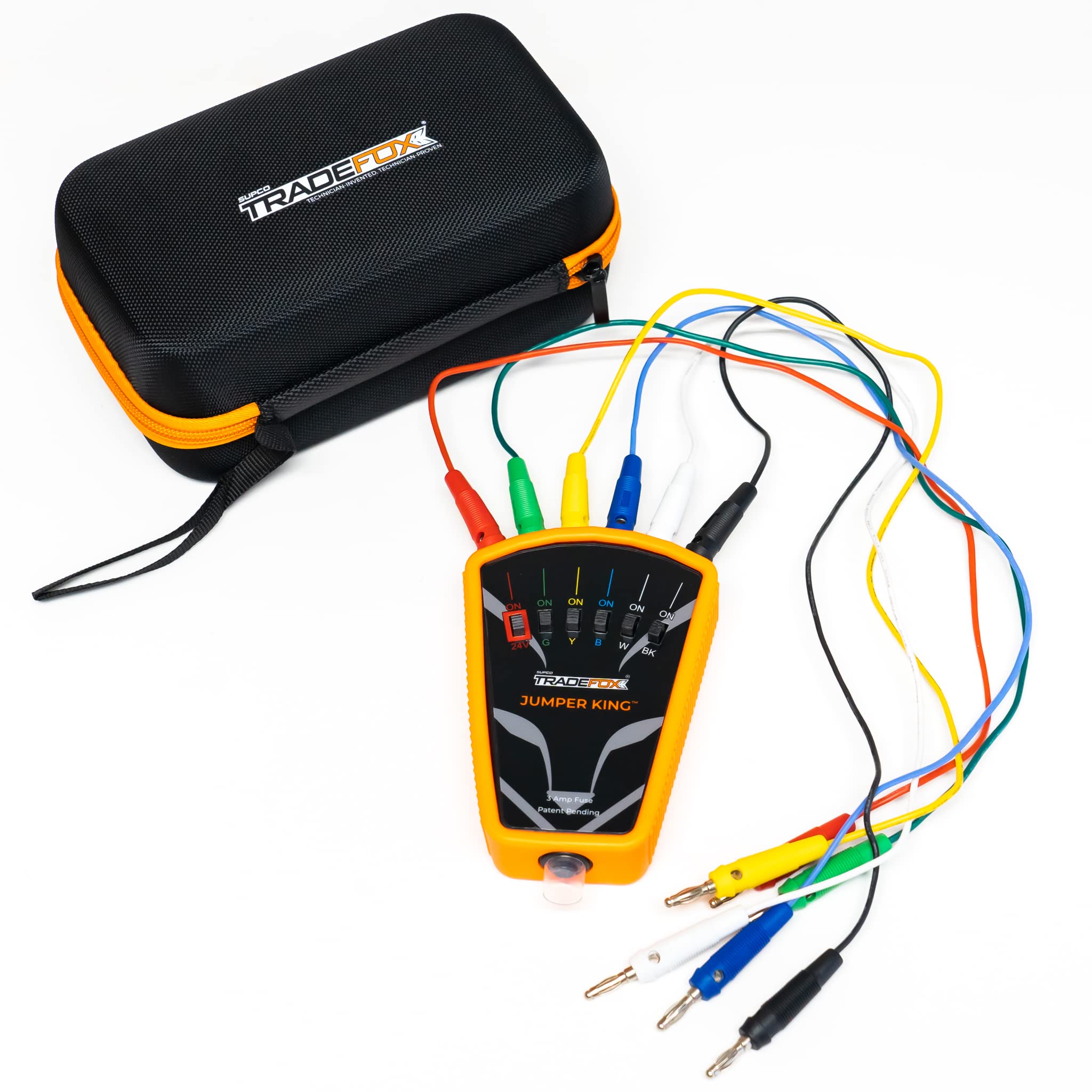

When working with low-voltage systems, safety and control are essential. Supco Tradefox’s Jumper King is designed to bypass any low-voltage thermostat and energize the specific leads or circuit you choose. It draws power from the unit’s own low voltage, so you don’t need batteries, and a resettable fuse helps protect the circuit during testing. The kit includes a rich set of interchangeable tips and connectors, making it a flexible choice for technicians and serious DIYers who want a controlled, temporary bypass.

Key capabilities that streamline service and maintenance

• Safely bypass a low-voltage thermostat to energize chosen leads or circuits.

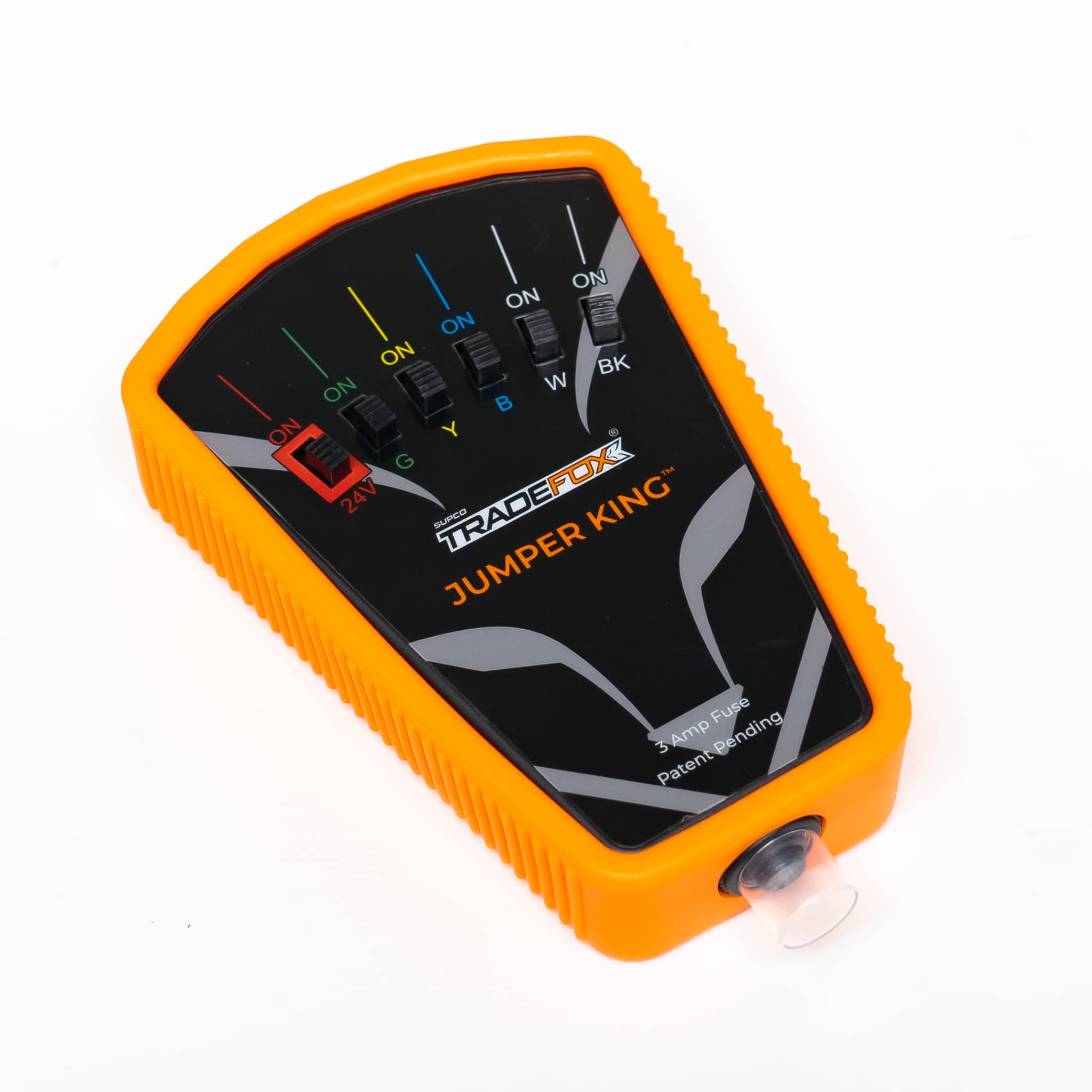

• Selector-based activation lets you test configurations without rewiring the thermostat.
• Resettable fuse provides protection while you work, reducing the risk of shorts during setup.
• No batteries required—powered by the HVAC unit’s own low voltage.
• Compatible with multi-stage systems, including heat pumps, for versatile testing.

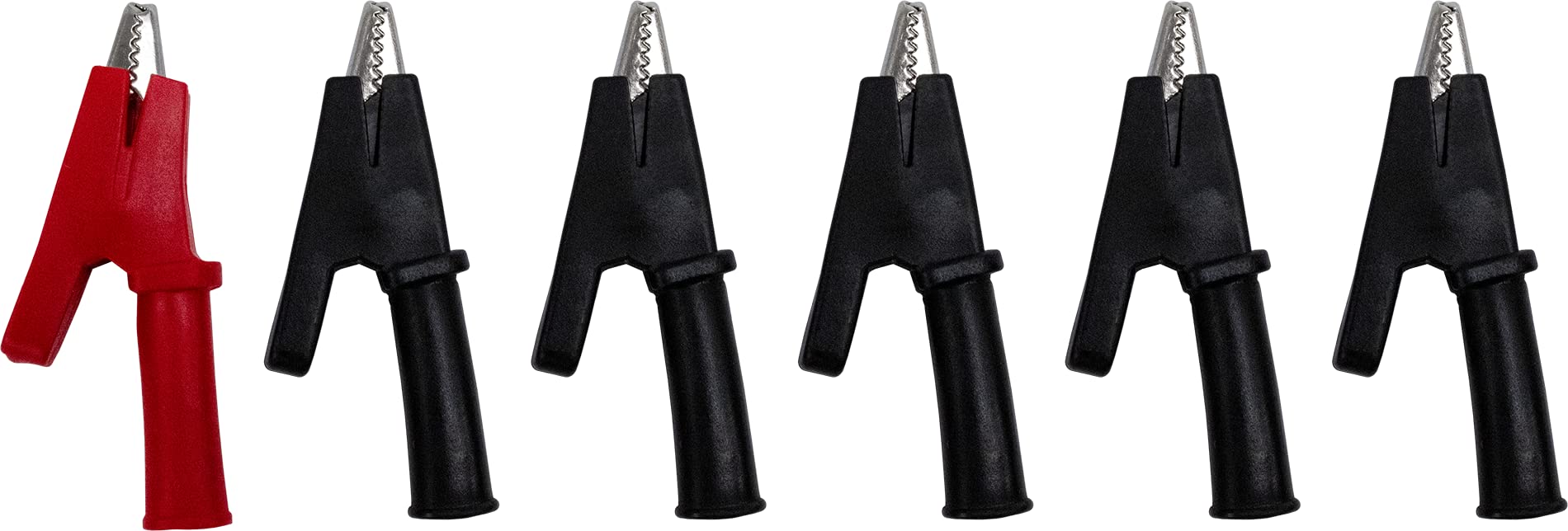

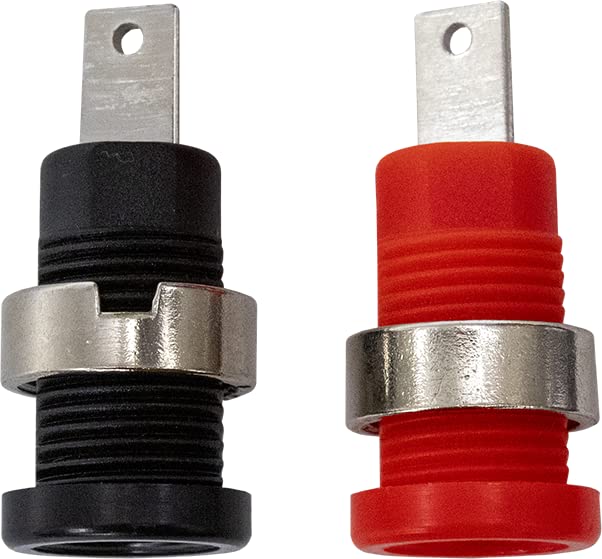

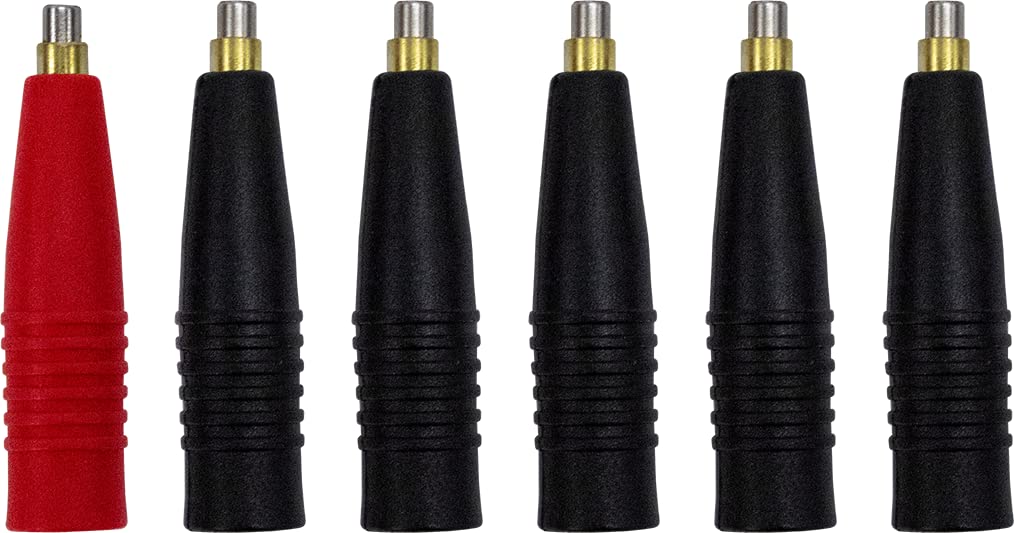

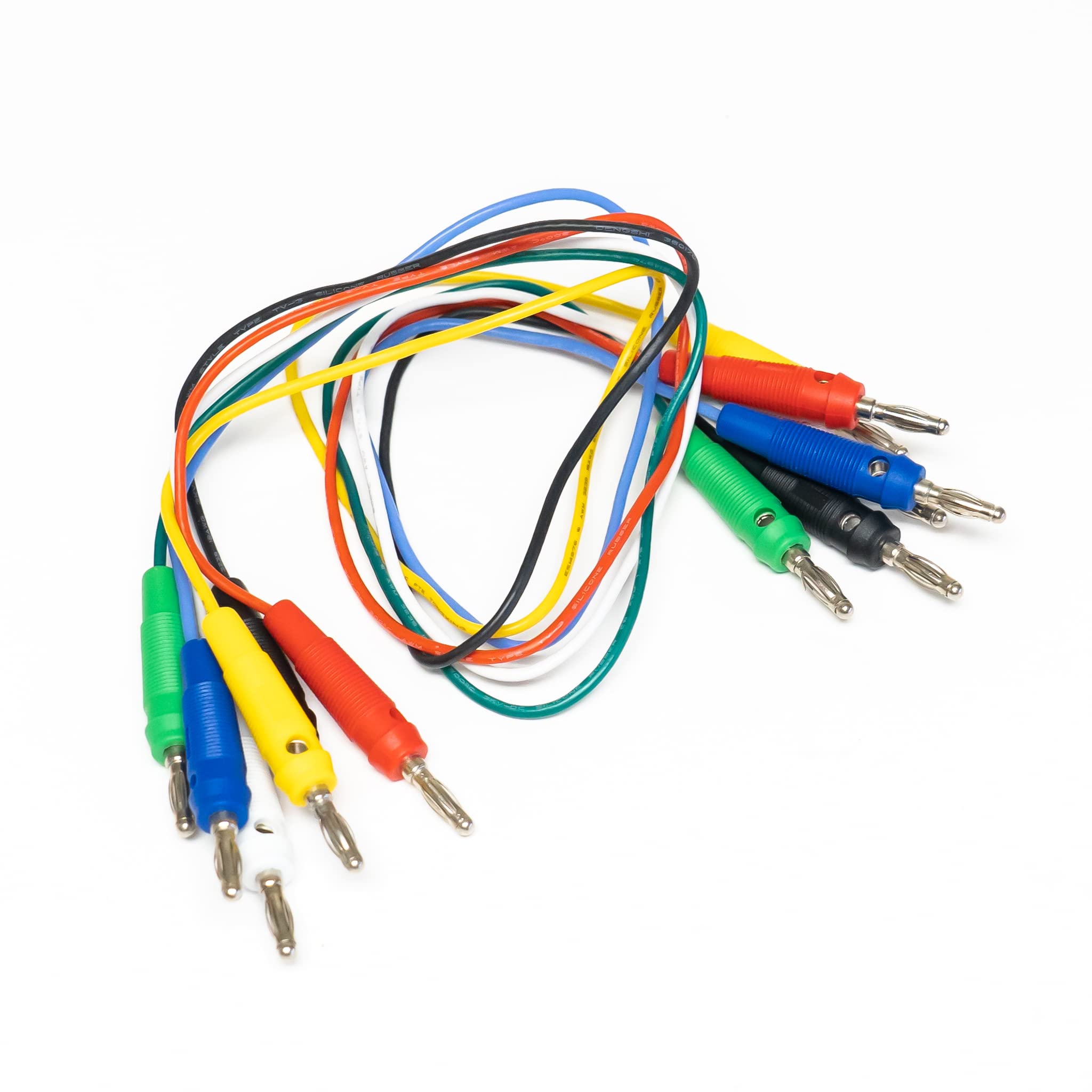

• Includes 20 interchangeable ends plus 2 spade adapters, 6 alligator clips, 6 magnetic tips, 6 self-piercing insulation tips, and 6 jumper leads.

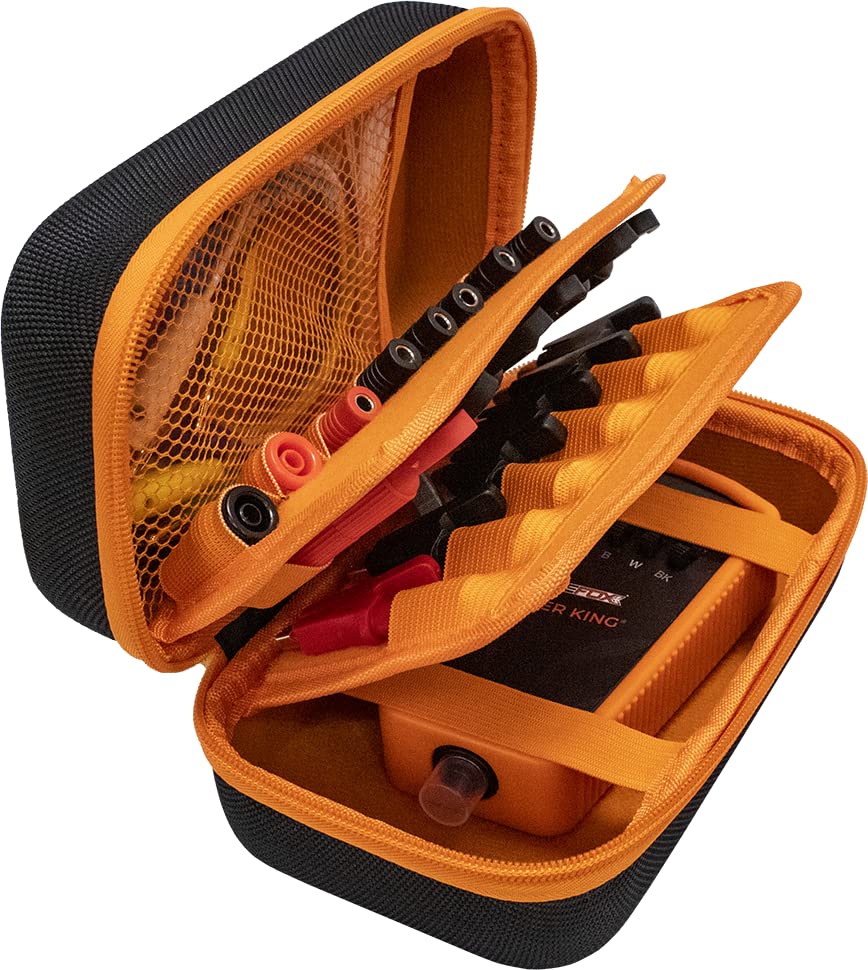

• Hard EVA carrying case keeps everything organized and portable for field use.

What makes Jumper King practical in real‑world scenarios

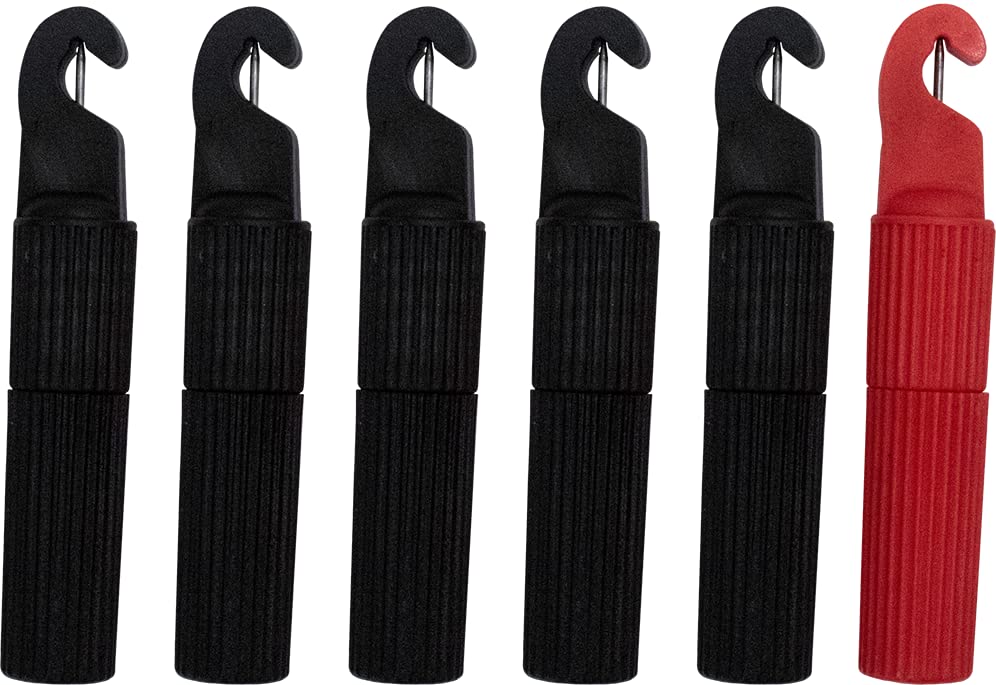

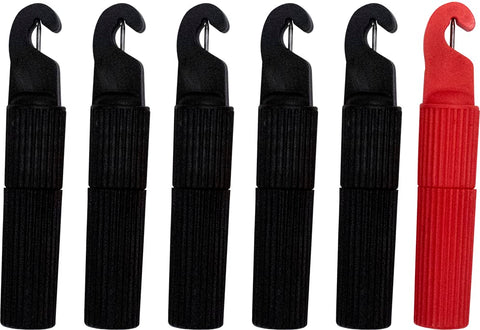

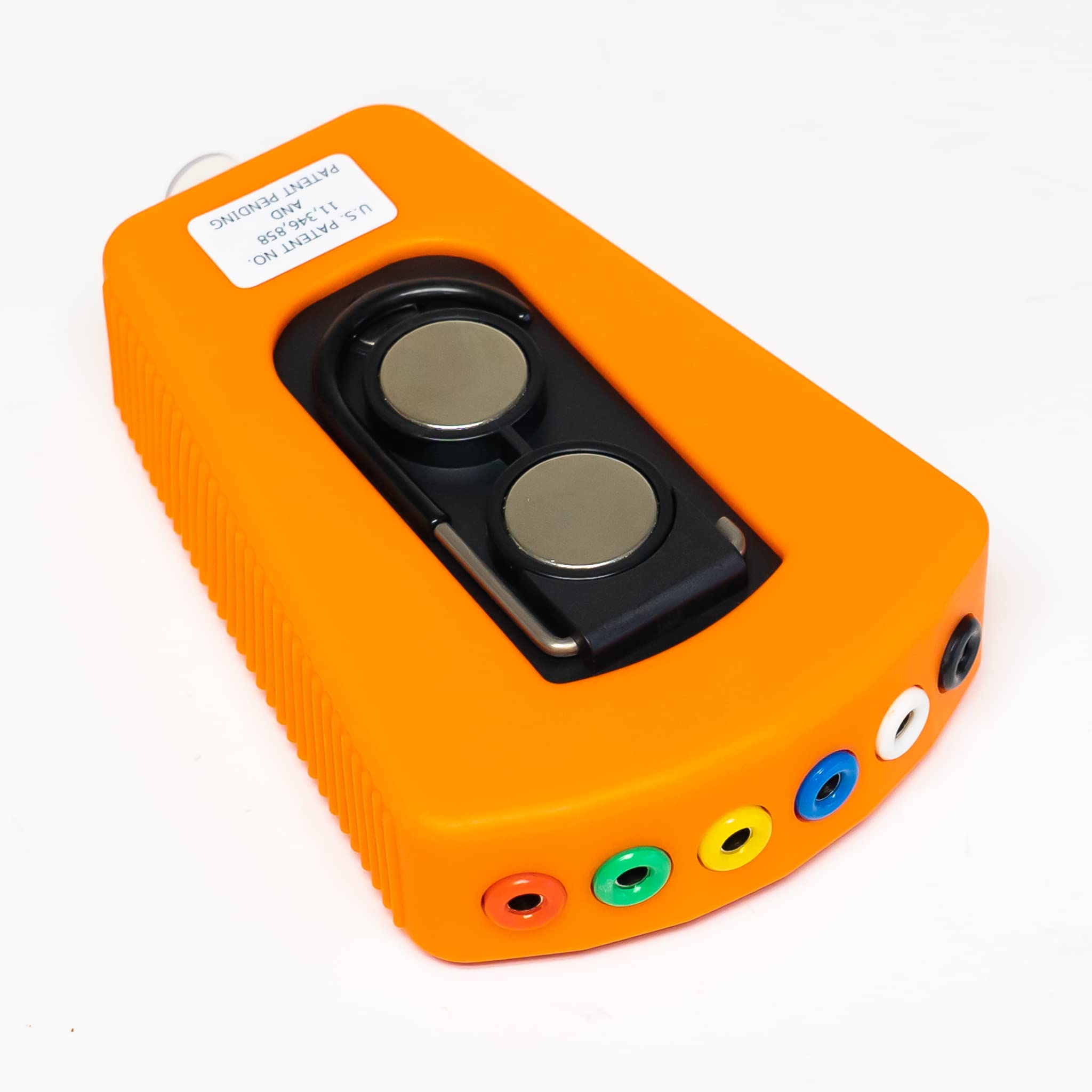

Imagine needing to observe a compressor startup sequence or verify a circuit behavior without altering the thermostat wiring. Jumper King lets you energize the exact circuit you want, right from the unit’s low voltage. The magnetic tips and hook enable hands‑free positioning while you work, and the four tip types—spade adapters, alligator clamps, magnetic tips, and self-piercing insulation tips—provide flexible connections across common terminals. The 20 ends cover a wide range of configurations, while the included jumper leads create clear, temporary pathways for testing. The result is a focused setup that supports careful inspection and quick iterations.

The tool’s design emphasizes practicality: no extraneous power sources, a compact case for transport, and built-in mechanisms to help you manage the task at hand. While it is intended for low-voltage circuits only (0-30 VAC/VDC), the system offers a controlled way to start, test, or troubleshoot without committing to a full wiring change.

Safety and convenience features

• Low-voltage operation from 0 to 30 VAC/VDC supports a range of HVAC configurations.
• Resettable fuse prevents permanent shorts during testing.
• No batteries required—utilizes the unit’s own voltage for operation.
• Designed for low-voltage circuits only to maintain cautious use.
• Includes a sturdy hard case and a comprehensive set of connectors for quick setup.

Whether you’re a professional technician or a dedicated DIYer, the Supco Tradefox Jumper King offers a practical, flexible approach to testing and activating HVAC circuits. It presents a thoughtful combination of safety, adaptability, and convenience, highlighting what can be possible when you have the right tool for targeted, temporary bypass tasks.
