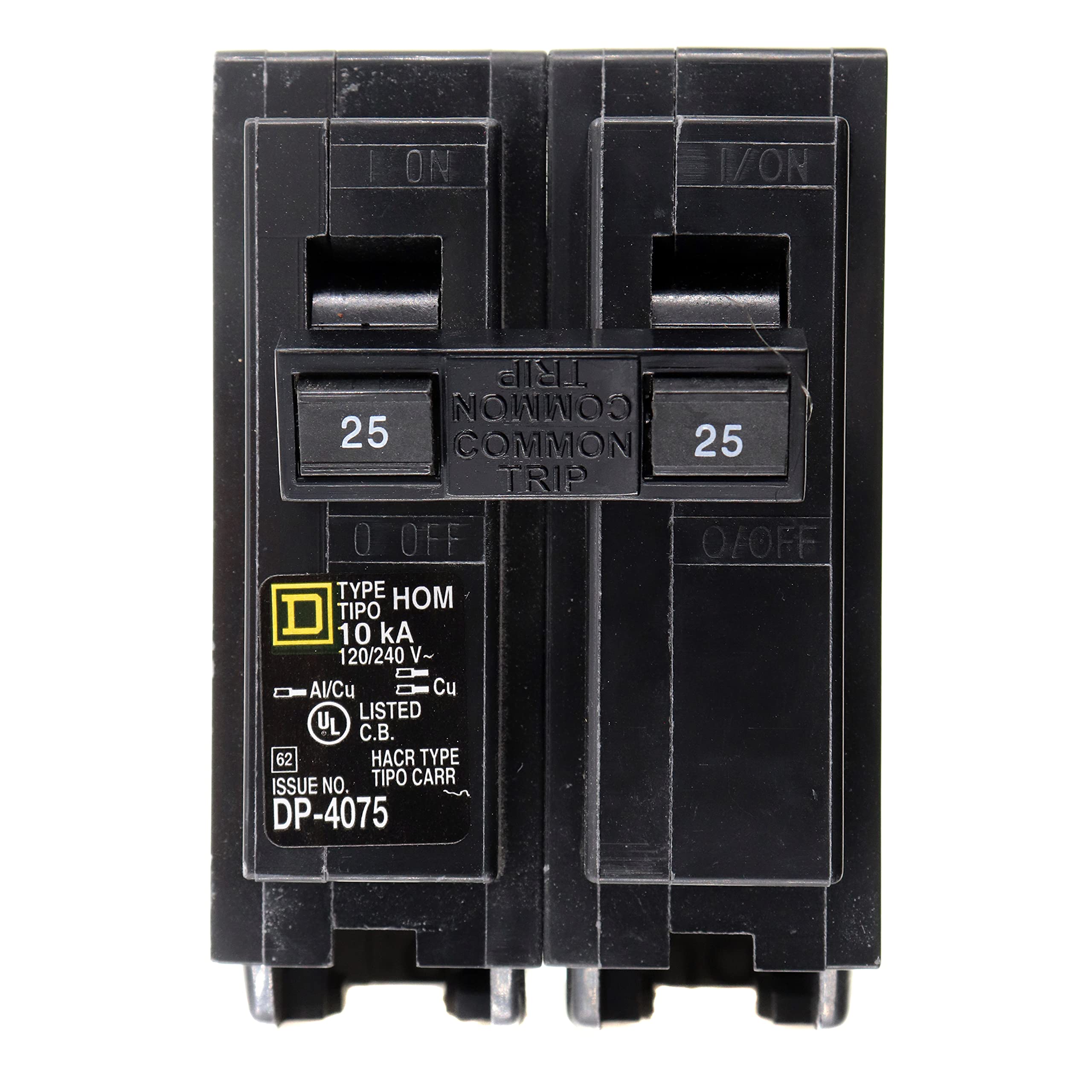

Square D HOM225 HomeLine 2-Pole 25A Circuit Breaker – 120/240VAC

Overview

Meet the Square D HOM225 HomeLine 2-pole circuit breaker. Designed for 120/240 VAC circuits, it delivers 25 A of overcurrent protection with a common-trip action that coordinates both hot legs. Built to fit HOM-type panels, this unit offers reliable interruption and straightforward plug-on installation that can simplify upgrades or replacements.

Why choose this breaker

With a thermal-magnetic mechanism, this breaker responds to short circuits and sustained overloads, helping protect connected devices and wiring. The common-trip design ensures both hot legs trip together, supporting safe operation and balanced protection across circuits.

• Plug-on mounting for quick installation and fewer field wiring steps
• Broad conductor compatibility including aluminum and copper from 14 to 8 AWG, plus two copper 14 to 10 AWG conductors
• UL-listed and CSA-certified for compatibility with standard panels and code compliance

Key specs at a glance

• Voltage: 120 to 240 VAC
• Current rating: 25 A
• Interrupting rating: 10,000 A
• Type: HOM Family, common-trip thermal-magnetic
• Mounting: plug-on
• Conductor range: 14 to 8 AWG aluminum or copper; two 14 to 10 AWG copper
• Dimensions: approximately 2.98 in deep by 3.13 in high
• Certifications: UL listed and CSA certified

Real world use and considerations

Use this breaker when upgrading an older panel or when you need a reliable 25 A branch protection for a 120/240 V circuit. Its compact footprint can help when space is limited inside crowded panels, while the common-trip action supports safe shutdown across both hot legs during a fault. Suitable for residential or light commercial settings where HOM-type devices are standard.
