Solidremote 12V-24V Secure Wireless 2-Channel Relay Kit (KIT-1)

Overview

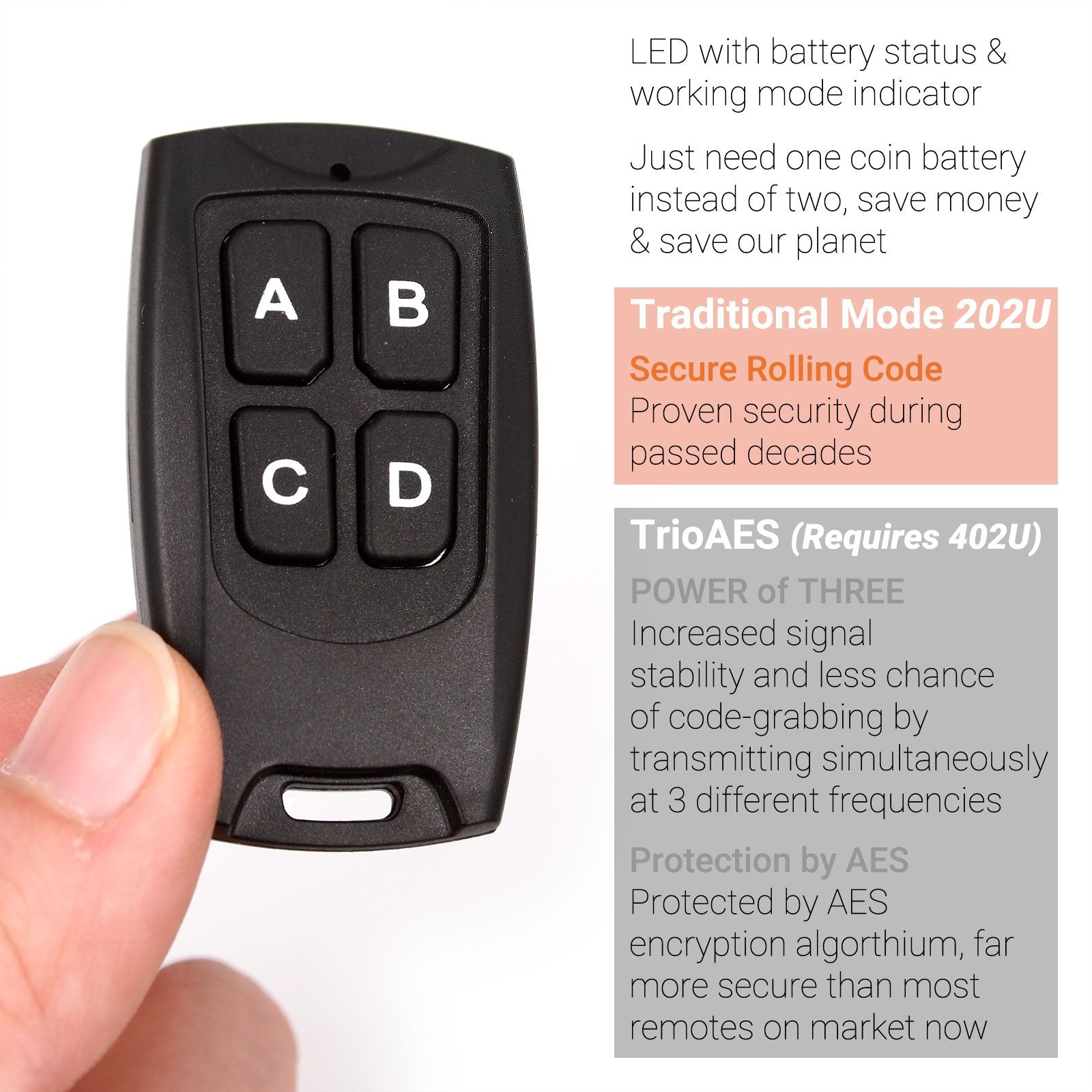

Meet Solidremote KIT-1, a compact, secure wireless relay system designed to simplify everyday automation. Built around a rolling-code remote and a high-sensitivity RF module, it delivers stronger security and reliable reach for controlling doors, lights, and compatible devices.

The two independent relay channels can operate together in a latching configuration for polarity reversing, or separately in pulse or hold mode to manage different devices. The kit includes two transmitters and a two-channel receiver, with DIP-switch settings to switch between pulse, momentary, hold, toggle, and latching operation for flexible control.

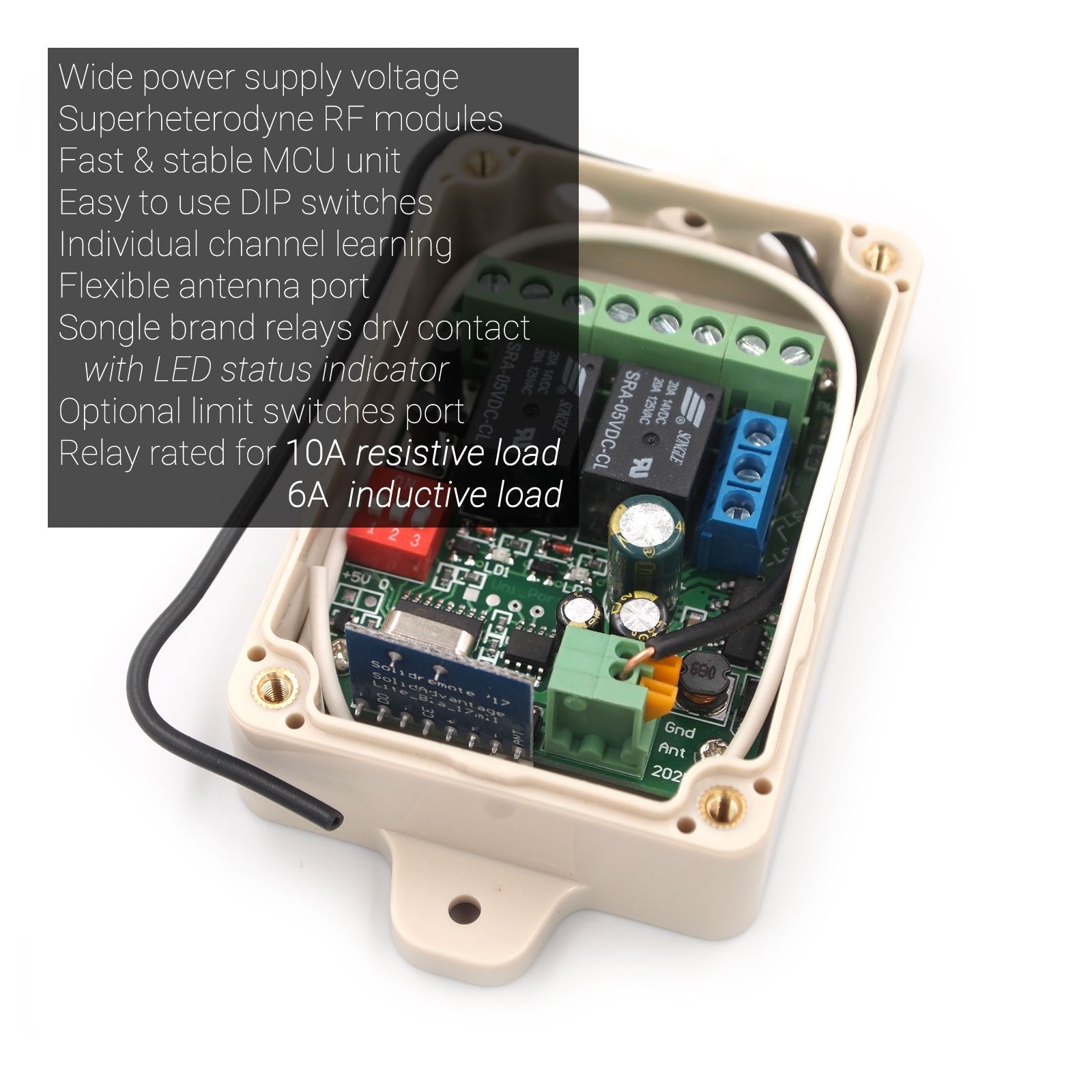

Rugged, weather-ready enclosure

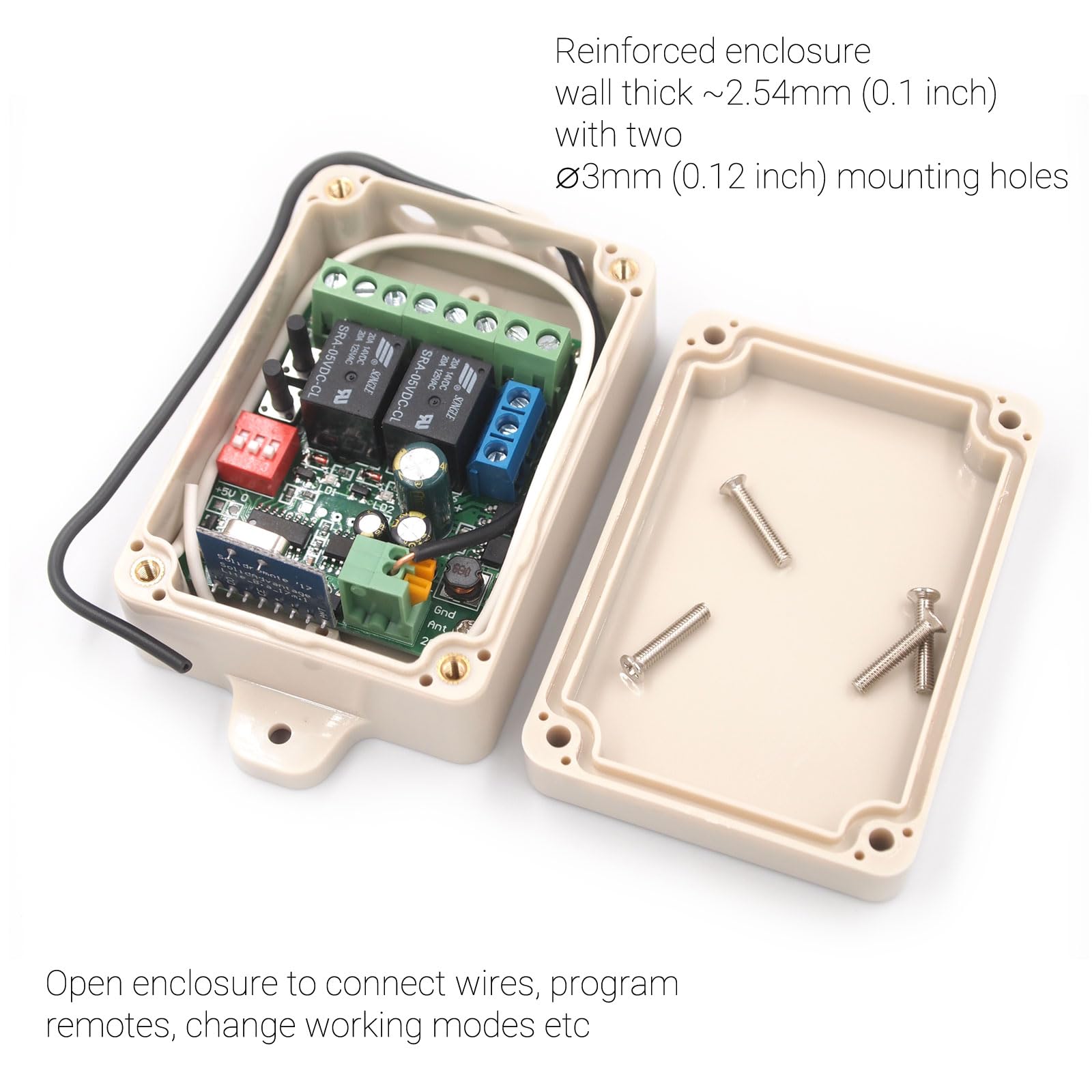

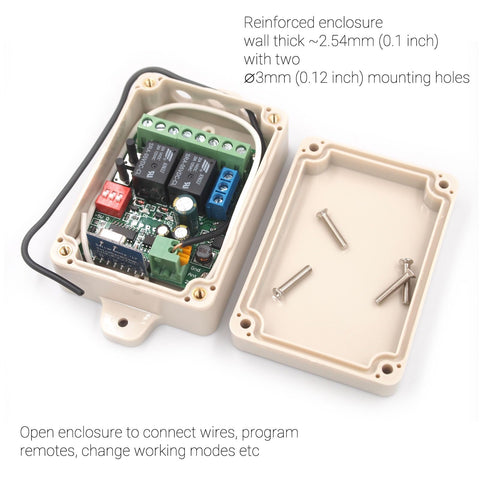

The enclosure is designed for both indoor and outdoor use, protecting the receiver’s circuitry from rain and harsh weather. For exposed installations, you can seal wiring holes with adhesive or epoxy to enhance weather resistance, achieving IP55-like protection. Mounting holes make wall or panel installation straightforward.

Power, performance, and safety

• Wide supply range: 12-24V AC or DC with a modest current draw (min 110 mA at 12V).
• Relay capacity: each channel switches up to 10A at 14V DC or 125V AC for resistive loads; 6A for inductive loads.
• Interlock latching mode supports coordinated actions, such as motor polarity reversing when needed.

Real-world uses and benefits

Use KIT-1 to wirelessly control a garage door opener, entry lights, pumps, blinds, or other 12-24V devices without fixed codes. It fits well with home automation setups, marine electronics, and small industrial or agricultural controllers, offering flexible options without committing to a single control scheme.

What’s included and installation tips

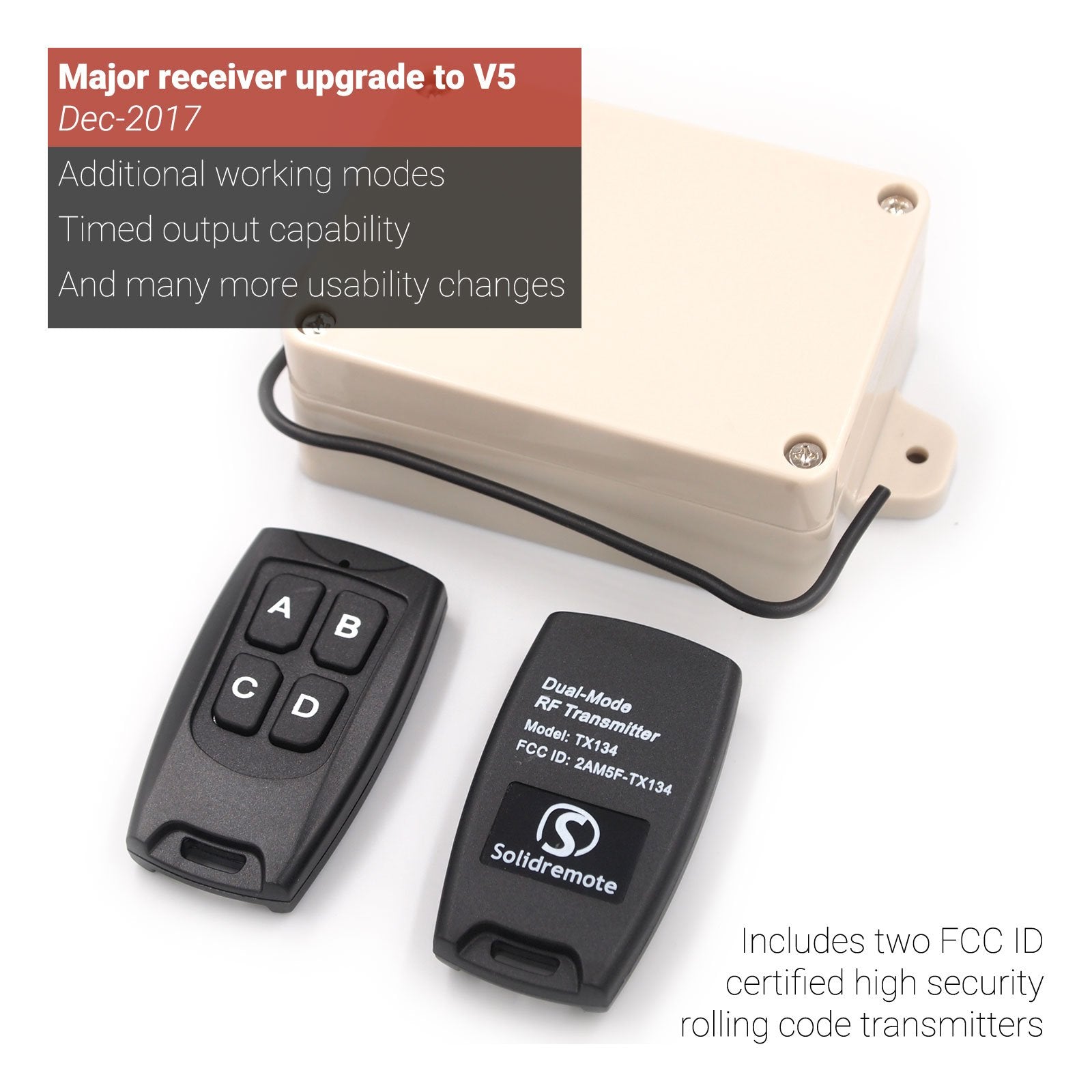

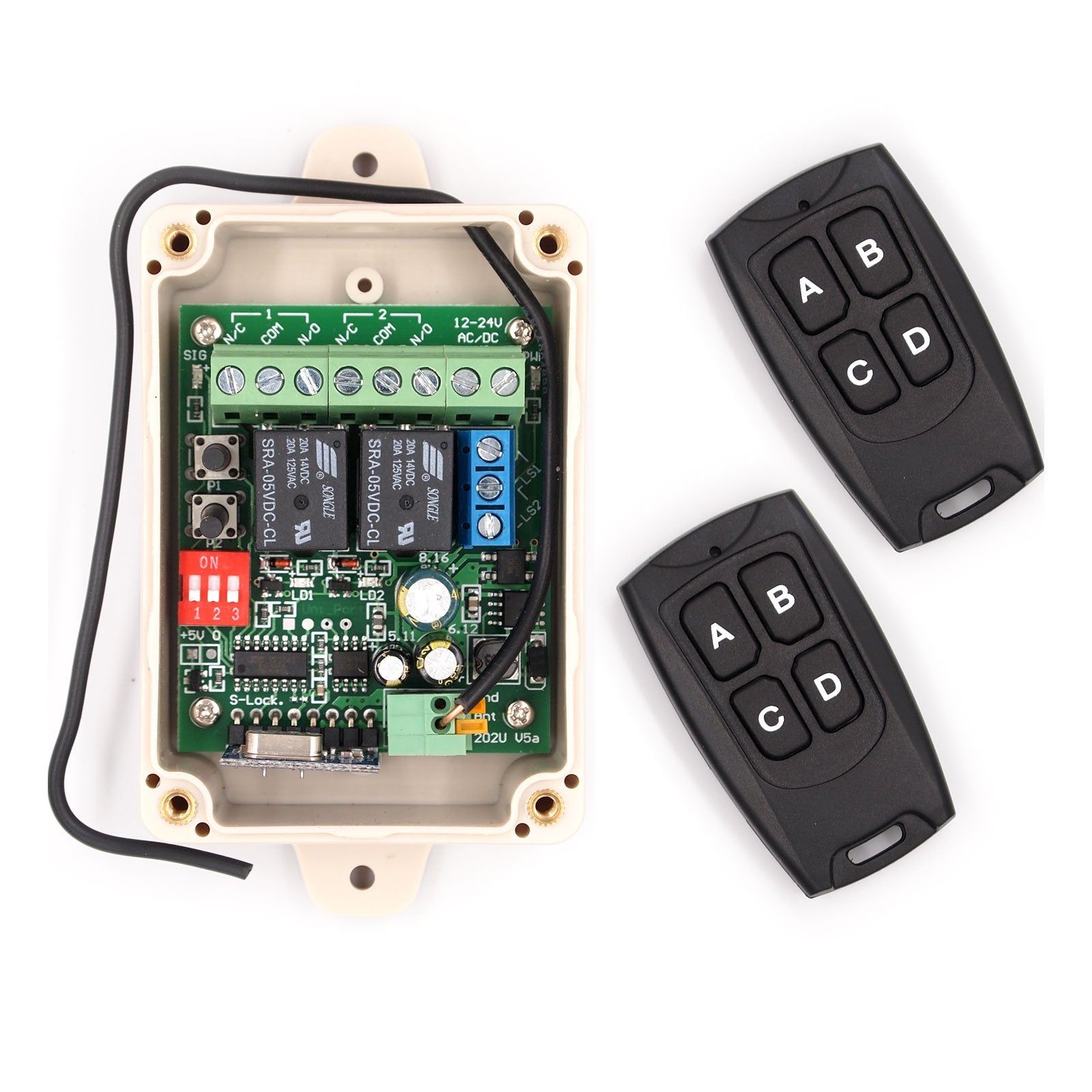

• Two transmitters and a two-channel receiver provide immediate dual-channel control.
• Weatherproof enclosure and mounting hardware support tidy, durable installation.
• Easy setup with DIP-switch mode selection for pulse, momentary, hold, toggle, and latching operation.

Notes: Ensure loads stay within rated voltages and currents, and follow local electrical codes during installation for best results.
