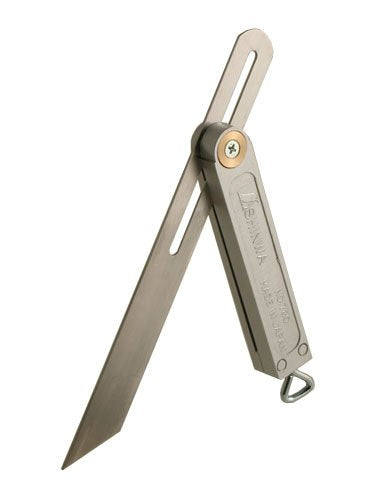

Shinwa Sliding T-Bevel 8-inch Blade – Precise Angle Layout Tool

Overview

The Shinwa Sliding T-Bevel is a timeless layout tool designed for accurate angle transfer and steady, repeatable measurements. Built with traditional craftsmanship, its all metal construction and simple adjustment system offer reliable performance in everyday shop tasks.

What makes it reliable

• Made by Shinwa in Japan
• Blade 8 inch long by 1 inch wide; stainless steel with milled sides
• Base 5 inch long by 1 inch wide and 5/8 inch thick; anodized aluminum
• Locking screw sits on the end of the base so the tool can be flipped for use on either side
• Wing nut style set screw for quick, secure adjustment
• All metal construction for steady performance and long life
• Milled sides rather than stamped edges for improved accuracy and feel

How you might use it

Use the tool to transfer angles from templates to stock, check layout lines, and align pieces before cutting. Its compact size fits small jigs while the robust build supports repeated setup tasks in busy workspaces.

Key specs at a glance

• Blade length 8 in (200 mm) and width 1 in (25 mm)
• Base length 5 in (120 mm) and width 1 in (25 mm); thickness 5/8 in (15 mm)
• Blade crafted from stainless steel with milled sides; base made from anodized aluminum
• End of base locking screw enables flipping for use on either side
• All metal construction supports durable, repeatable use

Designed for straightforward operation, this traditional tool remains a reliable companion in workshops and studios where quality craftsmanship matters. It pairs well with other measuring and marking tools, inviting careful, repeatable setups without electronics or complex maintenance. A practical choice for anyone who values precision and simplicity in layout work.
