SEESII 3-in-1 Cabinet Jig for 35mm Concealed Hinges & Shelf Pins

Overview

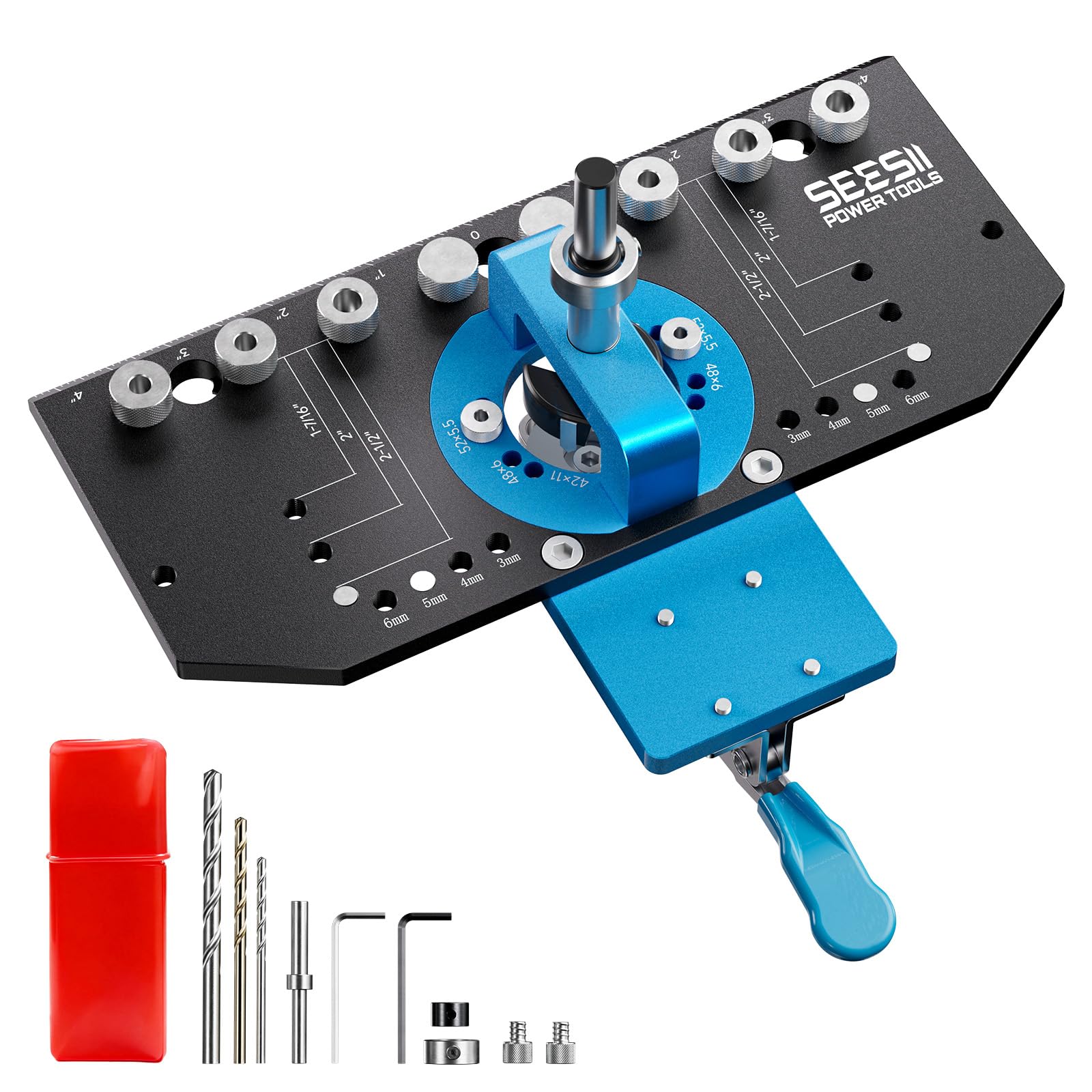

Meet SEESII's 3-in-1 Cabinet Jig, a compact, all-metal drilling guide crafted for cabinet hardware installations. By combining hinge and shelf-pin drilling into a single tool, it helps streamline workflows, reduce tool swaps, and support precise alignments for both DIY projects and professional cabinet builds.

Built to handle common standards with thoughtful presets, this jig aims to deliver consistent results across varying projects. It emphasizes practical accuracy and reliable performance, making it a worthy companion for kitchen renovations, hobby woodworking, and custom cabinetry tasks.

Key capabilities

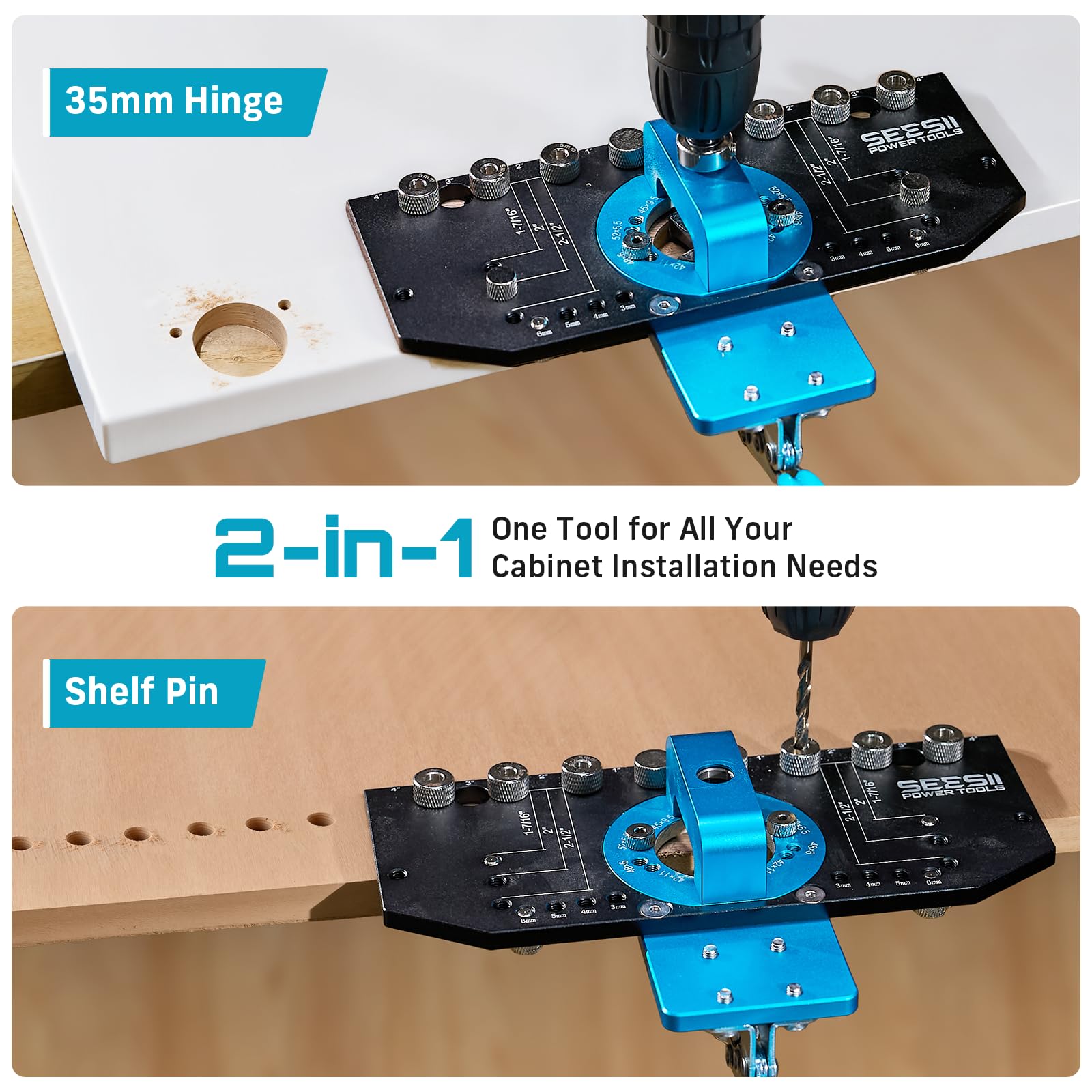

• 2-in-1 drilling guide for hinges and shelf pins, reducing setup steps and boosting workflow efficiency
• 35mm hinge precision with a 0-15mm depth-stop collar, enabling accurate hole placement for concealed hinges

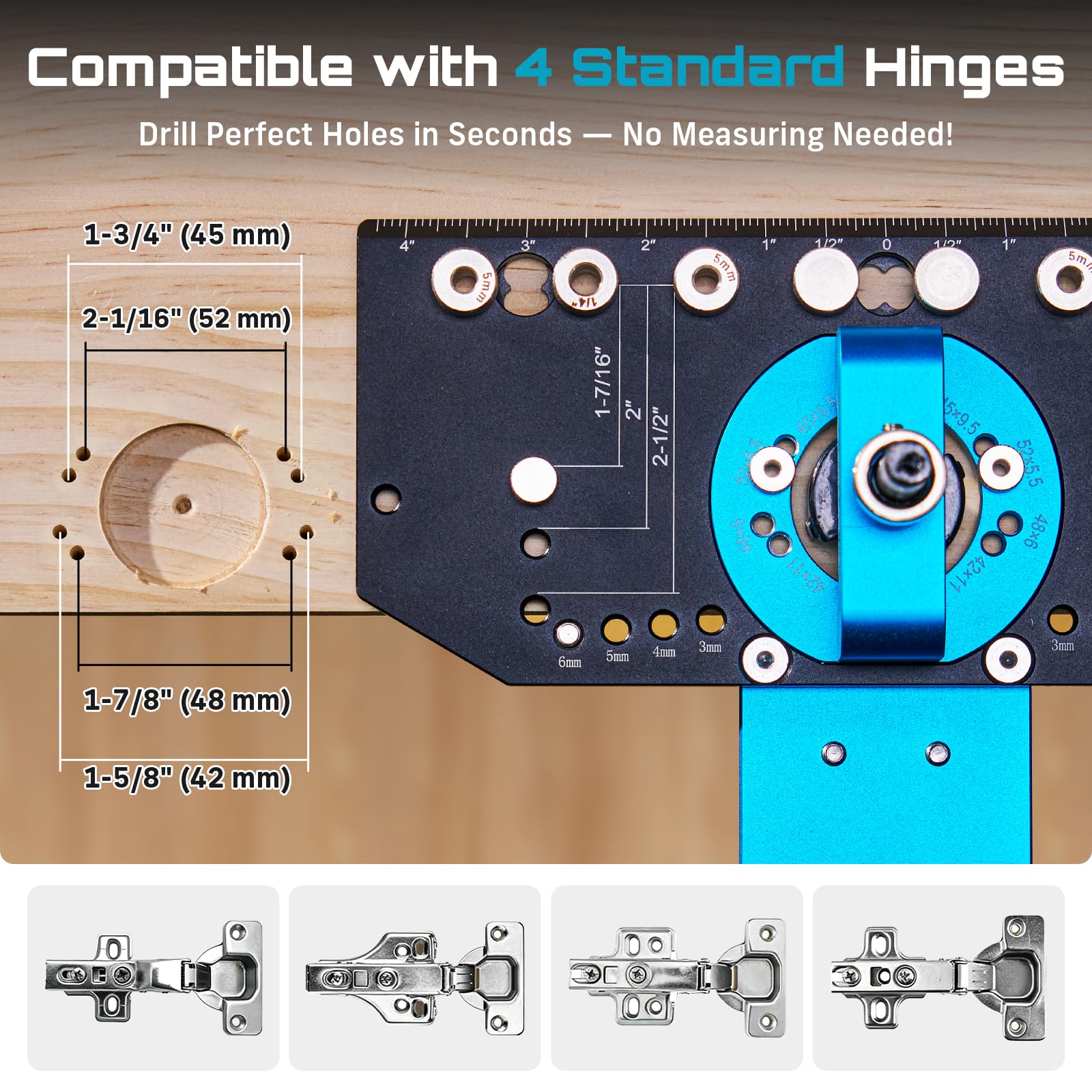

• Four hinge-screw sizes (42 mm, 48 mm, 52 mm, 45 mm) built into the tool for flexible mounting

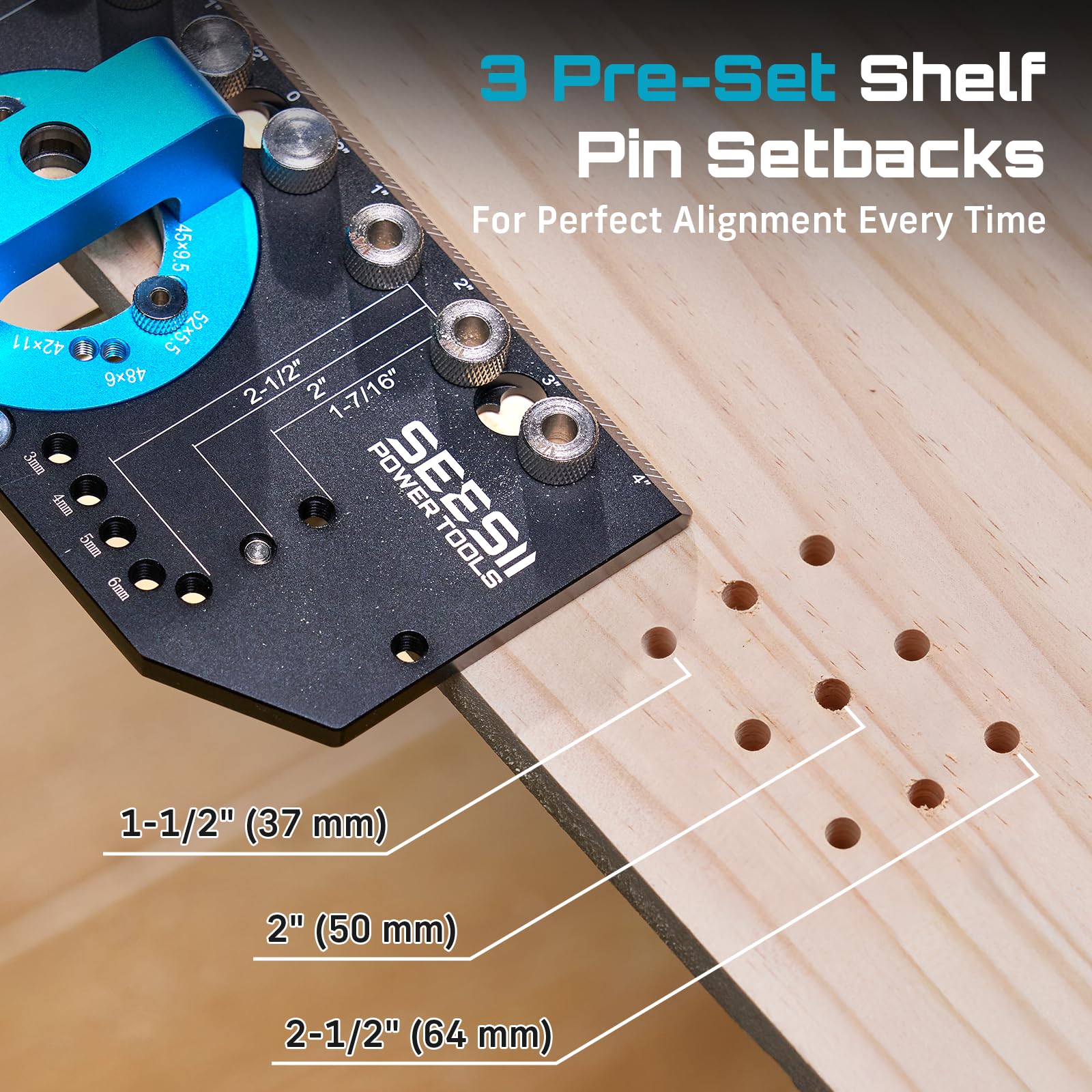

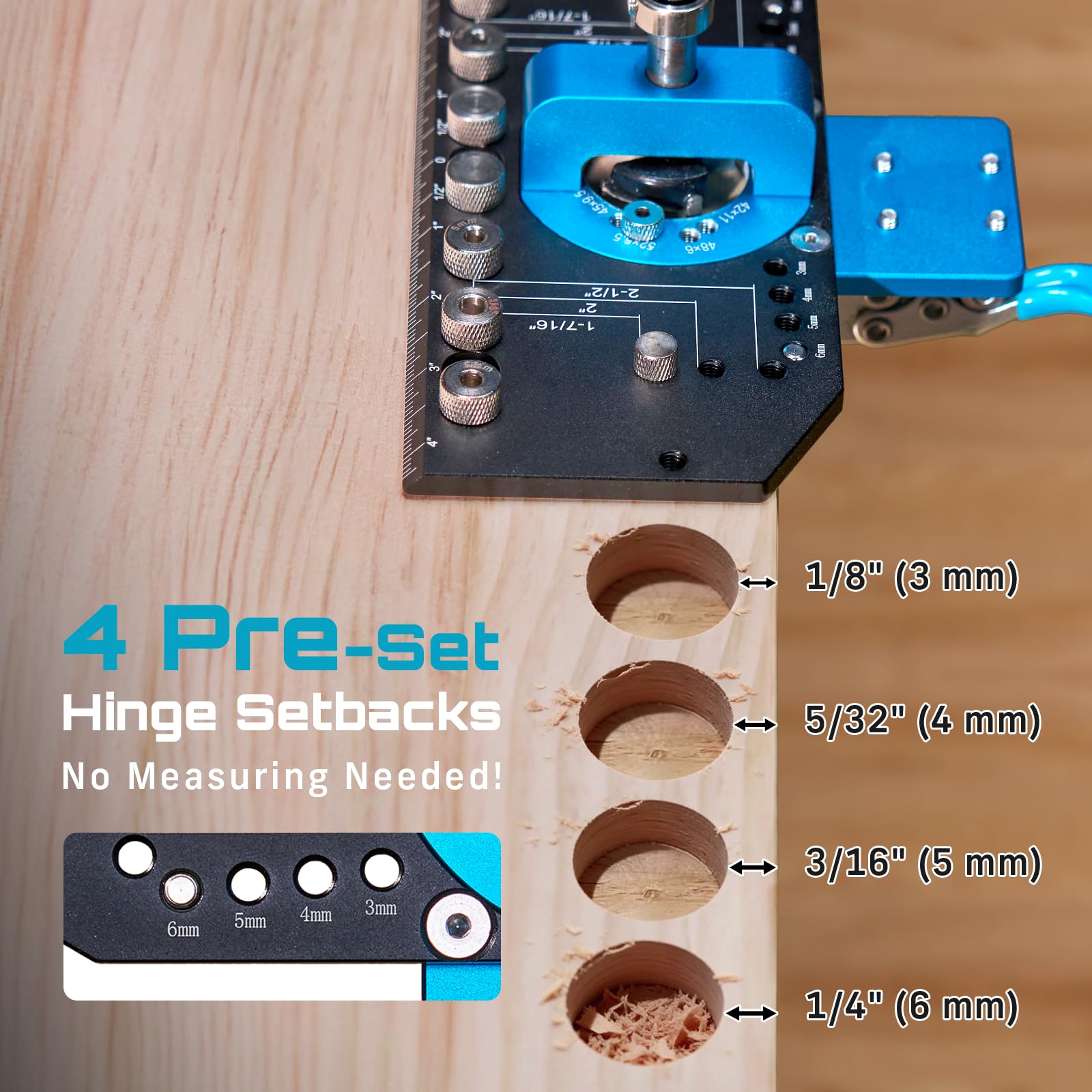

• Preset margins: hinge settings of 3, 4, 5, 6 mm and shelf-pin margins of 37, 50, 64 mm, covering European and American standards

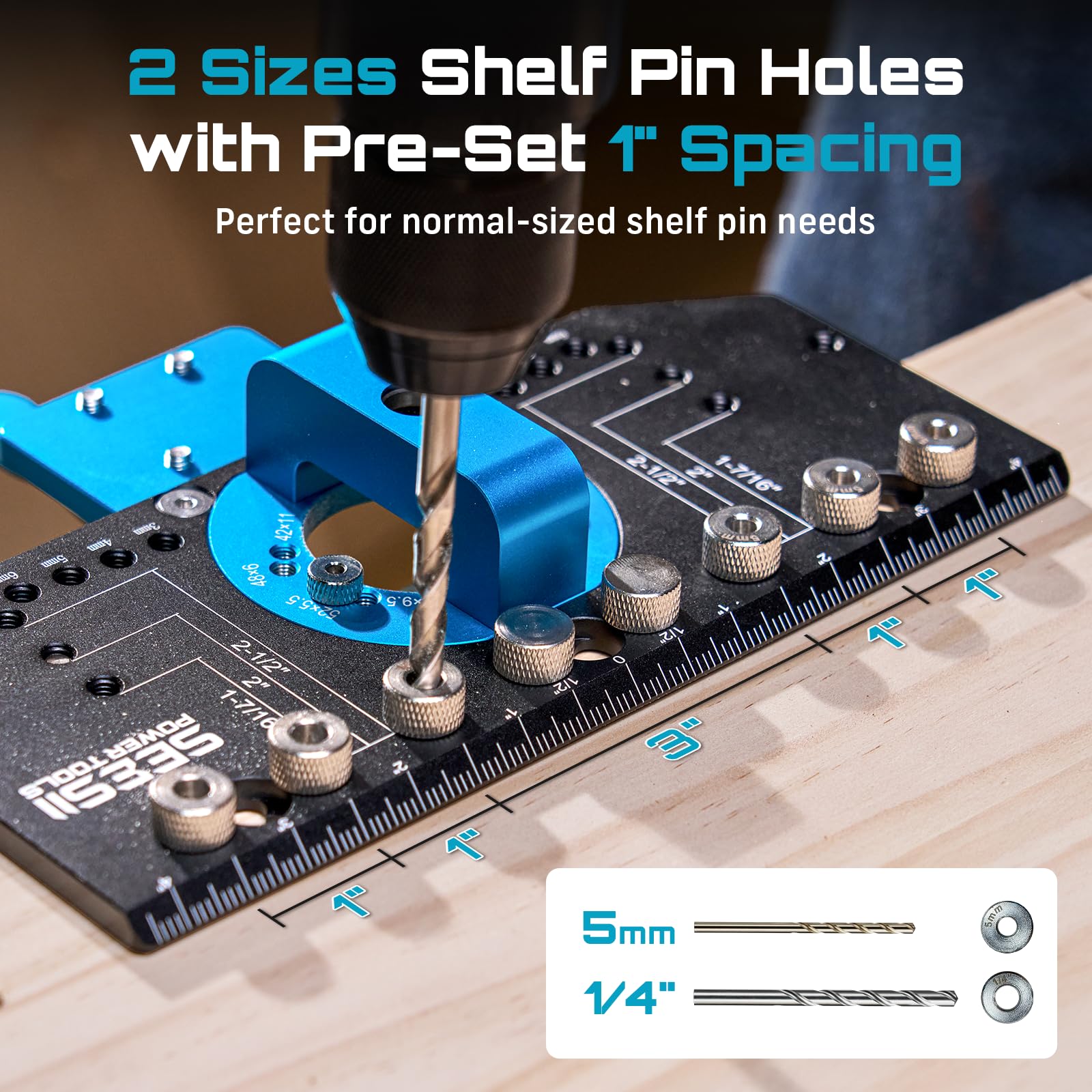

• Two drilling bits (5 mm and 1/4"), with an even 1-inch hole spacing across six holes
• Dual bearing-guide system to reduce friction, supporting smoother drilling and longer bit life

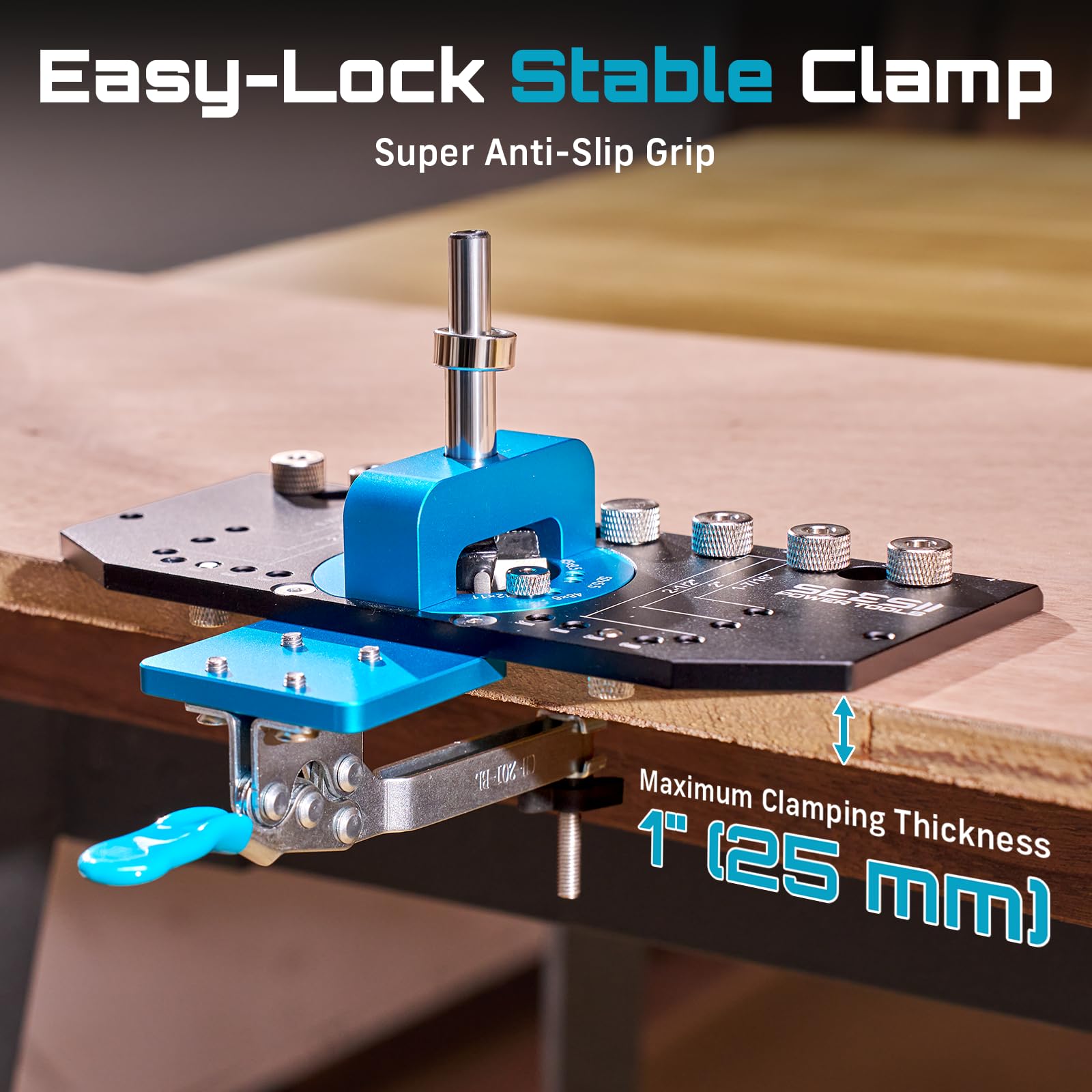

• Anti-slip quick clamp with a 0-25 mm one-handed adjustment and extra-wide rubber jaws for stability
• Durable tungsten steel bit and aluminum alloy body delivering reliable, millimeter-level precision

Practical applications

This jig excels in cabinet door installations, shelving projects, and overall cabinet fit-outs. The preset margins help align hinges and shelf pins consistently, while the handle and edge guide support accurate hole placement for handles and pull hardware.

• Install concealed hinges with uniform spacing for a clean, professional finish
• Align shelf pins and handle holes efficiently, reducing rework and misalignment risks
• Adapt to various cabinet widths and door styles thanks to adjustable margins and universal screw options

Durability and value

The tool’s all-metal construction paired with a tungsten bit is designed to withstand repeated use. A low-friction guiding system helps minimize wear on bits, and the anti-slip clamp enhances safety during dynamic drilling tasks. While outcomes depend on technique and materials, this jig offers a dependable reference for accurate, repeatable results over time.

Why consider this tool

If you’re chasing efficiency, consistency, and adaptability in woodworking projects that involve hinges, shelf pins, and handles, this jig provides a structured approach without requiring multiple dedicated tools. It’s designed to support a smoother workflow and precise outcomes, making it a practical option for both hobbyists and professional woodworkers.
