SEAFLO 22-Series 12V Water Pump — 1.3 GPM, 100 PSI | Marine, RV & Off-Grid

Overview

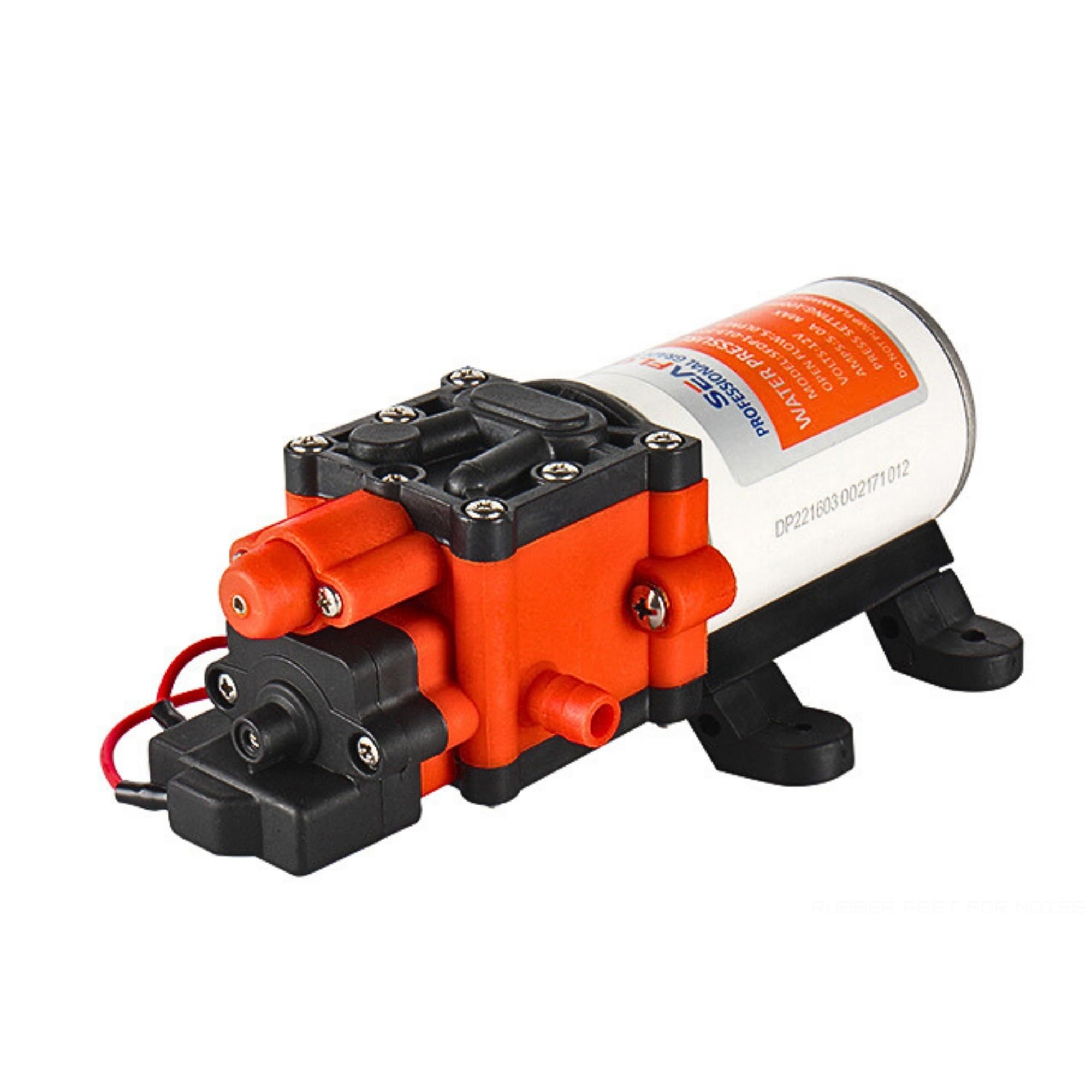

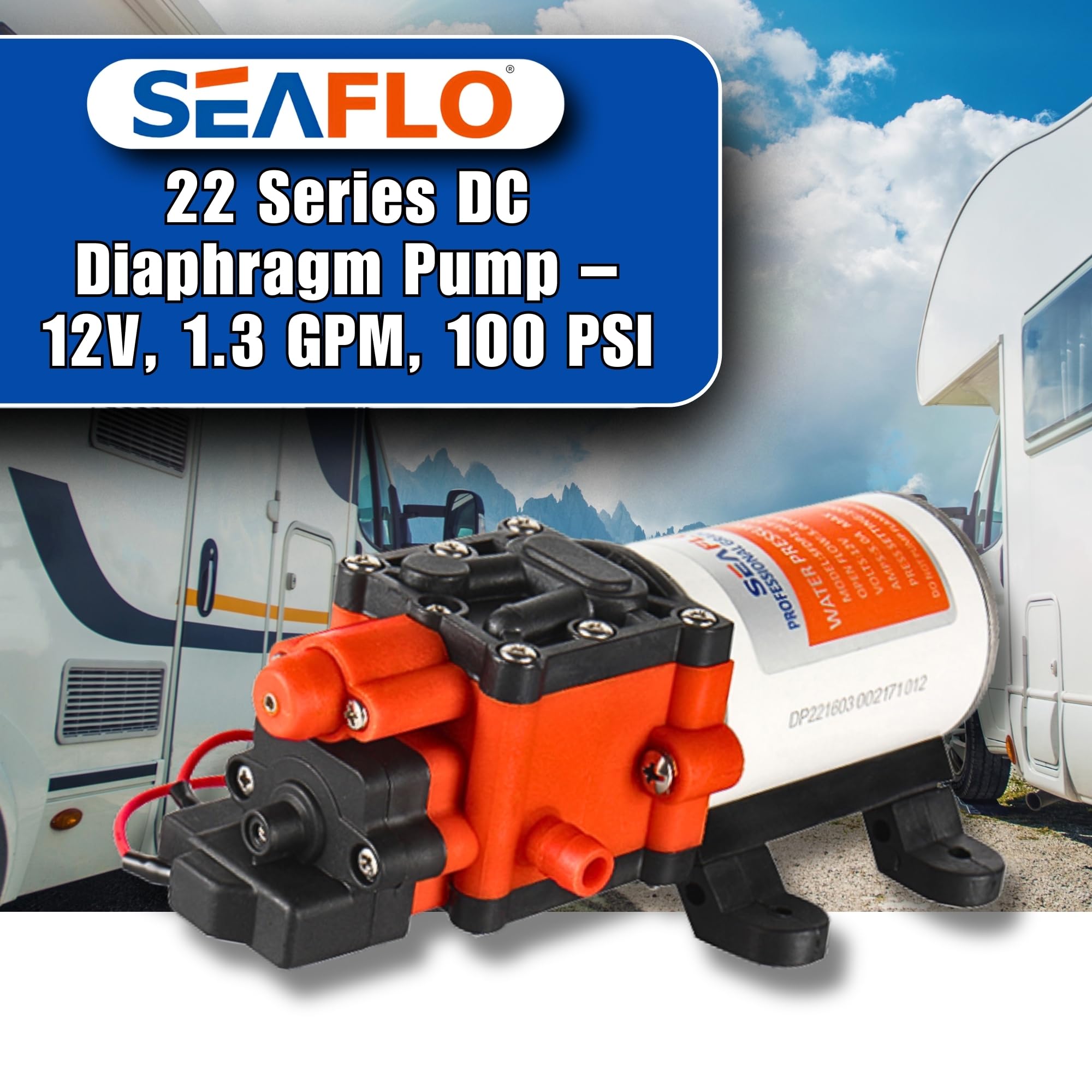

The SEAFLO 22-Series 12V water pump is a compact, on‑demand diaphragm pump designed to deliver steady water pressure in tight spaces. With an open flow of 1.3 GPM (5.3 LPM) and a shut‑off pressure up to 100 PSI (6.9 BAR), it supports reliable water delivery when you open a tap, spray, or valve.

Its self‑priming capability draws water from sources up to 6 feet (1.8 m) below the pump, offering flexible placement in boats, RVs, off‑grid cabins, or portable systems. An internal bypass helps maintain consistent pressure, reducing cycling across multiple outlets, while the design allows the pump to run dry without damage, adding tolerance for unexpected water availability during unattended operations.

Key specifications

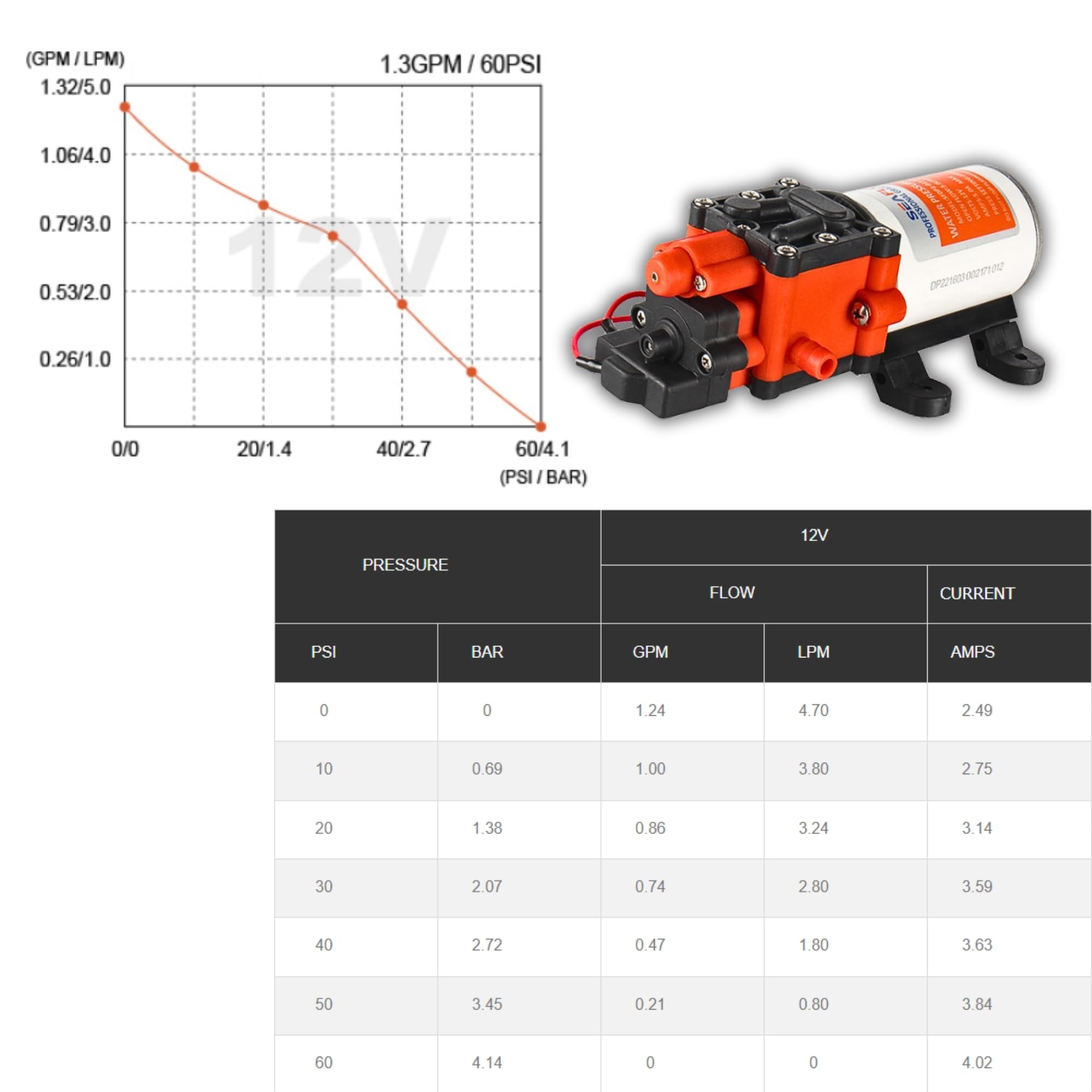

• 12V operation with open flow of 1.3 GPM (5.3 LPM)
• Shut‑off pressure up to 100 PSI (6.9 BAR)
• Self‑priming with up to 6 ft suction lift
• Durable EPDM valves and Santoprene diaphragm

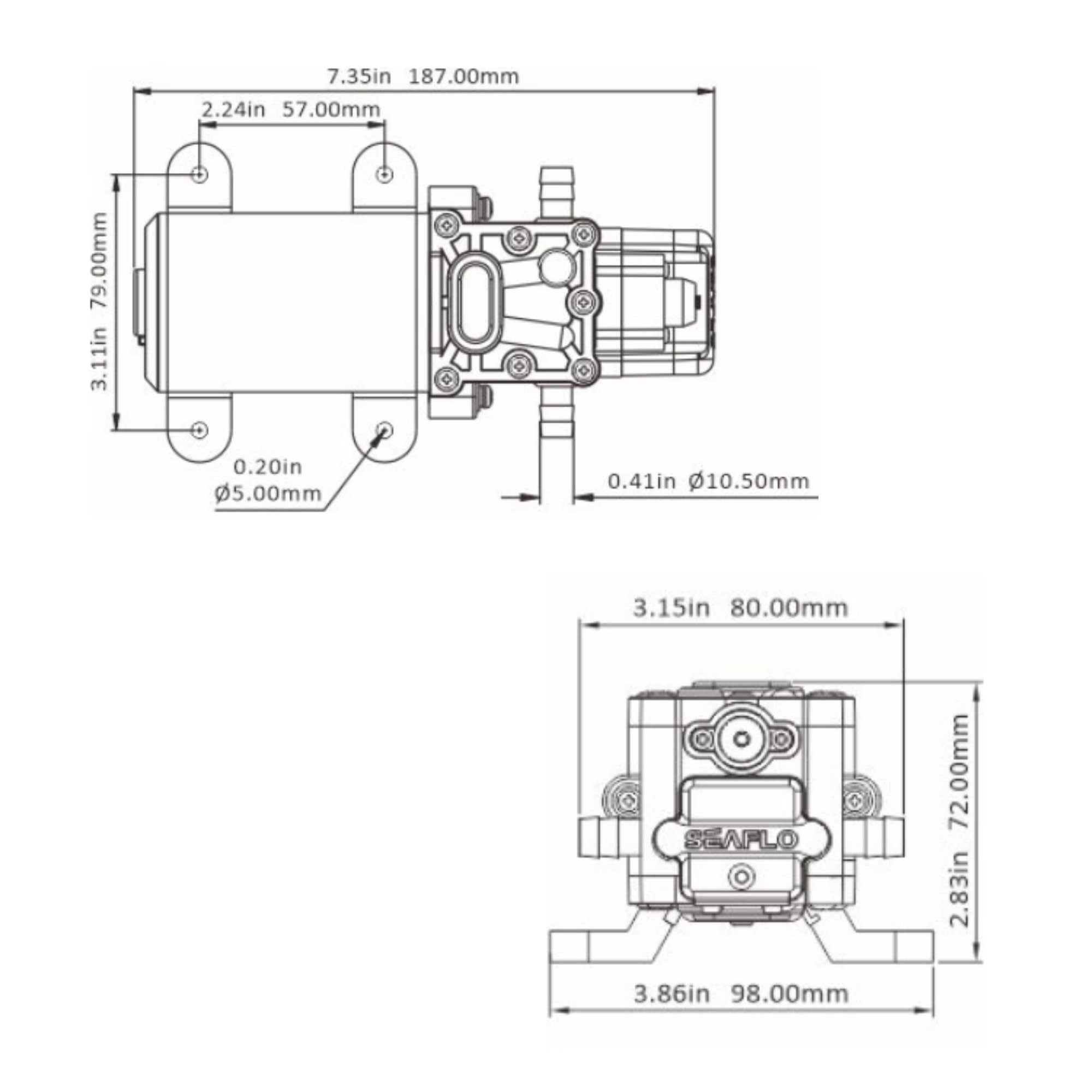

• 3/8" hose barb ports for flexible connections
• Maximum recommended temperature 140°F (60°C)

What you get

• SEAFLO 22-Series 12V water pump
• 3/8" hose barb fittings
• Installation instructions
• Pressure switch
• Quick-connect wiring
• Warranty documentation
• User manual for easy setup

Performance and durability

This model emphasizes dependable on‑demand operation: it automatically starts when water is needed and stops when not, helping conserve energy. The internal bypass supports steady pressure, reducing cycling and promoting smoother performance across multiple outlets. Built with RoHS‑compliant materials and validated through SGS and ISO standards, it is designed to withstand the demands of marine, RV, and outdoor environments.

Applications and versatility

Whether you’re outfitting a sailboat, a camper, an irrigation transfer system, or an off‑grid water setup, the SEAFLO 22‑Series is built for versatility. Its compact footprint, self‑priming design, and robust construction make it a practical choice for transfers, filtration, spraying, and circulating water where reliable pressure matters. This pump offers possibilities for steady, controlled water delivery without overburdening limited power supplies.
