Putec Vibration Motor 200LBS – DC12V, 4500 RPM for Concrete Mixers and Salt & Sand Spreading

Overview

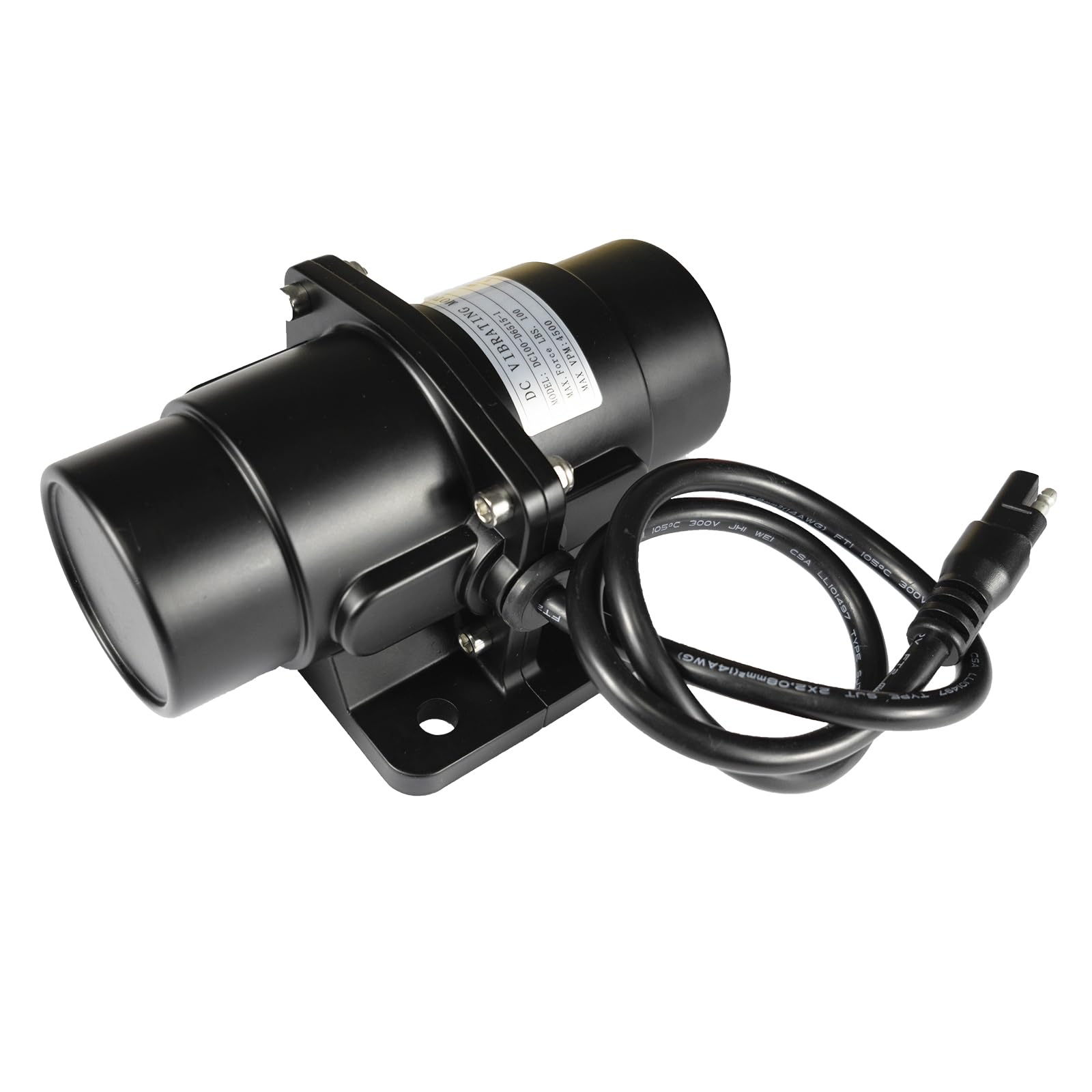

The Putec Vibration Motor is a compact, high‑performance DC vibrator designed for rugged industrial tasks. Encased in a robust aluminum alloy shell with stainless steel fasteners, it stands up to field conditions while delivering consistent vibration power. The motor uses ferrite magnets and oxygen‑free copper to maximize efficiency and longevity, helping material flow and processing remain steady across diverse environments.

Why choose this motor

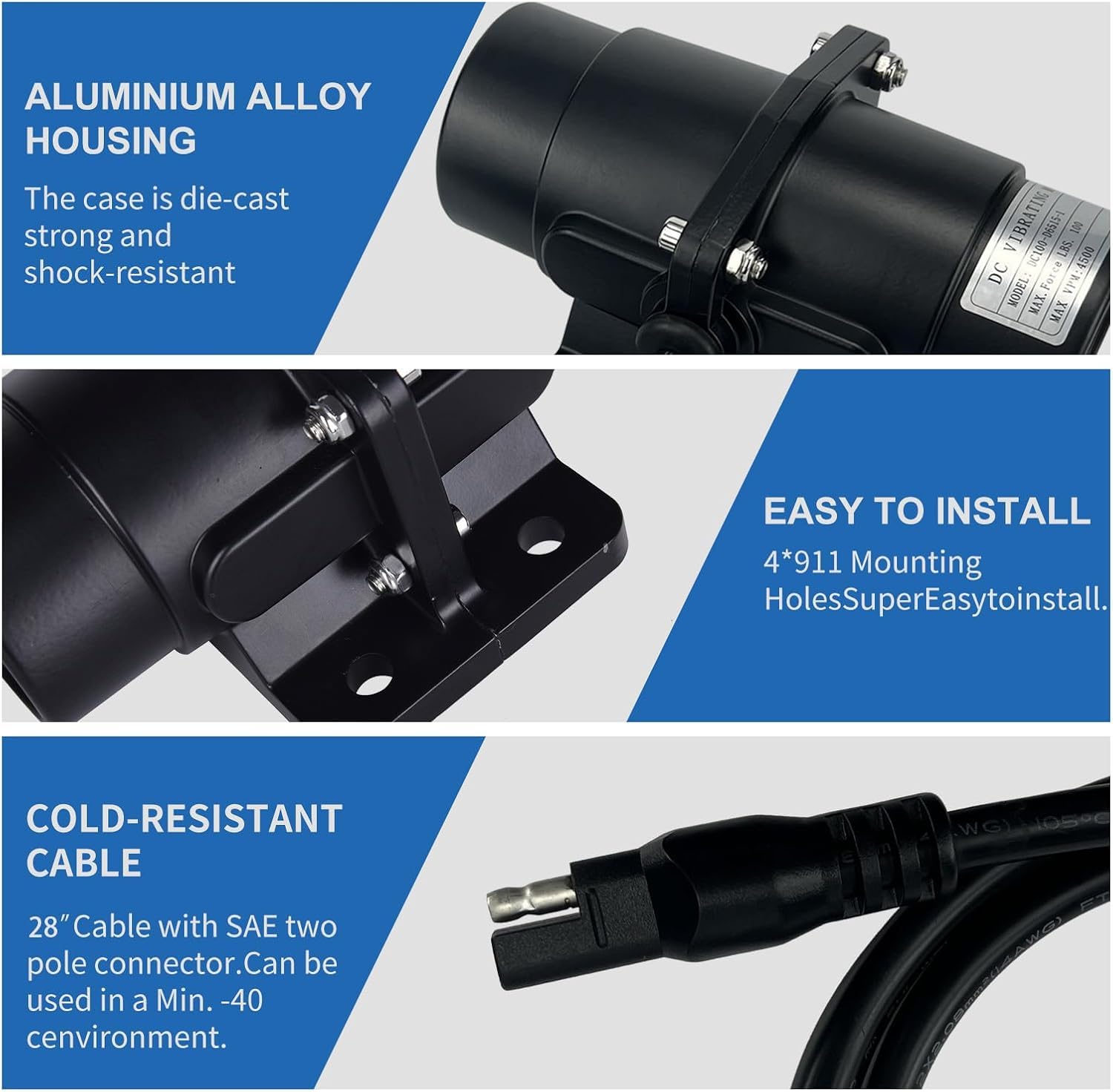

• Sturdy construction with an aluminum alloy shell and stainless steel hardware for durability in demanding settings.
• Reliable power delivery from a 12 V DC supply, 60 W output, and a steady 4500 RPM for consistent vibration.
• Long service life backed by a brush life around 1200 hours under normal use.

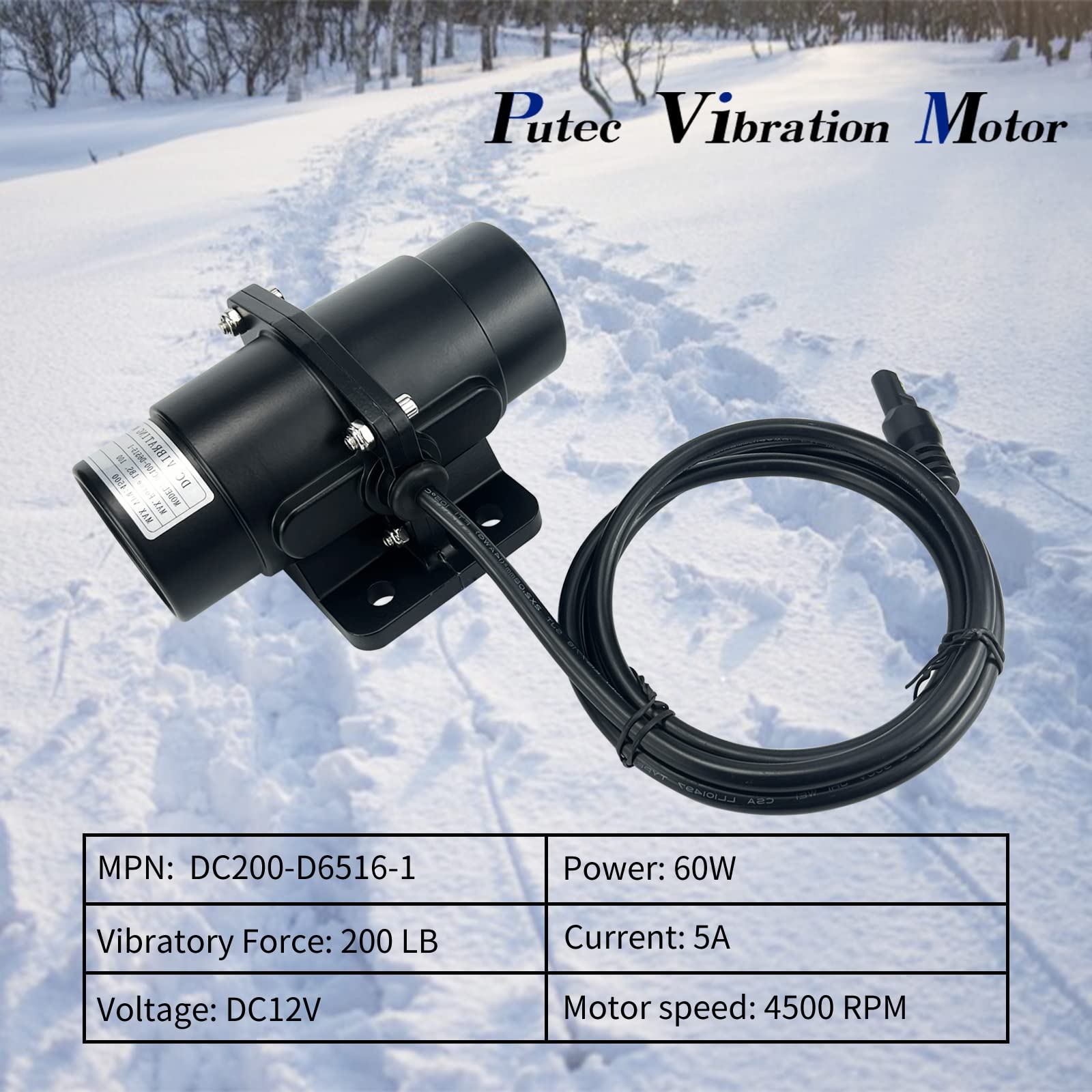

• Field friendly cable assembly: 2.2 mm2 (14 AWG), 8 inch (20 cm) cable with SAE J928 connector for quick connections.

Specifications at a glance

• Voltage: DC 12 V
• Vibration force: 200 pounds
• Power: 60 W
• Speed: 4500 RPM
• Brush life: approximately 1200 hours

Typical uses and applications

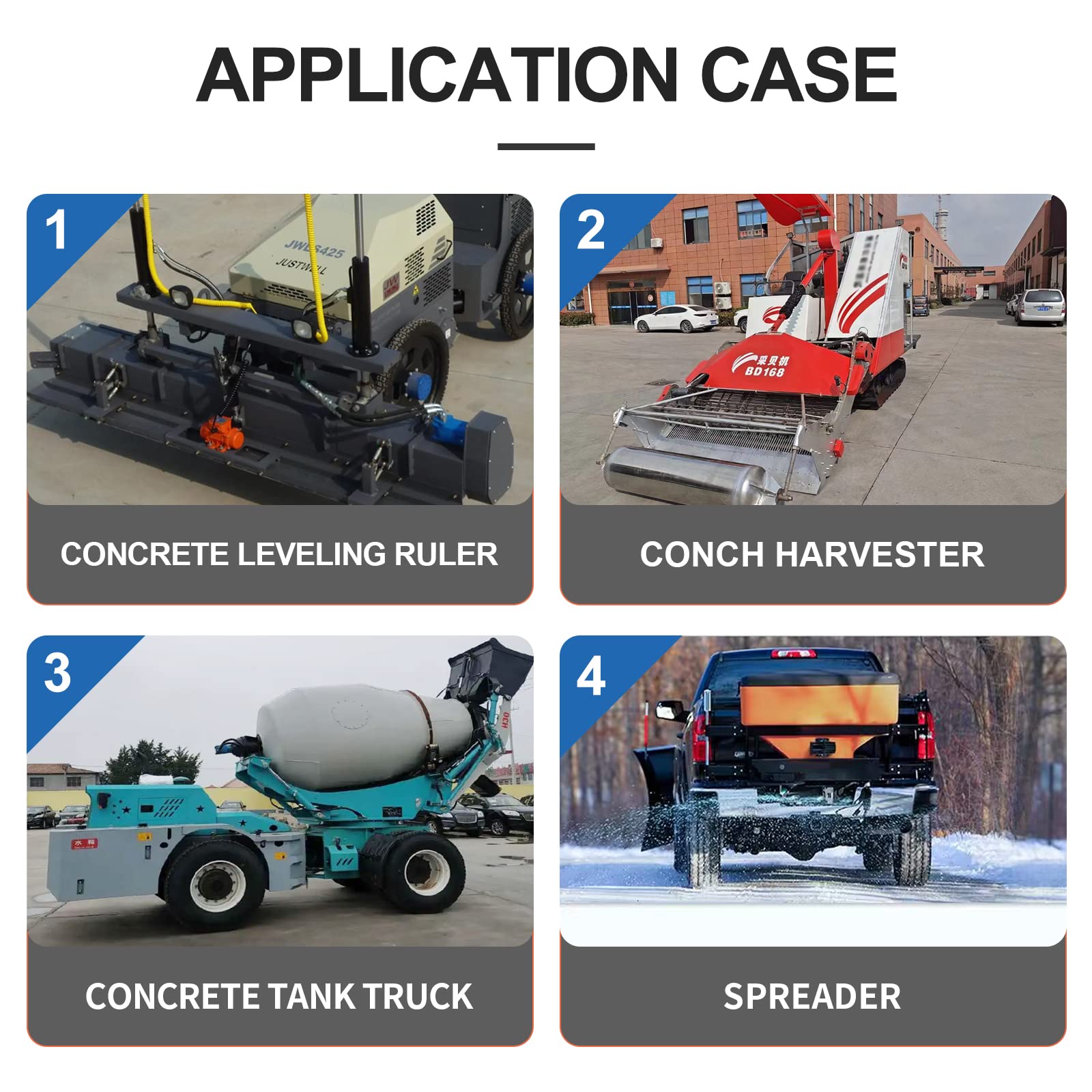

Designed for non AC workplaces, this motor suits field and vehicle deployments. It pairs well with storage hoppers and silos, gate control mechanisms, and roll‑on trucks. It also supports concrete mixers, salt distributors, gravel and fertilizer spreaders, pull silos, and industrial cleaning filters where controlled vibration aids movement and processing.

Practical tips for installation and use

• Mount securely using the included hardware to ensure stable operation.
• Connect the 2.2 mm2 14 AWG cable via the SAE J928 connector for a reliable electrical link.
• Position the motor to minimize exposure to moisture and debris to extend life.

Notes on performance are based on the provided specifications. Real‑world results depend on your setup, material properties, and operating conditions.
