Power Probe 5V Reference Adapter — Safe 5V Output for Tek Circuit-Testers

Overview

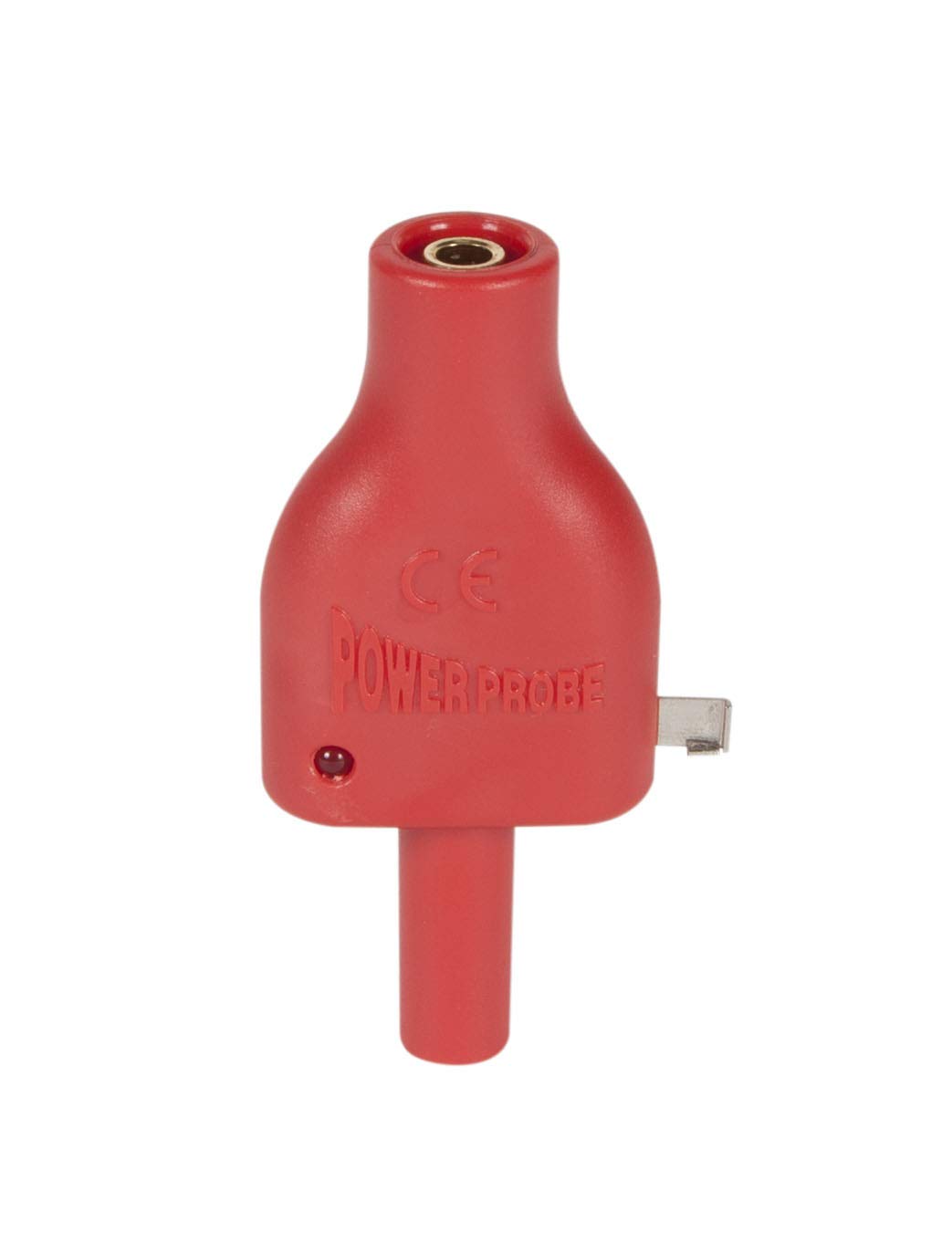

The Power Probe 5V Reference Adapter is a compact, easy-to-use accessory designed to connect to any Power Probe Tek circuit-tester. It reduces the tip voltage to a targeted 5V and helps limit current output, enabling safer exploration of sensor-like references and outputs without overstressing delicate components.

Why this matters

In electronics and automotive workflows, having a consistent reference level can simplify diagnostic steps and signal checks. This adapter provides a controlled 5V reference point, offering a stable baseline for validating measurements and observing how a circuit responds to a known reference condition.

Key benefits

• Reduces the Power Probe tip voltage to 5V for safer probing and reduced risk to sensitive parts
• Current limiting helps protect circuits during tests and demonstrations
• Simple add-on that works with all Power Probes featuring 4mm banana tips
• Enables safe simulation of sensor reference voltages and outputs without altering the original circuit
• Supports a smoother testing workflow by providing predictable reference levels

Real-world use cases

• Bench testing of reference-sensing circuits with a controlled 5V baseline
• Safe laboratory demonstrations where a defined reference helps illustrate signal behavior
• Pre-power checks to verify that reference paths behave as expected before wiring in components
• Learning scenarios for technicians to understand how voltage references influence readings

Compatibility & setup

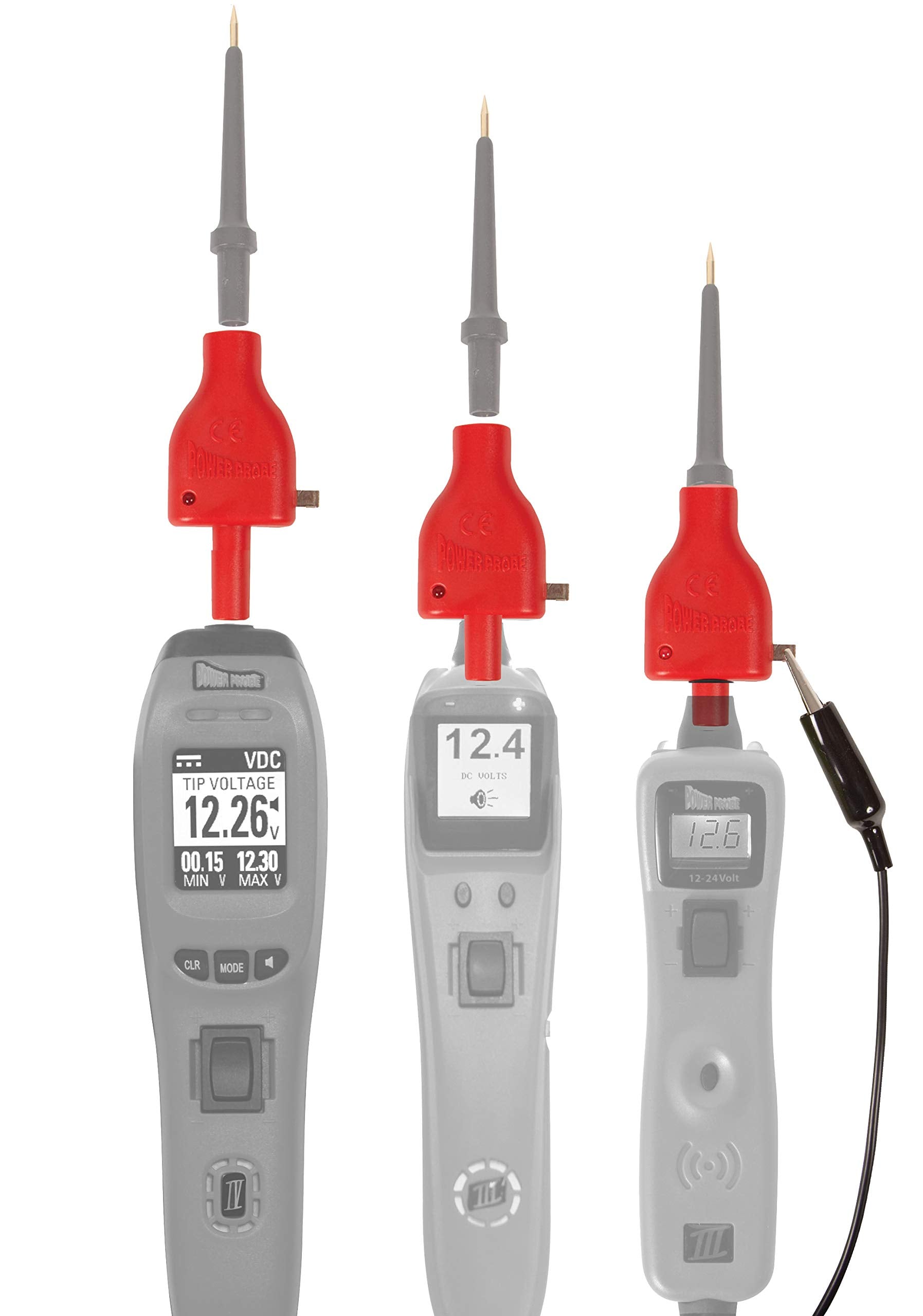

The adapter is designed as a straightforward add-on for Power Probes that use 4mm banana tips. It requires no complex setup—simply attach the adapter to compatible probes and begin tests with a known 5V reference point.

Note: While the adapter offers a safer, low-voltage testing option, results depend on your specific circuit and conditions. Consider it a helpful tool to explore reference behavior rather than a guarantee of outcomes.
