PneumaticPlus SAW400-N04BG-MEP: 1/2" NPT Filter Regulator Piggyback with Metal Bowl, Manual Drain & Gauge

Overview

The PneumaticPlus SAW400-N04BG-MEP combines filtration and pressure regulation in a compact piggyback package, ideal for busy workshops and production lines. With a rugged metal bowl, built-in gauge, and a 1/2" NPT connection, it offers a straightforward path to cleaner, more predictable compressed air for your tools and actuators. While outcomes depend on your system, this combo can support calmer air flow and easier maintenance in everyday use.

Key specifications

• Max supply pressure up to 250 PSI
• Max operating pressure range 0–150 PSI
• 10 micron filtration element
• Manual drain with metal bowl; port size 1/2" NPT
• Flow rate around 211 SCFM at 90 PSI
• Integrated pressure gauge and mounting bracket

Design and practical use

The piggyback design consolidates filtration and regulation close to the point of use, saving panel space and simplifying installation on standard piping. This compact arrangement is well-suited for tight enclosures and busy lines where space matters.

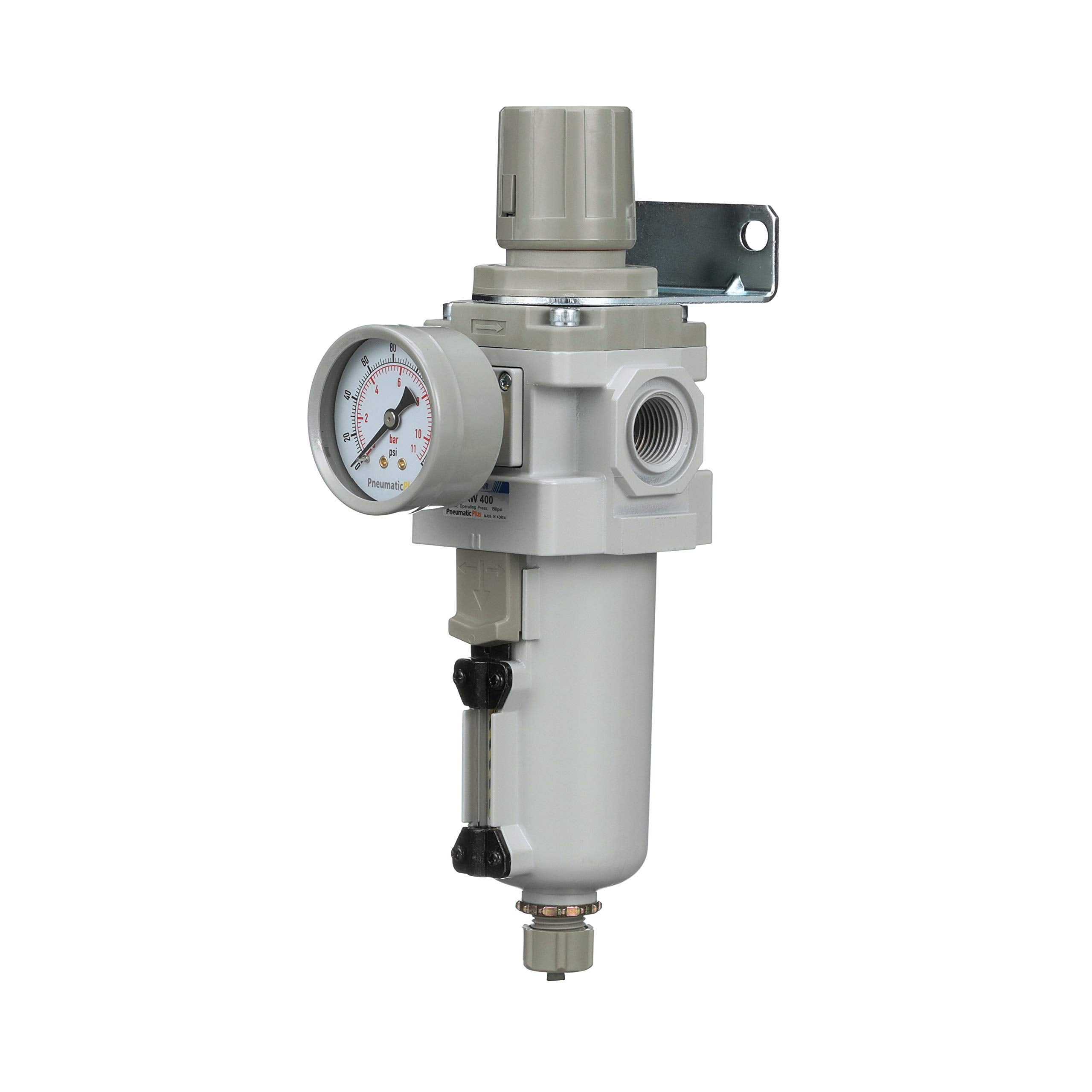

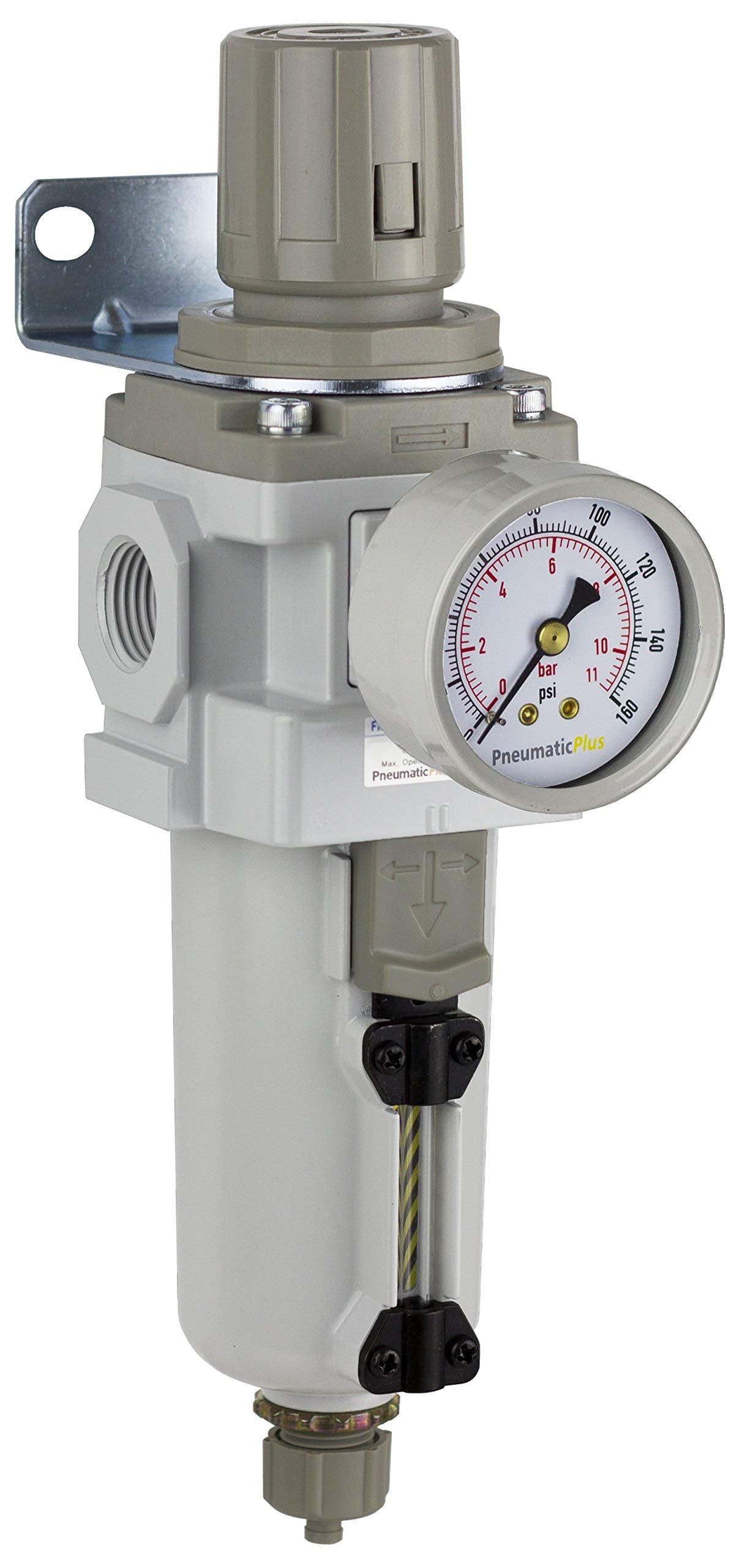

The metal bowl provides durability in industrial settings, while the gauge delivers quick visibility of system pressure. A manual drain makes routine moisture management straightforward during long runs or maintenance windows.

Real-world benefits and installation tips

• Compact footprint fits tight enclosures or cabinet panels

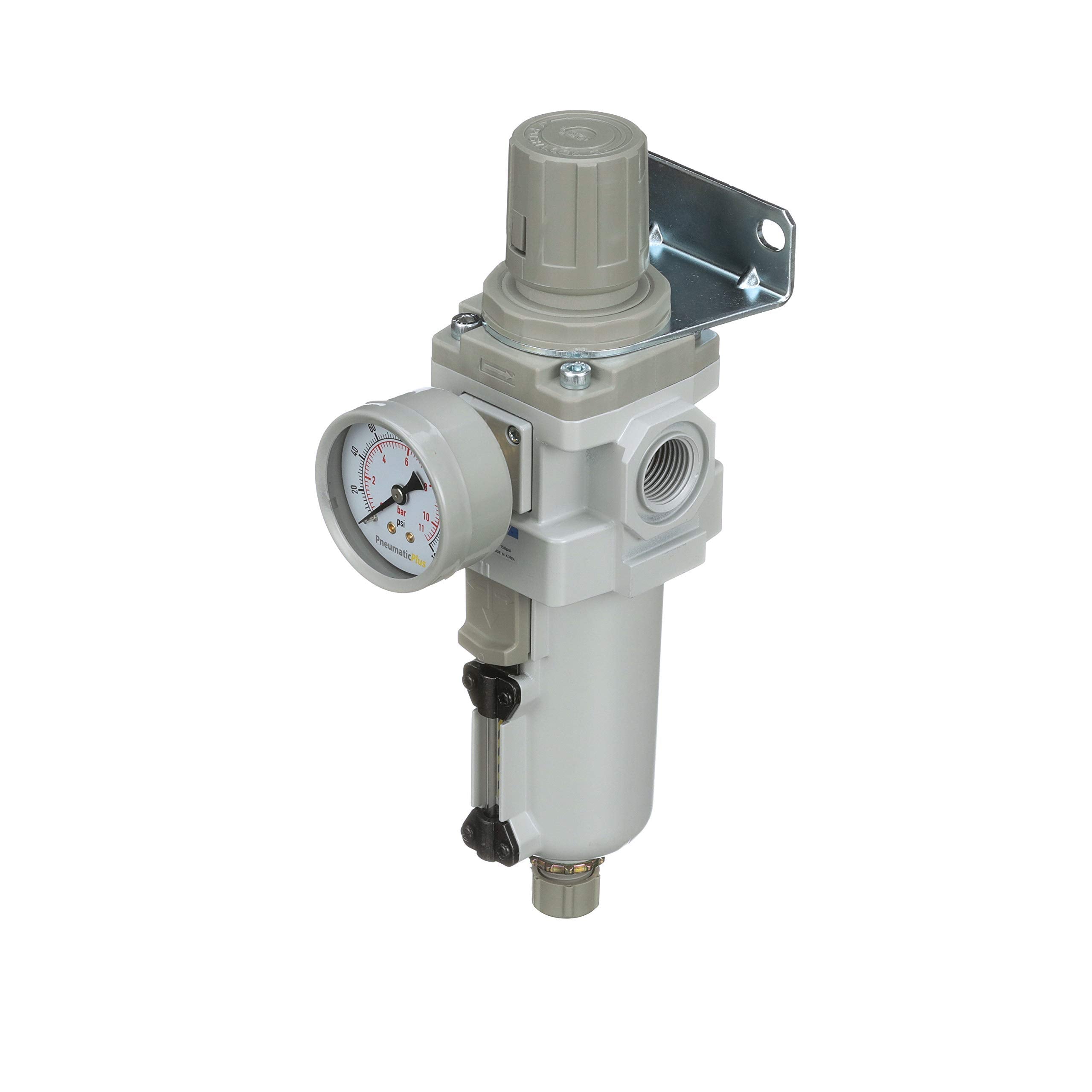

• 1/2" NPT ports enable easy integration with common air lines
• 10 micron element helps reduce contaminants entering downstream equipment

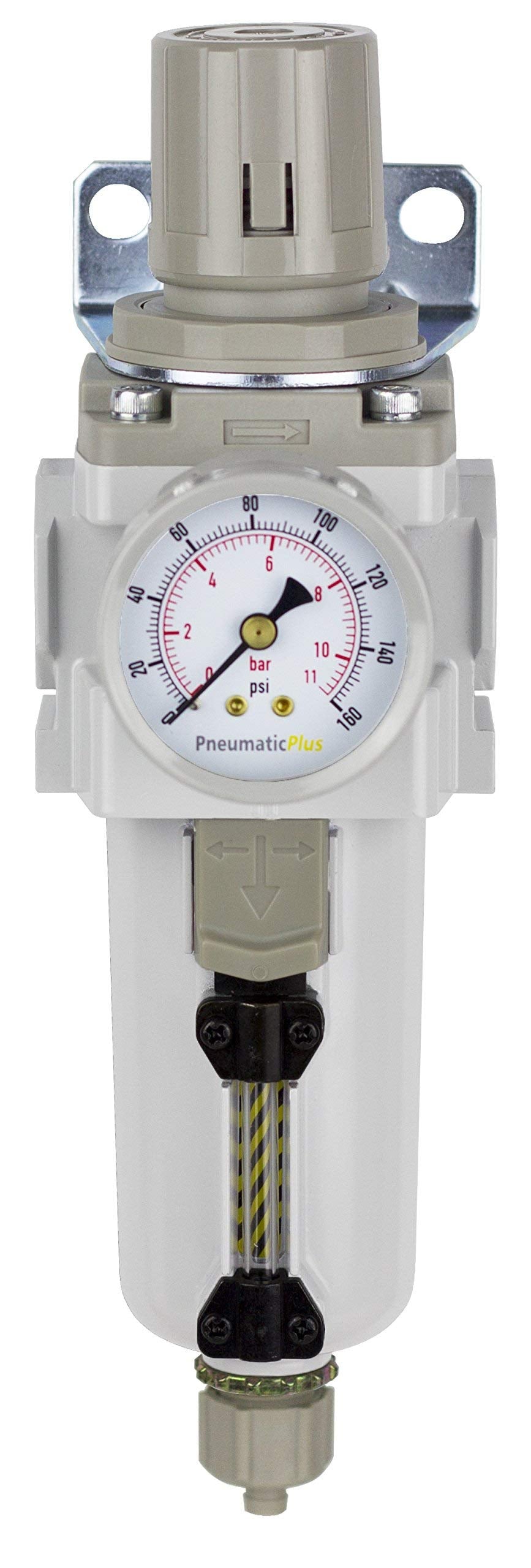

• Gauge enables at-a-glance monitoring without tools

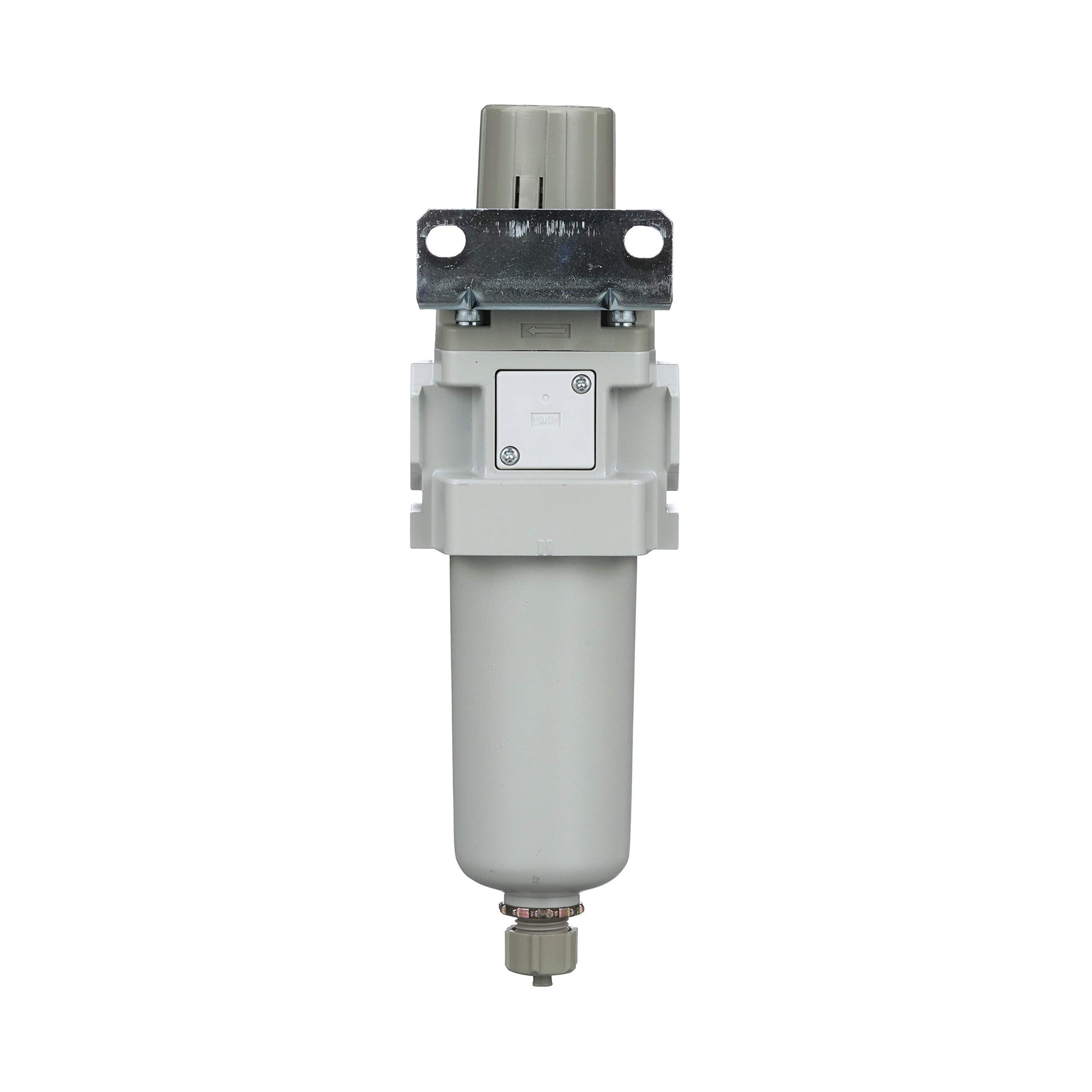

• Bracket included for secure mounting on walls or frames

To install, connect to a clean, dry air supply, tighten the ports, and mount the unit using the included bracket. Regularly check the drain to keep the system performing as intended. Consider pairing this unit with compatible hoses and fittings for a streamlined air-line setup.

With its balanced mix of durability and function, the SAW400-N04BG-MEP offers a practical, space-conscious solution for maintaining air quality in everyday industrial applications.
