MagWLED-1 WLED Controller | USB-C Power Delivery 5V/12V | Pre-Installed WLED – Green

Compact power, big possibilities

The MagWLED-1 is an ESP32-C3 based WLED controller designed for small to medium LED projects. Its tiny footprint hides a capable power system that can draw from USB-C power delivery sources, including USB chargers and select battery packs. This setup makes it feasible to run 12V LED strips from portable power sources, ideal for battery-powered installations, wearables, or ambient lighting on the go.

What it delivers

Key capabilities include flexible power delivery, secure connections, and efficient operation. The device is built to run 12V LED strips via USB-C PD, while maintaining low heat and energy use thanks to a high-efficiency regulator. The Open Source WLED ecosystem is ready for quick experimentation and creative lighting control.

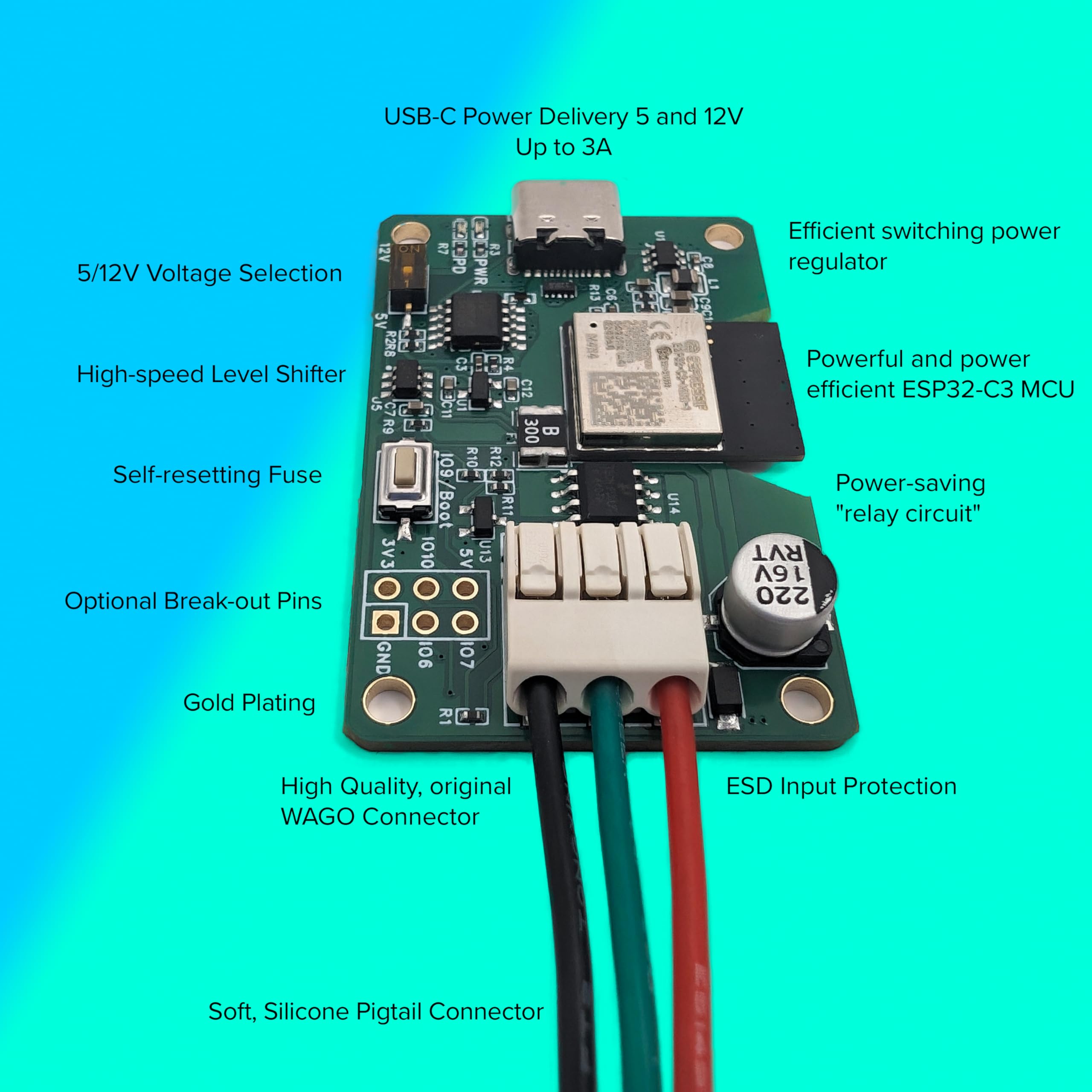

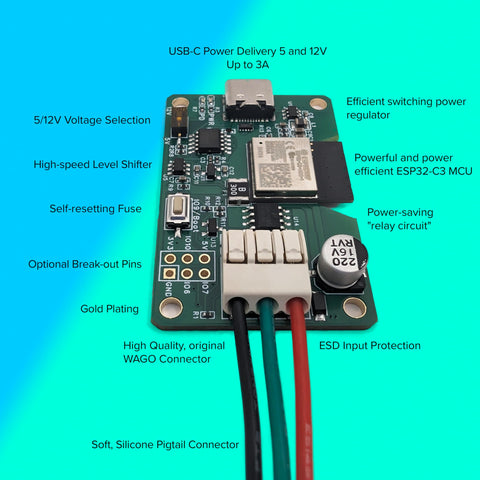

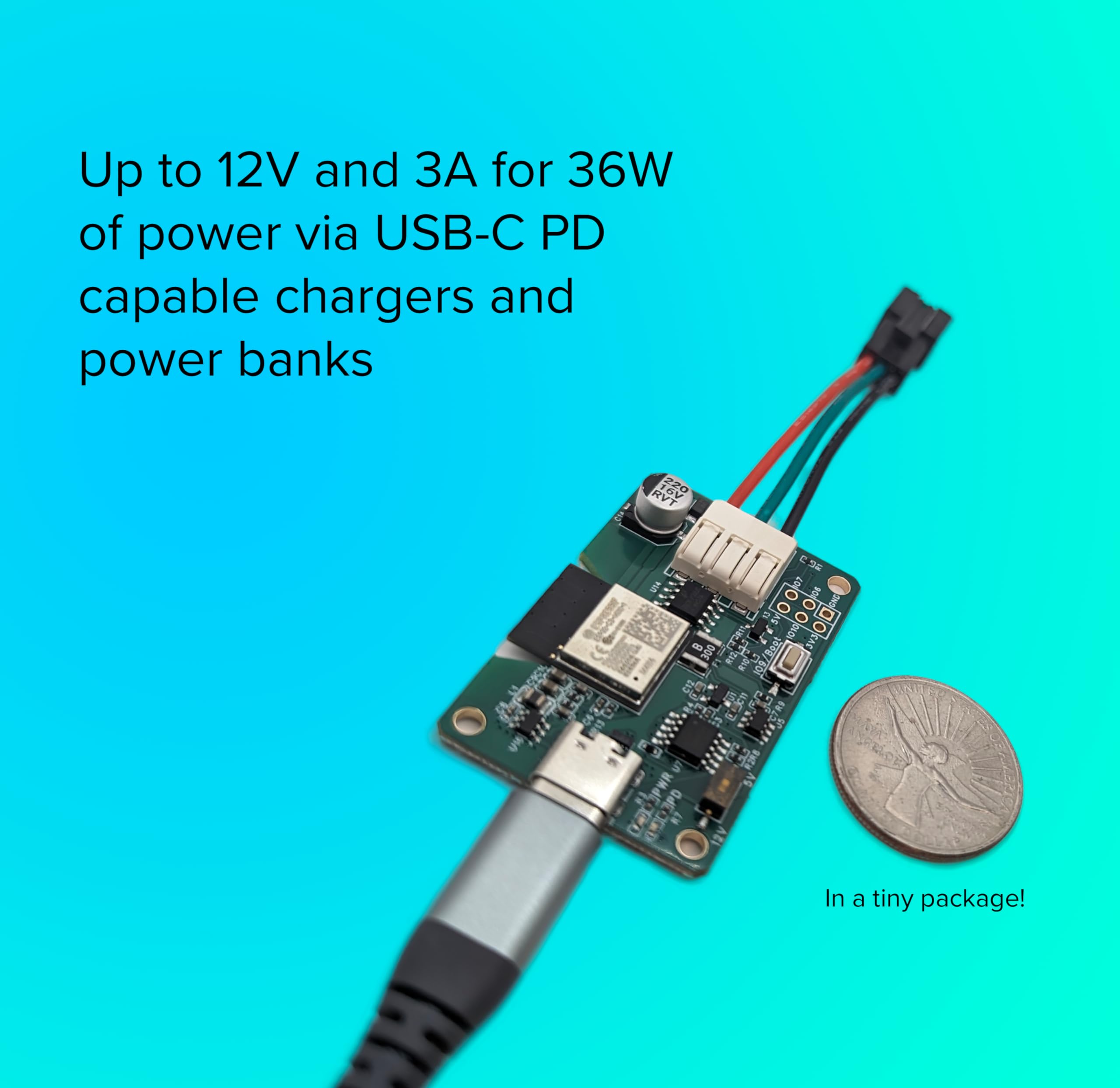

• 5V and 12V USB Power Delivery Support allows you to power 12V LED strips from USB-C
• Low-profile Wago terminal block for easy and secure electrical connections
• Fast logic level shifter and inline 249 ohm resistor ensuring excellent data signal quality
• Built-in electronic (FET) relay reduces current draw to just 80mA @ 5V when lights are turned off
• Easy flashing of custom firmware or upgrades through the USB-C connector
• 3A resettable fuse to protect from unsafe conditions
• ESD protection circuits to guard sensitive inputs
• Mounting holes for easy installation in tight spaces
• High efficiency switching regulator ensures low power consumption and less heat

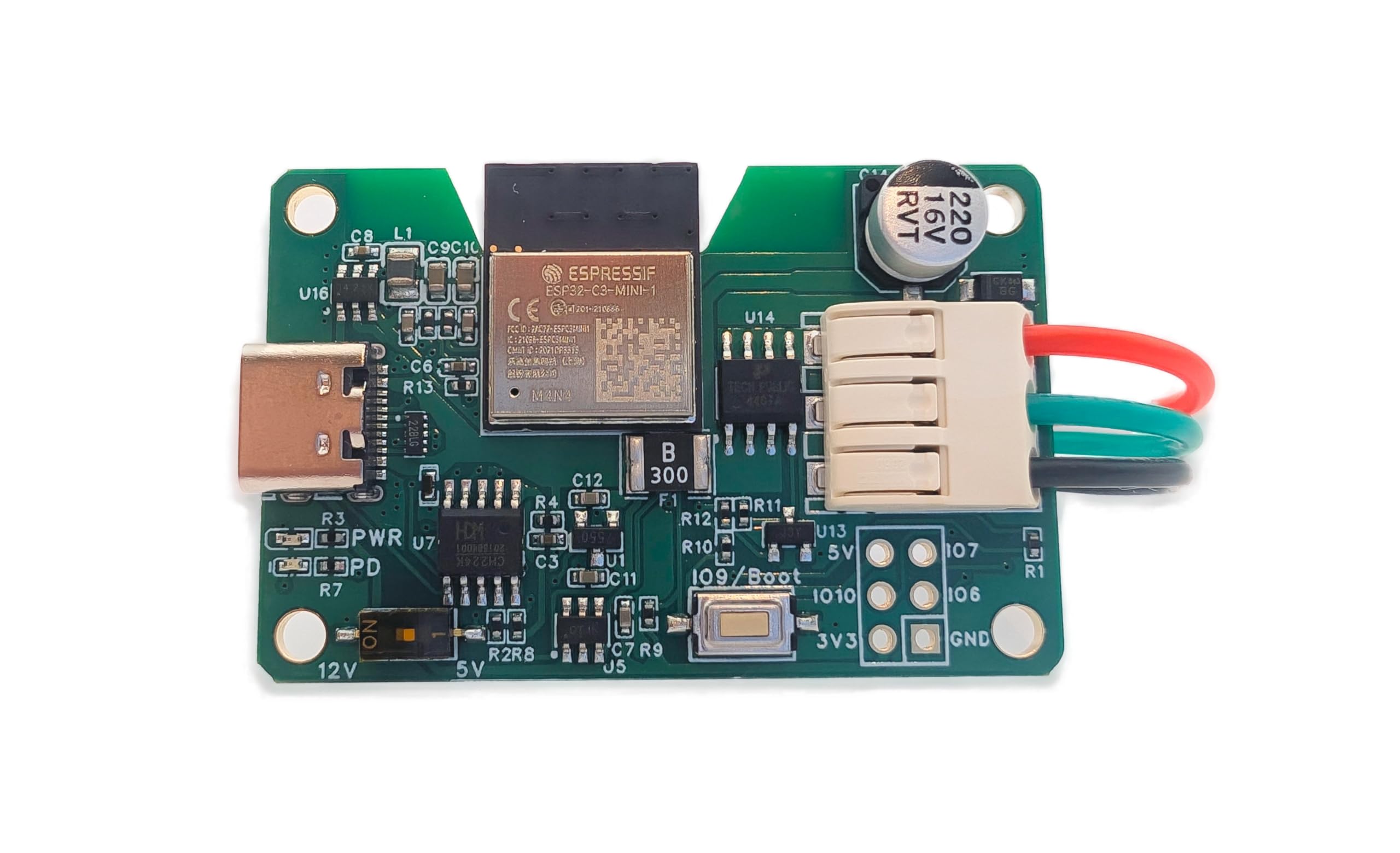

• High quality 4-layer PCB with ENIG gold plating for durability and corrosion resistance

Real-world uses

In practice, you might power a 12V LED ring from a portable charger, or create a wearable light show powered by a small battery pack. The MagWLED-1 keeps the control logic compact while letting LEDs run from the same USB-C power source. The pre-installed WLED software provides a familiar interface for lighting effects, while the hardware is designed to be reliable and install-friendly.

Designed for flexibility

Made in Miami, USA, the MagWLED-1 pairs thoughtful engineering with practical usability. Its compact design, secure wiring options, and protective features create a versatile platform for hobbyists, makers, and compact installations alike.
