LIYUKUANG ICM2801 Furnace Control Board – Replacement for Coleman, York, Luxaire, Evcon

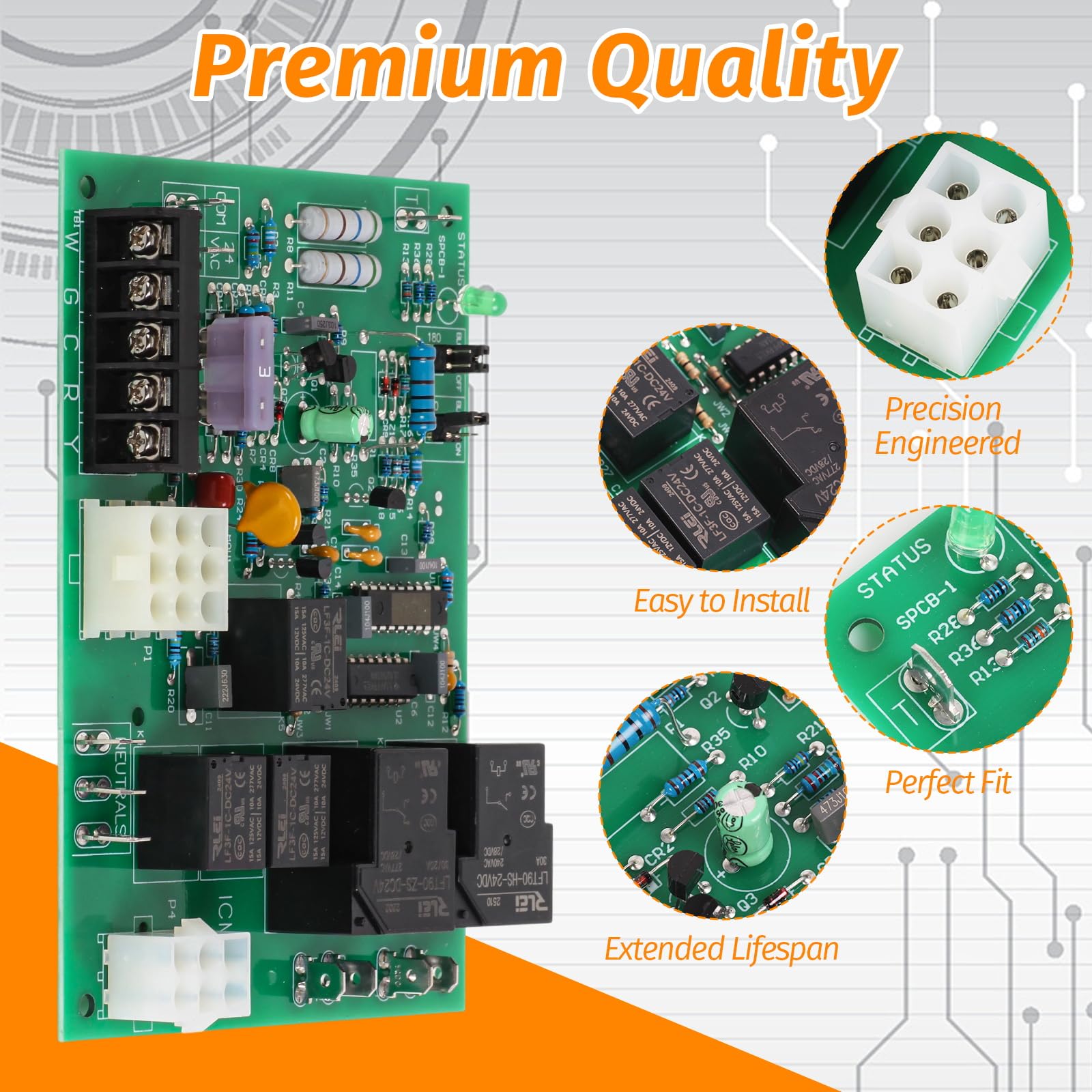

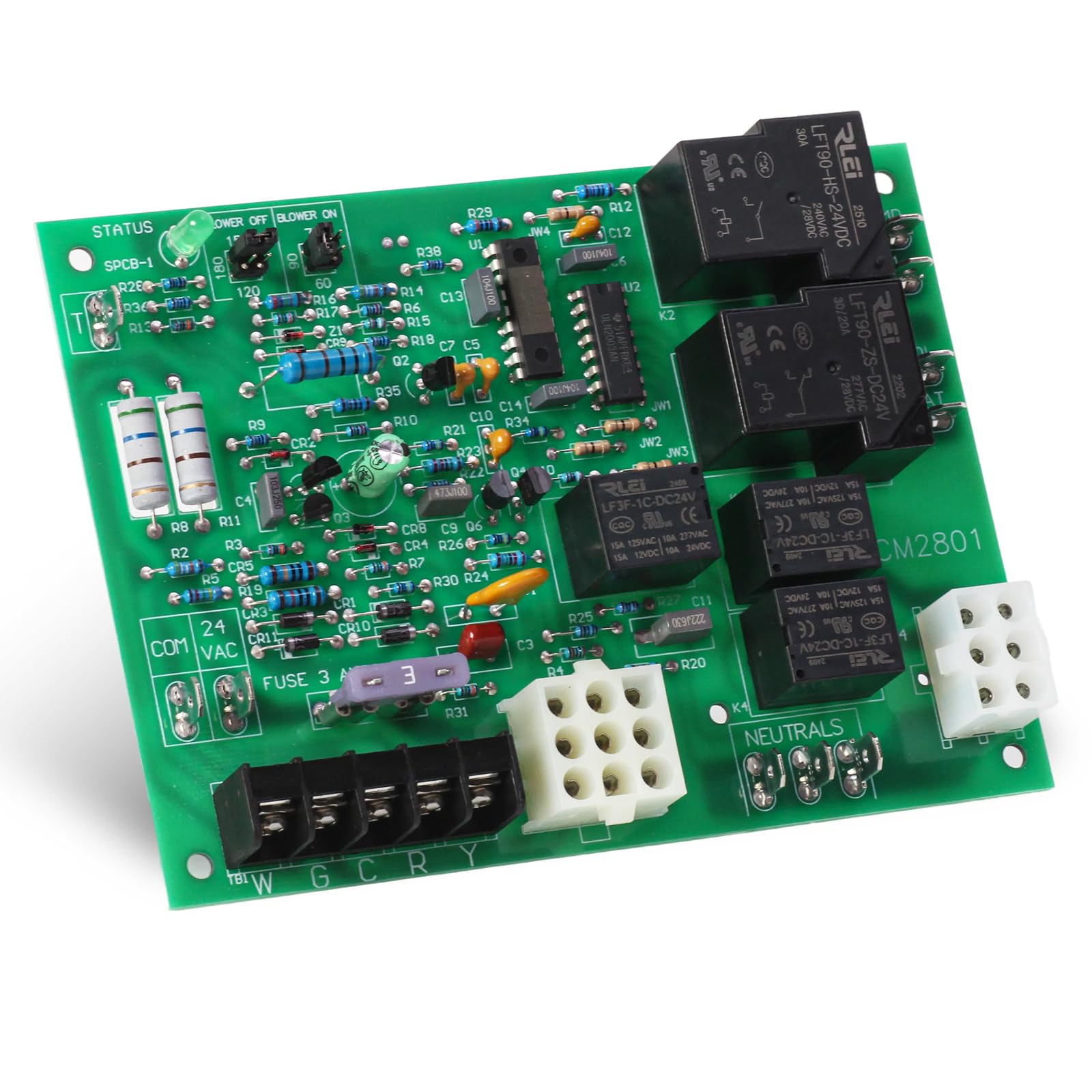

Meet the LIYUKUANG ICM2801 Furnace Control Board

The LIYUKUANG ICM2801 is designed as a modern upgrade that fits a wide range of older furnace systems. Built to integrate with familiar layouts, this replacement board aims to restore standard control functions with a clean, orderly surface and dependable performance. Use it as a practical upgrade for compatible models to help maintain steady furnace operation and consistent control signals in daily use.

Rather than a one-size-fits-all approach, this board is engineered to align with a broad compatibility spectrum, offering a familiar form factor and connector arrangement. While you may notice subtle visual differences from the OEM part, the core body and electrical interface align with the original design, making it a practical substitute for many households and service workflows.

Compatibility and Replacement Scope

• Model compatibility: suitable for furnace models starting with DGAT, DGAA, DLAS, DGAH, DGAM, and listed variants such as DGAA056BDTA, DGAA056BDTB, DGAA070BDTA, DGAA070BDTB, DGAA077BDTA, DGAA077BDTB, DGAA090BDTA, DGAA090BDTB, DGAH056BBSA, DGAH056BBSB, DGAH077BBSA, DGAH077BBSB, DGAM056BDE, DGAM075BDD, DGAM075BDE, DGAM056BDF, DGAM075BDF, DGAT056BDD, DGAT056BDE, DGAT056BDF, DGAT070BDD, DGAT070BDE, DGAT070BDF, DGAT075BDD, DGAT075BDE, DGAT075BDF, DGAT090BDD, DGAT090BDE, DGAT090BDF, DLAS056BDE, DLAS056BDF, DLAS056E, DLAS075BDD, DLAS075BDE, DLAS075BD.

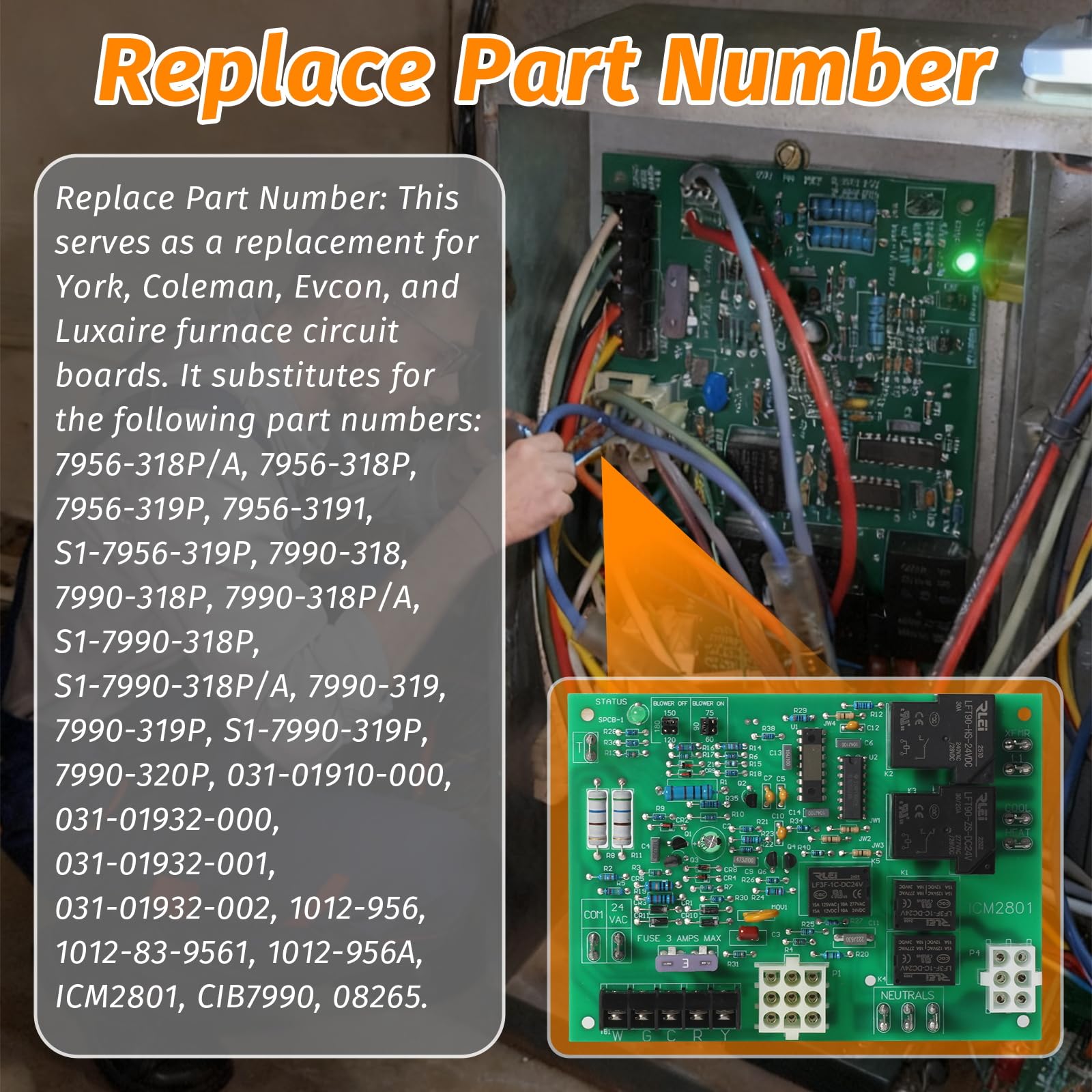

• Replacement scope: substitutes for York, Coleman, Evcon, and Luxaire furnace circuit boards, including part numbers such as 7956-318P/A, 7956-318P, 7956-319P, 7956-3191, S1-7956-319P, 7990-318, 7990-318P, 7990-318P/A, S1-7990-318P, S1-7990-318P/A, 7990-319, 7990-319P, S1-7990-319P, 7990-320P, 031-01910-000, 031-01932-000, 031-01932-001, 031-01932-002, 1012-956, 1012-83-9561, 1012-956A, ICM2801, CIB7990, 08265.

Technical specs and electrical compatibility

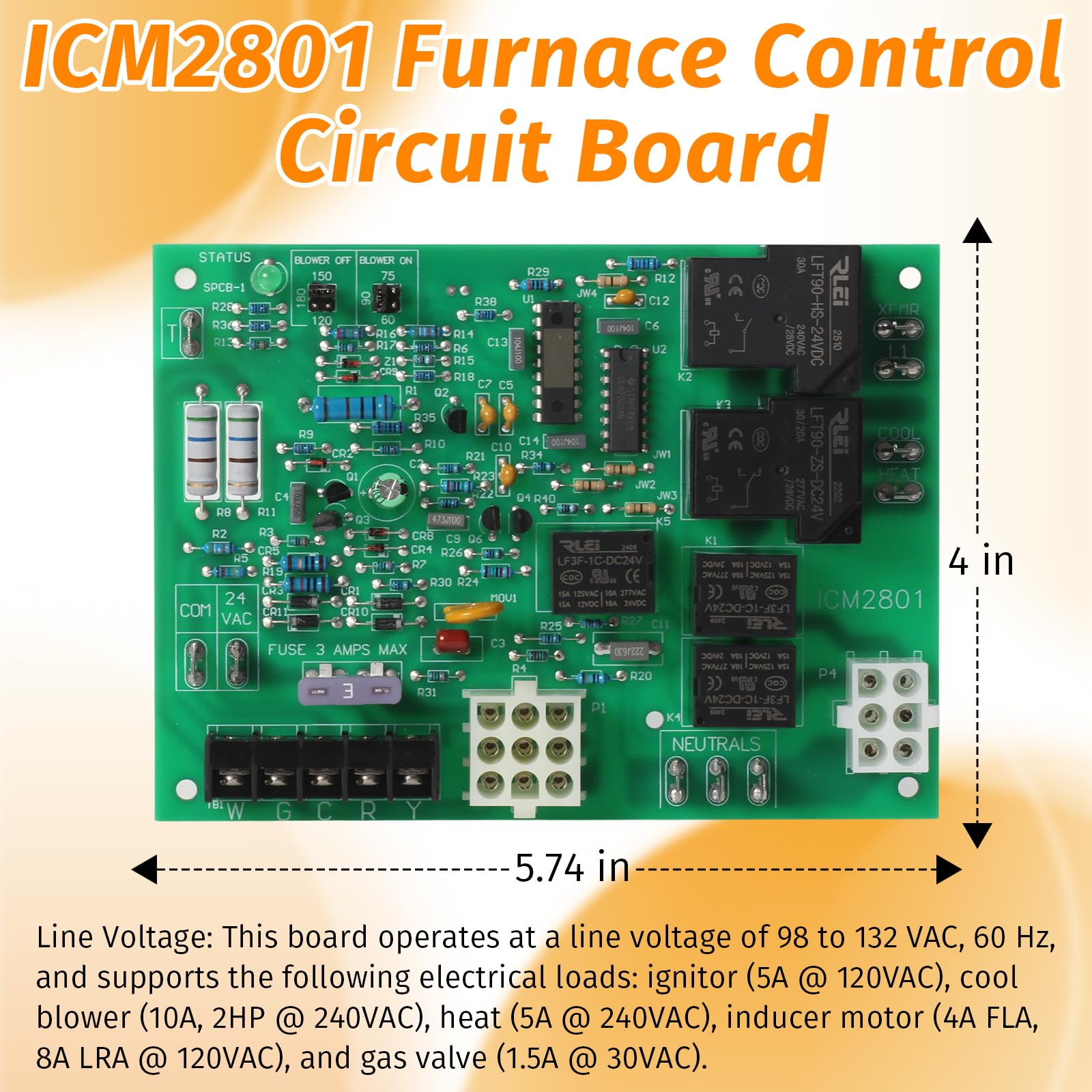

• Line voltage: 98 to 132 VAC, 60 Hz
• Supported loads: ignitor (5A @ 120VAC), cool blower (10A, 2HP @ 240VAC), heat (5A @ 240VAC), inducer motor (4A FLA, 8A LRA @ 120VAC), gas valve (1.5A @ 30VAC)

Installation guidance and safety

• Safety reminder: Always turn off all power sources before installation.
• Professional recommendation: While the replacement is straightforward, we advise having a qualified technician perform the swap to ensure proper wiring and safe operation.

Note: The new version may have slight visual differences from the old one, but the main body remains functionally aligned. It helps to photograph the original wiring before removing it. If you have questions about compatibility or wiring, feel free to reach out for guidance.
