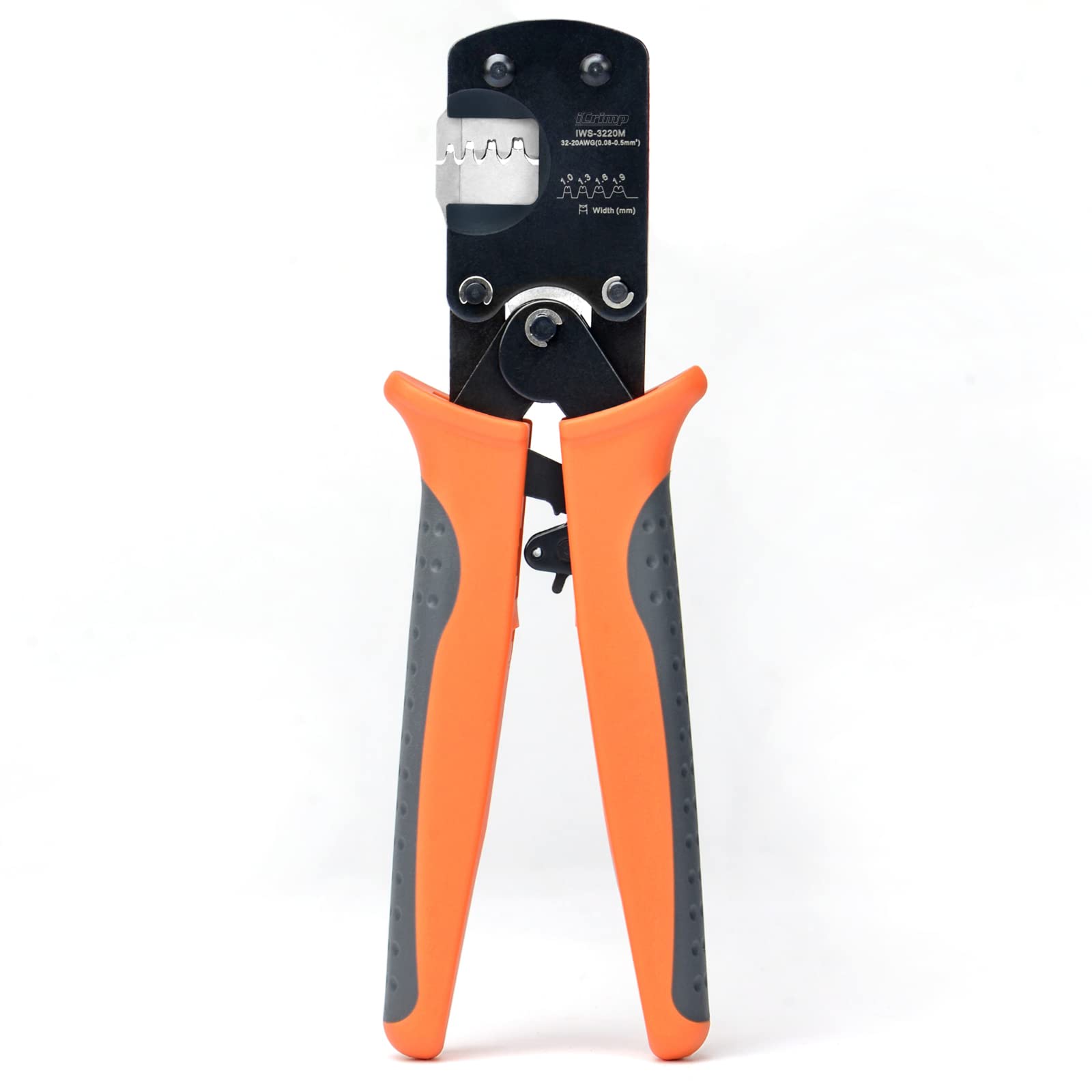

IWISS iCrimp IWS-3220M Micro Connector Pin Crimping Tool — 0.03–0.52 mm², 32–20 AWG, Ratcheting

Precision for micro pins

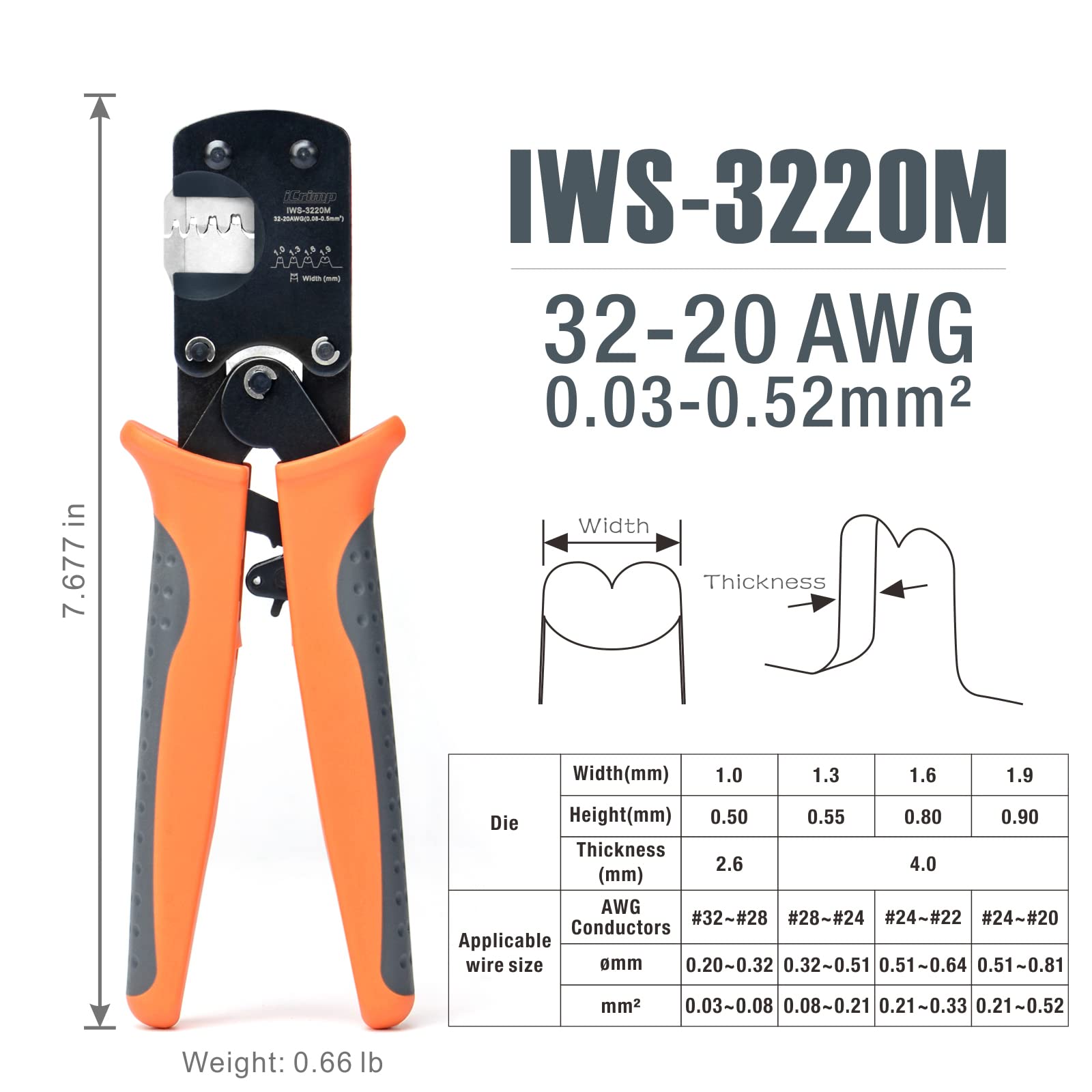

The IWISS iCrimp IWS-3220M is engineered for delicate, high-precision pin crimps on micro connectors. With a compact form and a robust jaw system, this tool helps you shape tiny conductors with confidence. The tool covers a practical range of 0.03–0.52 mm² (32–20 AWG), making it suitable for a wide variety of small-wire harness projects without sacrificing control.

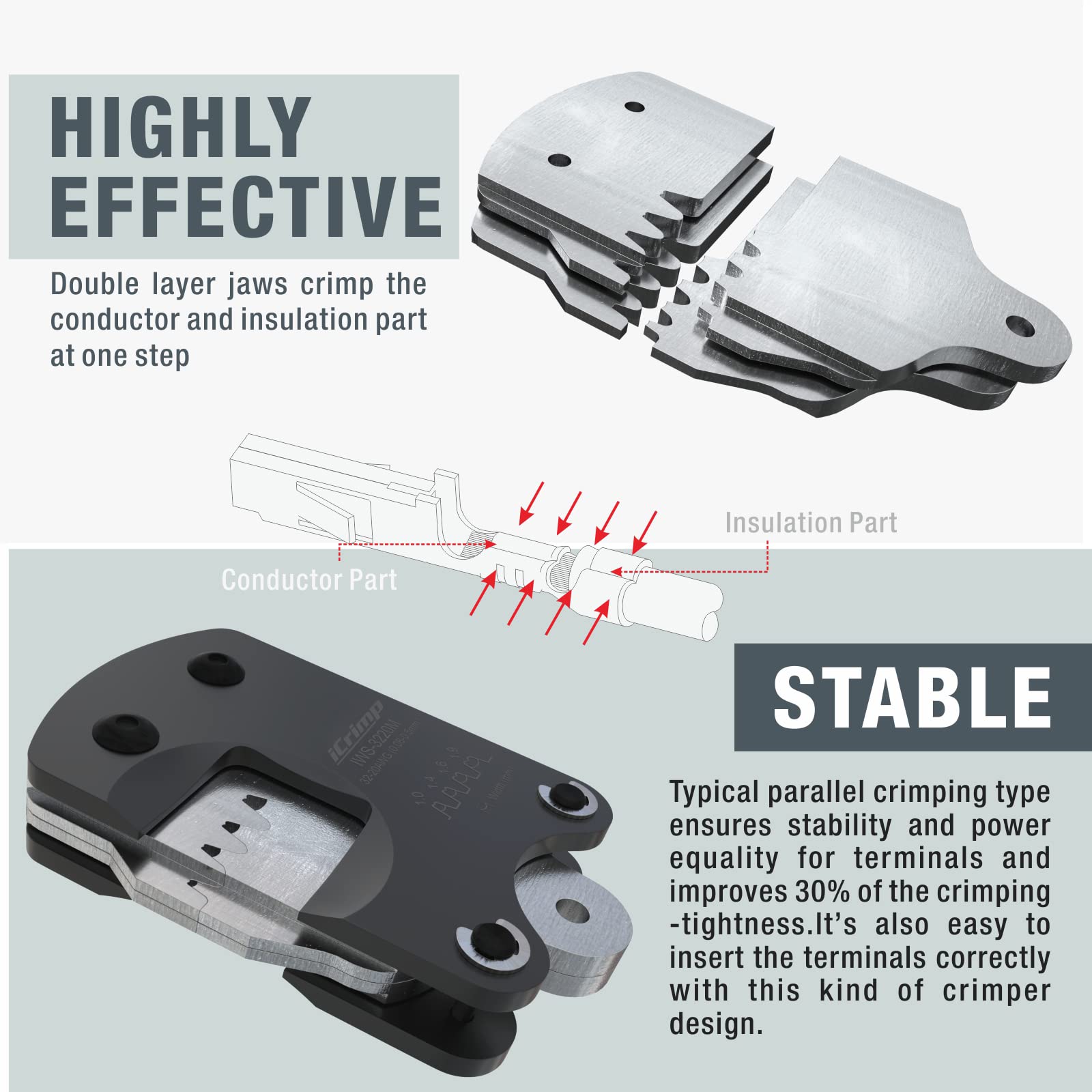

What sets the IWS-3220M apart is its emphasis on consistent performance. The typical parallel crimping type provides stability and ensures uniform engagement across crimps, which translates to tighter, more reliable-looking results in everyday work. In real-world use, many operators report a noticeable improvement in crimping tightness—around 30% in practical scenarios—when using a parallel-crimping design compared to some older layouts.

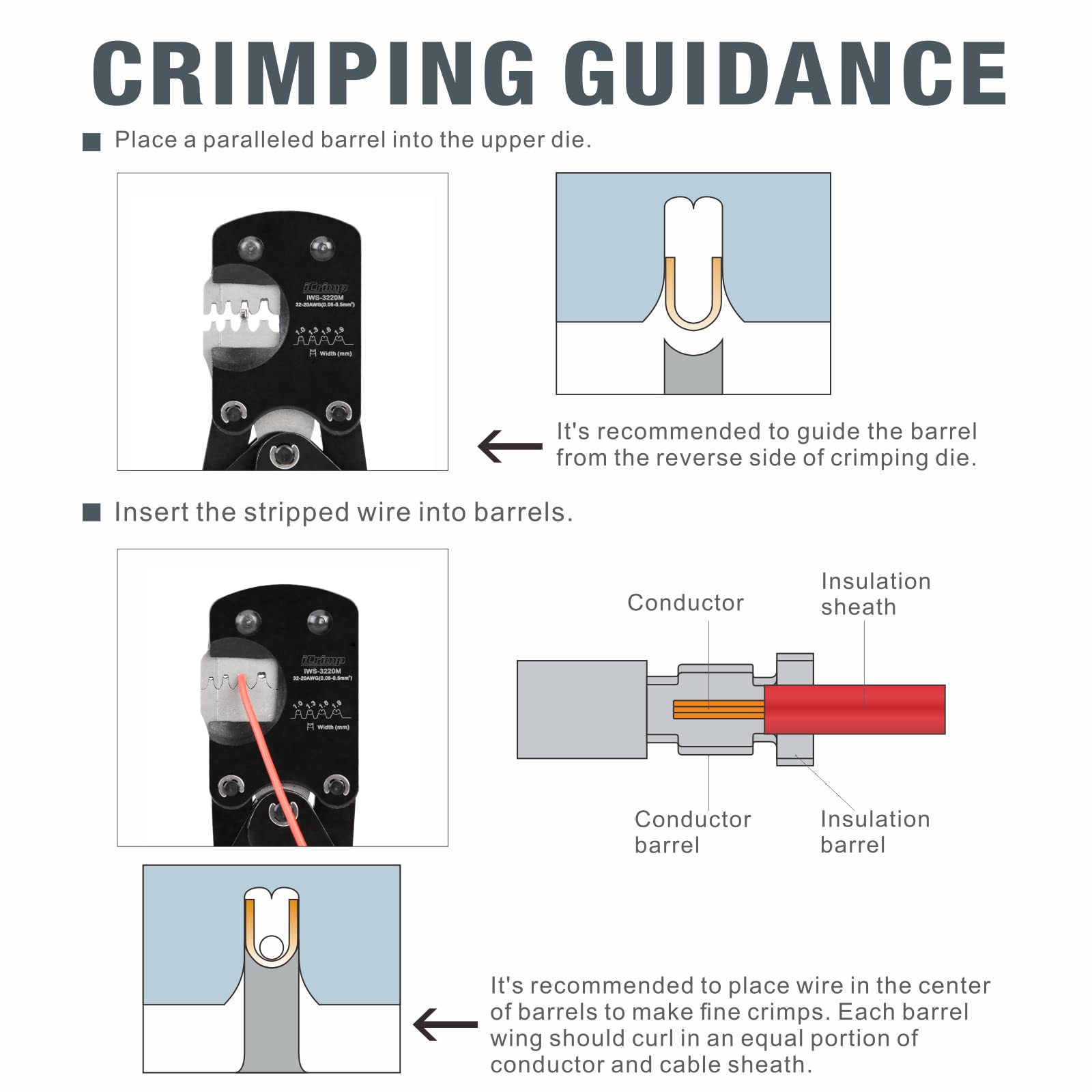

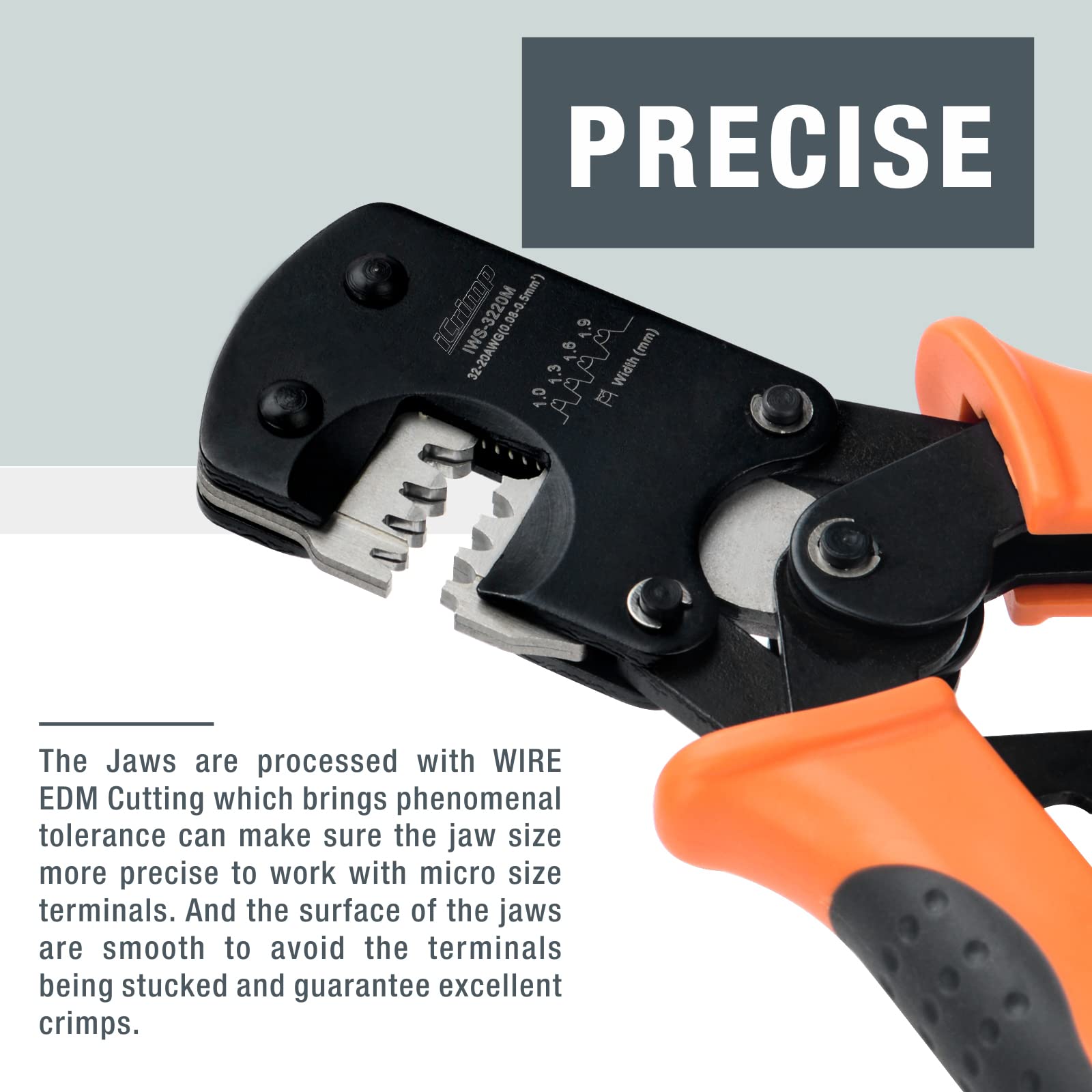

• Double-layer EDM cutting jaws crimp conductor and insulation sheath in a single stroke for clean, efficient crimps.
• Easy, repeatable operation supported by a precise ratchet mechanism that helps maintain consistent compression with every trigger pull.
• Environment-friendly, ergonomic TPR handle designed to reduce hand fatigue during longer sessions.

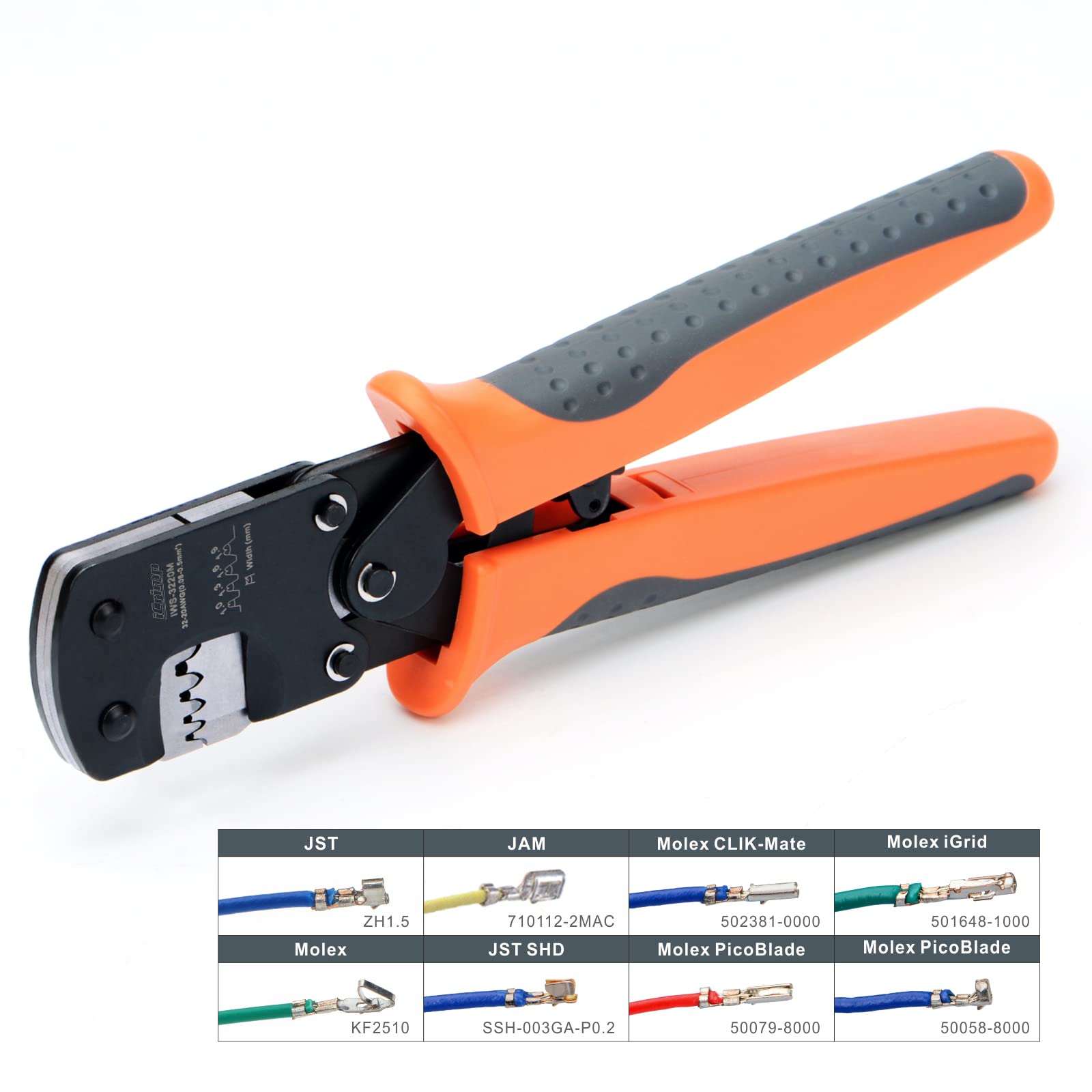

Compatibility is a practical advantage of the IWS-3220M. The tool is designed to work with open-barrel micro pin systems from leading brands, including Molex CLIK-Mate and PicoBlade, JST SHD/JAM, and TYCO D-100 families. This makes it a versatile addition to electronics workbenches, whether you are assembling prototypes, repairing small harnesses, or producing compact assemblies for consumer electronics and robotics.

In use, the tool shines in tight spaces where control matters. The combination of a compact jaw geometry, sturdy construction, and a comfortable grip supports precise alignment and careful compression of micro pins, reducing the risk of insulation damage or misalignment. While it is not a promise of guarantees, users often appreciate cleaner terminations, steadier workflows, and a reliable baseline for consistent results across projects.

Practical applications and scenarios

From hobbyist builds to professional assemblies, the IWS-3220M is well-suited for small-diameter wire work and micro-pin systems. Its capability to crimp both conductor and insulation in one action helps streamline workflows, especially when handling multiple pins in a single connector row. The tool’s compatibility with open-barrel connector families expands its use across multiple device types, making it a flexible choice for teams and individuals who manage mixed-brand components.
