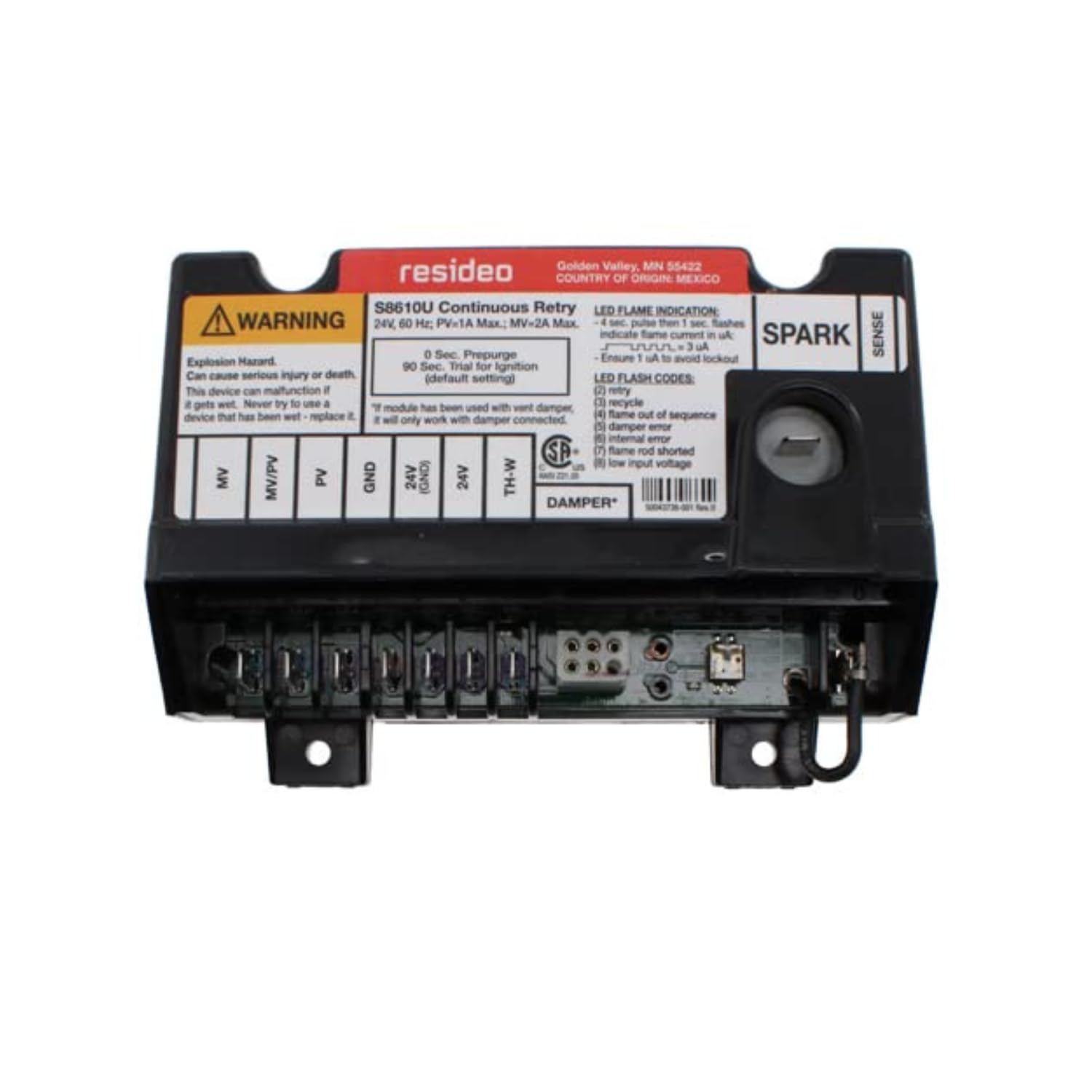

Honeywell S8610U Replacement Ignition Control Board | Integrated Pilot Module

Overview

Upgrade or replace aging equipment with the Honeywell S8610U replacement ignition control module. This compact controller is designed to manage the ignition sequence, monitor flame presence, and enact a safety shutoff for intermittent-pilot heating systems. While it doesn’t promise specific performance, it offers a path to restoring orderly startup and controlled operation in compatible furnaces, boilers, and other heating appliances.

Key capabilities for reliable heating

• Resideo lineage note: newer units may be labeled Resideo after Honeywell’s 2018 residential division spin-off.
• Ignition sequence control: coordinates the startup so heating cycles begin smoothly and predictably.
• Flame monitoring: ongoing verification helps confirm proper combustion during operation.
• Safety shutoff: detects faults and can interrupt fuel supply to protect the system and occupants.
• Compatibility window: designed for intermittent-pilot central furnaces, residential boilers, and related heating appliances.
• Wiring nuance: on many installations, the transformer secondary hot (switched leg) routes to TH-W rather than 24V, unless an automatic vent damper is used; consult the documentation for specifics.

What to check before buying

• Model compatibility: confirm your unit uses an S8610U-style control for intermittent-pilot operation.
• Wiring layout: verify terminal arrangement and transformer routing matches the manual, noting TH-W routing when applicable.
• Replacement considerations: this module is intended as a direct replacement and may require matching harnesses or connectors for a seamless install.

Real-world use often involves restoring a failing ignition sequence, maintaining flame safety checks, and supporting heat delivery during cold months. The S8610U replacement aims to fit common residential setups with a compact form factor and replacement-friendly design, enabling service pros and homeowners to address essential heating tasks without extensive retrofits.

Remember, outcomes can vary by system configuration. Consider this module as a well-suited option for replacing an aging ignition control in compatible Honeywell-era equipment, with the goal of reliable ignition behavior, flame verification, and controlled shutdown when needed.
