HES 5200C-12/24D-630 Universal Door Electric Strike with Faceplate – Satin Stainless Steel, 12/24 VDC/VAC

Overview

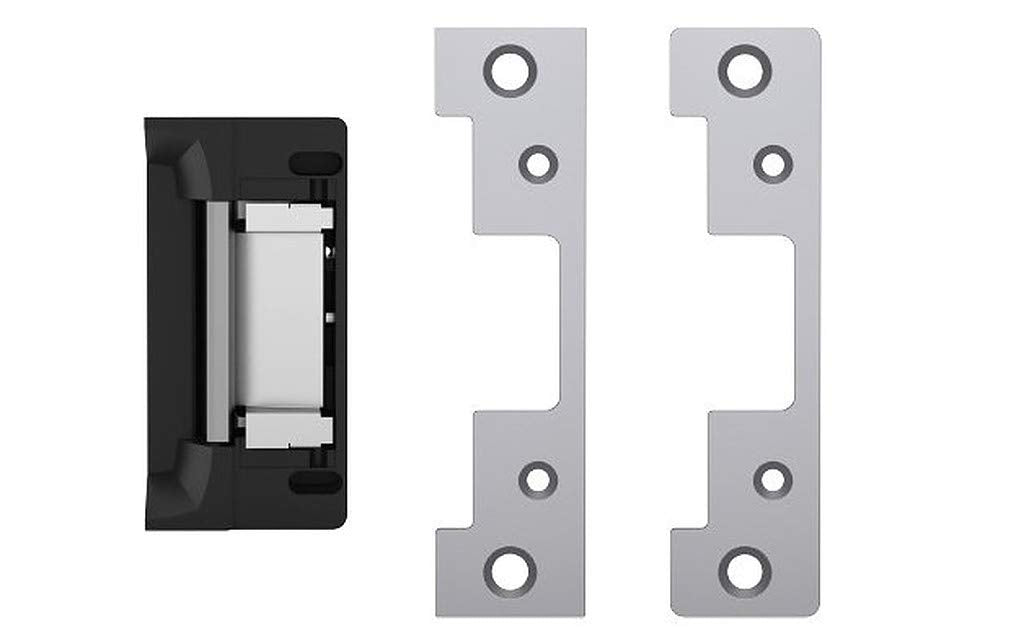

Designed for busy commercial entrances, the HES 5200C-12/24D-630 universal door electric strike combines a satin stainless steel faceplate with a rugged internal mechanism. It delivers strong resistance to daily wear with static strength rated at 1,500 lbs and dynamic strength of 70 ft-lbs, making it a practical choice for high-traffic doors while keeping operation smooth and predictable.

Flexible power and fail modes

With dual-voltage support (12 or 24 VDC/VAC) and field-selectable fail secure or fail safe configurations, this strike adapts to different access control setups without requiring a complete hardware swap. The plug-in connector simplifies wiring, helping installers complete projects efficiently.

Installation and alignment made easier

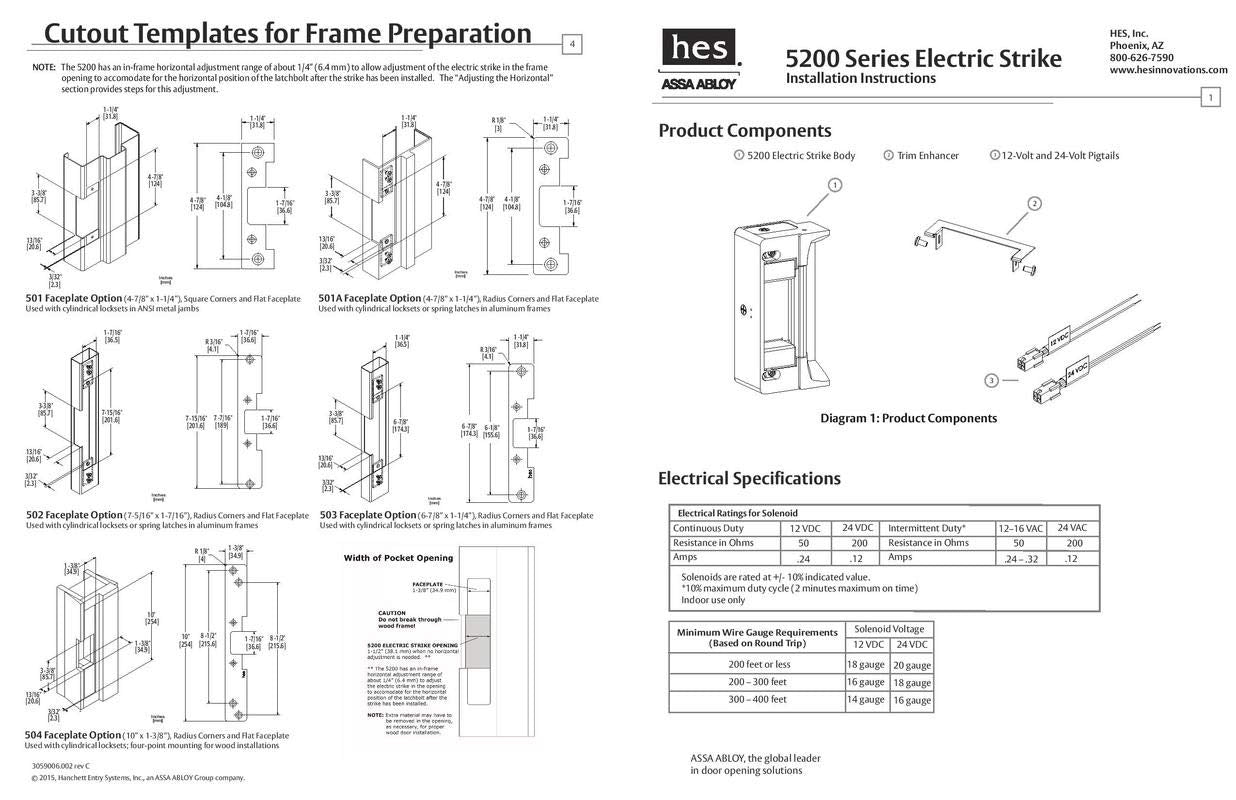

The unit is non-handed and offers in-frame horizontal adjustment, so it can fit doors with varied swing directions. An internally mounted solenoid reduces exposure to dust and tampering, while the trim enhancer included helps align the strike with the matching strike plate for a clean, integrated look.

Compatibility and dimensions

• Accommodates 5/8" to 3/4" latchbolts (3/4" with a 1/8" door gap).

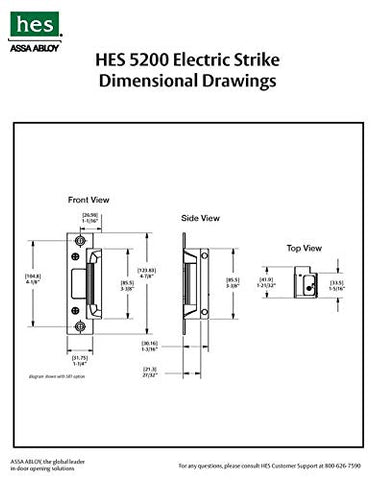

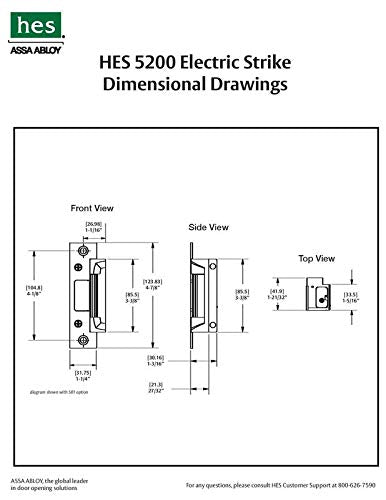

• Strike body depth 1-3/16"; strike body height 4.87"; width 1.25".

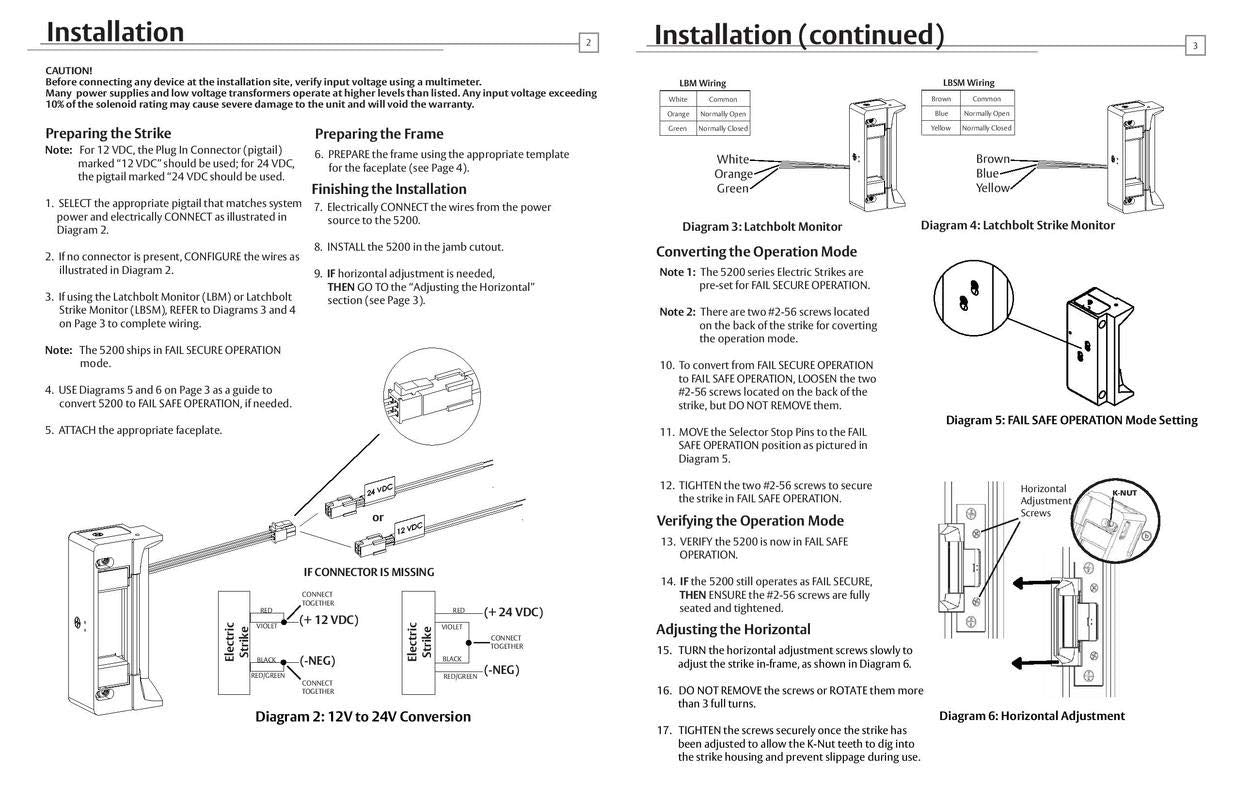

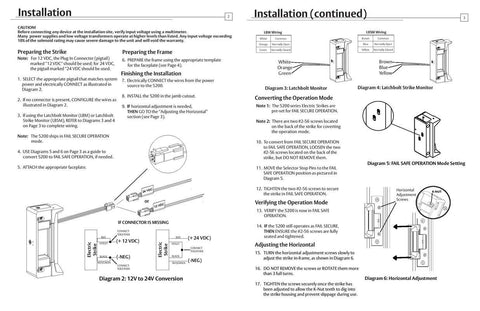

• Plug-in connector provides a secure, mess-free connection.

Durability you can rely on

• Tamper-resistant construction with endurance up to 500,000 cycles.
• Static strength 1,500 lbs. and dynamic strength 70 ft-lbs. designed for continuous use.
• Field-selectable fail modes and robust design help maintain security over time.

What to expect in your project

If you’re upgrading an entry or integrating with an access control system, this strike offers flexibility, reliable operation, and a streamlined installation path that fits multiple door types and hardware configurations. Consider it as a practical option when durability and adaptable power are priorities.

Field technicians appreciate the non-handed design because it reduces the number of SKUs to stock and makes procurement simpler. The in-frame horizontal adjustment helps align the strike without removing the door, saving time during installation and maintenance checks.

Maintenance and service are simplified by the plug-in connector and compact solenoid, enabling quick checks and parts replacement on site to keep doors in service with minimal downtime.
