GOINGMAKE Compact Metal Concealed Hinge Jig with Quick Clamp – 35mm Cabinet Hinge Drill Guide

Overview

The GOINGMAKE Compact Metal Concealed Hinge Jig with Quick Clamp combines portability with precision for cabinet and furniture work. Built from sturdy metal and designed for repeated use, it travels easily in a tool bag while delivering dependable drill guidance for concealed hinges.

Why choose this jig

• Compact size that fits tight cabinet gaps and small workshops, making setup quick and easy
• All metal construction for rigidity, durability, and long-term reliability

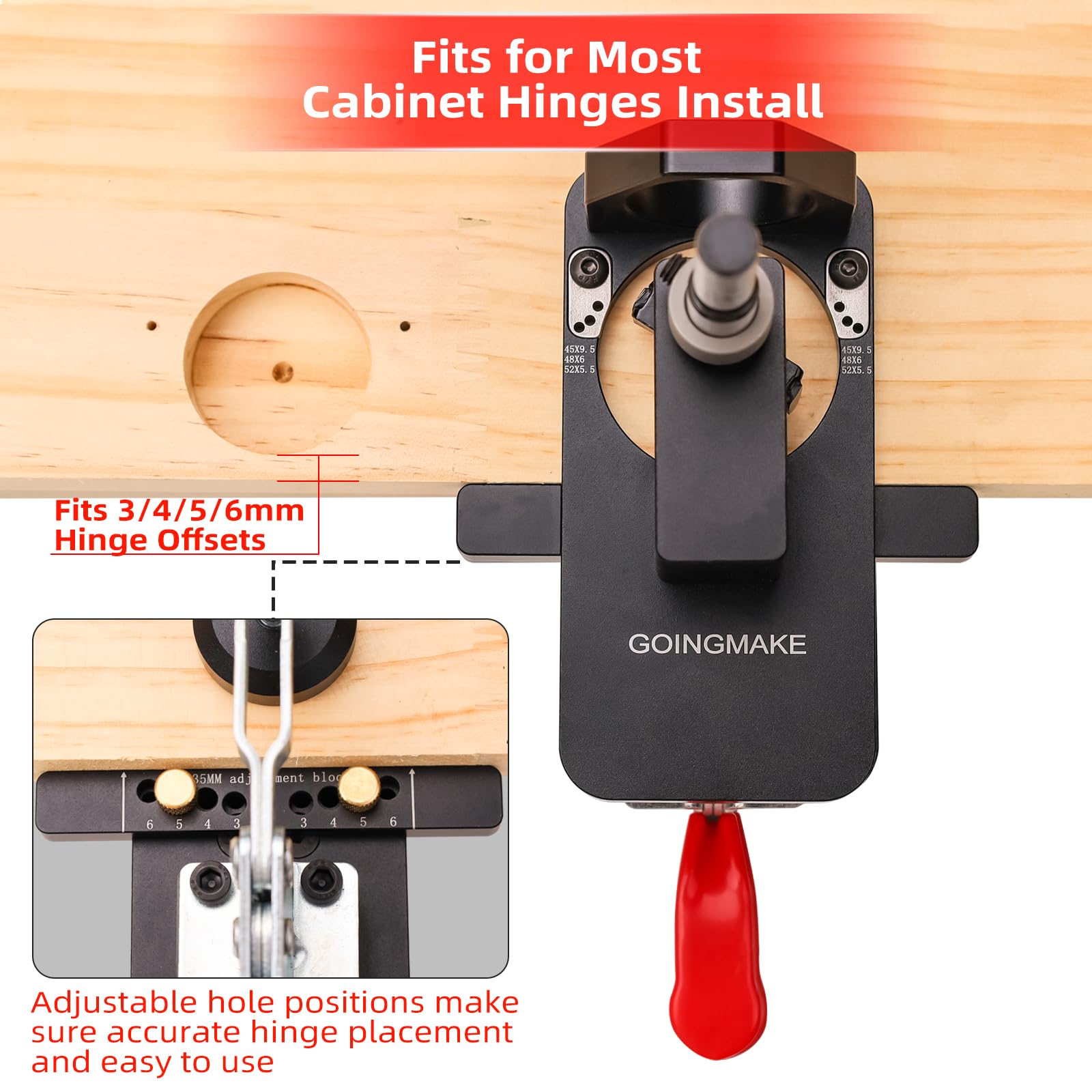

• Adjustable offsets for concealed hinges: 3 mm, 4 mm, 5 mm, and 6 mm to match common layouts

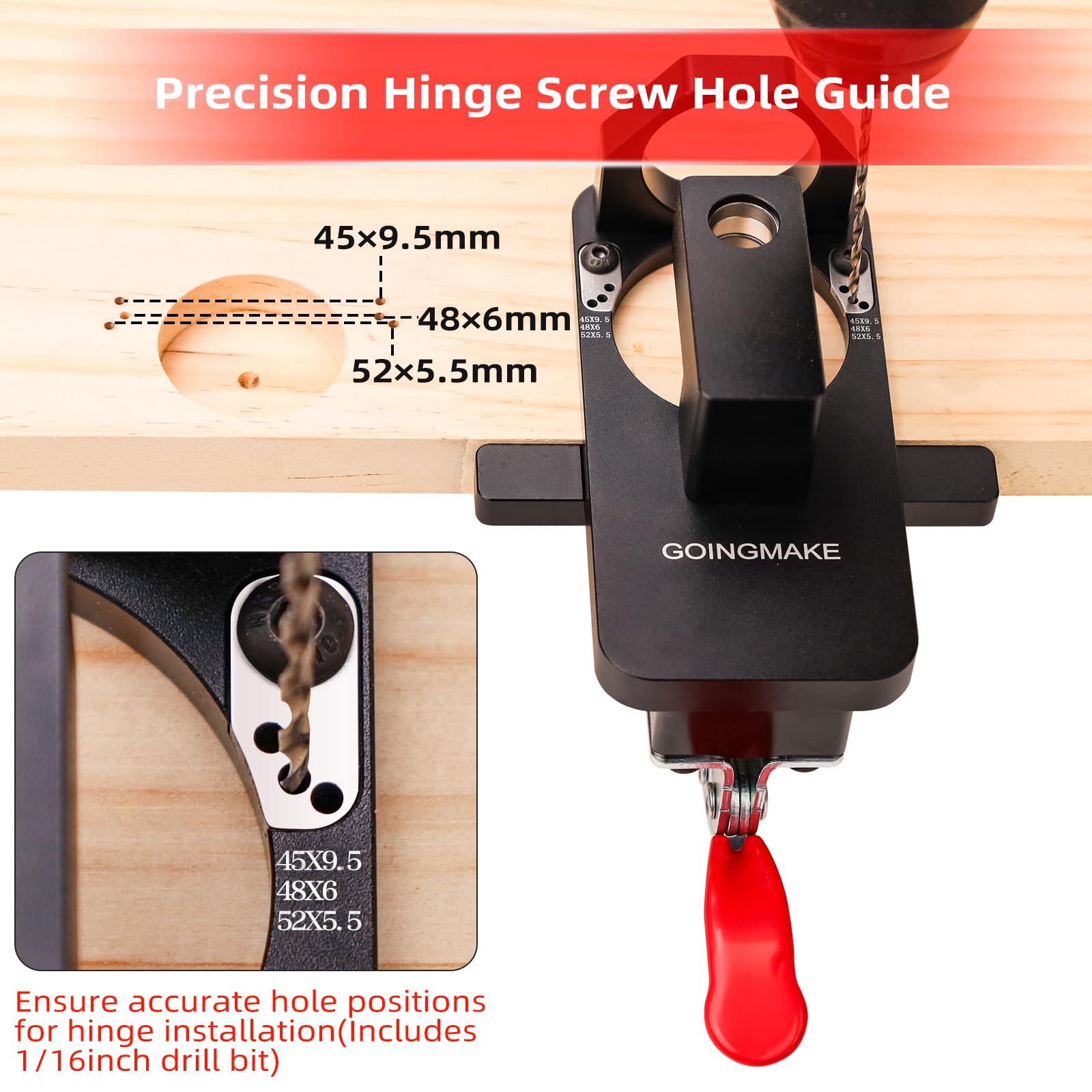

• Includes guides for typical hinge screw holes: 45 mm x 9.5 mm, 48 x 6 mm, 52 x 5.5 mm

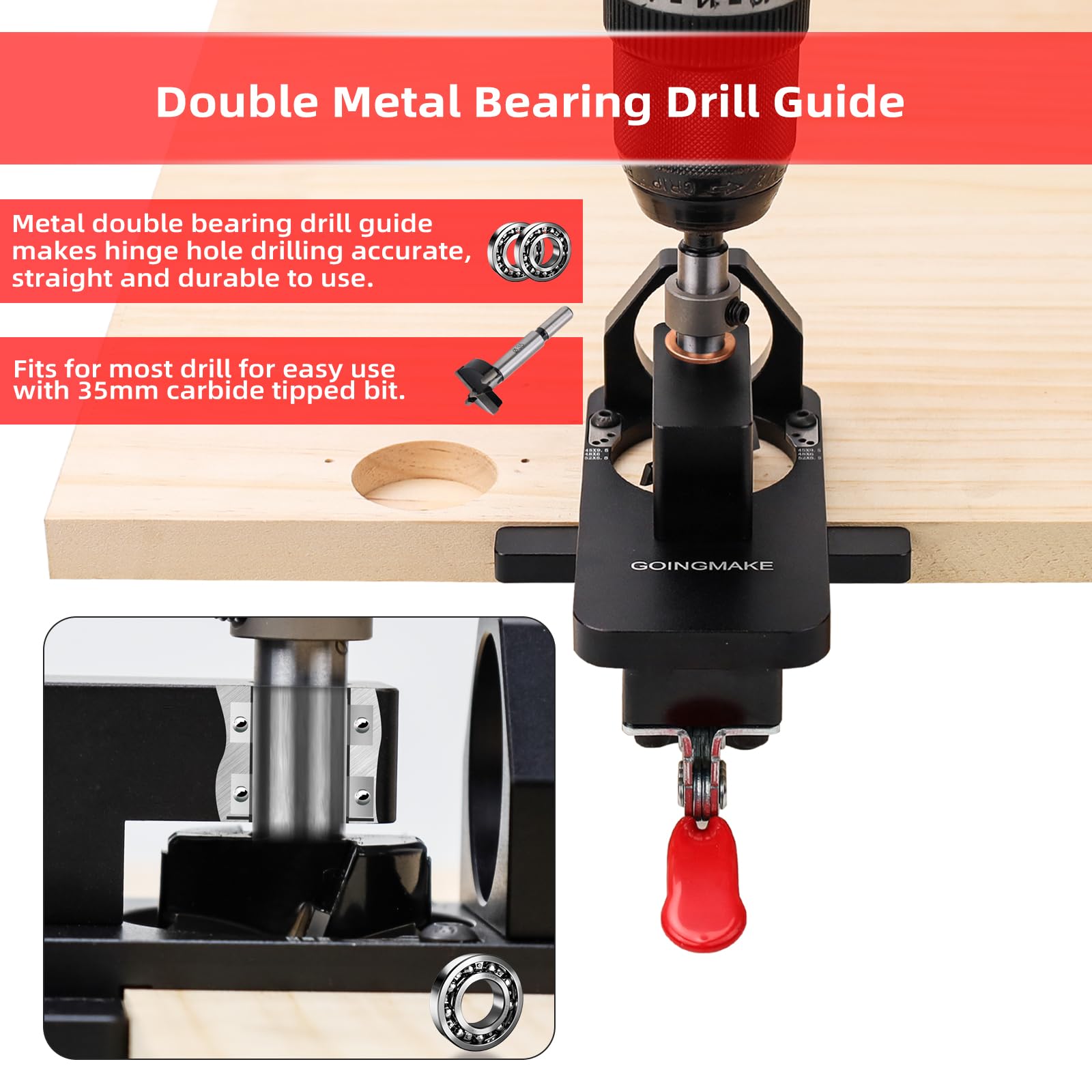

• 35 mm carbide tipped drill bit for clean, accurate hole punching

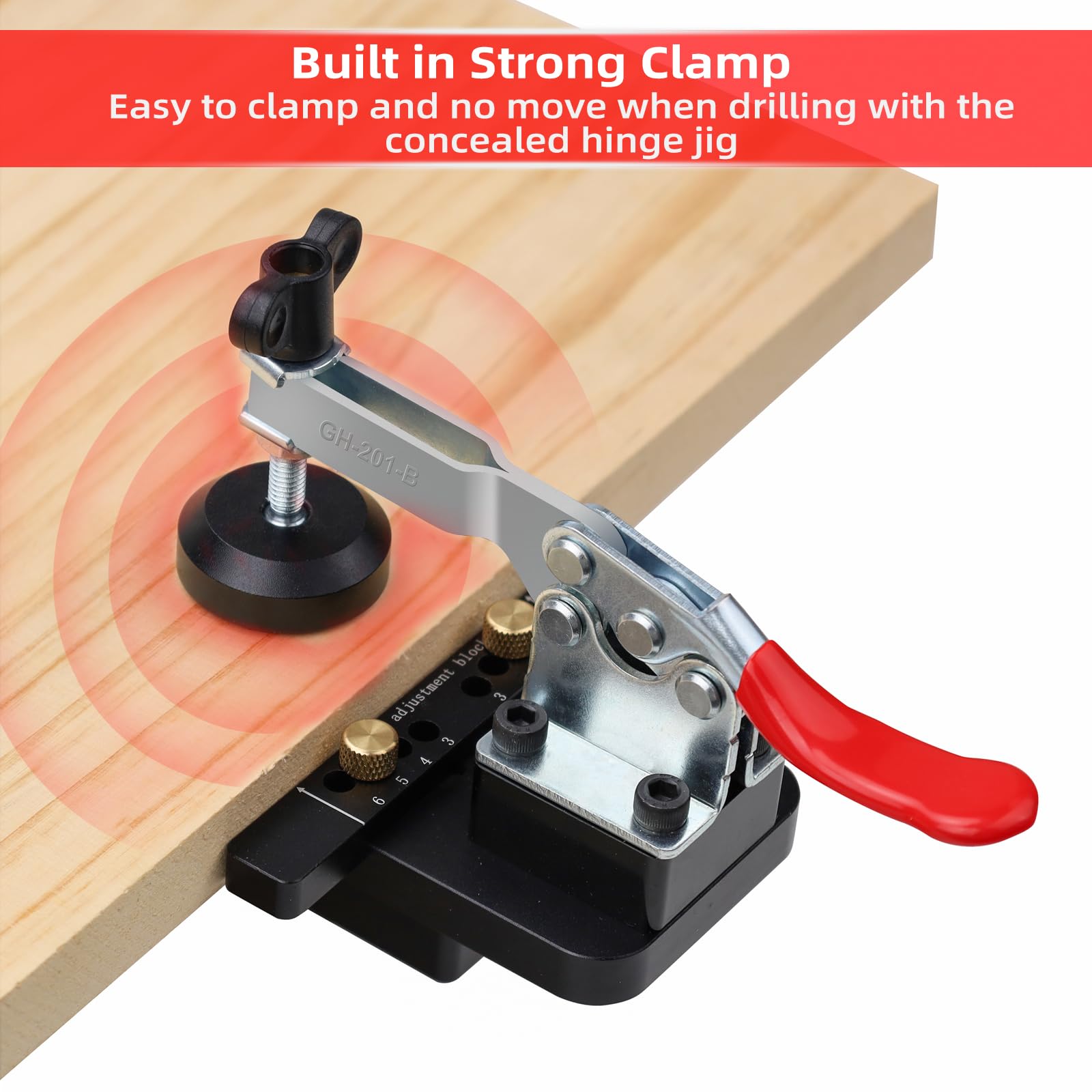

• Strong metal quick clamp to secure workpieces during drilling

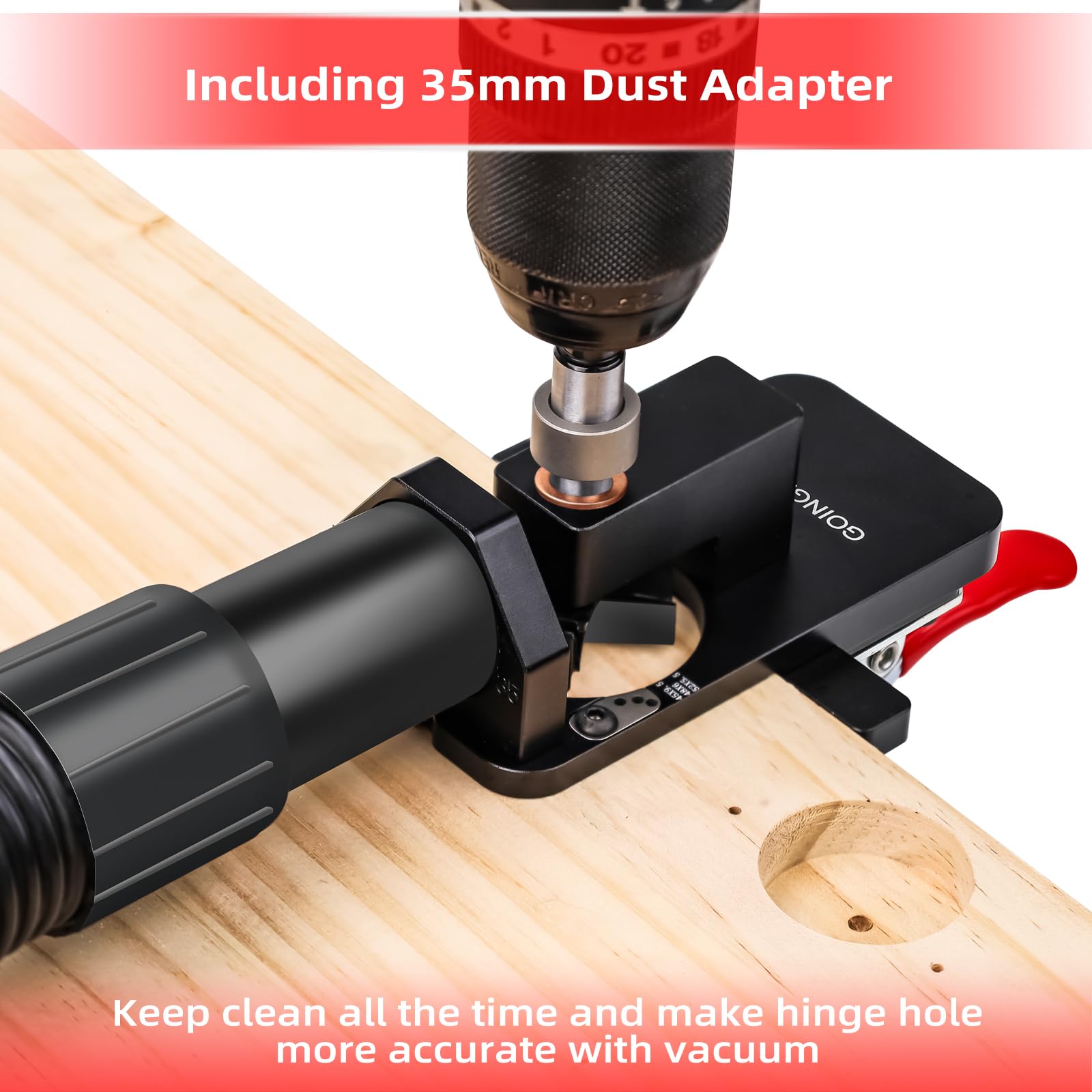

• Dust adapter and vacuum compatibility to help keep your workspace clean
• Designed for use with any drill and includes a 1/16 inch drill bit for versatility

Real-world use and benefits

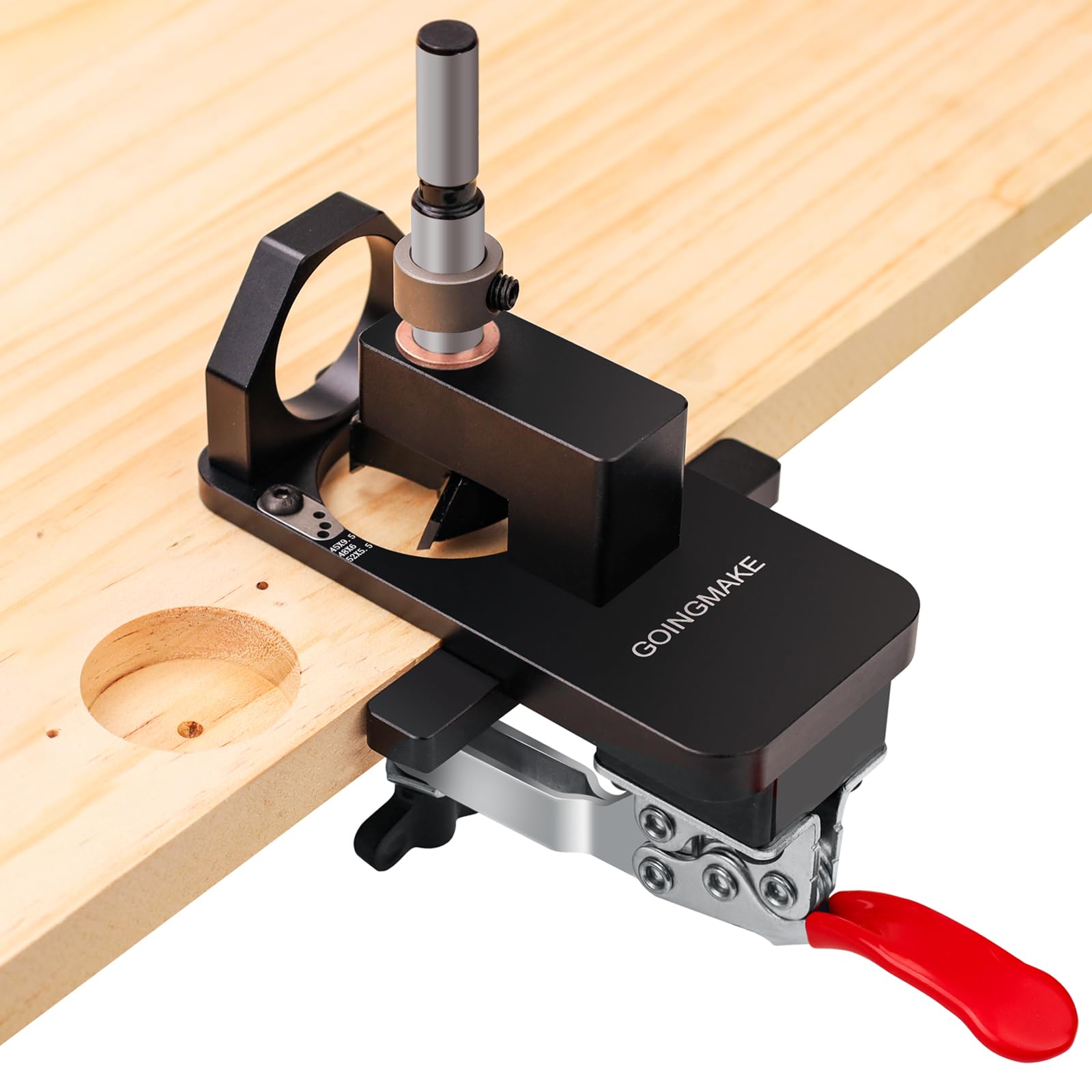

In practice, you can clamp a cabinet door, select the appropriate hinge offset, and drill with confidence. The jig’s guided holes reduce guesswork, while the quick clamp minimizes drift. The dust adapter helps maintain visibility of drilling lines, supporting accurate placement even in tighter environments.

Practical scenarios include kitchen and bathroom cabinets, wardrobe doors, and DIY furniture projects where precise hinge alignment matters. The robust metal build resists wear over time, and the included screw hole guides cover several standard hinge sizes, making it a versatile tool for frequent hinge installations.

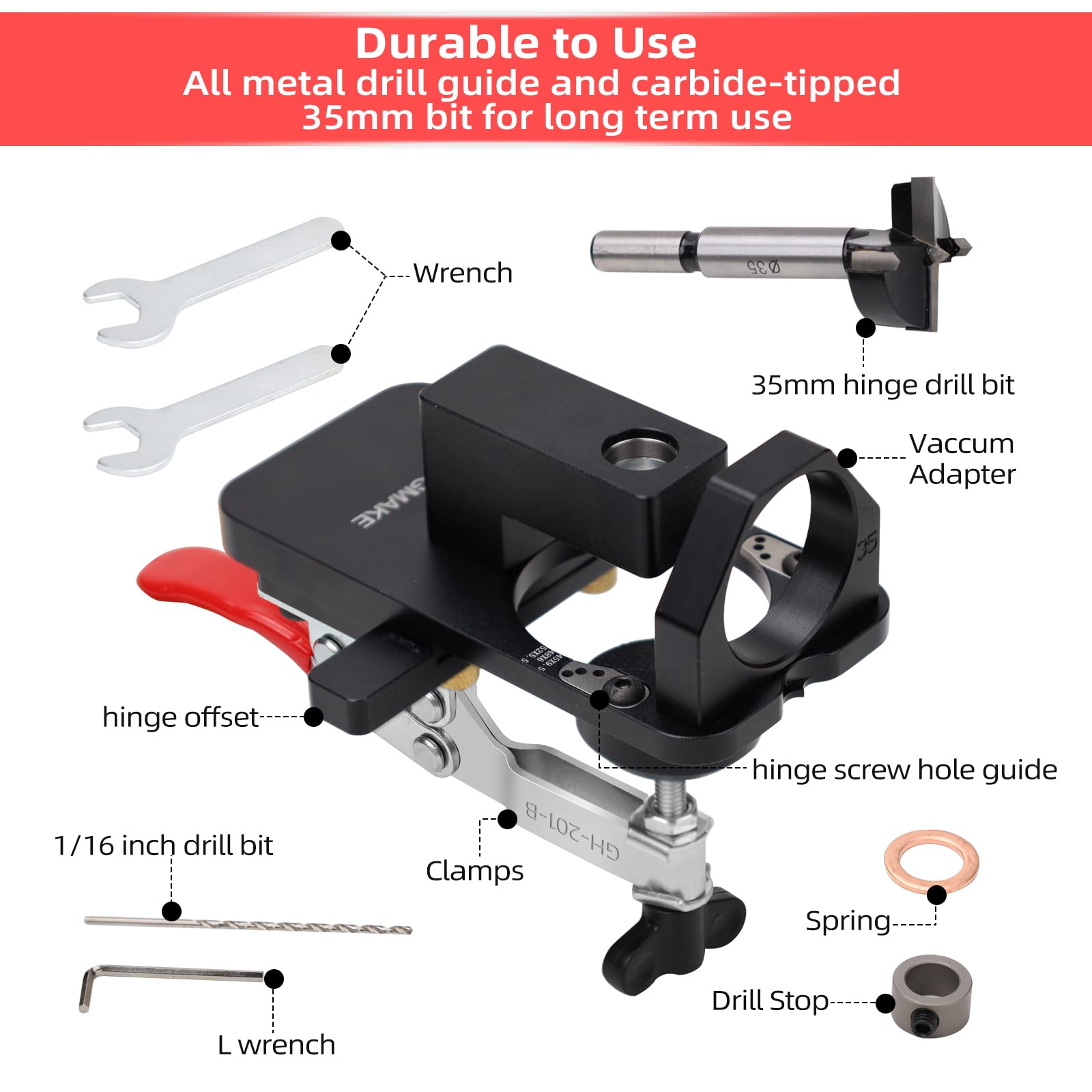

What’s included and how it helps

• GOINGMAKE Compact Metal Concealed Hinge Jig
• 35 mm dust adapter for vacuum connection
• 35 mm carbide tipped drill bit
• 1/16 inch drill bit
• Guides for standard hinge hole sizes
• Sturdy quick clamp for secure clamping

Final thoughts

This jig is designed to support accurate, efficient hinge mounting with a focus on user needs. It offers flexible offsets, durable construction, and cleaner drilling, presenting possibilities for faster installations and cleaner results without making guarantees. It’s a practical addition to a woodworker’s toolkit, adaptable to various cabinet styles and hinge types.
