GOINGMAKE 3-Axis Concealed Hinge Jig Ultra — Quick Clamp, 35mm Drill Guide, Dust-Free Cabinet Door Installation

Streamlined cabinet hinge installation with GOINGMAKE 3-Axis Concealed Hinge Jig Ultra

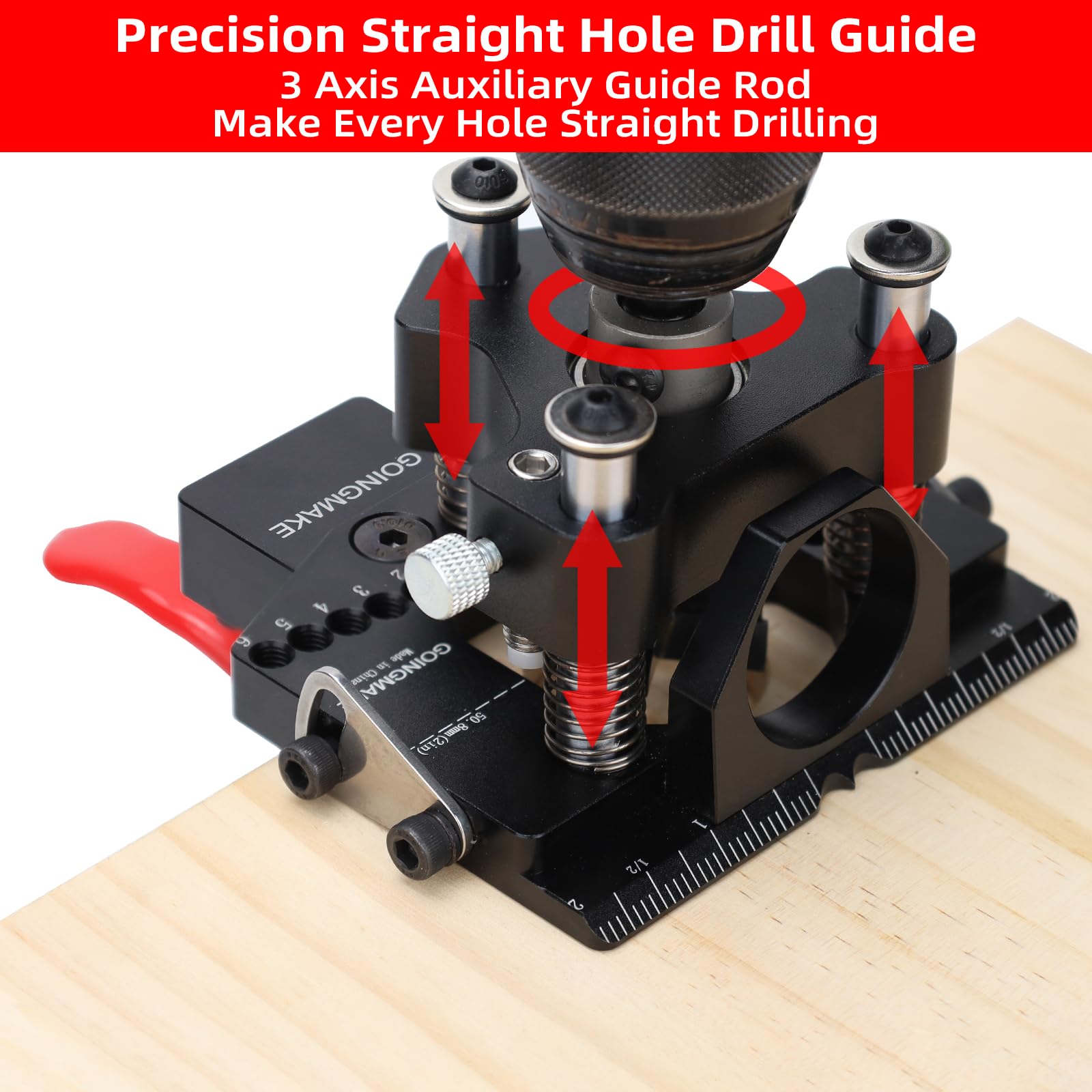

Designed for woodworkers who value accuracy without fuss, the GOINGMAKE 3-Axis Concealed Hinge Jig Ultra blends precision with speed. It combines a three-axis drill guide for straight, controlled holes with a dedicated 35mm hinge guide that handles the standard concealed hinge pattern. The result is a dependable setup that can speed up drilling and reduce the need for switching drill bits mid-project. A quick clamp secures the door during layout, and a separate fixed hinge screw hole guide provides four common hole spacings, supporting a wide range of hinges. A vacuum adapter lets you attach a compatible hose, helping to keep your workstation tidy as you work.

Speed and efficiency you can feel

With a design that minimizes bit swaps and emphasizes stable guidance, the jig supports confident drilling even on tricky boards. Users report smoother workflows as alignment stays true from start to finish, cutting unnecessary pauses in the process.

• Drilling time can be reduced, thanks to the 35mm hole guide and integrated guides.
• Efficient layout with a single tool for both hinge holes and screw positions.

Precision you can feel

The 3-axis guide keeps the drill centered and straight, reducing drift and rework. The combination of a sturdy clamp and a separate screw-hole guide translates into repeatable results across multiple doors.

• Aligned hinge holes stay true, reducing the need for corrections.
• Three-axis control helps accommodate slight variations in door panels.

Versatility and compatibility

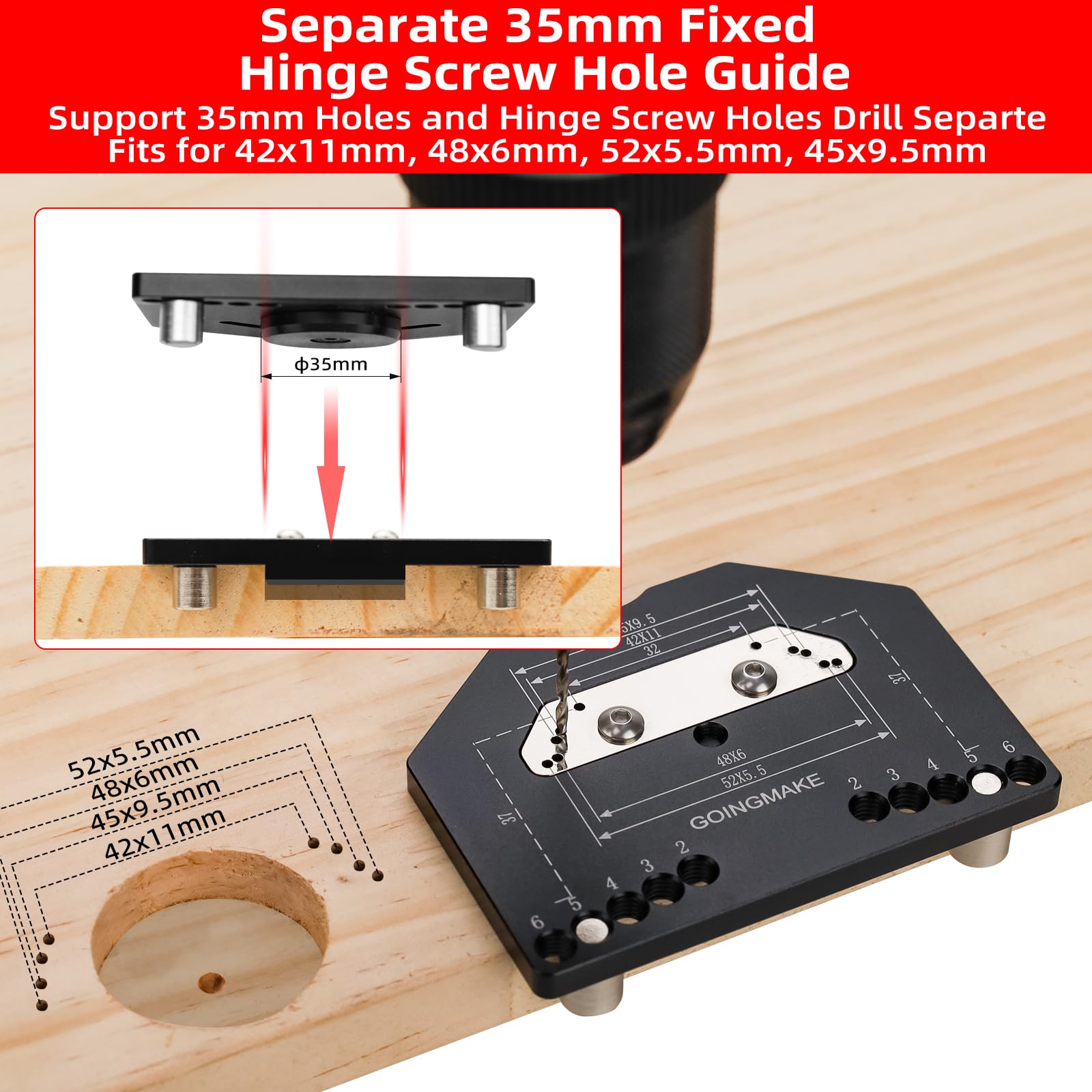

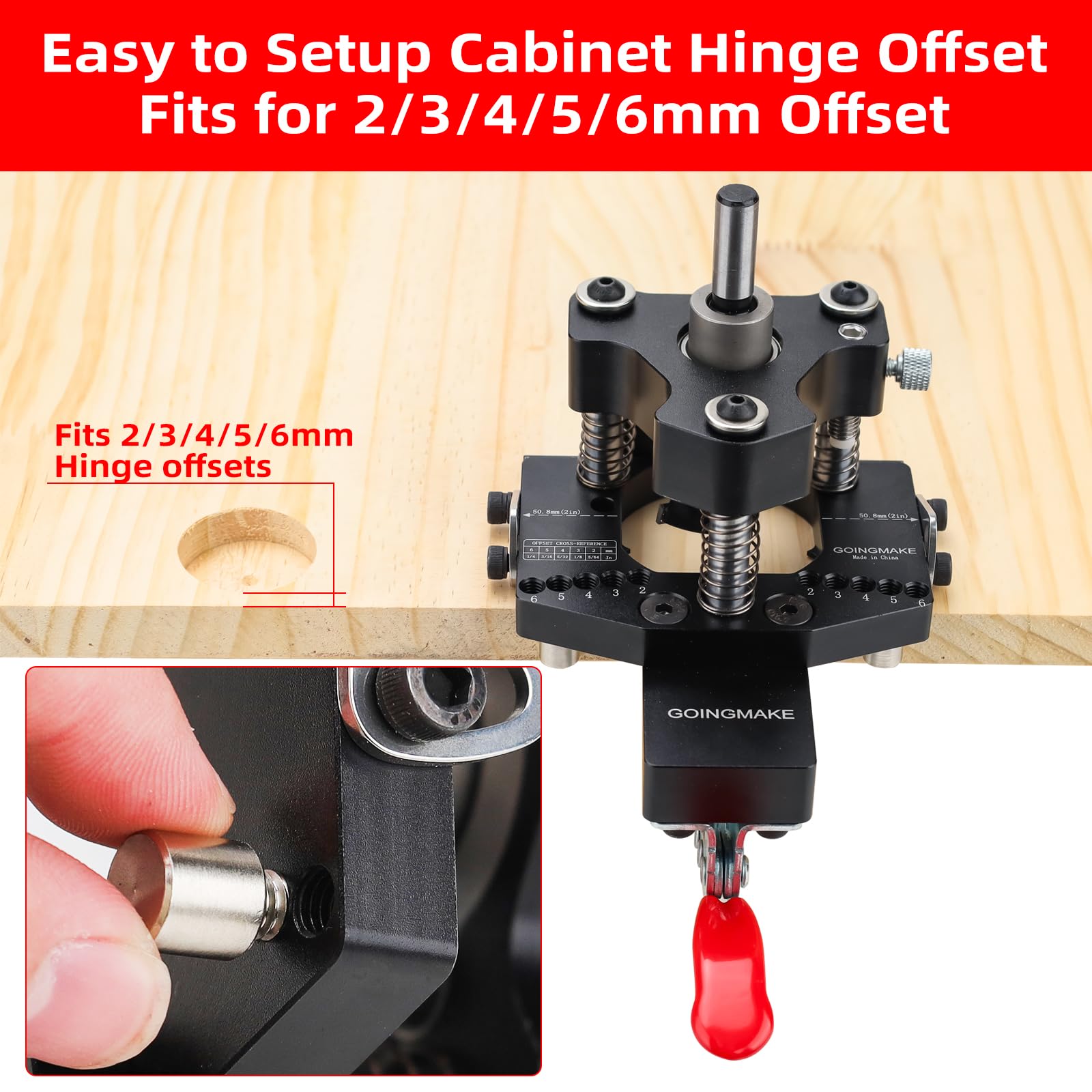

Designed to work with most concealed hinges, the jig supports hinge offsets of 2/3/4/5/6 mm. The fixed-hole guide includes four spacings: 42x11 mm, 48x6 mm, 52x5.5 mm, and 45x9.5 mm, making it easier to match your hinge installation to existing hardware.

• Fits a wide range of common concealed hinges.
• Includes an extra 5/64" drill bit for immediate use.

Clamping and dust control

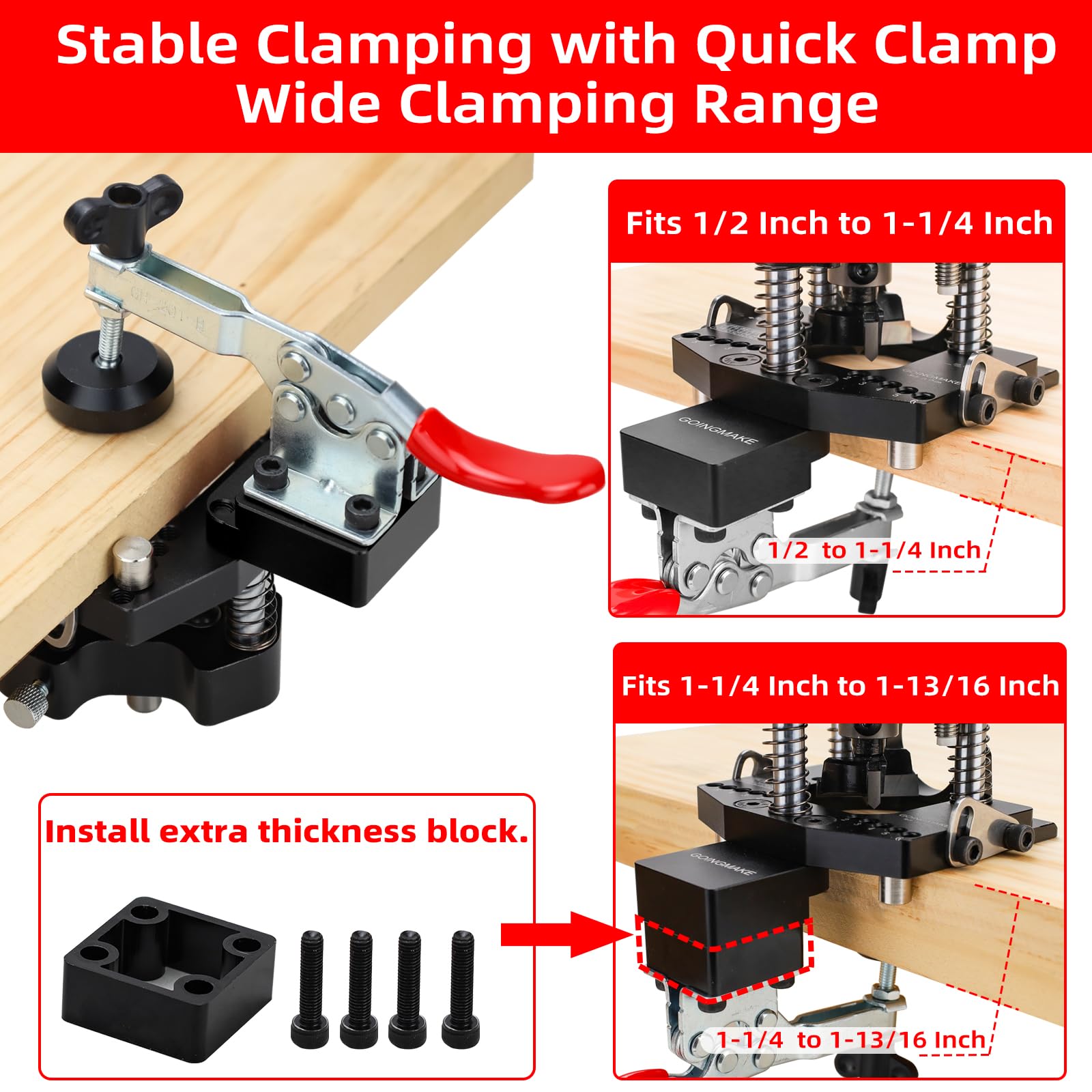

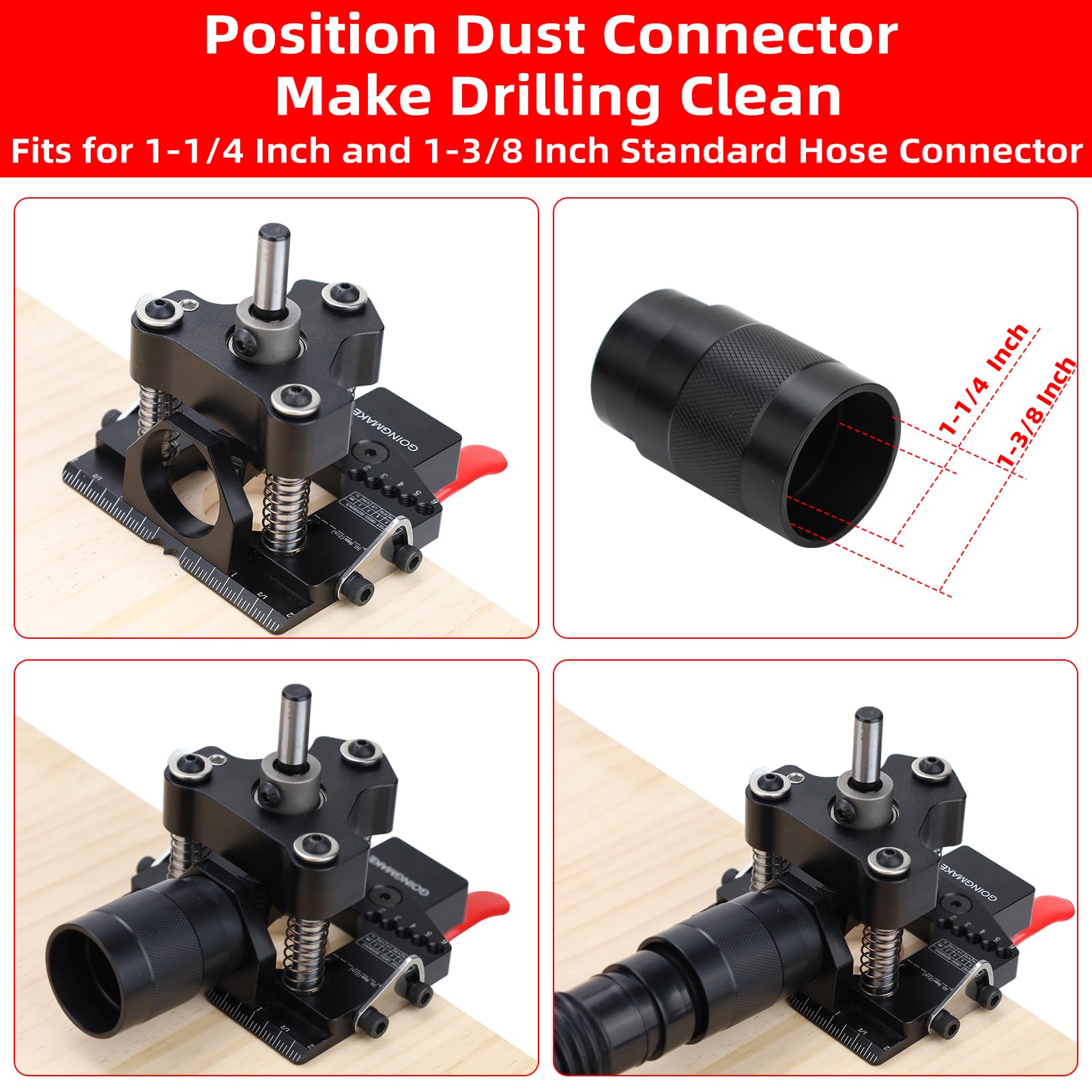

GOINGMAKE adds a quick clamp with an easy-to-adjust range to handle different door thicknesses. An additional clamping block supports thicker boards for secure mounting. The built-in vacuum adapter accepts 1-1/4" and 1-3/8" hoses, helping maintain a clean workspace while you install and drill.

What’s included and how it integrates

Beyond the jig body, you’ll find essential accessories that streamline your workflow:

• 5/64" drill bits for hole drilling and hinge operations
• Extra clamping block for thicker panels

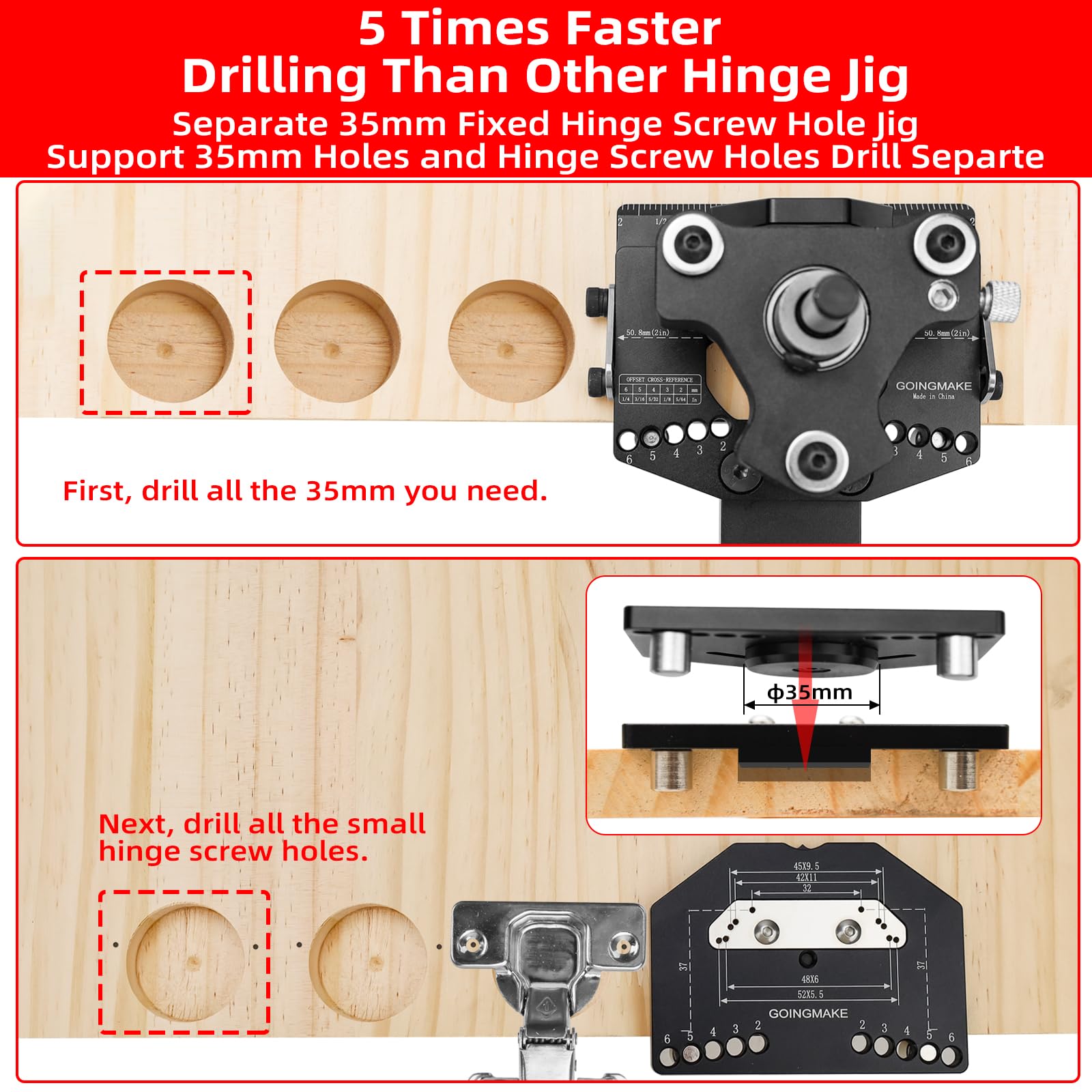

• Separate fixed hinge screw hole guide with four hole spacings
• Vacuum adapter compatible with common shop vacuums

Smart details for busy workshops

Compact, dust-conscious, and easy to mount, this jig fits into tight spaces and pairs with typical 35mm hinge patterns. The combination of robust materials and thoughtful design helps you focus on the layout and installation rather than on adjusting the jig constantly.
