Gohelper Door Hinge Jig & Lock Installation Kit — Precise Mortising Template for Wood Doors

Gohelper Door Hinge Jig and Lock Installation Kit for Wood Doors

Elevate your door installations with a complete, user friendly kit designed to deliver accurate mortises, clean holes, and aligned latches. This all in one solution helps you move from measurement to finished fit with less guesswork, while keeping your workflow tidy and efficient.

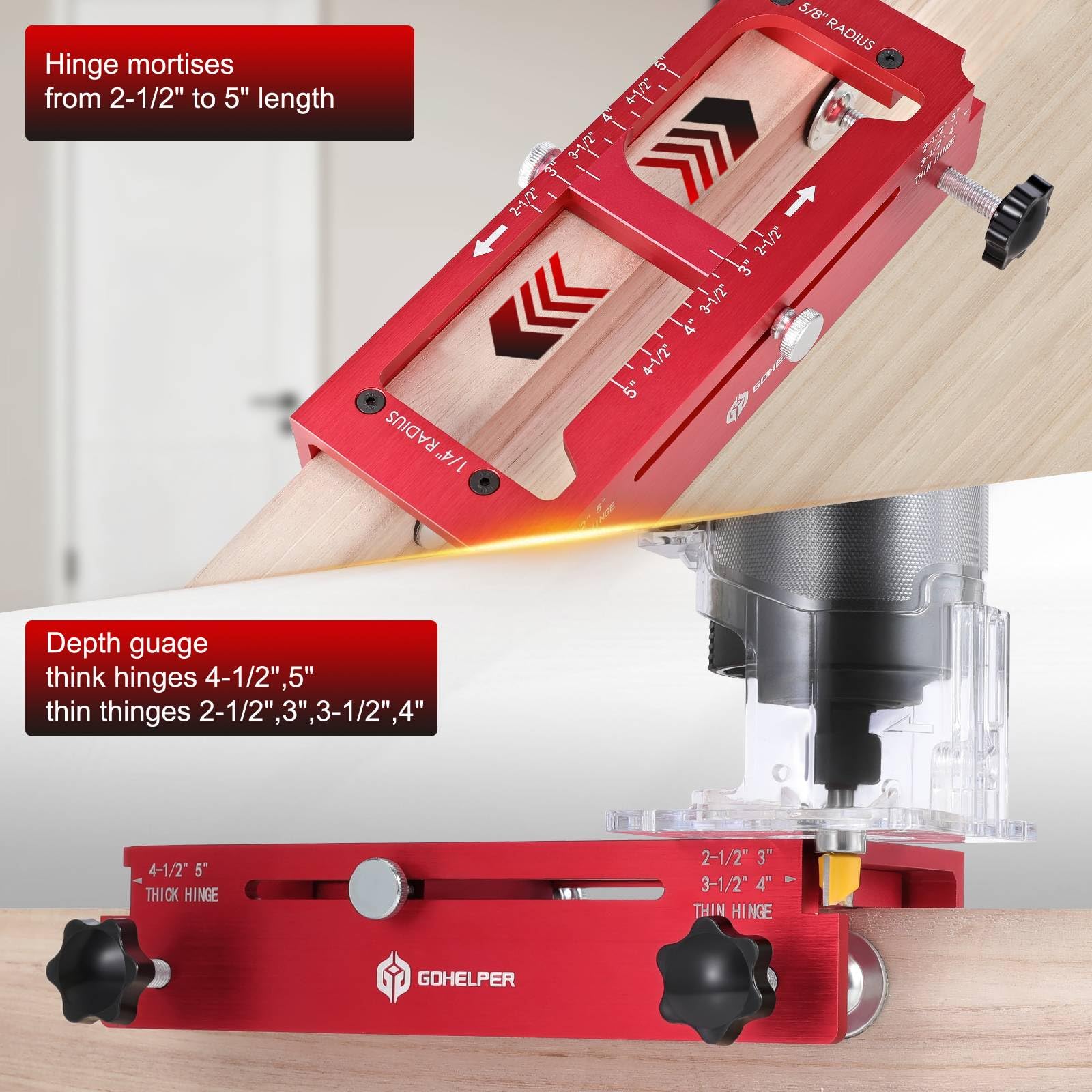

Built for durability and long term accuracy, the hinge jig uses robust 6061 aluminum to resist bending and warping. It stays light enough to handle comfortably, and its design is intended for use on the door leaf, not the jamb, so you know exactly where your cuts belong. The built in depth stop, along with self centering bits and non slip pads, helps you maintain consistent depth and protect the door surface during operation.

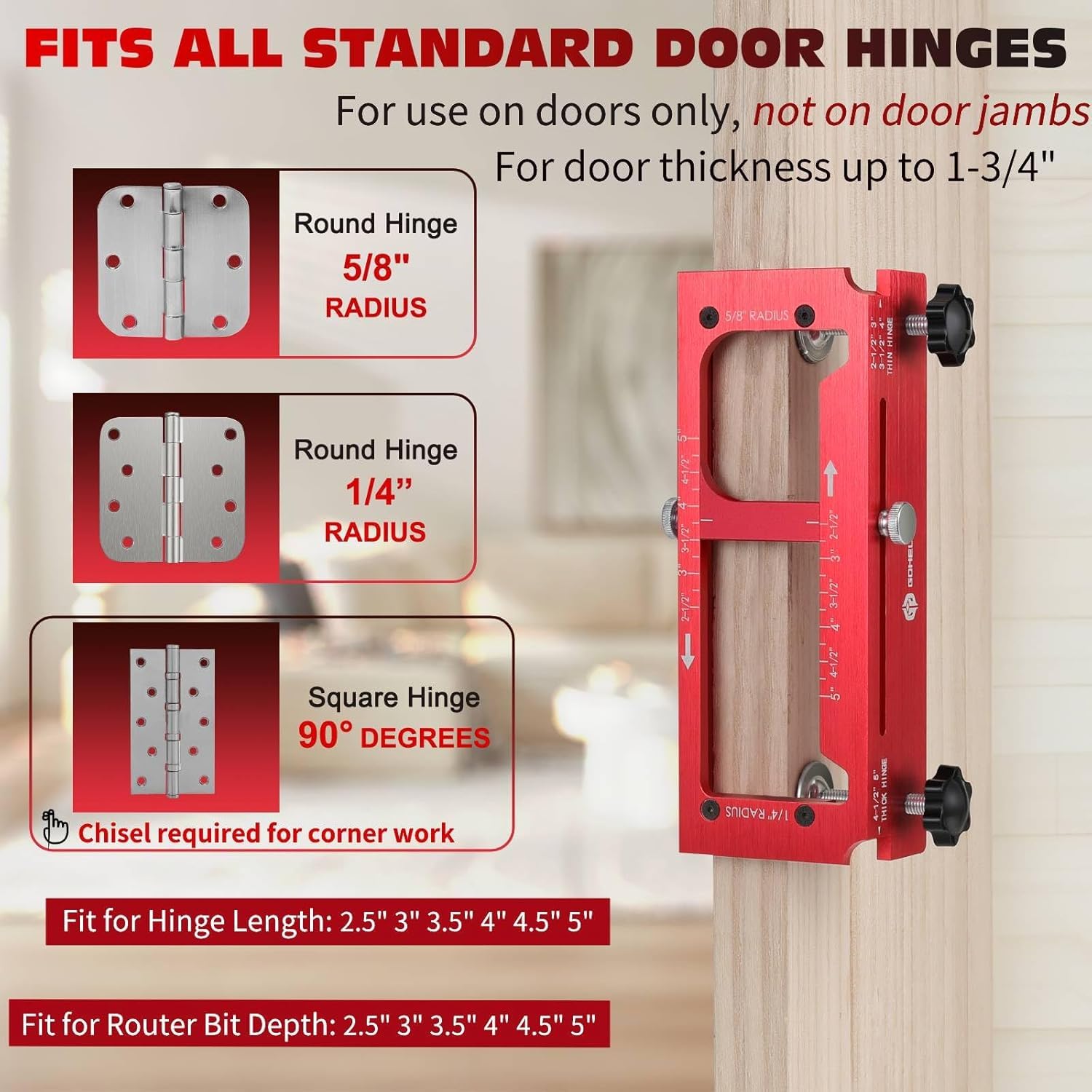

Compatibility matters when you are working with different interiors. The hinge jig supports most interior doors up to 1 3/4 inch thick and can mortise slots from 2 1/2 inches to 5 inches for common hinge radii of 1/4 inch or 5/8 inch. For square corner hinges, edges can be finished with minimal chiseling. The latch assembly is designed to be lightweight and fully adjustable, accommodating doors with standard thicknesses of 1 3/8 and 1 3/4 inches and backsets of 2 3/8 and 2 3/4 inches, enabling quick setup and repeatable results.

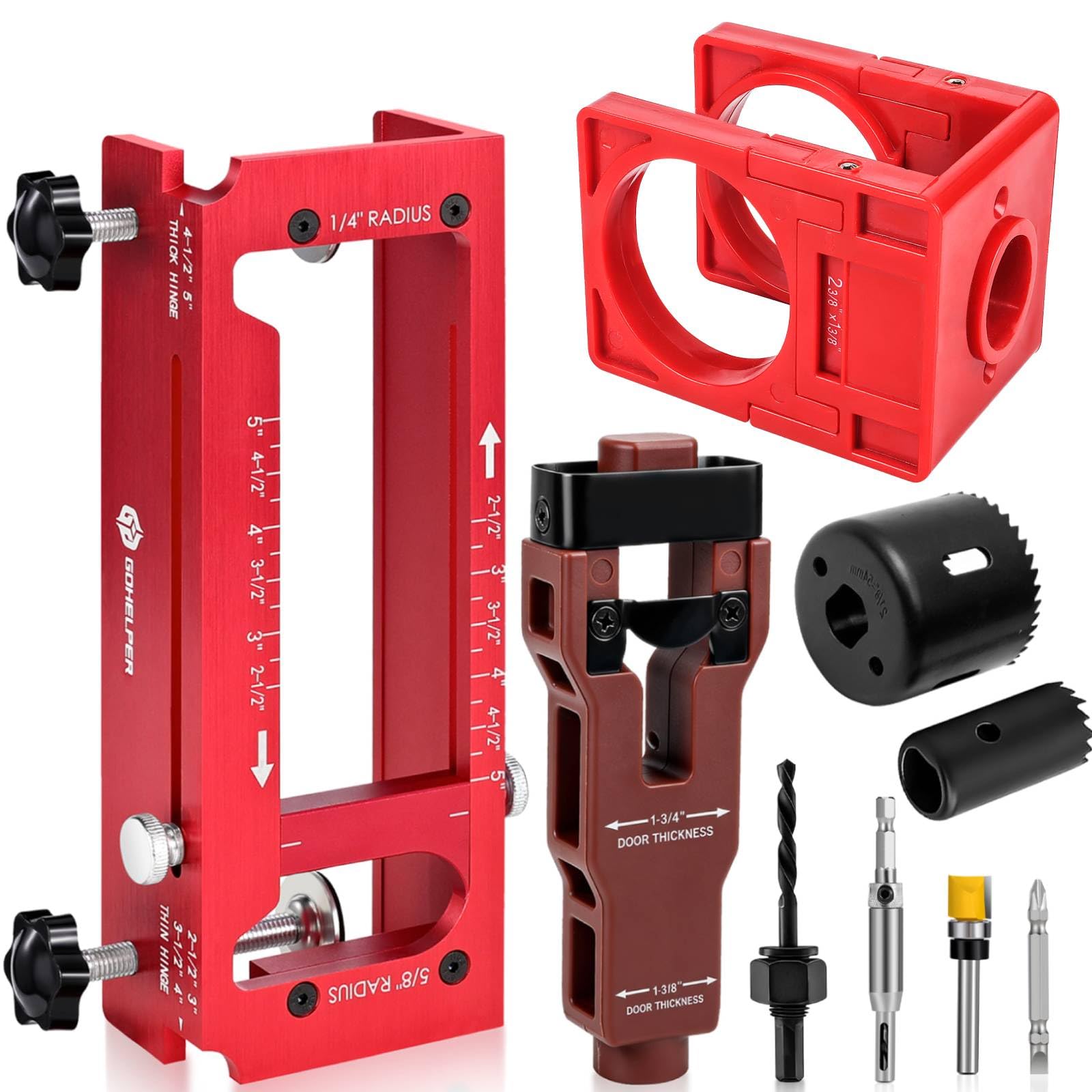

This Gohelper kit truly is an all in one package. It includes a hinge mortising jig, router bit, self centering hinge bit, a double ended screwdriver bit, a lock installation template, two hole saw kits, an arbor with pilot drill, a door latch installation kit, and three user manuals. All components work together to support a smooth workflow from start to finish without the need for separate tools. Note that this kit is intended for use on the door leaf and is not designed for the jamb itself.

What you get and how it helps

• 1 hinge mortising jig and 1 router bit for precise hinge pockets
• 1 self centering hinge bit for centered holes with minimal effort
• 1 double ended screwdriver bit for quick adjustments

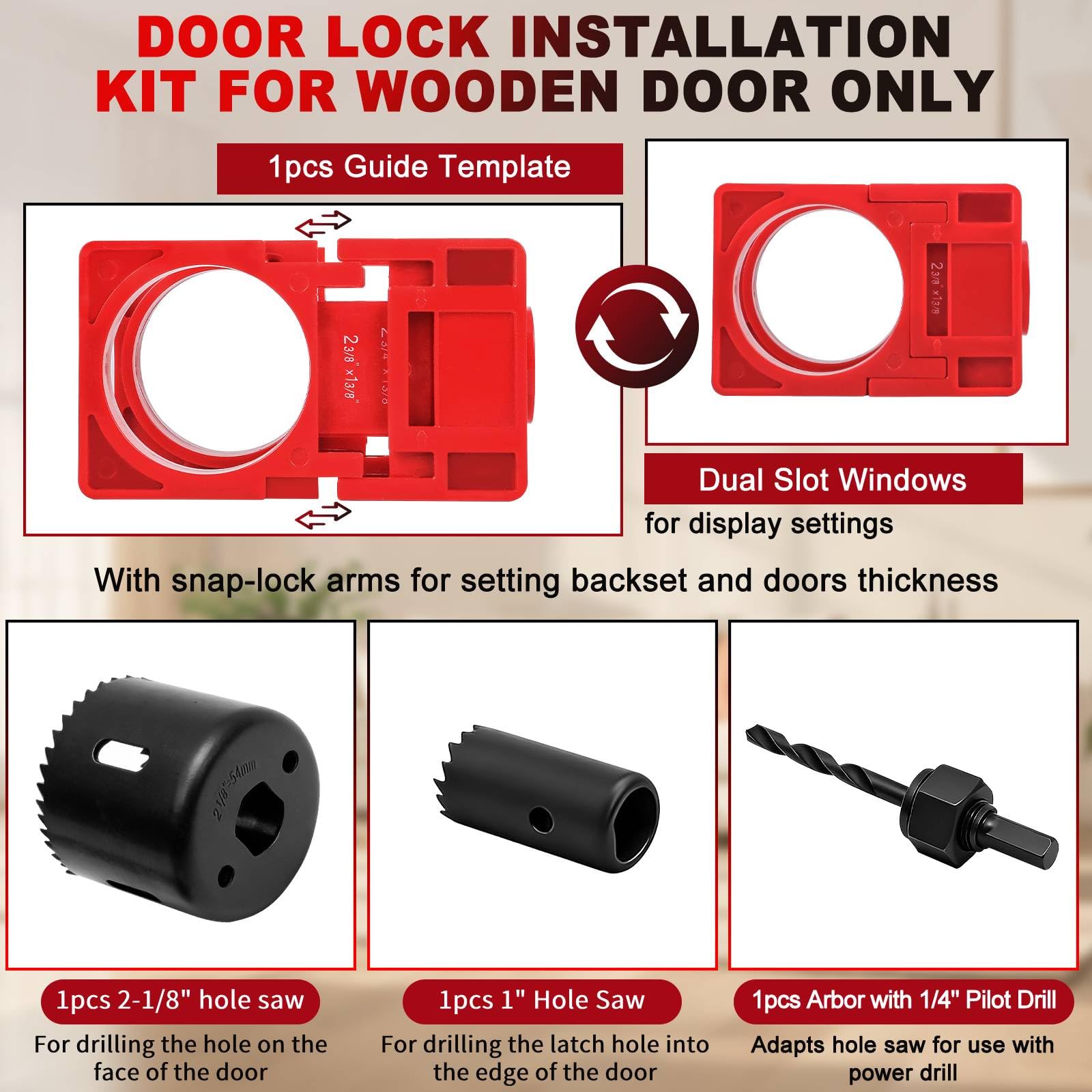

• 1 lock installation template to guide backset and hole placement
• 2 hole saw kits for clean, accurate cutouts
• 1 arbor with pilot drill to stabilize cuts

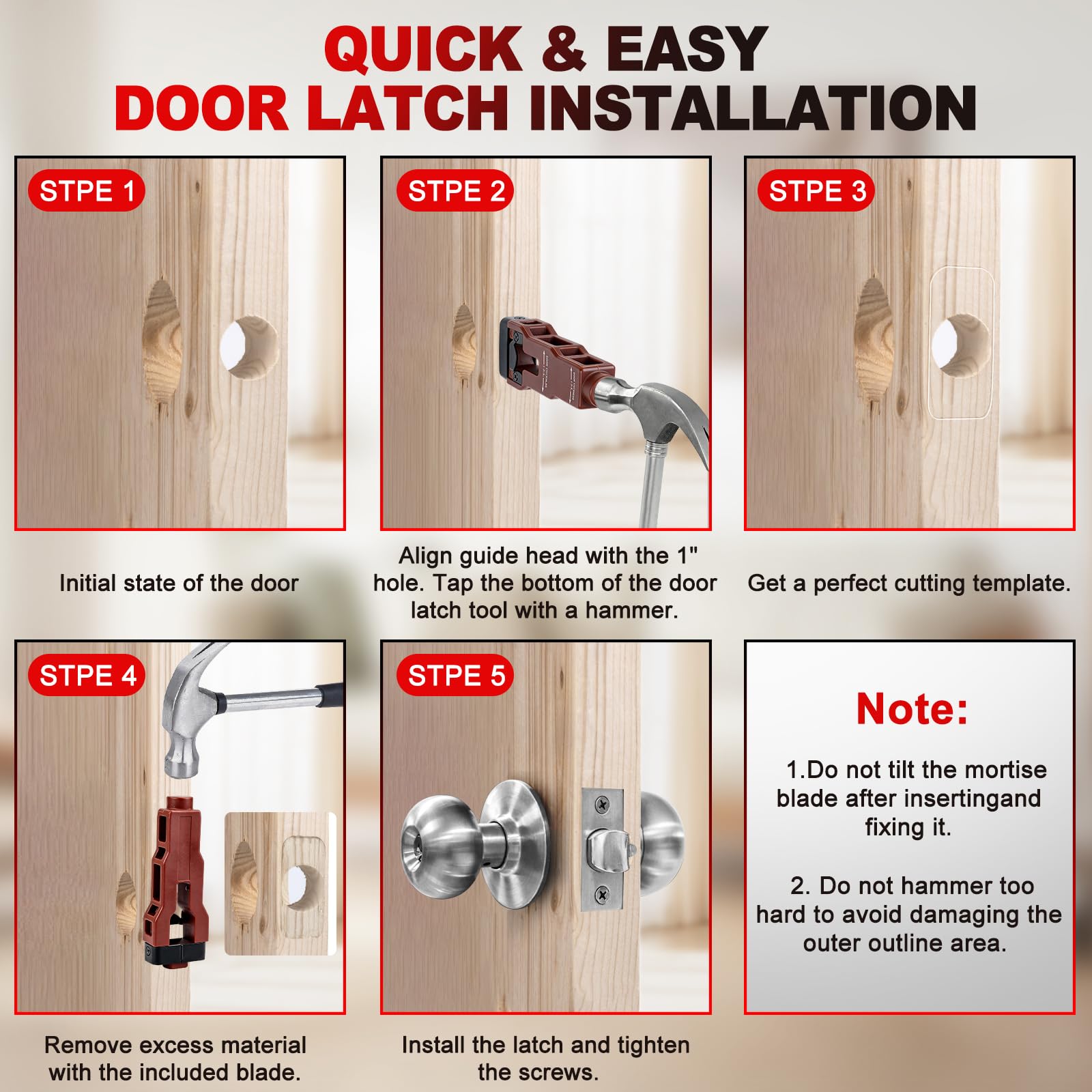

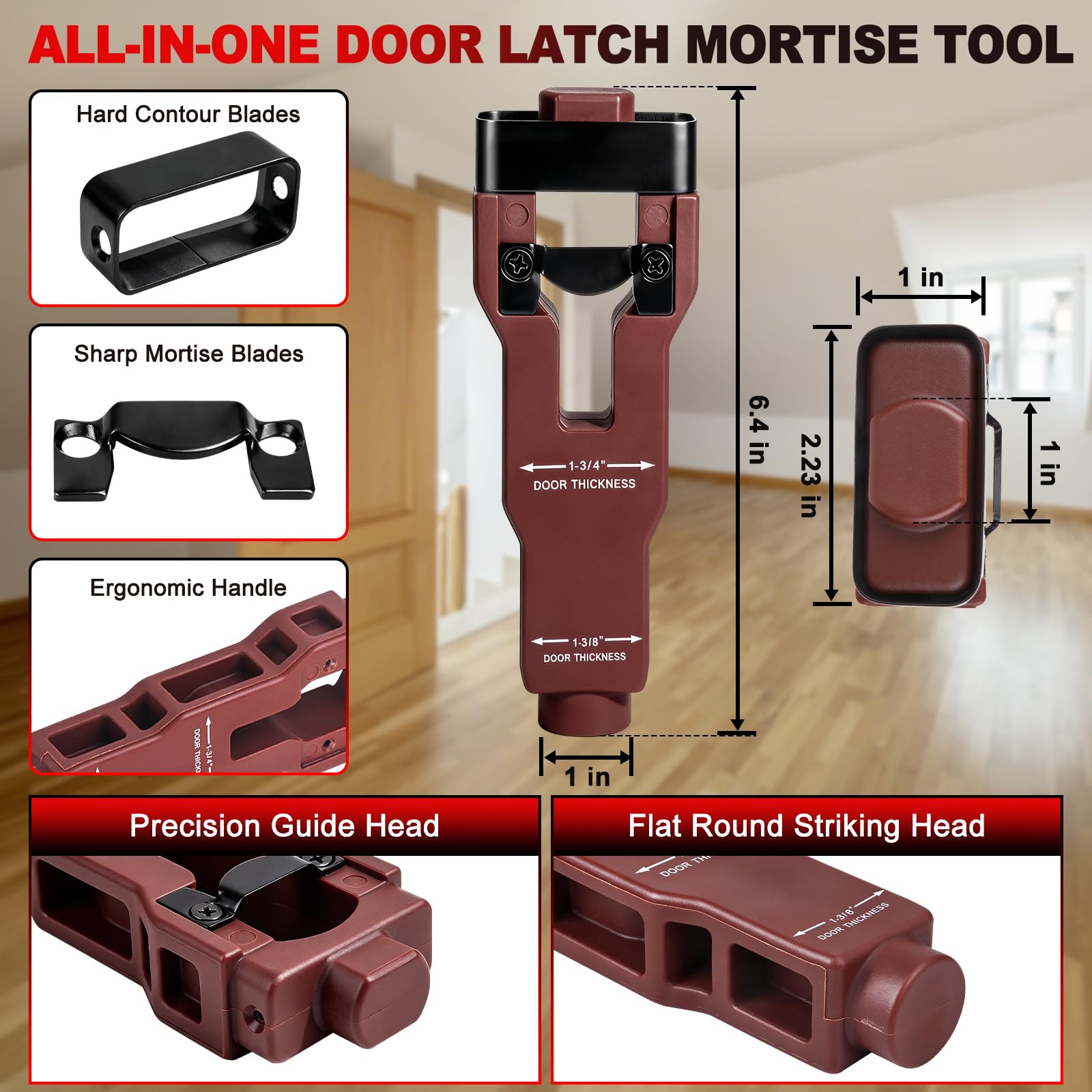

• 1 door latch installation kit for aligned latch mortises
• 3 user manuals for clear step by step guidance

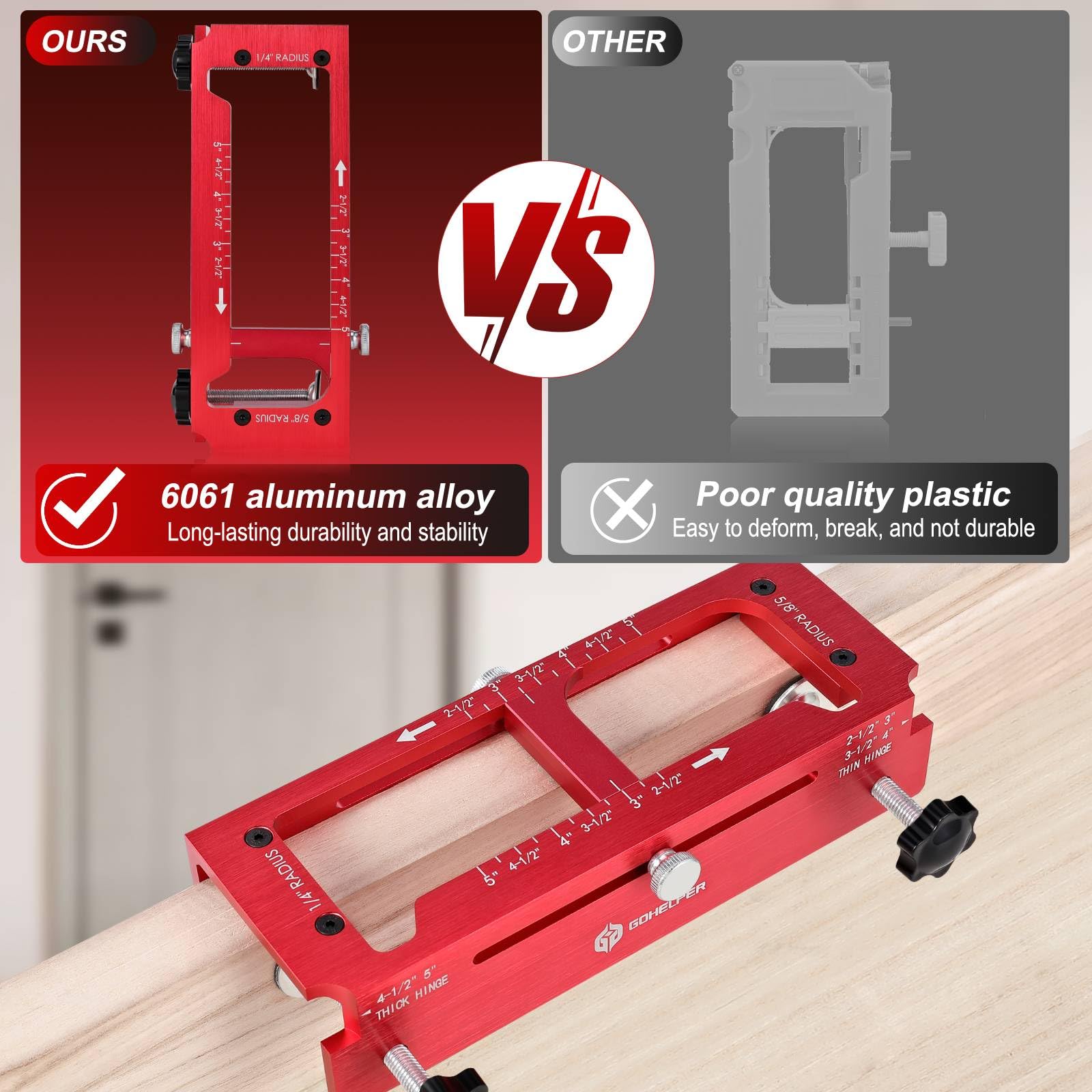

• Durable 6061 aluminum offers greater resistance to bending and warping than plastic models
• Built in depth stop and non slip pads support consistent, scratch free cuts
• Lightweight template design and adjustable components speed up setup on standard doors

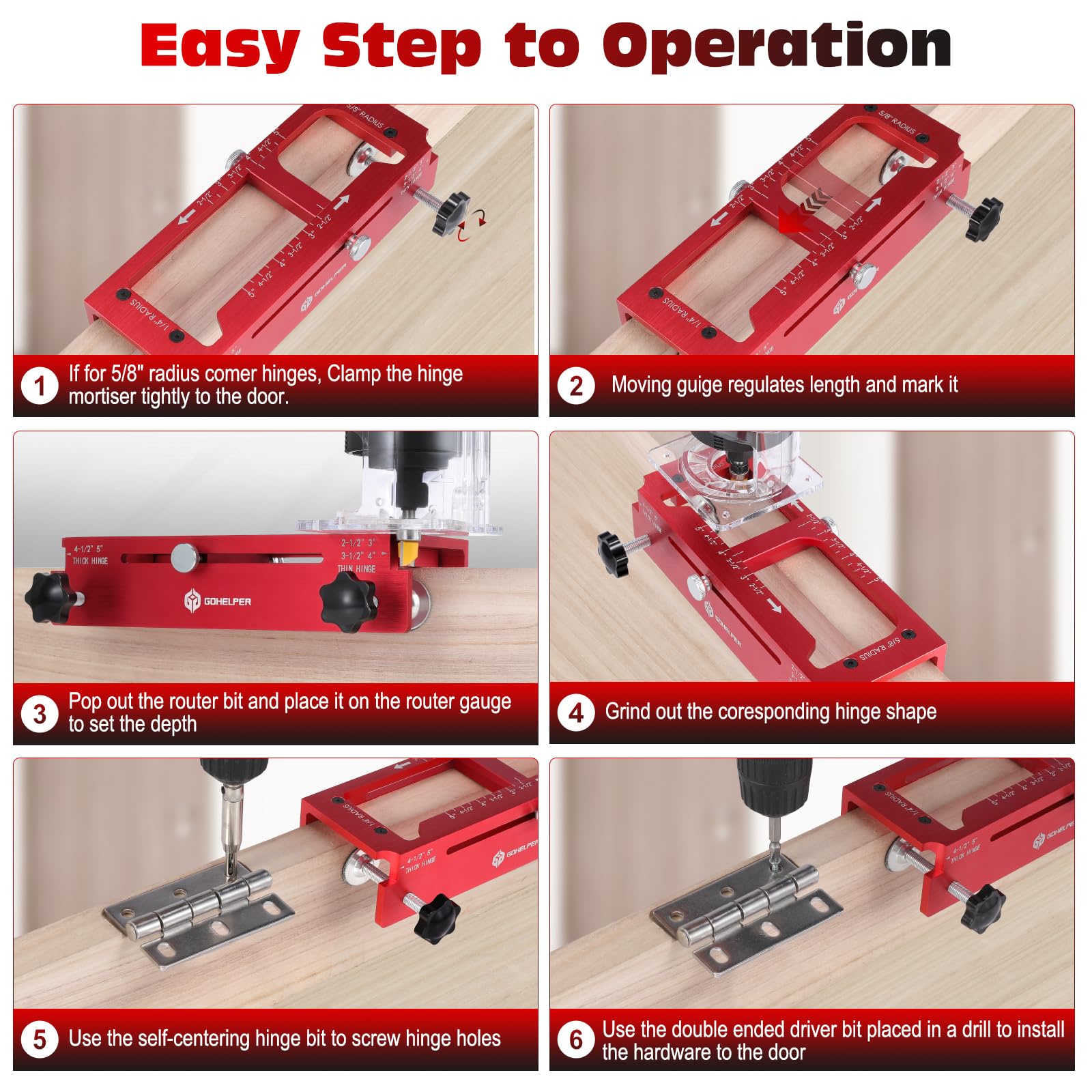

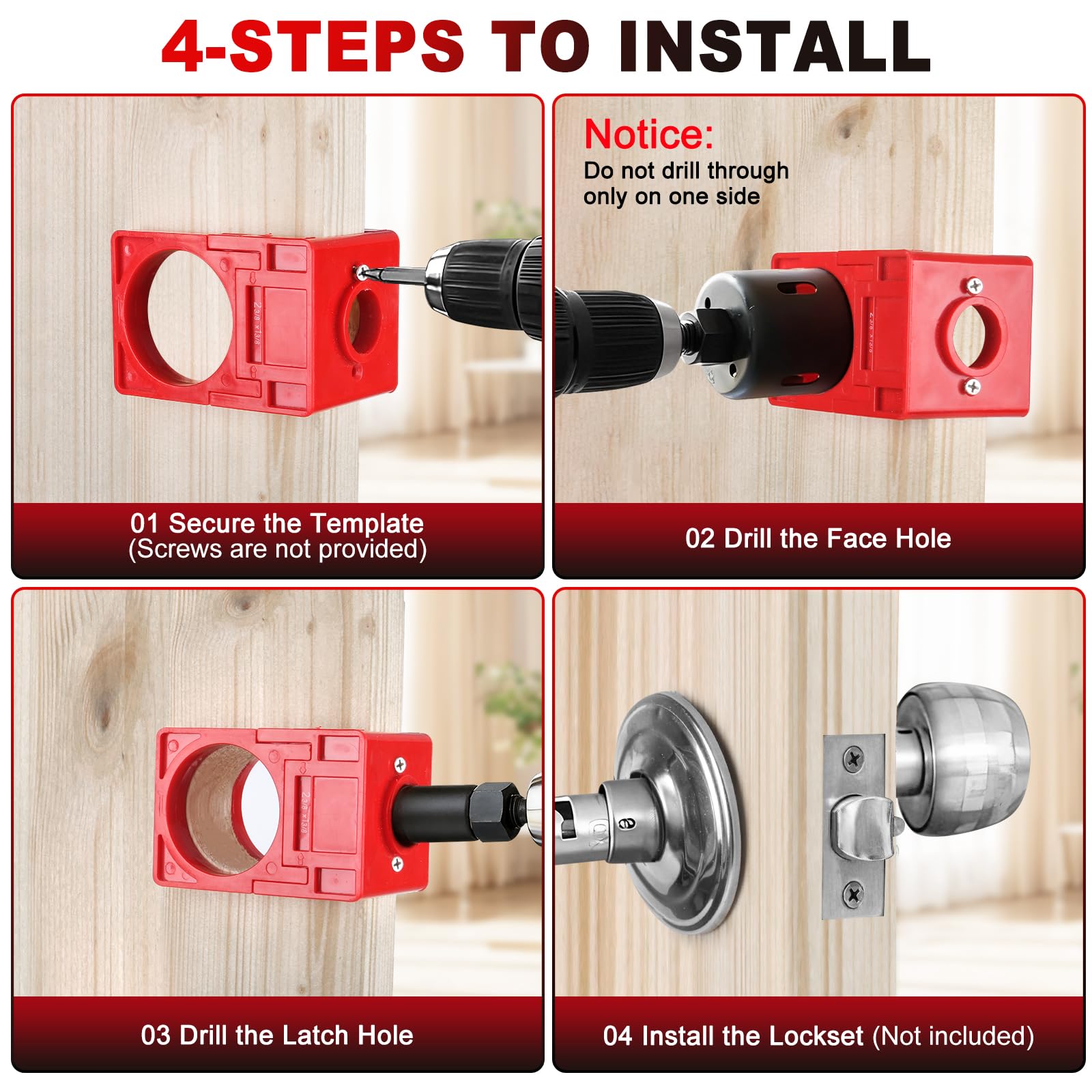

Real world use often starts with measuring the door backset, then mounting the template, and proceeding with the mortise and hole drilling in a single session. The combination of precision bits, guides, and templates helps maintain alignment through multiple steps, while the latch kit supports reliable engagement during door testing. For best results, perform a dry run on scrap wood to confirm alignment before working on the actual door.

Note for users: designed for use on the door leaf only, not on the door jamb. If you are working with dense hardwood or unusual dimensions, take a moment to verify compatibility and consider a test cut first. This approach can help you achieve clean lines and a professional finish without pressuring outcomes.
