Flange Wizard Magnetic Centering Head – Small, Medium, Large Pipe Alignment

Precision in every mark

Meet the Flange Wizard Magnetic Centering Head family, engineered to simplify pipe alignment with magnetic centering that stays put as you mark, clamp, and weld. The result is a smoother workflow, fewer repositions, and cleaner joints in tight spaces. Designed for versatility, this tooling line adapts to a range of projects from serviceable joints on residential systems to larger industrial installations.

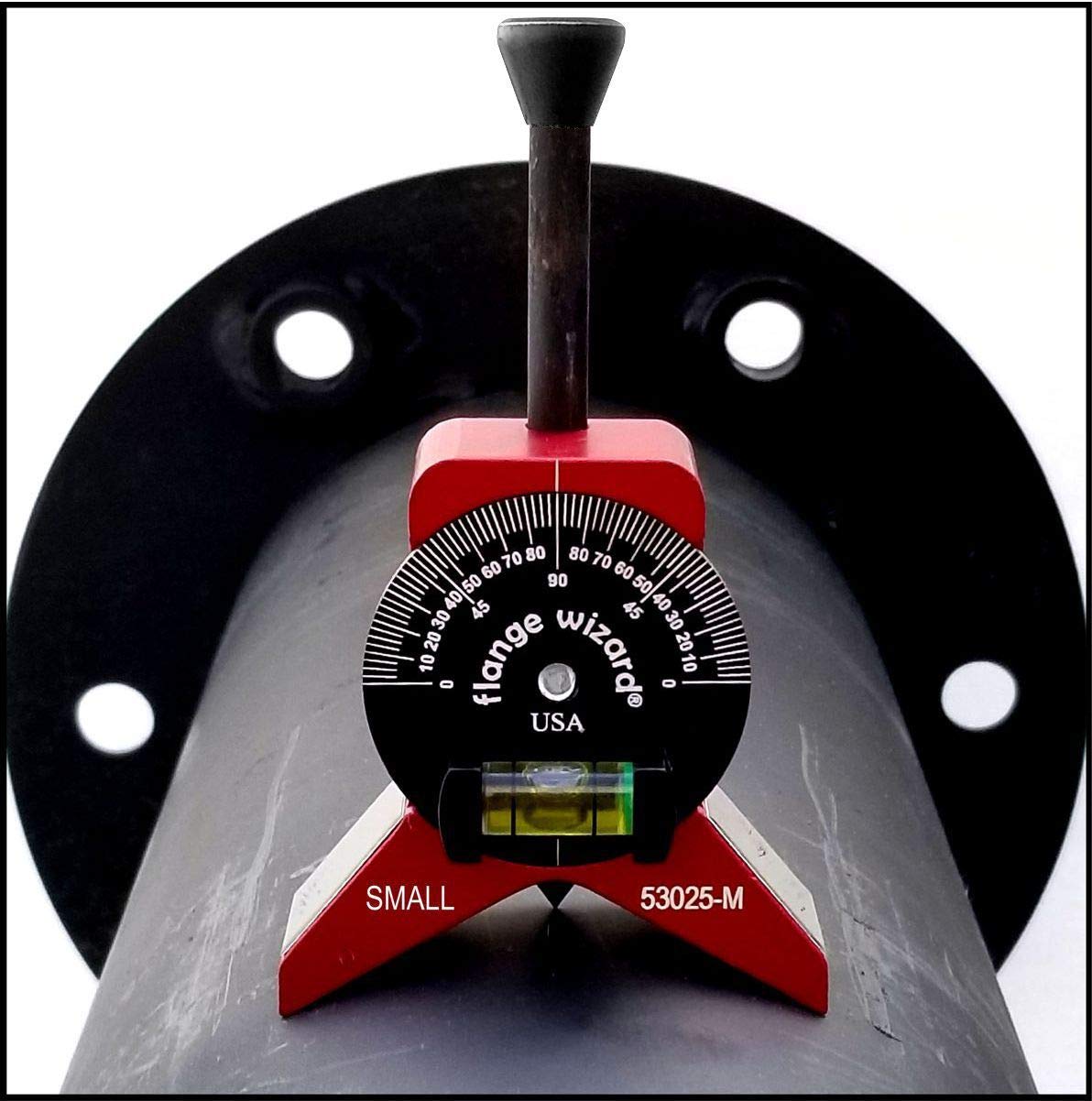

Starting with pipes 1 inch in diameter and up, the small head is built for confined spaces where maneuverability matters. The mid-size 53076-M centers at any angle on pipes or tanks, making center-line marking straightforward even when you’re working at awkward orientations. The 53085-M Large model widens the reach to 12 inches and larger, featuring a wide, magnetic Y-shaped body and strong magnets that hold securely, freeing your hands for measurement, scribing, or tack welding.

Three configurations to cover different duties

• Small head: compact and nimble, ideal for tight spots on small-diameter piping where precision in close quarters matters.
• 53076-M Medium: centers at any angle on pipes or tanks 6 inches and larger, enabling accurate center-line marking and alignment.
• 53085-M Large: wide magnetic Y-shaped body for pipes 12 inches and larger, delivering secure hands-free positioning during setup and transfer of marks.

Practical uses across sectors

• Fire protection and industrial conduit work where reliable centering speeds up joint layout and reduces guesswork.
• Fencing, gates, and livestock enclosures where consistent center lines help ensure straight, true assemblies.
• Automotive alignment tasks, including protractor-level applications, to tidy up setup and measurement before welds or fittings.

What to expect in your toolkit

The Magnetic Centering Head family combines thoughtful ergonomics with dependable magnetic hold to support on-site accuracy without immobilizing your hands. The small model keeps you nimble in tight spaces, while the 53076-M and 53085-M expand capability for larger pipework and demanding layouts. Whether you’re aligning pipe flanges, marking center lines for tees and valves, or verifying alignment before a weld, these heads are designed to be a practical, no-nonsense helper that adds confidence to your workflow. Use them as a protractor-level aid on automotive alignment tasks, or simply rely on the magnets to hold steady while you transfer marks or verify geometry. The result is cleaner layouts and a smoother progression from measurement to assembly, with less backtracking and rework.
