FalconSupply HOM230 30A Double-Pole Circuit Breaker Kit Bundle | 120/240V, 10kAIC, UL Listed

OverviewSecure the precise electrical protection you need with the FalconSupply bundle featuring the genuine Square D HOM230 30 Amp double-pole...
Vendor: FalconSupply
$71.32
$71.32
Please hurry! Only 5 left in stock
Subtotal: $71.32
10 customers are viewing this product

Free Shipping

We offer free standard shipping to every province and territory in Canada.

Free Returns

Learn More.

Seasonal Shipping Delays to Outer Regions

Learn More.
FalconSupply HOM230 front view of a 30A double-pole breaker for 120/240V circuits.

FalconSupply HOM230 30A Double-Pole Circuit Breaker Kit Bundle | 120/240V, 10kAIC, UL Listed

$71.32
FalconSupply HOM230 front view of a 30A double-pole breaker for 120/240V circuits.
FalconSupply HOM230 side view showing plug-on compatibility with Homeline panels.
FalconSupply Homeline panel installation demonstrating a secure plug-in connection.
FalconSupply bundle includes cleaning wipe and screws for panel prep.
FalconSupply HOM230 label highlighting 10kAIC interrupting capacity.
FalconSupply 240V appliance application suitable for large household devices.
FalconSupply product with UL Listed and CSA Certified marks.

FalconSupply HOM230 30A Double-Pole Circuit Breaker Kit Bundle | 120/240V, 10kAIC, UL Listed

$71.32
Description
Description
x

Overview

Secure the precise electrical protection you need with the FalconSupply bundle featuring the genuine Square D HOM230 30 Amp double-pole circuit breaker. Designed for 120/240 volt systems, this breaker supports reliable dual-action protection for dedicated 240V circuits such as major appliances or sub panel feeders. This package blends authentic components with practical installation aids to help you tackle a professional replacement or upgrade with confidence.

Why choose this Homeline kit

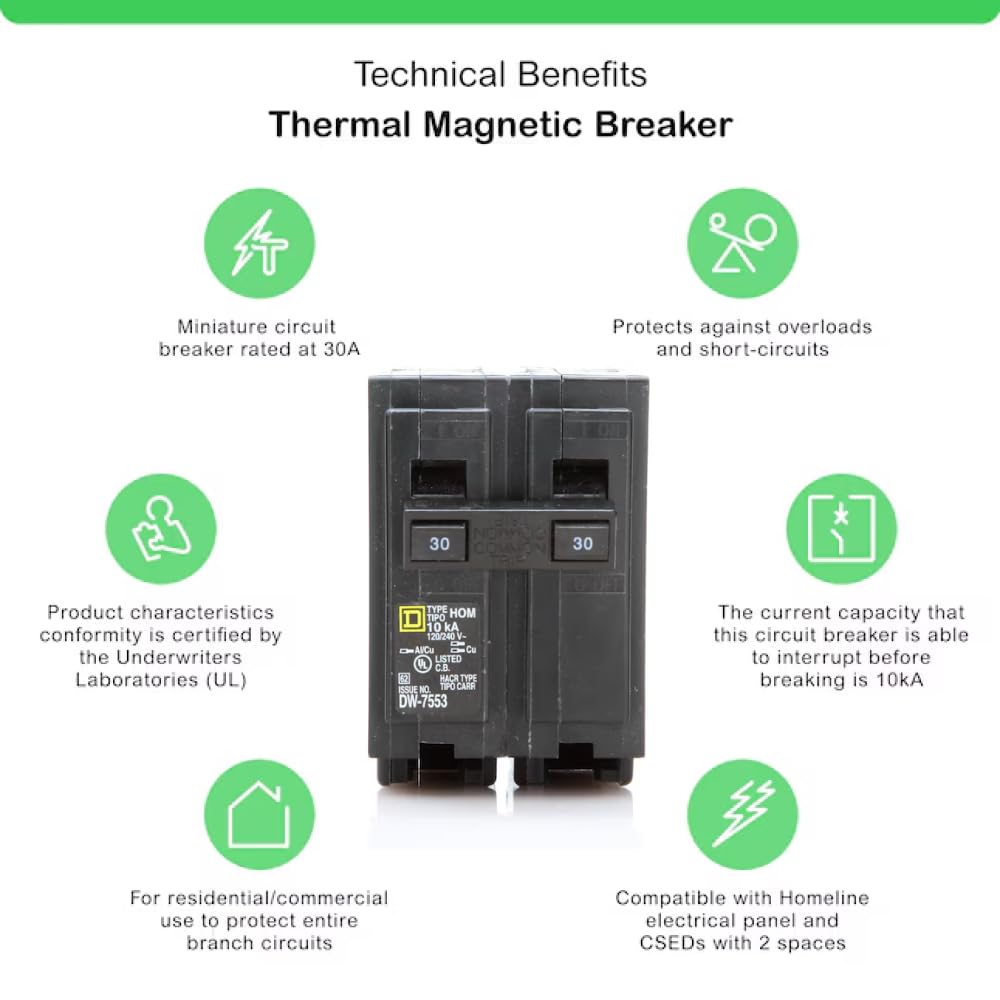

The HOM230 embodies Square D Homeline technology known for dependable performance and a secure plug-on connection. With a 10kA interrupting capacity, it is equipped to handle common fault currents encountered in residential settings. The plug-in design ensures a stable, quick connection to compatible Homeline load centers, making it a suitable choice for both electricians and capable DIYers working on 240V applications.

Key features include:

  • Genuine OEM breaker from Square D Homeline series, brand new and unused
  • Plug-on mounting for Homeline load centers, ensuring a snug fit with the panel bus bar
  • Rated for 120/240V AC, two poles, 30 Amps
  • 10,000 A interrupting capacity for residential protection
  • Accepts wire sizes #14-8 Cu or #12-8 Al

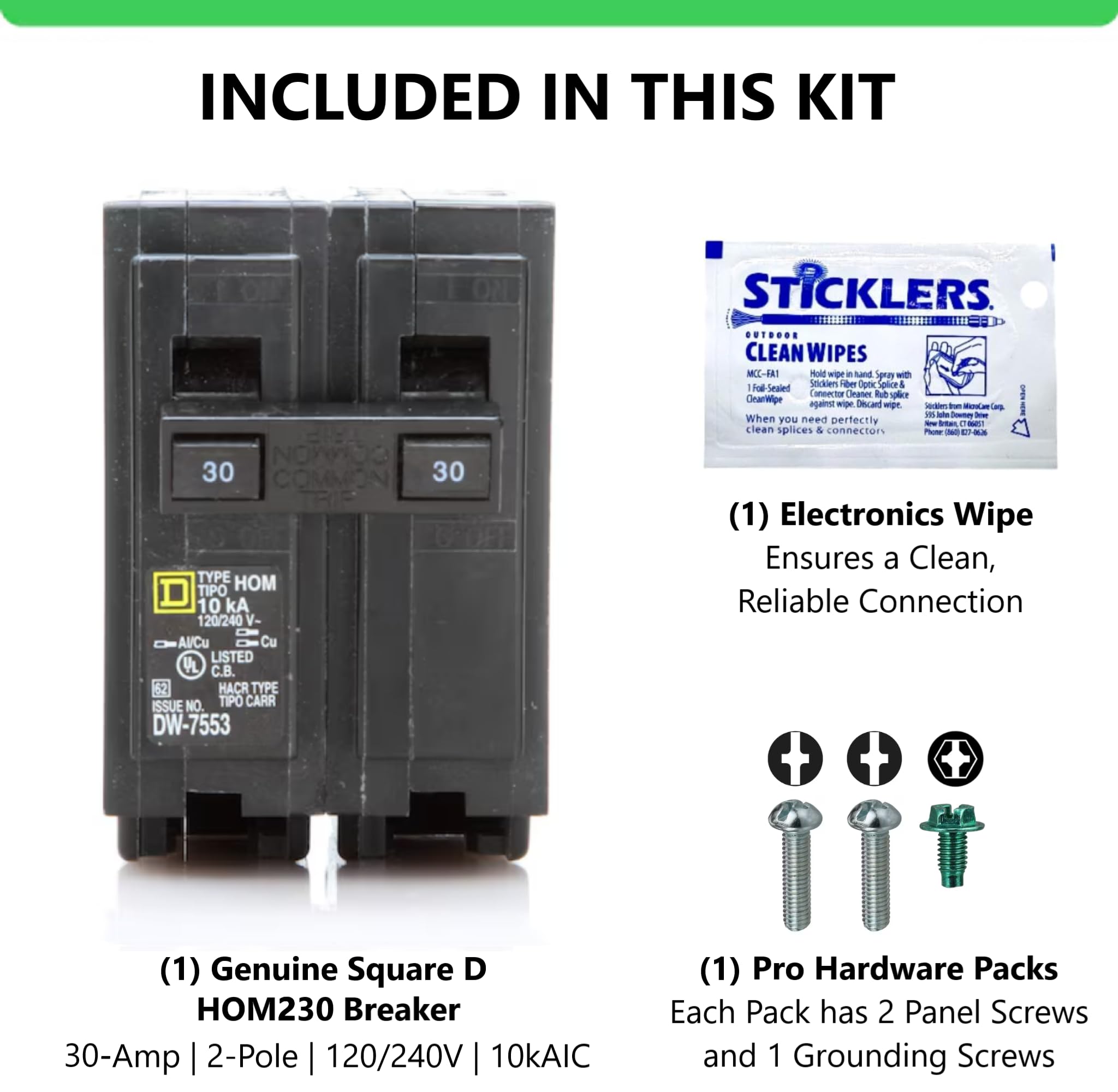

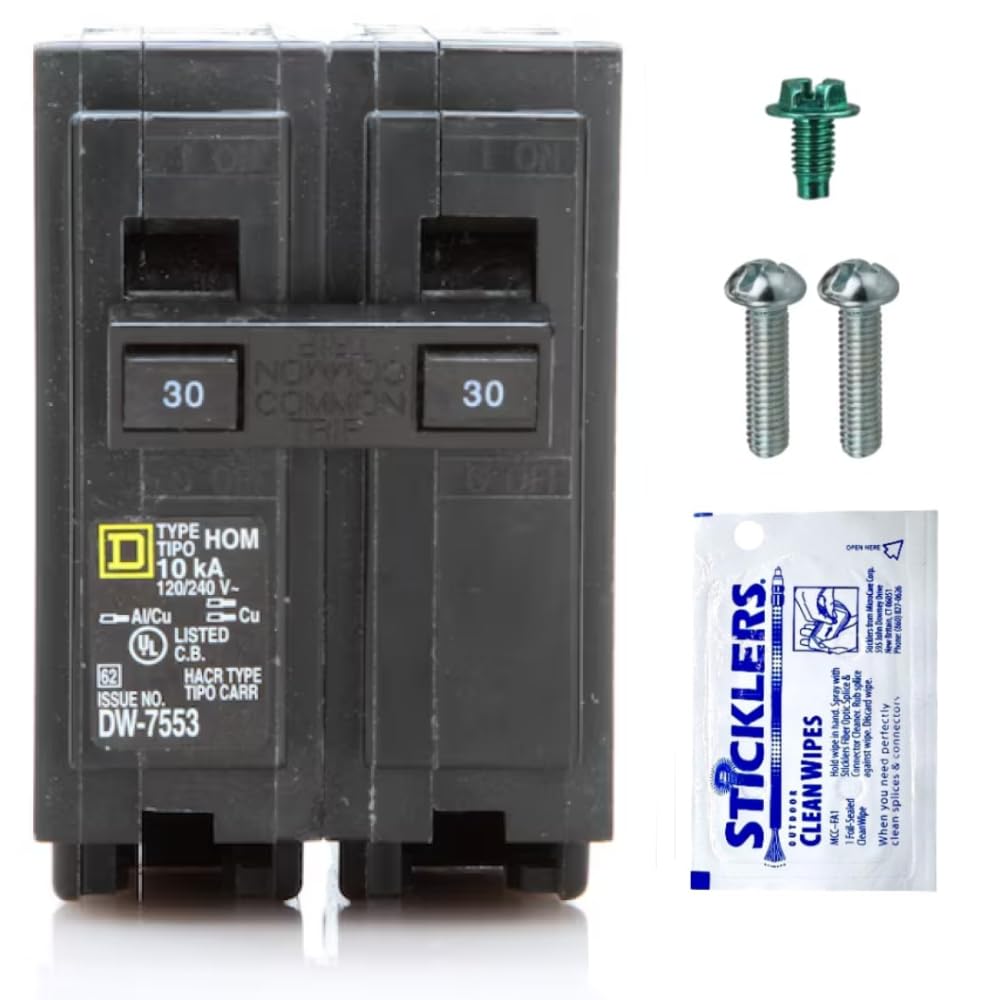

What is included in the bundle

  • One HOM230 30A double-pole circuit breaker
  • One electronics cleaning wipe for bus bar prep
  • Two panel screws
  • One grounding screw

Usage, compatibility, and safety tips

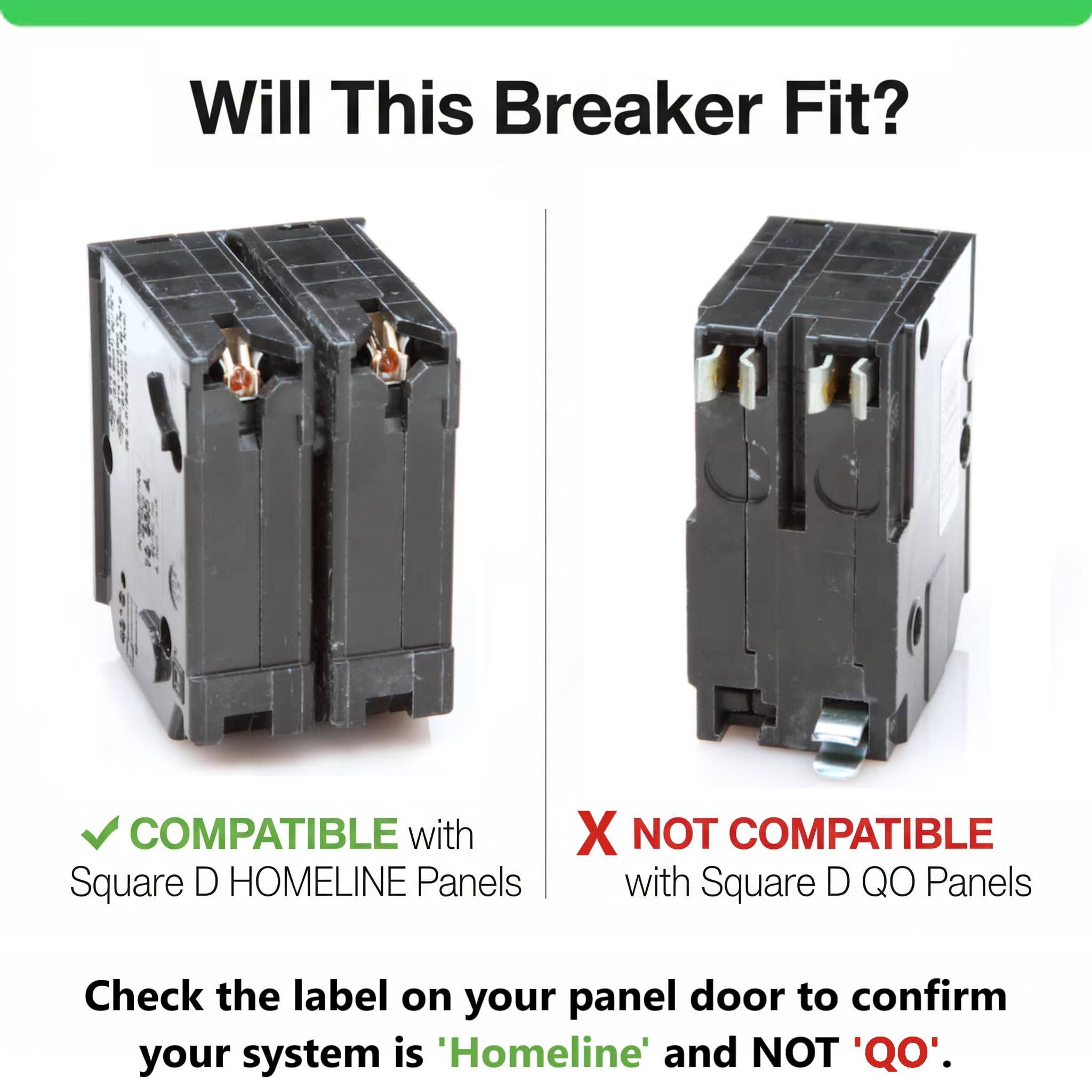

This 240V circuit breaker is well suited for powering large appliances such as electric clothes dryers, some water heaters, or sub panel feeders. It is designed for Homeline load centers and is not compatible with QO-series panels. Always align installation with local electrical codes and safety practices.

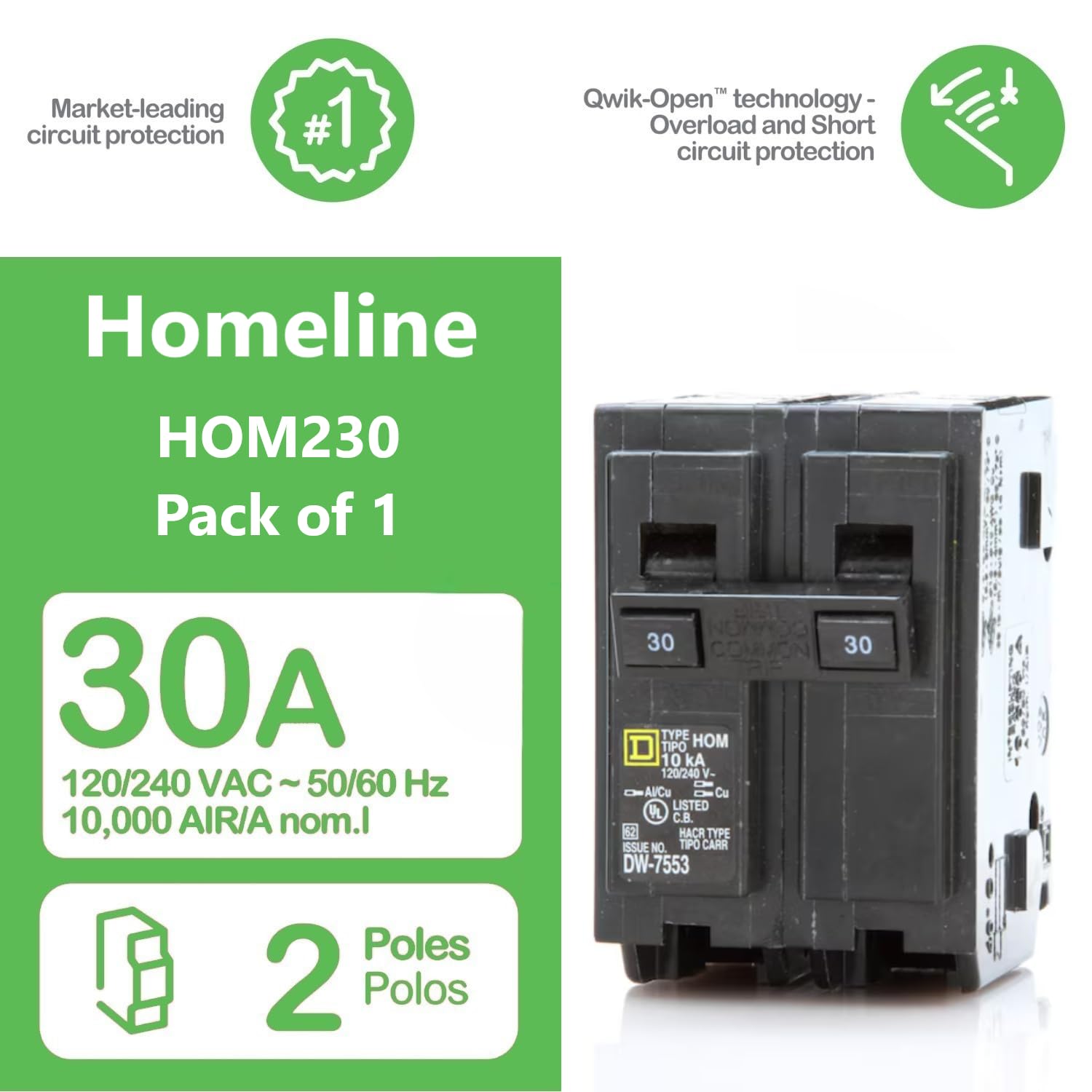

Technical snapshot

  • Model: HOM230
  • Amperage: 30A
  • Voltage: 120/240V AC
  • Poles: 2-Pole
  • Short circuit rating: 10kAIC
  • Mounting: Homeline plug-in
  • Wiring: #14-8 Cu or #12-8 Al
  • Certifications: UL Listed, CSA Certified

With this FalconSupply bundle, you gain a ready-to-install unit plus practical accessories to help you finish the job efficiently and safely.

FAQ

Q: What is included in the FalconSupply HOM230 bundle?

A: One HOM230 30A double-pole breaker, a cleaning wipe, two panel screws, and one grounding screw.

Q: Is this breaker compatible with all Homeline load centers?

A: Designed for Square D Homeline panels with plug-on mounting; not compatible with QO-series panels.
