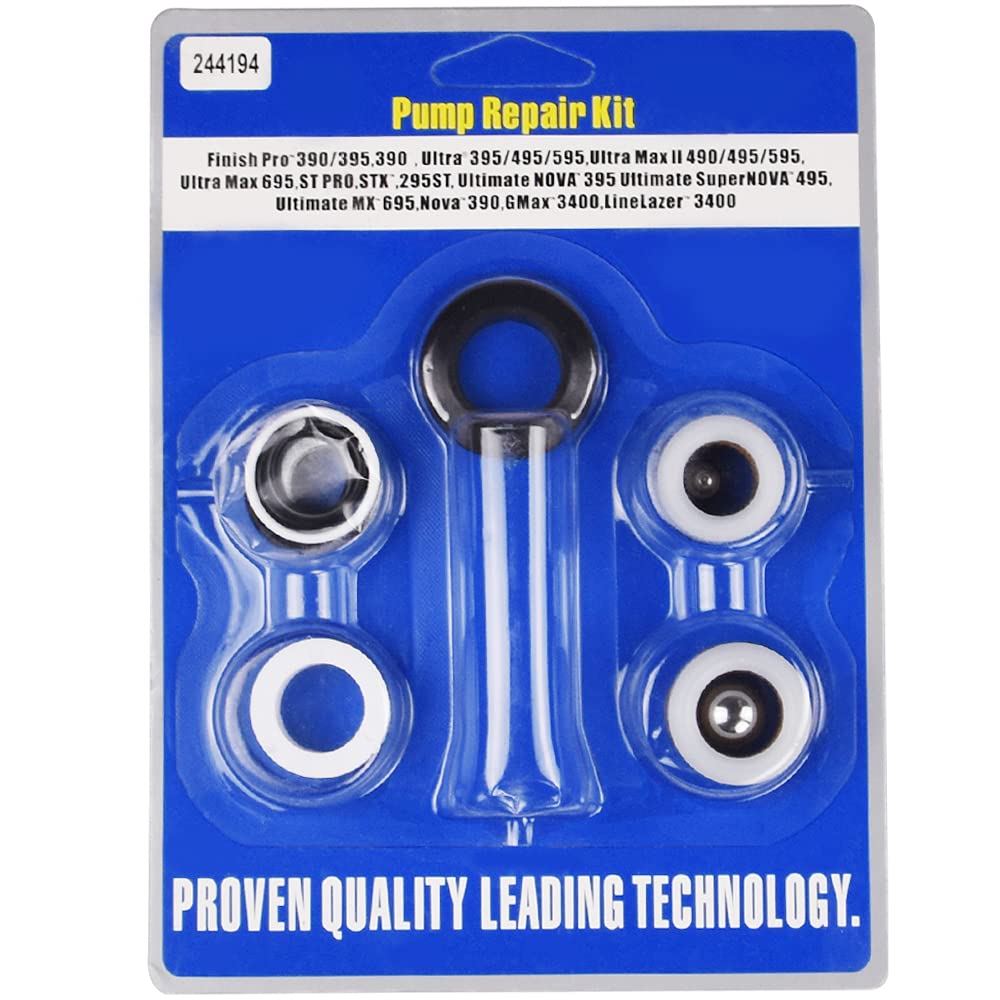

Every Family 244194 Pump Repair Packing Kit – Seals for Ultra Max II and LineLazer 3400

Keep Your Sprayer Performing at Its Best with Every Family 244194 Pump Repair Packing Kit

When it’s time to refresh a worn pump, the 244194 kit provides the essential seals and precision components you need to rebuild the pump assembly. This aftermarket pack is designed to target key sealing surfaces and moving parts, helping you restore smooth operation without replacing the entire unit. The kit emphasizes practical design, compatibility with popular spray systems, and a compact footprint that supports quick, on-site maintenance for busy shops or field tasks.

Designed for compatibility with widely used spray systems, it supports Ultra Max II models 390, 395, 490, 495, and 595, as well as LineLazer 3400 units. With four variant options available, you can select the exact fit to match your equipment. The kit combines quality materials with a compact footprint, so you can keep a dedicated repair pack in your shop or truck box for fast repairs between tasks.

What’s included and key materials

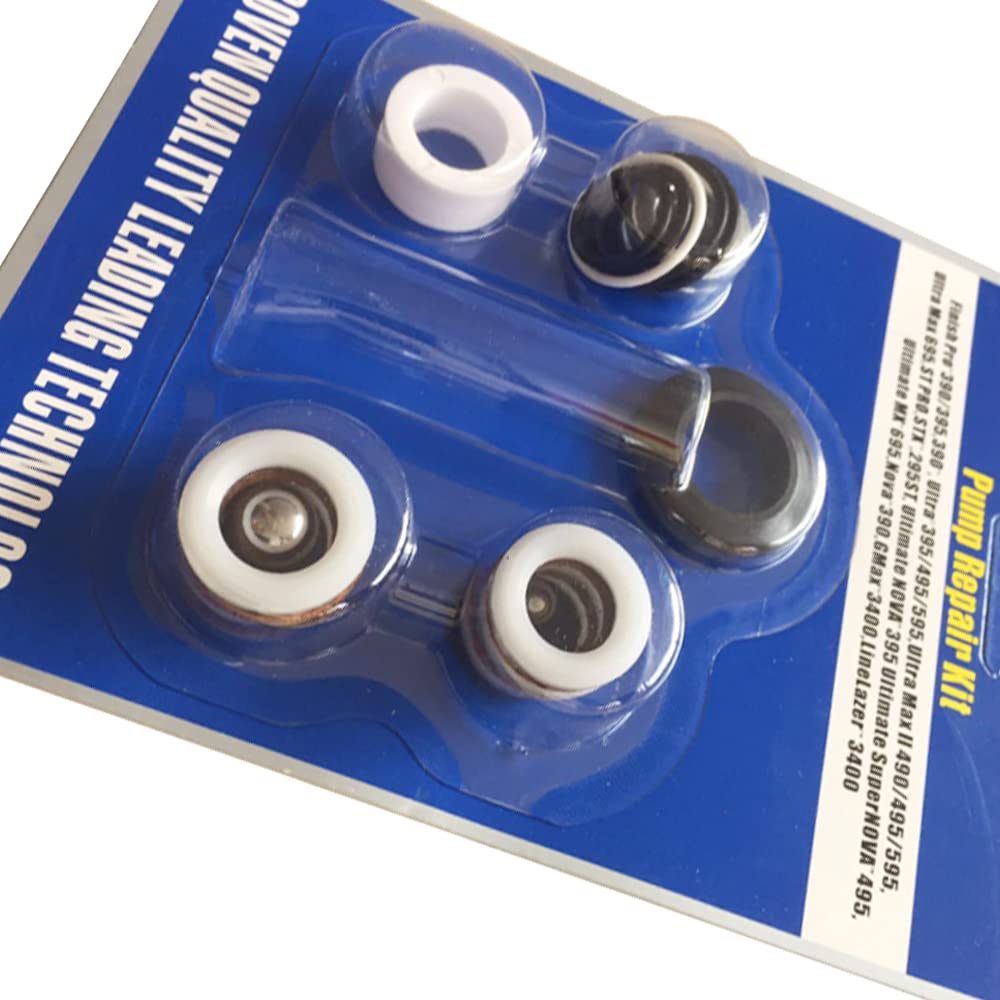

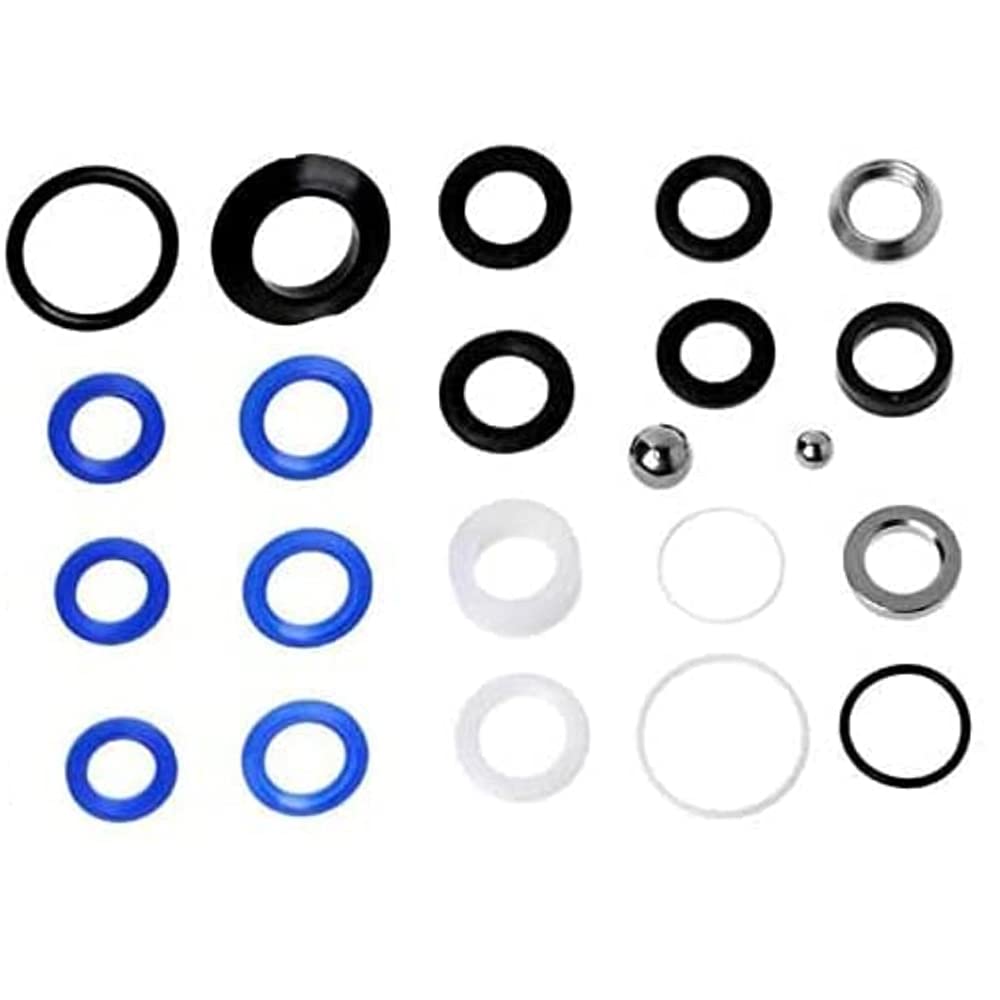

• All seals, gaskets, and machined components necessary to rebuild compatible sprayers
• Stainless steel valve body for robust durability and corrosion resistance
• Carbide seat and ball for long-lasting seating surfaces
• Silicone seals and gaskets for reliable sealing under typical paint formulations
• Plastic CAM and knob to support smooth operation and straightforward assembly

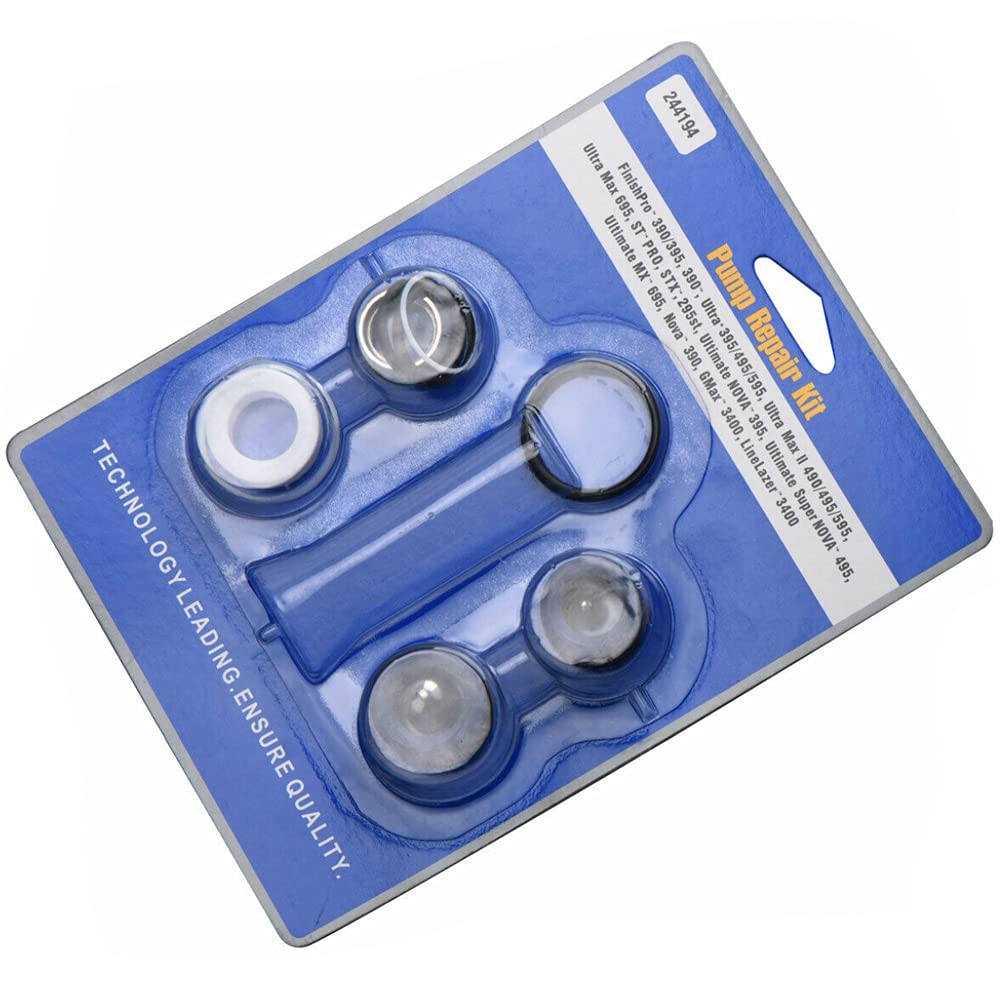

• Compact design that fits standard pump housings and helps you complete repairs quickly

Compatibility and variants

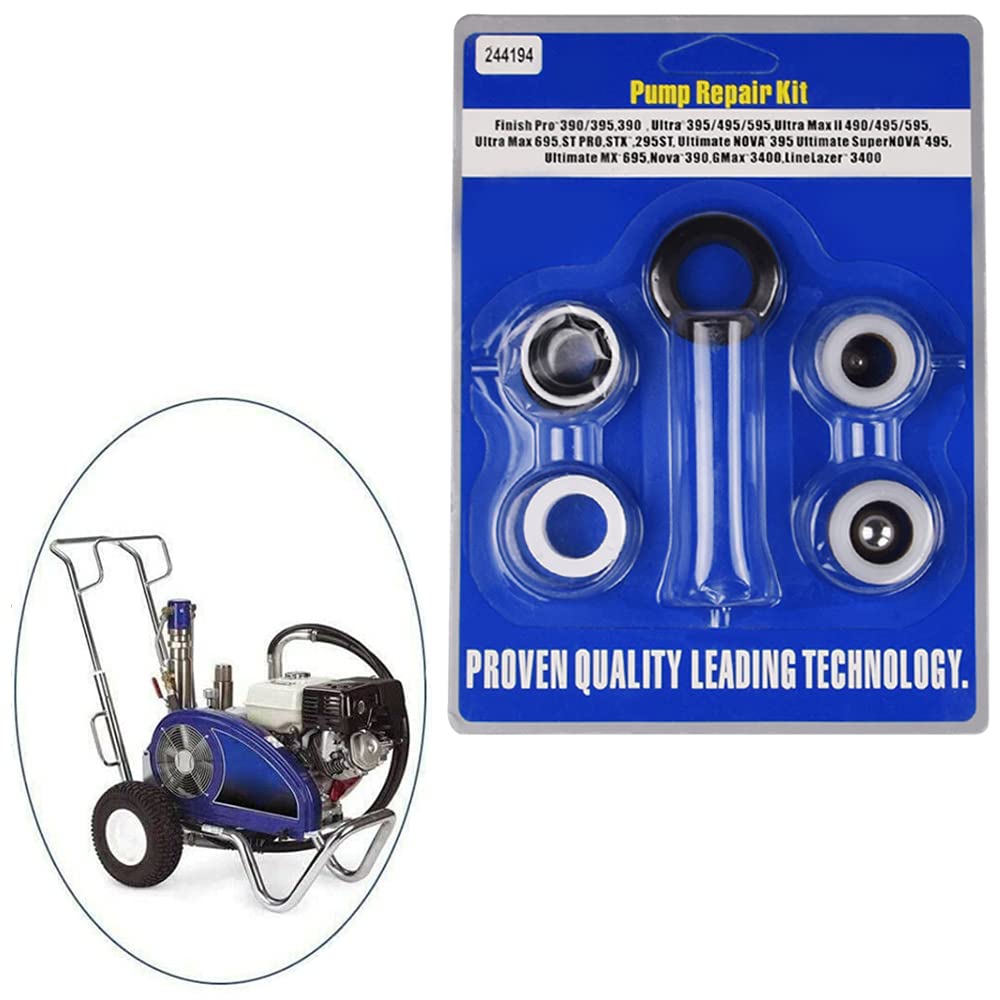

• Works with Ultra Max II sprayers: 390, 395, 490, 495, 595

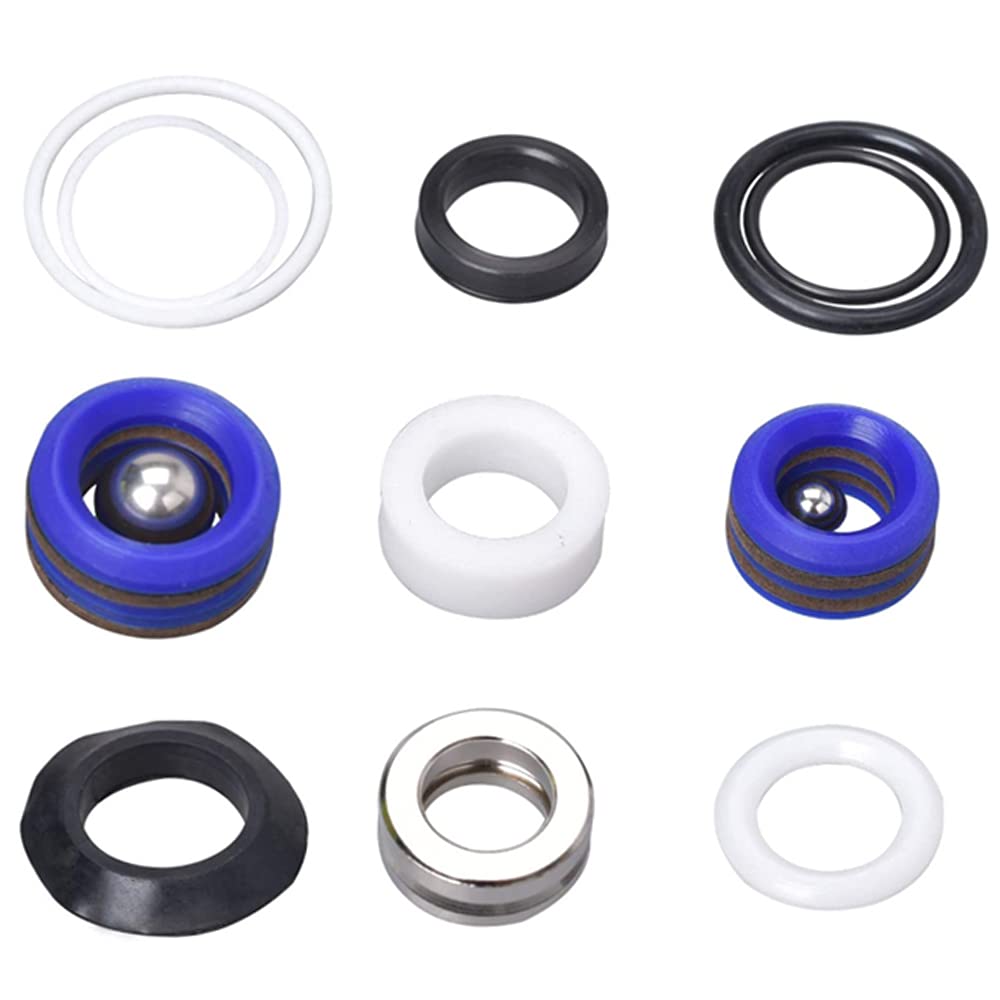

• Compatible with LineLazer 3400 models
• Four variant options to choose from: 244194, 248212, 248213, 249123

Materials, durability, and design rationale

The kit uses a combination of stainless steel for the valve body and carbide for the seat and ball, paired with silicone seals for reliable sealing surfaces. The CAM is plastic, offering a smooth interface for operation. This blend is chosen to deliver strength, precision, and ease of use, while maintaining a compact footprint suitable for field repairs.

Real-life usage scenarios

In a busy workshop, technicians can quickly swap worn seals between tasks, reducing downtime and keeping spray sessions on track. On-site, you may appreciate the lightweight kit that fits a tool bag and still delivers consistent rebuild results. The materials are selected for resilience in demanding environments, helping you keep your spray equipment ready for the next task.

Usage tips and recommended workflow

• Prepare the sprayer by releasing pressure and cleaning visible surfaces
• Disassemble with care, keeping track of part orientations
• Install the matching seals and components, then reseal and reassemble
• Test with a small amount of material to confirm seating and function

Why choose this kit

• Durable, corrosion-resistant construction from stainless steel and silicone
• Carbide seating components for stable sealing performance
• Compact, easy-to-use design that supports quick repairs
• Multiple variant options to match exact sprayer configurations

Our goal is to provide practical spraying solutions that fit real-world needs. If you’re unsure which variant matches your sprayer, we’re happy to help you select the right kit. Our team can confirm compatibility and support a smooth repair process, helping you get back to spraying with confidence.
