Emnrod T104M Mechanical Timer Switch Mechanism Only – 24-Hour DPST, 120V 40A, Heavy-Duty Pool Pump Timer

Overview

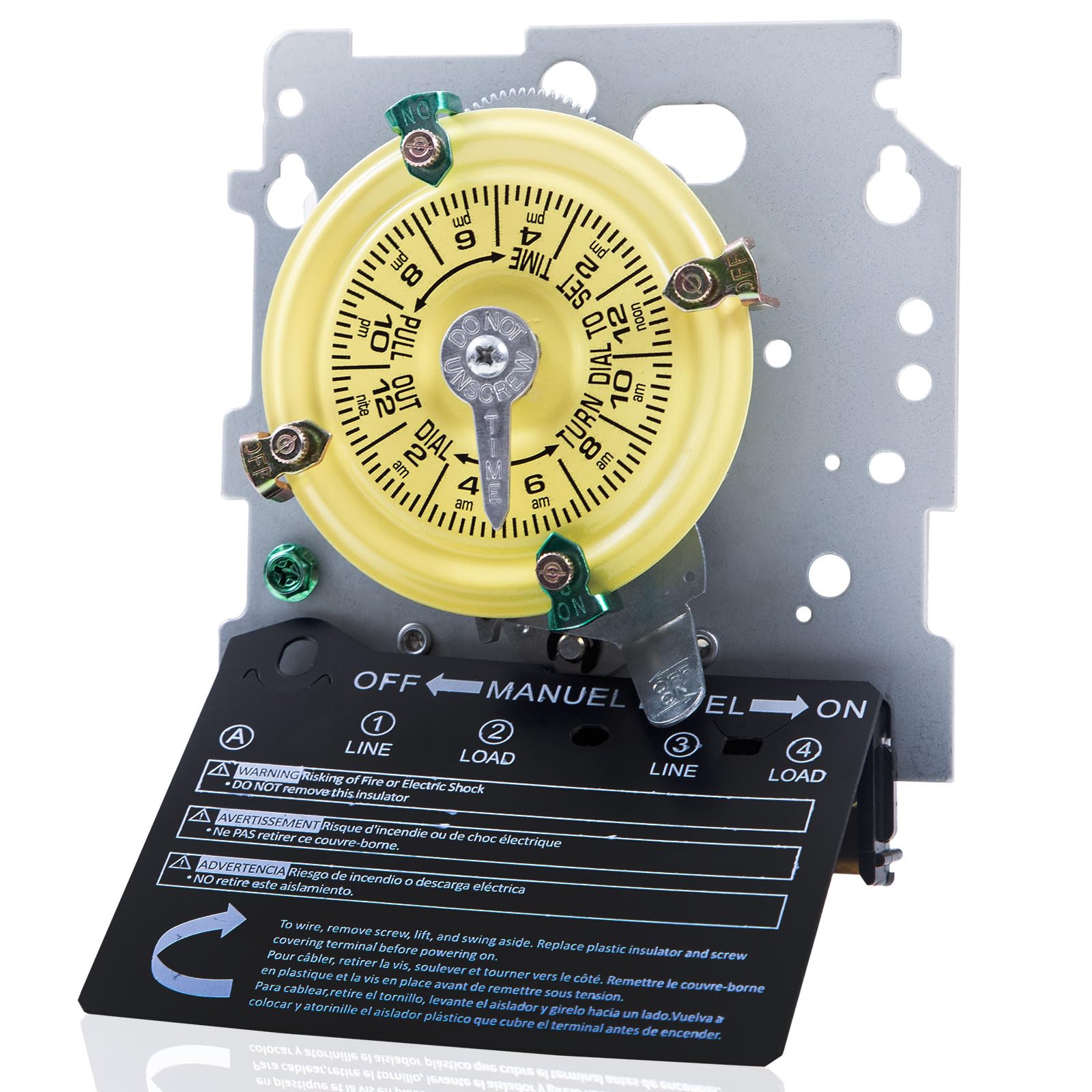

The Emnrod T104M is a rugged, mechanical timer mechanism designed to handle demanding duty cycles for high-power loads. While built as a versatile timing core, it is especially suited for pool pumps, water heaters, and other large residential or commercial equipment. It supports standard 240V installations and is compatible with 208–277V systems, making it a flexible choice for various electrical setups. With a resistive load rating up to 40A, this DPST (Double-Pole, Single-Throw) device provides dependable dual-circuit control for simultaneous, timed operation of two separate circuits.

Key benefits at a glance

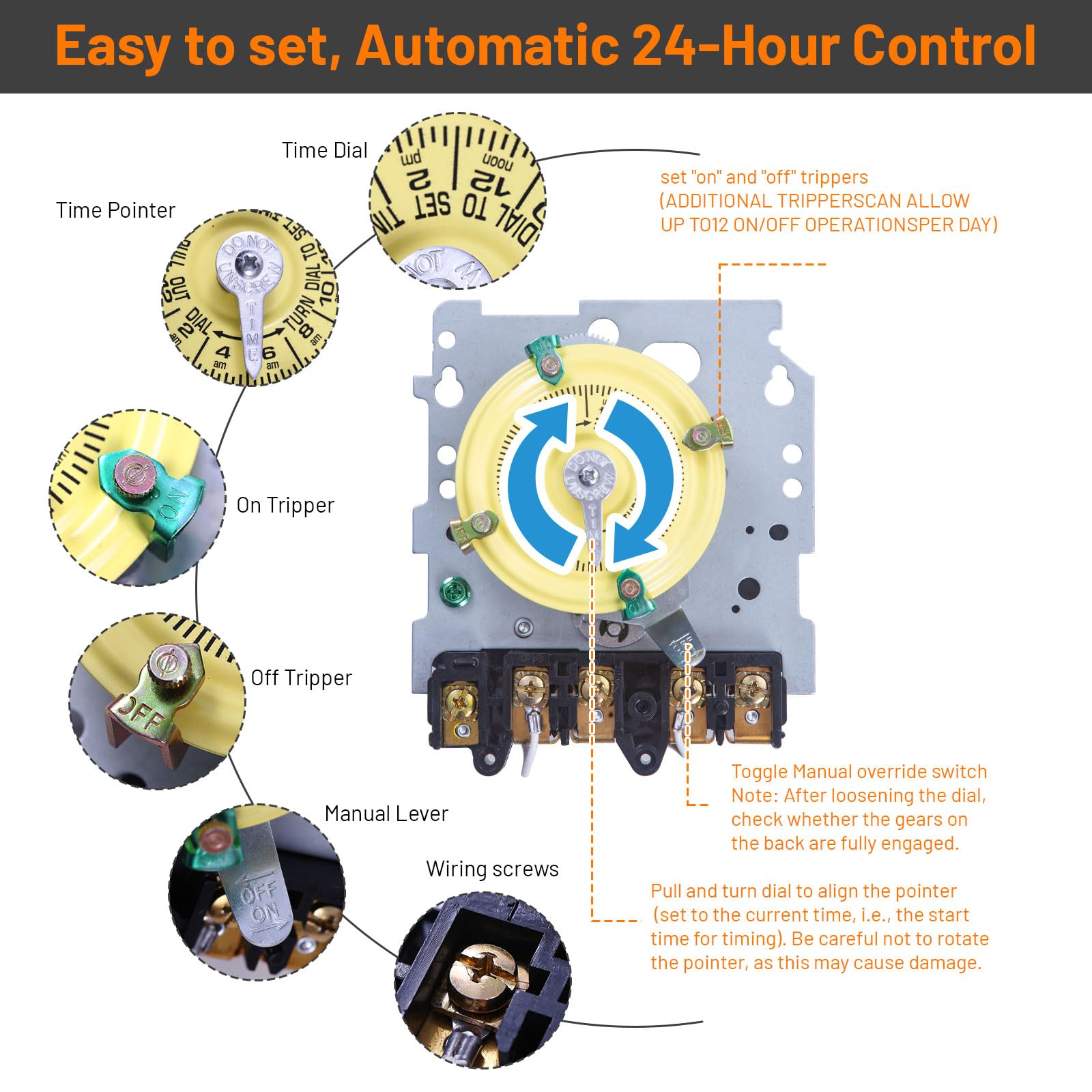

• 24-hour dial with four ON/OFF trippers enables up to 12 customizable cycles per day.
• Dial markings in 15-minute intervals for precise scheduling and easy programming.

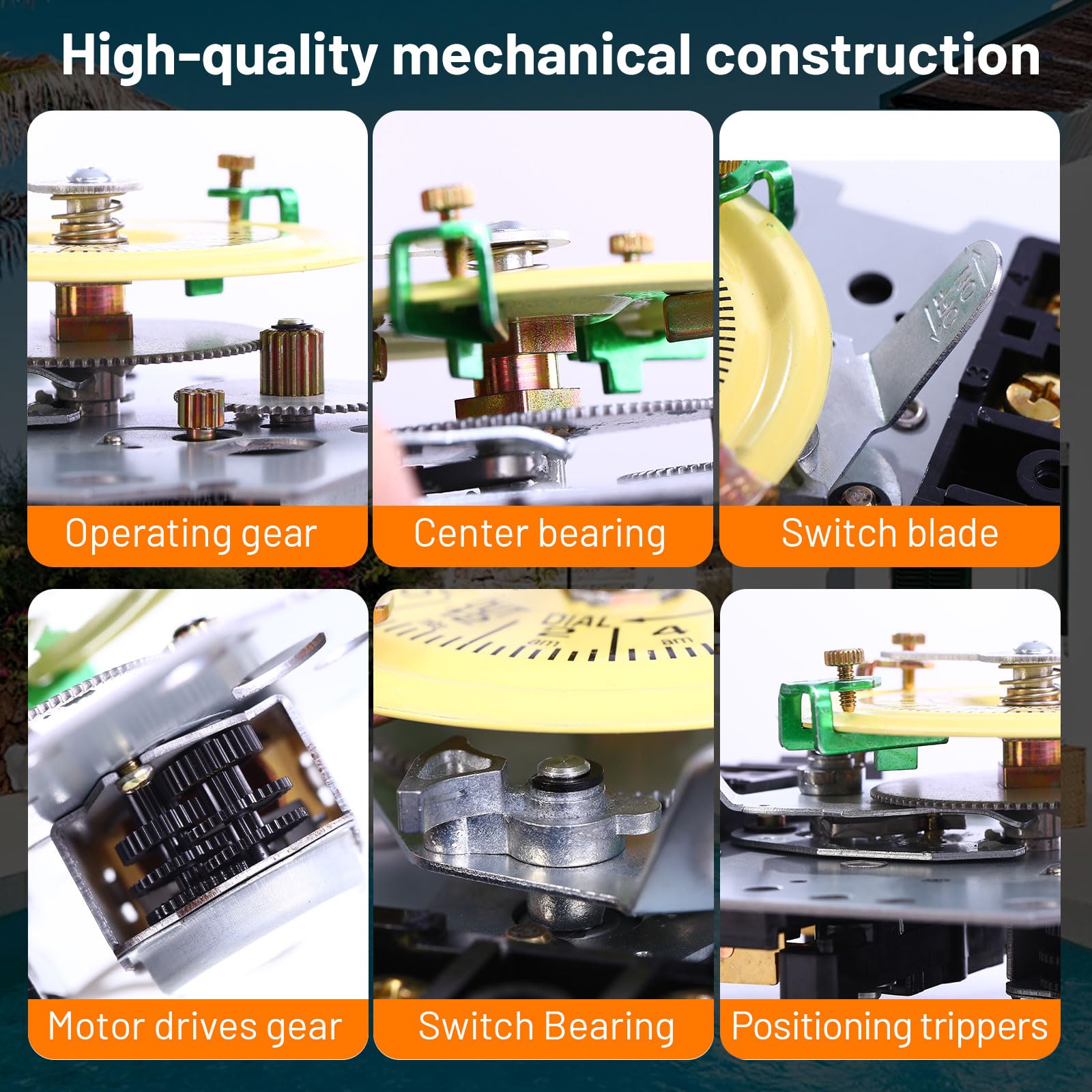

• All-mechanical design with upgraded pin connections and copper motor windings for durable, long-term use.
• Compact 240V timer mechanism with clearly labeled wiring diagrams to simplify installation.
• Versatile beyond pools: suitable for outdoor lighting, fans, signage, irrigation, and other controlled loads.

This mechanism is engineered for frequent switching and robust performance in demanding environments. Periodic maintenance of bearings and gears is recommended to keep operation smooth over time. If you’re unsure which model fits your setup, our support team is available to help with model selection and usage questions.

Real-world use cases

Pair the T104M with pool equipment to automate pump cycles, or use it to manage large water heaters and irrigation controllers. It’s also well-suited for outdoor lighting scenes, precise ventilation fans, or signage power drips where timed control improves energy management. The timer’s dual-circuit capability makes it convenient to coordinate two separate loads from a single device, reducing wiring clutter and simplifying control logic.

Installation and maintenance tips

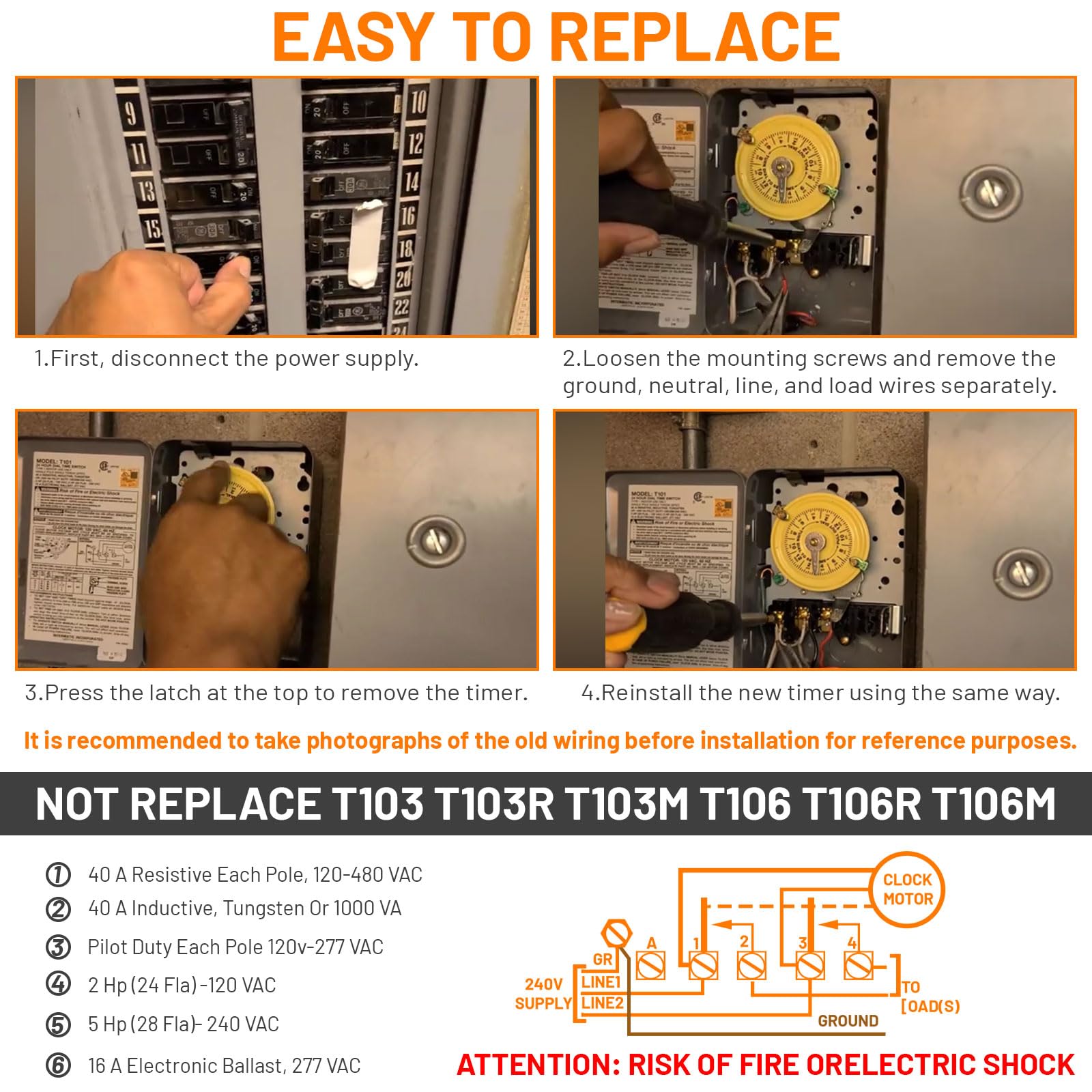

• Keep the unit’s wiring diagrams handy and photograph your existing wiring before swapping components.
• Verify compatibility with your voltage and load requirements before installation.
• Use the 24-hour dial and 15-minute markings to plan reliable, repeatable schedules.
• Periodically inspect bearings and gears to ensure smooth, quiet operation over time.

Need guidance? Our experts respond to inquiries within 12 hours, helping you confirm fitment and setup specifics. The T104M is a robust mechanism intended to be a dependable part of your control system for years of service.
