BINSTAK CNC Spoilboard Surfacing Router Bit — 1/4 inch Shank, 1 inch Cutting Diameter, Carbide

Overview

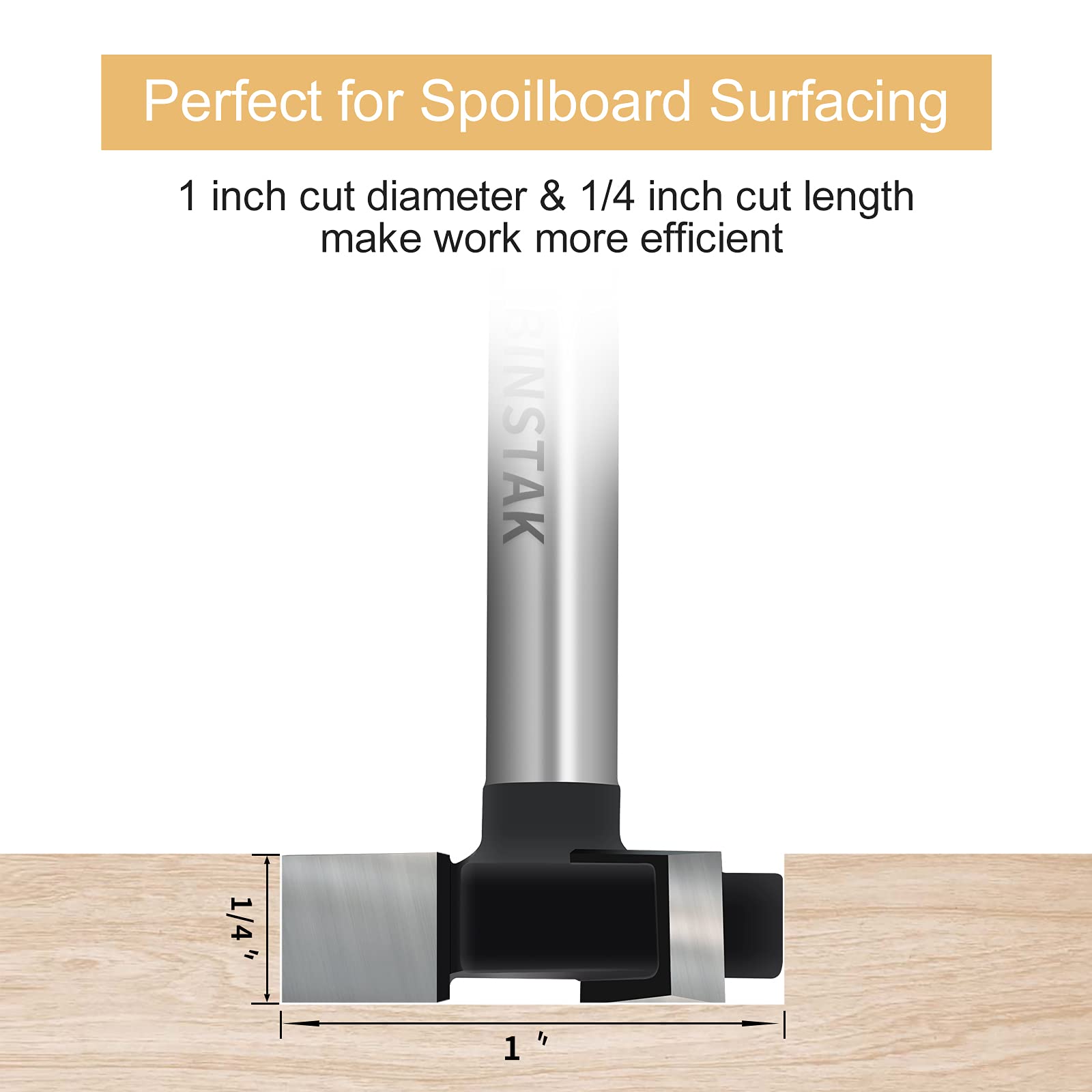

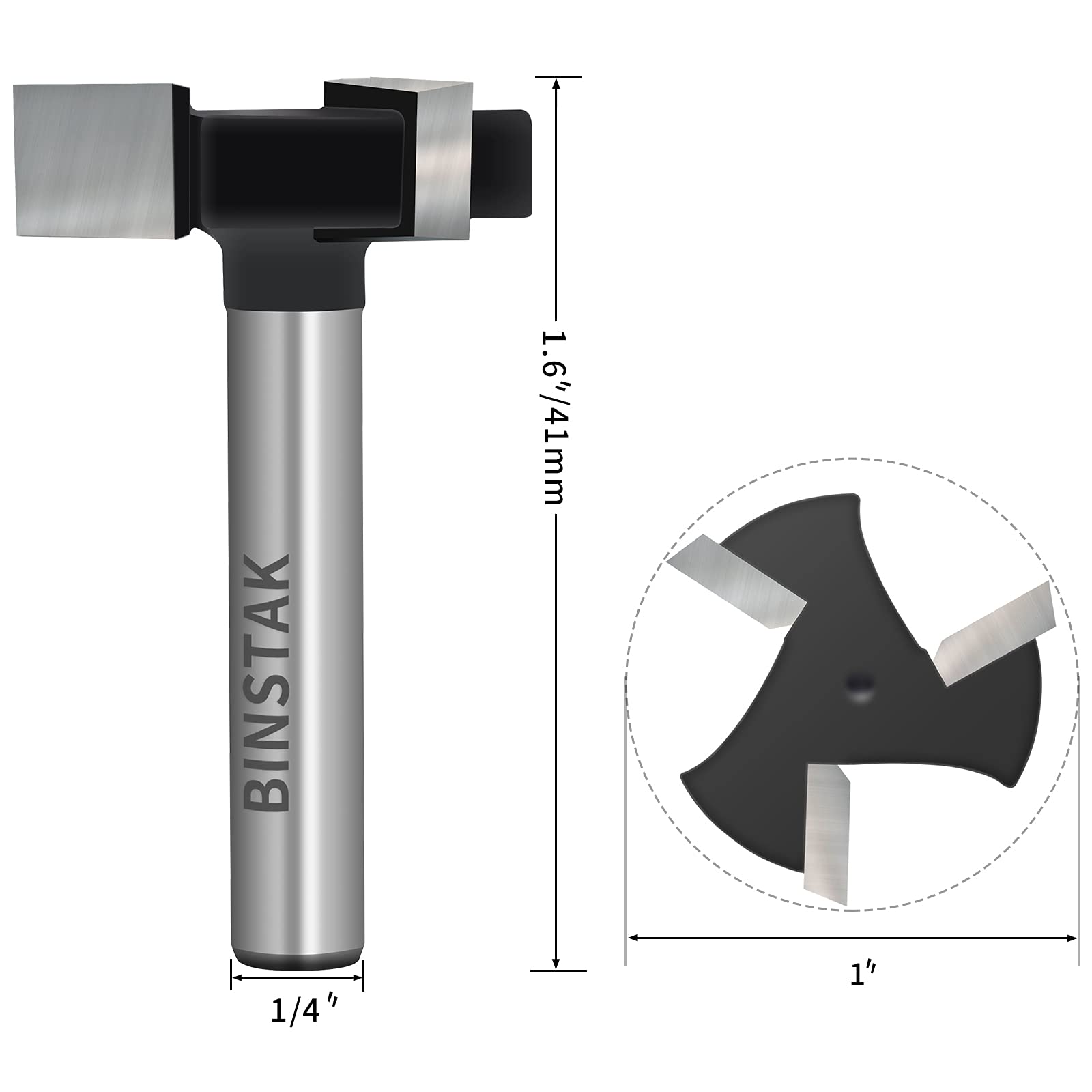

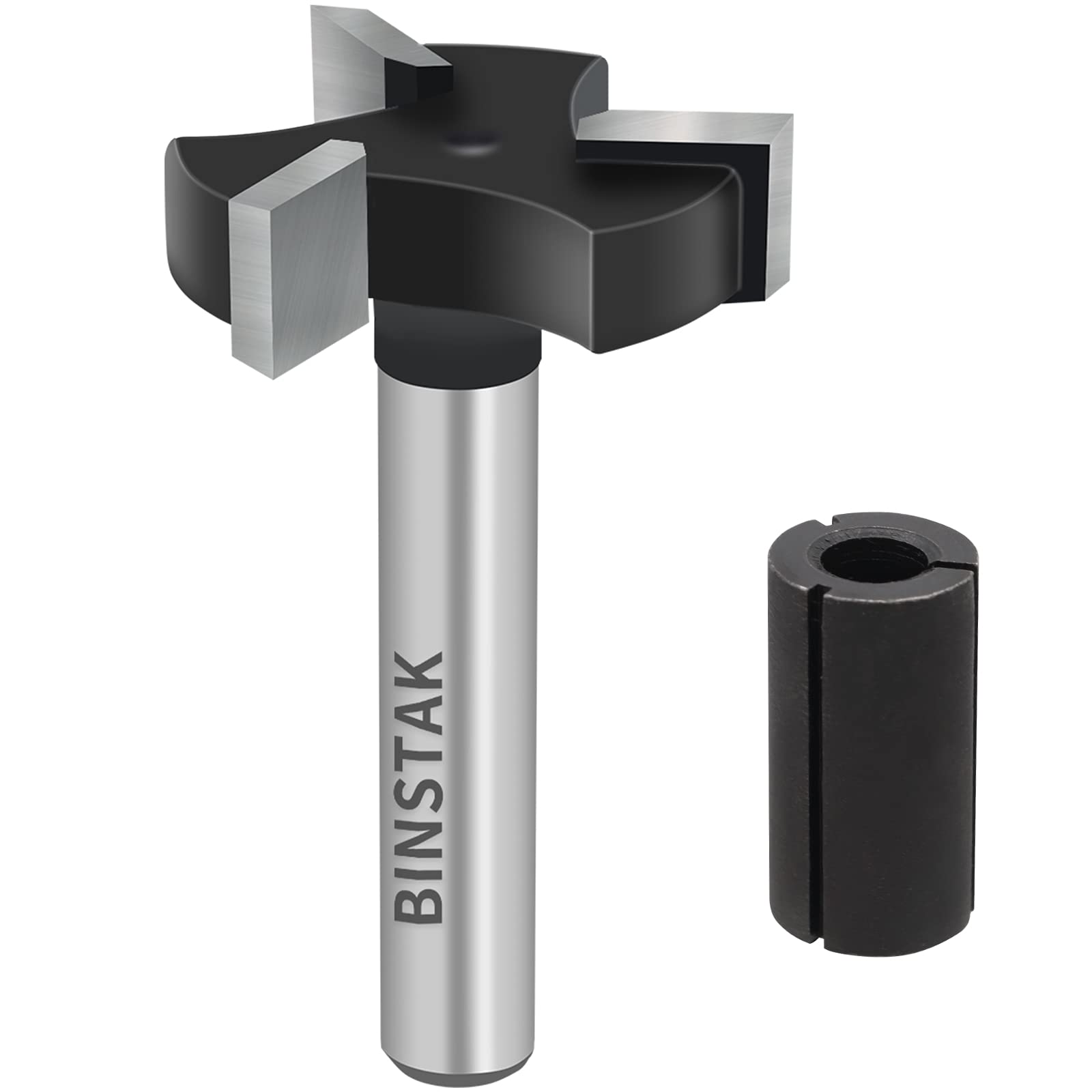

Meet the BINSTAK CNC spoilboard surfacing router bit, a robust carbide-tipped tool designed for flat, accurate spoilboard milling and planing tasks. With a 1/4 inch shank and a 1 inch cutting diameter, this bit is built for consistent depth control and smooth finishes across repeated passes in woodworking shops and hobby spaces.

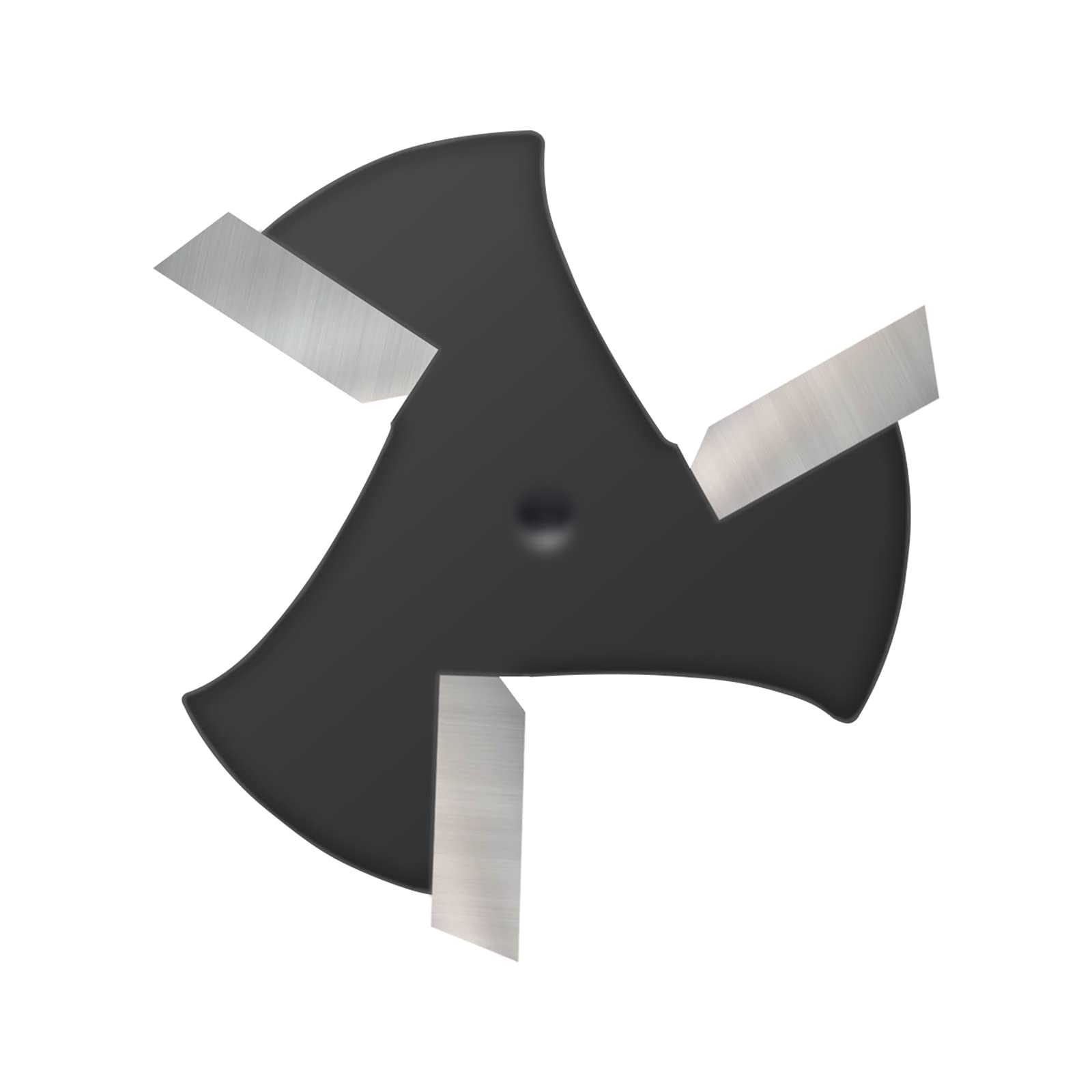

Its three-wing configuration delivers efficient material removal and stable cutting action. The hardened steel body includes an anti-kickback design to help maintain control during aggressive passes, while a heat resistant Teflon coating helps reduce resin buildup, making cleanup faster and easier after long sessions in the shop.

Key features at a glance

• Three-flute style for balanced cutting and smoother finishes across slabs and boards.
• Carbide tipped tip for long life and sharp performance under heavy duty use.
• Anti-kickback design minimizes wandering and chatter during plane passes.
• Teflon coating reduces resin adhesion and simplifies cleaning between jobs.
• Bottom cleaning edge ideal for flattening spoilboards and resurfacing the top surface.

Versatile applications

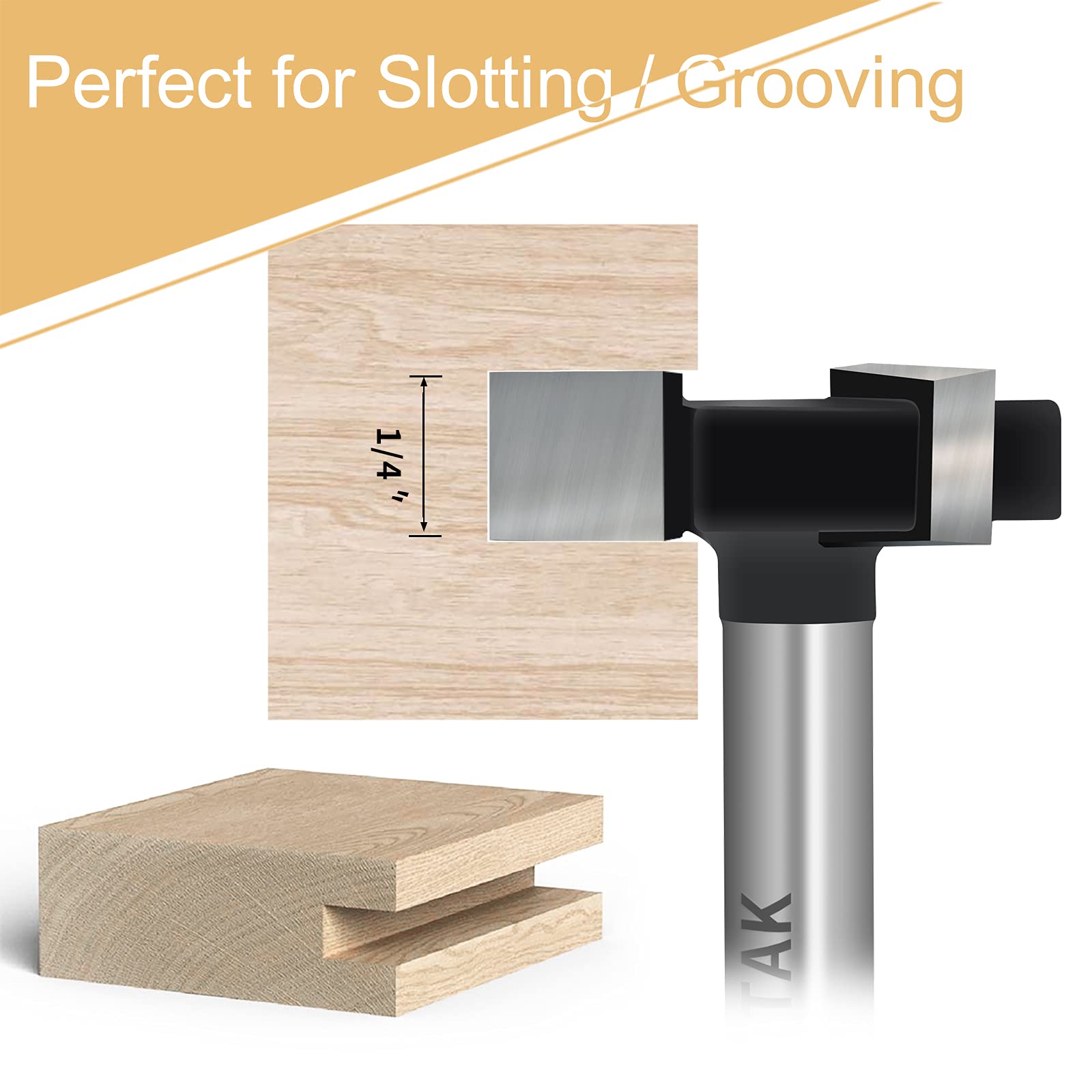

Although designed for spoilboard resurfacing, this bit handles more than flattening. It can trim and slot, plane the top surface, or perform light dadoing in solid wood, MDF, laminate, and plywood, as well as some acrylics. It is suitable for use on CNC routers, automatic machines, and handheld or table-mounted tools.

Materials and compatibility

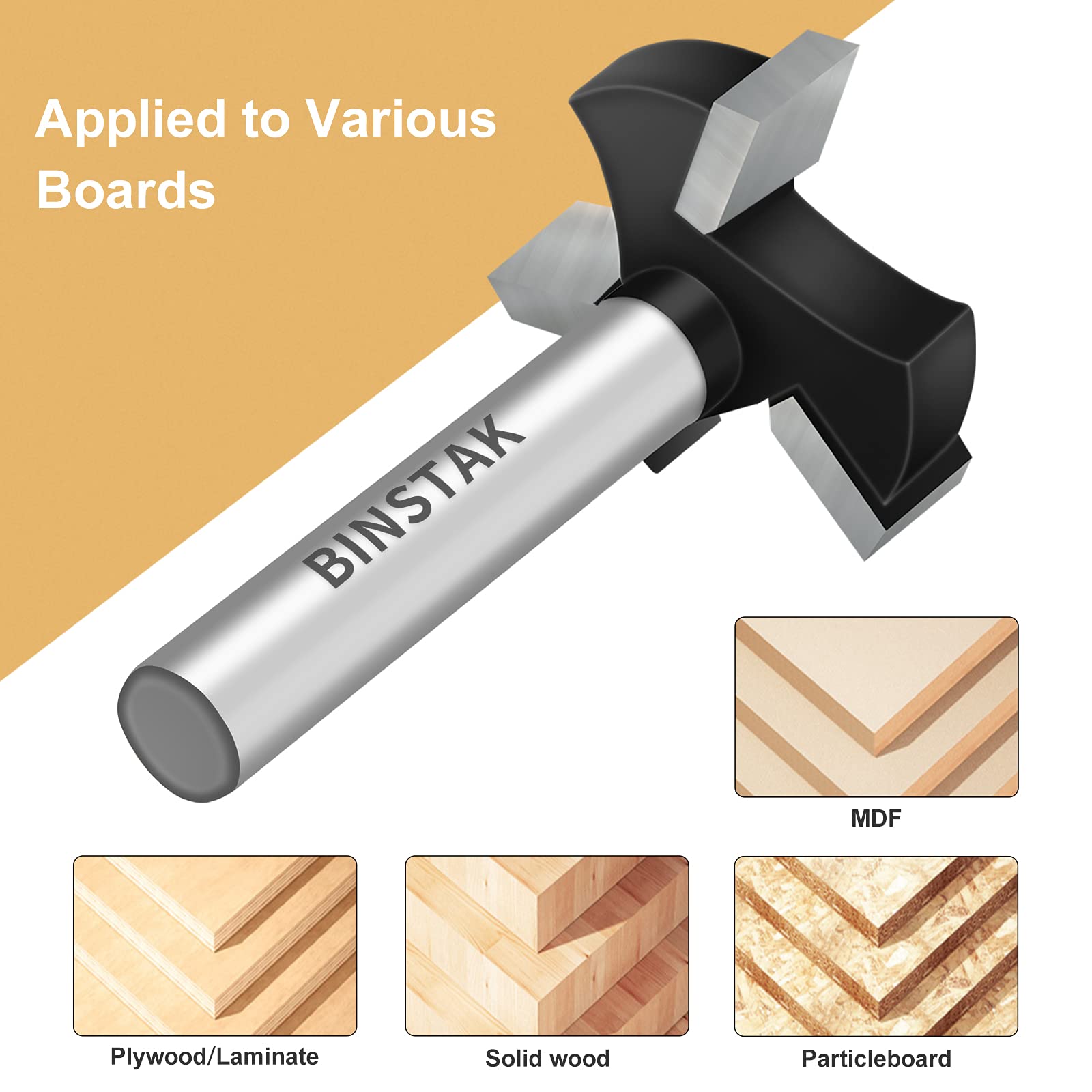

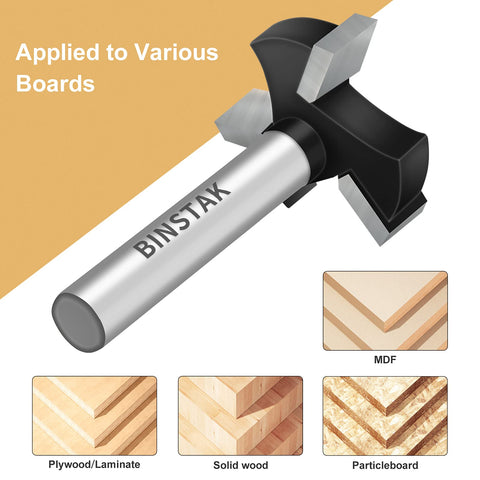

• Compatible with solid woods, MDF, laminate, particle board, plywood, and acrylic.
• Suitable for CNC routers and various handheld and automatic machines, including trimming and engraving setups.

Tips for best results

Feed rate and depth increments should be adjusted to material and machine rigidity. Start with shallow cuts, probe the surface, and then step down as needed to avoid chip-out or tear-out. Regularly clear resin buildup to maintain edge quality.
