BINSTAK 90 Degree V-Groove Router Bit 1/4in Shank – Carbide Insert for Engraving & Signs

Overview

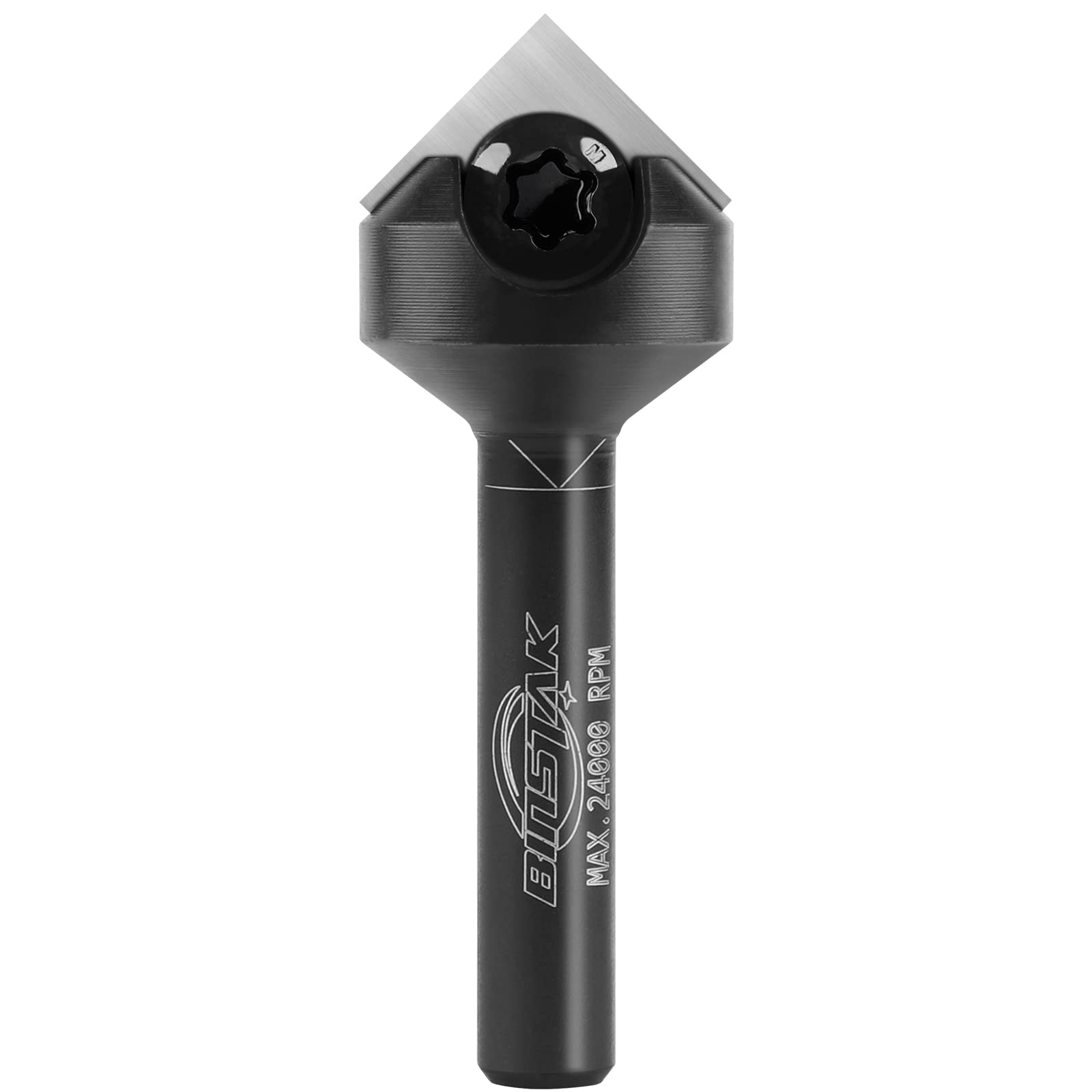

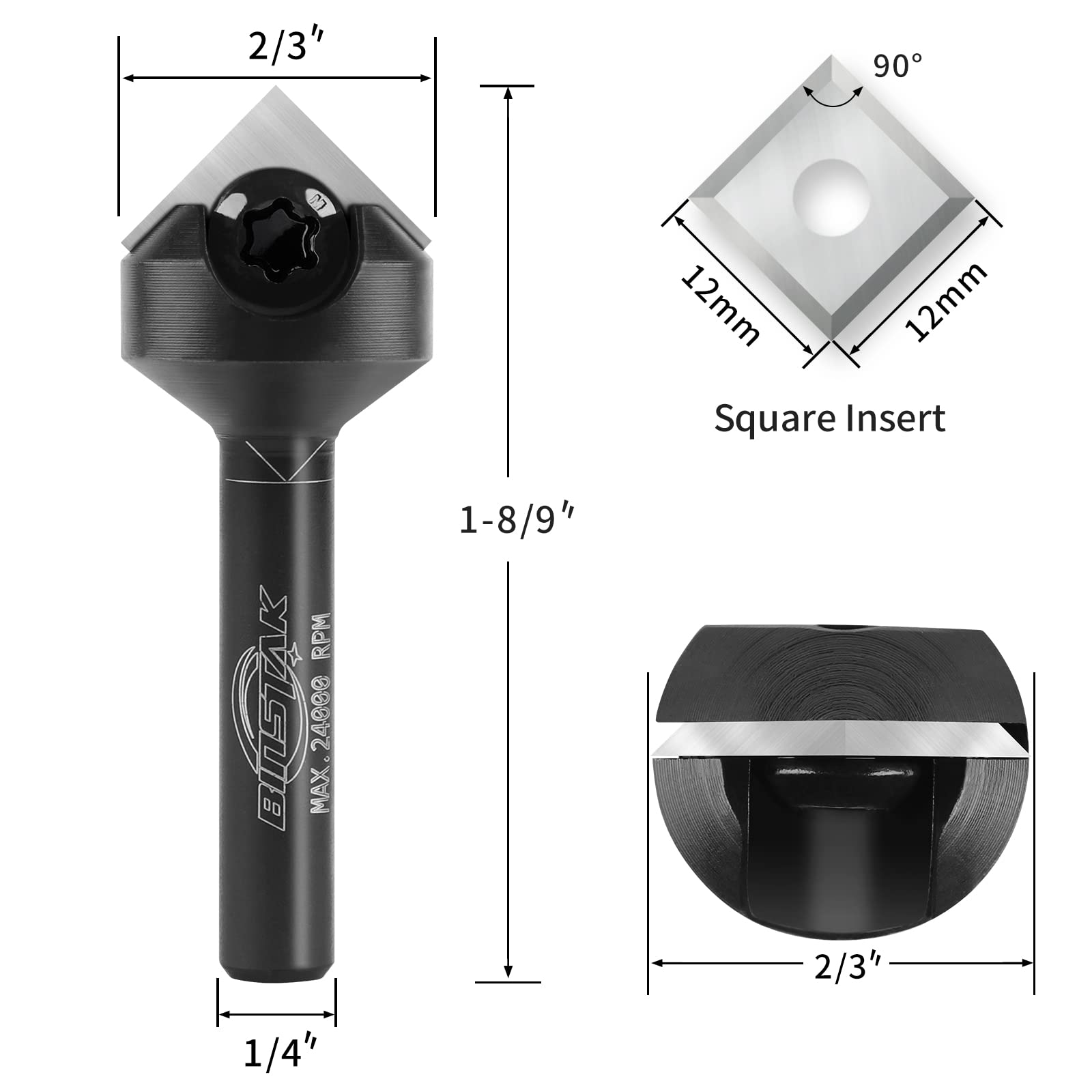

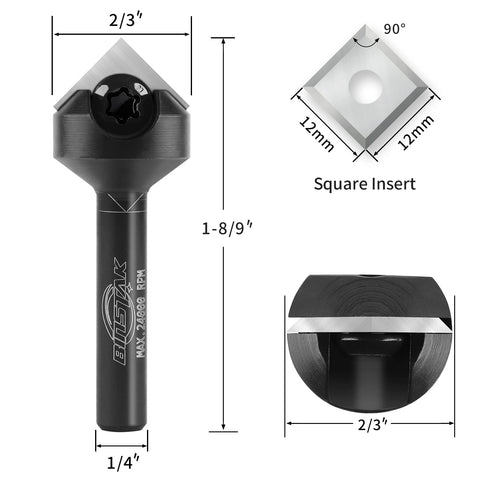

The BINSTAK 90 Degree V Groove Router Bit is engineered for crisp V-shaped grooves that elevate signs, artwork, and decorative panels. With a 1/4 inch shank and a 2/3 inch cut diameter, it balances reach with detail for precise engravings. Its 12x12 mm carbide inserts offer multiple usable edges, delivering longer life and consistently clean cuts at higher speeds (up to 24,000 RPM).

This industrial-grade bit is designed to withstand the demands of woodworking projects, combining durability with cost-conscious maintenance. Whether you’re preparing elegant signage or decorative inlays, this bit helps you achieve sharp lines and refined profiles without overhauling your toolkit.

Key advantages

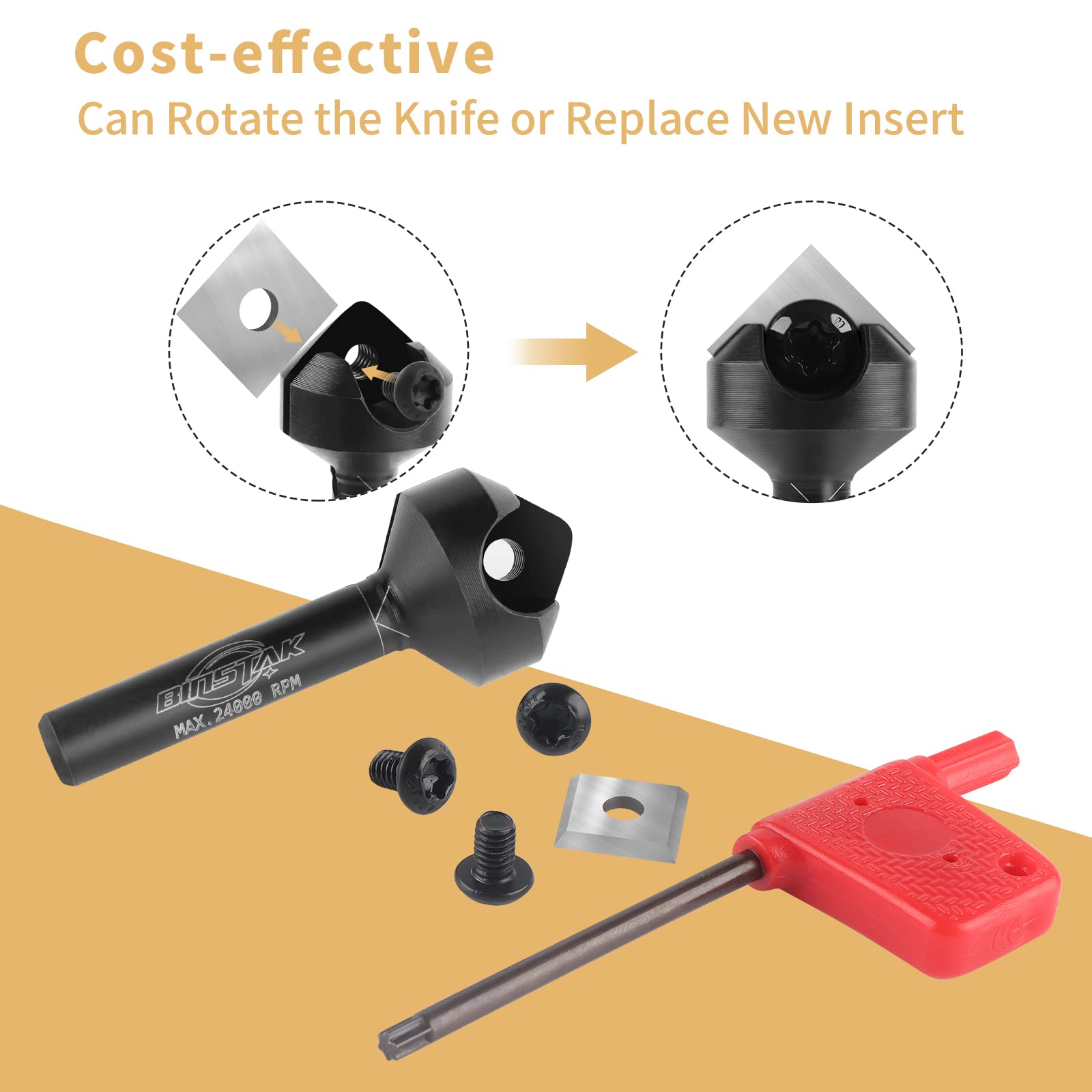

• Replaceable carbide inserts: four usable edges per insert mean you can extend life by flipping or rotating inserts rather than discarding the bit.
• Cost-efficient tooling: edge-life is maximized, offering a practical alternative to brazed bits while keeping ongoing expenses in check.

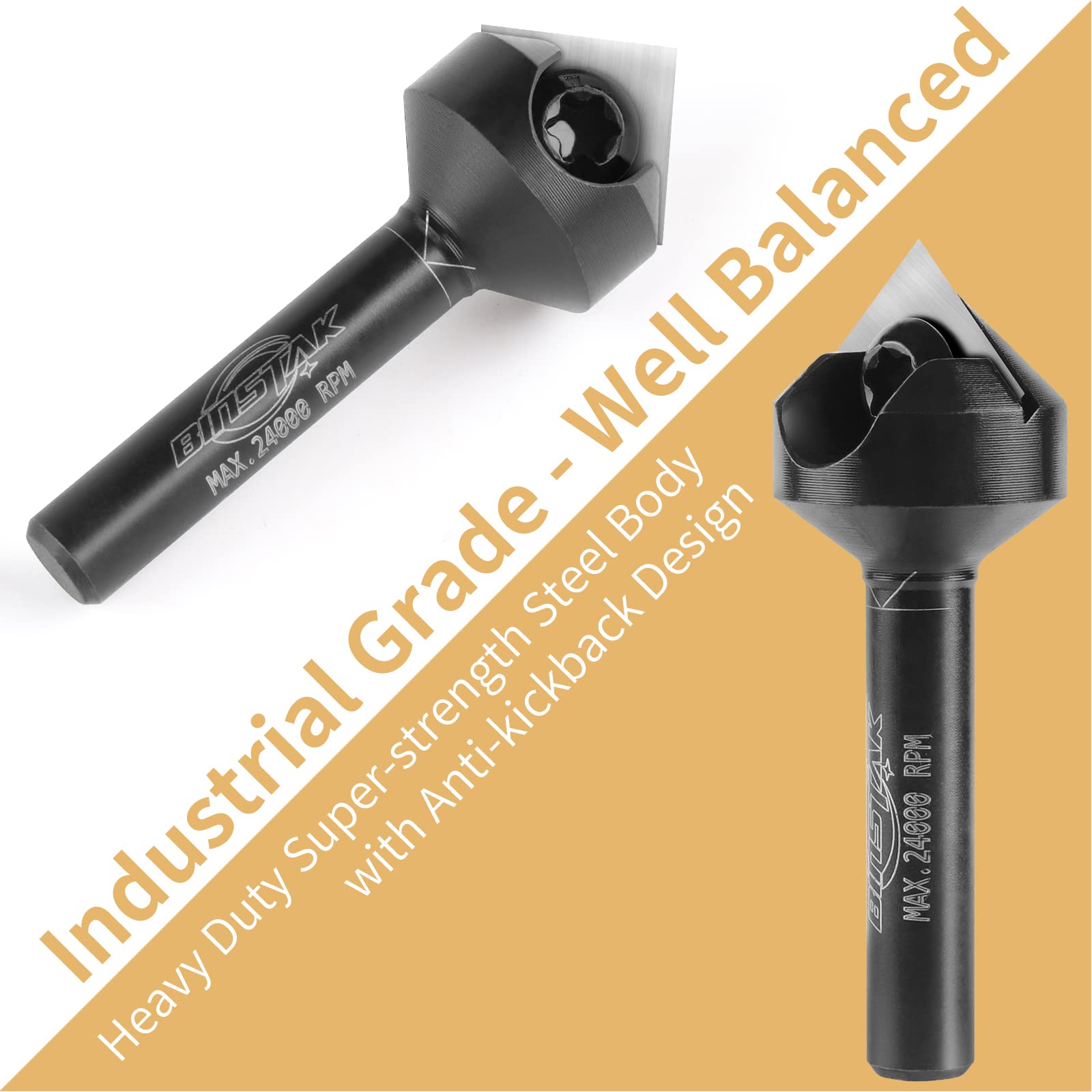

• Industrial-grade construction: a solid steel body with an anti-kickback design helps maintain control and stability during engraving tasks.

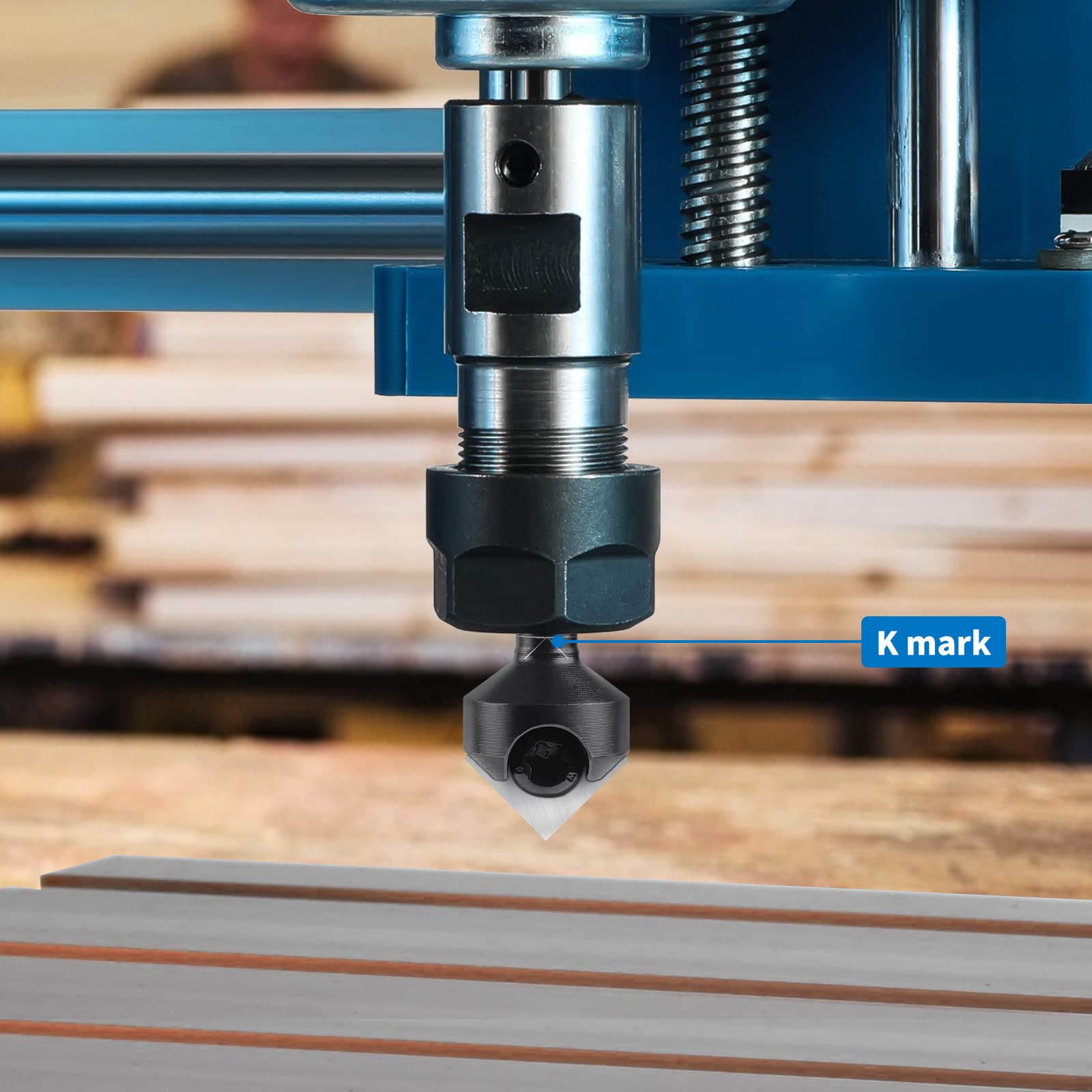

• Versatility across machines: suitable for CNC routers, handheld routers, and table-mounted units for a range of workflows.

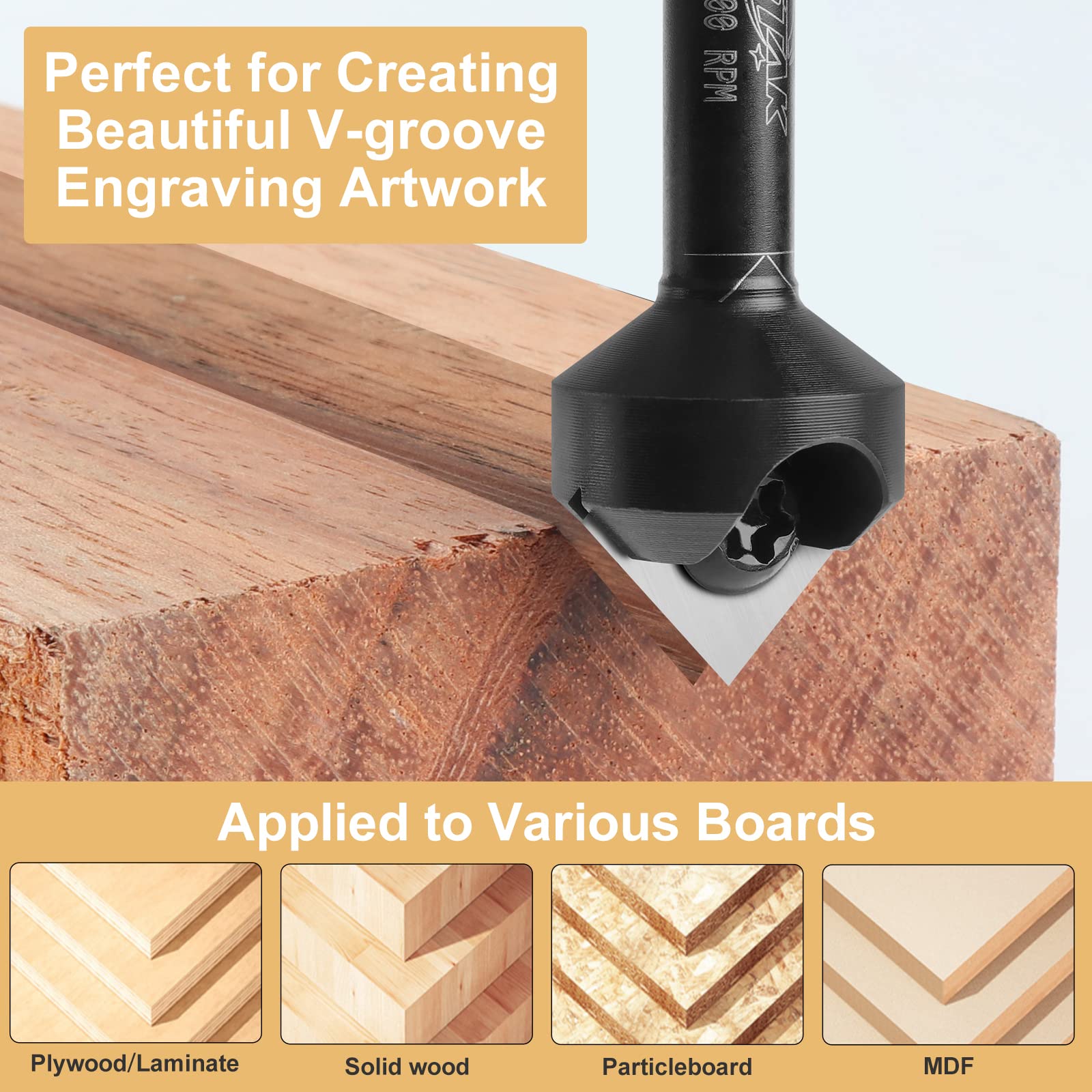

• Wide material compatibility: performs well on soft and hard woods, particle board, MDF, plywood, laminate, and acrylic.
• Precise V-groove geometry: sharp 90-degree angle enables distinct grooves and clean edge definition for artwork and signs.

Usage and maintenance

• Operate within the rated speed up to 24,000 RPM to balance cut quality and tool life.
• Use shallow passes and proper feed rates to avoid overheating and ensure consistent engagement.
• When inserts show wear, replace the carbide edges or the insert itself to maintain performance without replacing the whole bit.

In short, this V-groove router bit offers a blend of durability, adaptability, and cost-conscious maintenance for woodworking projects that benefit from crisp, decorative grooves.
