Zipbolt Angled Railbolt Bundle – Handrail to Newel Post (11.560 & 13.960)

Efficient, clean installation for angled handrails

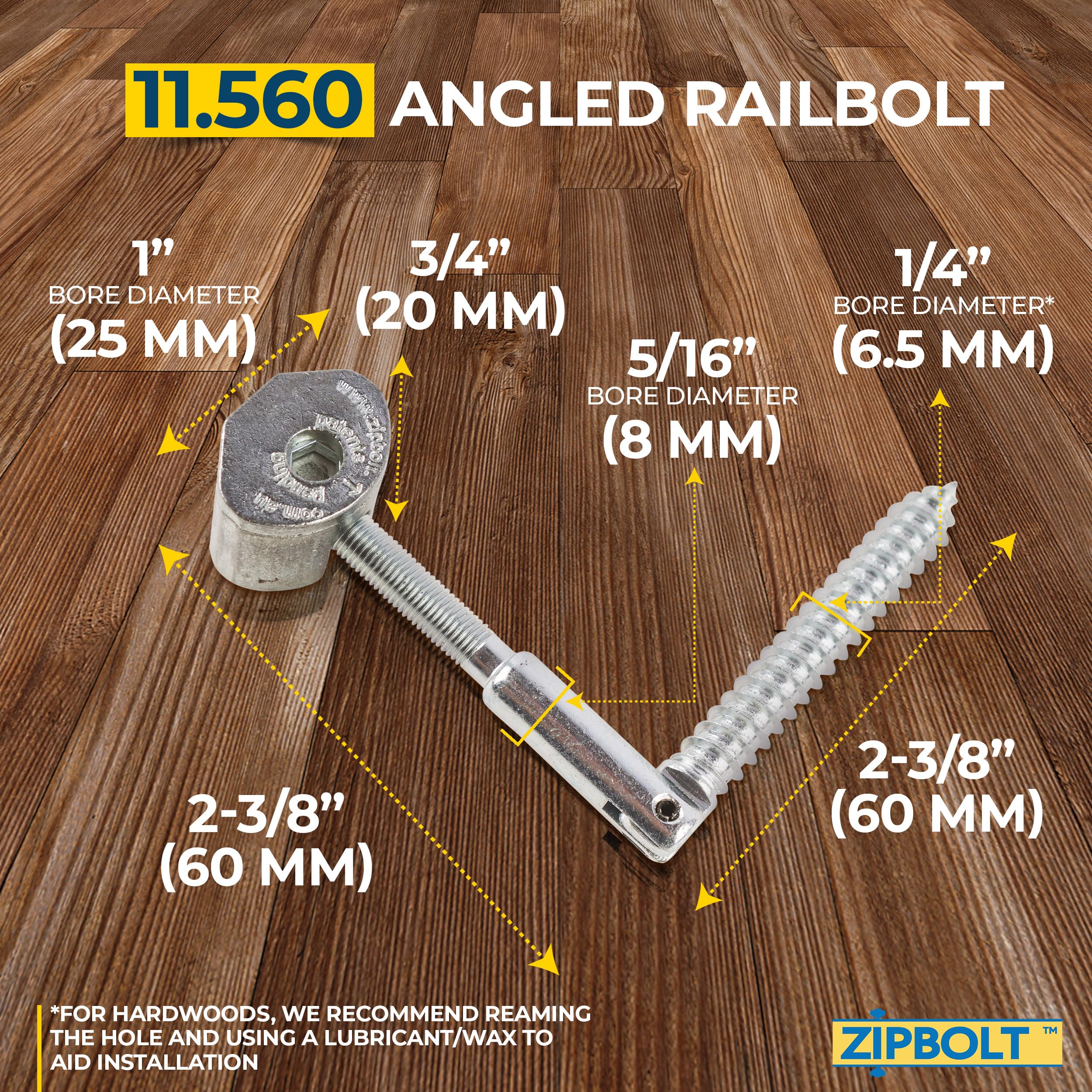

Attaching an angled handrail to a newel post can be challenging. The Zipbolt UT Angled Railbolt 11.560 paired with the 13.960 Slipfix is designed for hidden fasteners and secure joints, delivering a tidy, professional look. The UT gear-driven mechanism lets you tighten from inside the handrail at a right angle, using a Torx driver in a drill or screwdriver. This approach helps minimize visible hardware while still delivering solid adhesion and alignment.

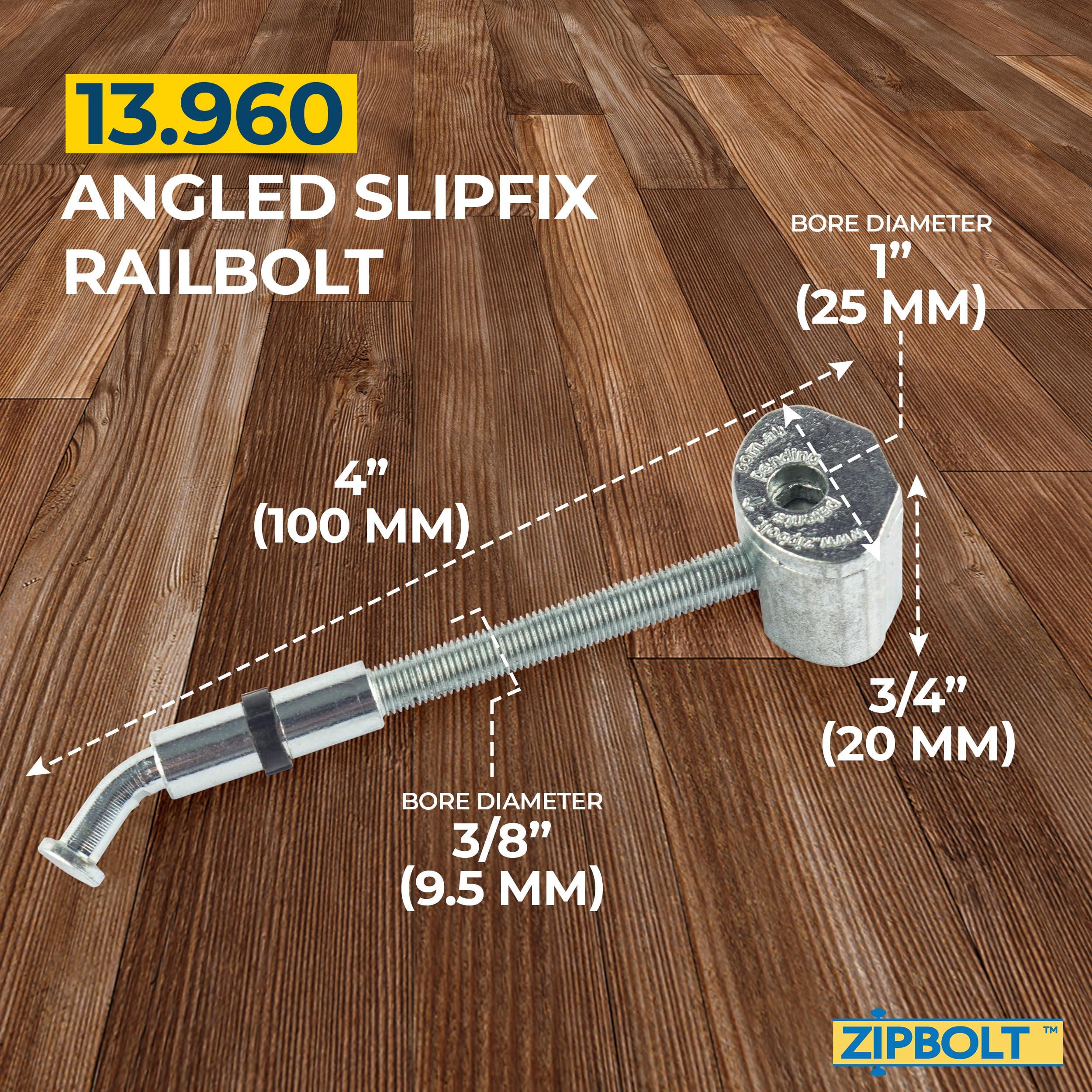

With a pivoting 8 mm shaft and a wood-thread coach bolt, the system can be hand-wound directly into the post. Once the handrail is bored and angle-cut, the components join quickly and tighten securely. The 13.960 upper connector is engineered for acute angles and slots into the rail with a pre-installed shaft, then tightens through the included T30 Torx driver for a precise, durable connection. Important: do not use an impact driver to tighten the gear housing.

Key benefits at a glance

• Hidden fastener reduces visible hardware for a cleaner aesthetic.
• Gear-driven tightening provides controlled clamping from inside the rail.
• Open channel housing drops onto the shaft, avoiding bulky nuts and washers.
• Pivoting joint adapts to open or closed angles for versatile stair designs.
• Durable steel construction supports residential and commercial use.

What’s included and installation notes

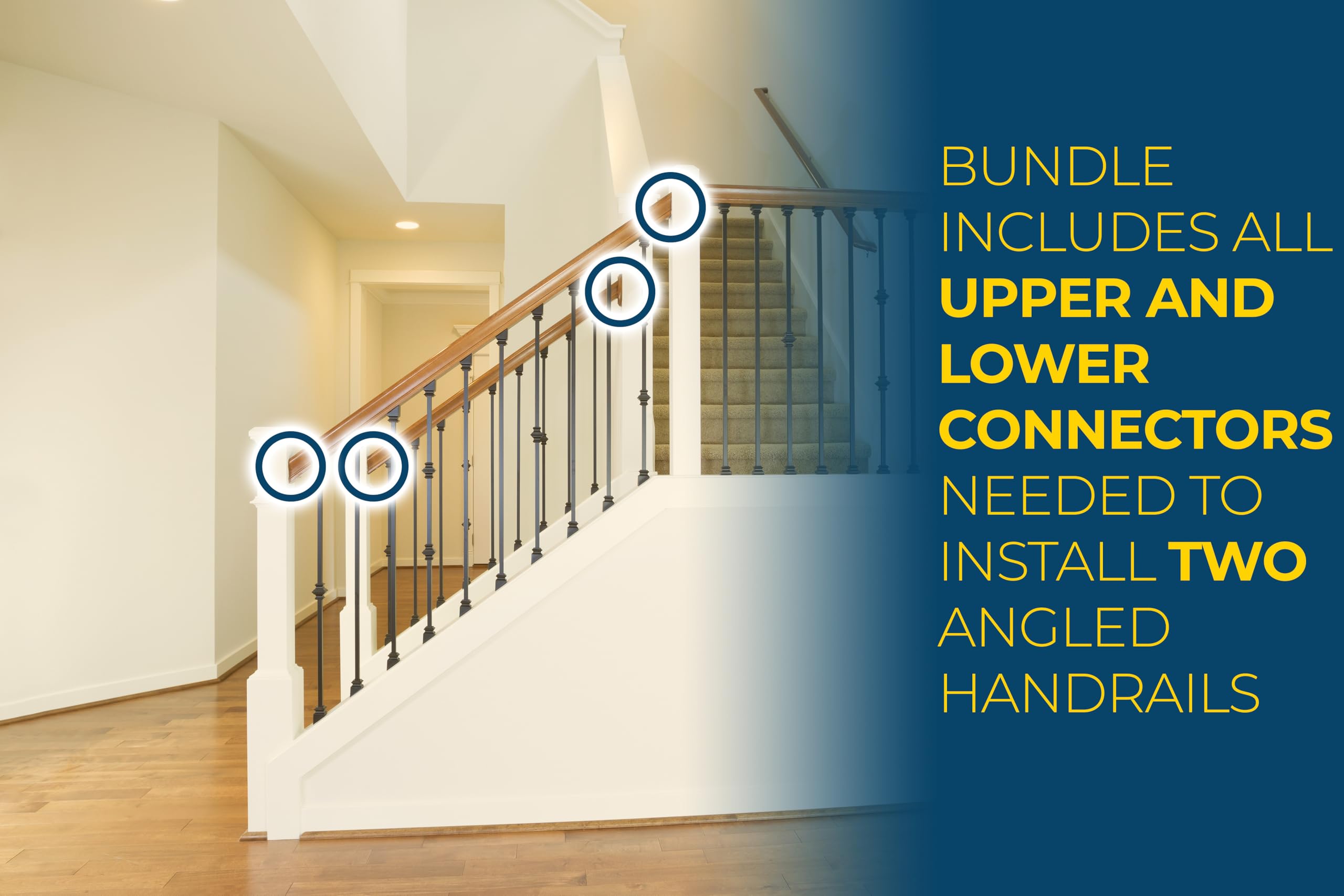

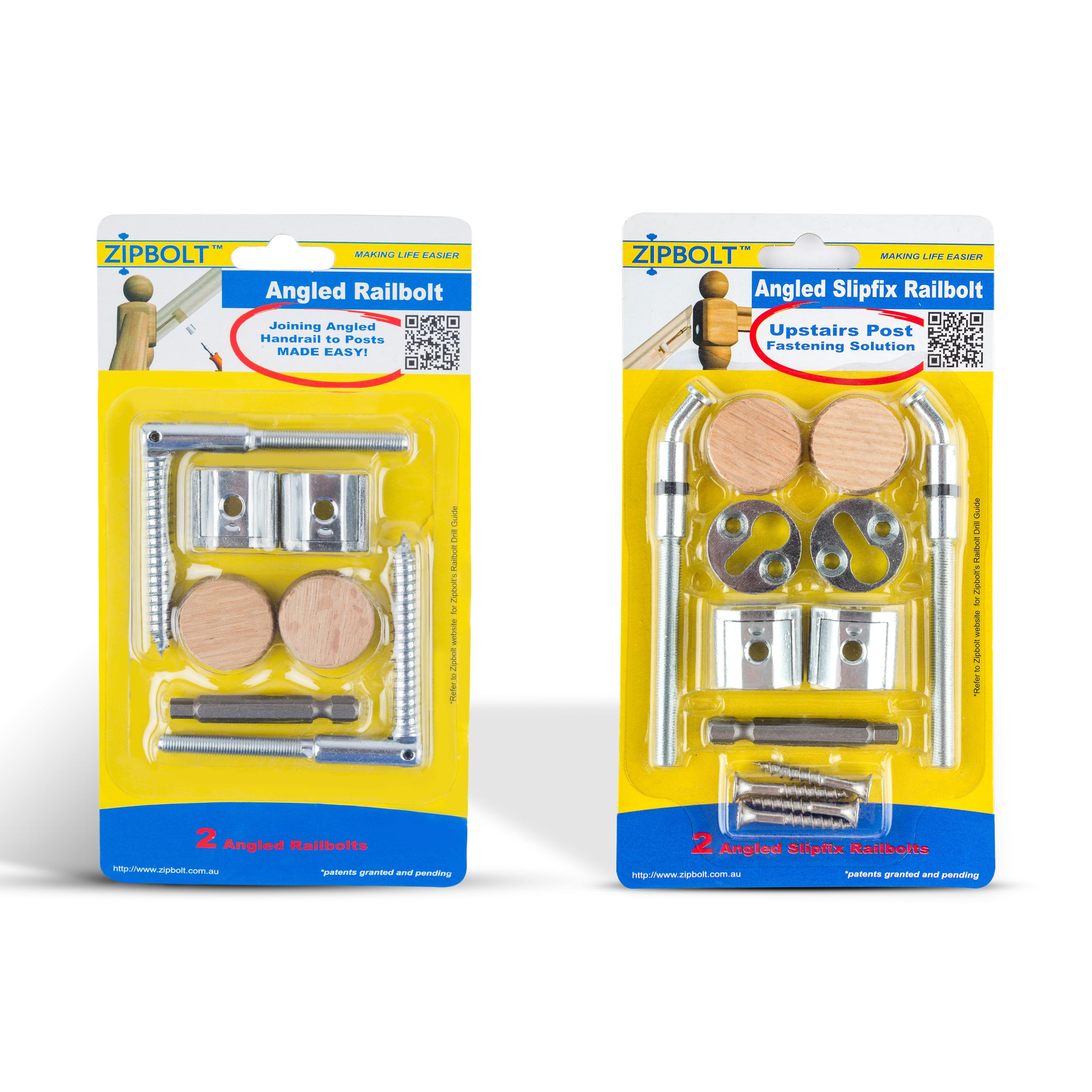

• Two angled rail bolts for lower connections and two angled slipfix rail bolts for upper connections.
• Four red oak wood plugs and two Torx drivers (T30) for a complete kit.
• Clear instructions on the packaging to guide you through the steps.
• Note: Do not use an impact driver when tightening the gear housing.

Real-world use cases

Ideal for stair projects that require a clean line where the handrail meets the post, including upstairs joints and acute-angle transitions. The kit is designed to be versatile across residential and commercial environments, offering a strong joint without visible fasteners when correctly installed.

In short, Zipbolt combines a patented gear-driven design with practical, install-on-site features. Consider the kit as a reliable option for achieving precise, discreet angled connections—real-world results depend on proper drilling, angle accuracy, and material condition.
