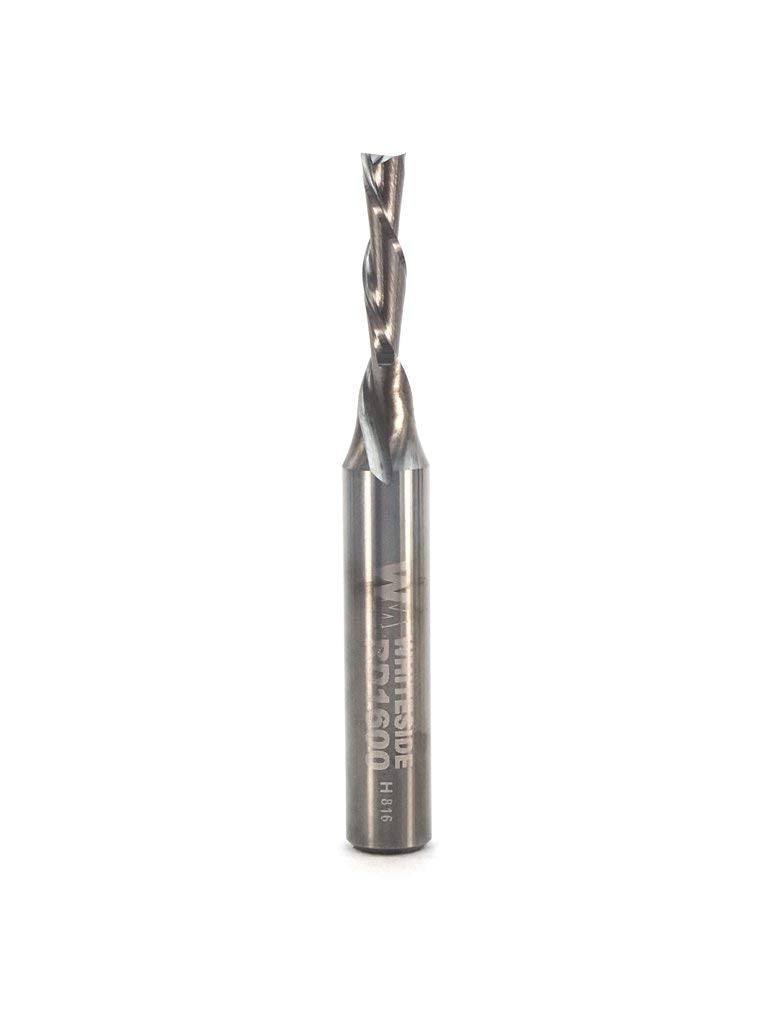

Whiteside RD1600 Spiral Downcut Router Bit – 1/8 inch Cutting Diameter, 1/4 inch Shank, 1/2 inch Cutting Length

Overview

The Whiteside RD1600 is a purpose-built spiral downcut router bit designed to deliver reliable, clean results in both handheld and CNC routing. Built with solid carbide, this bit features a 1/8 inch cutting diameter, a 1/4 inch shank, a 1/2 inch cutting length, and a 2 inch overall length, optimized for use with a 1/4 inch collet. The design centers on providing steady performance across routine trim work, dadoes, grooves, and inlays while maintaining control in small or thin pieces.

Why downcut matters

Downcut spirals pull material away from the top surface, helping preserve the integrity of the edge closest to the router. This geometry is especially helpful when working with veneer, laminate, and plywood, where top-edge aesthetics matter. The RD1600’s spiral action emphasizes a clean, top-side edge and reduces tearout during finishing passes.

Key features in detail

• Tool specs: solid carbide, downcut spiral; 1/8 inch cutting diameter; 1/4 inch shank; 1/2 inch cutting length; 2 inch overall length; compatible with 1/4 inch collet
• Down cut spiral: helps achieve clean edges on the side closest to the router for both handheld and CNC routing
• Helix action: the spiral helix delivers a shearing cut for shallow grooves, dados, and inlays, producing crisp results
• Finish quality: downward cutting action minimizes tearout on veneer, laminates, and plywood for precise finishes
• Stability and chip management: holds thin sheets in place and ejects chips away from the router to maintain consistency

Practical applications

In real-world use, the RD1600 shines on projects where a clean top surface is prized. It is well-suited for veneer panels, plywood assemblies, and cabinet components requiring accurate grooves and inlays. The bit’s geometry supports controlled pocketing and slotting, helping you maintain accuracy across passes in both handheld and CNC setups.

Quality you can rely on

Whiteside Machine Company brings over three decades of experience to its tooling. The RD1600 sits within a complete line of solid carbide and carbide-tipped router bits, backed by a heritage of problem-solving, on-time delivery, and ongoing development. The company’s manufacturing facility emphasizes rigorous quality control and field testing to support consistent performance in demanding workloads.
