WESTOBiG FNRSI LCR-P1 Transistor Meter — Multifunctional Tester with ESR, Diode, SMD, and NEC Infrared Decoding

Overview

Meet the WESTOBiG FNRSI LCR-P1 Transistor Meter, a compact, multi-sensor tester designed to streamline electronics work. This device blends a transistor tester, ESR checker, and SMD capability into one portable unit with a clear aim: help you diagnose components efficiently, without sacrificing accuracy or comfort. The LCR-P1 emphasizes hands-on usability and practical data presentation, so you can move from measurement to insight with confidence.

What it can test

• Resistance: 0.010–50 MΩ
• Capacitance: 25 pF to 100 mF
• Inductance: 10 μH to 1000 μH

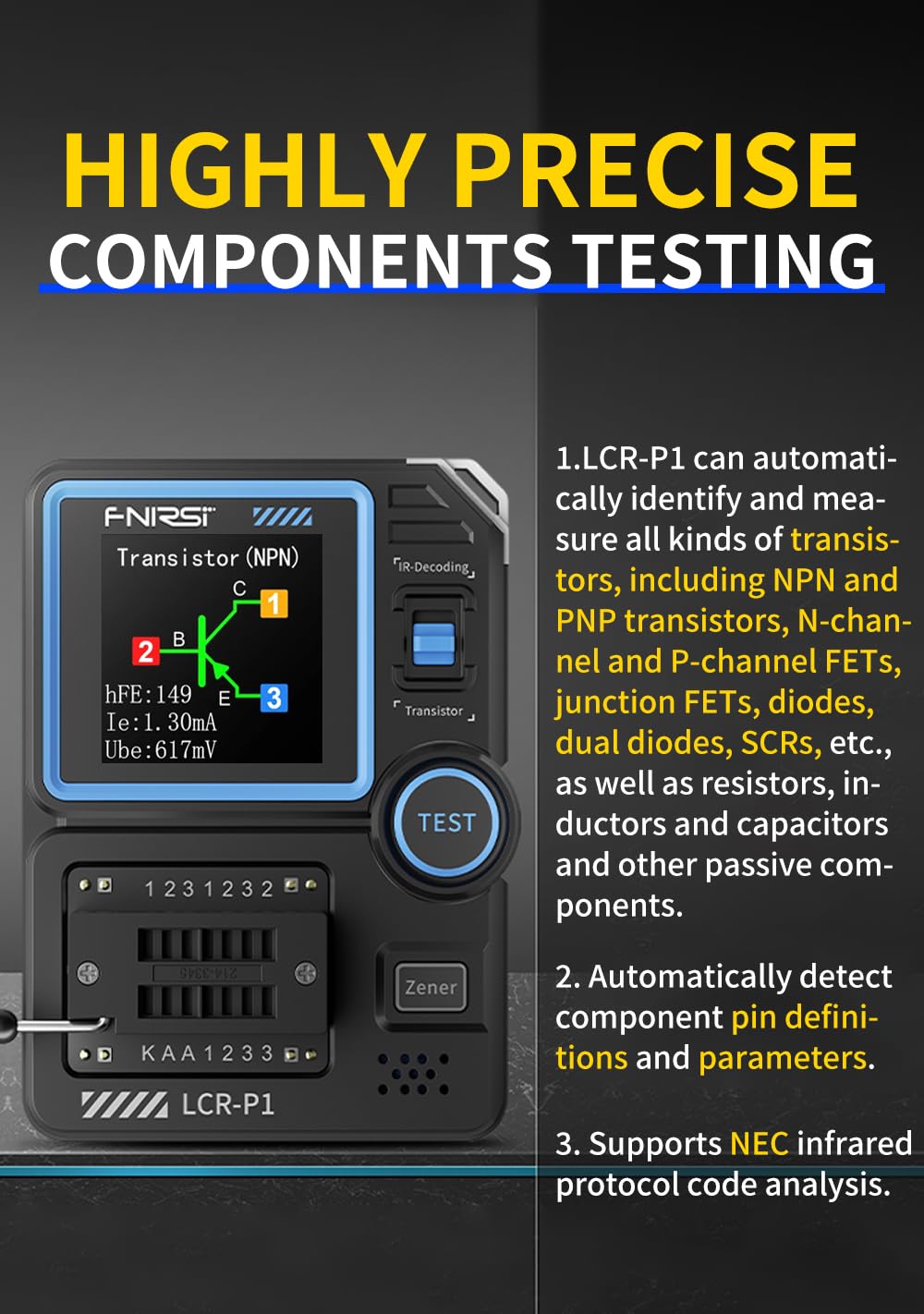

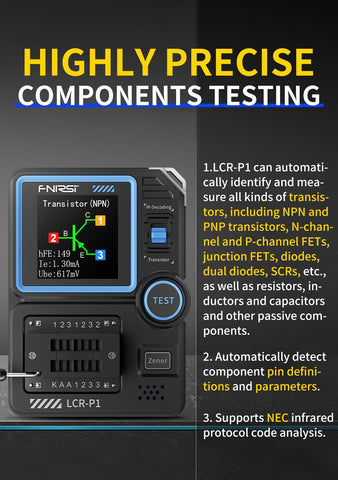

• Transistors: β range 10–600 for robust identification
• Diodes: Forward voltage drop under 4.5 V

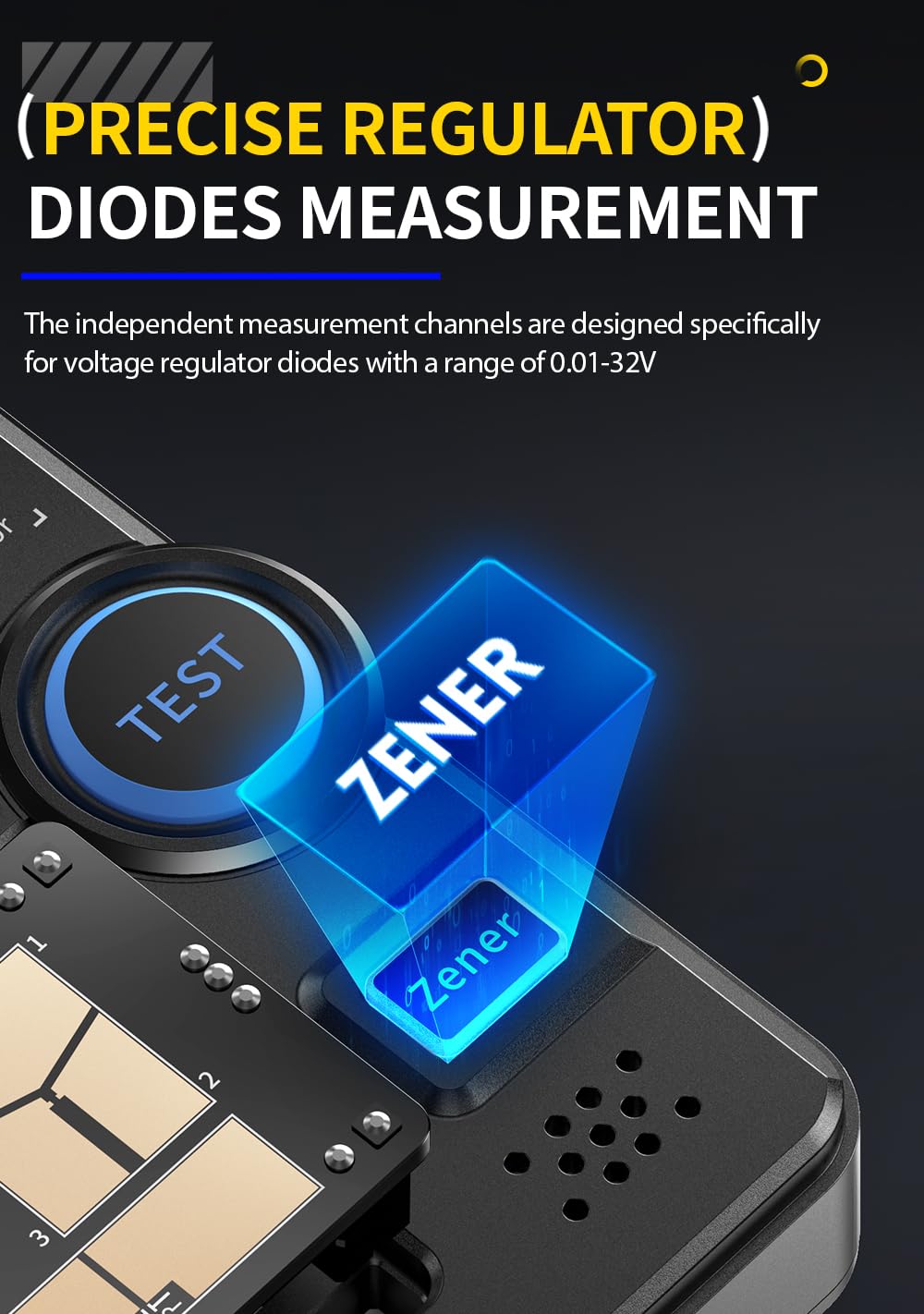

• Voltage regulators and related devices: 0.01–4.5 V, 0.01–32 V
• Field-Effect Transistors: JFET, IGBT, and MOSFET

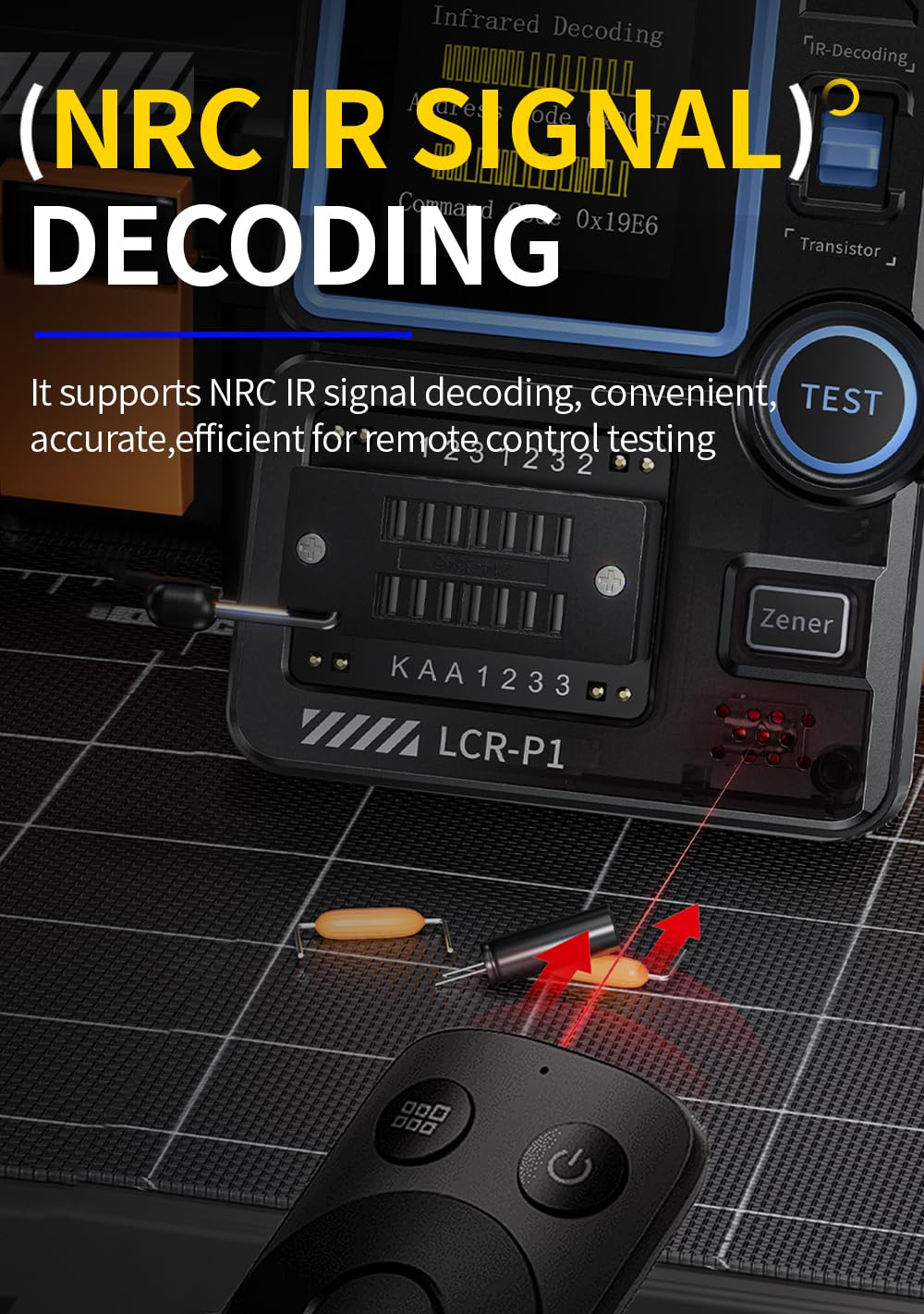

• SMD testing and NEC infrared signal decoding

Smart, safe, and data-friendly

• One-button operation to identify component parameters quickly

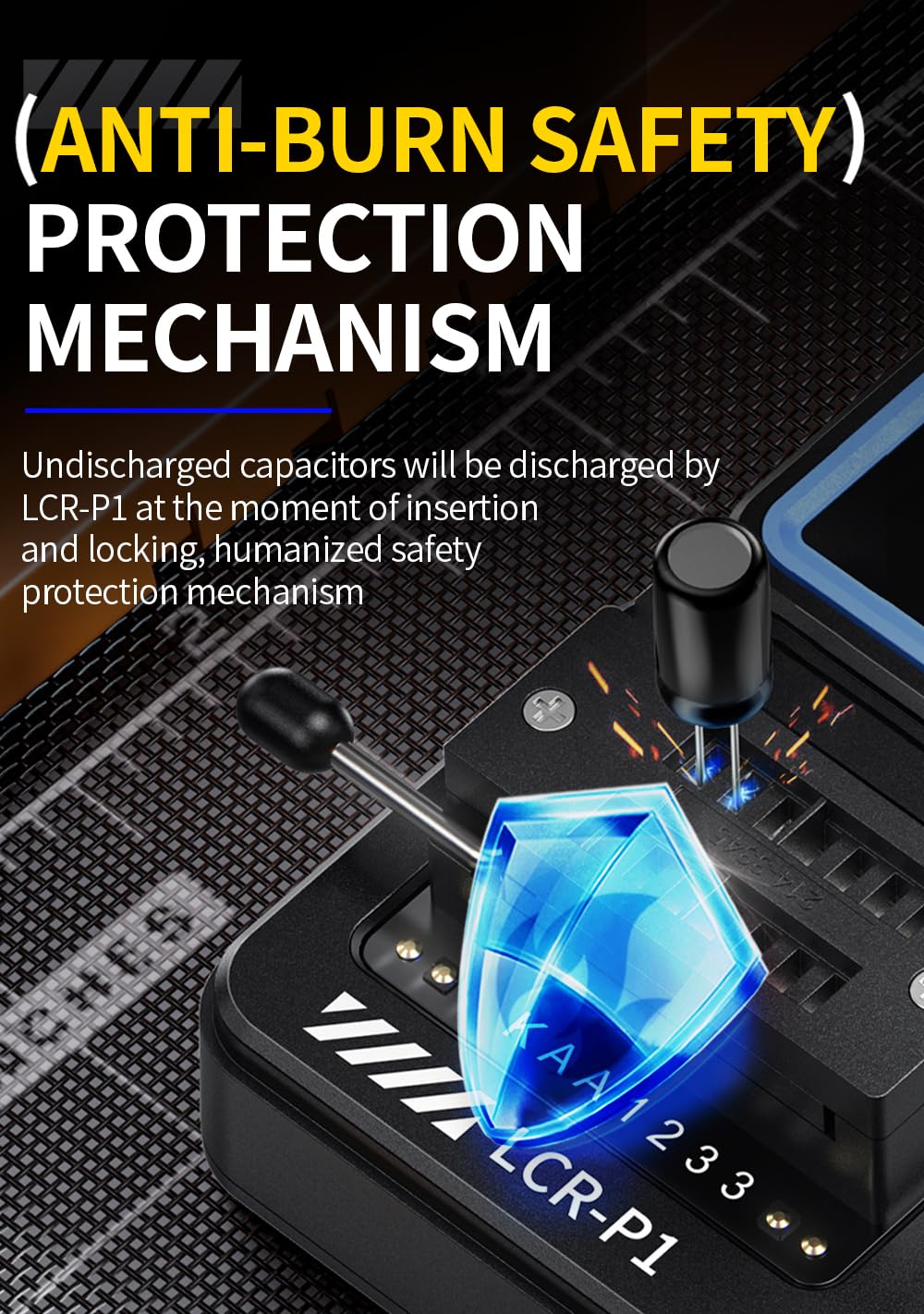

• Anti-burn safety protection for safer handling during tests
• USB data transfer to export results as Excel-ready data

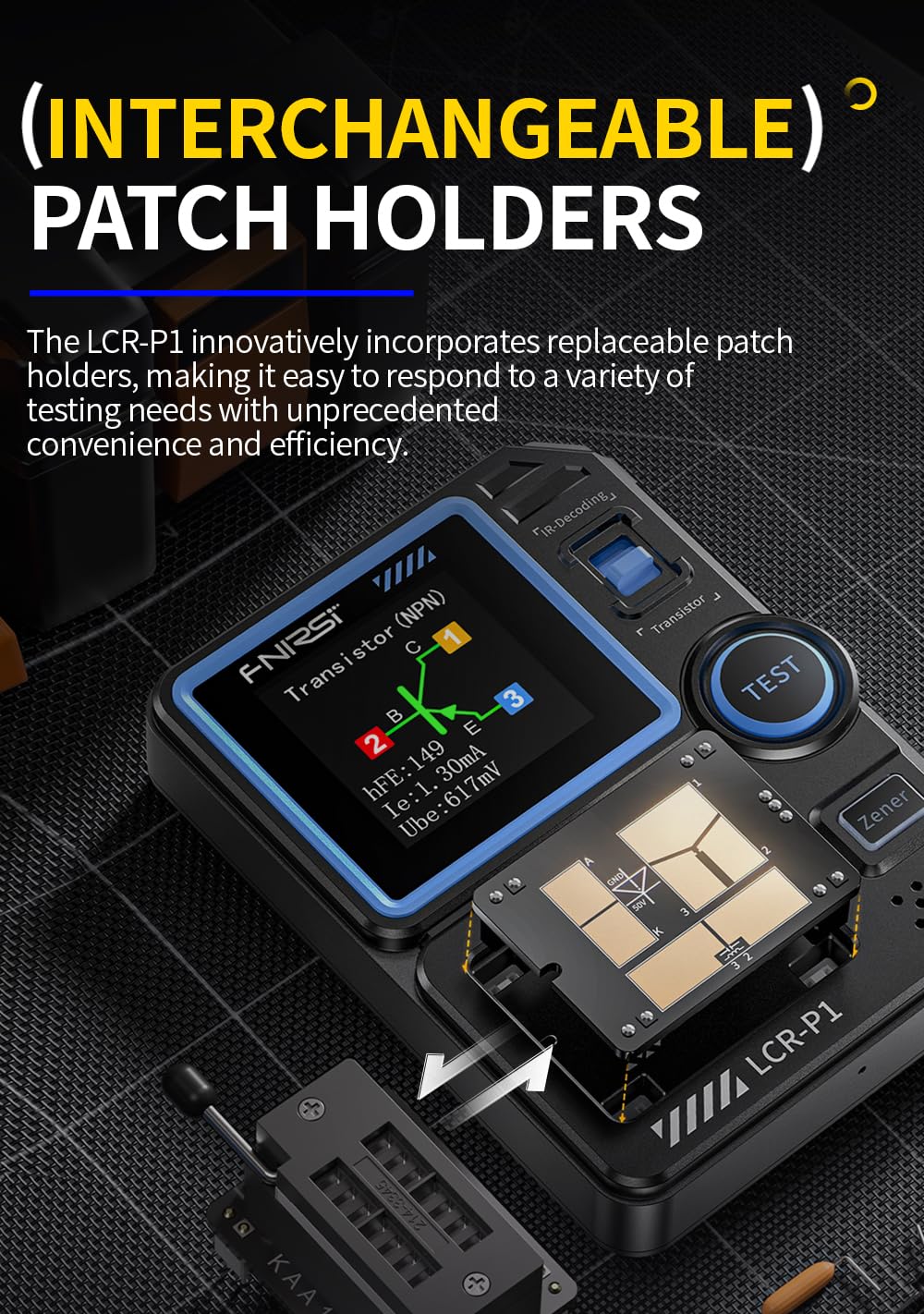

• Replaceable test boards for faster setup and testing

Design for real-world use

• 300 mAh battery supports portable operation for indoor and outdoor work

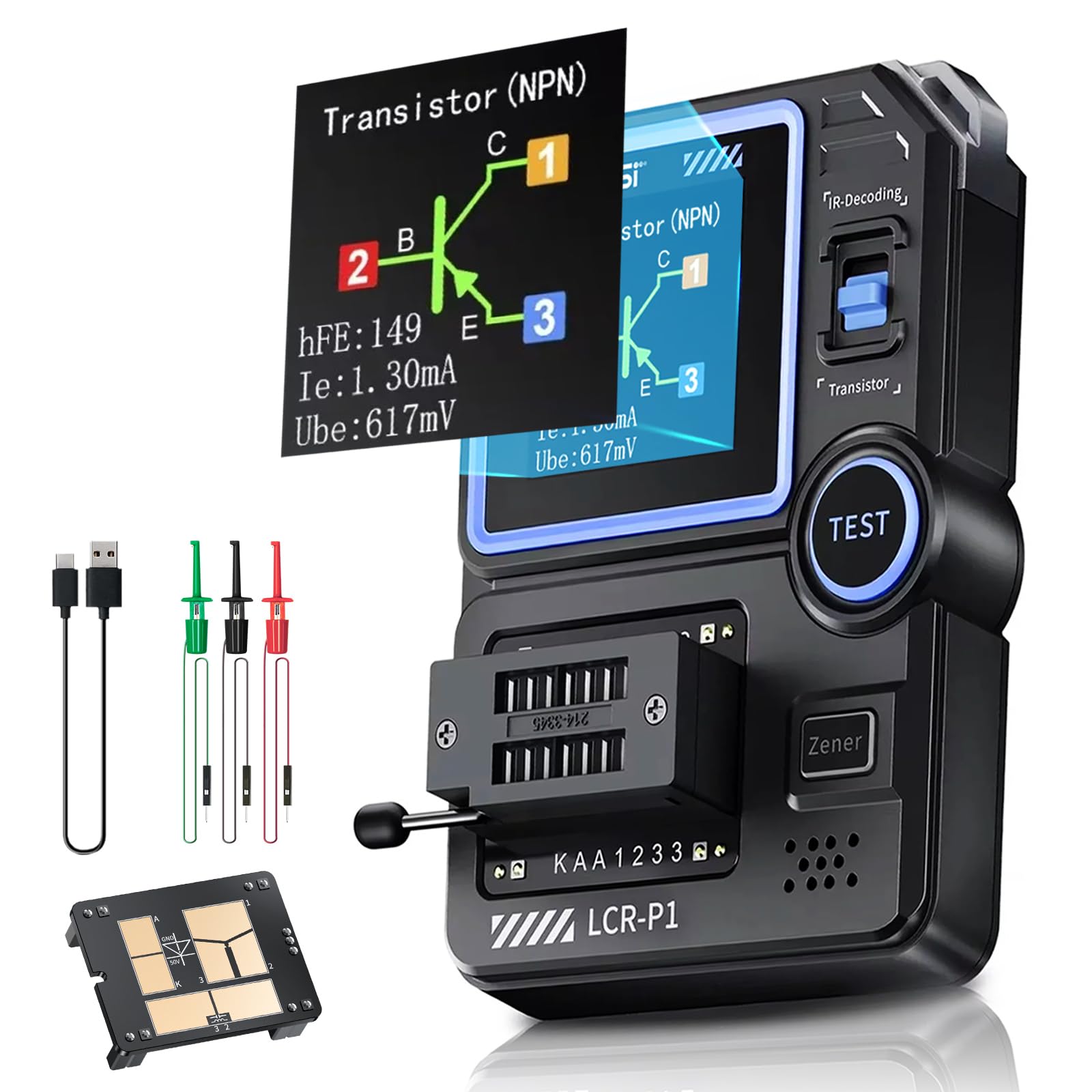

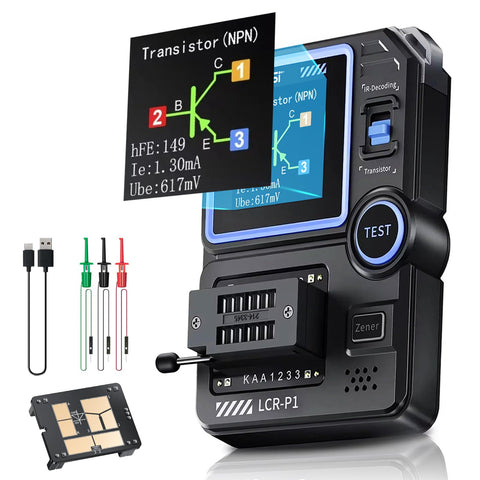

• Color backlit display improves readability in varying lighting

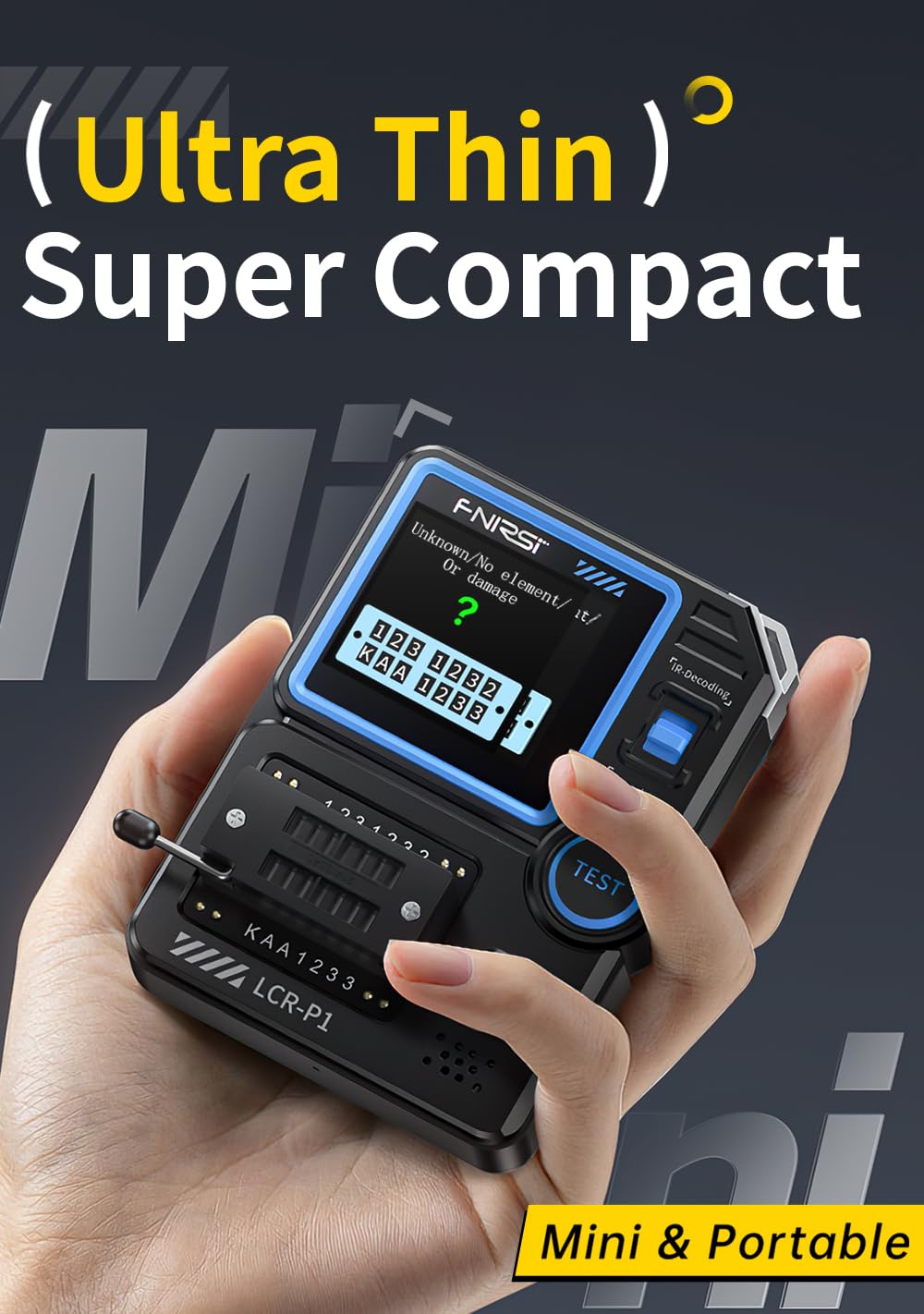

• Durable chassis and modular test boards for everyday reliability

Real-world benefits and use cases

The FNRSI LCR-P1 is designed for electronics hobbyists, repair technicians, and engineering teams who want a single tool that covers common testing needs. It helps you verify component behavior, compare data across sessions, and capture results for reporting—without needing multiple instruments. While results depend on the component and context, this tester offers a consistent framework to assess ranges, spot anomalies, and guide debugging steps.

Practical use scenarios

• Field service: diagnose suspected transistor issues on-site, without returning to the workshop
• R&D and prototyping: verify components during circuit assembly
• Repair and maintenance: confirm part specifications before replacement

Note: This device is a supportive tool intended to streamline testing workflows. Outcomes vary with component condition and measurement setup; the LCR-P1 provides actionable data to guide decisions rather than guarantees.
