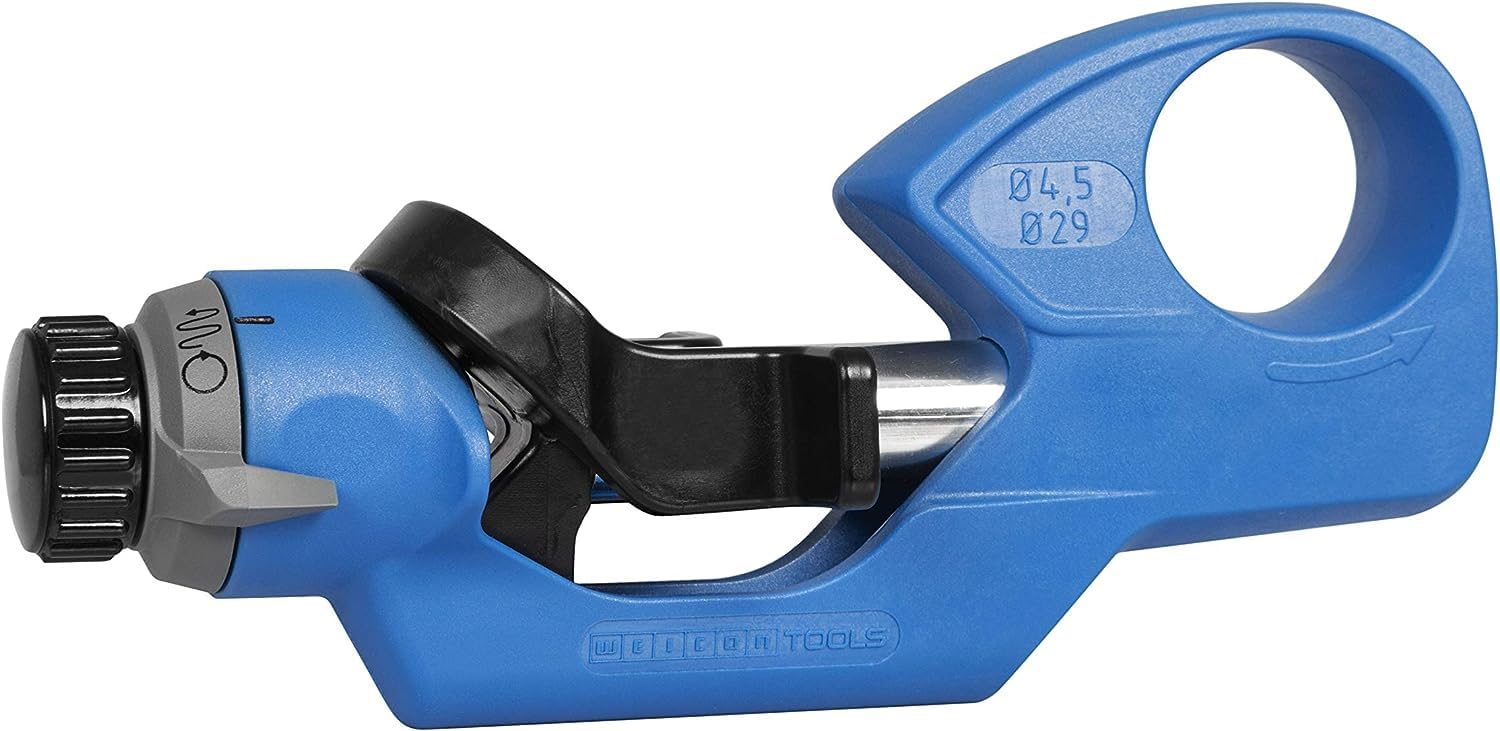

WEICON Cable Stripper No. 4-29 Spiral | For Thick Cables | Spiral, Round & Longitudinal Cut | 4.5–29 mm Ø | Up to 4/0 AWG | 0.118 in Cutting Depth

Meet the WEICON Cable Stripper No. 4-29 Spiral, a versatile tool designed for cables up to 29 mm in outer diameter. Built with professionals in mind, it combines precise depth control with intuitive operation, making insulation removal smoother without risking damage to inner layers.

Versatility in a single tool

Three cutting modes give you flexibility for different insulation challenges. Start with the spiral cut to tackle stubborn coatings, switch to a round cut for a clean sheath outline, or use the longitudinal cut to strip along the cable length.

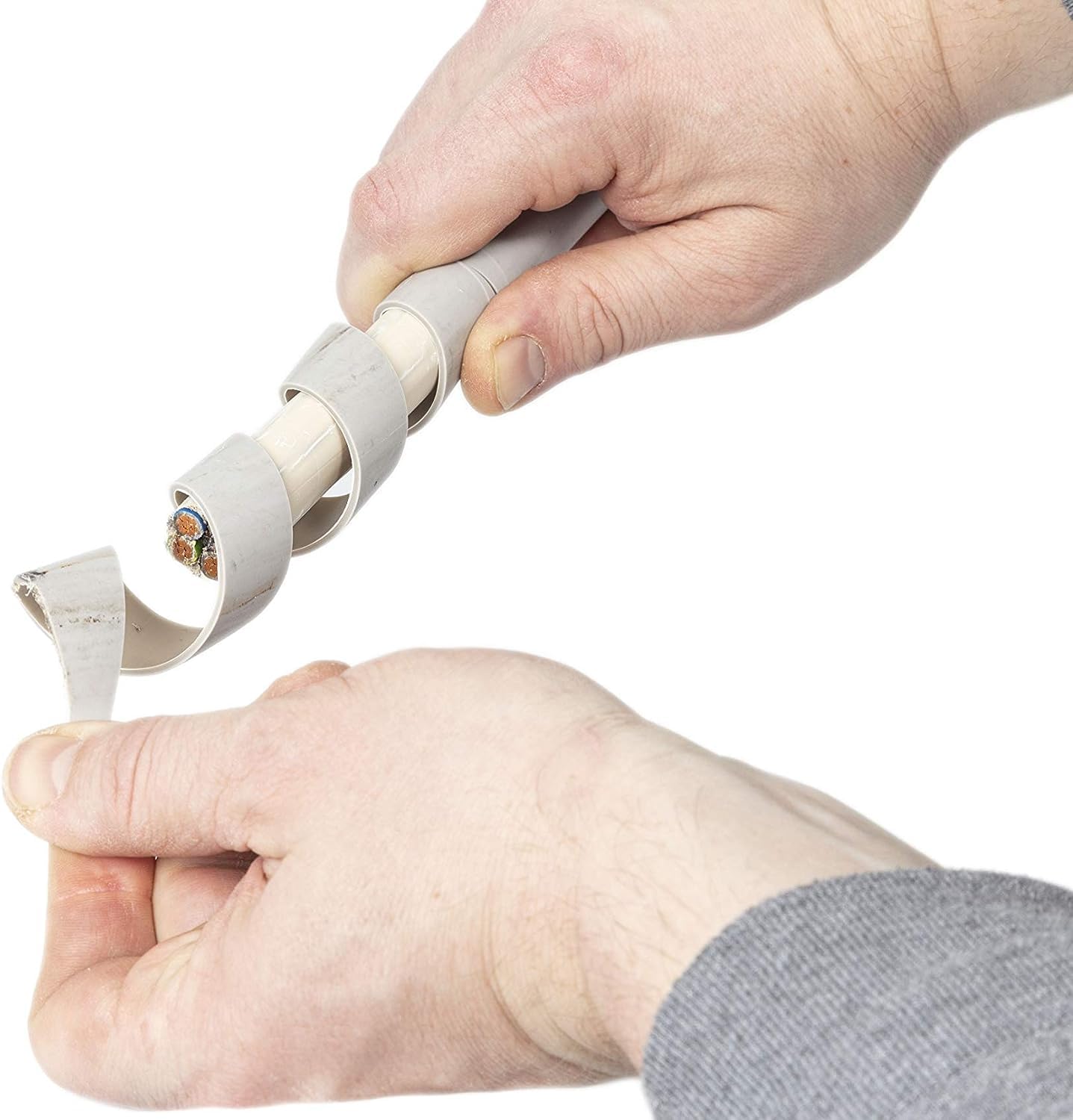

• SPIRAL CUT — developed for cables up to 29 mm, it helps remove tough insulation with ease.

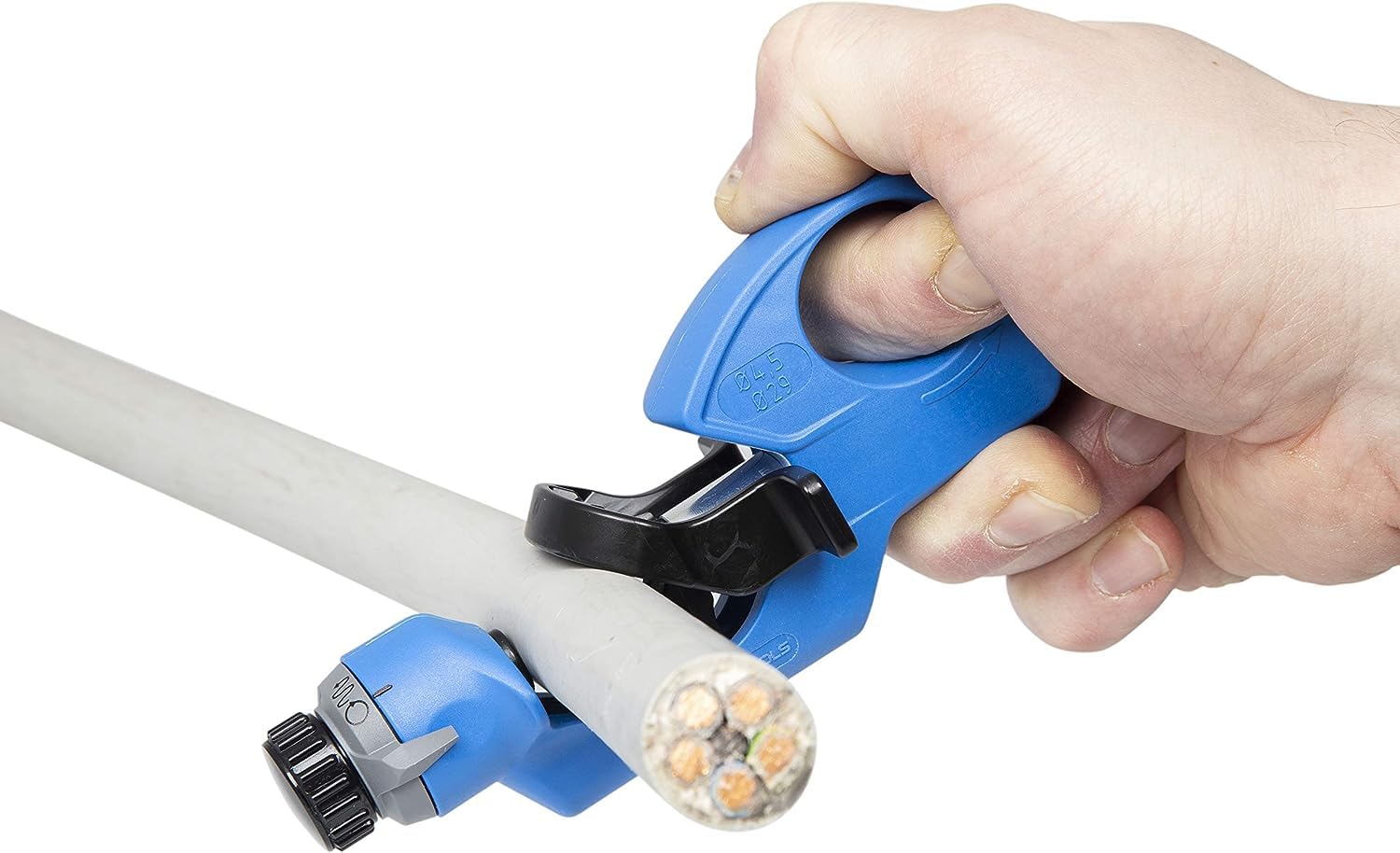

• ROUND CUT — creates a controlled circular incision for precise sheath removal.

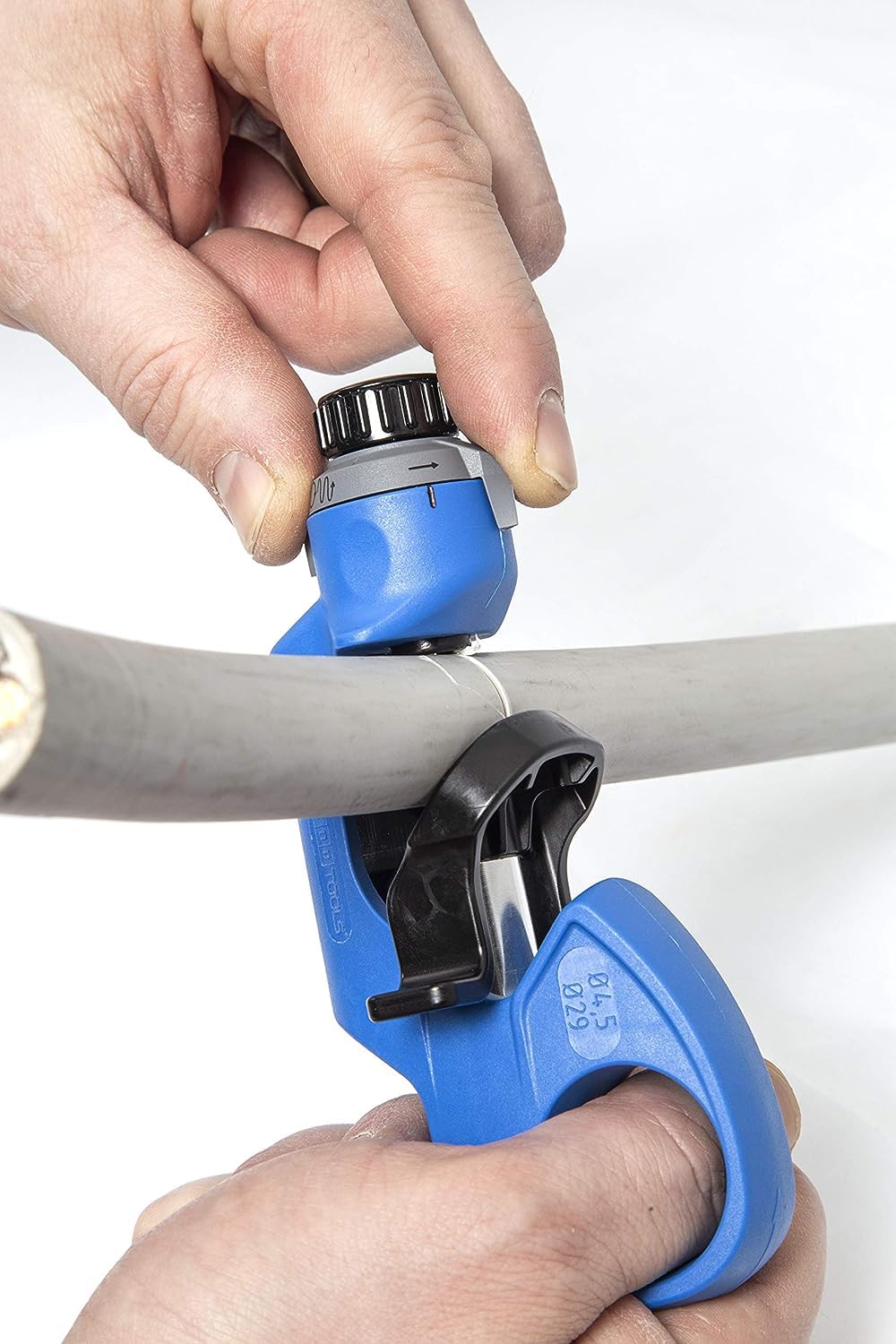

• LONGITUDINAL CUT — pull the tool along the length to expose the conductor efficiently.

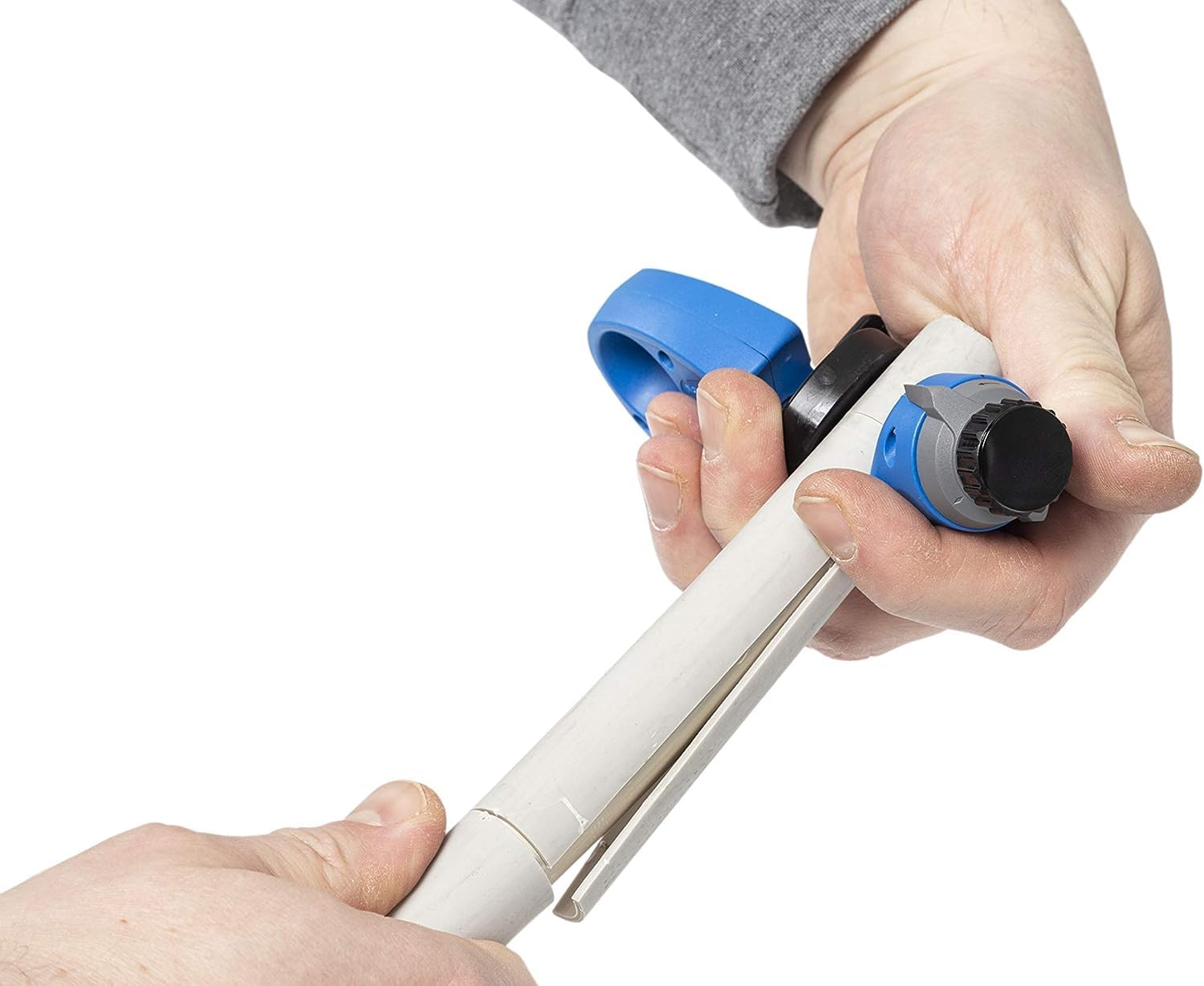

Precise depth control for reliable results

The blade depth is adjustable from 0 to 3 mm in 0.1 mm steps via a lockable knob. This allows you to tailor the cut to the cable and sheath, while the inner layers stay intact for safer stripping.

• 0–3 mm depth in 0.1 mm increments.
• Exchangeable inner blade for extended use.
• Locking knob keeps settings secure during work.

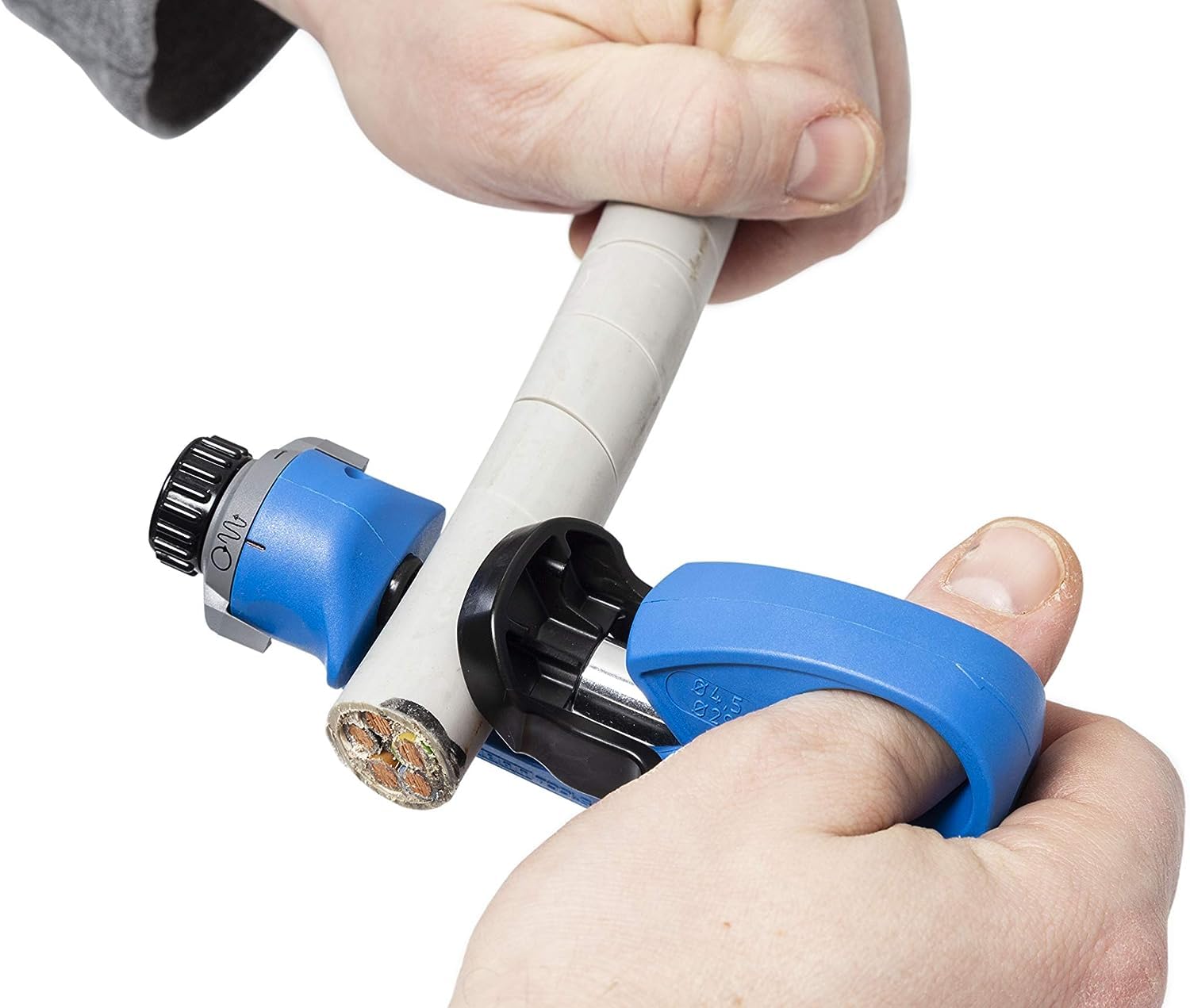

Ergonomic design and safe operation

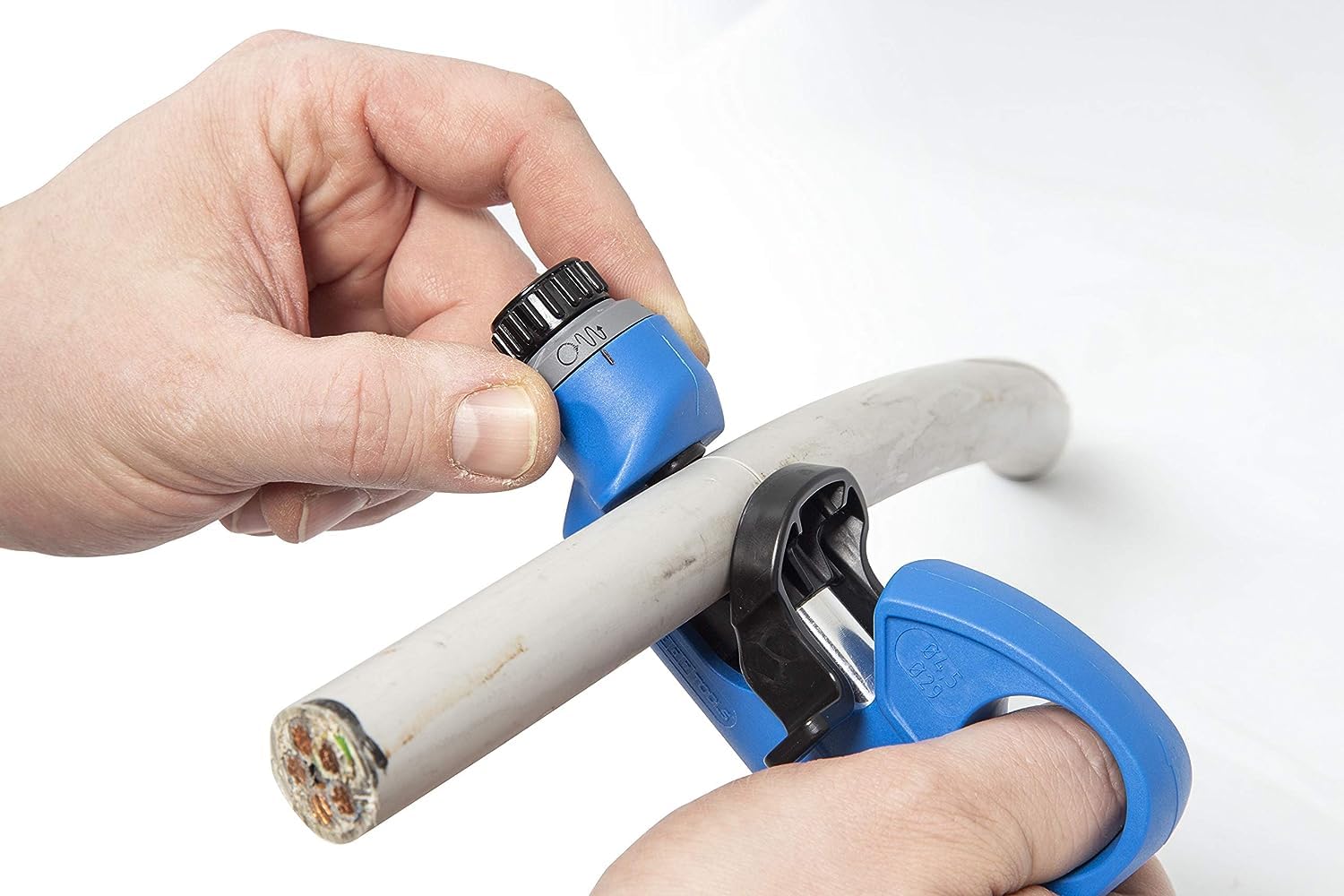

The tool clamps to the cable with spring force, providing steady guidance during stripping. A built-in blocking system prevents the longitudinal setting from opening and protects the blade from unintended breakage. Use on non-energised cables for safe handling.

• Spring-based clamping supports steady stripping.
• Blocking system secures the longitudinal setting.
• Safe use on potential-free, non-energised cables only.

Key specs and typical applications

Crafted for durability and precision, the tool blades use high-quality knife steel with a precision grind to cleanly remove the outer sheath. It suits electrical engineering, industry, handicrafts, and DIY projects, especially when cables come in a range of diameters from 4.5 to 29 mm and require controlled depth.

• Outer sheath range: 4.5–29 mm; cutting depth up to 3 mm (0.118 in).
• High-quality knife steel with a special grind for clean sheath removal.
• Ideal for electrical engineering, industry, handicrafts, and DIY tasks.
