VAKPAT Pipe Center Finder – Y-Type Base Pipefitter Tool with Adjustable Dial Bubble Protractor

Overview

The VAKPAT Pipe Center Finder is a compact, economical tool designed for pipework, tanks, and fittings. Its center-marking capability supports planning centerlines, determining angles, and placing marks with confident, repeatable results during fabrication and assembly.

Key benefits

• Economical measuring tool that helps set centerlines, angles, and marks for butt-ins and locating keyways on pipes or tanks.
• Easy to operate with a simple four-step workflow: loosen the hex nut, position on the pipe, choose the angle, and mark the point.
• Sturdy, flexible construction with a heat-resistant gasket material that wraps around pipe circumferences for consistent results.

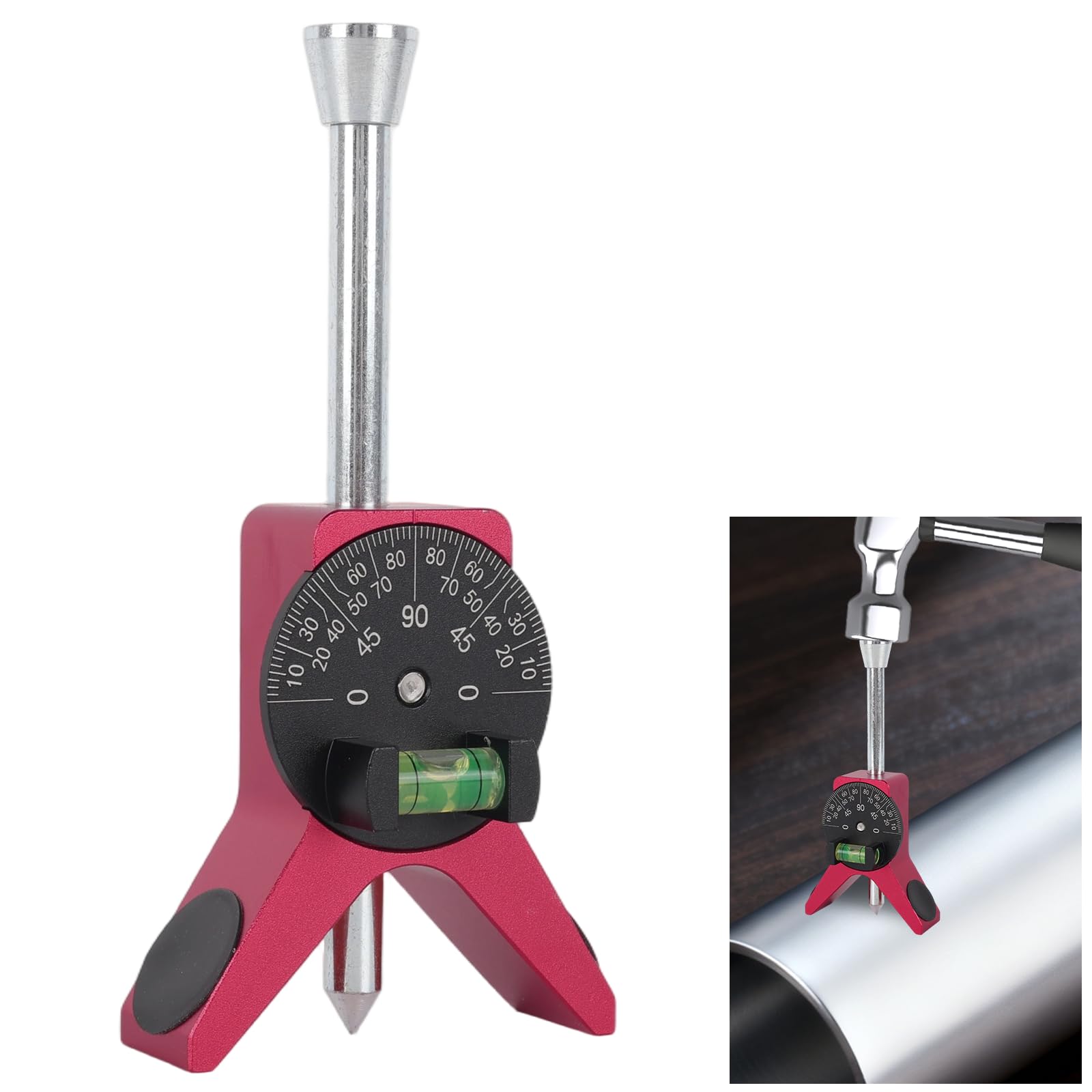

• Y-Head base with a 4-inch dial bubble protractor (DSL) allows you to push the center column to a fixed point as needed.

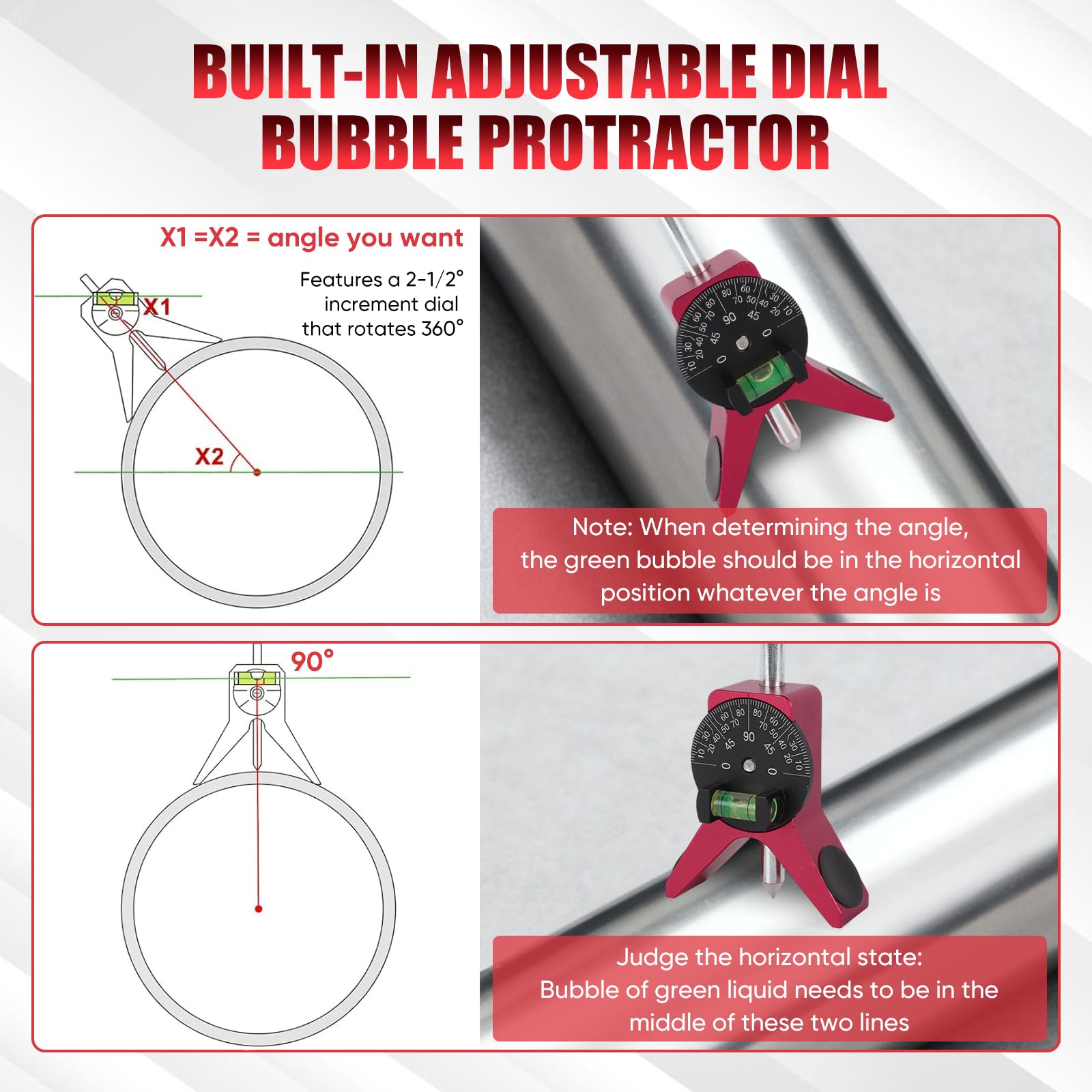

• Adjustable dial bubble protractor provides scales in inches, an inch chart, and a tangent chart to support straight lines and angles; keep the bubble centered for accuracy.

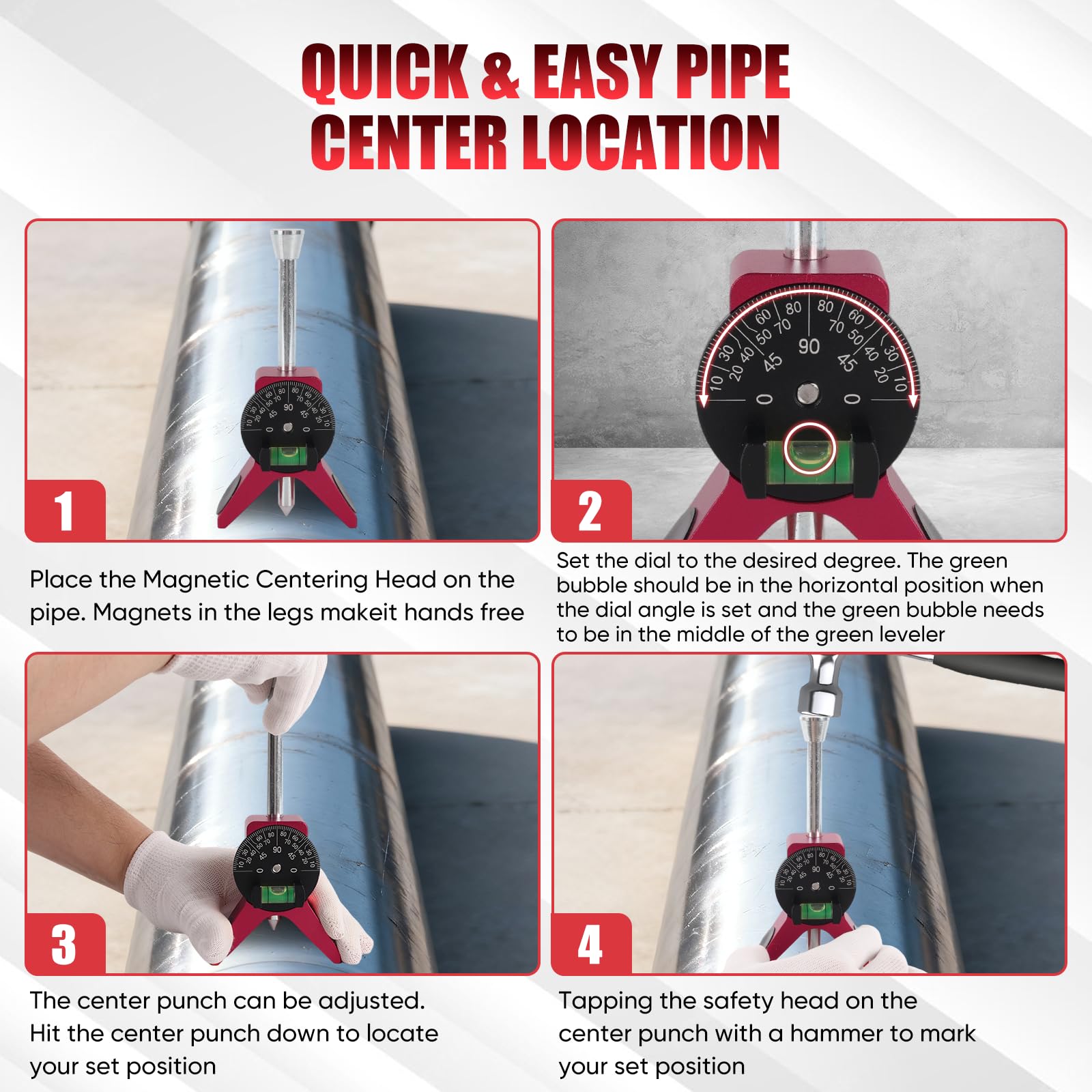

How it works

1. Loosen or tighten the hexagonal nut using the included hex key.
2. Place the tool on the pipe and select the desired angle.
3. Lower the center column to the fixed point position.
4. Tap with a hammer to leave a fixed point mark on the pipe.

Capabilities and use cases

Designed to measure and mark pipes with a diameter of 1/2-inch or larger, the tool supports centerline work, locating points inside pipes or tanks, and facilitating even, repeatable marks for weld prep, fittings, or layout tasks. It suits professionals in welding, piping, and fabrication who value consistency and efficiency.

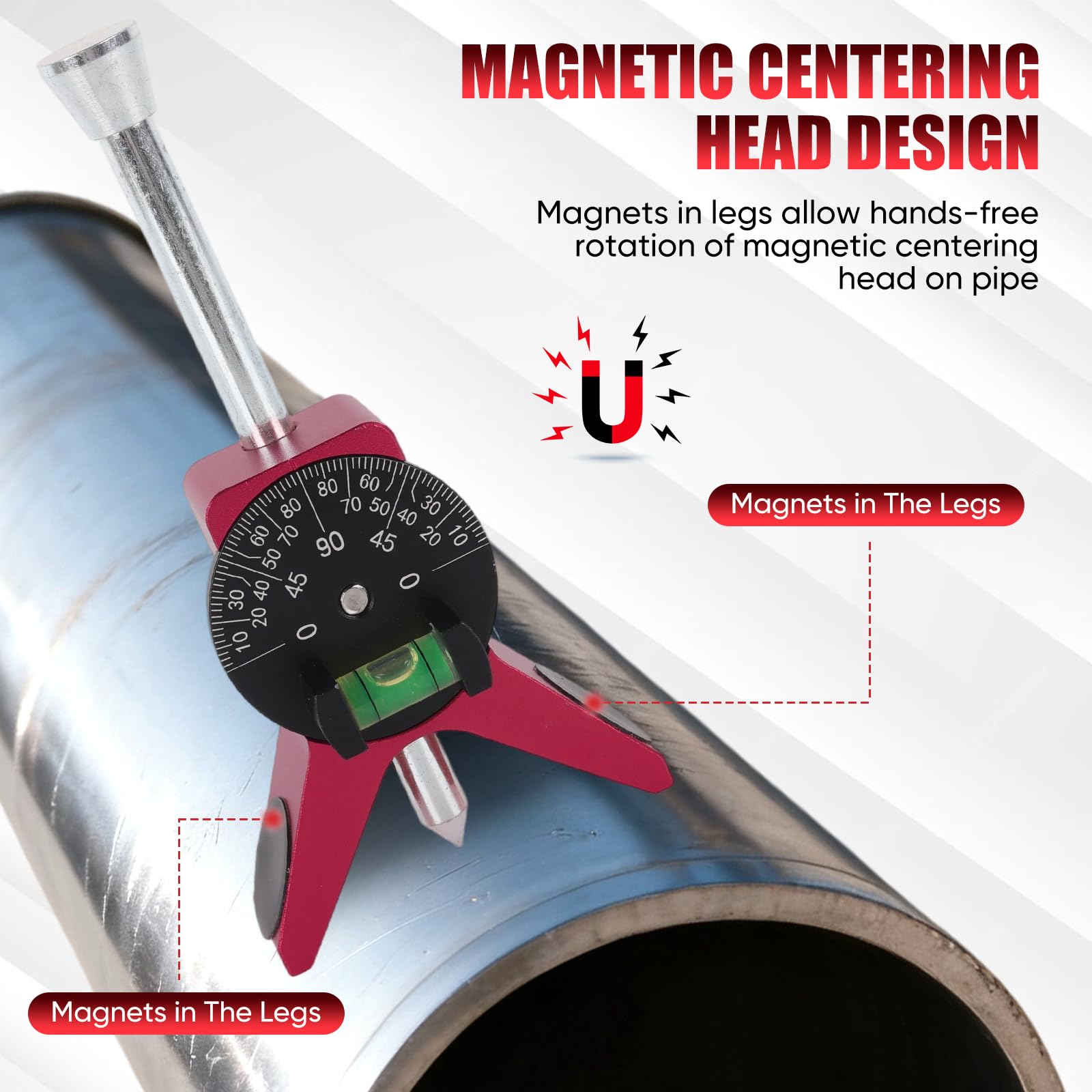

• Diameter compatibility: suitable for pipes from 1/2-inch and up to larger sizes.
• Portable, durable design that resists heat and holds its marks during operation.

Whether you’re aligning components on a new build or prepping a repair, this center finder can become a reliable companion in your toolbox, offering practical features and real-world usefulness without overpromising. It presents possibilities for cleaner lines and more precise layouts.
