TANYO 2-in-1 Shelf Pin Jig & Hinge Jig — Aluminum Cabinet Drill Guide for 1/4 in and 5 mm Holes

The TANYO Shelf Pin Jig and Hinge Jig 2 in 1 blends practicality with precision. Built for DIYers who want dependable results without a steep learning curve, this all-in-one tool combines a shelf pin jig with a hinge jig in a single aluminum fixture.

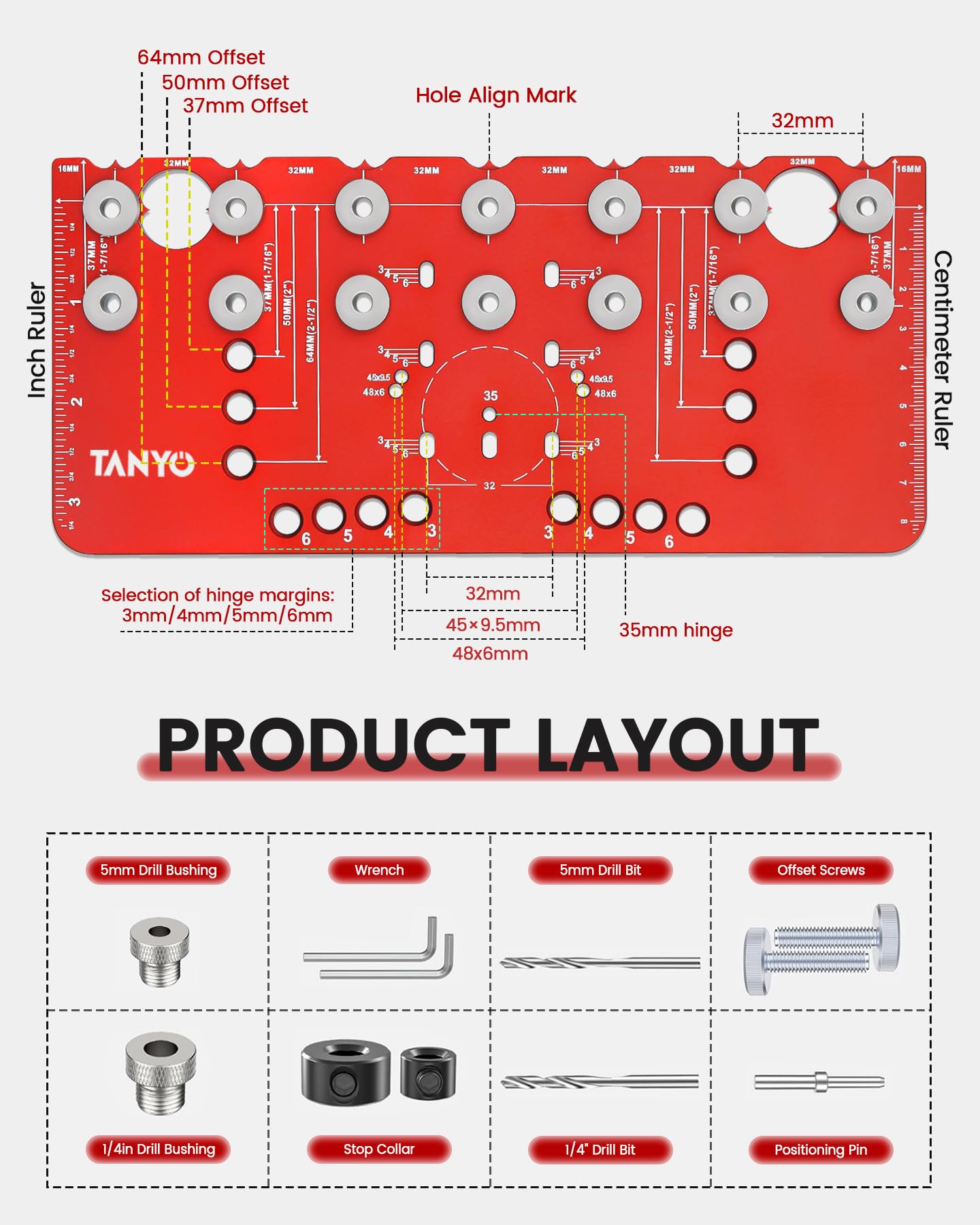

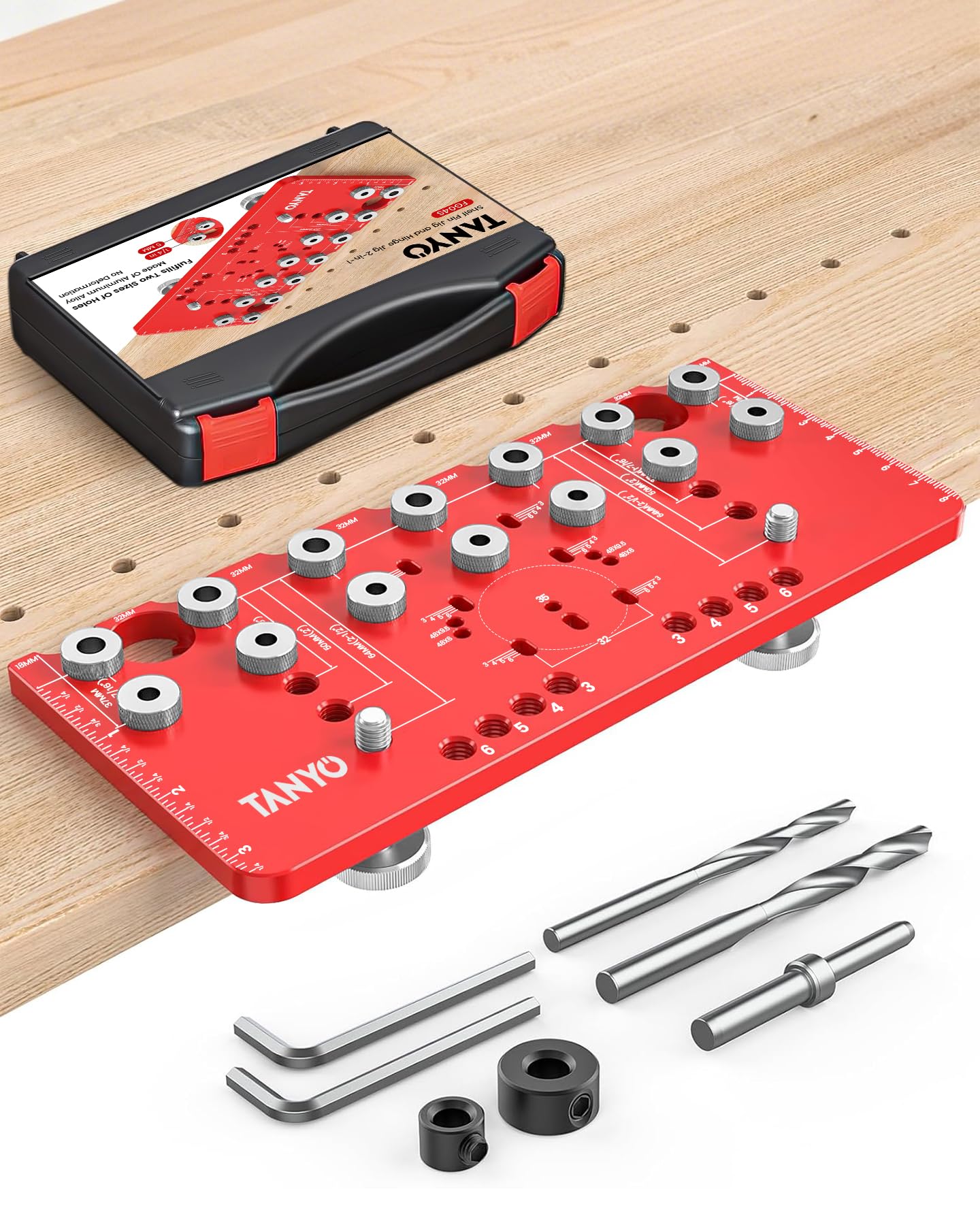

Construction and components matter. The jig is made from full aluminum, and it includes a φ35mm hinge module plus 14 removable drill sleeves (7 for 1/4 inch, 7 for 5 mm). It ships with a 1/4 inch drill bit and a 5 mm drill bit, making it ready to drill straight holes into cabinet surfaces. The compact, all-metal design feels solid in hand and glides smoothly as you mark and drill, reducing chatter and drift during setup.

Precision meets versatility

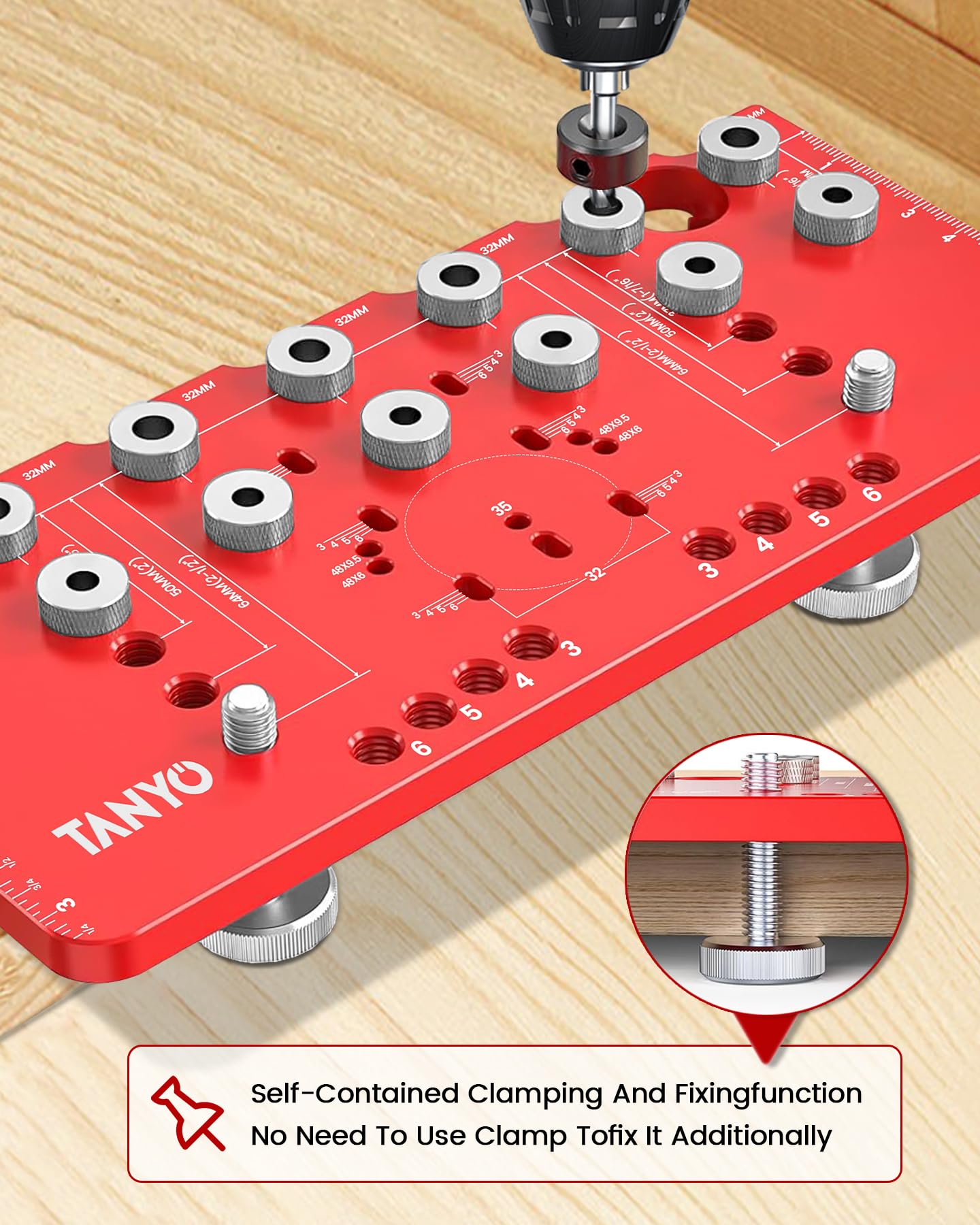

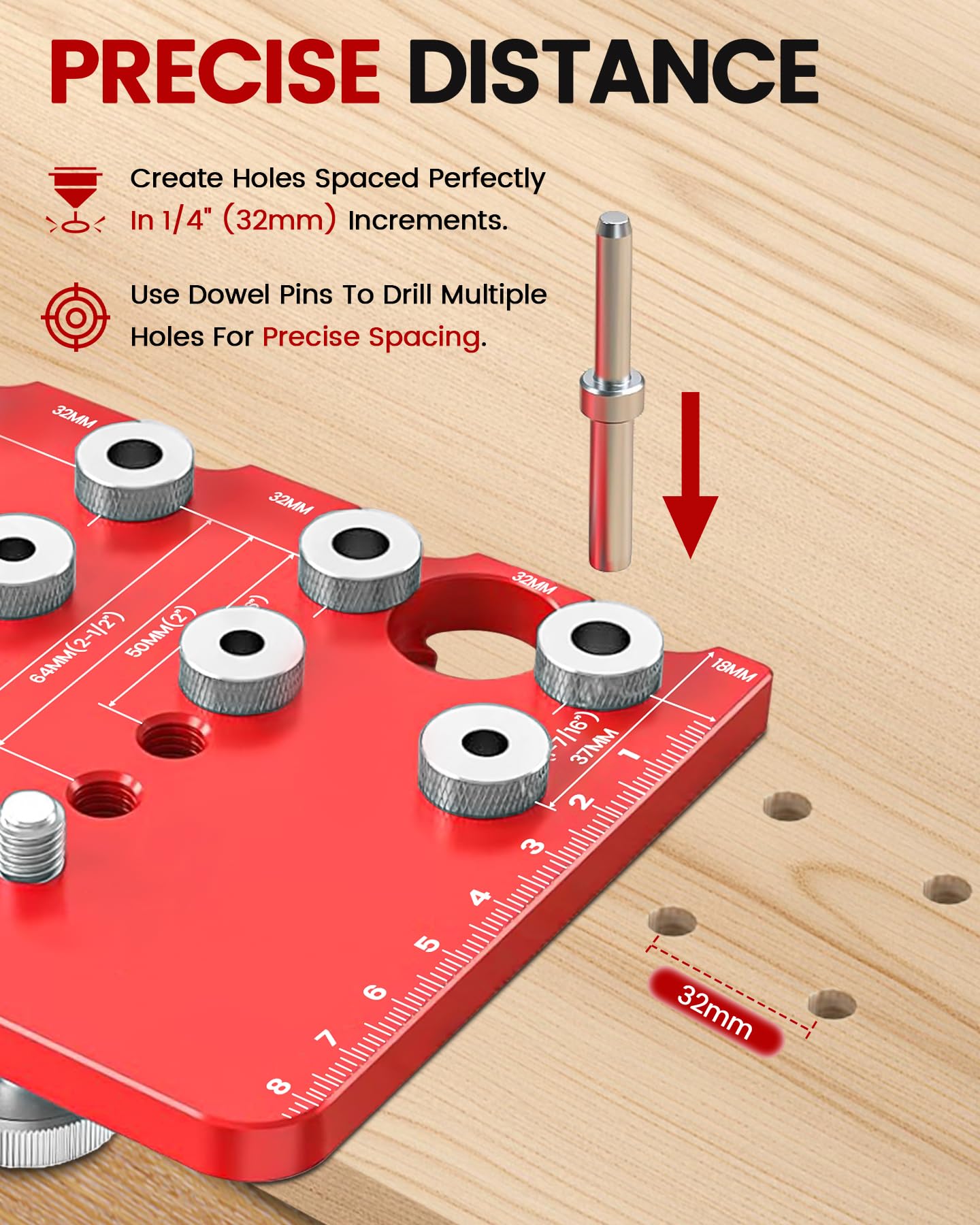

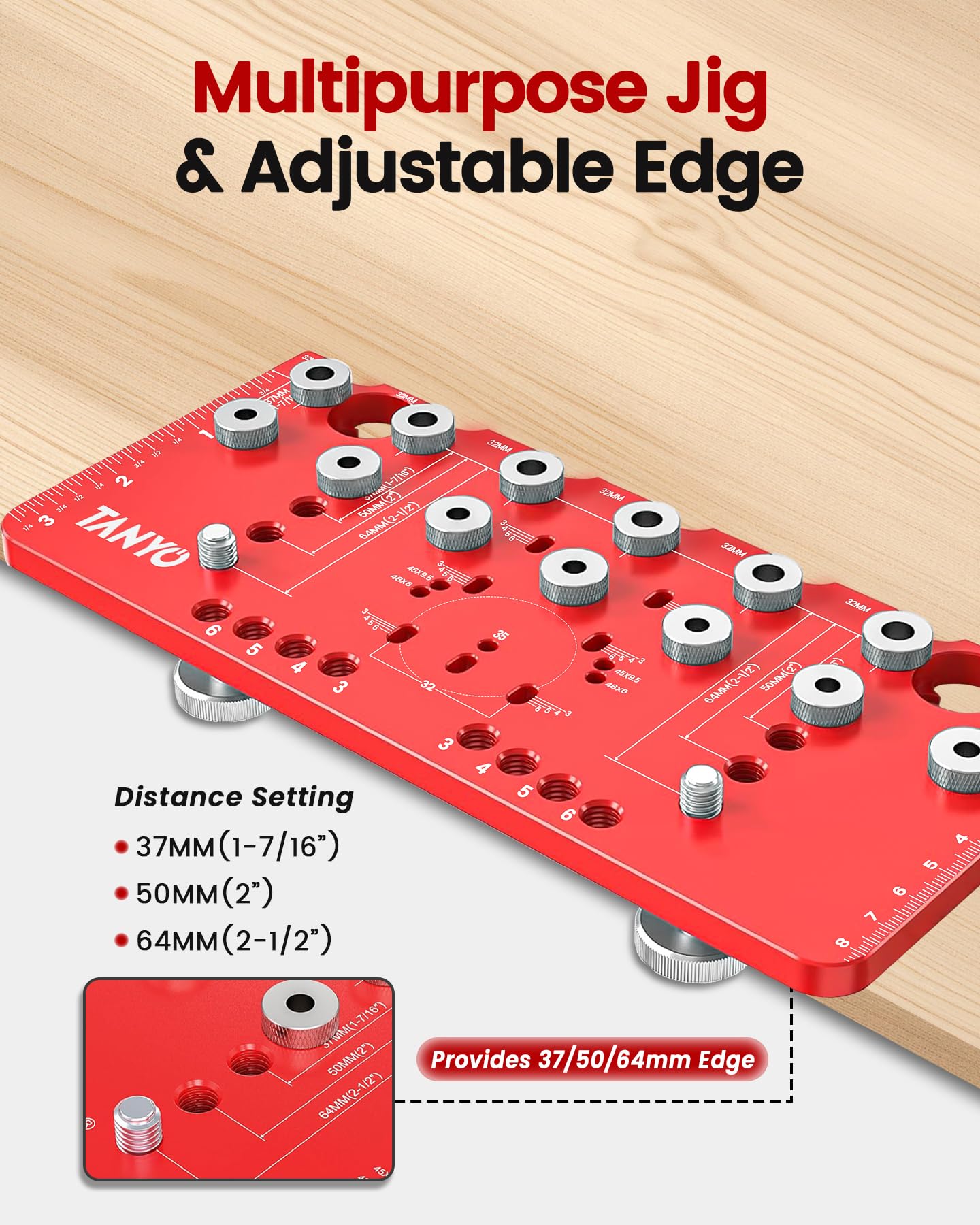

The device features precise double-sided scales for quick, accurate drilling of seven straight holes spaced 11/4 inches apart. A dowel pin supports continuous shelf hole drilling, while offset adjustments at 37/50/64 mm let you position shelf edges to suit your project. These features work together to help you align shelves and doors with less measuring and rework.

• 2 in 1 design with clamping and fixing functions simplifies cabinet installation.
• Full metal aluminum construction ensures durability and a smooth drill path.

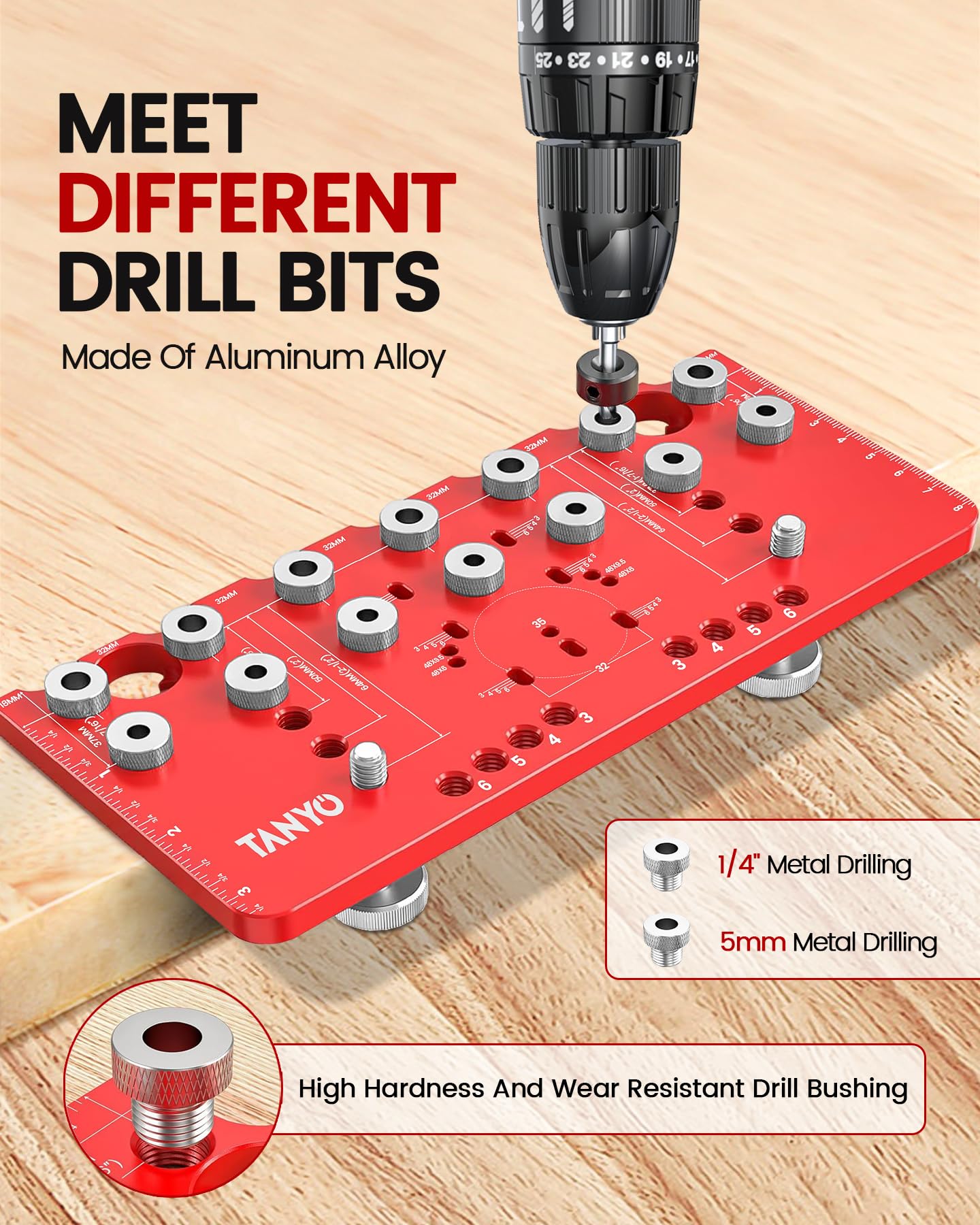

• Includes sleeves for 1/4 in and 5 mm bits, plus the included drill bits for immediate use.

Hinge compatibility and broader use

Designed to work with common US concealed hinges, including 35 mm straight and half wrap hinges, the jig also offers adjustable hinge margins (3/4/5/6 mm) for flexibility across projects. The durable aluminum construction and robust clamps resist wear over time, making it suitable for repeated use in busy workshops.

• Suitable for most standard concealed hinges and versatile margin adjustments.
• All metal shelf pins and hinge clamps provide wear-resistant performance.
• Ideal companion for DIY, woodworking, and home decoration tasks.

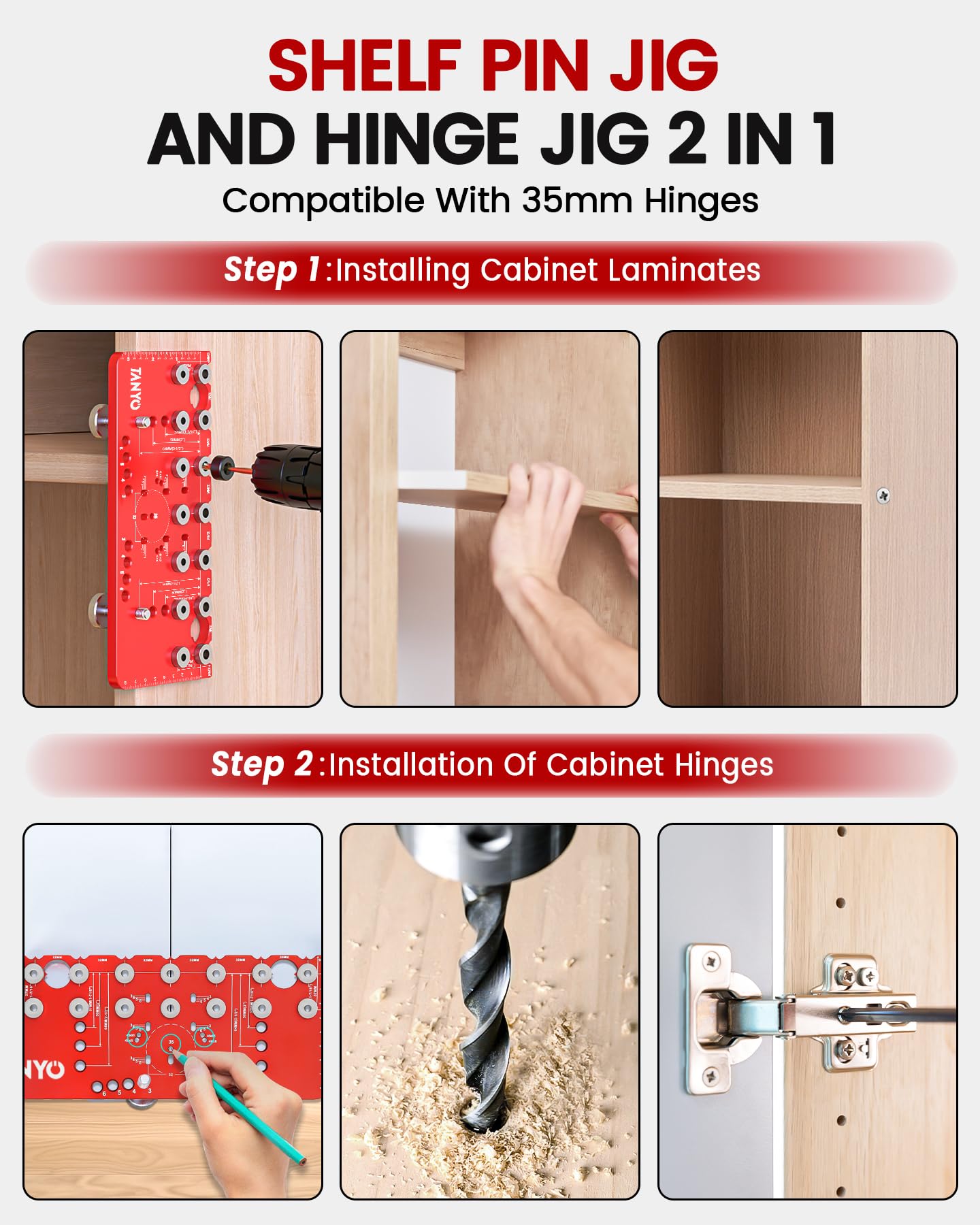

In real-world scenarios, you can assemble kitchen cabinets, renovate bookcases, or create custom storage where precise shelf spacing and flush hinge alignment matter. The TANYO jig supports steady drilling, repeatable results, and a streamlined workflow without requiring specialized tools.
