Talspity 326628-763 Furnace Draft Inducer Motor Assembly for Carrier/Bryant/Payne – Two-Speed, Ball Bearing

Overview

The Talspity 326628-763 draft inducer motor assembly is designed to replace a range of Carrier, Bryant, Payne, and Day & Night parts. This component powers the furnace’s venting sequence, helping to establish the right conditions for safe operation as the system begins to heat. Rather than simply starting the flame, the inducer creates a controlled draft that helps remove combustion byproducts and prepares the combustion chamber for ignition.

Key benefits

• Versatile compatibility with several brands and models, reducing the need for multiple replacements.
• Two-speed design lets the motor ramp airflow to match furnace demand, potentially improving startup smoothness and venting efficiency.
• Thermally protected to help prevent overheating under load, contributing to reliability over time.

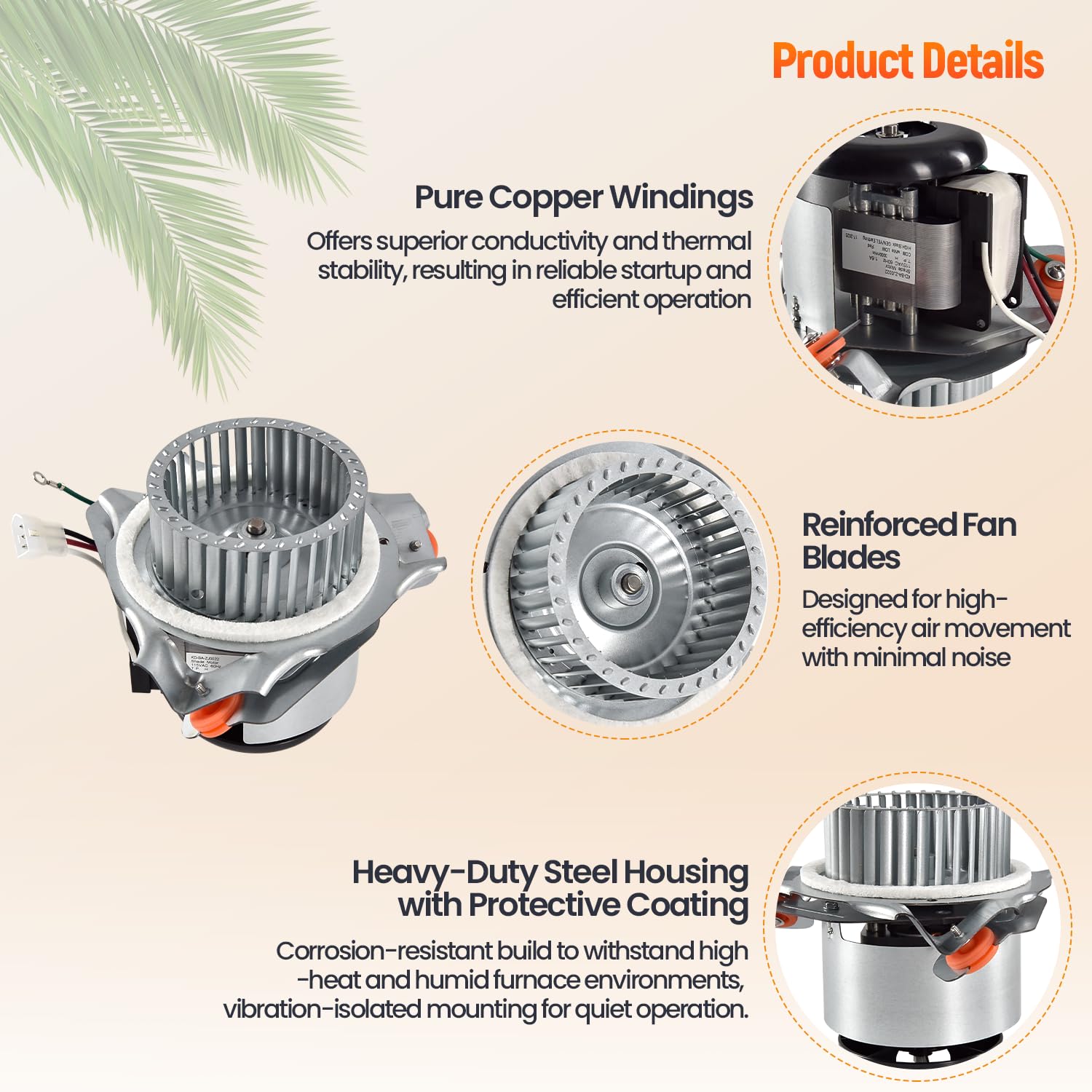

• Ball bearing construction minimizes friction for quieter, longer-lasting operation compared with plain bearings.
• Automatic safety switch (Auto Top) enhances protection during operation and shutdown sequences.
• Designed for a CWSE rotation, driving the fan wheel to push air through the heat exchanger and exhaust vent.
• Electrical specs: 115V, 60Hz, 3000 RPM, with two speeds and low/high current options (1.32A/0.39A).

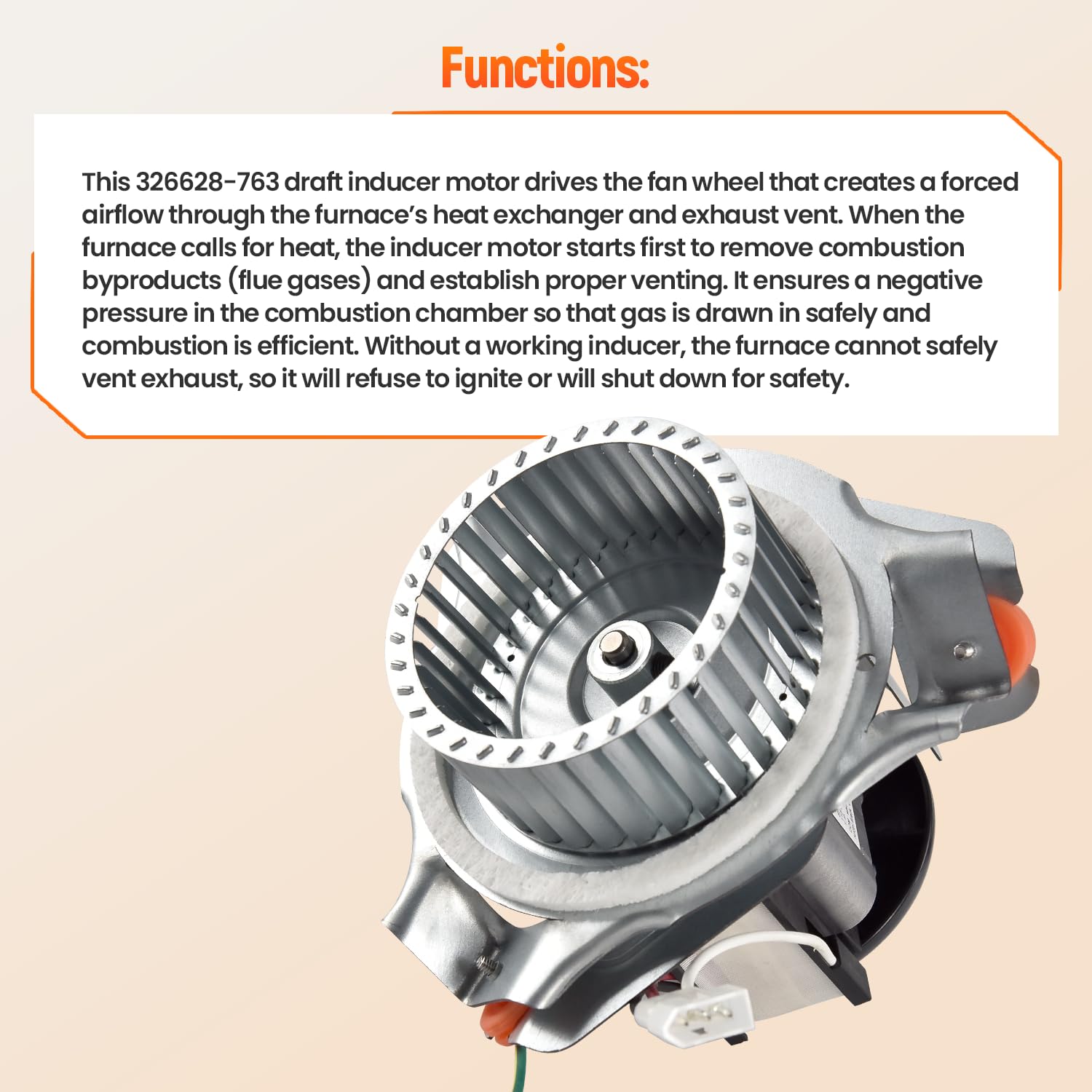

What it does in your furnace

When your furnace calls for heat, this inducer motor starts first to establish a negative pressure in the combustion chamber. This helps safely draw in gas and exhaust combustion products through the venting system, while supporting a reliable ignition sequence and proper venting conditions. Without a functioning inducer, the furnace may not ignite or could enter a protective shutdown to prevent unsafe operation.

Usage notes and care

Two key considerations are the two-speed operation and thermal protection. If you notice unusual noises, slower startup, or frequent shutdowns, it may be worth inspecting the inducer for debris or wear. Our team is available for questions about fit and installation to help you navigate any issues quickly.

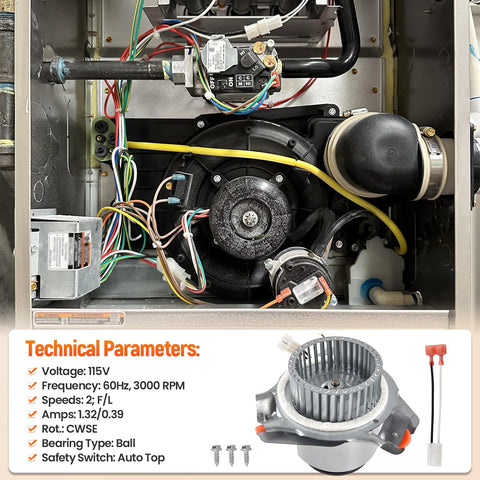

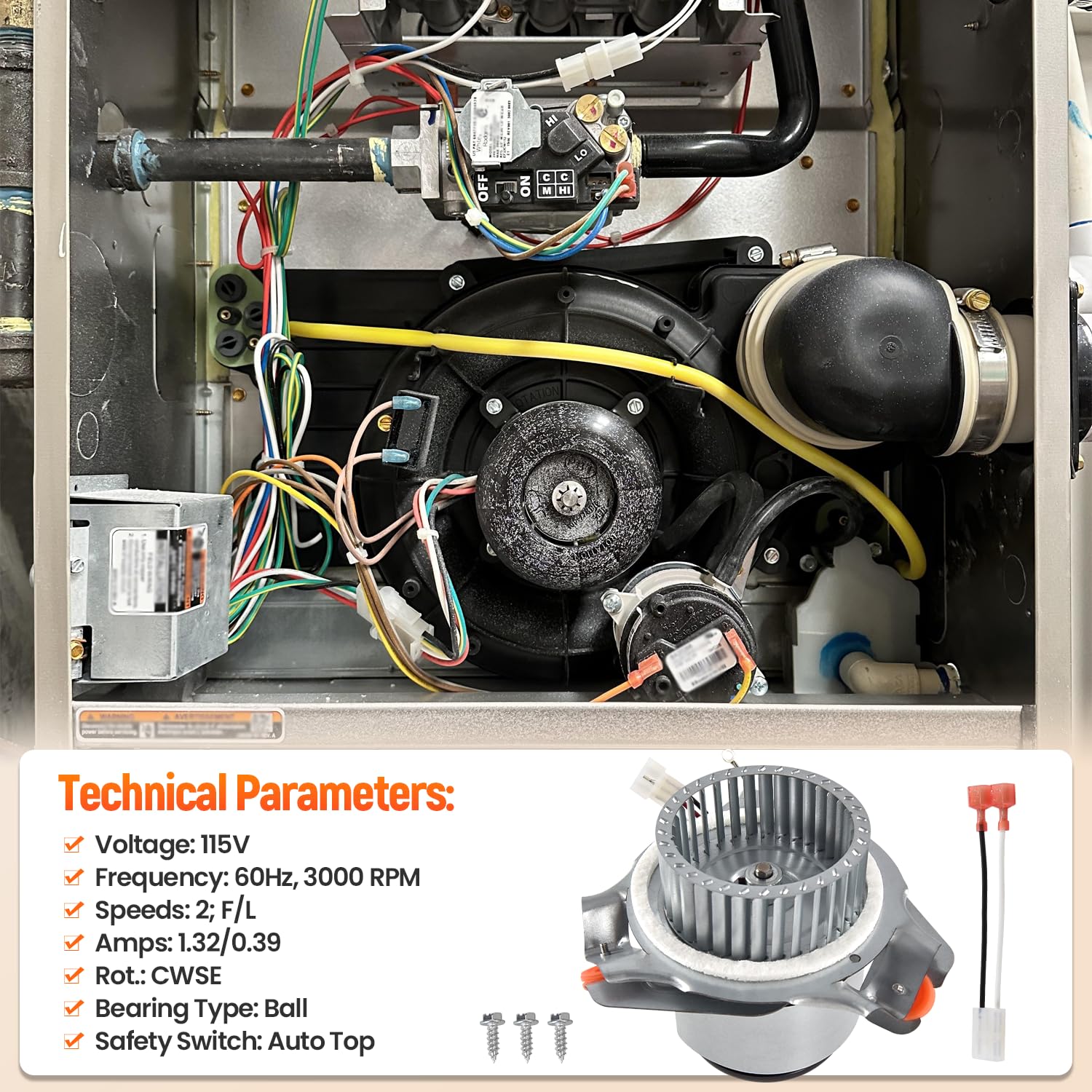

Specifications & compatibility

• Voltage: 115V; Frequency: 60Hz; Rotation: CWSE; Speed: 2 (high/low)
• Bearing type: Ball; Safety switch: Auto Top; RPM: 3000

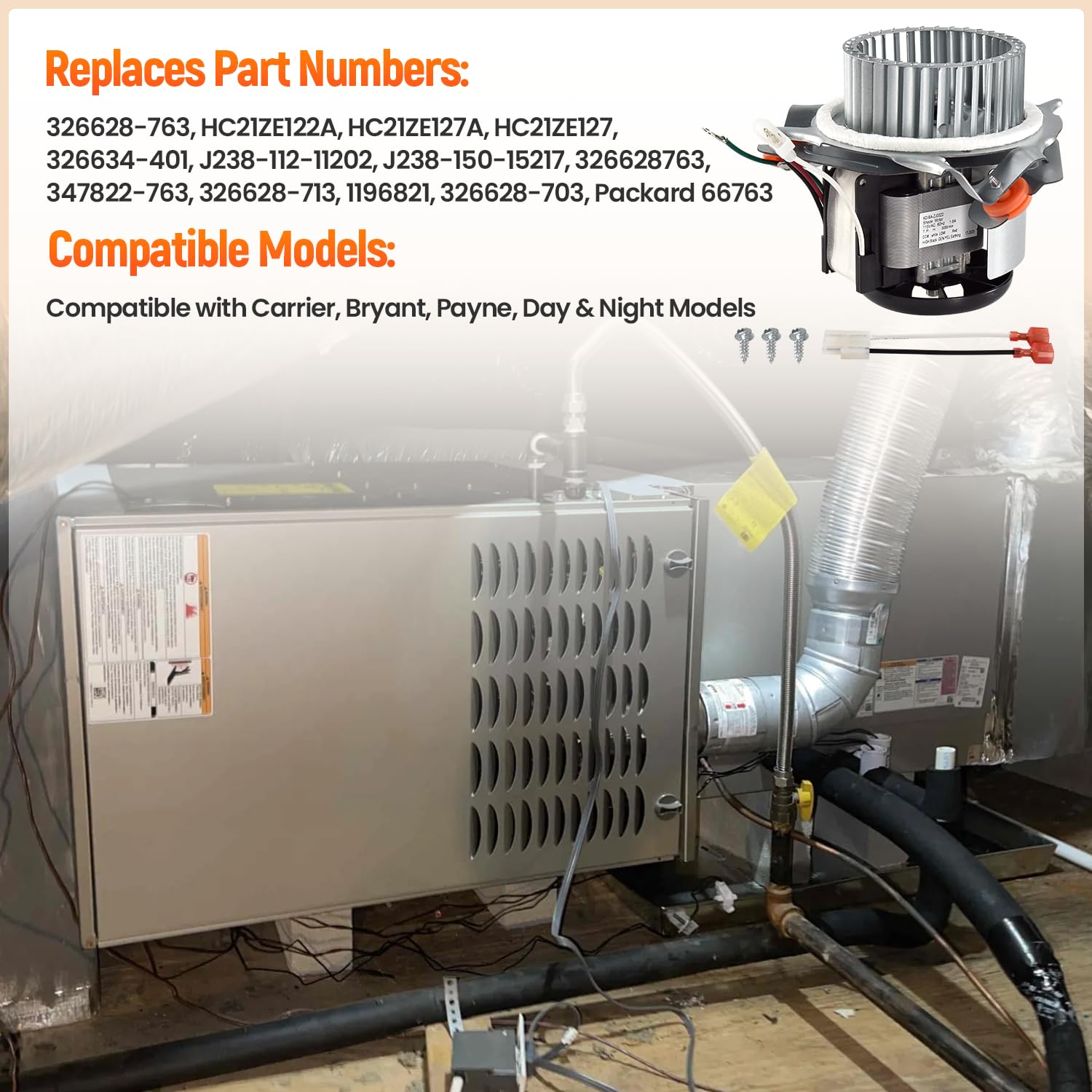

• Replaces part numbers: 326628-763, HC21ZE122A, HC21ZE127A, HC21ZE127, 326634-401, J238-112-11202, J238-150-15217, 326628763, 347822-763, 326628-713, 1196821, 326628-703, Packard 66763
• Compatible with Carrier, Bryant, Payne, and Day & Night models

Warm note: We value your buying experience. If you have questions or issues, please reach out—most problems are resolved promptly.
