Square D HomeLine 100A Load Center Kit – 20 Spaces, 40 Circuits, Qwik-Grip

Meet the Square D HomeLine 100A Load Center Kit

Designed for remodels, service changes, or new installations, this value pack centers on a 100-amp main breaker and a combination mount that keeps the panel compact and practical. The Qwik-Grip wire management system speeds up wire routing, letting you slide conductors into the dedicated insert in seconds. The design minimizes the need for excessive knock-outs during rough-ins, helping crews stay organized and focused on the task at hand.

Key benefits

• Qwik-Grip reduces installation time by guiding wires into a fixed insert with minimal effort.
• Minimal knock-outs simplify rough-ins and reduce confusion during wiring.
• No pigtail wires required, yielding a cleaner, simpler wiring process with fewer conductors to manage.
• Capacity for up to 40 circuits across 20 spaces supports future expansion while keeping the panel manageable.
• Includes the necessary breakers and a 100-amp main, all in one value pack for convenient upgrades.
• 22,000 AIC short-circuit rating offers robust protection in typical residential applications.

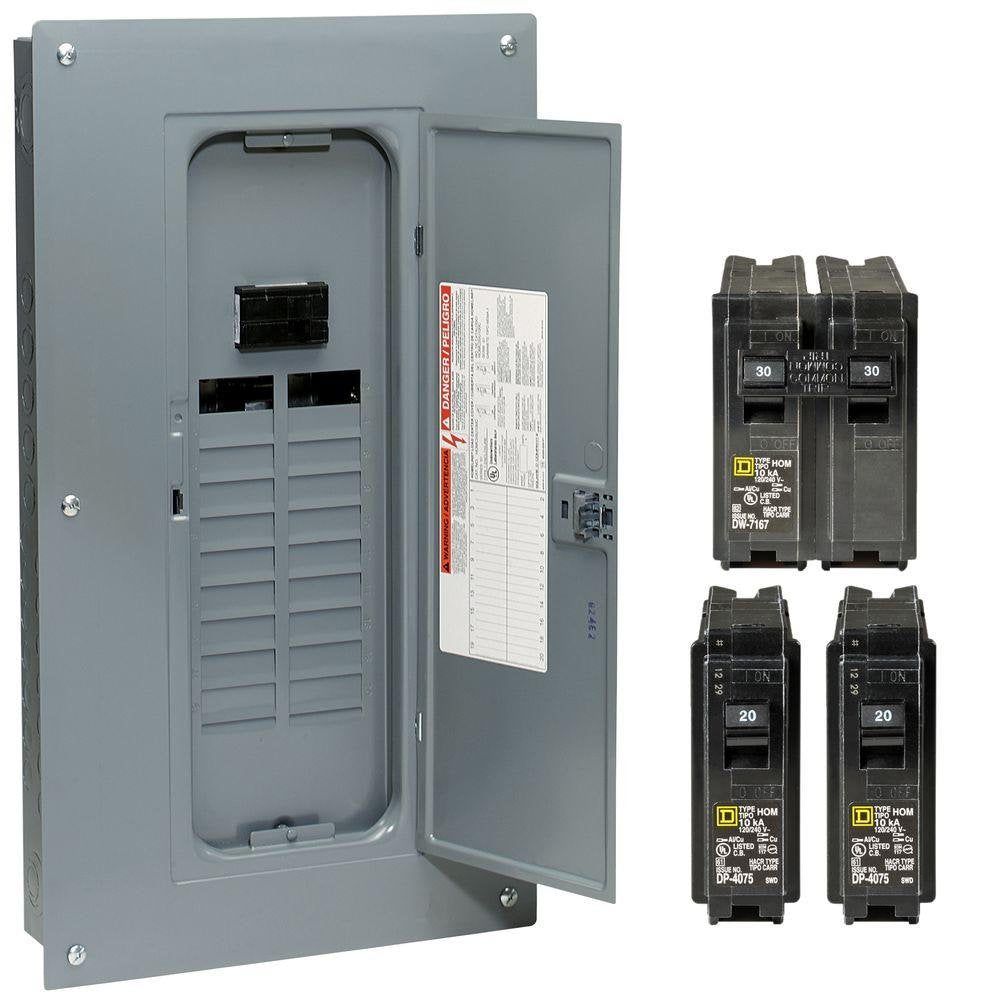

What’s included

• 2 x HOM120CP circuit breakers
• 1 x HOM230CP circuit breaker
• Load center with 100-amp main breaker
• Qwik-Grip assembly kit for fast wire management

Ideal uses and installation notes

Best suited for remodels, service changes, and retrofits where quick wiring and easy access matter. The Qwik-Grip insert is removable, creating a clean opening to pull in existing feeders without forcing extra cuts or new knock-outs. The package is designed for indoor use and is compatible with 120/240V systems.

Specifications at a glance

• Series: Homeline
• Amperage: 100 A
• Spaces: 20, Circuits: up to 40
• Voltage: 120/240 V
• Enclosure: Indoor
• Mount: Combination
• Phase: Single
• Wire sizes: 6-2/0 AWG (Aluminum), 6-1 AWG (Copper)
