Square D HOM230GFIC 30-Amp GFCI 2-Pole Plug-In Breaker | Homeline | Schneider Electric

Overview

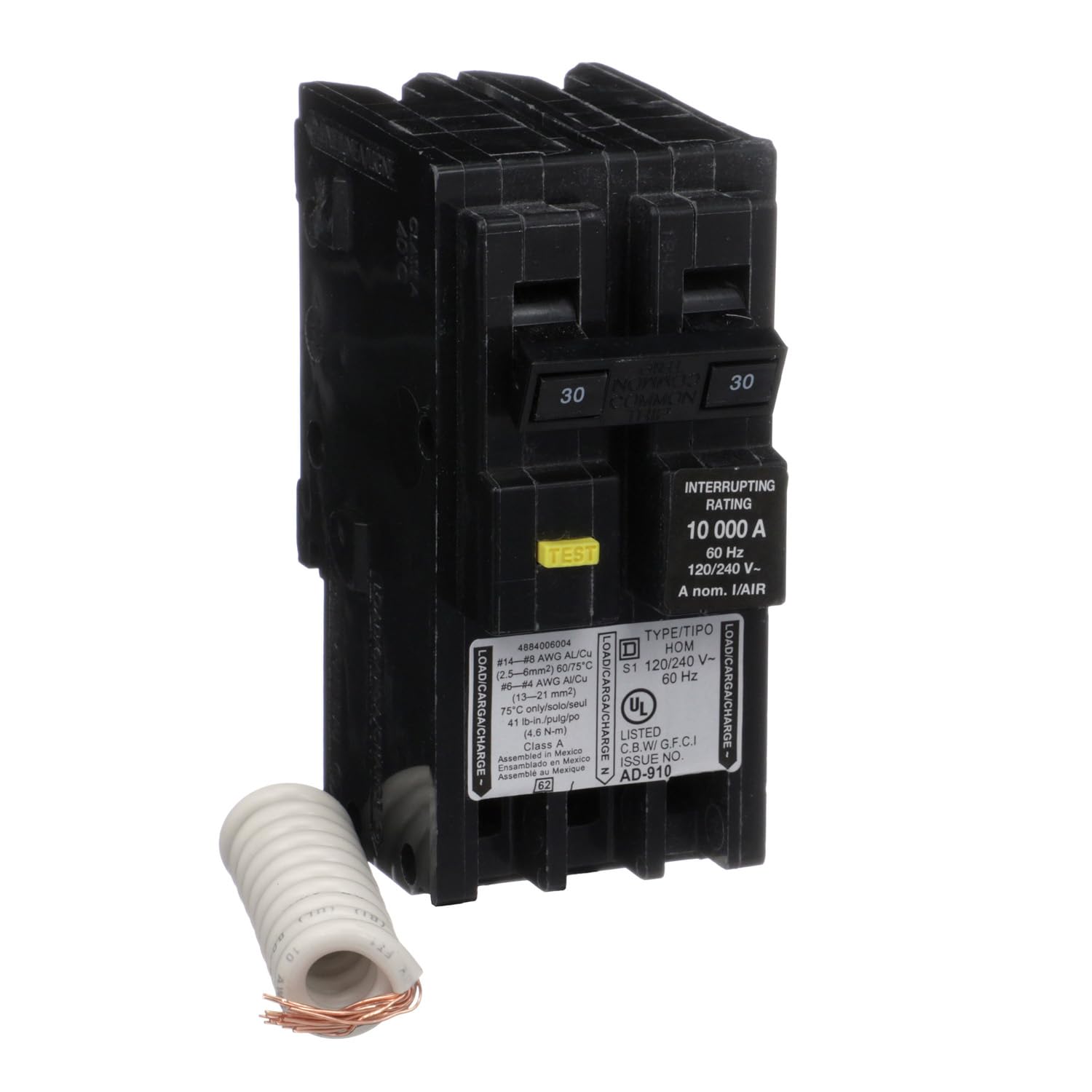

Upgrade your electrical protection with the Square D HOM230GFIC, a 2-pole GFCI breaker designed for Homeline load centers. This 30-amp unit provides reliable overcurrent protection with integrated ground fault sensing, helping circuits resist shock hazards while maintaining straightforward plug-in installation.

Real-world usage scenarios include protecting circuits in kitchens with high appliance loads, basements prone to moisture, or garages with power tools. The 30-amp rating fits common branch circuits, while the test and reset actions offer quick feedback during panel inspections and maintenance.

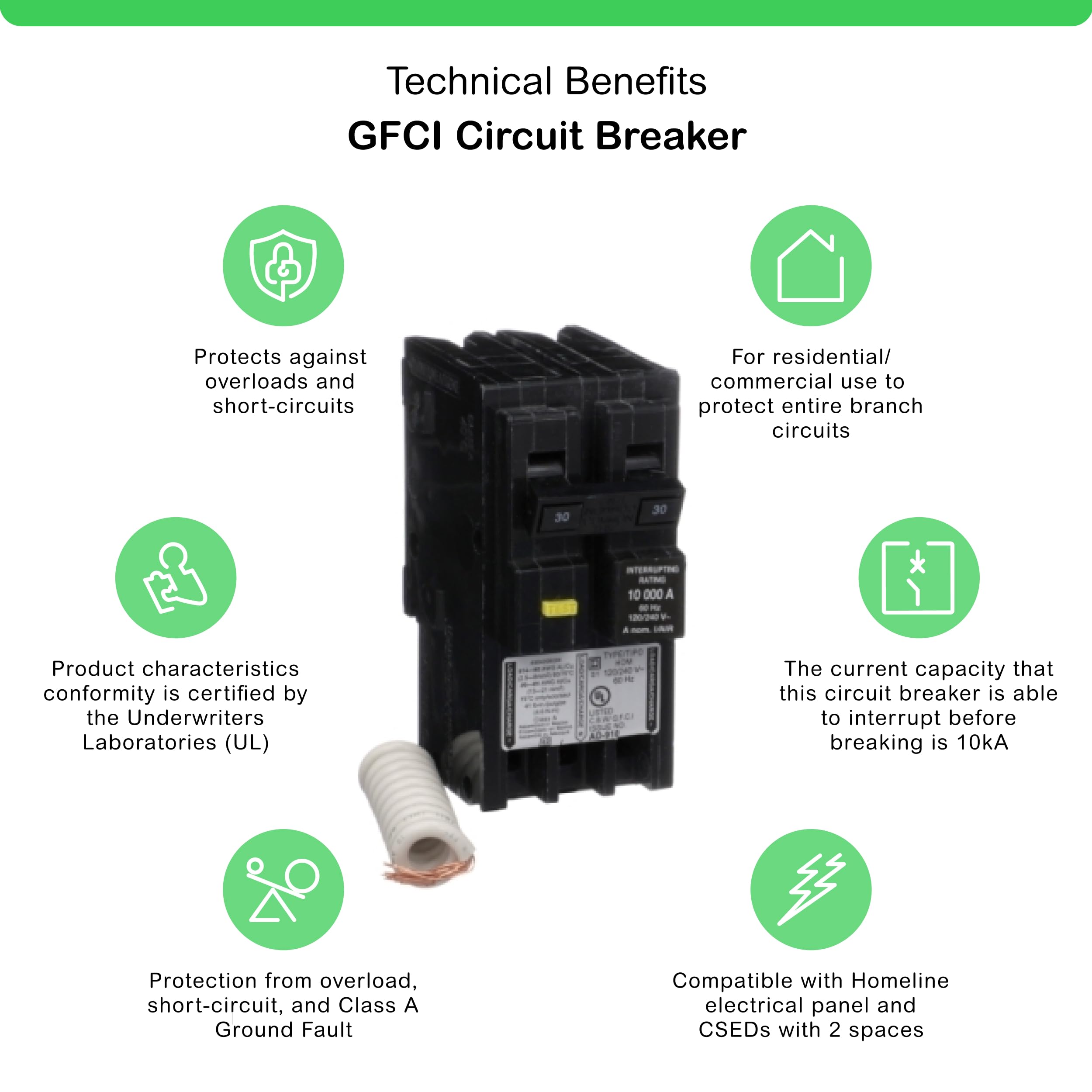

Why choose Square D HOM230GFIC

• GFCI protection for enhanced safety on vulnerable circuits
• Overcurrent protection up to 30 A, 120/240 VAC compatibility
• HACR-rated for select equipment such as HVAC
• 10 kA interrupting rating handles typical surges
• Plug-on design supports fast swaps and a clean panel appearance
• Clamp terminal accepts 14-8 AWG copper or aluminum wires
• UL Listed and designed to work with Homeline load centers

Technical details and compatibility

• Voltage: 120/240 VAC
• Poles: 2-pole
• Breaking capacity: 10 kA (AIR)
• Connection: clamp terminal for 14-8 AWG copper or aluminum
• Ambient operating temperature: up to 104 °F (40 °C)
• UL Listed; compatible with Homeline load centers and CSED devices

Installation tips

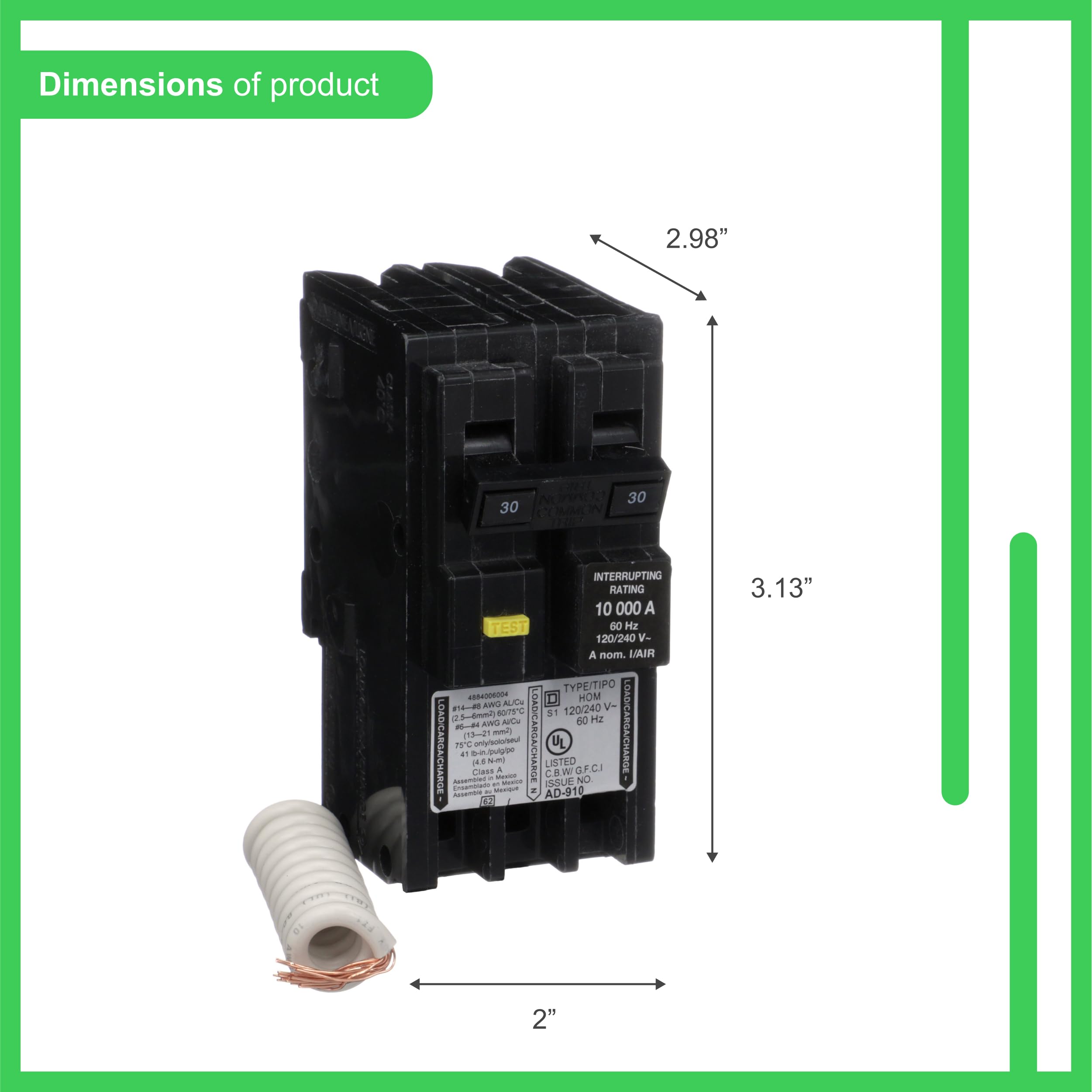

Ensure your panel supports Homeline plug-on breakers. The unit’s compact dimensions fit standard spaces, and its plug-in design enables faster replacements. The product ships in a clam shell package for protection during shipment.

With the HOM230GFIC, you get a practical, balanced option that emphasizes safety, reliability, and ease of installation—possibilities for safer circuits without overpromising outcomes.
