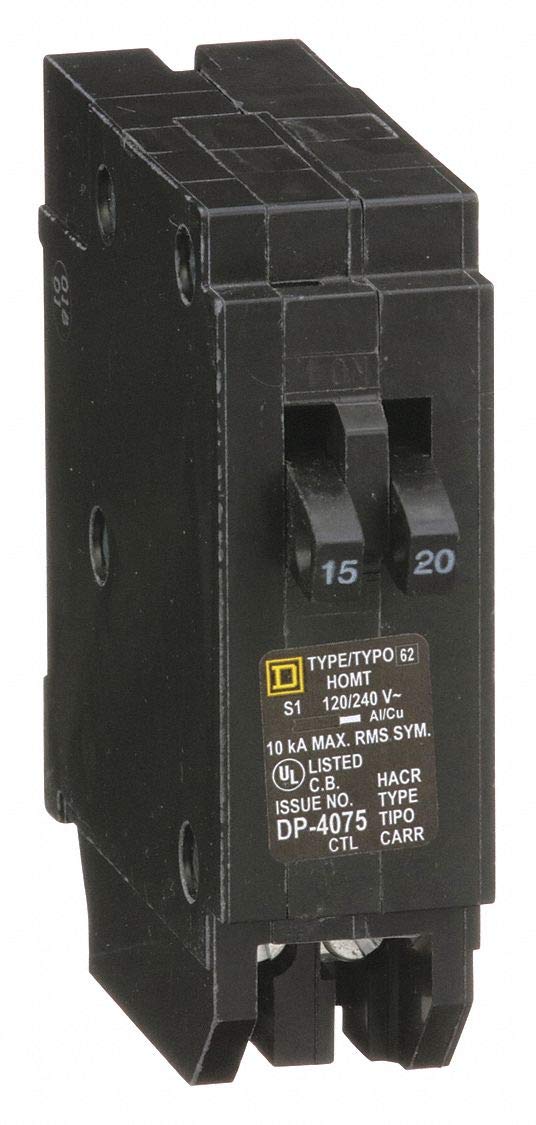

Square D HOM Tandem Plug-In Circuit Breaker 15/20A | 120/240VAC

Overview

Optimize panel capacity with a compact tandem breaker designed for Homeline load centers. The Square D HOM tandem plug-in breaker delivers a 15/20A rating in a single-pole form, offering a space-saving solution that helps you fit more circuits into existing panels without compromising reliability. Its streamlined profile and robust construction make it a practical choice for projects where every inch counts.

This breaker supports 120/240VAC circuits and is part of the HOM series, intended for use in Homeline Load Centers. The design is well-suited for remodels, multi-family installations, and light commercial applications where expanding capacity matters.

Why choose this Square D HOM tandem breaker?

• Maximize panel capacity by placing two circuits in a single slot, enabling space-efficient panel configurations.
• Compatible with HOMELINE and CSED panels that accept tandem and quad breakers, providing flexible sizing options.
• UL Listed and CSA Certified for HACR-type applications, offering trusted performance within safety standards.
• Rated for 120/240VAC operation with a 15/20A range, suitable for a variety of branch circuits.

Specifications at a glance

• Series: HOM
• Type: Plug-In Tandem, 1 pole, 15/20A
• Voltage: 120/240VAC
• For Use With: Homeline Load Centers
• Terminal: Screw Clamp
• Wire Size: 14 AWG to 8 AWG
• Dimensions: 3.13" L × 1.00" W × 2.98" D
• Max. AIR Rating: 10 kA
• Standards: UL Listed, CSA Certified

In practice, this tandem breaker can simplify upgrades and remodels by reducing the number of panel slots needed for additional circuits. The screw clamp terminals provide a secure, straightforward wiring experience, while the 120/240VAC compatibility covers a wide range of residential and light commercial needs. While outcomes vary by installation, the design supports greater circuit density and flexible panel planning without sacrificing compliance or reliability.
